USER MANUAL CAMTVI17 VELLEMAN

Exterior view of a security camera with mounted sensor and wall-mounted bracket (no text or symbols visible)

HD-TVI / CVI / AHD / ANALOGUE - BULLET - VARIFOCAL - 1080P

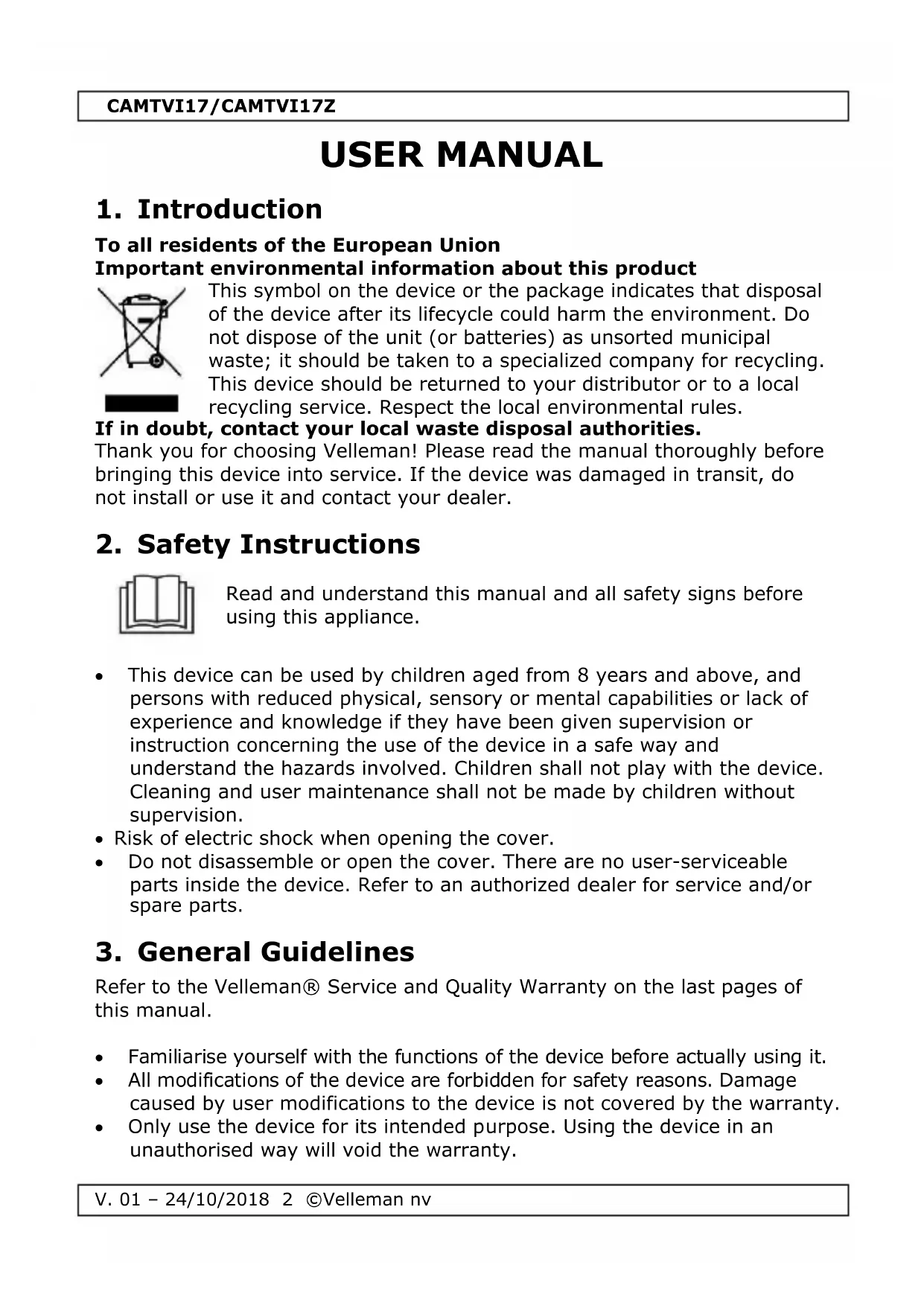

USER MANUAL 2

HANDLEIDING 7

MODE D'EMPLOI 12

MANUAL DEL USUARIO 17

To all residents of the European Union

Important environmental information about this product

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• Risk of electric shock when opening the cover.
• Do not disassemble or open the cover. There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

CAMTVI17/CAMTVI17Z

• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Keep this device away from extreme heat.
• Protect this device from shocks and abuse. Avoid brute force when operating the device.
• Do not use this product to violate privacy laws or perform other illegal activities.

4. Hardware installation

1. Choose a location for the camera, keeping following guidelines in mind:

2. do not install the camera in locations where extremely high or low temperatures or excessive vibrations may occur.

3. avoid mounting the camera near high electro-magnetic fields.
4. do not aim the camera at the sun or other extremely bright objects or reflections (e.g. metal doors).

Take the base as a template and drill the necessary mounting holes. If necessary, drill a hole for routing the cables. Insert a nylon plug in each hole.

1. Loosen the joint lock for the bracket using a hex wrench.
2. Fix the bracket using the included screws. Adjust the camera lens and aim it toward the surveillance area. Lock the bracket using a hex wrench.

5. OSD Settings

There is a small joystick in the camera cable that allows you to adjust the settings of the camera using an on-screen display (OSD).

Abstract geometric symbol with four black triangles radiating from a central circle (no text or labels)

• Press the middle button to access the menu, or to select an option.
• Press the up and down buttons to move up and down in the menu.
• Press the left and right buttons to modify the menu parameters.

In the OSD menu:

• NEXT/BACK: select this option and press the middle button to go to the next/previous page of options in the menu.
• RETURN: select this option and press the middle button to return to the previous level in the menu.
• EXIT: select this option and press the middle button to leave the OSD menu without saving the settings.

CAMTVI17/CAMTVI17Z

• SAVE ALL: select this option and press the middle button to save all settings.
• CAMERA RESET: select this option and press the middle button to reset the camera to the factory defaults.

The OSD menu settings are described in detail below.

Refer to the table on the final pages of this manual.

5.1 Selecting the Video Signal

Hold the joystick button pressed for 5 seconds to select your video signal (default signal: TVI).

AHD CVBS TVI CVI

5.2 IRIS

Use this menu to adjust the iris settings.

5.3 FOCUS ADJ

Use this menu to adjust the focus level.

5.4 EXPOSURE

Use this menu to set the common adjustments for video images.

5.5 BACKLIGHT

Use this menu to set the different image light settings.

5.6 DAY&NIGHT

The camera can switch automatically between colour images in day conditions and black-and-white images in night conditions. Use this function to control the day/night behaviour of the camera.

CAMTVI17/CAMTVI17Z

Note: black-and-white images are much clearer and contain less noise at low light levels.

5.7 COLOR

Use this menu to set the different colour adjustments.

5.8 DNR

Use this menu to set the digital noise reduction level.

5.9 IMAGE

Use this menu to adjust the image settings.

5.10 MOTION

Use this menu to adjust the motion detection settings.

5.11 SYSTEM

Use this menu to adjust the general system settings.

5.12 EXIT

Use this option to exit the menu without saving.

6. Technical specifications

IP rating.... IP66 pick-up element .... 1/2.9" Sony CMOS image sensor pixels .... 1920 (H) x 1080 (V) resolution.... 1080P video digital signal processor.... Eyenix EN-771 C IR LEDs.... 6 x high-power SMD IR-cut filter.... yes max. IR projection distance.... 60 m S/N ratio.... > 50 dB (AGC off) electronic shutter .... 1/25 - 1/50.000 sec lens CAMTVI17.... f2.8\~12 mm CAMTVI17Z.... f6\~22 mm BLC.... yes WDR.... yes AGC.... yes

CAMTVI17/CAMTVI17Z

white balance .... automatic video output .... BNC connection TVI signal.... 1080P PAL video.... 960H CVI signal.... 1080P

AHD signal 1080P audio no power supply 12 VDC current consumption max. 800 mA operating temperature -10 °C to 40 °C - RH max. 95 % dimensions 215 x 95 x 195 mm weight 870 g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulted from (incorrect) use of this device. For more info concerning this product and the latest version of this user manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

This manual is copyrighted. The copyright to this manual is owned by Velleman nv.

All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
