Product Type	HD surveillance camera
Resolution	1080P (1920 x 1080)
Sensor	CMOS 1/2.7 inch
Number of pixels	1930 (H) x 1088 (V)
Protection rating	IP66 (weatherproof)
Night vision	Yes, with 24 IR LEDs, range 25 m
Infrared filter	Yes, automatic day/night switching
Lens	Varifocal 2.8 ~ 12 mm, F1.4 ~ F2.8
Viewing angle	40° ~ 124° (diagonal)
Minimum illumination	0.1 lux / F1.8 (wide) ~ F2.8 (tele)
Signal/noise ratio	> 48 dB (AGC off)
Video output	BNC (TVI signal)
Audio	No
Power supply	12 VDC, 300 mA max
Operating temperature	-20 °C ~ 40 °C, RH max 95%
Dimensions	∅ 138 x 100 mm
Weight	570 g
OSD functions	Privacy zone, white balance, mirror, flip, day/night, etc.
Backlight compensation	BLC (Yes)
Automatic gain control	AGC (Yes)
Motion detection	Yes, adjustable
Cleaning	Clean regularly with a soft, dry cloth
Safety	Anti-vandal housing, do not open (risk of electric shock)
Spare parts / repairability	No user-serviceable parts, contact the dealer

Frequently Asked Questions - CAMTVI5 VELLEMAN

How to install the CAMTVI5 camera?

Remove the base, drill mounting holes, route the cable, fix the bracket with the provided screws, then adjust the lens and connect the 12 VDC power supply and coaxial cable to the DVR.

What power supply to use for this camera?

Use only a regulated 12 VDC power supply. An unregulated power supply may damage the camera.

How to access the camera OSD menu?

Two methods: either by clicking on the camera channel in the DVR's live view, or through the DVR menu by selecting ADVANCED CONFIG then DCCS and choosing the channel.

Is the camera compatible with all DVRs?

No, it works only with TVI compatible DVRs, such as Velleman DVRxTx series. Velleman does not guarantee operation with other types.

How to adjust the varifocal lens?

Slightly turn the FOCUS screw (a) and/or (b) with a suitable screwdriver until the desired image is obtained.

What is the night vision range?

The maximum infrared range is 25 meters thanks to the 24 IR LEDs.

What is the camera's protection rating?

The protection rating is IP66, making it weatherproof and dust resistant.

How to clean the camera?

Clean the housing regularly with a soft, dry cloth. Avoid abrasive products or solvents.

What to do if the image is blurry?

Adjust the varifocal lens by turning the FOCUS screws (a) and (b). Also check that the IR filter is working correctly and that the camera is not obstructed.

Can I repair the camera myself?

No, the housing contains no user-serviceable parts. Opening poses a risk of electric shock. Contact your dealer for any repairs.

USER MANUAL CAMTVI5 VELLEMAN

Close-up of a white circular security camera with dual lens and control buttons (no visible text or symbols)

USER MANUAL 2

GEBRUIKERSHANDLEIDING 10

MODE D'EMPLOI 18

MANUAL DEL USUARIO 26

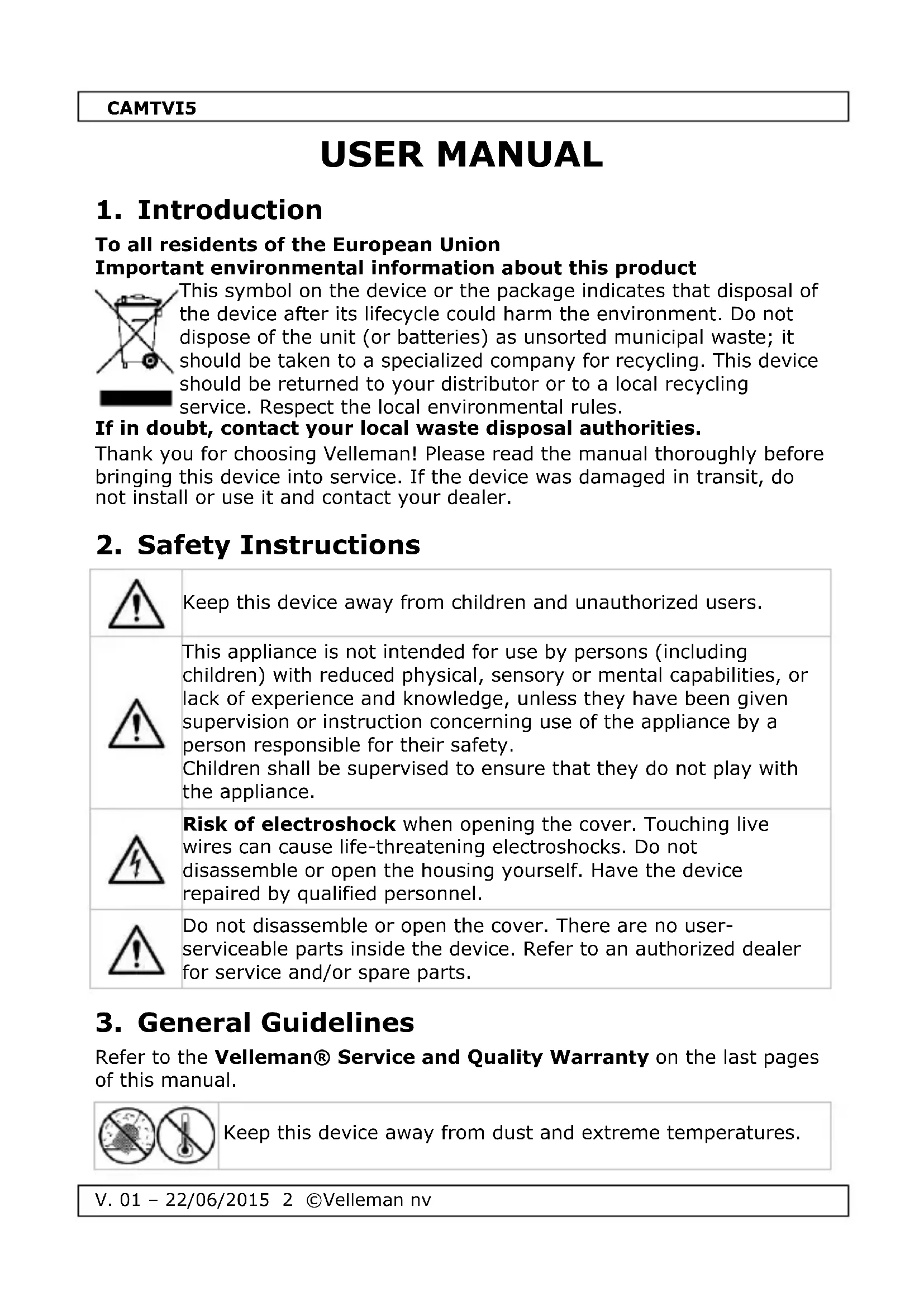

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

	Keep this device away from children and unauthorized users.
	This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.Children shall be supervised to ensure that they do not play with the appliance.
	Risk of electroshock when opening the cover. Touching live wires can cause life-threatening electroshocks. Do not disassemble or open the housing yourself. Have the device repaired by qualified personnel.
	Do not disassemble or open the cover. There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

Keep this device away from dust and extreme temperatures.

Protect this device from shocks and abuse. Avoid brute force when operating the device.

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Due to constant product improvements, the actual product appearance might differ from the shown images.
• Product images are for illustrative purposes only.
• Do not use this product to violate privacy laws or perform other illegal activities.
• Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device against damage by leaving it switched off until it has reached room temperature.
• Keep this manual for future reference.

4. Features

This HDCCTV or TVI (High Definition Transport Video Interface) camera is equipped with a CMOS image sensor. The video image quality is 1080P. The IR-cut filter will filter the IR light, so it cannot distort the colour image. When it gets dark, the camera automatically switches to night mode. In night mode, the camera enables the IR LEDs and disables the IR-cut filter.

• weatherproof
  • B/W night vision (IR LEDs)
  • 1080P video signal

• vandal resistant bracket

- special functions via on-screen display (OSD) set-up menu:

• privacy zone
  ○ white balance
• mirror and flip function
  ○ day/night mode

CAMTV15

5. Installation

1. Remove the camera base. Loosen the hex screw on the outer ring. Hold the outer ring and turn the base in an anti-clockwise direction to unscrew it.

Diagram showing a mechanical component before and after assembly, with no visible text or symbols.

1. Choose your mounting spot. Take the base as a template and drill the necessary mounting holes. If necessary, drill a hole for routing the cables. Insert a nylon plug in each hole.

Technical line drawing of a mechanical assembly with screws and a dome base (no text or symbols)

1. Pass the camera cable through the base and fix the bracket using the included screws. If applicable, pass the cable through the routing hole.
2. Slightly adjust the camera lens and aim it toward the surveillance area.
3. Replace the inner ring over the camera and hold in place.

CAMTV15

Diagram showing a 3D object transforming into a spherical object with a curved top surface (no text or symbols)

1. Replace the outer ring over the inner ring and turn in a clockwise direction to fix.

Diagram showing a circular object transforming into a spherical object with rotation arrows (no text or symbols)

1. Connect and power your camera (see below). Check the viewing angle on your PC.

2. Adjust the position and viewing angle if necessary.

6. Connection

1. Connect the power terminal of the camera to a 12 VDC regulated power supply.

2. Connect the video output of the camera to the video input of your DVR using a 75 Ω coaxial cable.

Remarks:

- Only use a regulated 12 VDC power adapter. Using any other type will damage this camera.

- Protect the connectors against moisture by applying some insulating tape over the connectors.

7. Camera Configuration

This camera has its own configuration menu. Either of the two methods below allows access the menu.

CAMTVI5

7.1 Method 1

1. On the DVR live view, click the camera's channel to display it in full screen.
2. Open the control panel by clicking the camera and the panel icons.

1. The control panel appears.

7.2 Method 2

1. On the DVR live view, right-click in the screen to display the DVR menu.
2. Select ADVANCED CONFIG and then DCCS.

ADVANCED CONFIG
CAMERADETECTIONALERTNETWORKDISPLAYRECORDDEVICESDCCSNOTIFY	CH1	CH2	CH3	CH4
	MENU	SETUP
	DEVICE	XXXXX
	CONNECTION	OK
EXIT

CAMTV15

1. Select the camera's channel and click SETUP to enter the camera's menu.

DAY/NIGHT	MODE	EXT / COLOR / B&W / AUTO	day or night mode
	D TO N	1 ~ 63	sensitivity level for day-to-night transition
	N TO D	1 ~ 63	sensitivity level for night-to-day transition
	DELAY TIME	1 ~ 63	delay time for day/night transition
AWB	MODE	AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K	white balance
	R G GAIN	1 ~ 255	red/green ratio
	B G GAIN	1 ~ 255	blue/green ratio
AE	MODE	ESC / HOLD	exposure mode
	BRIGHT	0 ~ 255	brightness level
	SHUTTER	AUTO /	shutter speed
	FLICKER	OFF / 50HZ / 60HZ	flicker mode
	BLC	0 ~ 16	backlight compensation
	AGC	1 ~ 5	auto gain control
	LSC	ON / OFF	lens shading correction
SPECIAL	PRIVACY ZONE	AREA SEL / MASK PAT / SX / EX / SY / EY	mask area
	MOTION	MATION / SENSITI / ALARM / HOLD TIME	motion detection area
	HLC	HLC / MASK VALUE / TRESHOLD	strong backlight suppression
EFFECT	COLOR GAIN	0 ~ 255	gain level
	COLOR HUE	0 ~ 71	hue level
	SHARPNESS	0 ~ 255	sharpness level
	CONTRAST	0 ~ 255	contrast level
	BRIGHT OFF	-128 ~ 127	brightness level

CAMTV15

	MIRROR	OFF / ON	rotate image
	FLIP	OFF / ON	flip image
SYSTEM	CAMERA ID	0 ~ 255	camera ID
	ID DISP	OFF / ON	camera ID display
	NAME DISP	OFF / ON	camera name display
	LANGUAGE	ENG / CHI	English / Chinese
	FACTORY INIT	OFF / ON	restore factory settings

Remark:

- This camera will only work with TVI-compatible DVRs (Velleman DVRxTx series). Velleman nv does not guarantee this camera will work with other types of DVRs and can therefore not be held responsible in this event.

8. Varifocal Lens

The lens of this camera can be adjusted to capture the best images at a specific distance. Adjusting the lens is simple: just slightly turn the FOCUS (a) and/or ZOOM (b) screw with the appropriate screwdriver until you are satisfied with the image.

a b

9. Cleaning and Maintenance

The camera does not need any particular maintenance. However, it is advisable to clean it occasionally to keep it looking like new.

10. Technical Specifications

IP rating	IP66
pick-up element	1/2.7" CMOS image sensor
number of pixels	1930 (H) x 1088 (V)
resolution	1080P
digital signal processor	Techpoint chip
min. illumination	0.1 lux / F1.8 (wide) ~ F2.8 (tele)
IR LEDs	24
IR-cut filter	yes
max. IR projection distance	25 m
S/N ratio	>48 dB (AGC off)
lens	F2.8 ~ 12 mm / F1.4 ~ F2.8
lens angle	40° ~ 124° (diagonal)
BLC	yes
AGC	yes
white balance	automatic / user / push / 8000K / 6000K / 4200K / 3200K
video output	BNC connection - TVI signal
audio	no
power supply	12 VDC
current consumption	max. 300 mA
operating temperature	-20°C to 40°C - RH max. 95 %
dimensions	∅ 138 x 100 mm
weight	570 g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUIKERSHANDLEIDING

1. Inleiding

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Diagram of a mechanical assembly with screws and a base, no text or symbols present

Diagram showing a 3D object being converted into a spherical object, with no text or symbols present.

CAMTV15

Diagram showing a 3D object being converted into a spherical object with curved arrows indicating rotation (no text or symbols)

Diagram showing a mechanical assembly before and after rotation, with no visible text or symbols.

Diagram of a medical device with screws inserted into a circular component (no text or labels)

Diagram showing a 3D object being converted into a spherical object, with no text or symbols present.

Diagram showing a 3D object transforming into a spherical object with curved arrows indicating rotation (no text or symbols)

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Technical line drawing of a mechanical assembly with screws and a dome base (no text or symbols)

Diagram showing a 3D object transforming into a spherical object with a curved surface (no text or symbols)

Diagram showing a 3D object being converted into a spherical object with a curved arrow indicating rotation (no text or symbols present)

Diagram showing a mechanical assembly before and after rotation, with no visible text or symbols.

Technical line drawing of a mechanical assembly with screws and a dome base (no text or symbols)

Diagram showing a 3D object transforming into a spherical object with a curved arrow indicating transformation (no text or symbols)

Diagram showing a sphere being converted into a spherical object with curved arrows indicating rotation (no text or symbols)

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

- damage resulting from an inappropriate packing and shipping of the article;

- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

- Repairs occurring after warranty expiration are subject to shipping costs.

- The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
