Product type	Infrared motion detector socket
Model	E304GN
Brand	Perel
Power supply	220-240 V~, 50/60 Hz, 16 A
Power consumption	0.5 W
Detection range	2 - 9 m (adjustable)
Detection angle	120°
Light sensitivity	3 - 2000 lux (adjustable)
Time delay off	10 s ± 3 s to 15 min ± 2 min
Detection speed	0.6 - 1.5 m/s
Max resistive load	1200 W
Max inductive load	300 W
Switch type	Relay, normally open (N.O.)
Switch	Auto/On/Off
Dimensions	50 x 95 x 60 mm
Weight	115 g
Operating temperature	-20 °C to +40 °C
Operating humidity	< 93 % RH
Usage	Indoor only
Maintenance	Clean with a damp cloth, avoid harsh chemicals
Safety	Do not dispose of with household waste; recycle at a waste disposal facility
Warranty	24 months for consumers (conditions included)

Frequently Asked Questions - E304GN Perel

How to install the E304GN socket?

Plug the socket into the mains, then plug the lamp into the intermediate socket. Make sure the device is used indoors and away from moisture.

How to test the socket operation?

Turn the SENS and LUX knobs fully clockwise, and TIME fully counterclockwise. Plug in the socket: the lamp turns on after approx. 30 s, then turns off after 10 s if no signal is detected.

How to adjust the detection sensitivity?

Turn the SENS knob to adjust the detection range (from 2 to 9 m). Turn the LUX knob to adjust the light threshold (from 3 to 2000 lux).

How to adjust the time delay off?

Use the TIME knob to adjust the time delay from 10 seconds to 15 minutes. The lamp stays on for the selected duration after the last detection.

What to do if the lamp does not turn on?

Check that the socket is properly plugged in and that the SENS and LUX settings are appropriate. Test the socket by turning the knobs as indicated in the manual. If the problem persists, contact your dealer.

Can I use this socket outdoors?

No, the socket is designed for indoor use only. Protect it from rain, moisture, and water splashes.

How to clean the E304GN socket?

Clean occasionally with a damp cloth. Do not use harsh chemicals, solvents, or strong detergents.

What is the maximum supported load?

The maximum load is 1200 W for resistive loads and 300 W for inductive loads.

What does the crossed-out wheelie bin symbol mean?

This symbol indicates that the device should not be disposed of with household waste. It must be recycled at a suitable facility for electrical and electronic equipment.

How to contact customer service?

Visit www.perel.eu for warranty and service information. Keep the original purchase receipt for any claims.

USER MANUAL E304GN Perel

White electrical wall socket with two circular vented slots and a black terminal block (no visible text or symbols)

USER MANUAL 2

HANDLEIDING 6

MODE D'EMPLOI 10

MANUAL DEL USUARIO 14

Simple line drawing of an open book with a partial CE mark beside it (no text or symbols on the book itself)

USER MANUAL

1. Introduction

To all residents of the European Union Important environmental information about this product

Simple line drawing of a trash bin with crossed x's and circular base, no text or symbols present

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling

service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Simple line drawings of an open book and a simple house outline (no text or symbols)

Read and understand this manual and all safety signs before using this appliance.

Indoor use only.

- This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

- Does not meet ERP requirements for lighting purposes.

E304-GN

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on www.perel.eu.

• Protect this device from shocks and abuse. Avoid brute force when operating the device.
• Protect the device against extreme heat and dust.
• Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids.
• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

4. Installation

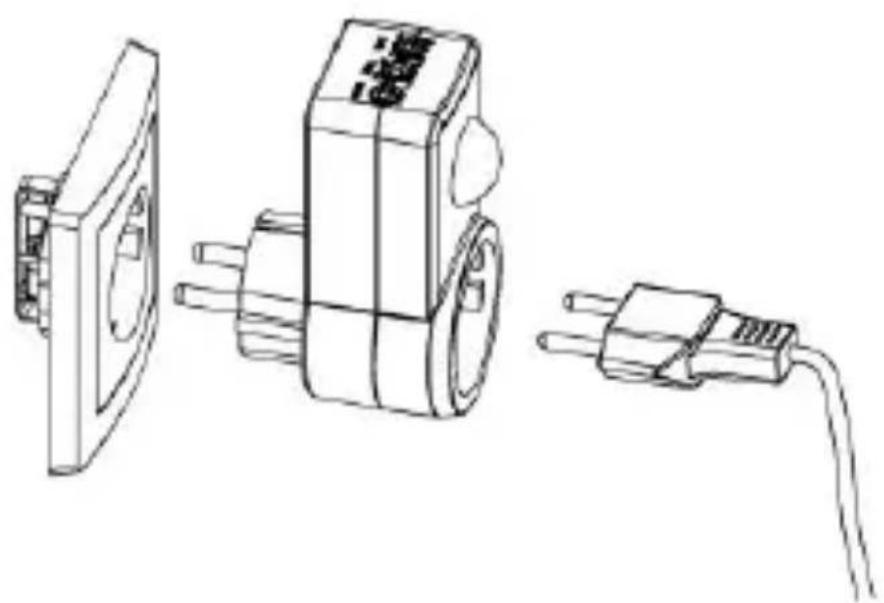

4.1 Installation Guidelines

Technical line drawing of three electronic components with no visible text or symbols

Plug the socket into the mains. Plug your lamp into the socket.

E304-GN

4.2 Testing the Socket

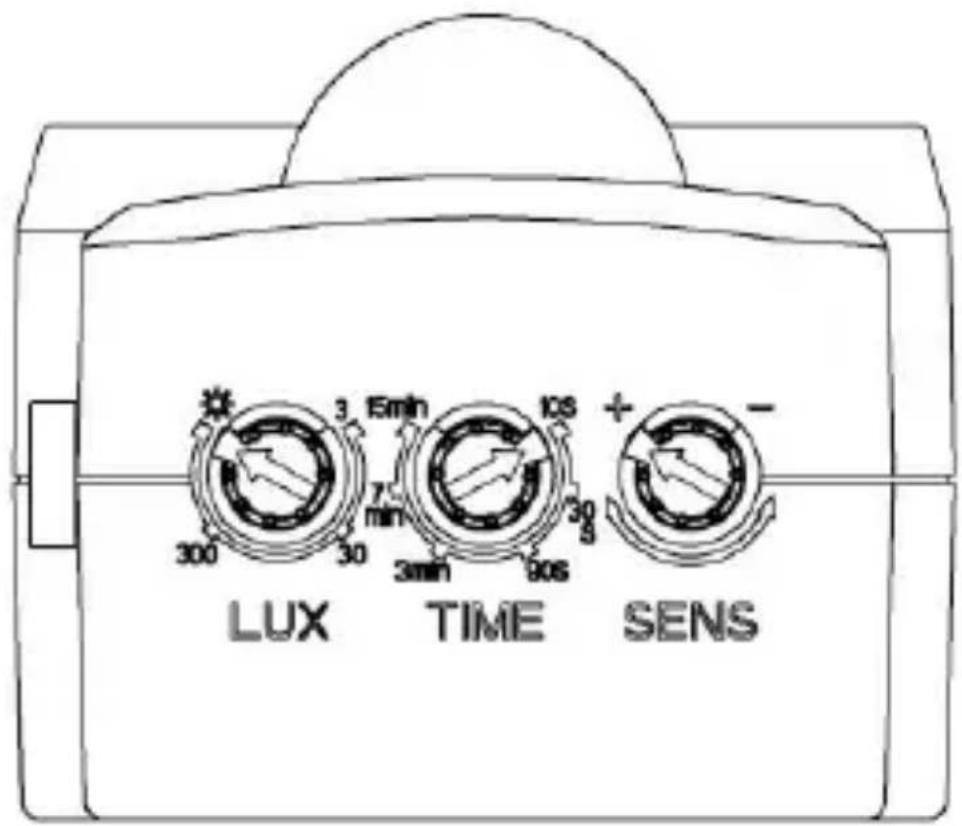

LUX TIME SENS

1. Test the socket at the point of time you feel the lamp needs to be switched on.
2. Turn the SENS and LUX knobs fully clockwise; turn the TIME knob fully anti-clockwise.
3. Plug the socket into the mains. The socket needs a warm-up time of ± 30 seconds before it will switch on the connected lamp. When no signal is detected, the lamp will switch off after ± 10 seconds +/- 3 seconds.
4. Turn the LUX knob fully anti-clockwise. The lamp should switch off.

4.3 Setting the Socket

1. Turn the SENS and LUX knobs until the lamp switches on.
2. Now, set the switch-off delay with the TIME knob going from ± 10 seconds to ± 15 minutes.

5. Cleaning and Maintenance

The socket does not need any particular maintenance. However, occasionally wipe it with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

6. Technical Specifications

power supply		220-240 V~, 50/60 Hz, 16 A
detection range		2-9 m (< 24 °C) adjustable
detection angle		120°
light control		3 to 2000 lux (adjustable)
activation duration		min. 10 s ± 3 s to max. 15 min ± 2 min
power consumption		0.5 W
motion speed detection		0.6-1.5 m/s
working temperature		-20 °C to +40 °C
working humidity		< 93 % RH
max. rated load
	resistive	1200 W
	inductive	300 W
time delay
	minimum	10 s ± 3 s
	maximum	15 min ± 2 min
switch type		relay
relay output		normally open (N.O.)
switch		auto/on/off
dimensions		50 x 95 x 60 mm
weight		115 g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Line drawing of three electronic components with no visible text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

Line drawing of three electronic components: a switch, a battery pack, and a plug (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Line drawing of three electronic components with no visible text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Technical line drawing of three electronic components with no visible text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Line drawing of three electronic components with no visible text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Line drawing of three electronic components with no visible text or symbols

Introduza a ficha na tomada elétrica. Ligue a lâmpada à ficha.

E304-GN

4.2 Testar a Ficha

LUX TIME SENS

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

• Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits; - consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

- damage resulting from an inappropriate packing and shipping of the article;

- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

- The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
