SMART1001 - Measuring equipment Perel - Free user manual and instructions

Product Type	Smart Connected Plug
Brand	Perel
Model	SMART1001
Power Supply	220-240 V~, 50 Hz
Maximum Power	3000 W
Maximum Current	13 A
Operating Frequency	2.4 GHz
Wireless Range	50 m (free field)
Max. RF Power	71.1 mW
Max. Ambient Temperature	35 °C
Protection Rating	IP20 (indoor use only)
Connectivity	Bluetooth, Wi-Fi
Control App	Tuya (iOS/Android)
Compatibility	Voice Assistants (via Tuya)
Material	Impact-resistant Plastic
Color	White
Safety	Switch with small contact gap
Maintenance and Cleaning	Disconnect before cleaning; use a damp cloth without harsh chemicals
Warranty	24 months (conditions see manual)

Frequently Asked Questions - SMART1001 Perel

How to install the SMART1001 smart plug?

Plug the smart plug into a power outlet, then download the Tuya app. Register, press '+' to add the device, follow the pairing instructions by holding the button until the LED flashes blue.

What is the maximum supported power?

The plug supports a maximum power of 3000 W and a maximum current of 13 A.

Can the plug be used outdoors?

No, the plug is designed for indoor use only. Its protection rating is IP20.

How to clean the smart plug?

Always unplug the plug before cleaning. Use a damp cloth without harsh chemicals, solvents, or strong detergents.

What to do if the plug does not connect to Wi-Fi?

Check that your Wi-Fi network is 2.4 GHz, the password is correct, and the LED flashes blue (pairing mode). Reset the plug by holding the button for 5 seconds if necessary.

Is the plug compatible with Amazon Alexa or Google Home?

Yes, via the Tuya app, you can associate the plug with voice assistants like Alexa or Google Home.

What are the important safety instructions?

Read the instruction manual before use. Do not immerse the plug in water, do not expose it to extreme temperatures or fire. Do not let children play with the device.

What to do in case of failure or malfunction?

The device contains no user-serviceable parts. Contact your dealer for spare parts. If the problem persists, check the 24-month warranty.

Can the plug be controlled remotely?

Yes, once connected to your Wi-Fi network, you can control the plug from the Tuya app, wherever you are, via the Internet.

How to recycle the plug at end of life?

Do not dispose of the device with household waste. Take it to a recycling center or return it to your supplier for environmentally friendly treatment.

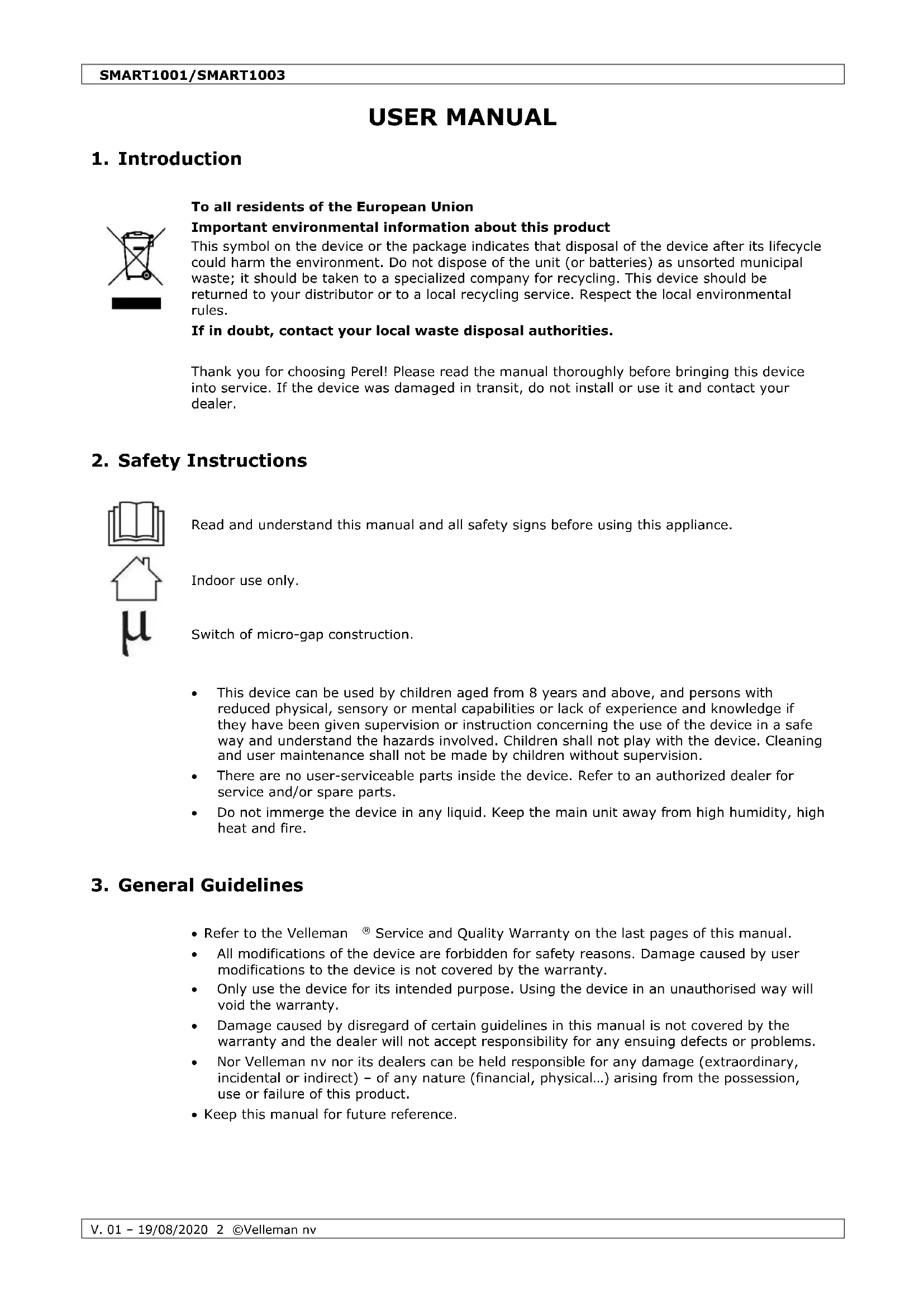

USER MANUAL SMART1001 Perel

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

Indoor use only.

Switch of micro-gap construction.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.
• Do not immerse the device in any liquid. Keep the main unit away from high humidity, high heat and fire.

3. General Guidelines

Refer to the Velleman 假 Service and Quality Warranty on the last pages of this manual.
- All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
- Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
- Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
- Nor Velleman NV nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) - of any nature (financial, physical...) arising from the possession, use or failure of this product.
- Keep this manual for future reference.

4. Operation

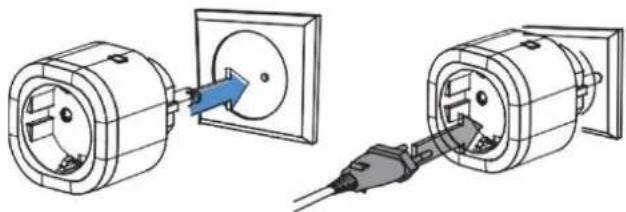

4.1 General Operation

1. Plug the smart socket into an appropriate electrical outlet.
2. Plug your appliance into the smart socket.

4.2 Using the Tuya App

1. Enable the Bluetooth function on your mobile device. Download the Tuya app from your app store.

1. Register to the cloud by inputting your e-mail address and password. Login.

1. Press + to add the smart socket.

1. Click on All Devices. Click on the device you want to add. Click on the smart socket.

1. Plug the smart socket into an electrical outlet. Keep the Learn button pressed until the LED blinks blue, meaning the smart socket has entered the pairing mode.

1. The Wi-Fi link starts blinking. Click Confirm.

1. Check whether the connect Wi-Fi name and password are correct. Click Confirm. The smart socket will automatically connect to the network indicating that the device is added successfully. Modify the device name and select in which room the smart socket is being used.

1. You can now control the smart socket through your mobile device.

5. Care and Maintenance

Care

Unplug the smart socket from the electrical outlet before cleaning.

Cleaning

Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

6. Technical Specifications

socket type

SMART1001 French

SMART1003 Schuko

voltage 220-240 V\~, 50 Hz

max. power 3000 W

max.current 13A

operating range. ≤ 50m in open area

operation frequency 2.4 GHz

max. radio frequency power. 71.1 mW

max. environmental temperature. 35 °C

IP rating

dimensions

weight

Hereby, Velleman NV declares that the radio equipment type SMART1001/SMART1003 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.velleman.eu.

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.VELLEMAN.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

4.2 Utiliser I'application Tuya

6. Specifications techniques

type de prise

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion. You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits:

• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....

• flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

• damage resulting from an inappropriate packing and shipping of the article;

• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
