ReadyWarm 6300 Ceramic Touch - Heating CECOTEC - Free user manual and instructions

USER MANUAL ReadyWarm 6300 Ceramic Touch CECOTEC

Safety instructions 7

1. Parts and components 33
   2.Before use 33
2. Operation 33
   4.Cleaning and maintenance 34
3. Technical specifications 35
4. Disposal of old electrical and electronic appliances 37
5. Technical support and warranty 37
   8.Copyright 37

SOMMAIRE

EU01_100571 ReadyWarm 1500 Ceramic Retro

ES • La codificación de este manual es genérica y se aplica a todas las variantes decottigos del aparato.
EN • The coding in this manual is generic and applies to all code variants of the appliance.
FR • Le codage figurant dans ce manuel est générique et s'applique à toutes les variantes de code de l'appareil.
DE - Die Codierung in dieser Bedienungsanleitung ist allgemein und gilt für alle Codevarianten des Geräts.
IT • La codifica riportata nel presente manuale è generica e si applica a tutte le varianti di codici dell'apparecchio.
PT·A codificacao aparecido amongst manuale genérica e aplicá-se a todas as variantes derowningo do aparelho.
NL • De codering in deze handleiding is algemeen en geldt voor alle codevarianten van het apparaat.
PL·Kody podane w niniejszej instrukcji są ogólne i major zastosowanie do wszystkich variantów kodowych urzadzenia.
CZ·Kódováni obsažené v tomto námodu je generické a platí pro všechny kódové varianty spotřebiče.
TR • Bu kılıavuzdaki kodlama geneldir ve cihazın:tüm kod varyantlari:için geleçerlidir.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Make sure the voltage of your mains supply matches the voltage requirements specified in the rating label of the appliance.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• If the power cable is damaged, it must be replaced by the official Cecotec Technical Support Service or similar qualified personnel to avoid risks.
• This symbol means: "do not cover".
• WARNING: to avoid overheating, do not cover the appliance.
• The heating appliance must not be placed immediately below a socket outlet.
• Do not use the heating appliance in the immediate vicinity of a bath, shower, or swimming pool.
• Do not use this heating appliance if it has been dropped.
• Do not use if there are visible signs of damage to the heating appliance.
• Use this heating appliance on a horizontal and stable

surface, or fix it to the wall, as applicable.

• Children under 3 years of age should be kept out of reach of the appliance unless continuously supervised.
• Children between 3 and 8 years old should only switch the appliance on or off when it has been placed or installed in its normal, intended operating position and if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children between 3 and 8 years old should not plug in, adjust, and clean the appliance and should not carry out maintenance tasks.
• CAUTION: some of the appliance's parts may become very hot and cause burns. Particular attention should be paid when children and/or vulnerable people are present.
• WARNING: do not use this heating device in small rooms that are occupied by people who cannot leave the room by themselves, unless permanent supervision is provided.
• WARNING: to reduce the risk of fire, keep textiles, curtains, or other flammable material at least 1 m away from the air outlet.
• Do not insert or allow objects to enter through the ventilation slots, as this may result in electric shock, fire or damage to the appliance.
• Do not immerse the cable, plug, or any other non-removable part of the appliance in water or any other liquid. Do not expose the electrical connections to water. Always make sure that your hands are dry before operating or adjusting any switches on the product or touching the plug and socket.
• Never leave the appliance unattended during use.

• One of the most common causes of overheating is the building up of debris or fluff in the appliance. Be sure to clean these accumulations periodically by vacuuming the vents and grilles.

• Do not place the appliance on carpets, and do not place the cable under carpets. Position the cord in such a way as to avoid obstructing passage and cause tripping hazards.

• Do not store it until it cools down. Store it in a cool, dry place when not in use.
• When using, maintain a minimum distance of 50~cm between the window and the wall.

INSTRUCTIONS DE SECURITE

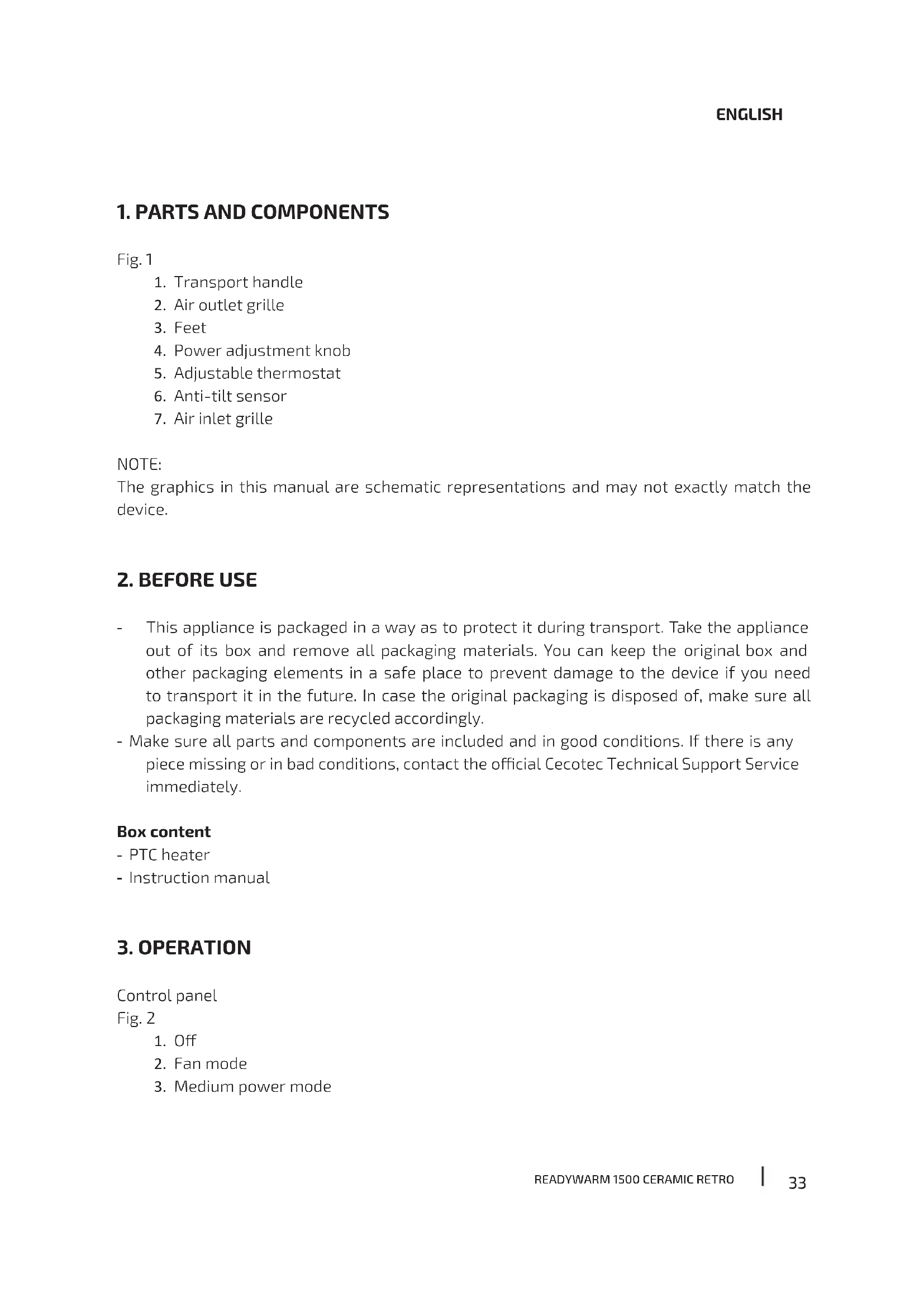

1. Transport handle
2. Air outlet grille
3. Feet
4. Power adjustment knob
5. Adjustable thermostat
6. Anti-tilt sensor
7. Air inlet grille

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the device if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• PTC heater
• Instruction manual

3. OPERATION

Control panel

Fig. 2

1. Off
2. Fan mode
3. Medium power mode

ENGLISH

1. High power mode

2. Adjustable thermostat

3. Insert the power cable into a wall socket.

4. Slide the thermostat to the right until you hear a click. This click indicates the room temperature. If you keep sliding the thermostat to the right, the set temperature will be higher than the room temperature, so the heater will activate the heating system.
5. Turn the power adjustment knob to the fan position that the heater emits cold air.
6. Turn the power adjustment knob to position "l", the heater will operate at a medium power level.
7. Turn the power adjustment knob to position "II", the heater will operate at a high power level.

Anti-tilt sensor

• The heater is designed to turn automatically off when tipped over. The appliance will automatically turn on once it is returned to its normal upright position.
• Do not use the heater on thick and long pile carpets, as the heater may not work because the anti-tilt sensor is activated.

Safety system

• In the event of abnormal overheating, the safety device automatically switches the appliance off. After a cooling phase, the device is ready for use again.
• If you still observe the same malfunction mentioned above, disconnect the plug from the socket and contact the official Cecotec Technical Support Service.
• During use, do not touch or cover the air outlet. This could cause the unit to overheat and the safety device to operate.

4. CLEANING AND MAINTENANCE

• Before cleaning or storing the appliance, make sure that it is unplugged.
• Clean the housing with a slightly damp cloth, vacuum cleaner or dusting brush.
• Never use flammable or abrasive cleaning agents such as benzene or alcohol to clean the appliance.
• Clean both the air inlet and outlet regularly with a vacuum cleaner.
• Do not immerse the heater in water or allow water to enter the appliance, as there is a risk of electric shock.
• Allow the appliance to cool completely before cleaning or handling.
• Before moving the appliance, make sure that the power adjustment knob is in the OFF position and the power cable is unplugged from the power outlet.

Storage

• If the appliance is not used for a long period of time, it must be protected against excessive dust and dirt. Store in a dry place, protected from sunlight.
• Wind up the power cable carefully once the appliance is cool.
• Make sure that the cable does not come into contact with sharp surfaces or kinks.
• Store the cable in a clean, dry location away from metal objects.
• Always check the condition of the plug before use to ensure that the plugs have not been damaged.
• Do not place any heavy items on top of appliance during storage as this may result in possible damage of appliance.

5. TECHNICAL SPECIFICATIONS

Product reference: A01_EU01_100571

Product: ReadyWarm 1500 Ceramic Retro

Voltage: 220-240 V~

Frequency: 50-60 Hz

Power: 1500 W

Name of the model: A01_EU01_100571 ReadyWarm 1500 Ceramic Retro
Product Symbol Value Unit Product Unit
Heating power				Type of heat input, for electrical storage. Local heaters only (select one)
Rated heat output	Pnom	1.5 kW		manual control of the heating load, with integrated thermostat N/A
Minimum heat output (illustrative) P	min	0.75 kW		manual control of the heat load with feedback of ambient and/or outdoor temperature N/A
Heating power maximum constant P	max.c	1.5 kW		electronic heat load control with feedback of ambient and/or outdoor temperature N/A
Auxiliary energy consumption				Fan assisted heat output N/A
At rated heat output el	max	0.000 kW		Type of heat output/ambient temperature control (select one)
At minimum heat output el	min	0.000 kW		single-stage heat output and no ambient temperature control [NO]
In standby mode el	SB	N/A kW	Two or more	manual stages, no room temperature control [NO]
				with mechanical thermostat for room temperature control [YES]
				with electronic room temperature control [NO]
				electronic room temperature control and daily timer [NO]
				electronic room temperature control and weekly timer [NO]
				Other control options (multiple selection possible)
				ambient temperature control, with presence detection [NO]
				room temperature monitoring, with open window detection [NO]
				with distance control option [NO]
				with adaptive start-up control [NO]
				with working time limitation [NO]

				with black bulb sensor [NO]
Contact information:	Cecotec Innovaciones SL., Av. Reyes Católicos, 60, 46910, Alfafar, Valencia (Spain)

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

6. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information

concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

7. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIECES ET COMPOSANTS

Image 1

Product: ReadyWarm 1500 Ceramic Retro

Voltage: 220-240 V~
