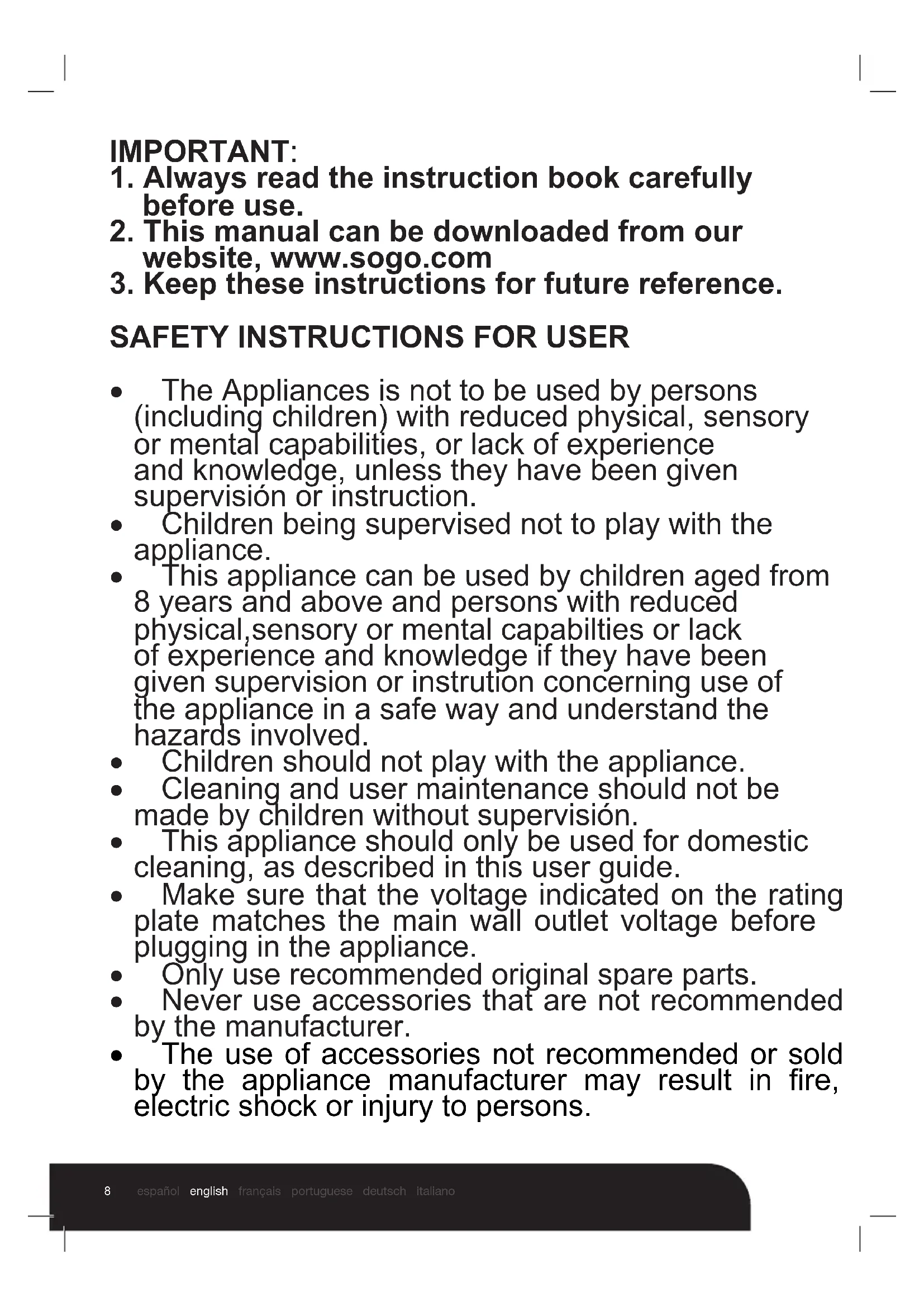

USER MANUAL SS16085 Sogo

1. Always read the instruction book carefully

2. This manual can be downloaded from our

website, www.sogo.com

3. Keep these instructions for future reference.

SAFETY INSTRUCTIONS FOR USER

• The Appliances is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervisión or instruction.

• Children being supervised not to play with the appliance.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical,sensory or mental capabilties or lack of experience and knowledge if they have been given supervision or instrution concerning use of the appliance in a safe way and understand the hazards involved.

• Children should not play with the appliance.

• Cleaning and user maintenance should not be made by children without supervisión.

• This appliance should only be used for domestic cleaning, as described in this user guide.

• Make sure that the voltage indicated on the rating plate matches the main wall outlet voltage before plugging in the appliance.

• Only use recommended original spare parts.

• Never use accessories that are not recommended by the manufacturer.

• The use of accessories not recommended or sold by the appliance manufacturer may result in re, electric shock or injury to persons.9 español english français portuguese deutsch italiano

• Do not disassemble, repair or manipulate the product without authorization or any prior knowledge, doing so it might damage the product or pose Hazard.

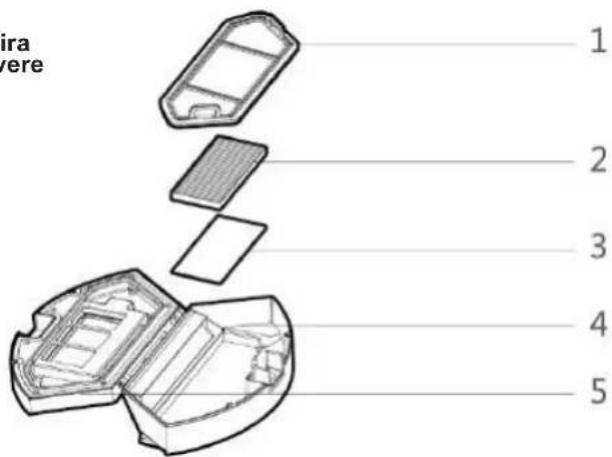

• Make sure the dust box and ltering cloth are installed properly before use.

• Don’t spray with or pick up ammable liquids, cleaning uids, aerosols or their vapours.

• Don’t put your hair,clothes,ngers or other part of body close to the main brush or side brushes.

• Don’t use this device in a baby room.

• Do not over-bend or press the exible cord with heavy or sharp objects. Do not let the robot cleaner walk over the cord or tangle the cord when it is cleaning. Keep the cord away from heat sources.

• WARNING:Only authorized technicians can disassemble the producto, Users are not allowed to disassemble or repair the product, otherwise it may damage the product.

• WARNING: Do not use the product in an environment with risk of re or explosión.

• WARNING:This product must be used with the original pòwer adapter, otherwise the product can be damaged.

• WARNING:Do not sit or stand on this product; doing so could damage the product causing it to fall over.

• WARNING:If the metal part of the power plug is dusty, please wipe it with a dry cloth.

• WARNING:Do not wash or soak the main body and electronic accesories in wáter, otherwise the product might get damaged by short circuit.

• WARNING: Do not let the metal and conductive materials to come in contact with the battery; doing so might cause short circuit.

• Do not use a damaged charging dock.

• Do not use damaged cord or adapter. Do not10 español english français portuguese deutsch italiano use the robot cleaner if it is broken or damaged. Search for after sales services to get it repaired to avoid getting hurt.

• Turn o󰀨 the switch before you clean or maintain the device.

• Do not touch the product with wet hands; doing so might cause an electric shock.

• Do not place this product where it is easy to drop o󰀨 (tables, chair,etc).

• This product has sophisticated design and must be protected from long term exposure to the sun-light.

• Don’t use this product on moist ground (like bathroom) or with ponding área.

• Make sure this product is not used to vacuum cigarette ends, lighters, matches or any other ammables waste that may cause a re.

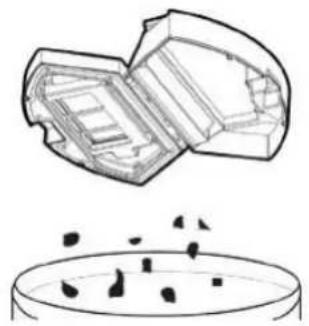

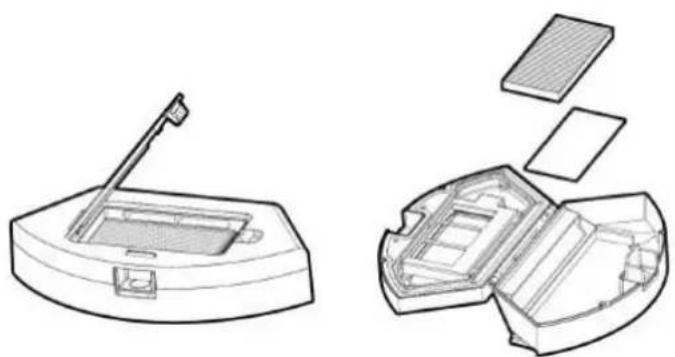

• Clean the dust bin and vacuuming port before every single use,clear out dust,hair or cotton bre at the suction port frequently.Don’t let the block inlet of the dust box.

• Make sure to turn o󰀨 the product when the product is out of service for a long time.

• Before charging, check the adaptor and outlet whether these are properly connected.

• Please check carefully to see if the power adaptor is connected to the socket prior to the use, to avoid the damage to the robot

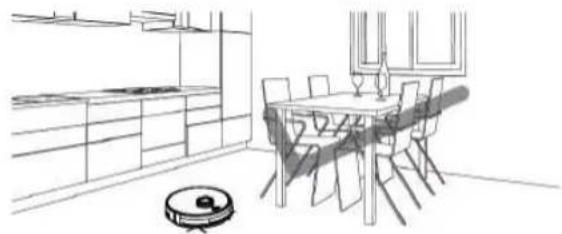

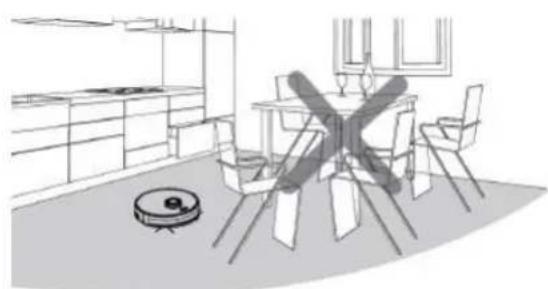

• Before use, clear the objects of the oor(remove all the fragile objects and cords, clothing, papers, loose cables. Also make sure to lift curtains and drapes of the oor to avoid any possible accidents.) Make sure the carpet corner edges are down. Any hanging tablecloth or curtain should not touch the ground.

• Never use the product to clean the construction waste.

• Always use the dedicated battery adaptor to avoid leakage heating or rupture.

• Do not transport or preserve with necklaces, hair pins and other metal objects, doing so may lead to short circuit, resulting in leakage, heating or rupture.

• End of life battery removal: If the appliance is to be disposed o󰀨,the batteries must be removed rst. The appliance must be disconnected from the supply mains when removing the battery.

• Never charge the batteries if the ambient temperature is above 40 degrees centigrade or below 0 degree centigrade.

• Turn o󰀨 the power switch during product transportation or when you do not need to use this product for a long time.

• It is normal for the charger to become warm when charging.

• If abnormal overheating is discovered during charging, stop using it immediately to avoid leakage, heating or rupture.

• To prolong the service life of battery, please remove the battery and store in cool, dry environment if it is out of service for a long time, this will avoid the leakage, heating or rupture.

• Do not soak it in the wáter or let it come into the contact with any liquid.

• Make sure to stop using it immediately in case of any exception(like discoloration or deformation)

• Always use tape to insulate the battery’s electrode when recycling or disposing of it.

• Please strictly follow the instructions of this USER MANUAL while using the device. No responsibility being taken to any loss or damages caused by12 español english français portuguese deutsch italiano improper use.

• WARNING: Leaks from battery cells can occur under extreme usage or temperature conditions. If the liquid gets on the skin, wash quickly with water. If the liquid gets into the eyes, ush them immediately with clean water for a minimum 10minutes.Seek medical attention immediately after that.

• Do not use the rechargeable batteries in any other devise. This battery is only suitable for Smart cleaning robots.

• If the battery’s outer box found to be deformed and expanded, or leakage of electrolyte is found, do not charge and stop using to avoid danger.

• Do not throw or inict a strong impact on to the battery; doing so might cause leakage, heating or rupture.

site Web, www.sogo.com

WIFI SET UP INSTRUCTIONS

WIFI SET UP INSTRUCTIONS

1. Scan QR code of Figure 1, then download and install “Tuya

smart” app or Search for Tuya Smart on the App Store or Android App platforms. Then, download and install it.

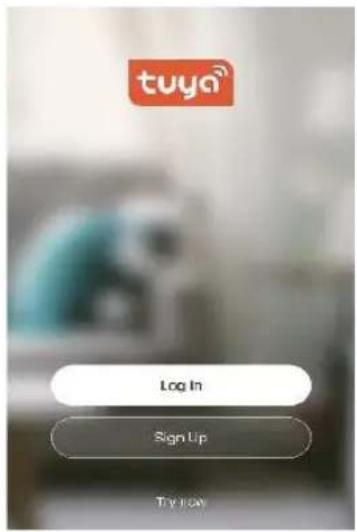

2. Open the Tuya smart app.

If you don’t have an account, please register rst,then click and log in.

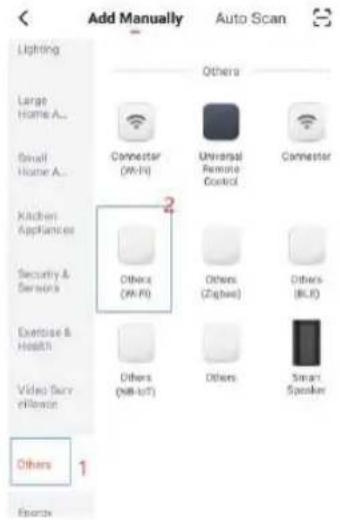

3. After logging in, click the “+” sign in

the upper right corner of the home page to add the device.Then on the device selection page you should choose the small appliances on the left side and the sweeping robots on the right. Follow the page prompts to connect.37 español english français portuguese deutsch italiano

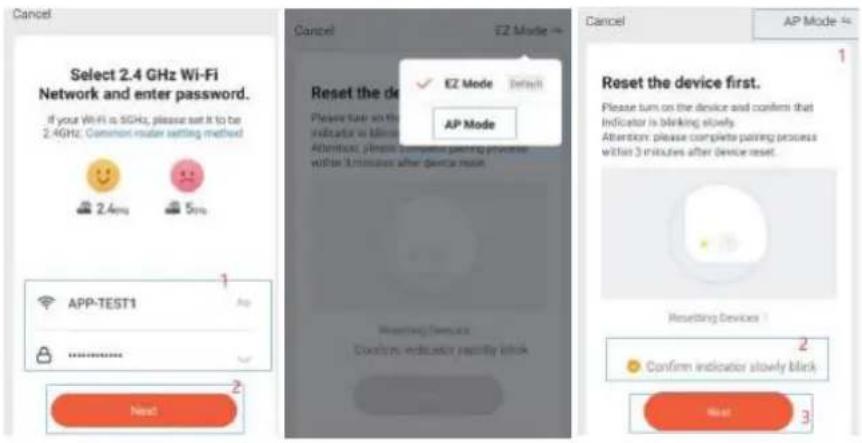

4. Input Wi-Fi account

and password(Choose 2.4Ghz Wi), then click “next”, rst choose the “AP” mode on the rifht corner; select the “core indicator slowly blink”, then click “next”.

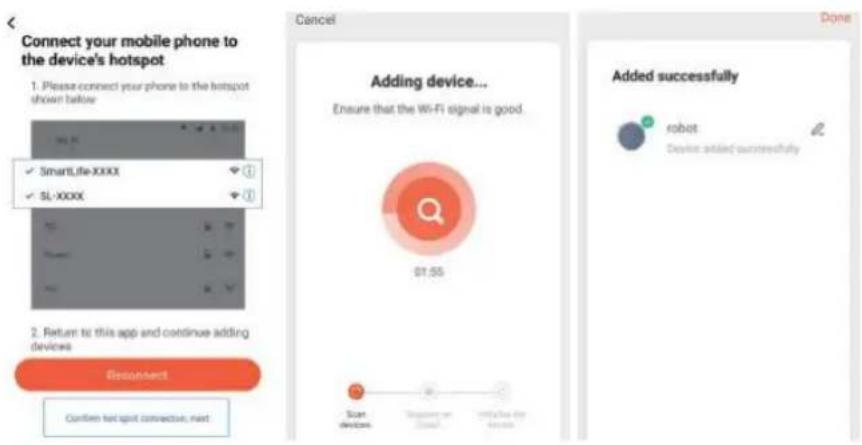

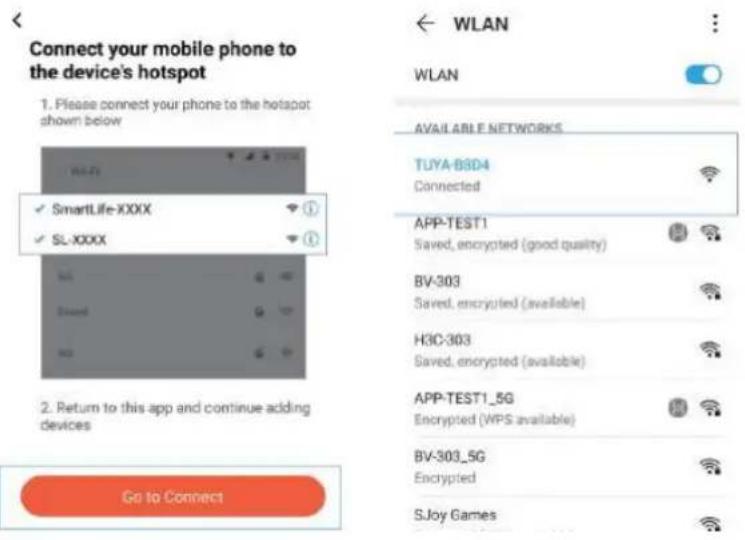

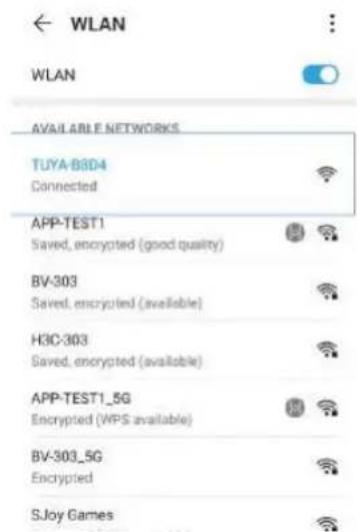

5. Then click the “Go to Connect”

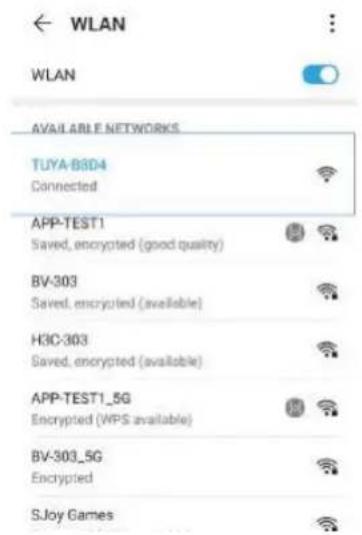

and connect your mobile phone to the device’s hotspot “Tuya- XXXX” on the “WLAN”, then return to the app.

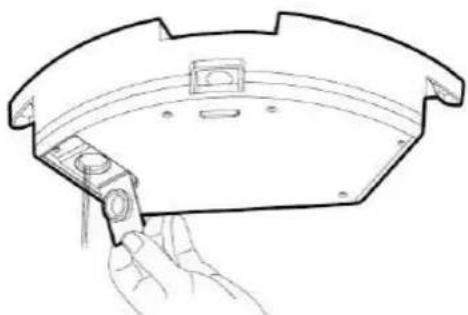

1. Take out two screws on the battery cover with a screw driver.

2. Take out the battery cover.

3. Take out the battery and unplug the electric wires to remove the battery.

1. For the very rst operation, please let the robot run out of power.

2. Charge the robot for 12 hours for the rst time of the opertaion. When the charging is nished the control button

3. When the robot is charged, the LED light of control button will ash.

4. lf the robot is out of service for a long time, please turn o󰀨 the power switch.

5. Please charge the robot as soon as possible after the battery is used completely.

6. The product must be use with the power adapter and charger provided by the factory.

7. Please charge the robot for 12 hours for the rst time of operation. when the charging is done, the control button

1. Make sure the power switch on to the side of the robot is switched on.

2. Press the control button or the cleaning mode on the remote controller to start the robot.

Pause The pause function is to switch the robot from the operating mode to the pause mode and the robot can be paused by the following operations:

01. Press the control button on the robot to pause the robot.

02. Press the power on/o󰀨 button on the remote controller to pause the robot.

Note: Once the machine is paused, the machine can be reoperate. Sleep Sleep mode means that the robot is stopped and the indicator light is o󰀨. If the robot is not active within 10 minutes, the robot will enter into the sleep mode automatically. Note: If the robot is out of service for a long time, please turn o󰀨 the power switch. Commencez

1. Press the Schedule setting button to enter into the Schedule setting mode and set the Schedule on the remote

2. If you need to cancel the Schedule, just press the Schedule setting button for 3 seconds.

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2014/53/EU related to the requirements for safety and health, electromagnetic compatibility and the efficient use of the radio spectrum.
