USER MANUAL SS14565 Sogo

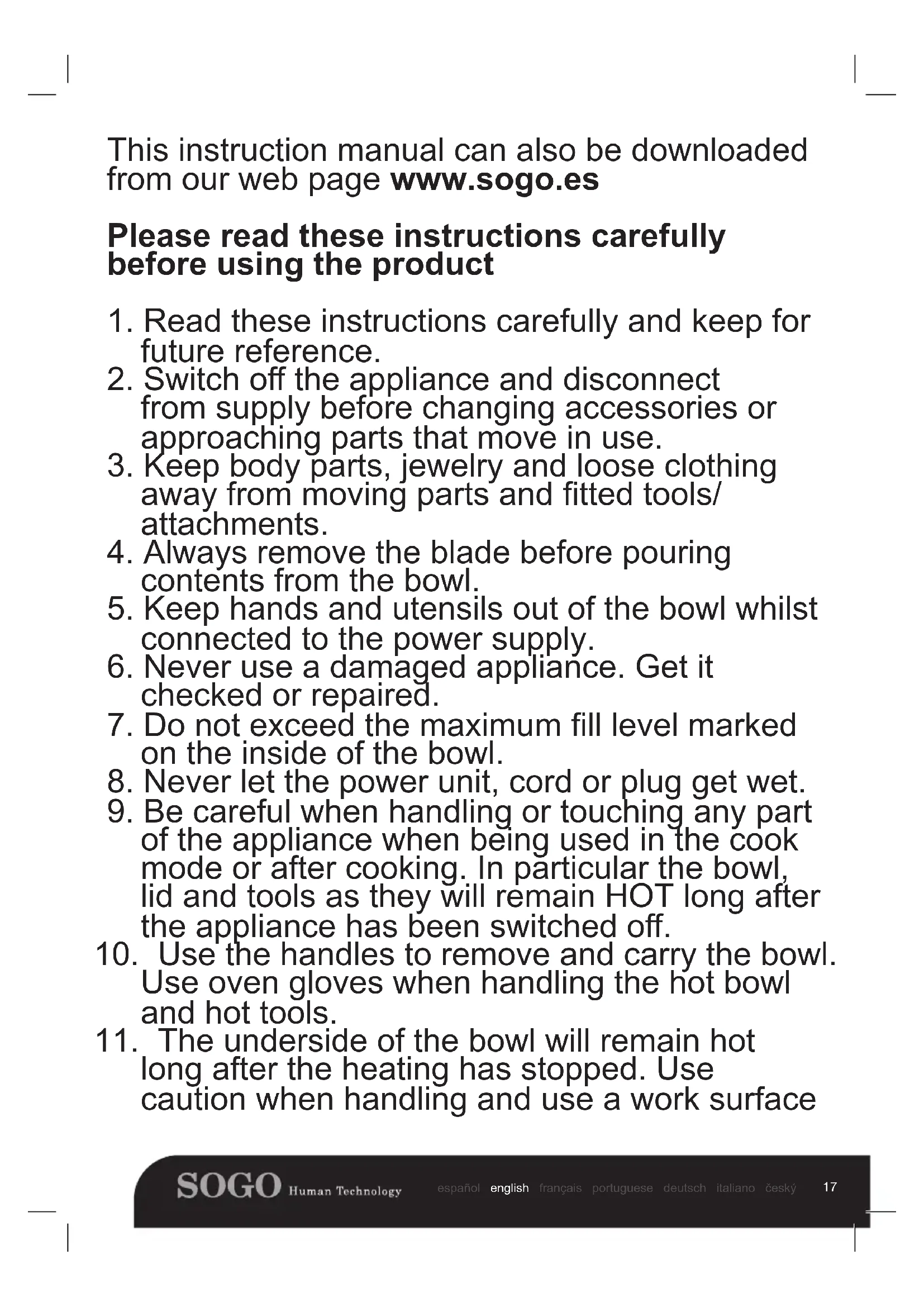

1. Read these instructions carefully and keep for

2. Switch o󰀨 the appliance and disconnect

from supply before changing accessories or approaching parts that move in use.

3. Keep body parts, jewelry and loose clothing

away from moving parts and tted tools/ attachments.

4. Always remove the blade before pouring

contents from the bowl.

5. Keep hands and utensils out of the bowl whilst

connected to the power supply.

6. Never use a damaged appliance. Get it

checked or repaired.

7. Do not exceed the maximum ll level marked

on the inside of the bowl.

8. Never let the power unit, cord or plug get wet.

9. Be careful when handling or touching any part

of the appliance when being used in the cook mode or after cooking. In particular the bowl, lid and tools as they will remain HOT long after the appliance has been switched o󰀨.

10. Use the handles to remove and carry the bowl.

Use oven gloves when handling the hot bowl and hot tools.

11. The underside of the bowl will remain hot

long after the heating has stopped. Use caution when handling and use a work surface18 español english français portuguese deutsch italiano český protection mat when placing the bowl on heat sensitive surfaces.

12. Be careful of steam escaping from the bowl

15. Only use the bowl and tools supplied with this

appliance. Never use the bowl with any other heat source.

16. Never operate the appliance in the cook mode

with the bowl empty.

17. Do not use the blender lid to operate the

processor. This appliance will be damaged and may cause injury if the interlock mechanism is subjected to excessive force.

18. When using this appliance ensure it is

positioned on a level surface away from the edge. Do not position below overhanging cupboards.

19. For the correct and safe operation ensure that

the bowl base and temperature sensors are clean and dry before cooking.

20. CAUTION: In order to avoid a hazard due

to inadvertent resetting of the thermal cut- out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and o󰀨 by the utility.

21. Always ensure food is thoroughly cooked and

is piping hot before eating.

22. Food should be eaten shortly after cooking or

allowed to cool quickly and then refrigerated19 español english français portuguese deutsch italiano český as soon as possible.

23. Misuse of your appliance can result in injury.

24. Appliances can be used by persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

25. Children shall not play with the appliance .

26. This appliance shall not be used by children.

Keep the appliance and its cord out of reach of children. Never let the cord hang down where a child could grab it.

27. Warning: Be careful when handing the

sharp cutting blades ,emptying the bowl and during cleaning .

28. Always disconnect the appliance from the

supply if it is left unattended and before assembly, disassembly or cleaning.

29. If the supply cable is damaged, it must be

replaced with a special cable assembly available from the manufacturer or its service agent in order to avoid a hazard

30. Only use the appliance for its intended

domestic use. We will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

31. The maximum load for blending function was

920 g carrots / 1380 g water

32. Be careful if hot liquid is poured into the food

processor or blender as it can be ejected out of the appliance due to a sudden steaming.

33. The appliance is only to be used with the20

español english français portuguese deutsch italiano český stand provided.

34. The appliance is for household and indoor use

35. Avoid spillage on the connector.

36. Do not disassemble the base of cup

(including handle enclosure), it’s not for user maintenance.

37. After the motor stop working ( if it was) , the

cooling fan will still keep working for another 2mins

38. Surfaces are liable to get hot

39. For how to clean the surfaces in contact with

food please refer the paragraph of Care and Cleaning.

40. CAUTION :Ensure that the appliance is

switched o󰀨 before removing it from the stand. Before plugging in Make sure your electricity supply is the same as the one shown on the underside of your appliance.

WARNING: THIS APPLIANCE MUST BE

5. To set-up before use

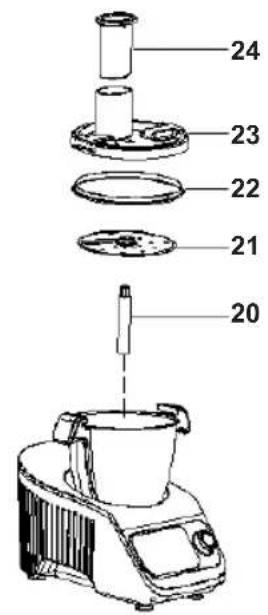

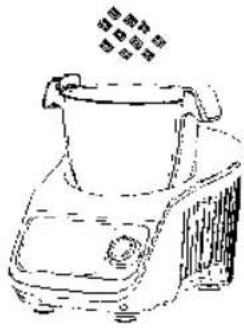

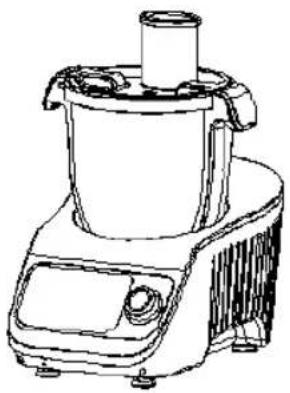

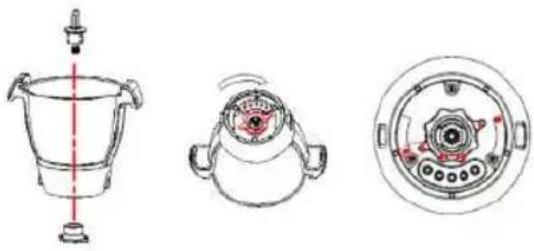

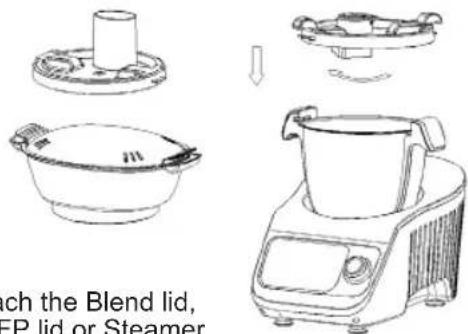

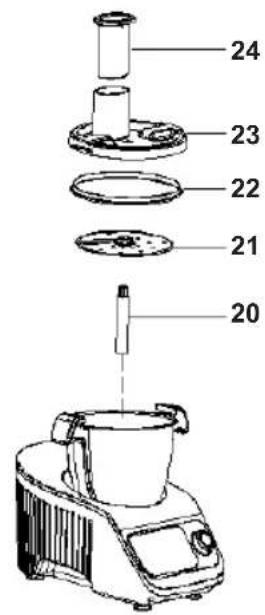

Place the drive shaft correctly locked into the jug Choose di󰀨erence accessories for di󰀨erence cooking purpose Plug your Power cord into the main base then, Switch on. When main base has the Power cord ,not assemble the Power cord Slide the corresponding icon or rotate the knob to set the temperature, time and speeds. Click the minute or second in the time icon to quickly set the exact time. Reverse function: Click the icon for shift rotating direction Click after set the temperature, time and speed to start, then the icon will change to , the machine is working now. Click or push button in knob to pause working, click or continuously press the push button in knob to stop working and exit the program. Attach the Blend lid, or FP lid or Steamer Insert the Jug into the Main Unit. Press down rmly to lock into place, (LOGO in front), Max in back) Add the ingredients or water to the jug .If need food processor function . Then you need to attach food processor lid and put ingredients directly through food dispenser

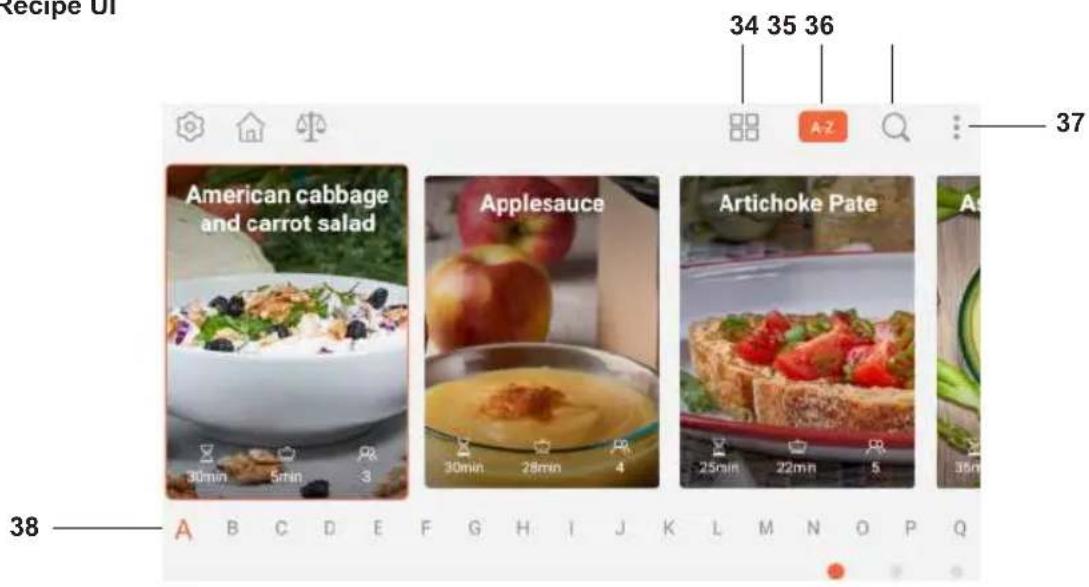

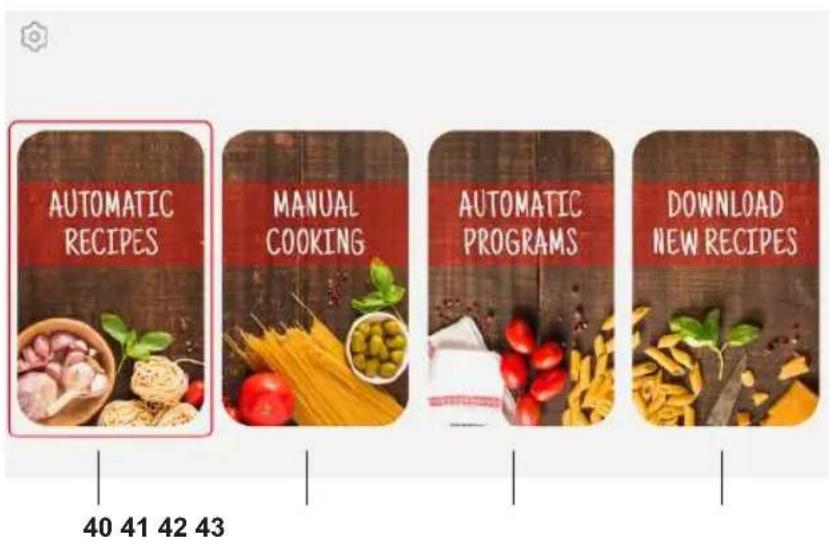

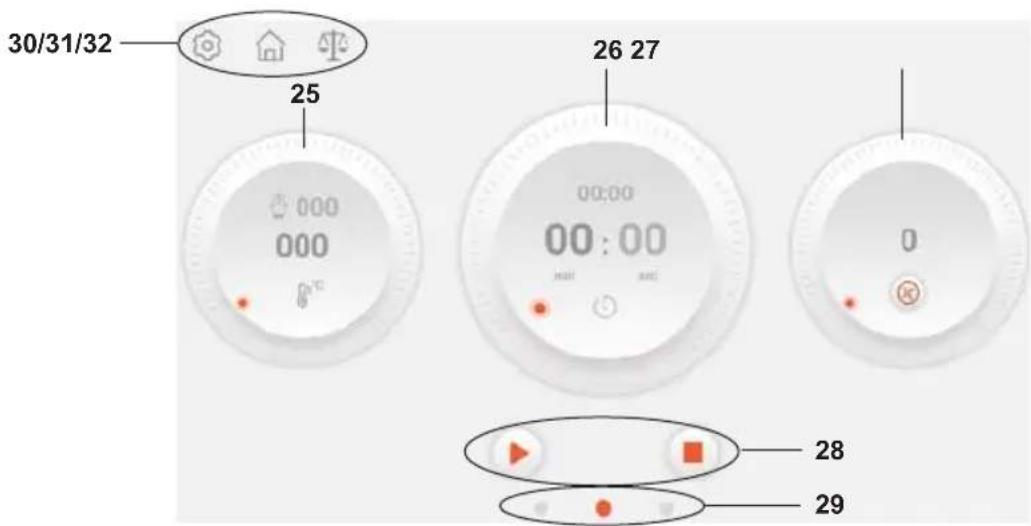

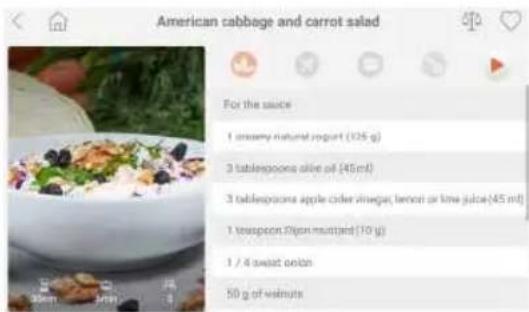

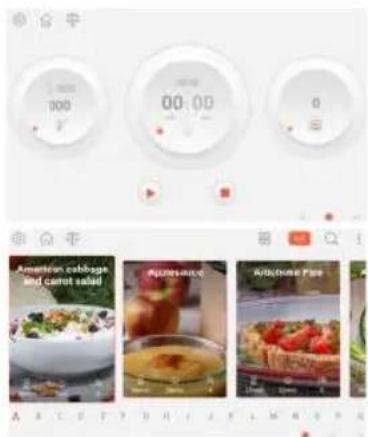

español english français portuguese deutsch italiano český By sliding left in screen or click the left dot in red circle or turn the knob in anticlockwise to go to recipe menu. Click the or click the middle dot in red circle to go back to the initial step for reset. After cooking, Screen will shows end. Press the rotary knob and it will stop cooking. If you want to suspend during cooking. Press the rotary knob. Then press again and the cooker will continue cooking. The cooker will stop cooking if you long press the rotary knob. The recipe has preset parameter. Click to start. The number in red circle stand for each working step, click to check all the recipe details. Click the function icon in common function menu to go to the corresponding screen interface. Start working after completing the step 7 and 8. Click to exit this interface. This icon is for steaming. Click the recipe photo, enter into recipe interface, click to check all the recipe details. Click to start and for favorite collection.

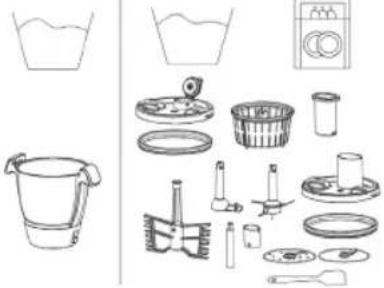

Accessories which can put into dishwasher Clean the main unit

Rotary knob (1) Can be used to setting temperature ,time, speed or UI, Auto program, recipe. (2) Press the knob and the cooker will suspend when cooking .It will continue cooking if your press again. Or conrm your choice. (3) Long push the knob and the cooker will stop cooking. (4) Press the knob after nish all setting and the cooking will start cooking. (5) It will automatically cancel if you long push the knob during setting. (6) When nish cooking, Press the knob and the cooker will into standby mode.

Speed: Click to shift between clockwise and reverse Speed range:0-12

Food /ingredients temp, After 37, 40°C, in intervals of 5°

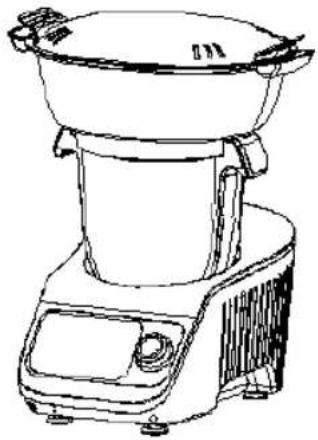

Steam: Time: 20 (Range:1-60) minutes Steam ow: Fast/Medium/Slow Time count down starts from 95 °C

Turbo Time:60s Speed: 12 Press or Press Knob and release to stop

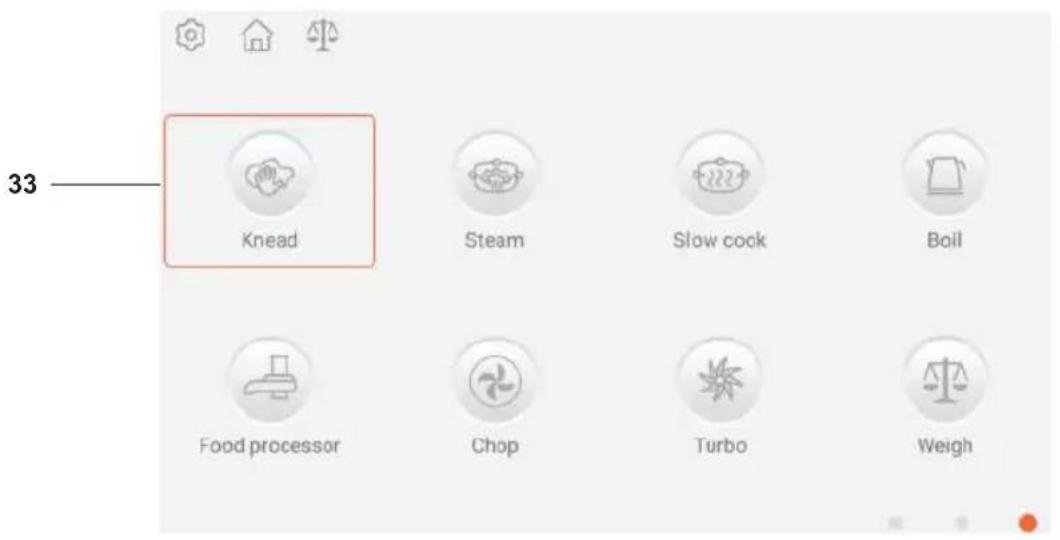

More Including favorite collection and history

Check recipe info including

8. Setting the temperature

8.1: Temperature range: 37-120°C, with 5°C interval 8.2: Click slide the picto or rotate the knob to set the temp

9. Setting the speed

9.1: Speed range: 0-12 9.2: Click , slide the picto or rotate the knob to set the speed

9.3 : Click , shift to , with speed setting 1-3

9.4: Speed 1-3: Speed 1-4: Speed 1-12

10. Start, pause and stop

During standby mode,white and red lights ash. Red light underneath Knob is on when temperature is beyond 60°C, and white light is on when temperature is below 60°C, at any woring mode29 español english français portuguese deutsch italiano český

Method Function Accessory Speed Time Maximum cooking ingredients in one time Meat Chopping Chopping blade Speed 8-12 30s-60s 600g Beef / pork without bone/tendon Ice Crush Chopping Blade Speed 8-12 10-20s 600g ice cube Blender Chopping Blade Speed 12 1min Maximum Capacity: 2300ml 920g carrot 1380g water Chopping (Onion, shallot, celery, etc) Chopping Blade Speed 5 15s-30s 500g Kneading Chopping Blade Speed 1 2mins 500g our + 250g water + 20g oil Slices, Shreds (Carrot, cucumber, potato) Slices discs Speed 5-6 30s 500g Soup Stir paddle Speed 1 Choose Soup function. Or you can setting the proper time , speed, temperature by your own. Maximum Capacity 2000ml

12. Care and Cleaning:

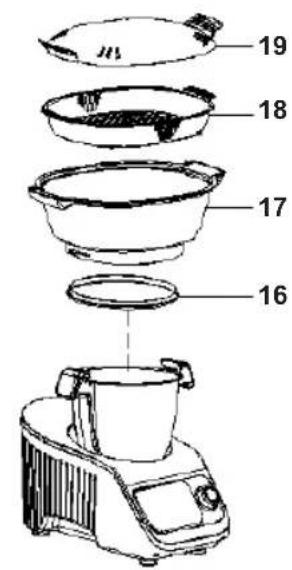

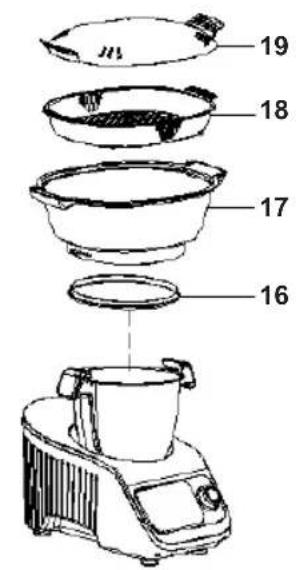

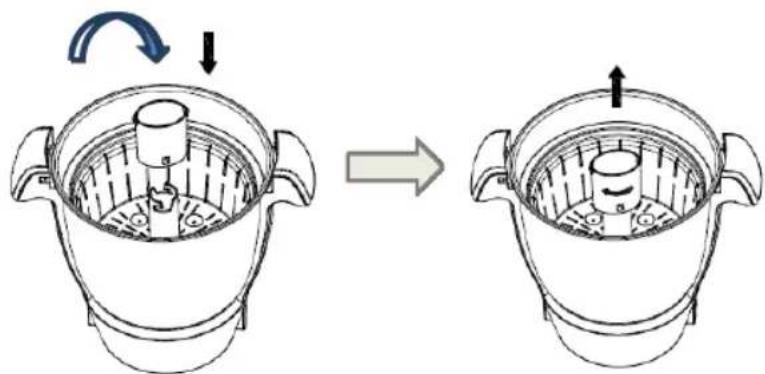

12.1. Always switch o󰀨 and unplug before cleaning. 12.2. Remove the lid and tool from the bowl before cleaning, 12.3. Power unit. Wipe with a damp cloth, then dry.Never use abrasives or immerse in water. 12.4. When there is burn mark on blender jug bottom, put some citric acid or lemons into water, heat 5~7 minutes, then remove the burn mark with a mop 12.5. Bowl/stirring paddle/blade. Wash the parts, then dry thoroughly. If food sticks or burns on the inside of the bowl, remove as much as possible using a spatula. Fill the bowl with warm soapy water and allow to soak. Remove any stubborn deposits using a cleaning brush. Any discolouration of the bowl will not a󰀨ect its performance. 12.6. How to take out steam basket Put mearsuring cup into steam basket slot and rotate to x. Then, take out.30 español english français portuguese deutsch italiano český

13. Cleaning and Maintenance

14. Product Specication

Model: SS-14565 Rated Voltage: 220-240V~ 50-60Hz Heating Power: 1000W Mixing Power: 600W Bowl Capacity: 2.0L/3.5L (Max) Heating Power + Mixing Power: 1300W

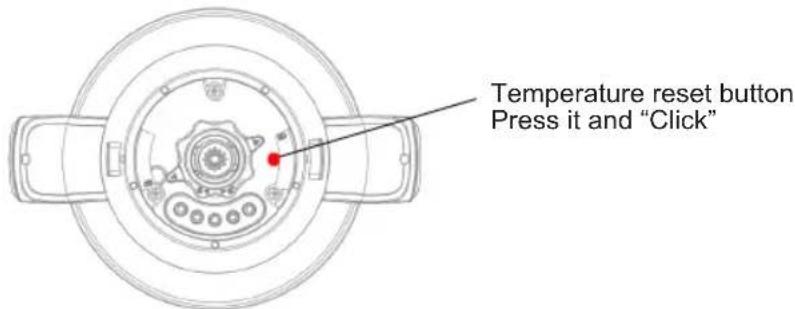

15. Reset temperature control

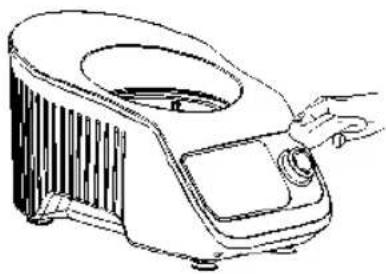

If the machine stops working due to over temperature, you can press the temperature reset button located at the bottom of the jug. Make sure that the jug cools down and then make it work again. Please unplug the power cord before cleaning Please use dry dishcloth to clean the main unit .Do not wash them with water or put it into the dish-washing machine. Metal brush, nylon brush, household cleaner, diluent, cleaning products will damage the surface of product structure Please use dry and soft cloth to clean power cord . Lid, Measuring cup, Blade, Mixing paddle, Steam basket, Steamer. etc. All above photo acce ssories can be washed by dish-washing machine. Temperature reset button Press it and “Click”

Pulsante Home: home page

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.
