SS14270 - Blender Sogo - Free user manual and instructions

Brand	Sogo
Model	SS14270
Product Type	Immersion blender with accessories
Power Supply	220-240 V, 400 W, 50-60 Hz
Measuring Cup Capacity	700 ml
Chopper Bowl Capacity	300 ml
Body Material	Plastic
Blade Material	Stainless steel
Included Accessories	Whisk, chopper, measuring cup, hanging ring
Main Functions	Blend, chop, whisk, emulsify
Speed	Single speed, push-button
Dimensions (approximate length)	30 cm
Approximate Weight	1 kg
Cleaning and Maintenance	Motor unit: damp cloth; accessories: dishwasher safe (rinse blades after salty foods)
Safety	Overload protection, very sharp blades, do not immerse the motor unit, short use (max 1 min, hard foods 10 sec, pause 3 min)
Storage	Cool, dry place, out of reach of children
Country of Manufacture	P.R.C. (China)
After-Sales Service	www.sogosat.com / [e-mail] / 0034 902 222 161
Manual available in	FR, DE, EN, ES, IT, PT and other languages on request

Frequently Asked Questions - SS14270 Sogo

How to use the immersion blender?

Assemble the motor unit with the desired accessory (blender, whisk or chopper). Immerse in the container and press the switch. Do not exceed 1 minute of continuous operation, and 10 seconds for hard foods. Allow to cool for 3 minutes before reusing.

Can I blend hot foods?

Yes, but with caution: hot liquid may be expelled by sudden steam. Fill the container halfway and keep the blender well immersed.

How to clean the blades?

The blades are very sharp. Unplug the appliance. Rinse the blades immediately after blending salty foods. The accessories (except the motor unit) are dishwasher safe. For discolored plastic parts, rub with vegetable oil before washing.

What to do if the appliance does not work?

Check that the plug is correct and that the chopper bowl is properly locked (for the chopper). If the problem persists, contact Sogo after-sales service (www.sogosat.com). Do not attempt to repair yourself.

Can I blend ice cubes or coffee beans?

No, the chopper is not designed for extremely hard foods like ice cubes, nutmeg, coffee beans or other cereals. Use only for soft to hard but not frozen foods.

Is the appliance suitable for children?

This blender can be used by children over 8 years old under supervision. People with reduced capabilities must be instructed. Keep the appliance out of reach of children under 8 years old.

What is the capacity of the measuring cup?

The measuring cup has a capacity of 700 ml. It is not microwave safe.

How to use the whisk?

Insert the whisk into the whisk holder, then attach the motor unit. Immerse in the container and press the switch. Ideal for cream, egg whites and desserts.

Can I use an extension cord?

The use of an extension cord is not recommended. If necessary, choose an extension cord with a power rating at least equal to that of the blender (400W) and arrange it to avoid any risk of falling.

Where to find the user manual?

The manual is available in PDF format at www.sogo.es. You can also request a translation by choosing your language on notice-facile.com.

USER MANUAL SS14270 Sogo

Product photo of a white SOGO blender with whisk, cup, and kitchen utensil (no visible text or symbols)

BATIDORA DE MANO HAND BLENDER MÉLANGEUR À MAIN BATEDEIRA DA MÃO STABMIXER FRULLATORE A MANO

Caution: please read and preserve these important instructions

ÍNDICE

1. Important Note P. 11

2. Symbol definitions P. 11

3. Safety instructions for the user P.11

I. General precautions during the use of electrical equipment P. 11-12

II. Restrictions on use to avoid personal injury P. 12-13

III. Product use restrictions due to poor condition or breakdown P. 13-14

IV. Restrictions on use when used with children and elders P. 14-15

V. IMPORTANT WARNING P. 15

VI. Instructions to follow when using the device P. 15-16

1. Product features P. 17

2. Technical specifications P. 17

3. Parts description P. 17

4. Instructions for use P. 17

5. Cleaning and maintenance P. 17

6. Declaration of conformity P. 50

7. Responsibility of disposal, details of the manufacturer and after-sales service P. 51

ÍNDICE

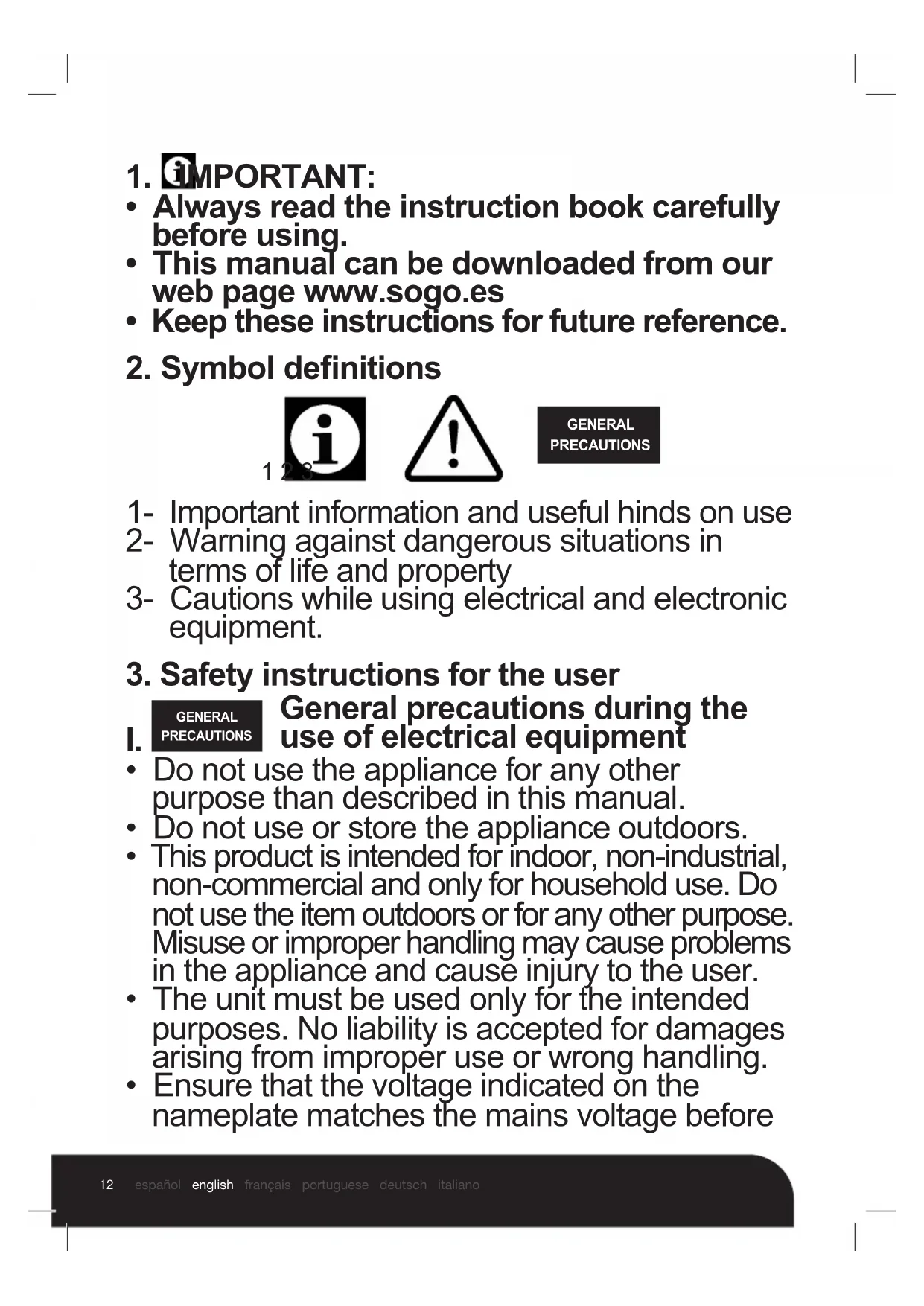

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. Symbol definitions

1- Important information and useful hinds on use
2- Warning against dangerous situations in terms of life and property
3- Cautions while using electrical and electronic equipment.

3. Safety instructions for the user

GENERAL PRECAUTIONS General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before

plugging in the appliance.

• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
- Close supervision is necessary when any appliance is being used by or near children.
- Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
- The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
- The appliances are not intended to be operated by means of an external timer or separate remote-control system.
- This appliance is intended to be used in household and similar applications such as
- Staff kitchen areas in shops, offices and other working environments;
- Farm houses and by clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments;
- Catering and similar non-retail applications.

II. Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from

sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.

• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
  • To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.

III. ▲Product use restrictions due to poor condition or breakdown

• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its

service agent or similarly qualified persons in order to avoid Hazard.

• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

IV. Restrictions on use when used with children and elders

• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep the appliance and its cord out of the reach of the children.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instructions concerning use of the appliance in a safe way and understand the hazards.
  • Children shall not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way

and understand the hazards involved.

• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Do not allow the children to use the appliance without supervision.

V. IMPORTANT WARNING

• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

VI. Instructions to follow when using the appliance

• The appliance cannot be used for blending hard and dry substance, otherwise the blades might get blunt.
• The use of attachment, including Jar, lid, or any another accessory not recommended or sold by manufacture may cause fire, electric shock or injury.
• Always disconnect the blender from the mains when it is left unattended and before assembling, disassembling or cleaning.
• Be careful if hot liquid is poured into the food

processor or blender, as it can be ejected out of the appliance due to the sudden steaming.

- WARNING: The blades are very sharp!

- Avoid contacting moving parts of the appliance while in function.

- Turn off the appliance and disconnect from the mains supply before changing accessories or approaching movable parts in use.

- Care must be taken when handling the sharp blades, emptying the bowl and during cleaning.

- Do not connect the appliance to the mains until it is completely assembled and always disconnect the appliance before disassembling or handling the blade.

- Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.

- The measuring glass is not microwave safe.

- Short time operating appliance. Do not use the appliance for more than 1 minute at a time and with hard foods for more than 10 seconds.

- Do not operate the appliance for more than once at a time, and even if you need to operate it more than once, wait at least 3 minutes before the next use. Allow the appliance to cool down and use it again.

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which comes in the contact of food.

4. Product features

• Single Speed Push button for easy operation
  • Stainless steel blades for all purpose blending
  • Elegant ergonomic design
• Plastic body and detachable stainless steel shaft
  • Perfect for blending, mixing, juicing
  • Chopper bowl attachment (300ml)
  • 700 ml mixing/measuring beaker
• Hanging ring
  • Stainless Steel Whisk attachment for eggs and cream

5. Technical specifications

Voltage Power	Frequency
220-240V 400W	50 – 60Hz

6. Parts description

A

B

C

A. Switch
B. Motor unit
C. Blender stick
D. Whisk
E. Whisk holder
F. Measuring beaker
G. Chopping bowl lid
H. Chopping bowl
I. Blade

7. Instructions for use

HOW TO USE THE HAND BLENDER

• The hand blender is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby food as well as for mixing and milk-shakes.
  • Take the blender stick on the motor unit until and turn until it locks.
• Introduce the hand blender in the measuring beaker. Then press the switch.
  • Take the blender stick out off the motor unit after use.
  You can use the hand blender in the measuring beaker and just as well in any other vessel.

HOW TO USE YOUR CHOPPER

• Chopper is perfectly suited for hard food, such as meat, cheese, onion, herbs, garlic, carrots, walnuts, almonds, prunes etc.
• Don't chop extremely hard food, such as ice cubes, nutmeg, coffee beans and grains.

Before chopping...

• Carefully remove the chopping bowl lid from the blade. Caution: the blade is very sharp! Always hold it by the upper plastic part.
• Place the blade on the center pin of the chopper bowl. Press down the blade and lock bowl.
• Place the food in the chopping bowl.
• Place the chopping bowl lid on the chopping

bowl.

• Place and push the motor unit on the chopping bowl lid and turn it until it locks.
• Press switch to operate the chopper. During processing, hold the motor unit and the chopper bowl.
  • After use, take the motor unit off the chopping bowl lid by turning it.
  • Then remove the chopping bowl lid.
  • Carefully take out the blade.
• Remove the processed food from the chopping bowl.

HOW TO USE YOUR WHISK

• Use the whisk only for whipping cream, beating egg whites and mixing sponges and Ready-mix desserts.
• Insert the whisk into the whisk holder, and then push the whisk holder onto the motor unit and turn it until it locks.
• Introduce the whisk in a measuring beaker and then press the switch to operate it.
• Push the whisk with whisk holder out off the motor unit after use. Then pull the whisk out of the whisk holder.

8. Cleaning and maintenance

Cleaning the motor unit and chopping bowl lid only with a damp cloth only. Do not immerse the motor unit in water!

• All other parts can be cleaned in the dishwasher. However, after processing very salty food, you should rinse the blades right away.
• Also, be careful not to use an overdose of cleaner. When processing food with color, the plastic parts of the appliance may become discolored. Wipe these parts with vegetable oil before placing them in the dishwasher.
  • The blades are very sharp, please pay attention.
  • Unplug the appliance before cleaning.

STORAGE

1. Store in a cool and dry place and out of reach of Children.
2. Never keep the appliance stored with the cord and plug connected to the electric socket.

PROCESSING GUIDE

Comida	Maximum	Use	Operation time
Meat 250g		Chopper	15 sec
Herbs 50g		Chopper	10 sec
Nut, almonds	150g	Chopper	15 sec
Cheese 100g		Chopper	10 sec
Bread 80g		Chopper	10 sec
Onions 200g		Chopper	10 sec
Biscuits 150g		Chopper	10 sec
Soft fruit	200g	Chopper	10 sec
Carrots 200g		Chopper	10 sec
Eggs	4 pcs-200g	Whisk	15 sec

1. i AVISO IMPORTANTE:

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards
Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain
Product manufactured in P.R.C. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
