TB 74 - Measuring equipment Testboy - Free user manual and instructions

Brand	Testboy
Model	TB 74
Product type	Digital coating thickness gauge
Category	Measuring equipment
Dimensions	Length 160 mm, diameter 33 mm
Power supply	1 battery 12 V type V23
Protection rating	IP40
Measuring range	0 – 400 μm
Display	3 LEDs (red, yellow, green) with color coding
Main functions	Coating thickness measurement on magnetic metals, visual indication by LED
Automatic shut-off	Yes
Intended use	Applications described in the manual; any other use is prohibited
Safety instructions	Avoid electromagnetic fields, high temperatures, dust and humidity
Maintenance and cleaning	Clean with a dry cloth; remove batteries if not used for a long time
Battery replacement	Remove the battery compartment cover, observe polarity
Warranty	5 years (upon presentation of the invoice)
Standards and certificates	CE compliant, Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC
Disposal	Return to collection points for electronic waste; spent batteries to be deposited at a collection point

Frequently Asked Questions - TB 74 Testboy

How to use the Testboy TB 74?

Remove the cover of the tester and press the button to turn on the device. Hold the probe on the surface to be measured and read the result on the LEDs. Replace the cover after use.

What do the LED colors mean?

The LEDs indicate the coating thickness: green = 0-150 μm, green/yellow = 150-250 μm, yellow = 250-350 μm, yellow/red = 350-400 μm, red > 400 μm.

How to replace the batteries?

Remove the battery compartment cover by pushing the clip upwards. Insert a 12 V type V23 battery observing polarity, then close the cover.

What is the measuring range of the TB 74?

The measuring range is 0 to 400 μm (micrometers).

Does the device have automatic shut-off?

Yes, the Testboy TB 74 is equipped with an automatic shut-off system to save batteries.

How to clean the device?

Clean the device with a dry cloth. Do not use aggressive products. Remove the batteries if you do not use it for an extended period.

What is the warranty of the Testboy TB 74?

Testboy offers a 5-year warranty upon presentation of the invoice, covering manufacturing and material defects. Damage due to drops or handling errors is excluded.

Is the device waterproof?

The protection rating is IP40, which means it is protected against solid objects larger than 1 mm, but not against water.

Can I measure on non-magnetic metals?

No, the Testboy TB 74 is designed only to measure coating thickness on magnetic metals (e.g., steel).

What to do in case of malfunction?

In case of defect, contact Testboy GmbH customer service at 0049 (0)4441 / 89112-10. Do not open the device yourself, as this would void the warranty.

USER MANUAL TB 74 Testboy

Line drawing of a mechanical component with textured ends and central oval feature (no text or symbols)

Testboy TB 74

Version 1.1

TB 74 3

Bedienungsanleitung

TB 74 13

Operating instructions

TB 74 23

Mode d'emploi

TB 74 33

Diagram of a biological or mechanical structure with three colored dots (red, yellow, green) and a central oval shape, no text or symbols present.

WARNUNG

Diagram of a mechanical component with a red arrow pointing to a specific section (no text or symbols present)

Technische Daten

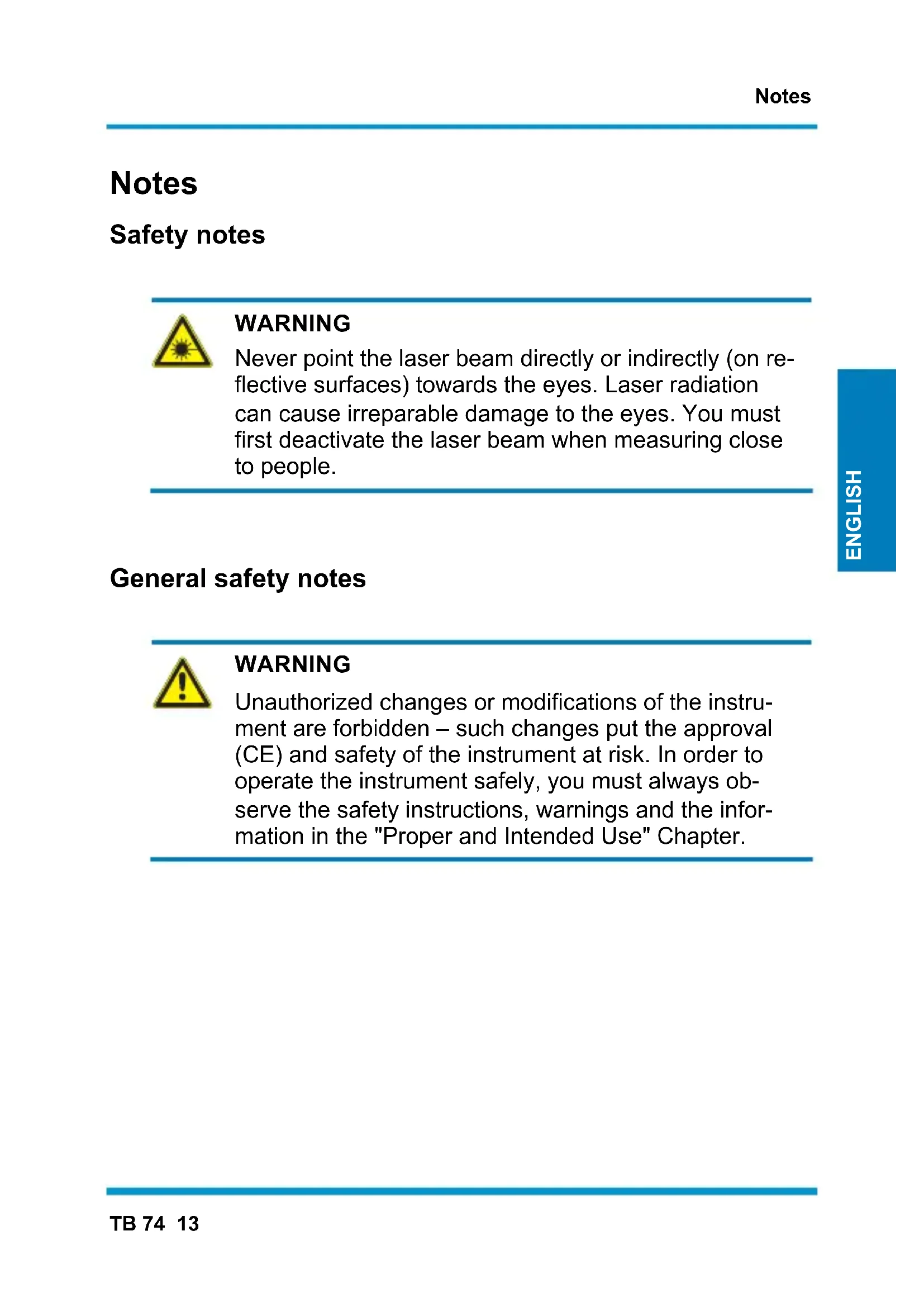

Never point the laser beam directly or indirectly (on reflective surfaces) towards the eyes. Laser radiation can cause irreparable damage to the eyes. You must first deactivate the laser beam when measuring close to people.

General safety notes

WARNING

Unauthorized changes or modifications of the instrument are forbidden – such changes put the approval (CE) and safety of the instrument at risk. In order to operate the instrument safely, you must always observe the safety instructions, warnings and the information in the "Proper and Intended Use" Chapter.

WARNING

Please observe the following information before using the instrument:

Do not operate the instrument in the proximity of electrical welders, induction heaters and other electromagnetic fields.
Do not expose the instrument to high temperatures for a long period of time.
Avoid dusty and humid surroundings.
Measurement instruments and their accessories are not toys. Children should never be allowed access to them!
In industrial institutions, you must follow the accident prevention regulations for electrical facilities and equipment, as established by your employer's liability insurance organization.

Proper and intended use

This instrument is intended for use in applications described in the operation manual only. Any other usage is considered improper and non-approved us-age and can result in accidents or the destruction of the instrument. Any misuse will result in the expiry of all guarantee and warranty claims on the part of the operator against the manufacturer.

Remove the batteries during longer periods of inactivity in order to avoid damaging the instrument.

We assume no liability for damages to property or personal injury caused by improper handling or failure to observe safety instructions. Any warranty claim expires in such cases. An exclamation mark in a triangle indicates safety notices in the operating instructions. Read the instructions completely before beginning the initial commissioning. This instrument is CE approved and thus fulfils the required guidelines.

All rights reserved to alter specifications without prior notice © Testboy GmbH, Germany.

Disclaimer and exclusion of liability

The warranty claim expires in cases of damages caused by failure to observe the instruction! We assume no liability for any resulting damage!

Testboy is not responsible for damage resulting from:

failure to observe the instructions,
changes in the product that have not been approved by Testboy,
the use of replacement parts that have not been approved or manufactured by Testboy,
the use of alcohol, drugs or medication.

Correctness of the operating instructions

These operating instructions have been created with due care and attention. No claim is made nor guarantee given that the data, illustrations and drawings are complete or correct. All rights are reserved in regards to changes, print failures and errors.

Disposal

For Testboy customers: Purchasing our product gives you the opportunity to return the instrument to collection points for waste electrical equipment at the end of its lifespan.

The EU Directive 2002/96/EC (WEEE) regulates the return and recycling of waste electrical and electronics equipment. As of 13/08/2005, manufacturers of electrical and electronics equipment are obliged to take back and recycle any electrical devices sold after this date for no charge. After that date, electrical devices must not be disposed of through the "normal" waste disposal channels. Electrical devices must be disposed of and recycled separately. All devices that fall under this directive must feature this logo.

Disposing of used batteries

As an end user, you are legally obliged (by the relevant laws concerning battery disposal) to return all used batteries. Disposal with normal household waste is prohibited!

Contaminant-laden batteries are labelled with the adjacent symbol which indicates the prohibition of disposal with normal household waste.

The abbreviations used for heavy metals are:

Cd = Cadmium, Hg = mercury, Pb = lead.

You can return your used batteries for no charge to collection points in your community or everywhere where batteries are sold!

Five year warranty

Testboy instruments are subject to strict quality control standards. The instrument is covered by a warranty for a period of five years against malfunctions during the course of your daily work (valid only with invoice). We will repair production or material defects free of charge upon return if these have not been caused by misuse or abuse and if the instrument has not been opened. Damage resulting from a fall or improper handling is excluded from the warranty.

Please contact:

Testboy GmbH Tel: [phone]

Certificate of quality

All aspects of the activities carried out by Testboy GmbH relating to quality during the manufacturing process are monitored permanently within the framework of a Quality Management System. Furthermore, Testboy GmbH confirms that the testing equipment and instruments used during the calibration process are subject to a permanent inspection process.

Declaration of Conformity

This product fulfils the specifications contained in the Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC.

Operations

Thank you for choosing the Testboy ^® TB 74.

The test probe can be used for making digital measurements to determine the thickness of layers on magnetic metals. It is designed for use in professional workshops and service departments. Three LEDs are used to indicate the thickness of the layers within different ranges.

Automatic power-off

The Testboy TB 74 features an automatic shut-off feature.

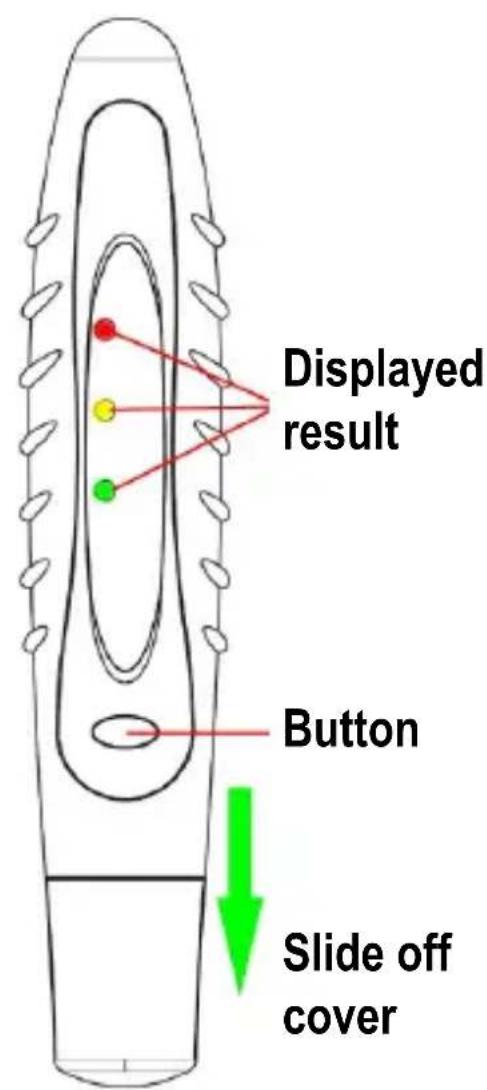

Determining the layer thickness

Remove the tester's lid and press the button to turn it on. Hold the test probe on the surface to be measured while simultaneously reading the result on the LEDs.

Displayed result Button Slide off cover

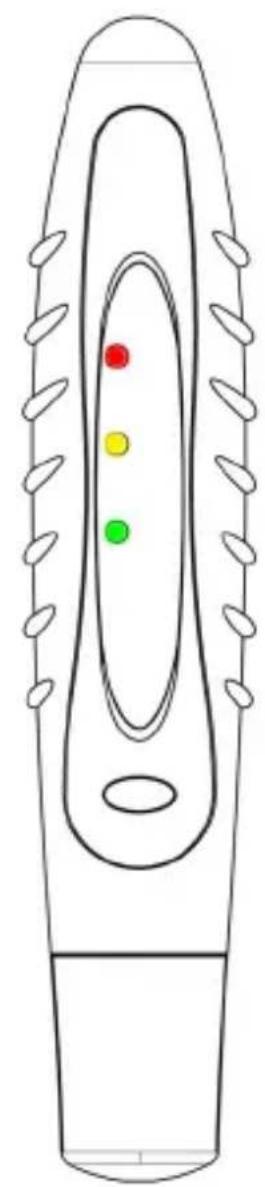

Display

The display consists of three LEDs that indicate the layer thickness range.

Red >400 μm

Yellow / red 350 - 400 μm

Yellow 250 - 350 μm

Green / yellow 150 - 250 μm

Green 0 - 150 μm

The device is pre-set to these ranges and does not need to be calibrated.

Diagram of a biological or mechanical structure with colored dots indicating specific regions (no text or symbols present)

WARNING

Always replace the cap. The sensor tip is sensitive!

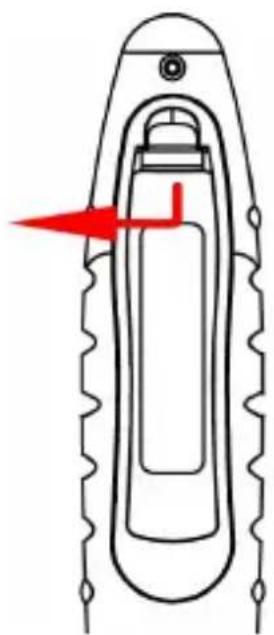

Changing the battery

Press up on the clip and remove the battery cover. Make sure you insert the battery so that the polarity is correct! Insert the new battery and replace the battery cover.

Do not dispose of batteries in normal household rubbish! Use an authorised local collection point!

Diagram of a mechanical component with a red arrow indicating direction, no text or symbols present

Technical specifications

Display Optical / three LEDs

Dimensions L = 160 mm / ∅ = 33 mm

Batteries One 12-V, type V23

Protection degree IP 40

Measuring range 0 – 400 μm

Remarques

Cd = cadmium, Hg = mercure, Pb = plomb.

Diagram of a biological structure with three colored dots inside, no text or symbols present

AVERTISSEMENT

Diagram of a mechanical component with a red arrow pointing to a specific section (no text or symbols present)

Diagram of a biological structure with three colored dots inside a lens-like cavity (no text or labels)

AVVERTENZA

Technical line drawing of a mechanical component with red arrows indicating direction (no text or symbols)

Technische Daten

Diagram of a biological or mechanical structure with colored dots and ribbed texture (no text or symbols)

WARNUNG

ADVERTENCIA

Diagram of a mechanical component with a red arrow pointing to a specific section (no text or symbols present)

Diagram of a biological or mechanical structure with three colored dots (red, yellow, green) and a central oval shape, no text or symbols present.

AVISO

Diagram of a mechanical component with a red arrow pointing to a specific section (no text or symbols present)

Dados técnicos

Mostrador Ótico / 3 LED

Cd = cadmium, Hg = kwik, Pb = lood.

Diagram of a biological or mechanical structure with three colored dots and serrated edges, no text or symbols present.

WAARSCHUWING

Diagram of a mechanical component with a red arrow indicating direction, no text or symbols present

Technische gegevens

Aflezing	Optisch/3
Afmetingen L=160 mm/∅=33 mm
Batterijen 1 x 12 V type V23
Beschermingsgraad	IP	40
Meetbereik 0 – 400 μm
