Product type	Cordless dry vacuum cleaner
Brand	Kärcher
Model	HV 11 Bp Cs
Dimensions (L x W x H)	306 x 116 x 290 mm
Operating weight	1.8 kg
Power supply	Lithium-ion battery 18 V, 2,500 mAh
Charger	220-240 V~, 50-60 Hz
Runtime in normal mode	21 min
Runtime in Eco mode	35 min
Tank capacity	0.9 l
Max air flow	33 l/s
Max vacuum pressure	4.7 kPa (47 mbar)
Sound level	70 dB(A)
Hand-arm vibration	< 2.5 m/s²
Power consumption	115 W
Filters	Pre-filter and cartridge filter (washable)
Main functions	Eco mode, automatic shutdown on discharged battery, battery level display
Safety	Overheat, overload and short-circuit protection
Usage	Indoor, dry vacuuming, industrial use
Protection class	III
Operating temperature	0 to 40 °C
Spare parts and repairability	Original Kärcher accessories available (suction nozzles, brushes, filters, etc.)
Warranty	According to country conditions, covers material and manufacturing defects

Frequently Asked Questions - HV 11 Bp Cs Kärcher

How to start the Kärcher HV 11 Bp Cs vacuum cleaner?

Press the main switch halfway for momentary operation. For continuous operation, push the switch until it engages. To stop, press the switch again.

How to activate Eco mode and what is its advantage?

Press the Eco button (mark 1 on the device). Eco mode reduces suction power, which increases battery runtime (35 min instead of 21 min). To deactivate, press the button again.

How to empty the vacuum cleaner's tank?

Press the dirt collector release on both sides, tilt it upwards and remove it. Remove the filter, empty the tank, replace the filter and snap the collector back into place.

How to clean the vacuum cleaner's filters?

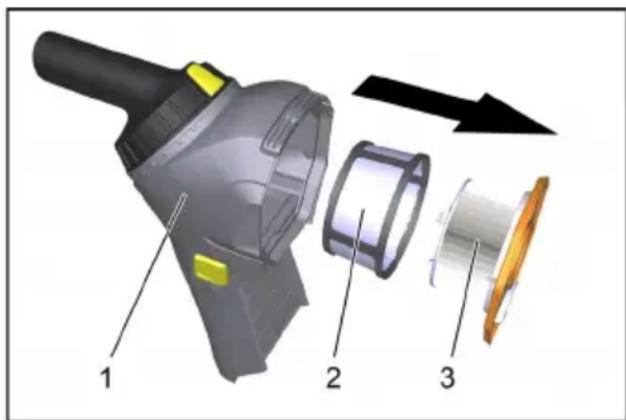

Remove the dirt collector, take out the filter cartridge and pre-filter. Clean them carefully without damaging the filter surface. You can replace them if necessary. Never use the appliance without filters.

Which battery to use with this vacuum cleaner?

Use exclusively 18 V batteries of type Kärcher BP. The supplied battery is an 18 V, 2,500 mAh lithium-ion battery. Do not use other batteries.

What is the battery runtime and how to optimize it?

The runtime is 21 minutes in normal operation and 35 minutes in Eco mode. To optimize, use Eco mode and recharge the battery immediately after use. The charge level is displayed on the battery.

What to do if suction decreases or becomes insufficient?

First check if Eco mode is activated (deactivate it). Then empty the tank and clean the filters. Also check that the nozzle and suction tube are not clogged.

Can I vacuum liquids with this vacuum cleaner?

No, this appliance is designed only for dry vacuuming. Vacuuming liquids can damage the appliance and presents a risk of electric shock.

How to transport the vacuum cleaner safely?

Observe the weight of the appliance (1.8 kg). For transport in a vehicle, secure it against sliding or tipping according to applicable regulations. Remove the battery before any transport.

Where can I find accessories and spare parts for this vacuum cleaner?

Use exclusively original Kärcher accessories. You can find them on the website www.kaercher.com or from your dealer. Accessories include suction nozzles, brushes, filters, etc.

USER MANUAL HV 11 Bp Cs Kärcher

3D rendering of a black vacuum cleaner with yellow clamps and handle (no text or symbols visible)

Deutsch 3

English 11

Français 19

Italiano 27

Nederlands 35

Español 43

Português 51

Dansk 59

Norsk 67

Svenska 74

Suomi 82

Ελληνικά 90

Türkçe 99

Русский 107

Magyar 116

Čeština 124

Slovenščina 132

Polski 140

Românește 148

Slovenčina 156

Hrvatski 164

Srpski 172

Български 180

Eesti 189

Latviešu 197

Lietuviškai 205

Українська 213

Register your product

www.kaercher.com/welcome

59665490 01/19

KARCHER Professional 1 2 3 4 5 6 7 8 9

Two technical diagrams showing mechanical assembly steps with arrows indicating movement, no text or symbols present.

Exploded view diagram of a mechanical device with numbered parts and directional arrow indicating assembly

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Technische Daten

Please read and comply with these original instructions prior

to the initial operation of your appliance and store them for later use or subsequent owners.

- Before first start-up it is definitely necessary to read the safety indications Nr. 5.956-249.0!

- The non-compliance of the operating and safety instructions may lead to damages of the appliance and to dangers for the operator and other persons.

– In case of transport damage inform vendor immediately.

- When unpacking the product, make sure that no accessories are missing and that none of the package contents have been damaged.

Contents

Environmental protection .... EN 1

Danger or hazard levels ..... EN 1

Proper use ...... EN 2

Safety instructions..... EN 2

Device elements ..... EN 3

Accessories..... EN 3

Start up ...... EN 3

Operation ...... EN 3

Transport..... EN 5

Storage ..... EN 5

Care and maintenance ..... EN 5

Troubleshooting ..... EN 6

Warranty ...... EN 6

Accessories and Spare Parts. EN 6

EU Declaration of Conformity. EN 7

Technical specifications ..... EN 8

Environmental protection

The packaging material can be recycled. Please arrange for the environmentally appropriate disposal of the packaging.

Electrical and electronic devices often contain components which could potentially pose a danger to human health and the environment if handled or disposed of incorrectly. However, these components are necessary for the proper operation of the device. Devices marked with this symbol must not be disposed of with regular household rubbish.

Old appliances contain valuable recyclable materials that should be recycled properly. Batteries and accumulators contain substances that must not enter the environment. Please dispose of old devices and batteries or accumulators in an environmentally friendly way.

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

Danger or hazard levels

⚠️DANGER

Pointer to immediate danger, which leads to severe injuries or death.

⚠ WARNING

Pointer to a possibly dangerous situation, which can lead to severe injuries or death.

△CAUTION

Pointer to a possibly dangerous situation, which can lead to minor injuries.

ATTENTION

Pointer to a possibly dangerous situation, which can lead to property damage.

Proper use

⚠ WARNING

The appliance is not suitable for vacuuming dust which endangers health.

ATTENTION

Risk of damage!

The appliance is not suitable for sucking in liquids.

ATTENTION

This unit is only to be used indoors.

- This vacuum cleaner is meant for dry cleaning of floors and walls.

- This appliance is suitable for commercial use, e.g. on construction sites, in workshops, hotels, schools, hospitals, factories, stores, offices and letting businesses.

Usable battery packs

Only 18 V rechargeable battery packs of type Kärcher BP my be used with this device.

Charger

Protect the charger against moisture and store it dry. The device is only suitable for use in rooms; do not expose the device to rain.

Rechargeable battery pack

Use the provided battery pack only with this device. Use in other devices is prohibited.

Safety instructions

General notes on safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children should be supervised to prevent them from playing with the appliance. - Remove the battery pack from the device before carrying out any maintenance and care work.

Charger safety instructions

Read and adhere to the operating instructions 5.968-456.0

(provided with the charger) before using the charger for the first time.

Battery pack safety instructions

Read and adhere to the safety instructions 5.968-453.0 (pro-

vided with the charger) before using the battery for the first time.

Protective circuit

The installed protective circuit protects the battery pack against

■ Overheating
Overcharge
■ Short-circuit

Safety instructions for transport

The lithium-ion battery is subject to the requirements of dangerous goods regulations and can be transported by the user in public traffic areas without any further restrictions.

When shipping by third parties (transport companies), special requirements for packaging and labelling must be observed.

Only send the battery if the casing is un-damaged. Tape off open contacts and pack the battery tightly and securely. It must not be able to move in the packaging.

Defective rechargeable batteries must not be shipped.

Contact the authorised Customer Service if you have a defective battery pack.

Please also observe the national regulations.

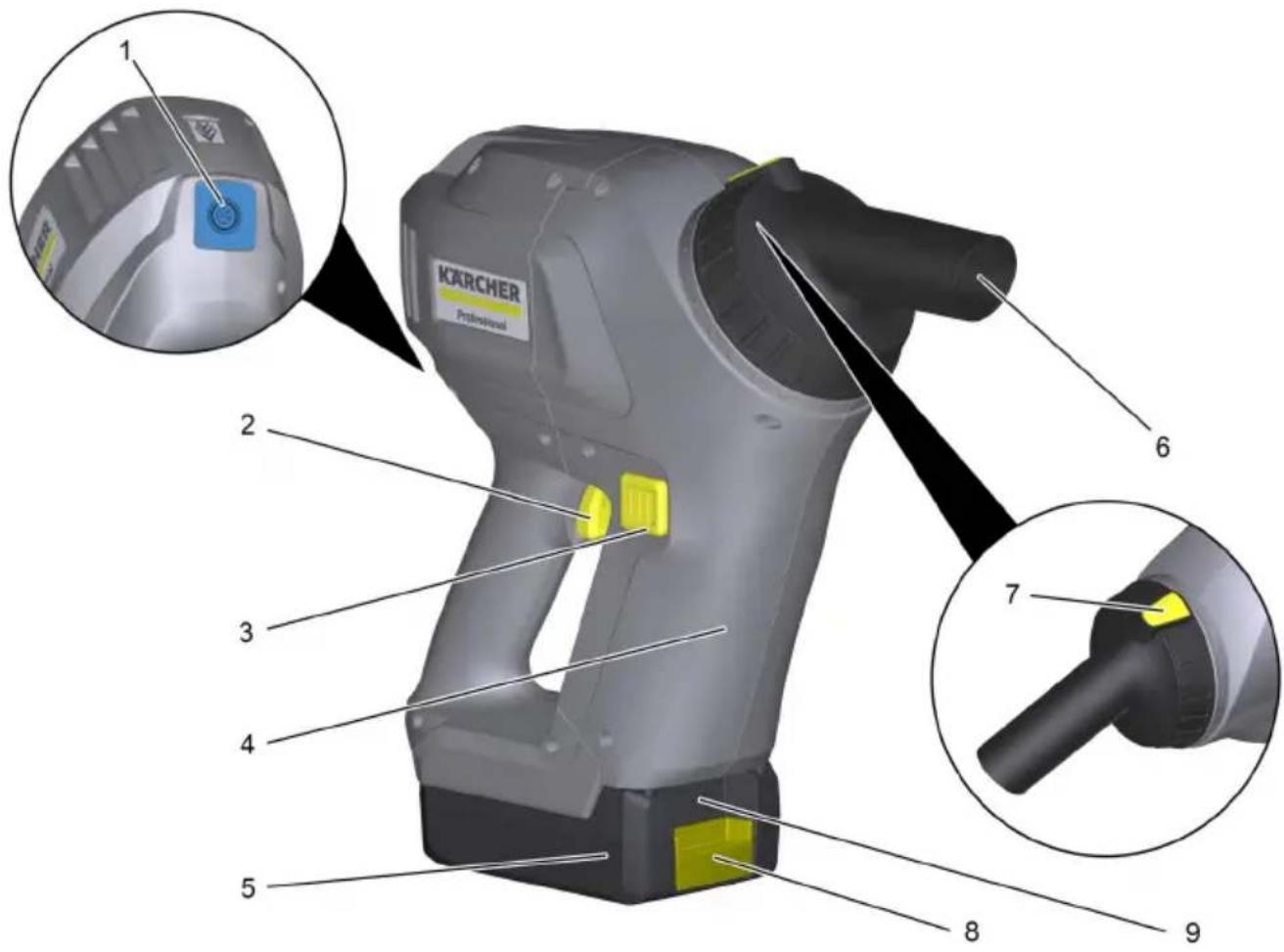

Device elements

Illustration on the inside of the front cover

1 Eco button (energy saver mode)
2 Power switch
3 Unlocking mechanism for dirt container
4 Dirt receptacle
5 Battery pack
6 Suction support
7 Suction hose port release mechanism
8 Battery pack release mechanism
9 Charge level display / Test button, battery pack

Battery pack control elements

Lithium-Ion Power 1 2

1 Charge level display
2 Test button (power)

Accessories

Some of the illustrated or described accessories are not included in the standard scope of delivery and depend on the equipping variant.

Equipment variants: Fs As Cs
Charger X X X
Battery pack X X X
Suction pipe 2x
Floor nozzle X
Upholstery nozzle X
Dusting brush X X
Car interior suction nozzle		X
Flexible suction hose		X X
Crevice nozzle	X X	X
Carrying belt			X

Start up

→ Select the desired accessory and plug it onto the suction pipe or directly into the device.

ATTENTION

Danger of tipping over! Do not set the device down when using the flexible suction hose. Hold the device in one hand during cleaning.

→ Push the battery pack into the mounting in the device until it audibly latches into place.

Operation

Switching the device on/off

→ Press the power switch halfway, the device starts up.
→ Release the power switch, device stops.
→ Press the power switch until it latches into place: Continuous operation.
→ Press the power switch - latch disengages and the device stops.

Eco button (energy-saving mode)

Eco mode (energy saver mode): The appliance works with reduced suction performance. The battery life will extend.

→ To switch on eco mode: Press the eco button.
→ To switch off eco mode: Press the eco button again.

The most recently selected mode remains stored when the device is switched off and is reactivated when the device is switched on again.

Battery pack charge level display

Note

Please read and adhere to the battery pack operating instructions.

The battery pack is equipped with a charge level display.

The current charge state is displayed when the battery pack is in the vacuum cleaner or charger.

■ The remaining charge is displayed when the battery is in use.

Display Charge level
	Fully charged
	87% - 58%
	57% - 28%
	Battery pack discharges (less than 27% remaining capacity)

■ The charging progress is displayed when charging.

Display Charge level
	0% - 29%
	30% - 59%
	60% - 89%
	Fully charged

The test button (power) on the battery pack can be pressed at any time to check the current charge state.

Emptying the dirt container

Note

Large accessories, such as e.g. the suction pipe, should be removed from the suction hose port before removing the dirt receptacle.

→ Press the dirt receptacle release mechanisms on both sides.
→ Pivot the dirt receptacle upwards.
→ Remove the dirt receptacle from the device for cleaning.
→ Remove the filter element from the dirt receptacle.
→ Empty the dirt container.
→ Reinsert the filter element.
→ Insert and lock into place the dirt container.

ATTENTION

Risk of damage! Do not operate the device without the filter element.

Turn the suction hose port

→ Press the suction hose port release mechanism.
→ Turn the suction hose port in the desired direction until it latches into position.

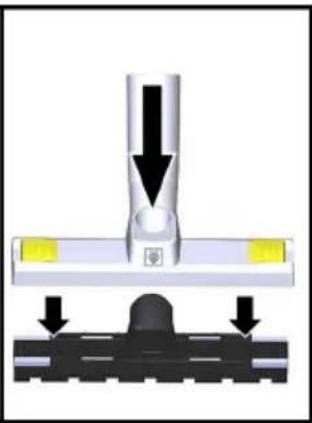

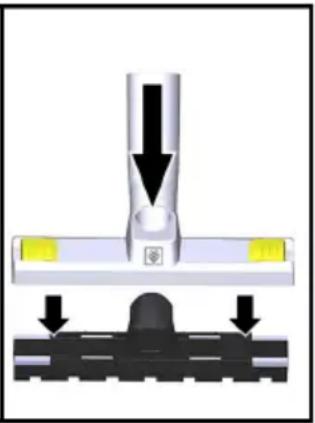

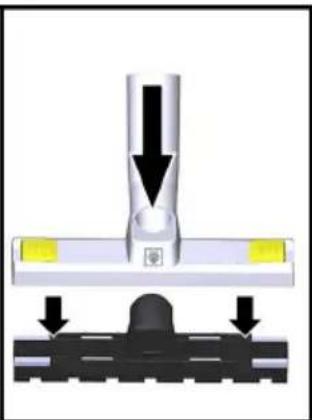

Floor nozzle

The floor nozzle can be converted for use on various different types of floor.

■ Use with brushes suitable for hard floors
■ Use without brushes suitable for carpets

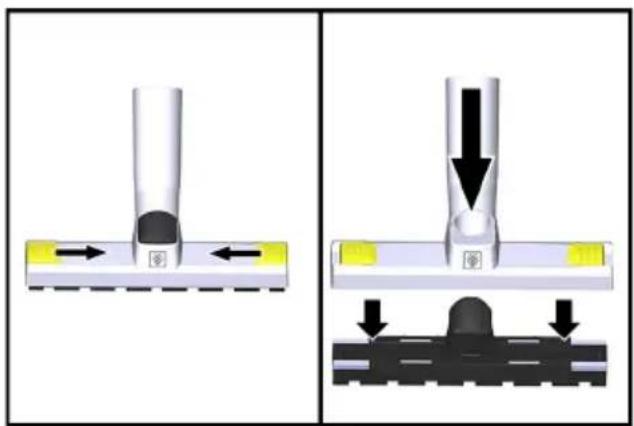

Two diagrams showing mechanical assembly steps: one with a cylindrical component and directional arrows, the other with a conical component inserted into a base (no text or symbols)

→ Unlock the lock.
→ Remove the carpet insert.
→ Insert the hard floor insert.
→ Close the lock.

And vice-versa.

After each operation

→ Empty the dirt receptacle.
→ Charge battery pack.

Automatic switch off when the battery pack is discharged

To prevent deep discharging of the battery pack, the device switches off automatically when the battery pack is discharged. In this case, recharge the battery as soon as possible.

ATTENTION

Risk of damage due to deep discharge! Ensure that the device is switched off (power switch latch released) when you store the device without first charging the battery pack.

Charging process

Note

Please read and adhere to the charger operating instructions.

→ Press the battery release mechanism.
→ Remove the battery from the device.

Note

New battery packs are only pre-charged and must be completely charged prior to the initial use.

→ Plug in the mains plug.
→ Push the battery pack into the mounting on the charger.
→ The charger performs a self test and the charging process starts automatically.
→ The charging progress is shown in the charge level display.
→ The battery pack is fully charged when all LEDs in the charge level display light up continuously.
→ After charging, remove the battery pack from the charger.
→ Pull out the mains plug.

Note

Charge batteries that have not been used for a long time before use.

The capacity of a battery pack decreases at low temperatures.

Long periods of storage at temperatures above 40 °C will reduce the capacity of the battery pack.

Note

The charged battery pack can remain on the charger till it is to be used. There is no risk of over-charging.

In order to avoid unnecessary energy consumption, the charger should, however, be unplugged as soon as the battery pack has been fully charged.

Transport

△CAUTION

Risk of injury and damage! Observe the weight of the appliance when you transport it.

→ When transporting in vehicles, secure the appliance according to the guidelines from slipping and tipping over.

Storage

△CAUTION

Risk of injury and damage! Note the weight of the appliance in case of storage.

This appliance must only be stored in interior rooms.

ATTENTION

Risk of damage! Store the battery packs in rooms with low humidity and below 20 °C only.

Care and maintenance

⚠️DANGER

Switch the device off and remove the battery before working on the device.

Clean/replace the filter element

Exploded view diagram of a mechanical device with numbered parts and directional arrow indicating assembly

1 Dirt receptacle
2 Pre-filter
3 Cartridge filter

→ Unlock and remove the dirt receptacle.
→ Pull the cartridge filter out of the dirt receptacle.
→ Pull the pre-filter off the cartridge filter.
→ Clean the filter element or replace if necessary.

ATTENTION

Risk of damage! Clean the filter element carefully. Do not subject the filter area to mechanical stress.

Do not operate the device without the filter element.

Troubleshooting

⚠️DANGER

Turn the appliance off and remove the accumulator prior to performing any tasks on the appliance.

The appliance shuts off during the operation

• Discharge battery pack.
  → Charge battery pack.
• Battery pack overheating protection has triggered.
  → Allow battery pack to cool down.

Suction capacity decreases

→ Empty the dirt receptacle.
→ Clean the filter element.

No or insufficient suction

→ Eco function switched on. Switch the Eco function off for full suction power.
→ Remove clogging from the suction nozzle or suction pipe.
→ Clean the filter element.

Suction turbine does not run

• Discharge battery pack.
  → Charge the battery pack.
• Battery pack has not been placed correctly on the battery holder.
  → Press the battery pack into the device until it locks in place.
• Battery pack at the end of its service life.
  → Replace battery pack.

Customer Service

If malfunction can not be fixed, the device must be checked by customer service.

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase.

Accessories and Spare Parts

Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device.

For information about accessories and spare parts, please visit www.kaercher.com.

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.

Product: Dry vacuum cleaner

Type: 1.394-xxx

Relevant EU Directives

2006/42/EC (+2009/127/EC)

2014/30/EU

2011/65/EU

2009/125/EC

Applied harmonized standards

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 60335-1

EN 60335-2-69

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

EN 50581

EN 60312-1: 2017

Applied national standards

Applied regulations

666/2013

5.957-678

The signatories act on behalf of and with the authority of the company management.

H. Jenner

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Technical specifications

		HV 1/1 Bp
Charger
Mains voltage V~ 220-240
Frequency Hz 1~ 50-60
Battery pack
Battery voltage V = 18
Rated capacity (according to IEC/EN 61690) mAh 2500
Battery run time (normal operation) Minutes 21
Battery run time (Eco mode / power saving mode) Minutes 35
Device
Container capacity I 0,9
Air volume (max.) I/s 33
Negative pressure (max.)	kPa (mbar)	4,7 (47)
Protective class		III
Suction hose connection (C-DN/C-ID)	mm	35
Length x width x height	mm	306x116x290
Typical operating weight	kg	1,8
Ambient temperature	°C	0...40
Values determined to EN 60335-2-69
Sound pressure level L_pA	dB(A)	70
Uncertainty K_pA	dB(A)	1
Hand-arm vibration value	m/s ^2	< 2,5
Uncertainty K	m/s ^2	1
Rated power input	W	115

www.kaercher.com/REACH

Niveaux de danger

⚠️DANGER

	0% - 29%
	30% - 59%
	60% - 89%
	Pleinement rechargée

Two technical diagrams showing mechanical assembly states: top view with a cylindrical component and left-side force arrows, bottom view with a mechanical component and downward force arrows (no text or symbols)

Exploded view diagram of a mechanical device with numbered parts and directional arrow indicating assembly

2006/42/CE (+2009/127/CE)

2014/30/UE

2011/65/UE

2009/125/CE

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

www.kaercher.com/REACH

Livelli di pericolo

⚠PERICOLO

Two technical diagrams showing a mechanical component being inserted into a base, with arrows indicating direction of movement (no text or symbols present)

Exploded view diagram of a handheld device with numbered parts and directional arrow indicating assembly

2006/42/CE (+2009/127/CE)

2014/30/UE

2011/65/UE

2009/125/CE

H. Jenner Chairman of the Board of Management

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Dati tecnici

www.kaercher.com/REACH

Gevarenniveaus

⚠ GEVAAR

■ oververhitting
■ overlapping
■ Kortsluiting

Diagram of a mechanical component with arrows indicating movement, no text or symbols present

Mechanical assembly diagram showing a presser pressing down on a workpiece (no text or symbols present)

Exploded view diagram of a handheld device with numbered parts and directional arrow indicating assembly

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Technische gegevens

www.kaercher.com/REACH

Niveles de peligro

⚠️ PELIGRO

Two technical diagrams showing a mechanical component being inserted into a base plate, with arrows indicating direction of movement (no text or symbols present)

Exploded view diagram of a mechanical device with numbered parts and directional arrow indicating assembly

2006/42/CE (+2009/127/CE)

2014/30/UE

2011/65/UE

2009/125/EG

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Datos técnicos

www.kaercher.com/REACH

Níveis de perigo

⚠PERIGO

Two technical diagrams showing mechanical assembly steps: one with a cylindrical component and directional arrows, the other with a conical component inserted into a base plate (no text or symbols)

Exploded view diagram of a device showing internal components with numbered labels 1, 2, and 3

2006/42/CE (+2009/127/CE)

2014/30/UE

2011/65/UE

2009/125/CE

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Dados técnicos

www.kaercher.com/REACH

Faregrader

⚠️FARE

Two technical diagrams showing mechanical assembly steps with arrows indicating movement, no text or symbols present.

Exploded view diagram of a mechanical device with numbered parts and directional arrow indicating assembly

1 Snavsbeholder
2 Forfilter
3 Patronfilter

2006/42/EF (+2009/127/EF)

2014/30/EU

2011/65/EU

2009/125/EF

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Tekniske data

www.kaercher.com/REACH

Risikotrinn

⚠️FARE

Anvisning om en umiddelbar truende fare som kan føre til store personskader eller til død.

▲ADVARSEL

Two technical diagrams showing a mechanical component with arrows indicating movement, no text or symbols present.

Exploded view diagram of a mechanical device with numbered parts and directional arrow indicating assembly

1 Smussbeholder
2 Forfilter
3 Patronfilter
→ Lås opp og ta av smussbeholderen.

2006/42/EF (+2009/127/EF)

2014/30/EU

2011/65/EU

2009/125/EU

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Tekniske data

www.kaercher.com/REACH

Risknivåer

⚠️FARA

	0% - 29%
	30% - 59%
	60% - 89%
	Fulladdad

Pure mechanical diagram showing a T-shaped component with arrows indicating direction, no text or symbols present

Mechanical assembly diagram showing a presser pressing a component with downward arrows indicating motion (no text or symbols present)

Exploded view diagram of a mechanical device with numbered parts and directional arrow indicating assembly

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Tekniska data

www.kaercher.com/REACH

Vaarallisuusasteet

⚠VAARA

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

Mechanical assembly diagram showing a presser pressing down on a workpiece (no text or symbols present)

→ Avaa lukitus.
→ Poista matto-osa.
→ Aseta kovan lattian osa.
→ Sulje lukitus.

ja päinvastoin.

Exploded view diagram of a mechanical device with numbered parts and directional arrow indicating assembly

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Tekniset tiedot

www.kaercher.com/REACH

Διαβάθμιση κινδύνων

⚠️KINDYNOΣ

⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚠️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚡️ ⚢️

Two diagrams showing mechanical assembly steps: one with a cylindrical component and directional arrows, the other with a conical tool inserted into a textured surface (no text or symbols)

Exploded view diagram of a mechanical device with numbered parts and directional arrow indicating assembly

1 Δοχείο ρύπων

2 Προφίλτρο

3 Φίλτρο φυσιγγίου

H. Jenner Chairman of the Board of Management

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

www.kaercher.com/REACH

Tehlike kademeleri

TEHLIKE

Technical diagram showing two mechanical assembly states with arrows indicating movement and a central component, likely illustrating a machining or disassembly process.

Exploded view diagram of a mechanical device with numbered parts and directional arrow indicating assembly

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Teknik Bilgiler

www.kaercher.com/REACH

Степень опасности

⚠️ ОПАСНОСТЬ

Technical diagram showing two mechanical assembly states with arrows indicating movement and force directions, likely illustrating a machining or disassembly process.

Exploded view diagram of a mechanical device with numbered parts and directional arrow indicating assembly

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Технические данные

www.kaercher.com/REACH

Veszély fokozatok

⚠ VESZÉLY

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

Mechanical assembly diagram showing a presser pressing down on a component (no text or symbols visible)

Exploded view diagram of a mechanical device with numbered parts and directional arrow indicating assembly

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Műszaki adatok

www.kaercher.com/REACH

Stupně nebezpečí

⚠NEBEZPEČÍ

	0% - 29%
	30% - 59%
	60% - 89%
	Zcela nabito

Two technical diagrams showing a mechanical component with arrows indicating movement, no text or symbols present.

Exploded view diagram of a mechanical device with numbered parts and directional arrow indicating assembly

2006/42/ES (+2009/127/ES)

2014/30/EU

2011/65/EU

2009/125/ES

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Technické údaje

www.kaercher.com/REACH

Stopnje nevarnosti

⚠️NEVARNOST

Two mechanical diagrams showing a tool pressing into a component, with arrows indicating movement and a close-up of the tool's tip (no text or symbols present)

→ Sprostite element za blokiranje.
→ Odstranite nastavek za preproge.
→ Vstavite nastavek za trda tla.
→ Blokirajte element za blokiranje.
In obratno.

Exploded view diagram of a mechanical device with numbered parts and directional arrow indicating assembly

1 Zbiralnik umazanije
2 Predfilter
3 Patronski filter

→ Sprostite in odstranite posodo za umazanijo.
→ Iz posode za umazanijo odstranite filtrsko patrono.
→ S filtrske patrone snemite predfilter.
→ Očistite in po potrebi zamenjajte elemente filtra.

POZOR

2006/42/ES (+2009/127/ES)

2014/30/EU

2011/65/EU

2009/125/EG

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Tehnični podatki

		HV 1/1 Bp
Polnilnik
Omrežna napetost V~ 220-240
Frekvenca Hz 1~ 50-60
Paket akumulatorskih baterij
Napetost akumulatorja V = 18
Nazivna kapaciteta (v skladu z IEC/EN 61690) mAh 2500
Čas delovanja akumulatorja (običajno delovanje) minut 21
Čas delovanja akumulatorja (način Eco/način za var- čevanje z energijo)	minut 35
Naprava
Vsebina zbiralnika l 0,9
Količina zraka (max.) l/s 33
Podtlak (max.)	kPa (mbar)	4,7 (47)
Razred zaščite		III
Priključek gibke sesalne cevi (C-DN/C-ID)	mm	35
Dolžina x širina x višina	mm	306x116x290
Tipična delovna teža	kg	1,8
Temperatura okolice	°C	0...40
Ugotovljene vrednosti v skladu z EN 60335-2-69
Nivo hrupa L_pA	dB(A)	70
Negotovost K_pA	dB(A)	1
Vrednost vibracij dlan-roka	m/ s^2	< 2,5
Negotovost K	m/ s^2	1
Nazivna poraba moči	W	115

www.kaercher.com/REACH

Stopnie zagrożenia

⚠ NIEBEZPIECZEŃSTWO

Two technical diagrams showing a mechanical component before and after disassembly, with arrows indicating movement (no text or symbols present)

Exploded view diagram of a handheld device with numbered parts and directional arrow indicating assembly

2006/42/WE (+2009/127/WE)

2014/30/UE

2011/65/UE

2009/125/UE

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Dane techniczne

www.kaercher.com/REACH

Trepte de pericol

⚠PERICOL

Two diagrams showing mechanical assembly steps: top view with arrows indicating direction, bottom view with arrows indicating force or pressure (no text or symbols)

Exploded view diagram of a mechanical device with numbered parts and directional arrow indicating assembly

Directive UE respectate:

2006/42/CE (+2009/127/CE)

2014/30/UE

2011/65/UE

2009/125/CE

Norme armonizate utilize:

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 60335-1

EN 60335-2-69

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

EN 50581

EN 60312-1: 2017

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Date tehnice

www.kaercher.com/REACH

Stupne nebezpečenstva

⚠NEBEZPEČENSTVO

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

Mechanical assembly diagram showing a presser pressing down on a workpiece (no text or symbols present)

→ Uvol'nite blokovanie.
→ Vyberte vložku na koberce.
→ Nasad'te vložku na tvrdé podlahy.
→ Zatvorte blokovanie.

a naopak.

Po každom použití

→ Vyprázdnite zásobník nečistôt.
→ Nabitie akumulátora.

Exploded view diagram of a device showing internal components with numbered labels 1, 2, and 3

2006/42/ES (+2009/127/ES)

2014/30/EÚ

2011/65/EÚ

2009/125/EÚ

Uplatňované harmonizované normy:

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 60335-1

EN 60335-2-69

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

EN 50581

EN 60312-1: 2017

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Technické údaje

www.kaercher.com/REACH

Stupnjevi opasnosti

⚠ OPASNOST

Two technical diagrams showing a mechanical assembly with arrows indicating movement, no text or symbols present.

→ Otpustite zapor.
→ Izvadite umetak za tepih.
→ Umetnite umetak za tvrdi pod.
→ Zatvorite zapor.

i obratno.

Exploded view diagram of a mechanical device with numbered parts and directional arrow indicating assembly

1 Spremnik za prljavštinu
2 Predfilter
3 Uložni filtar
→ Deblokirajte i skinite spremnik za prljavštinu.
→ Izvucite uložni filtar iz spremnika za prljavštinu.
→ Skinite predfilter s uložnog filtra.
→ Očistite i po potrebi zamijenite filtarske elemente.

PAŽNJA

Opasnost od oštećenja! Oprezno očistite filtarske elemente. Ne izlažite površinu filtra mehaničkom opterećenju.

Ne upotrebljavajte uređaj bez filtarskih elemenata.

Otklanjanje smetnji

⚠ OPASNOST

2006/42/EZ (+2009/127/EZ)

2014/30/EU

2011/65/EU

2009/125/EZ

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Tehnički podaci

		HV 1/1 Bp
Punjač
Napon el. mreže V~ 220-240
Frekvencija Hz 1~ 50-60
Komplet baterija
Napon baterije V = 18
Nazivni kapacitet (prema IEC/EN 61690) mAh 2500
Vrijeme rada baterije (normalan rad) minuta 21
Vrijeme rada baterije (Eco način rada / energetski štedljiv način rada)	minuta 35
uređaj
Zapremnina spremnika l 0,9
Maks. protok zraka l/s 33
Maks. podtlak kPa (mbar) 4,7 (47)
Klasa zaštite	☐	III
Priključak usisnog crijeva (C-DN/C-ID)	mm	35
Duljina x širina x visina	mm	306x116x290
Tipična radna težina	kg	1,8
Okolna temperatura	°C	0...40
Utvrdene vrijednosti prema EN 60335-2-69
Razina zvučnog tlaka L_pA	dB(A)	70
Nepouzdanost K_pA	dB(A)	1
Vrijednost vibracije na ruci	m/ s^2	< 2,5
Nepouzdanost K	m/ s^2	1
Nazivna potrošnja energije	W	115

Pre prve upotrebe Vašeg uređaja pročitajte ove originalno

www.kaercher.com/REACH

Stepeni opasnosti

⚠ OPASNOST

Napomena koja ukazuje na neposredno preteću opasnost koja dovodi do teških telesnih povreda ili smrti.

⚠UPOZORENJE

Napomena koja ukazuje na eventualno opasnu situaciju koja može dovesti do teških telesnih povreda ili smrti.

△OPREZ

Napomena koja ukazuje na eventualno opasnu situaciju, koja može izazvati lakše telesne povrede.

PAŽNJA

Napomena koja ukazuje na eventualno opasnu situaciju koja može izazvati materijalne štete.

Namensko korišćenje

⚠UPOZORENJE

Technical diagram showing two mechanical assembly states with arrows indicating movement and force directions, likely illustrating a machining or disassembly process.

→ Otpustiti bravicu.
→ Izvaditi umetak za tepih.
→ Postaviti umetak za tvrde podove.
→ Zatvoriti bravicu.

I obrnuto.

Nakon svake primene

→ Isprazniti posudu za prljavštinu.
→ Napunite komplet baterija.

Automatsko isključivanje pri ispražnjenom akumulatorskom pakovanju

Exploded view diagram of a mechanical device with numbered parts and directional arrow indicating assembly

1 Posuda za prljavštinu
2 Predfilter
3 Uložni filter
→ Deblokirati i skinuti posudu za prljavštinu.
→ Izvući uložni filter iz posude za prljavštinu.
→ Skinuti predfilter sa uložnog filtera.
→ Očistiti filterske elemente, po potrebi zameniti.

PAŽNJA

Opasnost od oštećenja! Filterske elemente pažljivo očistiti. Površinu filtera nemojte izlagati mehaničkom opterećenju. Nemojte koristiti uređaj bez filterskih elemenata.

Otklanjanje smetnji

⚠ OPASNOST

Uređaj pre svih radova na njemu isključite i izvadite bateriju.

2006/42/EZ (+2009/127/EZ)

2014/30/EU

2011/65/EU

2009/125/EZ

Primenjene uskladene norme:

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 60335-1

EN 60335-2-69

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

EN 50581

EN 60312-1: 2017

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Tehnički podaci

		HV 1/1 Bp
Punjač
Napon el. mreže V~ 220-240
Frekvencija Hz 1~ 50-60
Komplet baterija
Napon akumulatora V = 18
Nominalni kapacitet (prema IEC/EN 61690) mAh 2500
Vreme rada akumulatora (normalan rad) minuta 21
Vreme rada akumulatora (Eco režim/štedljivi način rada)	minuta 35
uređaj
Zapremina posude l 0,9
Maks. protok vazduha l/s 33
Maks. podpritisak kPa (mbar) 4,7 (47)
Klasa zaštite	☐	III
Priključak usisnog creva (C-DN/C-ID)	mm	35
Dužina x širina x visina	mm	306x116x290
Tipična radna težina	kg	1,8
Tempteratura okoline	°C	0...40
Izračunate vrednosti prema EN 60335-2-69
Nivo zvučnog pritiska L_pA	dB(A)	70
Nepouzdanost K_pA	dB(A)	1
Vrednost vibracije na ruci	m/ s^2	< 2,5
Nepouzdanost K	m/ s^2	1
Nominalna potrošnja energije	W	115

www.kaercher.com/REACH

Степени на опасност

⚠️ ОПАСНОСТ

Pure mechanical component diagram without any text, numbers, or symbols

Mechanical assembly diagram showing a presser pressing down on a textured surface with arrows indicating force or motion (no text or symbols present)

Exploded view diagram of a mechanical device with numbered parts and directional arrow indicating assembly

H. Jenner Chairman of the Board of Management

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Технически данни

www.kaercher.com/REACH

Ohuastmed

⚠️OHT

Two technical diagrams showing a mechanical component before and after disassembly, with arrows indicating movement (no text or symbols present)

Exploded view diagram of a device showing internal components with numbered labels 1, 2, and 3

1 Mustusemahuti
2 Eelfilter
3 Padruni filter

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Tehnilised andmed

www.kaercher.com/REACH

Riska pakāpes

⚠️BĪSTAMI

Two mechanical diagrams showing a tool interacting with a base plate and a workpiece, with arrows indicating movement (no text or symbols present)

Exploded view diagram of a mechanical device with numbered parts and directional arrow indicating assembly

1 Netīrumu tvertne
2 Priekšfiltrs
3 Patronfiltrs

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Tehniskie dati

www.kaercher.com/REACH

Rizikos lygiai

⚠PAVOJUS

Two technical diagrams showing mechanical assembly steps with arrows indicating movement, no text or symbols present.

Exploded view diagram of a mechanical device with numbered parts and directional arrow indicating assembly

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Techniniai duomenys

www.kaercher.com/REACH

Ступінь небезпеки

⚠️НЕБЕЗПЕКА

Two technical diagrams showing a mechanical component being inserted into a base, with arrows indicating direction of movement (no text or symbols present)

Exploded view diagram of a device showing internal components with numbered labels 1, 2, and 3

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/10/01

Black thumbs-up icon on white background (no text or symbols)

THANK YOU!

MERCI! DANKE! iGRACIAS!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

Icon showing a gear and wrench inside a square frame (no text or symbols)

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

QR code image with a central logo, likely linking to a digital resource or website.
