USER MANUAL Cecofry Compact Rapid CECOTEC

1. Parts and components 63

5. Cleaning and maintenance 67

6. Troubleshooting 67

7. Recycling of electrical and electronic

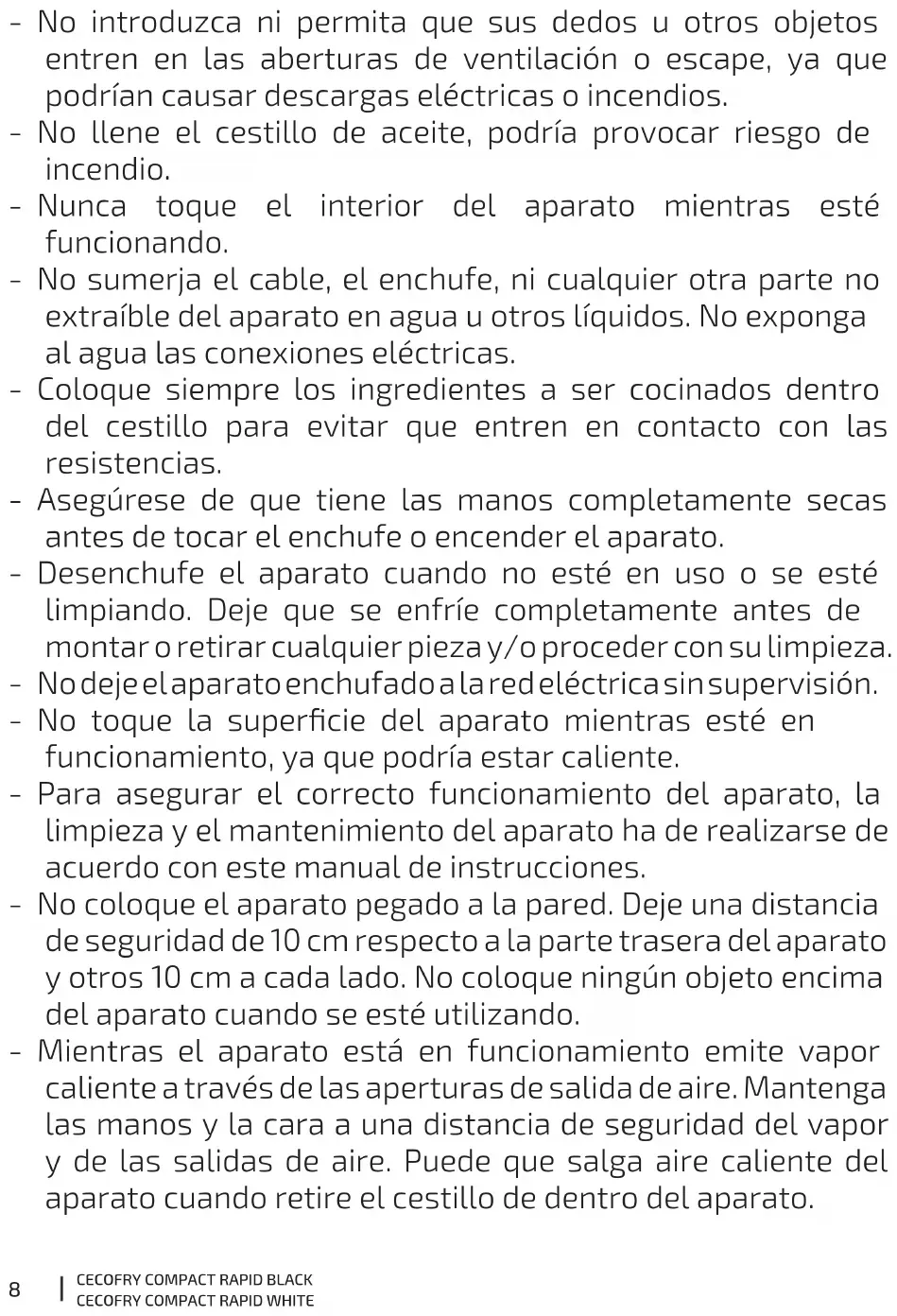

- Desenchufe inmediatamente el aparato si ve salir humo negro del aparato. Espere hasta que el humo desaparezca para retirar el cestillo de dentro del aparato. - Recomendamos el uso de guantes cuando se vaya a manipular la rejilla o el cestillo. - No utilice el aparato para ningún uso no especicado en el manual. - No intente reparar el aparato por su propia cuenta. SAFETY INSTRUCTIONS Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users. - This symbol means: “Caution, hot surface”. The accessible surfaces of the appliance can reach high temperatures during operation. Be careful not to burn yourself. - This appliance is not intended to be operated by means of an external timer or separate remote-control system. - When using electrical and electronic appliances, basic precautions must always be followed to reduce the risk of re, electrical shock, and injury. - Check the power cord regularly for visible damage. If the cord is damaged, it must be repaired by Cecotec’s Ocial Technical Support Service to avoid any danger. - This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Do not let children play with the appliance.10

- Keep this appliance and its power cord out of reach of children under the age of 8. - Cleaning and user maintenance should not be carried out by children unless they are older than 8 and supervised. - Supervise children to ensure they do not play with the appliance. - Make sure that the mains voltage matches the voltage requirements specied in the technical specications of the appliance. - We recommend that the room where you intend to use the appliance is equipped with a working kitchen hood or is well ventilated. - Use the appliance only for the purposes described in this instruction manual. Any other use is not recommended by the manufacturer and could have a detrimental eect on the lifespan of the appliance and/or the safety of the user. - Unplug the appliance from the mains before moving it, cleaning it or when you are not using it. - Do not twist, bend, pull, or damage the power cord. Protect it from sharp edges and heat sources. Do not allow the cable to touch hot surfaces. Do not let the cord hang over the edge of the working surface or worktop. - Do not use extension cords, unless advised by a qualied electrician. Using the wrong type of extension cord could cause damage to the appliance or injuries to the user. - Do not use the appliance if its cable, plug, or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way. - The appliance should not be used in potentially dangerous locations, such as ammable, explosive, chemical-laden, or wet atmospheres.11

- Place the appliance on an even, heat-resistant surface. When removing the basket from the air fryer, do it carefully and place the handle facing inwards to prevent spillage of the contents. Do not place the appliance near heat sources, places with high humidity levels, or combustible materials. - Do not insert or allow ngers or foreign objects to enter any ventilation or exhaust openings, as it could cause electrical shock or re. - Do not ll the basket with oil to avoid causing a re hazard. - Do not touch the interior of the appliance while in operation. - Do not immerse the cord, plug, or any other non-removable part of the appliance in water or any other liquid. Do not expose electrical connections to water. - Always place the ingredients to be cooked inside the basket to prevent them from touching the heating elements. - Make sure your hands are dry before handling the plug or switching on the appliance. - Unplug the appliance from the outlet when not in use or during cleaning. Allow it to cool down completely before attaching or removing parts and before cleaning the appliance. - Do not leave the appliance unsupervised while plugged to the mains. - Do not touch the surface of the appliance when in operation, as it will become hot when in use. - Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance operates properly. - Do not place the appliance against the wall. Leave a safety distance of 10 cm on the back of the appliance and 10 cm on each side. Do not place any object on top of the appliance when in use.12

- Hot steam is released through the air outlet openings during operation. Keep your hands and face at a safety distance from the steam and from the air outlet openings. Hot air may come out when removing the basket from inside the appliance. - Immediately unplug the appliance if you notice black smoke coming out of it. Wait until the smoke disappears to remove the basket from the appliance. - We recommend the use of gloves when touching the basket and rack. - Do not use the appliance for any use other than the one specied in this manual. - Do not attempt to repair the appliance yourself.

2. Operation indicator light

Note: The graphics in this manual are schematic representations and may not exactly match the product.

- This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly. - Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec’s Ocial Technical Support Service immediately. Box content: - Air fryer - This instruction manual - Do not remove the product’s serial number in order to keep proper traceability if technical assistance is required. - Take the appliance out of the box. - Remove all packaging materials and promotional labels or stickers from the product. - Clean the grease collection tray thoroughly using hot water, detergent and a non-abrasive sponge.CECOFRY COMPACT RAPID BLACK

ENGLISH - Clean the interior and the exterior of the appliance with a damp cloth. - Place the appliance on an even, heat-resistant surface. - Place the basket inside the grease drawer.

This hot-air fryer allows easy and healthy cooking. Thanks to its high-speed air circulation, it is capable of perfectly frying food with barely any oil.

1. Place the air fryer on a stable, level, heat-resistant surface.

2. Connect the power cable to an earthed plug socket.

3. Remove the grease drawer from the air fryer with extreme care. (Fig. 2)

4. Put the ingredients in the basket.

5. Align the grease drawer with the guides on the body of the product and slide it into the

Warning: Never use the grease drawer without placing the basket in it.

6. Turn the time knob to set the desired cooking time and the appliance will turn on.

The power light indicator and the deep fryer will turn on. See the following section to determine the most appropriate cooking time.

7. Turn the temperature knob to the desired temperature. See the following section to

determine the most appropriate cooking temperature.

8. In case the device is cold, add 3 minutes to the cooking time, and preheat it while empty.

9. To preheat the air fryer: turn the time knob to select 3 minutes minimum and wait for the

heat light indicator to go out (after about 3 minutes). Fill the basket and turn the time knob to select the desired cooking time. The timer will show the countdown.

10. During the hot air frying process, the temperature indicator light will turn on and o.

This indicates that the heating elements are activated and deactivated to keep the preset temperature.

11. Some ingredients require shaking halfway through the preparation time. To stir the

ingredients, pull the grease drawer out of the appliance by the handle and stir it. Then slide the fat-drip basket back into the air fryer.

Warning: Do not press the collection-box release button when stirring the fat-drip basket.

12. The end-of-cooking alarm indicates that the pre-set cooking time has elapsed. Remove

the grease drawer from the device and turn the time knob to 0. Once set to “0”, the device will switch o automatically.CECOFRY COMPACT RAPID BLACK

13. Check if the ingredients are ready. If the ingredients are not ready yet, simply slide the

grease drawer back into the appliance and set the timer for a few extra minutes.

14. To remove ingredients, e.g. chips, remove the grease drawer from the hot air fryer and

place it on a heat-resistant surface, press the basket release button, and pull the basket out of the grease drawer upwards.

Warning: Do not place the basket upside down while it is attached to the grease drawer.

Any excess oil that has collected on the bottom of the grease drawer will leak onto the ingredients.

15. Empty the basket onto a plate or bowl, or use tongs to take out the ingredients.

16. Once food is removed, the hot-air air fryer is ready to use again.

WARNINGS: - Do not place the air fryer on surfaces that are not heat-resistant. - Keep at least 35 cm of free space around the air fryer. - Do not ll the baskets with oil or any other liquid. - Do not place anything on top of the air fryer. - Do not cover the air vents as this could adversely aect the operation of the appliance.

- Smaller ingredients require a shorter preparation time than larger ones. - Stirring smaller pieces of food halfway through the frying process optimises the nal result and prevents the food from being fried unevenly. - Add a little extra oil to fresh potatoes for a crispier result. - Do not use the device to fry greasy food (such as sausages). - Food that can be cooked in an oven can also be cooked with the device. - Use pre-made pastry to prepare quick and easy snacks. Homemade doughs require less cooking time. - Place a mould or baking tin inside the fryer to cook cakes, quiches, or to fry delicate or stued foods. - To reheat cooked food, set the temperature to 150°C for up to 10 minutes.CECOFRY COMPACT RAPID BLACK

ENGLISH Cooking time and temperature table Min. and max. Quantity (g) Time (minutes) Temperature

ENGLISH Min. and max. Quantity (g) Time (minutes) Temperature

- Unplug the device from the power supply and allow it to cool down before cleaning. - Remove the grease drawer from inside the air fryer for it to cool down more quickly. - Use a soft, damp cloth to clean the surface of the device. - Clean the grease drawer and the frying basket thoroughly with hot water, washing-up liquid, and a non-abrasive sponge. - If necessary, use a degreasing liquid to remove any remaining dirt. - Fill the grease drawer with hot water and washing-up liquid, dip the basket and let it stand for approximately 10 minutes to remove adhered dirt. - Always clean the device after each use. - Clean the heating element with a soft cleaning brush to remove any food residue. - Make sure all its parts are clean and dry before storing or using the appliance again. Storage: - Never store the air fryer when it is hot or wet. - Store the air fryer in its original box or in a clean, dry place.

Problem Possible cause Solution The appliance does not work The appliance is not plugged in. Connect the mains plug to an earthed wall socket. The timer has not been set. Turn the time knob to the desired cooking time to turn on the appliance.CECOFRY COMPACT RAPID BLACK

ENGLISH Problem Possible cause Solution The food is not cooked enough There are too many ingredients in the basket. Remove some ingredients from the basket. Food is best cooked in small batches. The selected temperature is too low. Turn the temperature knob to the desired cooking temperature. See the “Cooking time and temperature table”. The preset cooking time is too short. Turn the time knob to the desired cooking time. See the “Cooking time and temperature table”. Some ingredients are fried unevenly in the air fryer Some types of food need to be shaken during the cooking process. Ingredients that lie on top of the other (i.e. chips) need to be stirred halfway through the process. See the “Cooking time and temperature table”. Fried snacks are not crunchy. You used a type of food that is meant to be prepared in a traditional deep fryer. Cook oven snacks or oil the food a little bit to get a crispier result. The grease drawer does not slide into the device properly. There are too many ingredients in the basket. Do not ll the basket beyond the Max mark. The basket is not placed inside the grease drawer correctly. Push the grease drawer downwards inside the fat-drip basket, until you hear it click into place. White smoke comes out of the appliance Ingredients are too greasy. When cooking greasy food, grease will fall onto the grease drawer, causing white smoke to appear and the grease drawer to heat up more than usual. This will not have any eect on the product or the nal result.CECOFRY COMPACT RAPID BLACK

ENGLISH Problem Possible cause Solution The grease drawer is still greasy from previous uses. White smoke is the result of grease heating up in the basket drawer. Make sure you clean the grease drawer properly after each use. Chips are not evenly fried. You did not use the right potato type. Use fresh potatoes and make sure they do not overlap during the frying process. You have not rinsed the potatoes enough before cooking them. Rinse the potato strips correctly to remove the starch from the outer layer. French fries are fried unevenly in the device. The crispiness of the baked potatoes will depend on the amount of water and oil. Make sure you dry the chips properly before adding the oil. The crispiness of the baked potatoes will depend on the amount of water and oil. Cut the potatoes into smaller strips for crispier results. The crispiness of the baked potatoes will depend on the amount of water and oil. Add a little bit more of oil for a crispier result.

7. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/ accumulators and take them to a collection point designated by the local authorities. For detailed information on how to properly dispose of electrical and electronic appliances and/or batteries, consumers should contact their local authorities. Compliance with the above guidelines will help protecting the environment. Information regarding national packaging recycling systems and their marking can be found on our website.CECOFRY COMPACT RAPID BLACK

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

9. SIMPLIFIED EU DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

10. TECHNICAL SPECIFICATIONS

Product reference: 03039/ 03051 Product name: Cecofry Compact Rapid Black / Cecofry Compact Rapid White Power: 900 W Voltage: 220 - 240 V ~ Frequency: 50/60 Hz Basket capacity: 1.5 L Temperature setting: 80-200ºC Timer: 0-30 min. Technical specications may change without prior notice to improve product quality. Made in China | Designed in SpainCECOFRY COMPACT RAPID BLACK
