Product type	Electric citrus juicer
Brand	Cecotec
Model	ZitrusEasy Adjust
References	04114 / 04115
Power	40 W
Voltage	220-240 V ~ 50/60 Hz
Pitcher capacity	Approximately 1 L
Main material	Plastic
Number of press cones	2 (large and small)
Pulp control filter	Yes, adjustable
Dust cover	Yes
Startup	Automatic by fruit pressure
Maximum continuous use time	15 seconds
Recommended pause between cycles	15 seconds
Cleaning of removable parts	Washable in soapy water
Cleaning of the base	Damp cloth, do not immerse
Child safety	Not suitable for children under 8 years
Warranty	2 years
Dimensions (approx.)	25 x 20 x 30 cm
Weight (approx.)	1 kg

Frequently Asked Questions - ZitrusEasy Adjust CECOTEC

How long can I use the juicer continuously?

The juicer should not be used for more than 15 consecutive seconds. Then leave an interval of at least 15 seconds before the next cycle.

How to choose the right press cone?

Use the small cone for small fruits like lemons, and the large cone for larger fruits like oranges. Simply pull the cone to remove it and snap the other one in place.

How to adjust the amount of pulp in the juice?

Turn the tab of the pulp control filter to get more or less pulp in your juice.

Can I wash the base of the juicer with water?

No, never immerse the base in water. Clean it with a clean, damp cloth.

What fruits can I press with this appliance?

This appliance is designed for soft fruits like oranges, lemons, grapefruits. Avoid hard fruits that could damage it.

Is the appliance safe for children?

This appliance should not be used by children under 8 years of age. It can be used by older children under continuous supervision. Keep the appliance out of reach of children under 8.

What to do if the juicer does not work?

Check the power outlet and the cable. If it is damaged, do not use it and contact Cecotec customer service at [phone].

How to clean the pulp control filter?

Disassemble the filter into its two parts (upper and lower) and wash them in soapy water. Reassemble by snapping the lower pivot into the upper part.

How many cycles can I run in a row?

Do not exceed 10 consecutive cycles. After each 15-second cycle, respect a 15-second pause.

Does the juicer stop automatically?

The motor runs only when you press the fruit onto the cone. When you remove the fruit, it stops automatically.

USER MANUAL ZitrusEasy Adjust CECOTEC

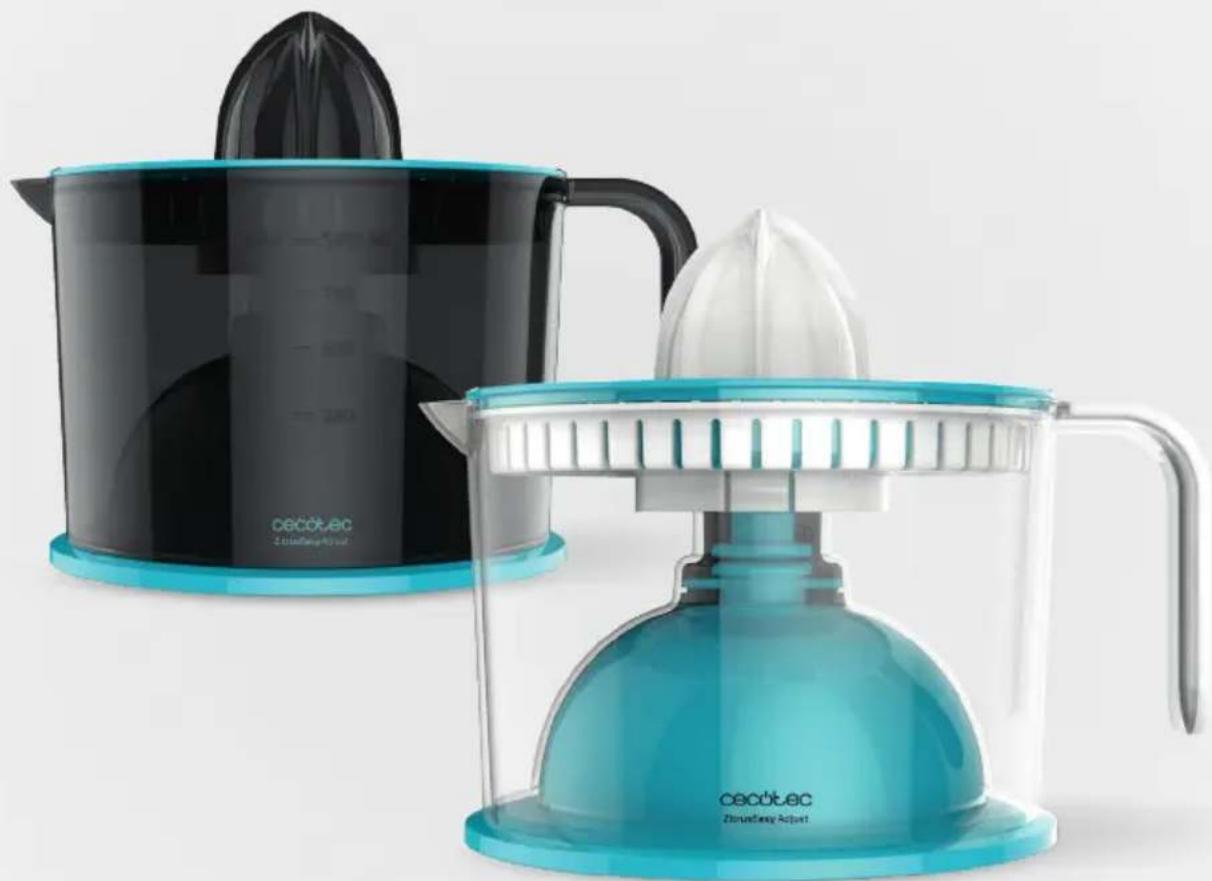

ZitrusEasy Adjust Black/White

Exprimidor/Citrus juicer

Product display of a Cecotec brand coffee maker with two variants: one using a juicer and another with a glass grater (no visible text or symbols)

Manual de instrucciones Instruction manual

1. Parts and components / 04
2. Safety instructions / 12
3. Before use / 15
4. Operation / 15
5. Cleaning and maintenance / 15
6. Technical specifications / 16
7. Technical support service and warranty / 16
8. Disposal of old electrical appliances / 16

SOMMAIRE

1. Anti-dust cover
2. Big juicer cone
3. Small juicer cone
4. Filter
5. Pulp strainer
6. Container
7. Base

FR

Two technical line drawings of a dome-shaped structure with arrows indicating downward motion (no text or symbols)

5. LIMPIEZA Y MANTENIMIENTO

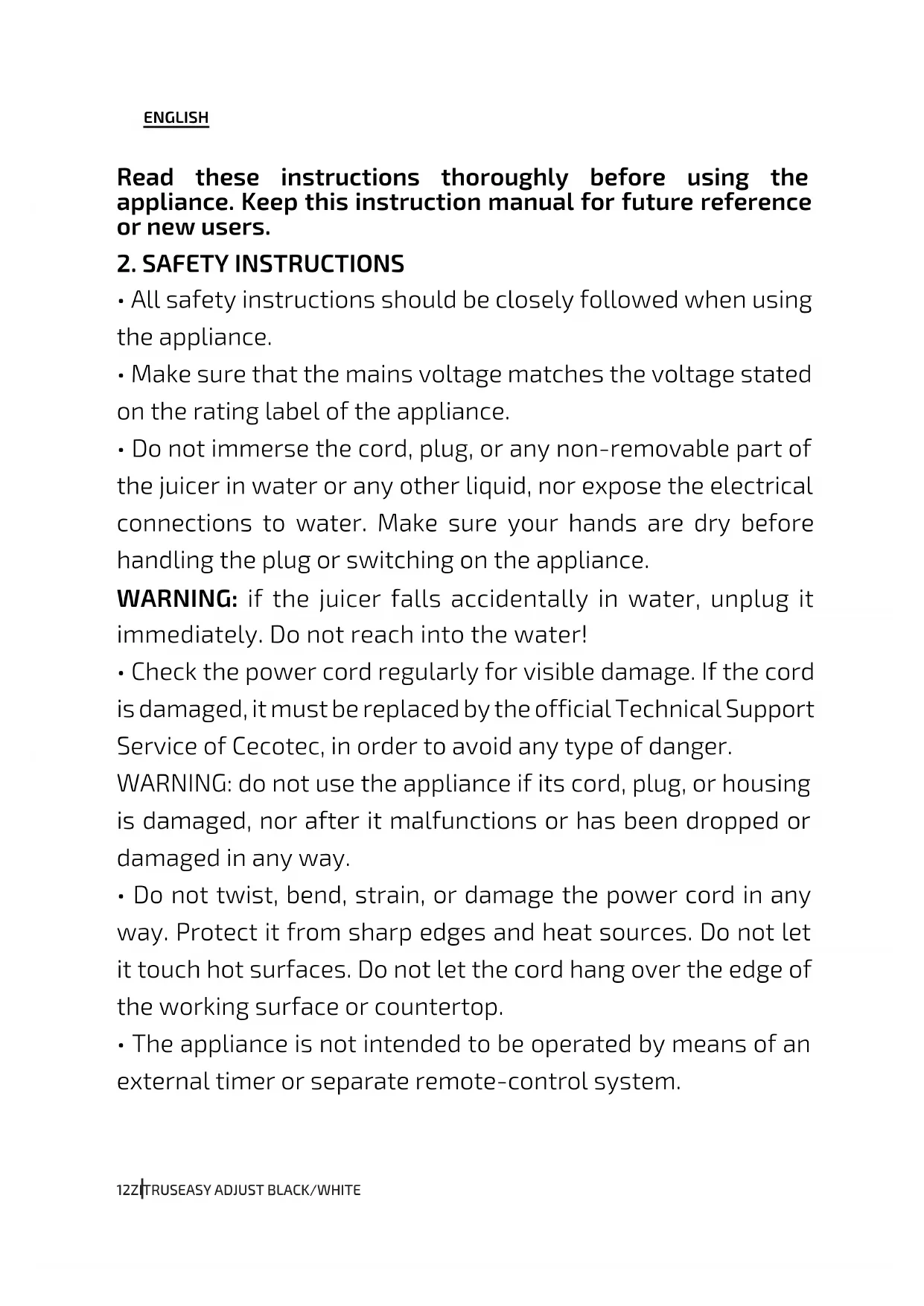

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

2. SAFETY INSTRUCTIONS

• All safety instructions should be closely followed when using the appliance.
• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance.
• Do not immerse the cord, plug, or any non-removable part of the juicer in water or any other liquid, nor expose the electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.

WARNING: if the juicer falls accidentally in water, unplug it immediately. Do not reach into the water!

• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec, in order to avoid any type of danger.
  WARNING: do not use the appliance if its cord, plug, or housing is damaged, nor after it malfunctions or has been dropped or damaged in any way.
• Do not twist, bend, strain, or damage the power cord in any way. Protect it from sharp edges and heat sources. Do not let it touch hot surfaces. Do not let the cord hang over the edge of the working surface or countertop.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

• Turn off and unplug the juicer from the mains supply when not in use and before cleaning. Pull from the plug, not the cord, to disconnect it from the outlet.

• This appliance is intended for domestic use only. It is not suitable for commercial or industrial use. Do not use it outdoors.
• Do not use any accessory that has not been recommended by the manufacturer, as they might cause injuries or damage.
• Place the juicer on a dry, stable, flat surface.
• Do not use the juicer under the following circumstances:
• On or near a gas or electric hob, in heated ovens, or near open flames.
• On soft surfaces (such as carpets) or where it may tip over during use.
• Outdoors or in areas with high humidity levels.
• Unplug the appliance immediately under the following circumstances:
• The juicer cone does not work correctly.
• The juicer is not in use.
• Cleaning

WARNING: do not use this product for more than 15 seconds or 10 cycles. Wait for 15 seconds between uses.

- Do not leave the juicer unattended while it is connected to the mains supply. Unplug it when you finish using it or if you leave the room.

- Cleaning and maintenance must be carried out according to

ENGLISH

this instruction manual to make sure the appliance functions properly. Turn off and unplug the appliance before moving and cleaning it.

• Cleaning and maintenance tasks must not be carried out by children.
• Store the appliance and its instruction manual in a safe and dry place when not in use.
• This appliance has been designed for soft fruits. Using it to juice hard fruits could damage it.
• No liability is accepted for any eventual damage or personal injuries derived from misuse or non-compliance with this instruction manual.

The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.

- This appliance is not intended to be used by persons with reduced physical, sensory, or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance in a safe way by a person responsible for their safety, and understand the hazards involved.

- Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.

- Keep the appliance and its cord out of reach of children under

the age of 8.

3. BEFORE USE

• This product's packaging has been designed to protect it against transportation damage. Unpack the appliance and keep the original packaging in a safe place. It will help prevent any damage if the product needs to be transported in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Plastic wrapping can cause suffocation hazards for babies and young children. Make sure all packaging materials are out of reach of children.
• Inspect all parts of the appliance for visual damage. Unwind the power cord completely and inspect it for damage. Do not use the appliance if the juicer or its cord have been damaged or are not working properly. In case of damage, contact the official Technical Support Service of Cecotec for advise, repairs, or returns.
• Clean the appliance according to the "Cleaning and Maintenance" section before use.
• Make sure you have read and understood all instructions and warnings in this instruction manual. Pay particular attention to the safety instructions on previous pages.

4. OPERATION

1. Plug the power cord (fixed to the base of the appliance) into the mains supply and take off the transparent cover.
2. Place the most adequate juicer cone, taking into account the size of the fruit. If you wish to juice small fruits such as lemons, use the small juicer cone. In order to do that, pull from the big juicer cone to remove it. In order to attach it again, place the big juicer cone on the small juicer cone and press.
3. Cut the fruit in two halves and press one half against the juicer cone on top of the juicer. The cone will rotate automatically. Repeat this procedure as many times as needed.
4. Grab the handle of the container with one hand and pour its contents into a different container.
5. This product is equipped with two juicer cones. Use the appropriate one according to the size of the fruit that is going to be juiced.
6. The pulp strainer filter allows adjusting the amount of pulp in the juice. Turn the tab to adjust more or less pulp.

5. CLEANING AND MAINTENANCE

1. Unplug the appliance and remove the filter and juicer cones.
2. Hold the base of the appliance and turn the container anticlockwise to separate it from the base.

Two technical line drawings of a dome-shaped structure with internal divisions, shown from different angles (no text or symbols)

ENGLISH

1. Clean all removable parts (except the base) with soapy water.
2. Clean the base of the appliance with a wet cloth to remove any remainder. Do not immerse the base of the product in water.
3. Put the transparent cover in place and store the appliance in a cool, dry place.
4. It is important to clean properly the pulp strainer filter (parts 8 and 9), composed of 2 detachable parts (upper and lower filter), after every use. In order to do that, separate both parts. Once cleaned, to assemble it correctly, place the upper pulp strainer upside down and place the lower part on top of it. Once both pieces are aligned, fix them together.

6. TECHNICAL SPECIFICATIONS

Model: ZitrusEasy Adjust Black/White

Products reference: 04114/04115

Power: 40 W

Voltage and frequency: 220-240 V \~ 50/60 Hz

Made in China | Designed in Spain

7. TECHNICAL SUPPORT SERVICE AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

The warranty will not cover the following situations:

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.
• The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.
• Faults deriving from the normal wear and tear of its parts, due to use.

The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply. If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone].

8. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

ENGLISH

The crossed out "wheeled bin" symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Diagram showing two views of a dome structure with arrows indicating direction (no text or symbols)

Two technical line drawings of a dome-shaped structure with arrows indicating downward motion (no text or symbols)

Made in China | Designed in Spanien

Two technical line drawings of a dome-shaped structure with internal divisions, shown from different angles (no text or symbols)

Two technical line drawings of a dome-shaped object with internal structure, shown from top and side views (no text or symbols)

Two technical line drawings of a dome-shaped structure with arrows indicating downward motion (no text or symbols)

Quart de Poblet, Valencia (Spain)
