Kabellänge m 1018 English Contents General instructions Read these original instruc- tions before using your device for the first time, adhere to the instructions contained therein and store them for later reference or subsequent owners. ● Be sure to read the safety instructions no. 5.956-249.0 prior to the initial start- up. ● If the operating instructions and safety instructions are not observed, the device can be damaged and dangers could arise for users and other persons. ● Notify the dealer immediately in the case of shipping damage. Safety information Hazard levels DANGER ● Indication of an imminent threat of danger that will lead to severe injuries or even death. 몇 WARNING ● Indication of a potentially dangerous situ- ation that may lead to severe injuries or even death. 몇 CAUTION ● Indication of a potentially dangerous situ- ation that may lead to minor injuries. ATTENTION ● Indication of a potentially dangerous situ- ation that may lead to damage to proper- ty. General safety instructions DANGER ● Only trained personnel are permitted to use the device and the sub- stances for which it is to be used, including the safe procedure for disposing of the vac- uumed material. ● An air exchange rate L must be present in the room when the ex- haust gas is returned into the room. To re- main within the required limit values, the volume flow of returned air must be no greater than 50% of the fresh air volume (room volume V

x air exchange rate L

Without special ventilation measures, the following applies: L

• . ● This device contains dust that is harmful to your health. Emptying and maintenance, including re- moval of the dust bag, may only be per- formed by technical specialists wearing suitable personal protective equipment. ● Do not operate the device without the complete filtration system. ● Observe the applicable safety instructions for the mate- rials being vacuumed. ● The simultaneous collection of different combustible dusts in the collection container can lead to fires or explosion. ● Make sure that the correct liq- uid for collecting metal dust is used in the liquid container in order to avoid dangerous reactions. To avoid the formation of hydro- gen gas with metal dusts, the use of oil in- stead of water is recommended. 몇 WARNING ● You must not set up or op- erate the device in areas where there is a risk of dust or gas explosion. A dust explo- sive atmosphere inside the device is only allowed in front of the filter. Gas explosive atmospheres are prohibited inside the de- vice. ● The device is not suitable for the suctioning or vacuuming of flammable liq- uids (flammable, easily flammable, highly flammable according to Dangerous Sub- stances Directive 67/548/EEC) (flash point below 55 °C) and mixtures of flammable dusts and liquids. ● The device is not suita- General instructions p. 18
• Safety information p. 18
• Intended use p. 19
• Environmental protection p. 20
• Accessories and spare parts p. 20
• Scope of delivery p. 20

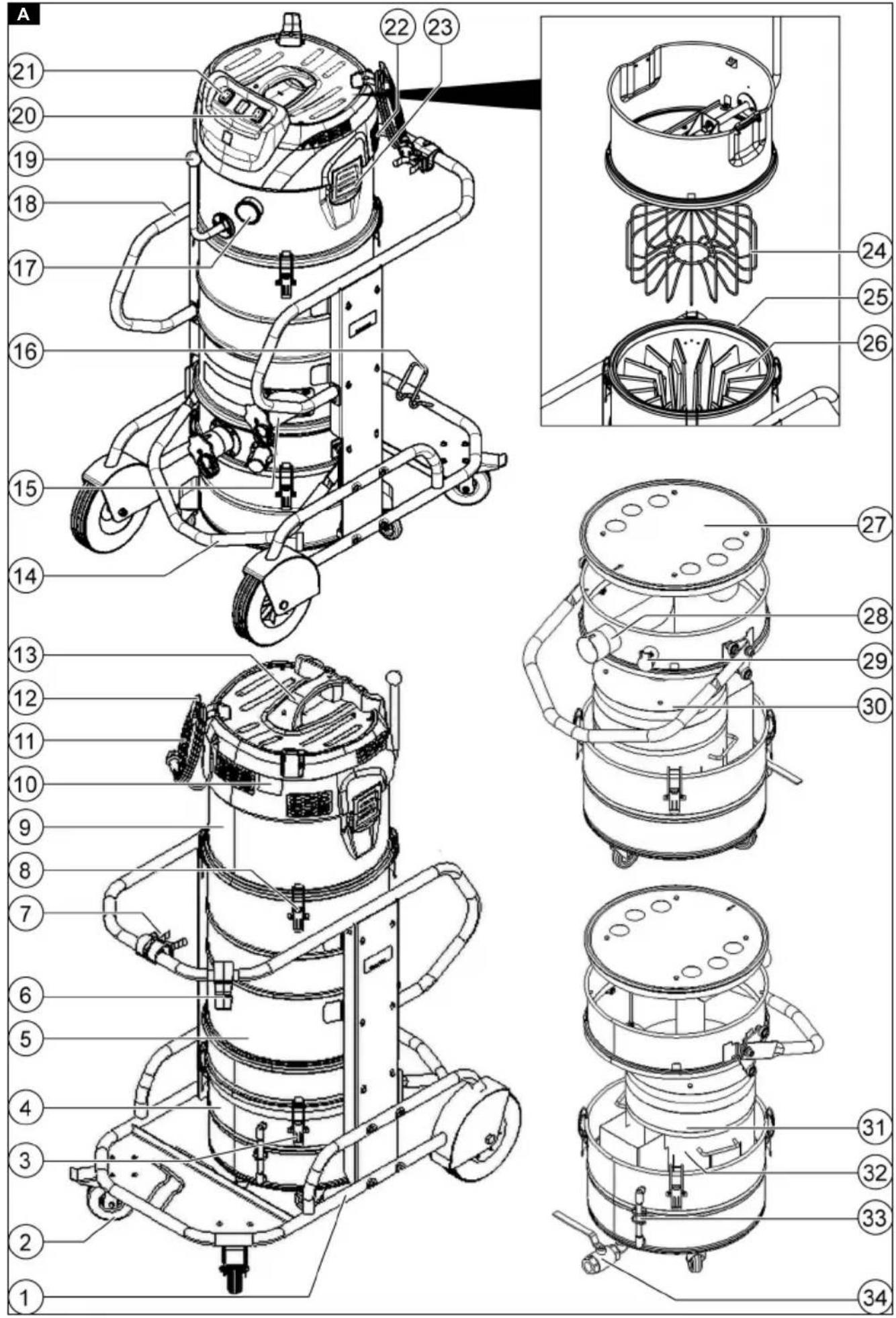

• Description of the device p. 20
• Symbols on the device p. 21
• Initial startup p. 21
• Operation p. 23
• Transport p. 26
• Storage p. 26
• Care and maintenance p. 26
• Troubleshooting guide p. 28
• Disposal p. 28
• Warranty p. 28
• Technical data p. 29
• Declaration of Conformity English 19 ble for sucking up ignition sources and dusts with a glow temperature ≤ 190 °C. ● Every time before use, check whether the equipotential bonding conductors (earthing conductors) are connected. ● The device must not be used or stored outdoors in wet conditions. ● Apply the parking brake at the steering roller to ensure a secure footing for the device. The device may move uncon- trollably if the parking brake is open. ● Fill the liquid container only with the liquids rec- ommended by the manufacturer. 몇 CAUTION ● In case of longer breaks in operation and after use, switch off the de- vice at the power switches and unplug the mains plug. ATTENTION ● Only use the device in- doors. ● Risk of crushing! Wear gloves when removing or installing the suction head, filter inlay or collection container. ● Risk of damage! Never vacuum without a filter or with a damaged filter. ● Wear safety shoes when operating the device. ● Only move the device at walking speed, and to move down a decline, have two workers steady the device as necessary. ● Be care- ful to ensure that there is no dust spillage when replacing accessories. ● Surface temperatures can rise to 135° C during nor- mal operation. ● Avoid kinking the suction hose unit. ● Carry out a regular visual in- spection of the hoses. ● Take appropriate precautions for removal, handling, storage and disposal of the sludge, such as mixing with inert liquids according to local regula- tions. ● Hydrogen gas is flammable and can be produced by extracting up certain materials such as aluminium, magnesium, etc. The valve prevents the accumulation of hydrogen gas inside the liquid container. Clean and inspect the valve regularly and check for signs of damage. ● Ensure ade- quate ventilation of the installation site to reduce the hydrogen concentration. ● Emp- ty the dirt receptacle after each use and when it is full of sludge to reduce the forma- tion of hydrogen gas. Electrical connection The device may only be connected to an electrical connection which has been set up by a qualified electrician as per IEC 60364. For connected loads see Technical data and type plate. DANGER Danger of electric shock Danger of death Avoid damaging the power cables by driv- ing over them or otherwise crushing them, or by jerking them. Protect the cables from heat, oil and sharp edges. Check the mains connection of the device for damage every time before operation. Do not operate the device using a damaged cable. Have any damaged cables replaced by a qualified electrician. Behaviour in the event of an emergency DANGER Risk of injury and damage in the event of a short-circuit or other electrical faults Danger of electric shock, danger of burns Switch off the device and unplug the mains plug. Behaviour in case of filter breakage / leakage: p. 29

1. Switch off the unit immediately.

The unit may not be operated without the fresh water filter.

2. Replace the filter.

Intended use The device is intended for: ● Wet and dry cleaning of floor and wall surfaces ● Vacuuming of dry, flammable, deposited dusts hazardous to health; dust class M according to EN 60335-2-69 ● Vacuuming of non-explosive substances ● Vacuuming of flammable dusts of all dust explosion classes ● Vacuuming of dusts and coarse dirt ● Vacuuming of flammable dusts from a zone 22 if the device is installed outside of potentially explosive areas20 English ● Vacuuming moist and liquid substances ● Vacuuming of the following substances only when using inert liquid: – Titanium dust – Explosive and conductive dust – Magnesium dust or powder – Condensate dusts and explosive met- al powders from additive manufactur- ing (3D printing) ● Industrial usee.g. in storage and produc- tion areas ● Commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices, and rental companies. A corresponding Ex device must be used if there is a classified Ex zone at the device installation location. The device’s correct function is only guar- anteed when using suction hose nominal widths of DN40 and DN50. Any other use constitutes improper use. The device is not suitable for: ● Vacuuming of ignition sources and dusts with a glow temperature ≤ 190 °C ● Vacuuming of explosive substances or substances classified as such in the sense of §1 German Explosives Law "Explosive vapour-air mixtures" (§1 SprengG, explosiver Dampf-Luft- gemische) ● vacuuming of mixtures of flammable liq- uids and flammable dust ● Vacuuming of smouldering or hot parti- cles where this could otherwise result in a fire or an explosion ● Vacuuming of toxic substances ● Connection to a dust-generating ma- chine Environmental protection The packing materials can be recy- cled. Please dispose of packaging in accordance with the environmental regula- tions. Electrical and electronic devices con- tain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if han- dled or disposed of incorrectly - can pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish. Notes on the content materials (REACH) Current information on content materials can be found at: www.kaercher.de/REACH Accessories and spare parts DANGER Risk of explosion when used with non- permitted accessories Only use accessories permitted by the manufacturer and with the Ex label for type 22 usage. Only use original accessories and original spare parts. They ensure that the appliance will run safely and fault-free. Information on accessories and spare parts can be found at www.kaercher.com. Note No accessories are included in the scope of delivery. The accessories must be ordered separately depending on the application. Scope of delivery Check the contents for completeness when unpacking. In the event of shipping dam- age, please notify your dealer. Description of the device For the illustrations, refer to the graphics page Illustration A 1 Chassis 2 Steering roller with parking brake 3 Clamping straps on the dirt receptacle 4 Dirt receptacle 5 Filter ring 6 Cable clips 7 Suction pipe holder 8 Spacer lock 9 Spacer 10 Type plate 11 Mains cable 12 Cable hooks 13 Carrying handle 14 Bow handle of the dirt receptacleEnglish 21 15 Suction hose port without wet separator 16 Floor nozzle holder 17 Pressure gauge 18 Push handle 19 Filter dedusting lever 20 Suction turbine trigger 2 21 Suction turbine trigger 1 22 Suction head 23 Suction head lock 24 Filter vibrator 25 Sealing ring 26 filter 27 Mechanical switch-off 28 Suction hose port with wet separator 29 Venting valve 30 Filter foam 31 Micro-fleece 32 Strainer basket 33 Filling level hose 34 Ball tap Symbols on the device The device is suitable for vacuuming dusts up to dust class M. 몇 WARNING Damage to the skin, lungs and eyes Expulsion of fine dust during emptying and maintenance work and disposal Wear the prescribed personal protective gear when performing during emptying and maintenance work, including disposal of the dust bag. The device is suitable for vacuuming flam- mable dusts, installation outside zone 22.

WARNING: This device must not be placed

in any zone 22. If a zone 22 is present, an EX-device must be used. The maximum vacuum value in relation to the hose cross-section is specified on the label. The actual value can be read on the pressure gauge. For the values applicable to this device, see chapter Reading the minimum volumetric flow. If this value is not reached, the filter must be replaced, (see chapter Replacing the main filter). The var- ious different hose cross-sections allow ad- aptation to the various different connection cross-sections of the accessories. Initial startup 몇 WARNING Potential equalisation line not connect- ed correctly Electric shock Every time before use, check whether the equipotential bonding conductor (earthing conductors) are connected. 몇 WARNING Danger from dust that is harmful to your health Respiratory sicknesses through inhalation of dust. Do not vacuum without correctly installed filter elements, otherwise a danger to health from increased fine dust emission is present. 몇 WARNING Improper handling when locking the dirt receptacle Risk of crushing Micro-fleece (Order no. 9.990-103.0) Main filter (Order no. 9.439-542.0)22 English Under no circumstances should you hold your hands between the dirt receptacle and filter ring or allow them to come close to the lifting mechanism while locking it. Lock the dirt receptacle by operating the bow handle with both hands. ATTENTION Missing filter element Damage to the suction motor Do not vacuum without a filter element. ATTENTION Static charge of the dirt receptacle Ignition of dusts Make sure that the grounding on the chas- sis is in contact with the dirt receptacle.

1. Bring the device into the working posi-

2. Secure the device with the parking

3. Ensure that the suction head is fitted

4. Fill the dirt receptacle with water or oil

(order no. 9.990-272.0) up to the mark (see chapter Fill the dirt receptacle with inert liquid).

6. Remove the sealing plug on the collec-

tion container (see chapter Selecting the suction connection).

7. Insert the suction hose into the suction

8. Ensure that the suction connection on

the filter ring is tightly sealed with a seal- ing plug (see chapter Closing the suc- tion connection).

9. Check the filling level in the dirt recepta-

cle (see chapter Check the dirt recepta- cle filling level). 10.Empty the dirt receptacle if necessary (see chapter Emptying the dirt recepta- cle). 11.Plug the desired accessories (not in- cluded in the scope of delivery) onto the suction hose. 12.Ensure that the dirt receptacle is cor- rectly fitted. Selecting the suction connection The device is equipped with 2 suction hose ports. ● Suction hose port on the dirt receptacle – Dry vacuuming with wet separator: Fine dust, powder The dirt receptacle with wet separation function must be filled with the inert liq- uid water or oil. Oil with order no. 9.990-

272.0 is recommended.

● Suction hose port on the filter ring Is tightly sealed with a sealing plug when used as intended. Closing the suction connection 몇 WARNING Risk of injury Damage to the skin, lungs and eyes through fine dust The suction connection must be closed us- ing the sealing plug after removing the suc- tion hose. Illustration B

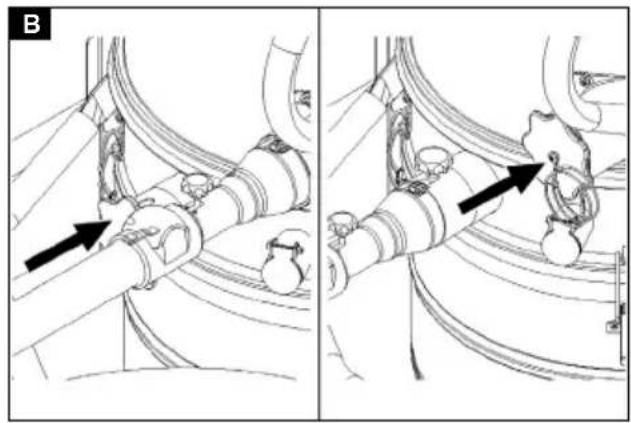

1. Insert the sealing plug precisely into the

2. Push the sealing plug in all the way to

3. Turn the sealing plug to the right until the

suction connection is tightly closed. Fill the dirt receptacle with inert liquid If a dirt receptacle with wet separator is used, the dirt receptacle must be filled with inert liquid before use. Two suction hoses must not be con- nected to the vacu- um cleaner at the same time. Only the lower suction hose port may be used when used as in- tended. The upper suction hose port must be tightly closed when using the wet sep- arator.English 23 몇 WARNING Moving parts Risk of crushing Be careful of moving parts when removing or inserting the upper part of the dirt recep- tacle.

1. Secure the device with the parking

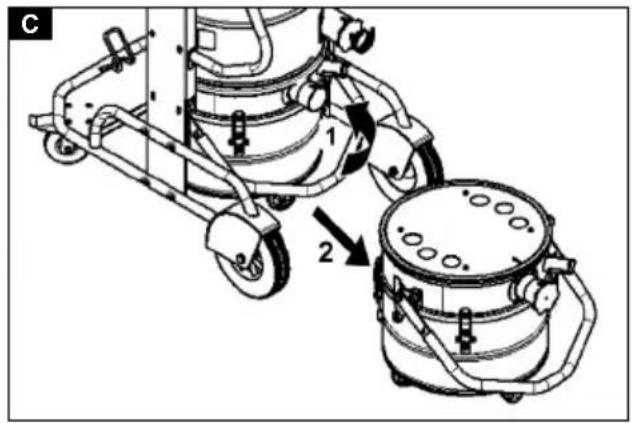

brakes. Illustration C

2. Pull the bow handle up.

The dirt receptacle is unlocked and low- ered.

3. Pull the dirt receptacle out of the device

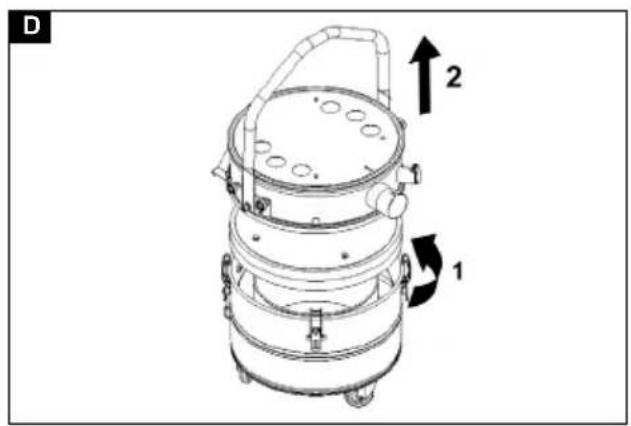

by the bow handle. Illustration D

4. Loosen the clamping straps on the dirt

5. Remove the upper part of the dirt recep-

tacle by the bow handle.

6. Fill the inert liquid water or oil into the dirt

receptacle until the filling level reaches the mark on the filling level indicator.

7. When fitting the upper part of the dirt re-

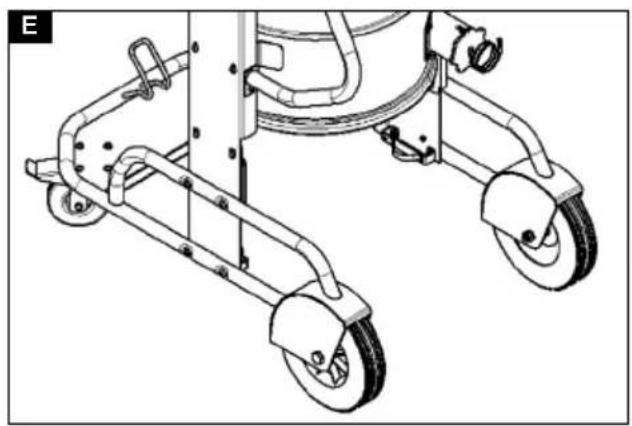

ceptacle, make sure that the float ball is inserted into the corresponding guide. 몇 WARNING Improper handling when locking the dirt receptacle Risk of crushing Under no circumstances should you hold your hands between the dirt receptacle and filter ring or allow them to come close to the lifting mechanism while locking it. Lock the dirt receptacle by operating the bow handle with both hands. Illustration E ATTENTION Static charge of the dirt receptacle Ignition of dusts Make sure that the grounding on the chas- sis is in contact with the dirt receptacle.

8. Fit the dirt receptacle in the reverse se-

quence and lock it with the bow handle. Check the dirt receptacle filling level The dirt receptacle must be emptied when filled up to the mark. The device does not switch off automatically when the maximum filling level is exceeded.

2. Make sure that no more than 8 litres of

material are sucked in during vacuum- ing. Operation DANGER Suction of explosive and conductive metal dust without inert liquid Explosion hazard, heat generation Never vacuum explosive and conductive suction material without inert liquid. 몇 WARNING Danger from dust that is harmful to your health Respiratory sicknesses through inhalation of dust. Do not vacuum without correctly installed filter elements, otherwise a danger to health occurs from increased fine dust emission. Before each use, check that both filter ele- ments are correctly installed. ATTENTION Danger due to fine dust entering Risk of damage to the suction motor. Never remove the main filter element when vacuuming. ATTENTION Lack of inert liquid Damage to the wet separator Never vacuum without inert liquid when us- ing the suction hose port on the wet separa- tor. Switching on the device

1. Plug the mains plug into the socket.

2. Switch on the device via the suction tur-

bine power switches. Note Always switch the suction turbines on and off one after the other. For the correct func- tion of the pressure gauge for monitoring the minimum volume flow, all suction tur- bines must be switched on. Note In most application cases it is sufficient that you vacuum with one suction turbine. If24 English necessary, switch on the 2nd suction tur- bine. However, do not operate the device with both suction turbines for longer than 15 min. This can cause too much humid air to prematurely wet the main filter. If neces- sary, let the main filter dry afterwards or re- place it (see chapter Replacing the main filter).

3. Start the vacuuming process.

Performing the vacuuming process

1. Regularly check the filling level in the dirt

receptacle, since the device does not switch off automatically. Note The device is equipped with a mechanical monitoring unit. This monitoring unit inter- rupts the airflow when the inert liquid falls below the minimum filling level. Refill with inert liquid to continue the vacuuming pro- cess (see chapter Fill the dirt receptacle with inert liquid).

2. Make sure that no more than 8 litres of

material are sucked in during vacuum- ing.

chapter Replacing the main filter). Note If the dirt receptacle is filled with an inert liq- uid, moist air may flow through the main fil- ter during suction and soak it. Check the main filter for moisture after the vacuuming process. If necessary, let the main filter dry or replace it (see chapter Replacing the main filter). Reading the minimum volumetric flow A pressure gauge showing the vacuum in- side the device is mounted on the front of the device. The main filter must be cleaned when the maximum vacuum (see table) is reached, see chapter Replacing the main filter). This value depends on the device performance and the suction hose used. If the vacuum is not significantly reduced by replacing the filter, there must be another problem (see chapter Troubleshooting guide). ATTENTION Exceeding the maximum vacuum Suction loss If the specified value is exceeded, the air speed in the suction hose drops below 20 m/s. Replace the filter. Switching off the device

1. Switch off the device via the suction tur-

bine power switches.

2. Pull out the mains plug.

3. Disconnect the earth terminal from the

external equipotential bonding. Each time after use

1. Remove the accessories.

2. Close the suction connection (see chap-

ter Closing the suction connection).

3. Remove the accessories and, if neces-

sary, flush with water and allow to dry.

5. Vacuum the inside and outside of the de-

vice and clean with a moist cloth. Emptying the dirt receptacle The dirt receptacle must be emptied if nec- essary and after each use. The inlet opening or the suction hose are closed. Regularly check the filling level in the dirt receptacle, since the device does not switch off automatically.

1. Switch off the device.

2. Secure the device with the parking

brakes. Illustration C Nominal width of the suction hose Maximum vacuum DN40 16.4 kPa (164 mbar) DN50 12.9 kPa (129 mbar) DN70 ---English 25

3. Pull the bow handle up.

The dirt receptacle is unlocked and low- ered.

4. Pull the dirt receptacle out of the device

by the bow handle. Illustration D

5. Loosen the clamping straps on the dirt

6. Remove the upper part of the dirt recep-

tacle by the bow handle.

7. Remove the foam element from the low-

er part of the dirt receptacle.

8. Remove the strainer basket with the mi-

9. Remove the micro-fleece from the

strainer basket. 10.Dispose of the micro-fleece in accord- ance with statutory regulations. 11.If necessary, drain the inert liquid from the dirt receptacle (see chapter Drain the inert liquid from the dirt receptacle). Note You can use the inert liquid several times if necessary. 12.When fitting the upper part of the dirt re- ceptacle, make sure that the float ball is inserted into the corresponding guide. 몇 WARNING Improper handling when locking the dirt receptacle Risk of crushing Under no circumstances should you hold your hands between the dirt receptacle and filter ring or allow them to come close to the lifting mechanism while locking it. Lock the dirt receptacle by operating the bow handle with both hands. Illustration E ATTENTION Static charge of the dirt receptacle Ignition of dusts Make sure that the grounding on the chas- sis is in contact with the dirt receptacle. 13.Fit the dirt receptacle in the reverse se- quence and lock it with the bow handle. Drain the inert liquid from the dirt receptacle

1. Switch off the device.

2. Secure the device with the parking

3. Close the suction connection (see chap-

ter Closing the suction connection). Illustration C

4. Pull the bow handle up.

The dirt receptacle is unlocked and low- ered.

5. Pull the dirt receptacle out of the device

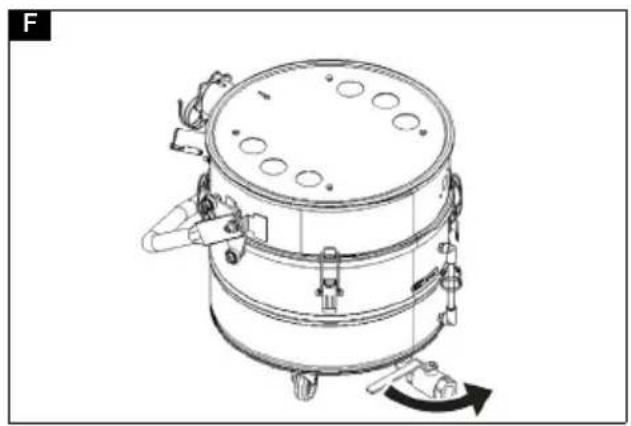

by the bow handle. Illustration F

6. Turn the lever on the ball tap by 90°.

7. Turn the lever to the original position

when the collection container is com- pletely empty. 몇 WARNING Improper handling when locking the dirt receptacle Risk of crushing Under no circumstances should you hold your hands between the dirt receptacle and filter ring or allow them to come close to the lifting mechanism while locking it. Lock the dirt receptacle by operating the bow handle with both hands. Illustration E ATTENTION Static charge of the dirt receptacle Ignition of dusts Make sure that the grounding on the chas- sis is in contact with the dirt receptacle.

8. Fit the dirt receptacle and lock it with the

bow handle. Cleaning the device 몇 WARNING Improper disposal of waste water Environmental pollution Observe the local waste water treatment regulations.

1. Vacuum the inside and outside of the de-

vice and clean with a moist cloth. A vacuum cleaner with the same or bet- ter classification must be used for vacu- uming the device.26 English

2. If necessary, rinse the accessories (not

included in the scope of delivery) with water and dry them. Storing the device

2. Store the device in a dry room and se-

cure it against unauthorised use. Transport 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during transportation. The dirt receptacle is emptied.

1. Close both suction connections for dust-

free transport (see chapter Closing the suction connection).

2. Release the parking brakes and push

the device by the push handle.

3. Grasp the device by the chassis and the

push handle for loading.

4. Secure the device against slipping and

tipping over when transporting in vehi- cles. Storage 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during storage. The dirt receptacle is emptied.

1. Store the device indoors only.

Care and maintenance DANGER Inadvertently starting up device, touch- ing live components Risk of injury, electric shock Switch off the device before performing any work on the device. Remove the mains plug. DANGER Danger from dust that is harmful to your health Respiratory sicknesses through inhalation of dust. Wear a breathing protection mask of class P2 or higher and disposable clothing when performing maintenance work (e.g. filter change). 몇 WARNING Danger from dust that is harmful to your health Respiratory sicknesses through inhalation of dust. Safety devices providing hazard protection must be checked for correct safety-related functionality at least annually by the manu- facturer or an appropriately instruction per- son, e.g. absence of leaks, filter damage, functionality of the monitoring devices. ATTENTION Care agents containing silicone These can attach plastic components. Do not use care agents containing silicone for cleaning. Dust extraction machines are safety devic- es for the prevention or elimination of haz- ards according to the German BGV A1. ● For servicing performed by the user, the device must be disassembled, cleaned and maintained only to the degree that this is possible without presenting a dan- ger to the maintenance personnel and other persons. Suitable precautionary measures include detoxification before disassembly. Make provisions for local forced ventilation at the location where the device is to be disassembled, for cleaning the maintenance surface and to ensure adequate protection for the personnel. ● The exterior of the device should be de- toxified by vacuuming and wiped clean, or treated with sealant before being re- moved from the hazardous area. All de- vice parts must be regarded as contaminated when they are taken from the hazardous area. Suitable measures must be taken to prevent distribution of the dust. ● All contaminated objects resulting from maintenance and repair work that can- not be satisfactorily cleaned must be correctly disposed of. Such objects mustEnglish 27 be disposed of in sealed bags in accord- ance with the applicable regulations for the disposal of this type of waste. ● The suction hose ports are to be closed using the sealing plugs during transport and maintenance of the device.

1. Note that you can carry out simple main-

tenance and care work yourself.

2. Clean the surface of the device and the

interior of the container regularly with a moist cloth.

3. Carry out a regular visual inspection for

clogging of the hoses. Inspection and maintenance work Have the device regularly inspected ac- cording to the respective national accident prevention regulations. Maintenance work as specified by the manufacturer must be performed by a technically qualified person at the specified regular intervals and in ac- cordance with the applicable regulations and safety requirements. Work on electrical components may only be performed by a qualified electrician. Please contact a KÄRCHER branch office if you have any questions. Replacing the main filter

1. Switch off the device.

2. Pull out the mains plug.

3. Unlock and remove the suction head.

4. Unlock and remove the spacer.

5. Remove the contaminated star pleated

6. Immediately after removing the contam-

inated star pleated filter from the unit, place it in a bag and seal the bag tightly.

7. Dispose of the contaminated star pleat-

ed filter according to legal requirements.

8. Remove any dirt deposits from the clean

9. Check the sealing ring for damage.

10.Insert the new star pleated filter: a Pull the new star pleated filter over the filter vibrator on the spacer such that the vibrating elements are aligned centrally in the filter bags. b Place the spacer with star pleated fil- ter and filter vibrator on the filter ring. c Lock the spacer. 11.Fit and lock the suction head. Replacing the micro-fleece

1. Switch off the device.

2. Secure the device with the parking

brakes. Illustration C

3. Pull the bow handle up.

The dirt receptacle is unlocked and low- ered.

4. Pull the dirt receptacle out of the device

by the bow handle. Illustration D

5. Loosen the clamping straps on the dirt

6. Remove the upper part of the dirt recep-

tacle by the bow handle.

7. Remove the foam element from the low-

er part of the dirt receptacle.

8. Remove the strainer basket with the mi-

9. Remove the micro-fleece from the

strainer basket. 10.Dispose of the micro-fleece in accord- ance with statutory regulations. 11.Insert the new micro-fleece. 12.When fitting the upper part of the dirt re- ceptacle, make sure that the float ball is inserted into the corresponding guide. 몇 WARNING Improper handling when locking the dirt receptacle Risk of crushing Under no circumstances should you hold your hands between the dirt receptacle and filter ring or allow them to come close to the lifting mechanism while locking it. Lock the dirt receptacle by operating the bow handle with both hands. Illustration E ATTENTION Static charge of the dirt receptacle Ignition of dusts Make sure that the grounding on the chas- sis is in contact with the dirt receptacle.28 English 13.Fit the dirt receptacle in the reverse se- quence and lock it with the bow handle. Troubleshooting guide DANGER Unintentional start-up of the device / electric shock Unintentional start-up of the suction motor can cause injuries. Voltage present on electrical parts can cause an electric shock. Switch off the device and unplug the mains plug before performing any work on the de- vice. Have all checks and work on electrical parts performed by an qualified technician. Note The device must be switched off immedi- ately in the event of a malfunction. The mal- function must be eliminated before switching the device on again. If the malfunction cannot be corrected, the device must be checked by the Customer Service department. Suction turbine does not start up

1. Check the socket and the power supply

3. Switch the device on.

Suction power decreases

1. Close the unsealed suction connection

(see chapter Closing the suction con- nection).

2. Remove the blockages from the suction

nozzle, the suction pipe or the suction hose.

3. Check that the suction head and the dirt

receptacle are correctly seated.

5. Check the seating of the filter and cor-

6. Replace the main filter (see chapter Re-

placing the main filter).

7. Replace the micro-fleece (see chapter

Replacing the micro-fleece).

8. Check the condition of the inert liquid.

a Check the filling level of the inert liq- uid, top up the inert liquid if necessary (see chapter Fill the dirt receptacle with inert liquid). b Check the quality of the inert liquid, re- place the inert liquid if necessary (see chapter Drain the inert liquid from the dirt receptacle and chapter Fill the dirt receptacle with inert liquid). Suction power not present The mechanical switch-off interrupts the volume flow because there is too little inert liquid in the dirt receptacle.

1. Top up the inert liquid (see chapter Fill

the dirt receptacle with inert liquid). Escaping dust when vacuuming

1. Check the seating of the dirt receptacle.

2. Check the seating of the filter and cor-

3. Replace the main filter (see chapter Re-

placing the main filter).

4. Top up with inert liquid when using the

device with a wet separator (see chapter Fill the dirt receptacle with inert liquid). Disposal At the end of its service life, the device is to be disposed of in accordance with statutory regulations. Warranty The warranty conditions issued by our rele- vant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing flaw is the cause. In a war- ranty case, please contact your dealer (with the purchase receipt) or the next author- ised customer service site. (See overleaf for the address) Further warranty information (if available) can be found in the service area of your lo- cal Kärcher website under "Downloads".English 29 Technical data

• with elements of protection class II ar- rangement Subject to technical changes without no- tice. Declaration of Conformity We hereby declare that the machine de- scribed below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us. Product: Dry vacuum cleaner Product: Wet/dry vacuum cleaner Type: 9.990-xxx Currently applicable EU Directives 2006/42/EC (+2009/127/EC) 2014/30/EU 2011/65/EU Harmonised standards used EN 60335-1 EN 60335-2-69 EN 55014-1: 2017 + A11: 2020 EN 55014-2: 2015

National standards used

Electrical connection Mains voltage V 220-

Vacuum (with pressure re- lief valve) kPa 25.4 Air quantity l/s 2x 74 Suction hose connection DN70 Nominal width of the suc- tion hose DN40/

Sound pressure level L

Cable length m 10 EU Declaration of Conformity30 Français The signatories act on behalf of and with the authority of the Executive Board. Documentation supervisor: A. Haag Kärcher Industrial Vacuuming GmbH Robert-Bosch-Straße 4-8 73550 Waldstetten (Germany) Ph.: [phone] Fax: [phone] Waldstetten, 24/04/01 We hereby declare that the product de- scribed below complies with the relevant provisions of the following UK Regulations, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the product is modified without our prior approval. Product: Dry vacuum cleaner Product: Wet/dry vacuum cleaner Type: 9.990-xxx Currently applicable UK Regulations S.I. 2008/1597 (as amended) S.I. 2016/1091 (as amended) S.I. 2012/3032 (as amended) Designated standards used EN 60335-1 EN 60335-2-69 EN 55014-1: 2017 + A11: 2020 EN 55014-2: 2015
