TCID 7201 E Kit - Drill EINHELL - Free user manual and instructions

Product type	Impact drill
Brand	Einhell
Model	TCID 7201 E Kit
Supply voltage	220-240 V ~ 50 Hz
Power input	720 W
No-load speed	0 - 2800 rpm
Drilling capacity	Concrete: 13 mm, Steel: 10 mm, Wood: 30 mm
Weight	1.8 kg
Protection class	II (double insulation)
Sound pressure level	87 dB(A) (uncertainty K=3 dB)
Sound power level	98 dB(A) (uncertainty K=3 dB)
Vibrations (percussion drilling concrete)	7.5 m/s² (uncertainty K=1.5 m/s²)
Vibrations (metal drilling)	4.0 m/s² (uncertainty K=1.5 m/s²)
Chuck	Keyless chuck
Auxiliary handle	Yes, adjustable for right and left-handed users
Depth stop	Yes, adjustable
Rotation direction	Reversible (right/left)
Drill/hammer drill switch	Yes, switch at standstill
Speed regulator	Electronic with presetting
Continuous operation	Yes, with lock button
Maintenance and cleaning	Clean with a damp cloth and a little soap; do not use detergents; check carbon brushes
Wear parts	Carbon brushes, drill chuck, drill bits
Warranty	2 years (conditions in manual)
Included accessories	Depth stop, auxiliary handle, instruction manual, safety instructions
Intended use	Drilling in wood, metals, plastics; percussion drilling in concrete, stone, masonry

Frequently Asked Questions - TCID 7201 E Kit EINHELL

How to change the drill bit on the Einhell TCID 7201 drill?

First unplug the device. Unscrew the keyless chuck (1) to open it sufficiently. Insert the drill bit as far as possible, then close the chuck by turning. Check that the drill bit is secure.

How to adjust the rotation speed?

The speed is infinitely variable via the On/Off switch (5). A light press gives a low speed, a harder press increases the speed. You can also preselect the maximum speed with the setting ring (6).

How to use the hammer drilling mode?

Set the drill/hammer drill switch (3) to position B (hammer drilling). This mode is intended for concrete, stone, and masonry. Only switch when at a standstill to avoid damaging the gear.

What is the power of the TCID 7201 drill?

The drill has a power input of 720 W at a voltage of 220-240 V ~ 50 Hz.

What is the weight of the drill?

The weight of the device is 1.8 kg.

What are the drilling capacities?

Concrete: 13 mm, Steel: 10 mm, Wood: 30 mm.

How to maintain the drill?

Clean the device with a damp cloth and a little soap, without detergent. Regularly check the carbon brushes and have them replaced by a specialist if necessary. Keep the ventilation slots clean.

What safety protection to wear?

Wear hearing protection (sound level up to 98 dB(A)), a dust mask and safety goggles. The device is double insulated (class II).

How to reverse the rotation direction?

Use the right/left rotation switch (7). Pressed to the right = forward rotation (drilling), pressed to the left = reverse rotation. Only switch when at a standstill.

Is the warranty 2 years?

Yes, the warranty is 2 years from the purchase date. It covers manufacturing defects. To assert your rights, register the defect at www.einhell-service.com with the proof of purchase.

USER MANUAL TCID 7201 E Kit EINHELL

GB Original operating instructions Impact Drill

Close-up of a black electric drill bit with labeled parts (no text or symbols beyond labels)

-3-

4 2 8

Close-up of a drill bit being inserted into a mechanical component, with no visible text or symbols

6 7 6 5 4

7 B A

8 1 2 3 4 STOP

5

-4-

D

Gefahr!

Schlagbohren in Beton

Schwingungsemissionswert a_h, ID = 7.5 m/s^2

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

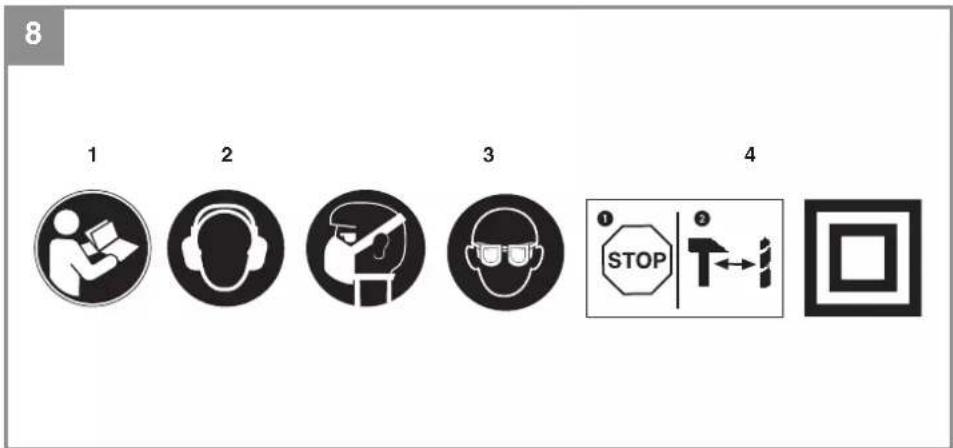

Explanation of the symbols used (see Fig. 8)

1. Danger! - Read the operating instructions to reduce the risk of injury.
2. Caution! Wear ear-muffs. The impact of noise can cause damage to hearing.
3. Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!
4. Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.
5. To avoid damaging the gearbox, the drill / hammer drill selector switch should only be moved when the machine is at a standstill
6. Protection class II (double-insulated)

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Warning!

Read all the safety information, instructions, illustrations and technical data provided on or with this power tool. Failure to adhere to the following instructions may result in electric shock, fi re and/or serious injury.

Keep all the safety information and instructions in a safe place for future use.

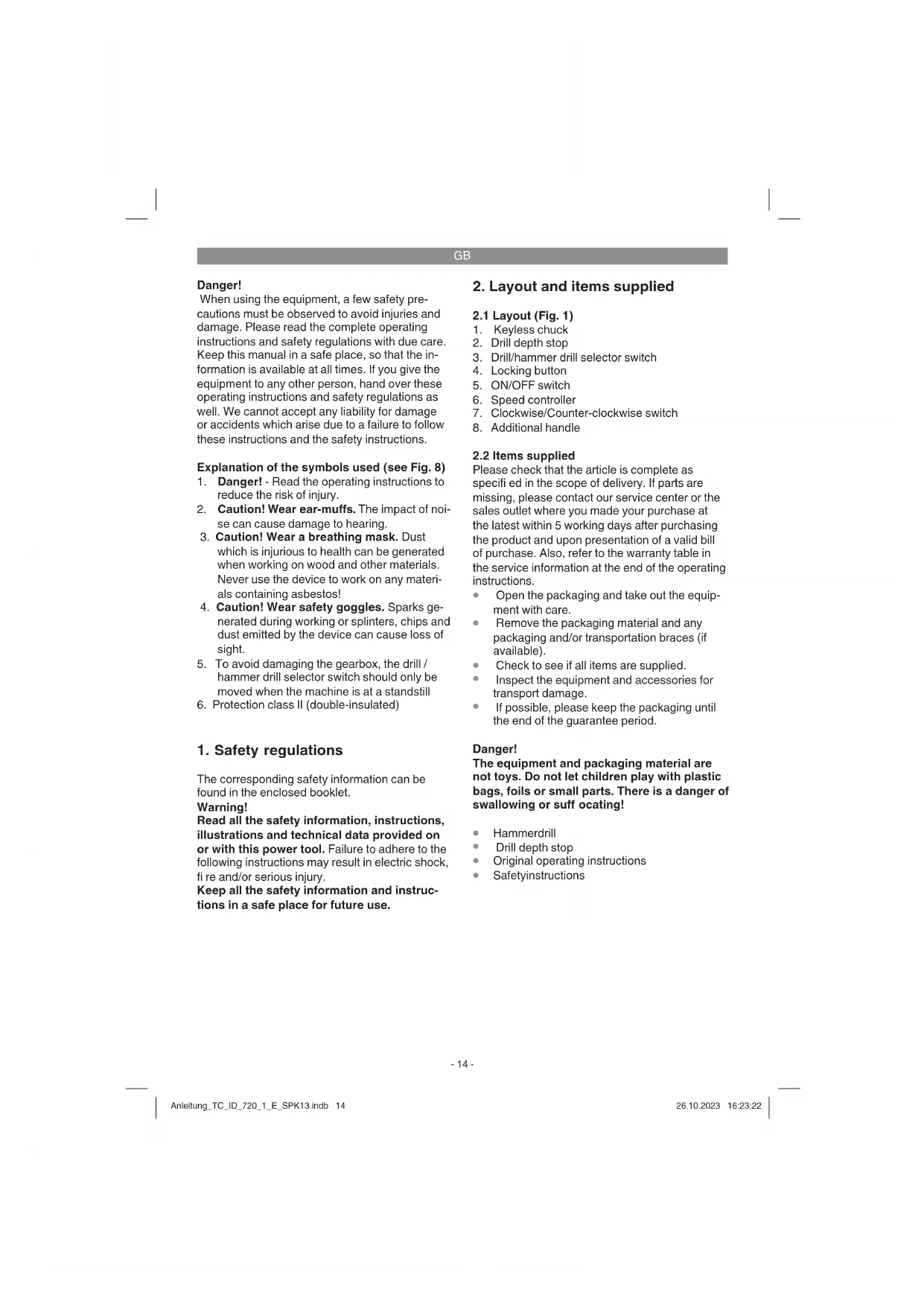

2. Layout and items supplied

2.1 Layout (Fig. 1)

1. Keyless chuck
2. Drill depth stop
3. Drill/hammer drill selector switch
4. Locking button
5. ON/OFF switch
6. Speed controller
7. Clockwise/Counter-clockwise switch
8. Additional handle

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Hammerdrill
• Drill depth stop
  • Original operating instructions
  • Safetyinstructions

GB

3. Proper use

The impact drill is designed for drilling holes into wood, iron and non-ferrous metals, and for impact drilling in stone, using the appropriate bits.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Mains voltage: 220-240 V \~ 50 Hz

Power input: 720 W

Idling speed: 0-2800 min ^-1

Drilling capacity ...... Concrete 13 mm ...... Steel 10 mm ...... Wood 30 mm

Protection class:

Weight: 1.8 kg

Danger!

Sound and vibration

Sound and vibration values were measured in accordance with EN 62841.

L_pA sound pressure level 87 dB(A)

K_pA uncertainty 3 dB

L_WA sound power level 98 dB(A)

K_WA uncertainty 3 dB

Wear ear-muff s.

The impact of noise can cause damage to hearing.

Total vibration values (vector sum of three directions) determined in accordance with EN 62841.

Hammer drilling in concrete

Vibration emission value a_h, ID = 7.5 ~m / s^2

K uncertainty = 1.5 m/s ^2

Drilling in metal

Vibration emission value a_h,1 = 4.0 m/s^2

K uncertainty = 1.5 m/s ^2

The stated vibration emission levels and stated noise emission values were measured in accordance with a set of standardized criteria and can be used to compare one power tool with another.

The stated vibration emission levels and stated noise emission values can also be used to make an initial assessment of exposure.

Warning:

The vibration and noise emission levels may vary from the level specified during actual use, depending on the way in which the power tool is used, especially the type of workpiece it is used for.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
  • Adapt your working style to suit the appliance.
  • Do not overload the appliance.
• Have the appliance serviced whenever necessary.
  • Switch the appliance off when it is not in use.

Caution!

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

GB

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Warning!

Always pull the power plug before making adjustments to the equipment.

5.1. Fitting the additional handle (Fig. 2-3/Item 8)

The additional handle (8) enables you to achieve better stability whilst using the hammer drill. Do not use the tool without the additional handle. The additional handle (8) is secured to the hammer drill by a clamp. During the handle clockwise tightens this clamp. Turning it anti-clockwise will release the clamp.

• The supplied additional handle (8) must first be fitted. To do this, the clamp must be opened by turning the handle until it is wide enough for the additional handle to be slid over the chuck (1) and on to the hammer drill.
  • After you have positioned the additional handle (8), turn it to the most comfortable working position for you.
• Now turn the handle in the opposite direction again until the additional handle is secure.
  • The additional handle (8) is suitable for both left-handed and right-handed users.

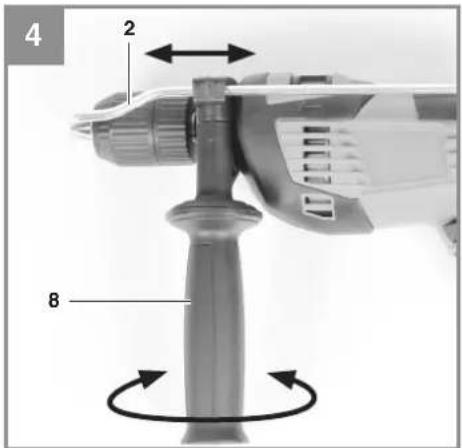

5.2 Fitting and adjusting the depth stop (Fig. 4/Item 2)

The depth stop (2) is held in place by the additional handle (8) by clamping. The clamp can be released and tightened by turning the handle.

• Release the clamp and fit the depth stop (2) in the recess provided for it in the additional handle.
• Set the depth stop (2) to the same level as the drill bit.
• Pull the depth stop back by the required drilling depth.
• Turn the handle on the additional handle (8) until it is secure.
• Now drill the hole until the depth stop (2) touches the workpiece.

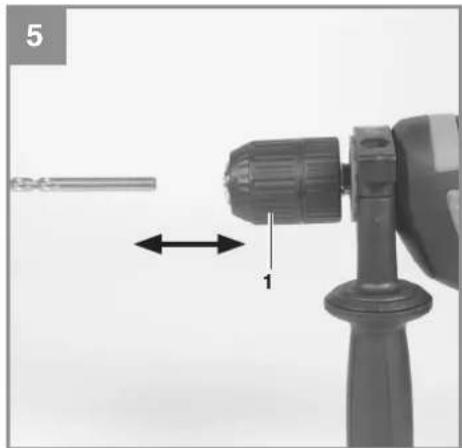

5.3 Fitting the drill bit (Fig. 5)

• Always pull the power plug before making adjustments to the equipment.
- Release the depth stop as described in 5.2 and push it towards the additional handle. This provides free access to the chuck (1).

• This hammer drill is fitted with a keyless chuck (1).
• Open the chuck (1). The drill bit opening must be large enough to fit the drill bit into.
• Select a suitable drill bit. Push the drill bit as far as possible into the chuck opening.
• Close the chuck (1). Check that the drill bit is secure in the chuck (1).
• Check at regular intervals that the drill bit or tool is secure (pull the mains plug).

6. Operation

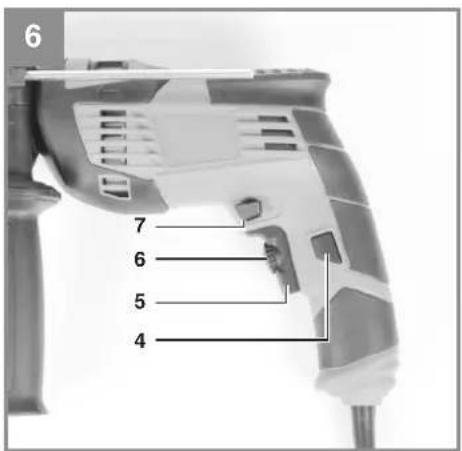

6.1 ON/OFF switch (Fig. 6/Item 5)

• First fit a suitable drill bit into the tool (see 5.3).
• Connect the mains plug to a suitable socket.
• Position the drill in the position you wish to drill.

To switch on:

Press the ON/OFF switch (5)

Continuous operation:

Secure the ON/OFF switch (5) with the locking button (4).

To switch off :

Press the ON/OFF switch (5) briefly.

6.2 Adjusting the speed (Fig. 6/Item 5)

• You can infinitely vary the speed whilst using the tool.
• Select the speed by applying a greater or lesser pressure to the ON/OFF switch (5).
• Select the correct speed: The most suitable speed depends on the workpiece, the type of use and the drill bit used.
• Low pressure on the ON/OFF switch (5): Lower speed (suitable for: small screws and soft materials)
• Greater pressure on the ON/OFF switch (5): Higher speed (suitable for large/long screws and hard materials)

Tip: Start drilling holes at low speed. Then increase the speed in stages.

Benefits:

• The drill bit is easier to control when starting the hole and will not slide away.
• You avoid drilling messy holes (for example in tiles).

GB

6.3 Preselecting the speed (Fig. 6/Item 6)

• The speed setting ring (6) enables you to define the maximum speed. The ON/OFF switch (5) can only be pressed to the defined maximum speed setting.
• Set the speed using the setting ring (6) on the ON/OFF switch (5).
• Do not attempt to make this setting whilst the drill is in use.

6.4 Clockwise/Counter-clockwise switch (Fig. 6/Item 7)

• Change switch position only when the drill is at a standstill!
• Switch the direction of the hammer drill using the clockwise/counter-clockwise switch (7):

Direction Switch position

Clockwise (forwards and drill) Pushed in to the right

Counter-clockwise (reverse) Pushed in to the left

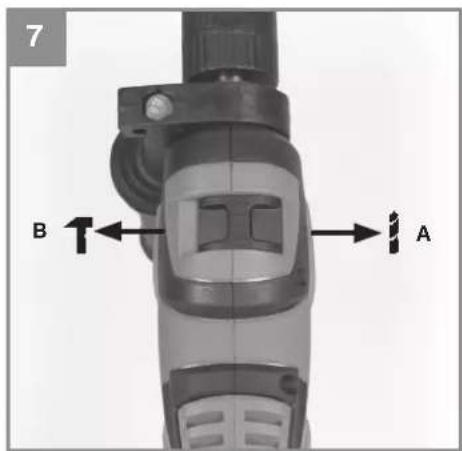

6.5 Drill / hammer drill selector switch (Fig. 7/Item 3)

Change switch position only when the drill is at a standstill!

Drill

Drill / hammer drill selector switch (3) in the drill position. (Position A)

Use for: Wood, metal, plastic

Hammer drill

Drill / hammer drill selector switch (3) in the hammer drill position. (Position B)

Use for: Concrete, rock, masonry

6.6 Tips for working with your hammer drill

6.6.1 Drilling concrete and masonry

• Switch the Drill/Hammer drill selector switch (3) to position B (Hammer drill).
  • Always use carbide drill bits and a high speed setting for drilling into masonry and concrete.
• Switch the drill / hammer drill selector switch (3) to position A (drill).
• Always use HSS drill bits (HSS = high speed steel) and a low speed setting for drilling steel.
  • We recommend that you lubricate the hole with a suitable cutting fluid to prevent unne-

6.6.2 Drilling steel

cessary drill bit wear.

6.6.3 Starting holes

If you wish to drill a deep hole in a hard material (such as steel), we recommend that you start the hole with a smaller drill bit.

6.6.4 Drilling tiles

• To start the hole, switch the drill / hammer drill selector switch (3) to position A (drill).
• Switch the drill / hammer drill selector switch (3) to position B (hammer drill) as soon as the drill bit has passed through the tiles.

7. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the mains power plug before starting any cleaning work.

8.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

8.2 Carbon brushes

In case of excessive sparking, have the carbon brushes checked only by a qualified electrician.

Danger! The carbon brushes should not be replaced by anyone but a qualified electrician.

GB

8.3 Maintenance

There are no parts inside the equipment which require additional maintenance.

8.4 Ordering spare parts and accessories

Please provide the following information when ordering spare parts:

• Type of unit
  • Article number of the unit
  • ID number of the unit
• Spare part number of the required spare part For our latest prices and information please go to www.Einhell-Service.com

Tip! For good results we recommend high-quality accessories from !kwb www.kwb.eu [e-mail]

9. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

10. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30°C. Store the electric tool in its original packaging.

GB

Disposal

Power tools, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EU countries:

According to the Directive 2012/19/EU on waste electrical and electronic equipment and its transposition into national law, power tools that are no longer usable, and, according to the Directive 2006/66/EC, defective or drained batteries must be collected separately and disposed of in an environmentally correct manner.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Only for United Kingdom:

According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Carbon brushes, chuck
Consumables* Drill bits
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that this equipment develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply solely to consumers, i.e. natural persons, who do not want to use this product in connection with either their commercial or other self-employed activities. These guarantee terms regulate additional guarantee services which the undermentioned manufacturer promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory rights of guarantee are not affected by this guarantee. Our guarantee is free of charge to you.

2. The guarantee services cover only defects due to material or manufacturing faults on the new product which you have bought in the European Union from the undermentioned manufacturer and are limited to either the rectification of said defects or the replacement of the product, whichever we prefer. Please note that only equipment under the brand name "Professional" has been designed for use in commercial, trade or professional applications. For all other products the guarantee is invalidated if the equipment is used within the guarantee period in commercial, trade or industrial applications or for other equivalent activities.

3. Our guarantee does not cover:

4. Damage to the equipment caused by failure to comply with the installation/assembly instructions or by unprofessional installation; damage caused by failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type); damage caused by failure to comply with the maintenance and safety regulations; damage caused by exposing the equipment to abnormal environmental conditions; damage resulting from poor care and maintenance.

5. Damage to the equipment caused by misuse or incorrect applications (e.g. overloading the equipment or using non-approved attachments or accessories); damage caused by foreign bodies (e.g. sand, stones, dust, ....) getting inside the equipment. Damage in transit; damage caused by force or external influences (e.g. by dropping the equipment).

6. Damage to the equipment or parts of the equipment which is owed to use-related, normal or otherwise natural wear. For example, batteries and battery packs are manufactured with a cycle limit for design-related reasons. Wear is negatively influenced in particular by load demands and charging speeds as well as exposure to heat, cold, vibration and impact.

7. The guarantee is valid for a period of 2 years starting from the purchase date of the equipment. Guarantee claims must be submitted before the end of the guarantee period and within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the equipment even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or for any replacement parts fitted. This also applies if on-site service is used.

8. To assert your guarantee claim, register the defective equipment at: www.Einhell-Service.com. You will need to provide proof of purchase of the new item of equipment. Equipment returned without such proof or without a rating plate are excluded from the guarantee services because of the lack of traceability. If the defect is covered by our guarantee, then either the item in question will be repaired immediately and returned to you or we will send you a new replacement.

9. If you have taken the equipment with you to a different EU country than where you bought it, we will arrange for a local service partner to provide the guarantee services. If you take the equipment outside the EU, the guarantee will not apply.

Of course, we are also happy to offer a chargeable repair service for any defects which are not covered or no longer covered by the scope of this guarantee. To take advantage of this service, please send the equipment to our service address. We draw attention to the restrictions of this guarantee concerning wear parts, consumables and missing parts as presented in the service information included in this operating manual.

Warrantor/ Service:

Einhell UK Ltd, Unit 10, 1st Floor, Champion's Business Park, Arrowe Brook Road, Upton, Wirral, CH49 0UQ

F

Danger!

Negotovost K_pA 3 dB

Nivo zvočne moči L _WA 98 dB (A)

Negotovost K_WA .....3 dB

X2006/42/EC
□ Annex IV
Notified Body:
Reg. No.:
□2000/14/EC_2005/88/EC
Annex V
Annex VI
Noise: measured L_wA = dB(A) ; guaranteed L_wA = dB(A)
P = kW; L/∅ = cm
Notified Body:
□2012/46/EU_(EU)2016/1628
Emission No.

Standard references: EN 62841-1; EN 62841-2-1; EN IEC 55014-1; EN IEC 55014-2; EN IEC 61000-3-2; EN 61000-3-3

Subject to change without notice

Archive-File/Record: NAPR030658

Documents registrar: Thomas Fischer

Wiesenweg 22, D-94405 Landau/Isar

* GB Impact Drill - F Perucose diuretics a perusion - Triana o perusion. UKN Slagtorosmaskine - S Slagborrmasink - SZ Slagborrmasink - CZ Piklipsovy vrtaksa - SK Prickopovy vrtaksa - NL Kropborrmasink - E Talisdo de periculor - FIN skuporskene - SLO Udaril virtani stroj - H Üvteratogrip - RO Mašnja do glauri cu poručiti - GP Kroutsko špimvo - P Partoučim com perusljava - HR/HJH vibrosona butilica - RS vibrosona butilica - PL Wrtorka udavanga - TR Darallil Markar - RUS ydunara aróali - EE Lokroli - LV lncenirutjmasina - SL Smuginis gržitvas - BG Böravirima na udaryno proizivana - UKR Ydunira dimly - MK Ydunira böravirima - NO Slagborrmasink - IS Ralmajinsrogboviye

Declaration of conformity

We, Einhell UK Ltd

Champions Business Park, First Floor Unit 10, Arrowe Brook Rd, Upton, Wirral CH49 0AB, United Kingdom

declare the conformity to UK standards and legislation was assessed for:

□ Simple Pressure Vessels (Safety) Regulation
□ Electrical Equipment (Safety) Regulation
□ Radio Equipment Regulation
Personal Protective Equipment Regulation
☐ The Ecodesign for Energy-Related Products and Energy Information Regulation
X The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation
□ Noise Emission in the Environment by Equipment for use Outdoors Regulation
X Electromagnetic Compatibility Regulation
□Measuring Instruments Regulation
□Pressure Equipment (Safety) Regulation

Annex V

Annex VI

Noise:measuredL ww = dB (A); guaranteed L ww = dB (A)
P = kW; L/∅ = cm
UK Approved Body:

X Supply of Machinery (Safety) Regulation

□ Annex IV

UK Approved Body:

UKTE Certifi cate No.:

Wirral, 2023.08.31

Standards: BS EN 62841-1; BS EN 62841-2-1; BS EN IEC 55014-1; BS EN IEC 55014-2; BS EN IEC 61000-3-2; BS EN 61000-3-3

Archive-File/Record: NAPR030658

Article Number: 42.598.46 I.-No.: 21023

Subject to change without notice Wiesenweg 22, 94405 Landau/Isar, Germany

Documents registrar: Thomas Fischer

EH 10/2023 (01)
