USER MANUAL POWX146 PowerPlus

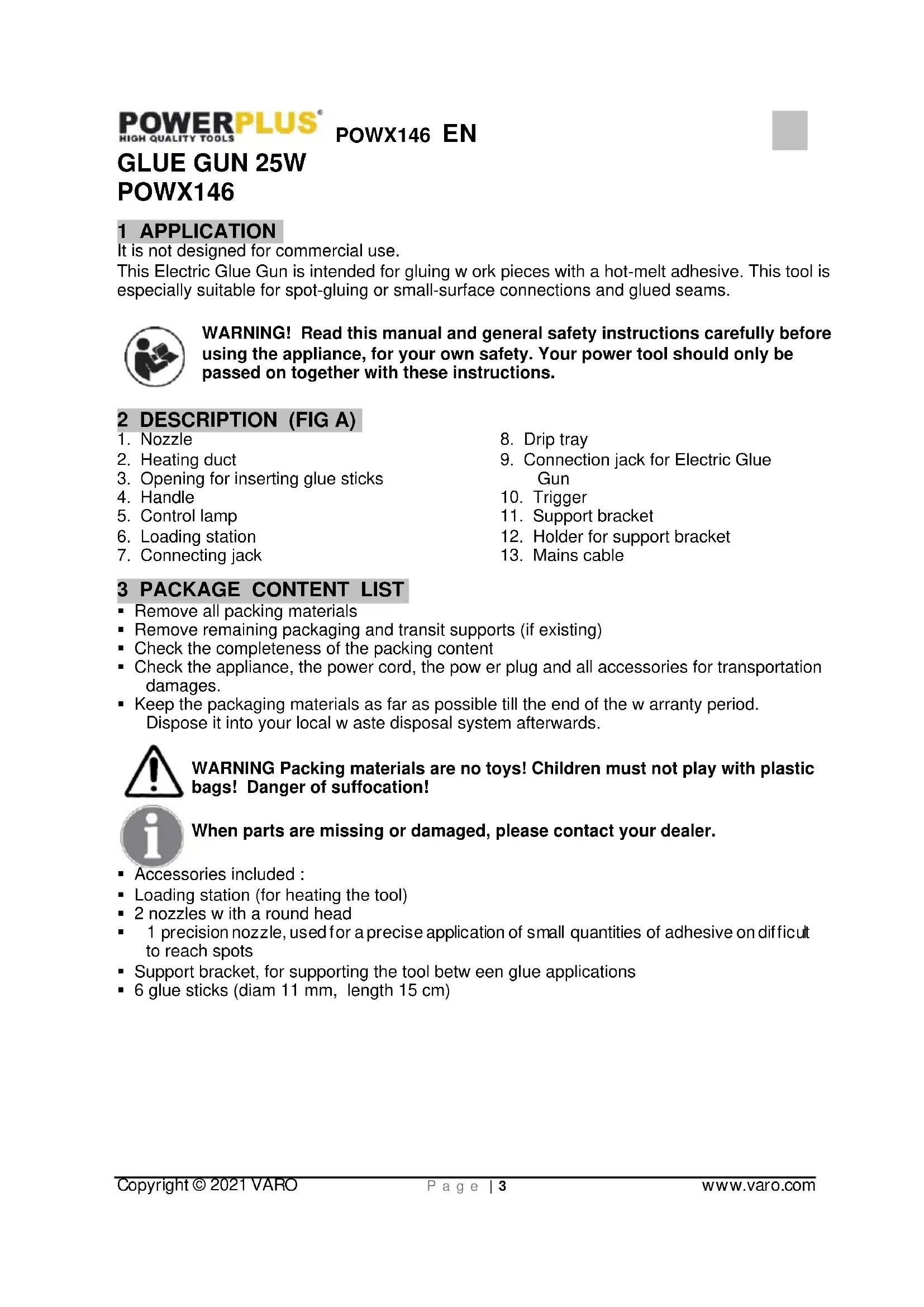

POWX146 1 APPLICATION It is not designed for commercial use. This Electric Glue Gun is intended for gluing w ork pieces with a hot-melt adhesive. This tool is especially suitable for spot-gluing or small-surface connections and glued seams. WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions. 2 DESCRIPTION (FIG A)

3. Opening for inserting glue sticks

9. Connection jack for Electric Glue

12. Holder for support bracket

Remove all packing materials Remove remaining packaging and transit supports (if existing) Check the completeness of the packing content Check the appliance, the power cord, the pow er plug and all accessories for transportation damages. Keep the packaging materials as far as possible till the end of the w arranty period. Dispose it into your local w aste disposal system afterwards. WARNING Packing materials are no toys! Children must not play with plastic bags! Danger of suffocation! When parts are missing or damaged, please contact your dealer. Accessories included : Loading station (for heating the tool) 2 nozzles w ith a round head 1 precision nozzle, used for a precise application of small quantities of adhesive on difficult to reach spots Support bracket, for supporting the tool betw een glue applications 6 glue sticks (diam 11 mm, length 15 cm)POWX146 EN Copyright © 2021 VARO P a g e | 4 www.varo.com 4 SYMBOLS In this manual and/or on the machine the follow ing symbols are used:

Read manual before use

Denotes risk of personal injury or damage to the tool.

Class II - The machine is double insulated; Earthing wire is therefore not necessary.

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all w arnings and instructions for future reference. The term "pow er tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

Keep w ork area clean and w ell lit. Cluttered and dark areas invite accidents. Do not operate pow er tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Pow er tools create sparks w hich may ignite the dust or fumes. Keep children and bystanders away while operating a pow er tool. Distractions can cause you to lose control.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate. Pow er tool plugs must match the outlet. Never modify the plug in any w ay. Do not use any adapter plugs w ith earthed (grounded) power tools. Unmodified plugs and matching outlets w ill reduce risk of electric shock. Avoid body contact w ith earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or w et conditions. Water entering a power tool w ill increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the pow er tool. Keep cord aw ay from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. When operating a pow er tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a pow er tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Stay alert, w atch what you are doing and use common sense w hen operating a pow er tool. Do not use a pow er tool w hile you are tired or under the influence of drugs, alcohol or medication. A moment of inattention w hile operating pow er tools may result in serious personal injury. Use safety equipment. Alw ays wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used w henever conditions require w ill reduce personal injuries.POWX146 EN Copyright © 2021 VARO P a g e | 5 www.varo.com Avoid accidental starting. Ensure the sw itch is in the off position before plugging in. Carrying pow er tools w ith your finger on the sw itch or plugging in power tools that have the sw itch on invites accidents. Remove any adjusting key or wrench before turning the power tool on. A w rench or a key left attached to a rotating part of the pow er tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. This enables better control of the pow er tool in unexpected situations. Dress properly. Do not w ear loose clothing or jew ellery. Keep your hair, clothing and gloves aw ay from moving parts. Loose clothes, jew ellery or long hair can be caught in moving parts. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.

5.4 Power tool use and care

Do not force the power tool. Use the correct power tool for your application. The correct power tool w ill do the job better and safer at the rate for w hich it w as designed. Do not use the pow er tool if the sw itch does not turn it on and off. Any power tool that cannot be controlled w ith the sw itch is dangerous and must be repaired. Disconnect the plug from the pow er source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the pow er tool accidentally. Store idle pow er tools out of the reach of children and do not allow persons unfamiliar w ith the pow er tool or these instructions to operate the pow er tool. Pow er tools are dangerous in the hands of untrained users. Maintain pow er tools. Check for misalignment or sticking of moving parts, breakage of parts and any other condition that may affect the pow er tool’s operation. If damaged, have the pow er tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools w ith sharp cutting edges are less likely to stick and are easier to control. Use the pow er tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the w orking conditions and the w ork to be performed. Use of the pow er tool for operations different from intended could lead to a hazardous situation.

Have your pow er tool serviced by a qualified repair person using only identical replacement parts. This w ill ensure that the safety of the power tool is maintained.

6 SPECIFIC SAFETY WARNINGS

This tool is not intended for use by persons (including children) w ho are mentally or physically handicapped. Nor is this tool intended for use by persons who do not have the necessary know-how and/or experience, unless they are supervised by a person who is responsible for their safety, or they have received instructions about the proper use of the tool. Do supervise children, just to make sure that they do not play w ith this tool Alw ays turn off the tool after finishing your w ork, and then pull out the mains plug from the outlet. Set dow n the tool on the support bracket (1110) , until the tool has cooled dow n completely. Never cover the tool w hile it is sw itched on. The housing w arms up w hile the tool is sw itched on. Overheating of the tool can cause fire. Alw ays deposited tool on the support bracket, w hen it is not in use.POWX146 EN Copyright © 2021 VARO P a g e | 6 www.varo.com Danger of burns ! The electric glue gun and the nozzle reach temperatures of up to 200°C. Avoid direct contact between the skin and the switched-on tool, as well as with the fluid hot-melt glue. Wear eye protection Wear gloves 7 ASSEMBLY

7.1 Assembly of the support bracket (11)

Insert one of the ends of the support bracket (11) in one of the holders (12) Pull the support bracket apart at the other end, and insert that end in the holder.

7.2 Installing the nozzle

Screw the nozzle (1) into the front of the tool, up to the stop. When screwing in the nozzle, make sure it is positioned correctly. 8 OPERATION

8.1 Inserting hot-melt glue sticks

Insert the glue sticks at the rear end of the tool and into the filler opening for glue sticks (3) Slide glue stick forward into the heating duct (2)

8.2 Connecting the equipment

The tool can be used both w ith a mains cable and without. When w orking without a mains cable, use the loading station (6) for heating the tool.

8.2.1 Connecting a mains cable

Adjust the tool and the support bracket (11). Insert the tool plug of the mains cable (13) into the connection jack up the loading station (7) or into the electric glue gun (9) Insert the mains plug of the mains cable (13) into the mains outlet. The tool sw itches on, as soon as the tool is connected. As soon as the tool has been activated, the red control lamp (5) w ill light up.

8.2.2 Sw itching off the equipment

Pull the mains plug out from the outlet As soon as the tool has been sw itched off, the control lamp (5) goes out.

8.2.3 Preparing the gluing spot

The pieces that are to be glued and the ambient temperature must lie w ithin a range of +5°C and +50°C Clean all glued spots After cleaning, check that the spots to be glued are clean, dry and fat-free. Roughen the smooth surfaces.POWX146 EN Copyright © 2021 VARO P a g e | 7 www.varo.com

8.2.4 Gluing techniques

To be able to attach different materials in an optimal manner by gluing, the follow ing two gluing techniques are recommended: Glue lines in a zig-zag pattern for flexible materials such as textiles. Spot-gluing should be used for all other materials. After applying glue to both sides of the w orking pieces, immediately press them together for approximately 30 seconds. Continue to apply pressure to all glued spots for another five minutes, for instance by w eighing them dow n.

8.3 Working with the mains cable

Work with a mains cable, if you w ant to glue several spots in succession. Adjust the tool and the support bracket (11). Connect your glue gun to pow er and let it heat up for at least 5 minutes. Pull the trigger back towards the handle (4), for pushing the hot-melt stick further into the heating duct and for pushing the fluid blew through the nozzle. Glue w orking pieces.

8.4 Working without the mains cable

Work without mains cable if … - you only w ant to glue a single or a few spots - are planning complicated gluing procedures, which require that you would turn off the tool in between. Position the tool in the loading station (6). Please make sure that the nozzle is positioned precisely over the drip tray (8) Connect the loading station (6) and let the tool heat up for a maximum of 5 minutes. The device is now ready to use As soon as the hot-melt glue is no longer sufficiently fluid, reinsert the tool in the loading station (6) and heat it up once more.

8.5 Changing the nozzle

Danger of burns ! The hot-melt glue and the nozzle reach temperatures of up to 200°C. Before nozzles can be exchanged, you must turn off the tool and let it cool off for approximately 20 to 30 minutes. Pull out the mains plug. Screw off the nozzle (1) at the front of the tool If you are unable to unscrew the nozzle by hand : Remove the rubber cap from the nozzle and unscrew it. Screw in a different nozzle (1) into the thread and up to the stop. When screwing in the nozzle, make sure it is positioned correctly.

9 CLEANING AND MAINTENANCE

Attention !Before performing any work on the equipment, pull the power plug.

Keep the ventilation slots of the machine clean to prevent overheating of the engine. Regularly clean the machine housing w ith a soft cloth, preferably after each use. Keep the ventilation slots free from dust and dirt. If the dirt does not come off use a soft cloth moistened with soapy water.POWX146 EN Copyright © 2021 VARO P a g e | 8 www.varo.com Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts. The tool may not come into contact with fluids. A liquid that penetrates into the tool can cause a short circuit that can set the tool on fire. Remove the mains plug before starting with cleaning the tool. Before starting to clean the tool, let it cool off completely. When removing the tool from the loading station, the front part must be carefully pulled upwards. Otherwise it is possible that the loading station will be damaged and that the drip tray is removed. After you have finished cleaning, reinsert the drip tray in the recess provided for this purpose and reattach the entire component on the loading station, by snapping it into the bracket.

9.2 Cleaning the nozzle

Remove cold excess glue w ith a sharp-edged object, or deposit the nozzle in only w arm w ater, so that glue rests can soften and can be removed by hand. 10 TECHNICAL DATA Voltage / frequency 220-240V / 50Hz Output 25W (500W) 11 SERVICE DEPARTMENT Damaged sw itches must be replaced by our after-sales service department. If the connecting cable (or mains plug) is damaged, it must be replaced by a particular connecting cable w hich is available from our service department. Replacement of the connecting cable must only be carried out by our service department (see last page) or by a qualified person (qualified electrician). 12 STORAGE Thoroughly clean the whole machine and its accessories. Store it out of the reach of children, in a stable and secure position, in a cool and dry place, avoid too high and too low temperatures. Pr otect it from exposure to direct sunlight. Keep it in the dark, if possible. Don’t keep it in plastic bags to avoid humidity build-up. Before storing your glue gun, make sure that the tool has cooled off completely. Do not suspend the tool from the mains cable.POWX146 EN Copyright © 2021 VARO P a g e | 9 www.varo.com 13 TROUBLE SHOOTING Tool does not switch on. The mains plug has not been inserted in the outlet. Insert the mains plug in the outlet. Mains cable is defective. let the mains cable be exchanged by a qualified service department. The tool overheats Let the tool cool dow n for a few minutes and then sw itch in on again The nozzle sits crooked in the thread The nozzle has jammed. Remove the nozzle and reinsert properly in the screw thread. Hot-melt glue is not fluid enough Not heated sufficiently. Let the tool heat up longer. et the tool be checked by a qualified service department 14 WARRANTY This product is w arranted for a 36-month period effective from the date of purchase by the first user. This w arranty covers all material or production flaw s excluding : batteries, chargers, defective parts subject to normal w ear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation. Damage and/or defects resulting from inappropriate use also do not fall under the w arranty provisions. We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool. Repairs may only be carried out by an authorised customer service centre for Pow erplus tools. You can alw ays obtain more information at the number 00 32 3 292 92 90. Any transportation costs shall alw ays be borne by the customer, unless agreed otherw ise in w riting. At the same time, no claim can be made on the w arranty if the damage of the device is the result of negligent maintenance or overload. Definitely excluded from the w arranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneus net voltage. This list is not exhaustive. Acceptance of claims under w arranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement. Devices or parts w hich are replaced under the w arranty therefore remain the property of Varo NV. We reserve the right to reject a claim w henever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.). Your purchase receipt must be kept as proof of date of purchase. Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow -moulded case if applicable to the unit), accompanied by proof of purchase.POWX146 EN Copyright © 2021 VARO P a g e | 10 www.varo.com 15 ENVIRONMENT Should your appliance need replacement after extended use, do not discard it w ith the household rubbish but dispose of it in an environmentally safe w ay. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.
