| Product type | Cordless glue gun |
| Brand | PowerPlus |
| Model | POWX147 |
| Power supply | Rechargeable lithium-ion battery, via USB adapter (5 V) |
| Charging time | Approximately 2 to 3 hours |
| Preheating time | Approximately 25 seconds |
| Battery level indicator | Green (sufficient power), Red (low power) |
| Auto-off | After 10 minutes of inactivity |
| Shipping mode (standby) | Yes, activated by long press on switch |
| Removable stand | Yes, foldable |
| Handle | Soft grip coating |
| Use | Spot gluing, small surfaces, joints; non-professional |
| Package contents | Glue gun, USB cable, power adapter, removable stand, glue sticks |
| Maintenance | Clean surfaces to be glued; do not immerse tool |
| Safety | Do not charge in freezing weather; unplug after use; auto-off |
| Replacement parts | Glue sticks, USB cable, power adapter |
Frequently Asked Questions - POWX147 PowerPlus
User questions about POWX147 PowerPlus
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Glue gun in PDF format for free! Find your manual POWX147 - PowerPlus and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. POWX147 by PowerPlus.
USER MANUAL POWX147 PowerPlus
POWERPLUS® HIGH QUALITY TOOLS
POWX147


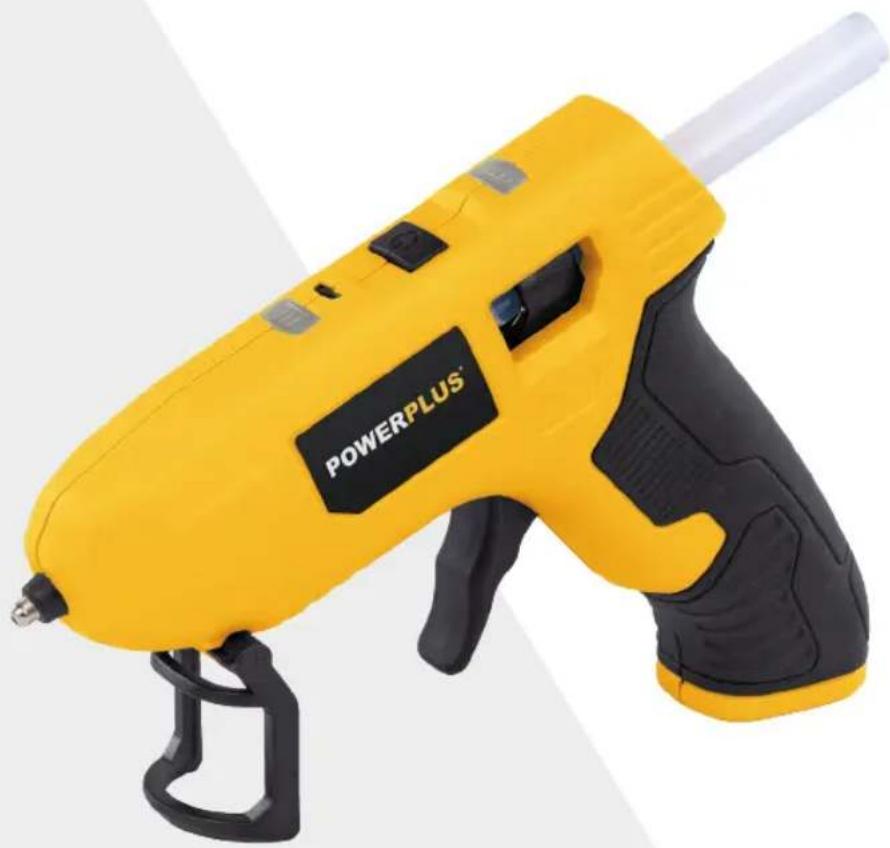

Yellow powerplug with black handle and white trigger, isolated on white background (no text or symbols visible)natural_image
Yellow powerplush tool with blue tip and black handle, labeled 'POWERPLUS' (no text or symbols on the tool itself)


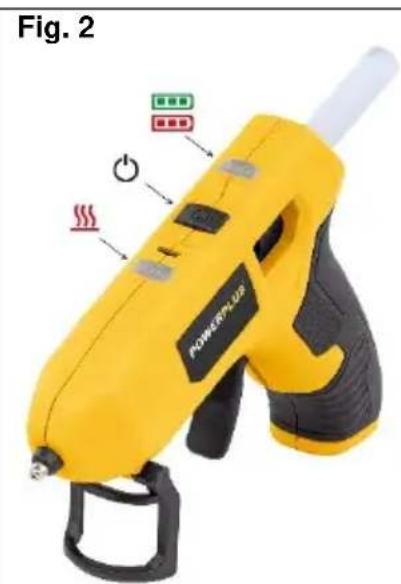

Fig. 2 POWER-UP
POWX147
1 PACKAGE CONTENT LIST 2
2 SYMBOLS....2
3 GENERAL POWER TOOL SAFETY WARNINGS....2
3.1 Working area....2
3.2 Electrical safety....2
3.3 Personal safety 2
3.4 Power tool use and care....3
3.5 Service....3
4 SPECIFIC SAFETY WARNINGS....3
5 TECHNICAL DETAILS 3
6 WARRANTY....3
7 ENVIRONMENT 3
8 DECLARATION OF CONFORMITY 4
POWX147

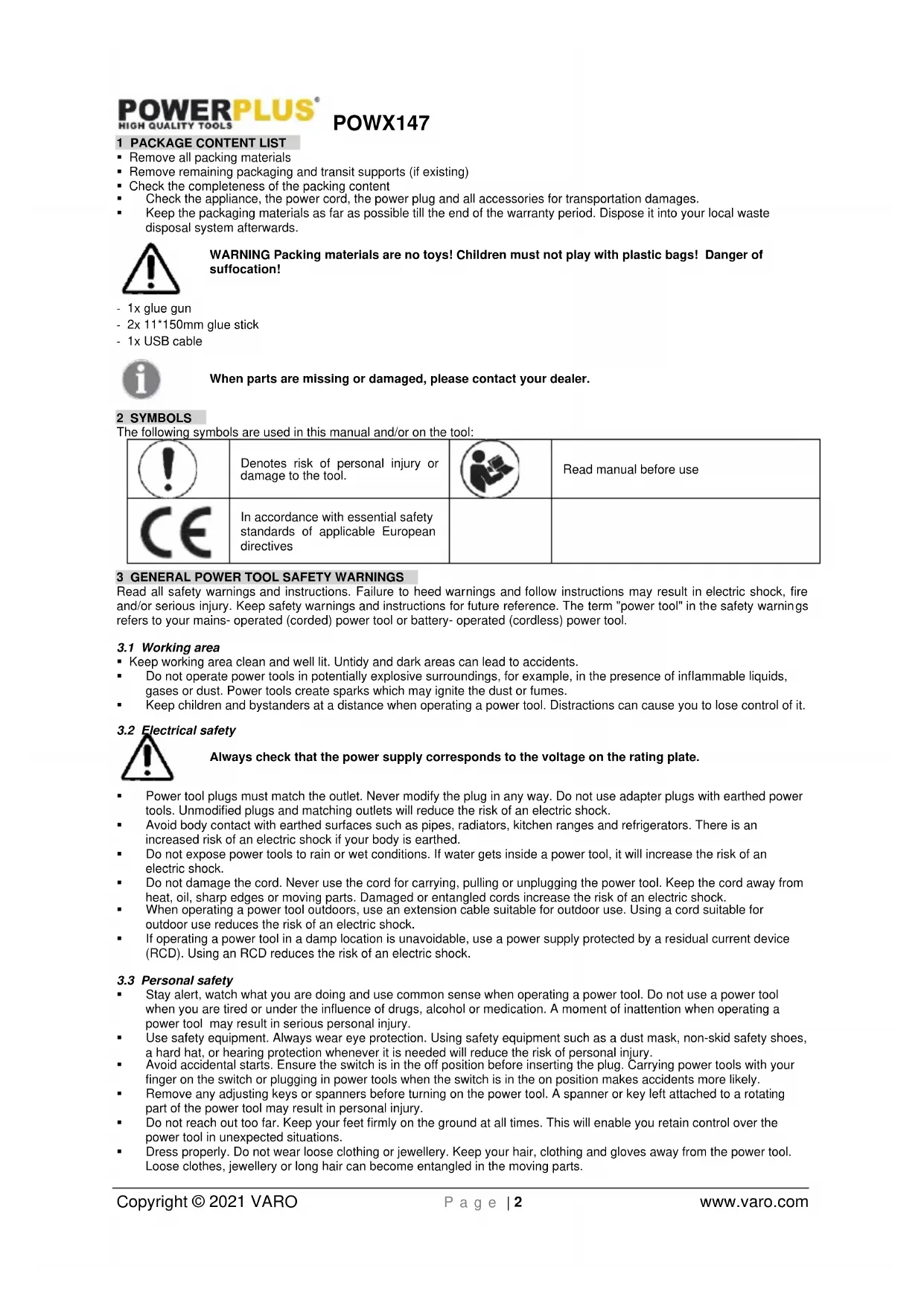

1 PACKAGE CONTENT LIST
■ Remove all packing materials
- Remove remaining packaging and transit supports (if existing)
- Check the completeness of the packing content
- Check the appliance, the power cord, the power plug and all accessories for transportation damages.
- Keep the packaging materials as far as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards.
WARNING Packing materials are no toys! Children must not play with plastic bags! Danger of suffocation!
- 1x glue gun
- 2x 11*150mm glue stick
- 1x USB cable
When parts are missing or damaged, please contact your dealer.
2 SYMBOLS
The following symbols are used in this manual and/or on the tool:
 | Denotes risk of personal injury or damage to the tool. |  | Read manual before use |
| In accordance with essential safety standards of applicable European directives |
3 GENERAL POWER TOOL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
3.1 Working area
- Keep working area clean and well lit. Untidy and dark areas can lead to accidents.
- Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
- Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.
3.2 Electrical safety
Always check that the power supply corresponds to the voltage on the rating plate.
- Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of an electric shock.
- Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an increased risk of an electric shock if your body is earthed.
- Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of an electric shock.
- Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of an electric shock.
- When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of an electric shock.
If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). Using an RCD reduces the risk of an electric shock.
3.3 Personal safety
- Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.
- Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.
- Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.
■ Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a rotating part of the power tool may result in personal injury. - Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you retain control over the power tool in unexpected situations.
- Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.
POWX147
- If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards.
3.4 Power tool use and care
- Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.
- Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and must be repaired.
- Disconnect the plug from the power source before making adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
- Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or jammed moving parts, breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.
- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
- Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.
3.5 Service
- Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.
4 SPECIFIC SAFETY WARNINGS
- Be careful when you use the glue gun in spaces with inflammable material.
- Do not hold the glue gun over the same spot for a long time.
- Do not use the glue gun in explosive environments
- Keep in mind that the heat can conduct to inflammable material that is out of sight.
- Place the glue gun on the holder after use and let it cool off before storage.
- Do not leave the glue gun unattended when the cord is connected to the wall socket.
WARNING The glue gun is very hot during usage. It may cause burns on the skin. Rinse immediately with cold water.!
5 TECHNICAL DETAILS
| Rated Voltage | 4V |
| Battery capacity | 2200mAh |
| Battery technology | Lithium battery |
| Average charging time | 3hrs |
6 WARRANTY
This product is warranted for a 36-month period effective from the date of purchase by the first user.
This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.
■ Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.
■ We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.
■ Repairs may only be carried out by an authorised customer service centre for Powerplus tools.
- You can always obtain more information at the number 00 32 3 292 92 90.
- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.
- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.
Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.
- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.
■ Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.
We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).
- Your purchase receipt must be kept as proof of date of purchase.
- Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.
7 ENVIRONMENT
Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way.
Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.
8 DECLARATION OF CONFORMITY
VARO N.V. - Vic. Van Rompuy N.V. Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that.
Product: Glue gun : Battery operated
trade mark: POWERplus
Model: POWX147
is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.
European Directives (including, if applicable, their amendments up to the date of signature);
2011/65/EU
2014/30/EU
European harmonized standards (including, if applicable, their amendments up to the date of signature);
EN60335-1:2012
EN60335-2-45:2002
EN55014-1:2017
EN55014-2:2015
Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.
The undersigned acts on behalf of the company CEO,
Regulatory Affairs – Compliance Manager
26/05/2021, Lier - Belgium
1 BEOOGD GEBRUIK
2 BESCHRIJVING (FIG. A)
This glue gun is intended for gluing work pieces with a hot-melt adhesive. This tool is especially suitable for spot-gluing or small-surface connections and glued seams. Not suitable for professional use.
WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions.
2 DESCRIPTION (FIG. A)
- Nozzle
- Heating indicator
- Charging port
- Switch button
- Charging and power indicator
- Glue stick inlet
- Soft grip
- Trigger

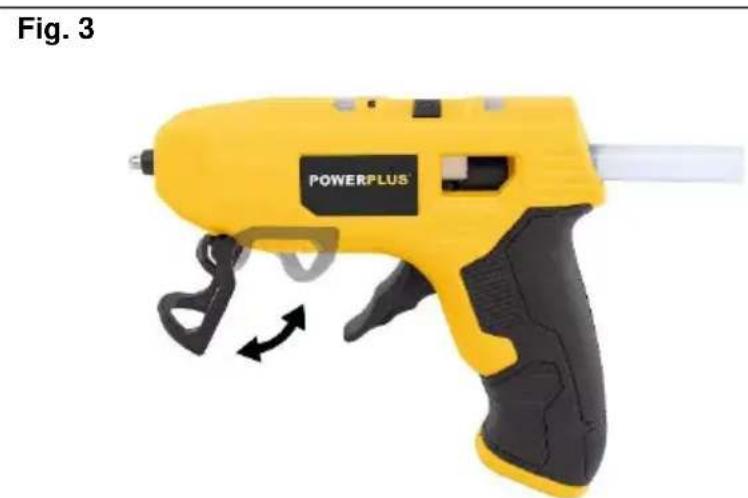

- Removable stand
- USB cable
- Charging plug
- Glue stick
3 BEFORE FIRST USE
NOTE: This tool is pre-set to shipping mode (dormant state) which is to avoid the battery from discharging due to unintended operation and to avoid the risk of fire. For this reason the switch cannot be used to start the tool.
Before first use, the hot glue gun must be awakened by connecting the adapter to the power supply, the charging indicator (5) shows red, the tool can be used normally after unplug the adapter.
It is recommended that reset the tool to shipping mode when transport or storage. Press and hold the switch button (4) 5-8 s, release it after the red indicator (5) flashes 3 times and make sure that the switch does not work.
3.1 How to recharge the glue gun
NOTE: During charging the battery will become warm as it is being charged. The battery supplied with this tool contains a test charge only and must be fully charged before use. First read the safety instructions then follow the charging instructions.
- Connect the power supply to a suitable mains socket (important hints: check the voltage on the model plate of the adapter).
- Plug the charging plug (11) into the charging port (3) on the top of this glue gun.
- Charge time is approx. 2-3 hours.
- When the battery is charging, the RED indicator (5) keeps illuminate.
- When fully charged, the indicator (5) will become green until unplug the adapter (10) from the mains socket, the glue gun is ready to use.
- NOTE: Do not allow the cable to become knotted or kinked.
- Unplug the adapter when not in use and store it in a suitable storage cabinet.
POWX147 EN
- Avoid charging your battery in freezing conditions as charging power will not be sufficient.
NOTE: If the tool will not be used for long periods of time, charge the battery every 3-6 months.
NOTE: To prevent damage to the battery, when charge runs out, charge the battery to reach full or no less than half charge before storage.
3.2 How to use the glue gun
- Insert a glue stick into the glue stick inlet of the gun (Fig. 1).
- Switch on: Press and hold the switch button (4) 1 s, the heating indicator (2) and indicator (5) lights. Use the removable stand (9) and rest the gun on a stable flat surface. The removable stand can be pushed back when in use (Fig. 2 & 3).
NOTE: The indicator (5) can be indicated the battery level through by single click on the switch button (4):
Green: Enough power;
Red: Low power.
- Allow the gun to heat up, Red: Operation after preheating 25 s.
■ Before starting to use the glue gun, ensure all surfaces to be glued are clean and dry. - Press the trigger (8) until the glue starts to flow from the nozzle (1).
- Apply the glue to one surface. Press the surfaces together and hold for 15-20 s.
- After use, switch off: Press and hold the switch button (4) 1 s and all indicators (2 & 5) extinguishes.
NOTE: If the indicator (5) turns red, the battery needs to be charged. Turn off the appliance and connect the tool to the charging interface.
3.3 Automatic shut-off
NOTE: The glue gun switches off automatically after 10 minutes in order to save energy.
