Product Type	LED Light Effect Machine
Brand	Chauvet
Model	COLORband T3 BT
Power Supply	100-240 VAC, 50/60 Hz (universal power supply)
Power Consumption	Not specified, but linkable up to several units
Fuse	Replace with fuse of same type and rating
Control Modes	DMX (3, 5 or 13 channels), Bluetooth, IR, master/slave, automatic, sound
Colors	Red, green, blue (RGB) with custom mixing
Automatic Programs	8 built-in programs
Sound Activation	Yes, with adjustable sensitivity (0-100)
Strobe	Built-in, adjustable speed
Dimmer	Yes, adjustable from 0 to 255
Bluetooth	Yes, control via BTAir app
IR Remote Control	Compatible with IRC-6 (optional)
Mounting	Mounting bracket with clamp and safety cable
Protection Rating	IP20 (indoor use only)
Max Ambient Temperature	40 °C
Ventilation	Must be installed in a well-ventilated area
Maintenance	Unplug before cleaning; replace fuse if necessary
Warranty	Limited warranty (see terms on Chauvet website)

Frequently Asked Questions - COLORband T3 BT Chauvet

How to set the DMX address on the COLORband T3 BT?

Press the Menu button to access settings. Use the arrow keys to select DMX mode (3Ch, 5Ch or 13Ch). Confirm with Enter, then set the start address (max 500).

How to use Bluetooth control?

Enable Bluetooth mode in the menu (bLE). The Bluetooth ID is displayed. Download Chauvet's BTAir app on your smartphone, then pair the device.

What DMX modes are available?

The COLORband T3 BT offers three DMX modes: 3 channels (RGB), 5 channels (RGB + dimmer + strobe) and 13 channels (RGB for 3 zones + strobe + programs + speed + dimmer).

How to replace the fuse?

Unplug the device. Use a flathead screwdriver to open the fuse holder. Replace the blown fuse with one of same type and rating. Close and plug back in.

Can I use this device outdoors?

No, the COLORband T3 BT is rated IP20 and must be used indoors only. Avoid exposure to rain or moisture.

How to set up master/slave mode?

In the menu, set one device to MAST (master) and others to SLAV (slave) via the SET menu. Connect them in DMX daisy chain. The master controls the slaves.

How to activate automatic programs?

Use the menu to select P-- (automatic programs) and choose from P1 to P8. Speed can be adjusted (S--). You can also trigger them via DMX (channel 11).

How to clean the device?

Unplug the device before cleaning. Use a dry, lint-free cloth. Do not use chemical products.

What is the maximum power for daisy chaining?

The maximum number of linkable devices depends on the mains voltage (120V or 240V). Check the label on the device or the user manual for exact values.

How to create a custom color?

In the menu, select u-- (custom mix). Set the values for red (r. 0-255), green (g. 0-255) and blue (b. 0-255) to obtain the desired color.

USER MANUAL COLORband T3 BT Chauvet

Scan to download BTAir App

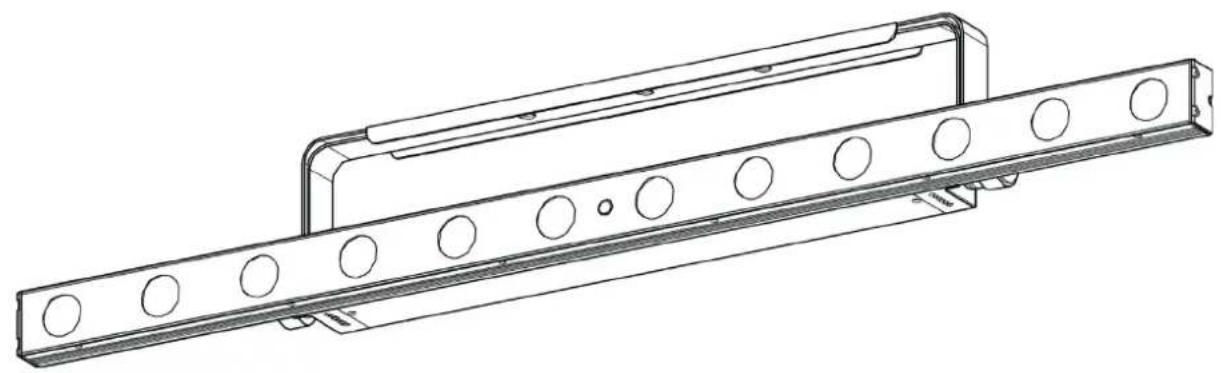

Technical line drawing of a mechanical bracket with circular holes and mounting brackets (no text or symbols)

Abstract geometric pattern with black dots forming a triangular shape (no text or symbols)

CHAUVET3

About This Guide

The COLORband T3BT Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details. Patent pending.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• This product is not intended for permanent installation.
• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.

• DO NOT touch the product's housing when it is on because it will be hot.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.

• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the unit's housing are blocked.
• Never connect this product to a dimmer or rheostat.
• Replace the fuse with the same type and rating.
• Never carry the product by the power cord. Use only the handle to carry this product.
• The maximum ambient temperature is 104^ (40 °C). Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Visit www.chauvetdj.com for contact information.

What is Included

• COLORband T3BT
- Power cord
- Quick Reference Guide

To Begin

Unpack your COLORband T3BT and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

For the maximum number of COLORband T3BT products that you can power link at each voltage, see the User Manual or the sticker on the product.

Fuse Replacement

1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.

Mounting

Before mounting this product, read the Safety Notes.

Mounting Diagram

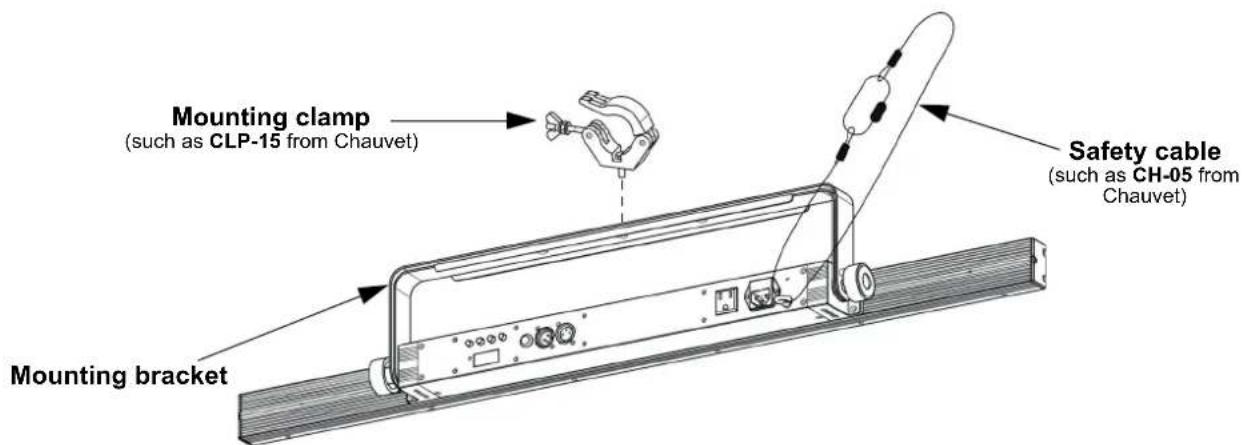

Mounting clamp (such as CLP-15 from Chauvet) Mounting bracket Safety cable (such as CH-05 from Chauvet)

Control Panel Description

Button Function

	Exits from the current menu or function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function
	Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Map

Refer to the product page on www.chauvtdj.com for the latest menu map.

Mode Programming Levels Description
DMX Mode	3Ch	Channel DMX mode510		3-channel DMX mode
	5Ch 5-channel DMX mode510
	13Ch 13-channel DMX mode
Static Colors C-- C 1-19 Static colors
Automatic Programs	P-- P 1-8	Automatic programs
Auto Speed S-- S. 1-100 Program speed for P 1-8
Dimmer	dIM	L. 1-255		Dimmer
Sound-Active Mode	Snd	Snd1-8		Sound-active programs
Sensitivity	SEnS	u 0-100		Sound sensitivity
Custom Color Mixing	u--	r. 0-255		Custom static colorsCombine red, green, and blue
		G. 0-255
		b. 0-255
		S. 0-100 Strobe rate
Bluetooth Mode*	bLE	----		Bluetooth control mode, displays Bluetooth ID
Control Mode	SET	IR	ON	Turns infrared on or off
			OFF
		OUT	DMX	Enable Master/Slave with non-BT products
			SLAV	Enable Master/Slave with other BT products

*The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Chauvet & Sons, LLC is under license. Other trademarks and trade names are those of their respective owners.

DMX Linking

The COLORband T3BT can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.

Starting Address

To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 500.

Master/Slave Connection

The COLORband T3BT uses the DMX data connection for its Master/Slave mode. Information about configuring the COLORband T3BT for Master/Slave operation is in the User Manual, which is available from the Chauvet website.

IRC-6 (Infrared Remote Control)

The COLORband T3BT can be operated with the CHAUVET IRC-6. For more information about the IRC-6, download instructions for the IRC-6 or the COLORband T3BT User Manual from www.chauvetdj.com.

Bluetooth Control

The COLORband T3BT can be operated with the BTAir application over a Bluetooth connection. For more information on using the BTAir app, download the BTAir User Manual from www.chauvetdj.com

DMX Values

13Ch

Channel Function Value Percent/Setting
1 Red 1 000		255 0-100%
2 Green 1 000		255 0-100%
3 Blue 1 000		255 0-100%
4 Red 2 000		255 0-100%
5 Green 2 000		255 0-100%
6 Blue 2 000		255 0-100%
7 Red 3 000		255 0-100%
8 Green 3 000		255 0-100%
9 Blue 3 000		255 0-100%
10 Strobe		000 015 No function
		016 255 Strobe, slow to fast
11 Auto Programs		000 005 No function
		006 036 Auto program 1 (programs 2-7)
		037 068 Auto program 2
		069 100 Auto program 3
		101 132 Auto program 4
		133 164 Auto program 5
		165 196 Auto program 6
		197 228 Auto program 7
		229 255 Auto program 8
12 Auto Speed		000 250 Program speed, slow to fast
		251 255 Sound-active mode
13 Dimmer 000		255 0-100%

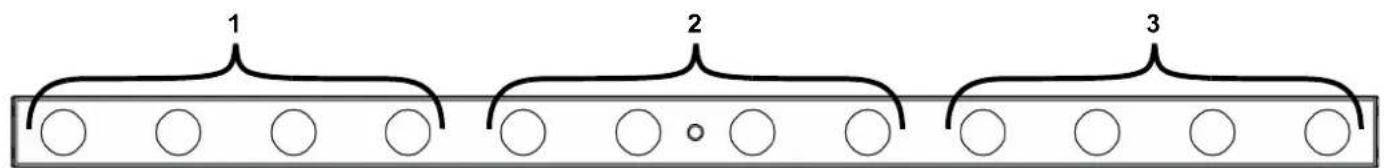

COLORband T3BT Zones for DMX control (13Ch)

5Ch

Channel Function Value Percent/Setting
1 Red 000	255 0–100%
2 Green 000	255 0–100%
3 Blue	000 255 0–100%
4 Dimmer 000	255 0–100%
5 Strobe	000 015 No function
	016 255 Strobe, slow to fast

3Ch

Channel Function Value Percent/Setting
1 Red 000		255 0–100%
2 Green 000		255 0–100%
3 Blue	000	255 0–100%
