Product type	Solar pond pump
Brand	Parkside
Model	PSTS 12 A1
Solar panel power	6 W
Solar panel dimensions	270 mm x 180 mm
Solar panel voltage	12 V
Pump power	4 W
Pump voltage	12 V
Maximum flow rate	300 l/h
Maximum jet height	150 cm
Fountain height (depending on adapter)	50 to 100 cm
Protection rating (pump)	IP68
Protection rating (solar panel)	IP44
Permissible water temperature	4 °C to 35 °C
Power supply	Solar (12 V panel)
Main functions	Pumping, decorative fountain, water oxygenation
Included accessories	1 pump, 1 solar panel, 3 tubular supports, 1 small tubular support, 1 connector, 4 fountain nozzles, 3 flat nozzles, 1 adapter, 1 instruction manual
Maintenance and cleaning	Clean the filter screen and impeller regularly; disassemble the pump after disconnecting.
Safety	Do not run dry; protect from frost; do not use when people are in the water.
Warranty	3 years
After-sales service	Ecos Office Forbach – [e-mail] – 0033 (0) 3 87 84 72 34

Frequently Asked Questions - PSTS 12 A1 PARKSIDE

How to install the Parkside PSTS 12 A1 solar pump?

Place the pump completely submerged (at least 4 cm under water) on a flat surface. Attach the tubular supports and the chosen fountain nozzle. Connect the pump cable to the solar panel. Orient the panel towards full sun.

What to do if the pump does not start?

Check the connection between the pump and the solar panel. Ensure the panel is exposed to sunlight and clean. Check the water level (pump must be submerged).

The jet height decreases, what to do?

Clean the fountain nozzle: remove it and rinse the openings with clear water. Also check the filter screen and impeller.

Can I use the pump in salt water?

No, the device is designed only for fresh water. Salt water, aggressive or flammable liquids damage the pump and void the warranty.

What is the maximum immersion depth?

The pump can be submerged up to about 17 cm below the water surface. The fountain nozzle must remain out of the water.

How to maintain the pump?

Disconnect the solar panel. Remove the filter screen and impeller cover. Clean the impeller with a soft brush and water jet. Reassemble in reverse order. Perform monthly maintenance.

Can I use the pump in cloudy weather?

Yes, but the flow rate will be reduced because the solar panel produces less energy. For optimal operation, place the panel in full sun.

What to do if the pump stops after a few minutes?

Check the water temperature (max 35 °C) and the cleanliness of the water. Clean the pump and possibly add an additional filter.

Is the pump covered by warranty?

Yes, the warranty is 3 years from the date of purchase. It covers material and manufacturing defects, but not normal wear or damage due to improper use.

Where to find spare parts?

Contact after-sales service: Ecos Office Forbach, email [e-mail], phone [phone]. The website www.lidl-service.com also allows downloading the manual.

USER MANUAL PSTS 12 A1 PARKSIDE

PDF ONLINE www.lidl-service.com

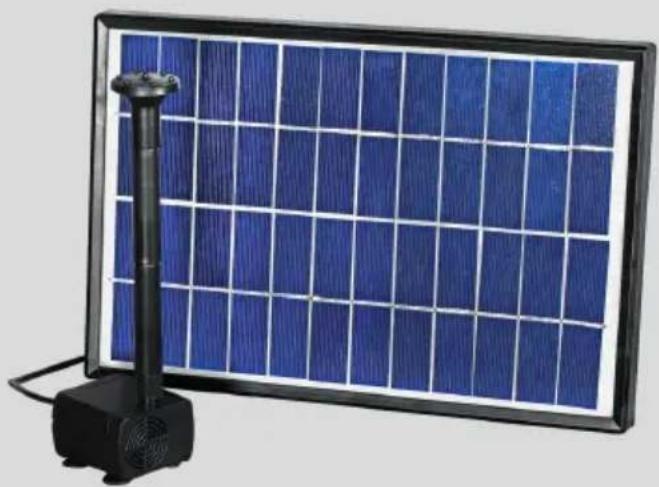

Solar panel with a vertical power supply unit attached, showing grid panels and a small fan (no text or symbols visible)

SOLAR POND FOUNTAIN PSTS 12 A1

SOLAR-TEICHSPRINGBRUNNEN PSTS 12 A1

FONTAINE SOLAIRE POUR BASSIN PSTS 12 A1

GB IE NICY MT

SOLAR POND FOUNTAIN

Operation and Safety Notes

Translation of the original instructions

FR BE CH

FONTAINE SOLAIRE POUR BASSIN

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE/NI/CY/MT Operation and Safety Notes Page 5

J 15 14 15

Table of pictograms used....Page 5

Introduction Page 6

Intended use Page 6

Scope of delivery....Page 6

Equipment Page 7

Technical Specifications....Page 7

Safety instructions Page 8

Before using the device....Page 10

Using the device....Page 10

Maintenance and cleaning......Page 10

Troubleshooting Page 11

Storage Page 12

Information about recycling and disposal......Page 12

EU Declaration of Conformity Page 12

Warranty and service information......Page 13

Warranty conditions......Page 13

Warranty period and statutory claims for defects....Page 14

Extent of warranty....Page 14

Processing of warranty claims ......Page 14

Service......Page 15

Table of pictograms used
	Read the operating instructions for this product attentively and with care before use.
	Important note!
	Observe warnings and safety instructions!
	Dispose of the device and packaging in an environmentally friendly manner!
	Made from recycled material
	Do not dispose of any electrical devices in domestic waste!
IP 44	Solar panel protection class
IP 68	Pump protection class
V---	DC voltage in volt

- Introduction

Congratulations! You have purchased one of our high-quality products. During production this device was checked for quality and subject to a final inspection. This ensures that your device is working properly. It is possible that, in individual cases, there may be residual water or lubricant on or in the device. This is not a defect or fault and is not a cause for concern. Please familiarise yourself with the product before using it for the first time. To do so, please read through the following operating and safety instructions carefully. Only trained persons may start up this product.

KEEP OUT OF THE REACH OF CHILDREN!

- Intended use

The Parkside solar pond fountain (hereafter referred to as "pump") is designed for pumping water with a temperature between 4^ C and 35^ C. The pump is not frost-resistant and must be protected against frost.

The solar pond fountain is a solar-powered device to enrich the water in your pond with oxygen. Using sunlight, the device generates the energy which is required to operate the pump. The pump pumps water in the form of different fountain shapes onto the surface of the water. This is how the product oxygenates the water. The shape of the fountain can be selected using the plug-in attachments.

The device is only intended to pump water. The device is not suitable for pumping dirty water with granular dirt or suspended particles or other liquids of any type such as, for example, petrol, diesel, solvents, etc.

Keep these instructions in a safe place. Ensure you hand over all documentation when passing the product on to anyone else. Any use that differs to the intended use as stated above is prohibited and potentially dangerous. If there are individuals in the water, then the device must not be used. There is a risk of electric shock. The operator or user is responsible for accidents or injury to other people or their property. The manufacturer is not liable for any injury or damage resulting from improper use or incorrect operation. This device is not suitable for commercial use. Commercial use will void the guarantee.

- Scope of delivery

1 pump 1 short socket pipe
1 solar panel 4 fountain attachments
3 socket pipes 3 fountain attachments, fl at
1 connector 1 attachment adapter
1 set of operating instructions

Equipment

To do this see Fig. A-I:

1	Pump	2	Socket pipes (3)
3	short socket pipe	4	Solar panel
5	Connector	6	Single jet attachment
7	Bell-shaped attachment	8	Bell-shaped attachment, with sections
9	Attachment adapter	10	Attachment, 7-jet, narrow
11	Flat attachment, 7-jet, high fountain	12	Flat attachment, 7-jet, low fountain
13	Flat attachment, 13-jet	14	Cable incl. plug (pump)
15	Cable incl. plug (solar panel)	16	Stand
17	Suspension hole	18	Fan wheel
19	Nozzle	20	Fan wheel cover
21	Filter grille

PLEASE NOTE: After unpacking the solar pond fountain, please check that all of the package contents are present and that the product is in perfect condition. Do not use the device if it is defective.

PLEASE NOTE: The use of the term 'product', 'device' or 'pump' in the following text refers to the solar pond fountain named in these operating instructions.

• Technical Specifications

Model: PSTS 12 A1
Solar panel power: 6 W
Solar panel dimensions 270 mm x 180 mm
Pump voltage 12 V	---
Maximum pumping height: 150 cm
Solar panel voltage: 12 V	---
Pump power: 4 W
Max. pumping power: 300 l/h
Max. fountain height 50–100 cm depending on the attachment
Pump protection class: IP 68
Solar panel protection class: IP 44

PLEASE NOTE: The maximum water flow per hour is specific value for the pump. In reality these values may be reduced by the nozzle connector used and by using nozzles, hoses and similar components which are connected to the pump. These type of connections increase the flow resistance of the water against which the pump has to work.

Changes to technical and visual aspects of the product may be made as part of future developments without notice. Accordingly, no warranty is offered for the physical dimensions, information and specifications in these operating instructions. The operating instructions cannot therefore be used as the basis for asserting a legal claim.

- Safety instructions

PLEASE READ THROUGH THE OPERATING INSTRUCTIONS CAREFULLY BEFORE USE. THESE FORM PART OF THE PRODUCT AND MUST BE AVAILABLE AT ALL TIMES!

This section covers the basic safety instructions applicable when working with the device.

■ The device must only be mended and repaired by trained specialist personnel. Only genuine spare parts must be used.
■ Only use the device in fresh water.
■ Never allow the pump to run dry as otherwise it may be damaged.
■ Make sure that the surface of the solar panel is not damaged.
■ Before starting work, familiarise yourself with all operating elements, in particular with the functions and mechanisms. If necessary ask a professional. Read and follow the operating instructions for the device.
■ ATTENTION! The surface of the pump may get warm during operation! RISK OF BURNS!
■ DANGER OF ELECTRIC SHOCK! If there are individuals in the water, then the device must not be used. There is a risk of electric shock.
This device may be used by children aged 8 years and above, and by persons with reduced physical, sensory or mental capacities, or a lack of experience and/or knowledge, if they are supervised or have been instructed in how to use the device safely and have understood the dangers that may arise when using it. Do not allow

children to play with the device. Cleaning and maintenance work must not be carried out by children, unless they are being supervised.

■ Children must be supervised to ensure that they do not play with the device.
■ ATTENTION! Prevent the pump from running dry!

Risk of overheating! Risk of material damage!

- Follow the further instructions in the "Maintenance and cleaning" chapter, as well as the "Storage" chapter.

⚠️CAUTION!HOW TO AVOID ACCIDENTS AND INJURIES:

■ Individuals who are not familiar with the operating instructions must not use the device. Local regulations may specify the minimum age for the operating personnel.
■ Wear sturdy shoes to protect against electric shock.
■ Take appropriate measures to keep children away from the device when it is running. There is a risk of injury.
- Do not operate the device near to fl ammable liquids or gases. Failure to do so risks causing a fire or explosion.
- Keep the device in a dry location and out of the reach of children when it is not being used.

⚠️ CAUTION! HOW TO AVOID DAMAGE TO THE DEVICE AND ANY HARM TO PERSONS THAT MAY RESULT FROM SUCH DAMAGE:

- You must not pump aggressive, abrasive/grinding (e.g. sandwater), corrosive, fl ammable (e.g. automotive fuels) or explosive liquids, saltwater, detergents and food stuffs. The temperature of the liquid being pumped must not exceed 35°C. Not complying with this may cause damage to the device and expose the user to a risk of injury.

- Do not work with damaged, incomplete devices or those which have been modified without the approval of the manufacturer.

- Check the device regularly to make sure it is functioning properly.

■ Protect the device from frost and running dry.

- Only use original accessories and do not carry out any modifications to the device.

- Please read the instructions in the operating instructions on the subject of “Maintenance and cleaning”. All additional measures must be carried out by a qualified electrician. Always contact our service point if you need any repairs.

- Before using the device

1. Fit the connector 5 onto the nozzle 19 of the pump 1, as shown in Fig. F.
2. Depending on the height required, fit the short socket pipe 3 or one or more socket pipes 2 onto the connector 5 (see Fig. G + H).
3. Select one of the fountain attachments 6 - 10 and fit it onto the socket pipe 2 (see Fig. I).
4. You can change the shape of the fountain with the modified attachment 9 with one of the flat attachments 11 - 13 (see Fig. B3).
5. Connect the pump cable 14 to the cable of the solar panel 15. To do this connect the two plugs and tighten the lock handtight (see Fig. J).

PLEASE NOTE: Prevent the pump from running dry. Failure to do so will void any warranty and liability claims.

- Using the device

• Check whether the position for the pump 1 is secure and fi x the pump 1 onto the supporting surface before you use it. For smooth supporting surfaces, you can use the suction pads on the underside of the pump 1 to do this.
• Position the pump 1 fully below the surface of the water, ideally at least 4 cm under the water level. Align the pump 1 so that it is as level and horizontal as possible.
  Do not place the pump 1 directly onto slimy or sandy surfaces. The ideal position is for it to be raised, such as, for example, on a stone.
• Never use the pump 1 without the filter grille21. This prevents the ingress of coarse dirt which would damage the pump 1.
  In order to achieve the very best pumping results, the pump 1 must be positioned on a fl at surface.
  ■ Only allow the pump 1 to operate when it is completely submersed in water.
  If you use the pump 1 in an ornamental pond, position the pump 1 in an area which is as free of sand as possible.
  Now position the solar panel 4 in such a way that it is in full sunlight. For better alignment, the stands 16 can be folded out or alternatively, the solar panel 4 can be fitted to the suspension holes 17 provided for this purpose.

PLEASE NOTE: In order to achieve the maximum water flow, the solar pane should be positioned in an area with direct, all-day sunlight and not in shadow.

PLEASE NOTE: You can position the pump 1 to a depth of approx. 17 cm below the surface of the water. The selected fountain attachment 6 - 10 must always be above the surface of the water, even where there are light waves, so that the jet spouts properly.

- Maintenance and cleaning

The pump 1 has been manufactured in a reliable, high-quality design, where the non-contact pump wheel mechanism ensures a long period of operation. However the fan wheel unit 18 is susceptible to contamination from the operating environment and must not be damaged.

CAUTION: In order to clean the pump 1 or carry out maintenance work, always disconnect it from the solar panel 4 first. There is a risk of electric shock or risk of injury through moving parts.

In order to clean the pump 1, remove the filter grille21 and pull the fan wheel cover 20 forwards to pull it off. If required, use a Phillips screwdriver to help.

Use a small, soft brush or a water jet to remove any dirt which is stuck on.

If the fountain height decreases, then it is possible that one of the openings in the fountain attachment 6 - 10 is blocked. Check these and clean them by rinsing in clear water, if necessary.

CAUTION: The pump shaft cannot be removed. Re-assemble the pump 1 after cleaning by follow-

ing the instructions in reverse order. Monthly maintenance will increase the service life of the pump 1.

- Troubleshooting

If the pump 1 does not work, check the following:

• Check that there is sufficient water around the pump ^1 .
  Check that there is a proper connection between the pump 1 and the solar panel 4 and ensure that the solar panel 4 is getting sufficient sunlight. Remove any dirt if necessary.
  If, when the pump is running, you can hear abnormal noises, check the pump wheel unit. Rotate the pump wheel to make sure that it is not broken or blocked. If there is a crack or surface damage on the pump wheel unit, contact an authorised service point.

Faults Cause Corrective action
Pump 1 does not run	Connection to the solar panel 4 interrupted	Make sure that there is a proper connection between the pump 1 and solar panel 4.
	Solar panel 4 is not getting any sunlight	Position the solar panel 4 in direct sunlight and remove any dirt if necessary.
Pump 1 does not pump	Housing is clogged with dirt	Clean the pump 1 in accordance with the instructions in the “Maintenance and cleaning” chapter.
	Water level is too low	Position the pump 1 such that it is completely covered with water.
Insuffi cient pumping capacity	Housing is clogged with dirt	Clean the pump 1 in accordance with the instructions in the “Maintenance and cleaning” chapter.
	Attachments 6 - 10 dirty	Check the flow through the individual openings and clean these if necessary, in accordance with the instructions in the “Maintenance and cleaning” chapter.
Pump 1 switches off after a short time	Excessive contaminated water	Clean the pump 1, fi t an additional fi lter in the system (not included in the scope of delivery)
	Excessive water temperature	Ensure that the water temperature does not exceed 35°C.

- Storage

• Keep this device clean, dry and out of the reach of children.
  ■ Protect the device from frost.
  If you are not going to use the pump 1 for a longer period of time, then you must clean the device thoroughly after the last use and before using it again. Otherwise it may be difficult to start the device because of deposits or residues.

● Information about recycling and disposal

DON'T THROW AWAY - RECYCLE!

According to European Directive 2012/19/EU, used electrical devices must be collected separately for environmentally compatible recycling or recovery. Please return this device to an approved waste management company or use your municipal waste collection service. Please ensure you comply with local regulations. If you have any questions, please contact your local authority or waste management company.

Please return this device, accessories and packaging to your local recycling depot. Do not dispose of electrical appliances in household waste! This satisfies your legal obligations while also making an important contribution to protecting the environment.

Please note the marking on the different packaging materials and separate them as necessary. The packaging materials are marked with abbreviations (a) and digits (b) with the following definitions: 1–7: Plastics, 20–22: Paper and cardboard, 80–98: Composite materials.

• EU Declaration of Conformity

We,

C. M. C. GmbH

Responsible for documentation:

Dr. Christian Weyler

Katharina-Loth-Str. 15

66386 St. Ingbert

GERMANY

hereby take sole responsibility for declaring that the product

Solar Pond Fountain

IAN: 388428_2107

Art. no.: 2449

Year of manufacture: 2022/14

Model: PSTS 12 A1

meets the basic safety requirements as specified in the European Directives

Electromagnetic Compatibility:

(2014/30/EU)

RoHS Directive:

(2011/65/EU)+(2015/863/EU)

and the amendments to these Directives.

The object of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

This conformity assessment is based on the following harmonised standards:

EN 55014-1: 2017/+A11:2020

EN 55014-2: 2015

St. Ingbert, 1 October 2021

C.M.C. GmbH

Dr. Christian Weyler

- Quality Assurance -

- Warranty and service information

Warranty from Creative Marketing & Consulting GmbH

Dear Customer,

The warranty for this equipment is 3 years from the date of purchase. In the event of product defects, you have legal rights against the retailer of this product. Your statutory rights are not affected in any way by our warranty conditions, which are described below.

• Warranty conditions

The warranty period begins on the date of purchase. Please retain the original sales receipt. This document is required as your proof of purchase.

Should this product show any defect in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our discretion – free of charge. This warranty service requires that you retain proof of purchase (sales receipt) for the defective device for the three year period and that you briefy explain in writing what the fault entails and when it occurred.

If the defect is covered by our warranty, we will repair and return your product or send you a replacement. The original warranty period is not extended when a device is repair or replaced.

- Warranty period and statutory claims for defects

The warranty period is not extended by the guarantee. This also applies to replaced and repaired parts. Any damages or defects detected at the time of purchase must be reported immediately after unpacking. Any incidental repairs after the warranty period are subject to a fee.

• Extent of warranty

This device has been manufactured according to strict quality guidelines and carefully inspected before delivery.

The warranty applies to material and manufacturing defects only. This warranty does not extend to product parts, which are subject to normal wear and tear and can thus be regarded as consumable parts, or for damages to fragile parts, e.g. switches, rechargeable batteries or parts made from glass.

This warranty is voided if the product becomes damaged or is improperly used or maintained. For proper use of the product, all of the instructions given in the operating instructions must be followed precisely. If the operating instructions advise you or warn you against certain uses or actions, these must be avoided in all circumstances.

The product is for consumer use only and is not intended for commercial or trade use. The warranty becomes void in the event of misuse and improper use, use of force, and any work on the device that has not been carried out by our authorised service branch.

- Processing of warranty claims

To ensure prompt processing of your claim, please follow the instructions given below.

Please retain proof of purchase and the article number (e.g. IAN) for all inquiries.

The product number can be found on the type plate, an engraving, the cover page of your instructions (bottom left), or the sticker on the back or underside of the device.

In the event of malfunctions or other defects, please first contact our service department below by phone or email. If your product is found to be defective, you can then send your product with proof of purchase (till receipt) and a statement describing what the fault involves and when it occurred free of charge to the service address given.

PLEASE NOTE: You can download this handbook and many more, as well as product videos and software at www.lidl-service.com.

PDF ONLINE www.lidl-service.com

With this QR code you can gain immediate access to the Lidl Service page (www.lidl-service.com) and you can open your operating instructions by entering the article number (IAN) 388428.

• Service

How to contact us:

GB, IE, NI, CY, MT

Name: C. M. C. GmbH

Website: www.cmc-creative.de

E-mail: [e-mail]

Phone: [phone]

Registered office: Germany

IAN 388428\_2107

Please note that the following address is not a service address. Please first contact the service point given above.

Address:

C. M. C. GmbH

Katharina-Loth-Str. 15

66386 St. Ingbert

GERMANY

Ordering spare parts:

Dr. Christian Weyler

Katharina-Loth-Str. 15

DE-66386 St. Ingbert

DEUTSCHLAND

Dr. Christian Weyler

E-Mail: [e-mail] [e-mail] [e-mail]

Dr. Christian Weyler

Katharina-Loth-Str. 15

DE-66386 St. Ingbert

ALLEMAGNE

Dr. Christian Weyler

Dr. Christian Weyler

Katharina-Loth-Str. 15

D-66386 St. Ingbert

DUITSLAND

Dr. Christian Weyler

Dr. Christian Weyler

Katharina-Loth-Str. 15

66386 St. Ingbert

NĚMECKO

Dr. Christian Weyler

Katharina-Loth-Str. 15

DE-66386 St. Ingbert

NIEMCY

Dr. Christian Weyler

Dr. Christian Weyler

Katharina-Loth-Str. 15

66386 St. Ingbert

NEMECKO

Dr. Christian Weyler

Dr. Christian Weyler

Katharina-Loth-Str., 15

66386 St. Ingbert

ALEMANIA

Dr. Christian Weyler

Dr. Christian Weyler

Katharina-Loth-Str. 15

66386 St. Ingbert

TYSKLAND

Dr. Christian Weyler

Dr. Christian Weyler

Katharina-Loth-Str. 15

66386 St. Ingbert

GERMANIA

Dr. Christian Weyler

Nome: Riku Service snc

Indirizzo Internet: www.riku-service.com

E-Mail: [e-mail]

Telefono: 0039 (0) 4711430103

Sede: Germania

IAN 388428\_2107

Dr. Christian Weyler

Katharina-Loth-Str. 15

DE-66386 St. Ingbert

NÉMETORSZÁG

Dr. Christian Weyler

Dr. Christian Weyler

Katharina-Loth-Str. 15

DE-66386 St. Ingbert

NEMČIJA

Dr. Christian Weyler

- Zagotavljanje kakovosti -

- Napotki za garancijo in servisiranje

Garancija podjetja Creative Marketing & Consulting GmbH

Spoštovana stranka,

za to napravo vam je na voljo 3-letna garancija s pričetkom veljavnosti na dan nakupa. V primeru pomanjkljivosti tega izdelka za vas veljajo zakonske pravice napram prodajalcu. Naša, spodaj predstavljena garancija ne omejuje teh zakonskih pravic.

Ime: C.M.C. Creative Marketing &

Consulting GmbH

Servis in informacije

Media-Impeks d.o.o

Spletna stran: www.cmc-creative.de

E-pošta: [e-mail]

Telefon: [phone]

Sedež: Nemčija

IAN 388428\_2107
