TEB1500W - Heated blanket/cushion Tomado - Free user manual and instructions

Brand	Tomado
Model	TEB1500W
Product type	Heated blanket / Bed warmer
Intended use	Single bed (1 person)
Power supply	Mains 220-240 V ~ 50/60 Hz
Power	150 W
Heat levels	3 levels (positions 1, 2, 3)
Automatic shut-off	After approximately 180 minutes
Safety system	Integrated sensors with automatic shut-off in case of overheating
Protection class	Double insulation (class II)
Material	Textile certified Oeko-Tex Standard 100
Washing	Machine washable at 30°C (wool program), max. 5 cycles
Drying	Do not tumble dry, dry flat
Ironing	Do not iron
Dry cleaning	Prohibited
Other prohibitions	Do not pierce with needles, do not use folded or wet
Warranty	2 years
Manufacturer	Tomado
Included accessories	Elastic straps for attachment, switch with button
Recycling	Do not dispose with household waste, follow WEEE directive

Frequently Asked Questions - TEB1500W Tomado

How to install the Tomado TEB1500W heated blanket?

Spread the blanket evenly on the mattress, starting from the foot of the bed. Secure it with the elastic straps around the corners. The cord should be at shoulder height. Then place a fitted sheet over it. Make sure it is flat before turning on.

How to adjust the temperature?

Use the sliding switch to select the heat level: position 1 (low), 2 (medium) or 3 (high). The corresponding indicator lights up. For prolonged use, set to position 1.

How long before automatic shut-off?

The automatic shut-off occurs approximately 180 minutes after startup. To restart, set the switch to OFF, wait 5 seconds, then select a level again.

Can I wash the heated blanket?

Yes, the blanket can be machine washed at 30°C (wool program). Use a detergent for delicate laundry. Do not wash it more than 5 times during its lifespan. After washing, stretch it while still damp to restore its shape and let it dry flat. Never turn it on to dry.

Can I use the heated blanket with an adjustable bed?

Yes, but ensure the blanket and cables cannot get caught in hinges or mechanisms. Make sure it stays flat.

Is the heated blanket suitable for sensitive people?

It should not be used by persons insensitive to heat (diabetics, damaged skin, under analgesics or alcohol) nor by very young children (0-3 years). Children aged 3-8 may use it only under parental supervision. For pacemaker wearers, consult your doctor.

What to do if the blanket no longer heats?

First check that the switch is properly connected and the outlet works. If the indicator does not light up, the safety system may have triggered the shut-off. If the problem persists, do not attempt to repair yourself; contact the manufacturer or after-sales service.

Can I leave the blanket on all night?

The automatic shut-off after 180 minutes prevents continuous use. For nighttime use, set to position 1 (low temperature) and note that the device will turn off automatically. Never leave the blanket on unattended for long periods.

How to store the heated blanket?

Unplug the switch and let the blanket cool completely. Store it in its original packaging. Do not place any objects on top to avoid bending the cables. Keep it in a dry place.

How to recycle the device at end of life?

Do not throw the blanket with household waste. Follow local regulations for the recycling of electrical and electronic equipment (WEEE). The packaging is 100% recyclable.

USER MANUAL TEB1500W Tomado

Electric underblanket

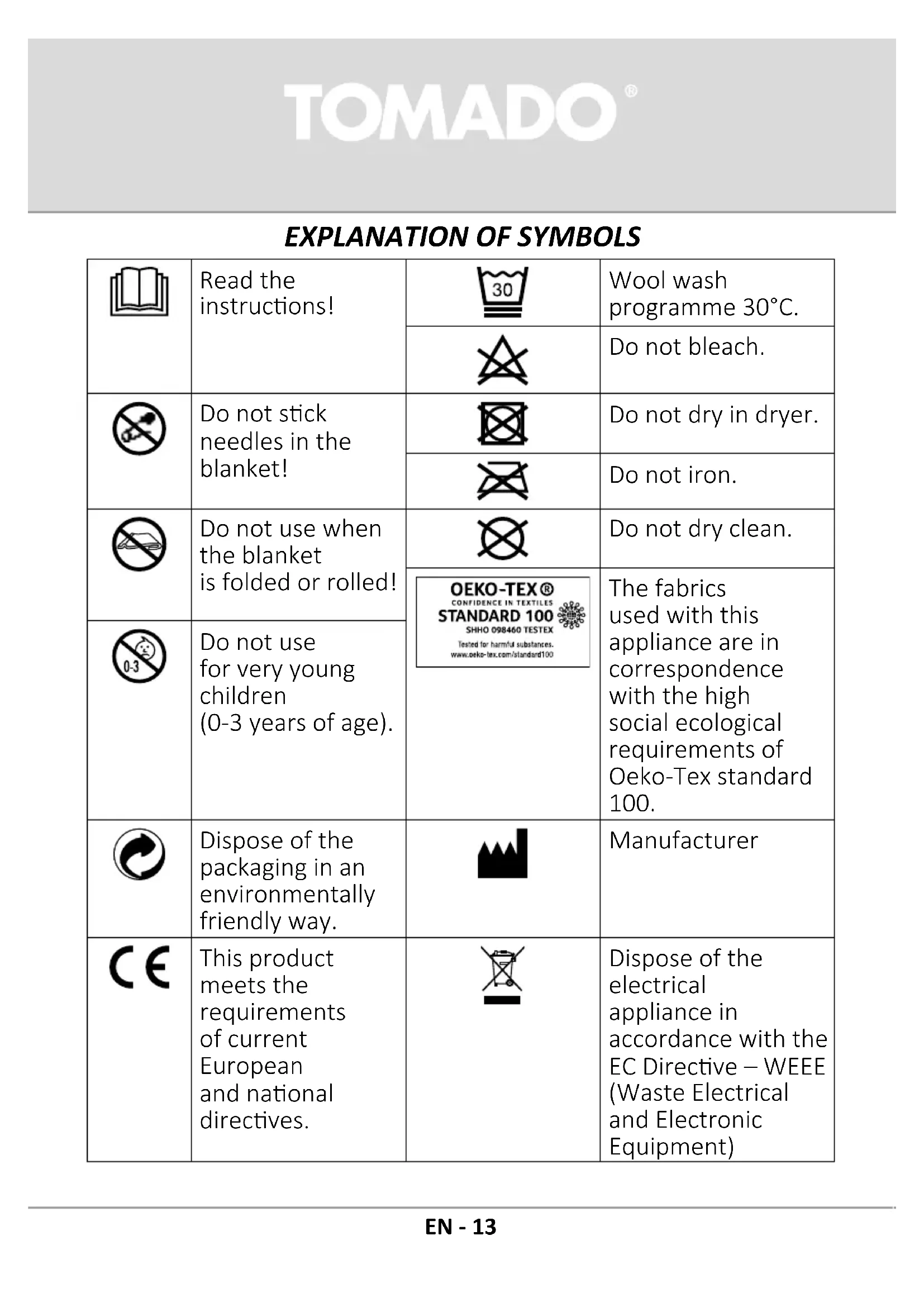

	Read the instructions!	30	Wool wash programme 30°C.
		X	Do not bleach.
	Do not stick needles in the blanket!	X	Do not dry in dryer.
		X	Do not iron.
	Do not use when the blanket is folded or rolled!	X	Do not dry clean.
		Oeko-TEX® CONFIDENCE IN TEXTILES STANDARD 100 SHHO 098460 TESTEX Tested for harmful substances. www.oeko-tex.com/standard100	The fabrics used with this appliance are in correspondence with the high social ecological requirements of Oeko-Tex standard 100.
0-3	Do not use for very young children (0-3 years of age).
	Dispose of the packaging in an environmentally friendly way.		Manufacturer
CE	This product meets the requirements of current European and national directives.	X	Dispose of the electrical appliance in accordance with the EC Directive – WEEE (Waste Electrical and Electronic Equipment)

TOMADO

The appliance is doubly insulated and corresponds with protection class 2.	The electric blanket is suitable for 1 person.
WARNING; Warning for risk of injury or hazard to your health.
CAUTION; Safety warning for possible damage to the appliance or its accessories.
①	ATTENTION; Point of attention for important information.

SAFETY INSTRUCTIONS - EN

Important safety instructions - read carefully and keep for later reference!

WARNING

• Non-observance of the following instructions could lead to personal injury or damage to properties (electric shocks, burns, fire). The following safety recommendations and risk indications not only serve to protect your health and that of others, but also serve to protect the product. Therefore, please observe the recommendations and warnings provided here and pass on this manual when you give the product to someone else.
• This electric underblanket should not be used by persons who are sensitive to heat or who require protection, because they cannot respond to overheating (e.g. diabetics, persons with skin alterations or scars in the application area that are caused by disease, after intake of painkillers or alcohol).
• Do not use this electric underblanket for very young children (0- 3 years of age), as they cannot respond to overheating.
• Do not use this electric underblanket for young children (3- 8 years of age), unless the switch is set by a parent or supervisor and it has been properly explained to the child how the electric underblanket can be operated safely.
• This electric underblanket can be used for children of 8 years and older and by persons with limited physical, sensory and mental capacities or lack of experience or knowledge, provided they use the electric underblanket under supervision or have been instructed about its correct use and understand the hazards it may involve.
• Children are not allowed to play with the electric underblanket.
• The appliance may not be cleaned or maintained by children, unless this is done under supervision.
• This electric underblanket is not intended for use in hospitals.
• The appliance is only intended for use at home/private use and not for commercial ends.

TOMADO

• Do not stick needles in the electric blanket!
• Do not use if it is folded or crumpled.
• Do not use when wet.
• Prior to use on an adjustable bed, check that the electrical components and cords cannot get jammed in the hinges for example.
• Only use this electric underblanket in combination with the switch indicated on the label.
• Under certain conditions, the electric and magnetic fields transmitted by this electric underblanket could affect the operation of your pacemaker. However, the radiation values are far below the limit values: electric field strength: max. 5000V / m , magnetic field strength: max. 80A / m , magnetic flux density: max. 0.1 millitesla. Therefore, contact your physician or the manufacturer of your pacemaker prior to using this electric underblanket.
• Do not pull, twist or sharply fold the cords.
• Regularly check this electric underblanket for signs of wear and tear. If there are signs of wear and tear, or if the electric underblanket has not been used as intended, or the underblanket no longer gets warm, have the electric underblanket checked by the manufacturer prior to use.
• Do not open the appliance or repair it yourself under any circumstances. If you do, a fault-free operation can no longer be guaranteed. If you do not observe this instruction, the warranty will become invalid.
• If the power cord of the appliance is damaged, it should be removed. If it is not possible to disconnect the power cord from the appliance, the entire appliance should be disposed of.
• When this electric underblanket is switched on,
• no sharp object may be placed on it,
• no heat sources such as hot water bottles, heating pads, etc., should be placed on it.
• The electronic components in the switch become warm when using the electric underblanket. When switched on, the switch may not be covered or placed on the electric underblanket.

TOMADO®

• Observe the instructions in the following chapters at all times: Operation, Cleaning and maintenance, Storage.
• If you have any questions about using our appliance, please contact our customer service.

TOMADO

PRODUCT DESCRIPTION

1. Electric blanket
2. Switch with position button
3. Heating position - lighted

PREScribed USE

CAUTION!

The electric underblanket is only intended for heating beds.

OPERATION

Safety

CAUTION!

• The electric underblanket has been provided with a SAFETY SYSTEM. This sensor technology prevents overheating of the electric underblanket on the entire surface through automatic deactivation in case of a breakdown. When the SAFETY SYSTEM has switched off the electric underblanket, the temperature levels in activated condition are no longer lighted.
• Do note that for reasons of safety the electric underblanket can no longer be used after a breakdown and should be sent to the indicated service address.
• Never connect the faulty electric under blanket to a different switch of the same type. This would also ensure a final deactivation through the safety system in the switch.

Use

Evenly spread the electric underblanket over your mattress, starting at the foot end. Fasten the electric blanket with the elastic bands around the corners of the mattress. Approximately, the cord should be at shoulder height. The electric underblanket can be used on both sides. Then, as usual, lay the fitted sheet over the bed, so that the electric underblanket is between the mattress and the fitted sheet. Each time you make the bed, check that the electric underblanket is flat and properly spread, before you switch it on.

CAUTION!

Make sure the electric underblanket is spread out fully flat and does not fold or crumple during use. We recommend switching on the electric underblanket about 15 minutes before you go to sleep and covering it with a duvet to prevent the heat from escaping.

• First connect the switch to the connection point in the blanket by connecting the plug.
• Then insert the plug in the socket.

Switching on

Slide the position button for ON/OFF and the heating positions to position 1, 2 or 3 to switch on the electric underblanket. In activated condition, a heating position is lighted - 1, 2 or 3.

Setting the heating position

Position 1: minimum heating

Position 2: medium heating

Position 3: maximum heating

WARNING: If the electric underblanket is used for several hours, we recommend setting the lowest heating position (position 1) to prevent the user from overheating.

ATTENTION

• The electric underblanket heats up the fastest when you first switch on the highest temperature level.

Automatic deactivation function

This electric blanket has been provided with an automatic deactivation function. This means that the supply of heat is stopped approx. 180 minutes after the electric blanket was activated. In order to use the electric blanket again, you must first switch the position button OFF. After approximately 5 seconds you are able to switch the electric blanket on again.

auto off

Switching off

Slide the position button downwards to switch off the electric underblanket. The heating position no longer lights up.

ATTENTION

If the electric underblanket is not used for a number of days, slide the position button downwards to switch off the electric blanket and remove the plug from the socket. Then disconnect the switch from the electric underblanket by removing the plug.

TOMADO

CLEANING AND MAINTENANCE

WARNING

Before cleaning the electric underblanket, always remove the plug from the socket. Otherwise you will run the risk of an electric shock. Then disconnect the switch from the electric underblanket by removing the plug.

CAUTION!

• The switch may never come into contact with water or other liquids. It could get damaged as a result.

Use a dry lint-free cloth for cleaning the switch. Do not use chemical cleaning agents or abrasives. Small stains on the electric blanket can be removed with a cloth or a damp sponge and, if necessary, a little bit of gentle detergent liquid.

CAUTION!

The electric underblanket should not be dry cleaned, spun, dried in the machine, mangled or ironed.

In case of a stronger level of contamination, the electric underblanket can be washed in the washing machine. Set the washing machine to a 30^ programme (wool programme). Out of environmental considerations, we recommend washing the electric underblanket at the same time as other items. Use a gentle detergent in accordance with the manufacturer's dosing instructions.

CAUTION!

• Please note, the electric underblanket will wear if washed too often. For that reason, the electric underblanket may be machine-washed for a maximum of 5 times during its lifetime.

Immediately after washing, pull the electric underblanket in its original size and form while still wet, and leave it lying flat on a drying rack.

CAUTION!

• Do not use pegs or other clamps to attach the electric blanket to the drying rack. Otherwise the electric underblanket could get damaged.

• Only connect the switch to the electric underblanket when the plug connection and underblanket are fully dry. Otherwise the electric underblanket could get damaged.

WARNING

Never switch on the electric underblanket in order to dry it in this way! You will run the risk of an electric shock.

TOMADO

STORING

If you do not use the electric underblanket for a longer period of time, we recommend storing it in its original packaging. For this, remove the plug of the switch from the connection of the electric underblanket.

CAUTION! Allow the electric underblanket to cool down first, before storing it. Otherwise the electric underblanket could get damaged. During storage, do not place objects on the electric underblanket in order to prevent sharp kinks in the wiring.

RECYCLING

This symbol means that this product should not be disposed of with regular household waste (2012/19/EU). Observe the rules that apply in your country for the separated collection of electric and electronic products. Correct disposal of the product prevents negative consequences for the environment and for public health. The packaging material of this product can be recycled 100% , return packaging material separately.

Position 1:chauffage minimal

Position 2:chauffage moyen

Position 3:chauffage maximal

Go to www.tomado.com/support to purchase accessories or spare parts.

WARRANTY CONDITIONS

A 24 month warranty is provided for this product. Your warranty is valid if the product has been used in accordance with the user instructions and for the purpose for which it was made. Also the original proof of purchase must be submitted, stating the date of purchase, the name of the retailer and the item number of the product. For extensive warranty information you are referred to our website: www.tomado.com/support

CONDITIONS DE LA GARANTIE
