Type	3-way bass-reflex speaker
Tweeters	3 cm dome × 1
Midrange drivers	8 cm dome × 1
Woofers	16 cm cone × 2
Nominal impedance	6 Ω (minimum 3.5 Ω)
Frequency response	34 Hz - 65 kHz (-10 dB), 100 kHz (-30 dB)
Nominal input power	60 W
Maximum input power	200 W
Crossover frequencies	750 Hz / 3.5 kHz
Dimensions (W × H × D)	330 × 1124 × 459 mm (without spikes), 330 × 1134 × 459 mm (with spikes)
Weight	34.6 kg
Magnetic shielding	No (may affect CRT televisions)
Supplied accessories	Front grille, stabilization spikes, adjustable feet, speaker cables (not specified), user manual
Maintenance	Wipe with a soft dry cloth; avoid chemicals; do not touch the diaphragms
Installation	Use on a stable surface; adjust feet or spikes for stability; avoid humidity and extreme temperatures
Safety	Do not disassemble; do not expose to water; keep away from heat sources; respect the allowable power levels
Environment	WEEE compliant product; do not dispose of with household waste

Frequently Asked Questions - NS2000A YAMAHA

How to install the NS2000A speakers?

Place the speakers on a stable and level surface. Use the adjustable feet to level and stabilize. Optionally, mount the supplied spikes by screwing them under the speaker to improve stability on carpet. Ensure two people carry the speaker (34.6 kg).

How to mount the front grille?

The grille is magnetic: align the curved part of the grille with the curvature of the top of the speaker. Make sure it is securely attached. Do not touch the diaphragms and do not press on the grille fabric.

Can I use these speakers near a TV?

The NS2000A speakers are not magnetically shielded. Keep them at least 50 cm away from a CRT television to avoid color distortion. LCD/OLED TVs are not affected.

Which amplifier should I choose for these speakers?

Choose an amplifier whose nominal output power is within the speaker's allowable power range (60 W nominal, 200 W max). Ensure the amplifier's impedance is compatible with 6 Ω. Avoid exceeding the maximum power to prevent damage to the speakers.

How to connect the speaker cables?

Strip about 10 mm of wire at each end. Unscrew the terminals, insert the stripped part into the hole (6 mm diameter) and retighten firmly. Observe polarity: red (+), black (-). For banana plugs, first unscrew the terminal then insert the plug.

What to do in case of condensation on the speaker?

Wipe the surface immediately with a soft dry cloth. Condensation can damage the wooden components. Avoid sudden changes in temperature or humidity.

Can I touch the speakers?

Never touch the diaphragms (suspension and cone) as they are delicate. Any pressure can deform them and degrade sound quality. Visible spruce fibers on the diaphragms are normal.

How to clean the speakers?

Use a soft dry cloth. Never use chemicals (benzene, thinner) or impregnated cloths as they may discolor or deform the cabinet. For the grille, dust gently.

What are the recommended equalization settings?

Avoid pushing tone controls (Bass/Treble) or equalizer to extremes as this could damage the speakers. Use moderate settings for balanced sound.

What to do in case of anomaly (smell, smoke, abnormal sound)?

Immediately turn off all amplifiers and receivers. Disconnect the speakers and contact a qualified Yamaha technician. Do not use the device until it has been inspected.

USER MANUAL NS2000A YAMAHA

The precautions listed below are to prevent risk of harm to the user and others, as well as to prevent property damage, and to help the user use this unit properly and safely. Be sure to follow these instructions.

After reading this manual, be sure to keep it in a safe place where it can be referenced at any time.

• Be sure to request inspections or repairs from the dealer where you purchased the unit or from qualified Yamaha service personnel.
• Yamaha cannot be held responsible for injury to you or damage of the products caused by improper use or modifications to the unit.
• This product is for ordinary homes. Do not use for applications requiring high reliability, such as managing lives, health care or high-value assets.

WARNING

This content indicates "risk of serious injury or death."

If you notice any abnormality

• If any of the following abnormalities occur, immediately turn off any amplifiers and receivers.
• An unusual smell, unusual sound or smoke is emitted from the unit.
  – Foreign material or water gets into the interior of the unit.
  – There is a loss of sound during use.
  – There is a crack or damage in the unit.
  Continued use could cause electric shocks, a fire, or malfunctions. Immediately request an inspection or repair from the dealer where you purchased the unit or from qualified Yamaha service personnel.

Installation

• Assemble and install in the manner instructed in the manual. Falling or toppling may result in injury or damage.
• Confirm that the finished installation is safe and secure. Also, carry out safety inspections periodically. Failure to observe this may cause devices to fall and result in injury.
• Always fix the speaker cable to a wall or similar. If you catch your feet or hands on the cable, the speakers may fall or overturn, causing malfunctions or injuries.

Do not disassemble

- Do not disassemble or modify this unit. Failure to observe this may cause a fire, electric shocks, injury, or malfunctions.

Water warning

- Do not expose the unit to rain, use it near water or in damp or wet conditions, or place on it any containers (such as vases, bottles or glasses) containing liquids which might spill into any openings or places where water may drop. A liquid such as water getting into the unit may cause a fire, electric shocks, or malfunctions.

Fire warning

- Do not place any burning items or open flames near the unit, since they may cause a fire.

Handling

- Be careful not to drop or apply strong impact to this unit. Failure to observe this may cause electric shocks, a fire, or malfunctions.

CAUTION

This content indicates "risk of injury."

Installation

• Do not install the unit in places where it may come into contact with corrosive gases or salt air or places that have excessive smoke or steam. Doing so may result in malfunction.
• Avoid being near the unit during a disaster, such as an earthquake. Since the unit may turn over or fall and cause injury, quickly move away from the unit and go to a safe place.
• When transporting or moving the unit always use two or more people. Attempting to lift the unit by yourself may damage your back, result in other injury, or cause damage to the unit itself.
• Before moving this unit, be sure to disconnect all connection cables. Failure to observe this may damage the cables or cause you or someone else to trip and fall.

Hearing loss

• Do not use the unit for a long period of time at a high or uncomfortable volume level, since this can cause permanent hearing loss. If you experience any hearing loss or ringing in the ears, consult a physician.
• Before connecting the unit to other devices, turn off the power for all devices. Failing to do so may result in hearing loss, electric shock, or device damage.

Handling

• Do not insert your hand or fingers into bass reflex port (hole on the rear) of this unit. Failure to observe this may cause injury.
• Do not insert foreign materials such as metal or paper into bass reflex port (hole on the rear) of this unit. Failure to observe this may cause a fire, electric shocks, or malfunctions.
• Keep small parts out of the reach of infants. Your children may accidentally swallow them.
• Do not do the following:
• Stand on or sit on the equipment.
• Put heavy items on top of the equipment.
• Apply unreasonable force input terminals, etc.
  – Lean against the equipment.
  Failure to observe this may cause injuries or damage to the equipment.
• Avoid pulling the connected cables to prevent injuries or damage to the unit by causing it to fall.
• Do not operate the unit if the sound is distorting. Prolonged use in this condition could cause overheating and result in fire.
• When selecting an amplifier or a receiver to use with this unit, check that the output level on the amplifier or receiver is within this unit's permitted input level (see page 10). If the output power is higher than the power capacity, malfunction or fire may occur.

NOTICE

Indicates points that you must observe in order to prevent product failure, damage or malfunction and data loss.

Installation

- Do not use this unit in a location that is exposed to direct sunlight that becomes extremely hot, such as near a heater, or extremely cold, or that is subject to excessive dust or vibration. Failure to observe this may cause the unit's panel to become deformed, the internal components to malfunction, or for operation to become unstable.

Connections

- If connecting external units, be sure to thoroughly read the manual for each unit and connect them in accordance with the instructions. Failure to properly handle a unit in accordance with the instructions could cause malfunctions.

Handling

- Do not place vinyl, plastic, or rubber products on this unit. Failure to observe this may cause discoloration or deformation in the panel of this unit.

Maintenance

- If the temperature or humidity changes drastically, water droplets (condensation) may form on the unit surface. If water droplets form, immediately wipe them off with a soft cloth. If water droplets are left on the unit, they may be absorbed into the wooden parts, causing deformation. - When cleaning the unit, use a dry, soft cloth. Using chemicals such as benzine or thinner, cleaning agents, or chemical scrubbing cloths can cause discoloration or deformation.

Speakers

- Do not touch the diaphragm. Failure to observe this may damage the diaphragm.

This unit's speakers use magnets. Do not place items that are sensitive to magnetism, such as CRT-type TVs, clocks, credit cards, floppy disks, etc., on or beside this unit.

Information

About functions included in the unit

- The speakers do not have a distinction between left and right. - Air may be blown out from the bass reflex port. This is not a malfunction. This occurs particularly often when outputting music with heavy bass.

About content in this manual

- This manual is for the users of this unit. - This manual uses the following signal words for the important information:

WARNING

This content indicates "risk of serious injury or death."

CAUTION

This content indicates "risk of injury."

NOTICE

Indicates points that you must observe in order to prevent product failure, damage or malfunction and data loss, as well as to protect the environment.

NOTE

Indicates notes on instructions, restrictions on functions, and additional information that may be helpful.

- The illustrations and screens in this manual are for instructional purposes only. - The company names and product names in this manual are the trademarks or registered trademarks of their respective companies.

Disposing or giving this product to someone else

• If you are giving this product to someone else, make sure to include this document and all included accessories.
• When disposing of this product and its included accessories, follow the instructions for disposal given by your local municipality.

About the name plate of this product

The model number, serial number, power requirements, etc., may be found on or near the name plate, which is at the bottom of the unit. You should note this serial number in the space provided below and retain this manual as a permanent record of your purchase to aid identification in the event of theft.

Model No.

Serial No.

Contents

PRECAUTIONS....3

Features......5

Frequency characteristic ....5

Accessories ....5

Part names ....6

Setting up the speakers ....6

Attaching the grille 8

Connecting to your amplifier....9

Specifications 10

Features

• 3-way bass reflex speaker system
- Employs "Harmonious Diaphragm"
- Employs “R.S. (Resonance Suppression) chambers” that suppresses undesirable resonance occurring behind the diaphragm
- Employs “Acoustic Absorber” that efficiently suppresses standing waves inside the enclosure
- Employs with "Twisted Flare Port"

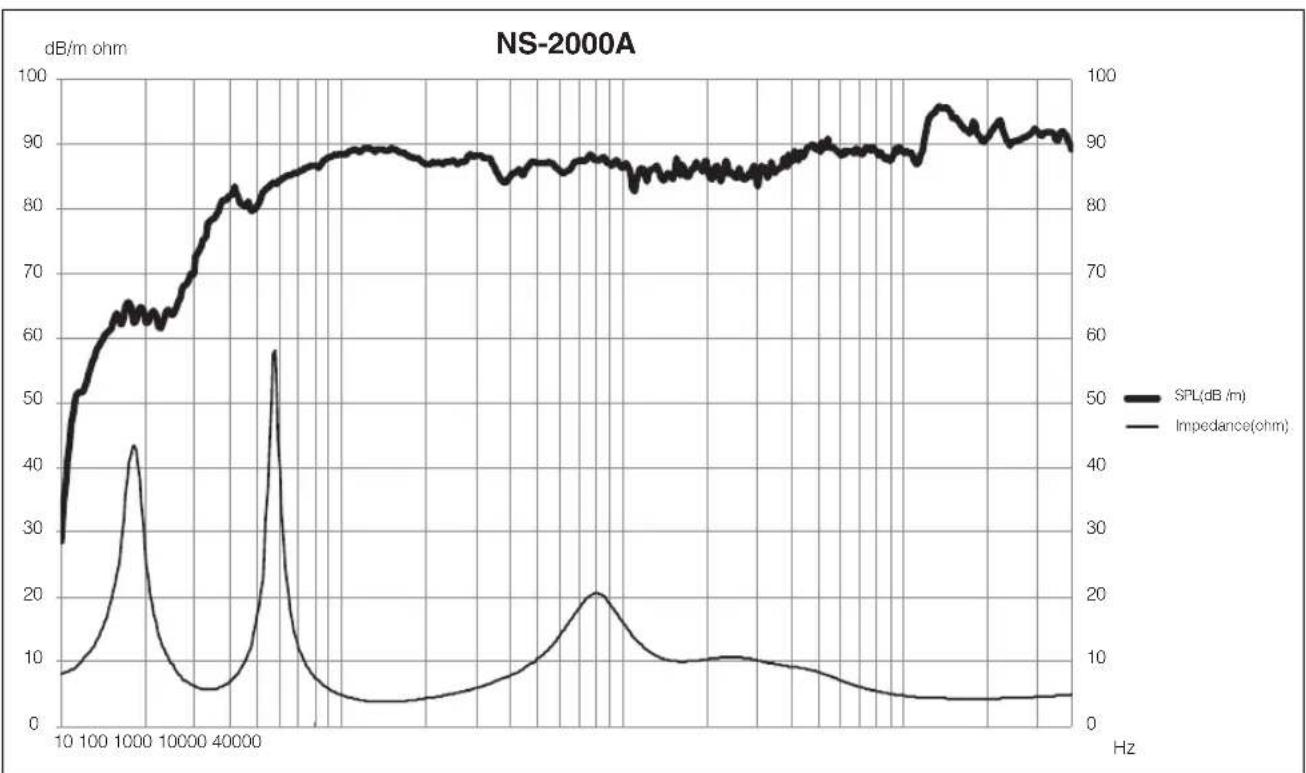

Frequency characteristic

Accessories

Make sure that all accessories are included.

Four identical mechanical component icons arranged in a 2x2 grid (no text or symbols)

Spikes (4) Grille (1)

Simple 3D illustration of a curved rectangular object with three circular cutouts on its side (no text or symbols)

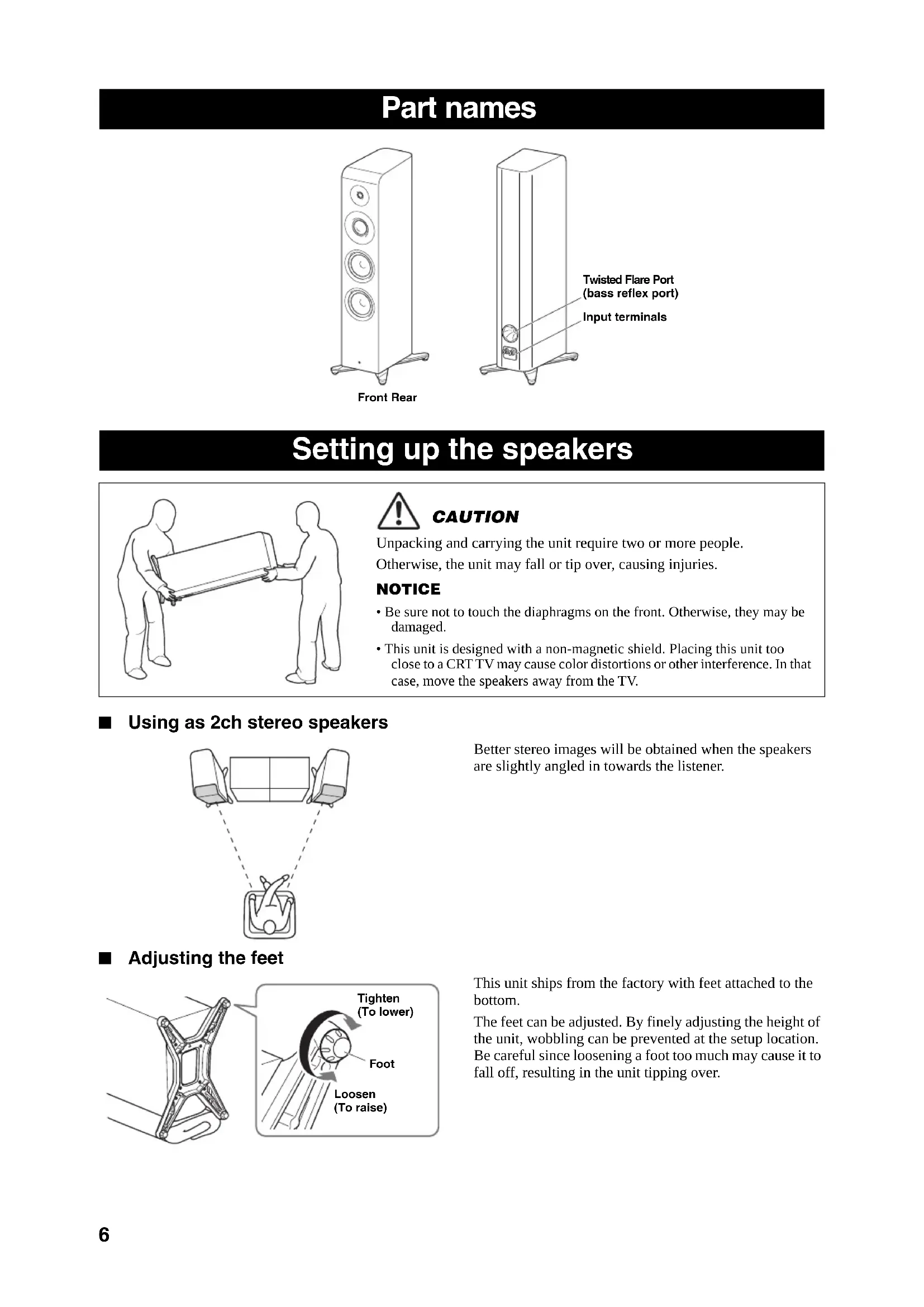

Part names

Line drawing of a multi-tiered speaker tower with three speakers and mounting base (no text or symbols)

Front Rear

Line drawing of a tall rectangular electronic device with a side-mounted control panel and mounting base (no text or symbols)

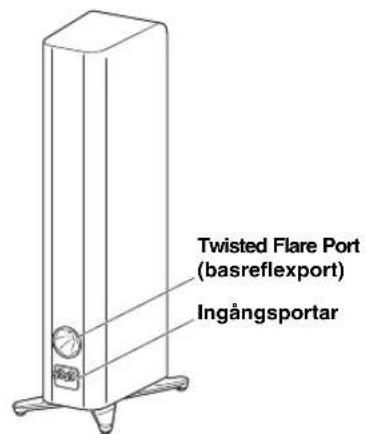

Twisted Flare Port (bass reflex port)
Input terminals

Setting up the speakers

Line drawing of two figures pulling a large cylindrical object (no text or symbols)

CAUTION

Unpacking and carrying the unit require two or more people.

Otherwise, the unit may fall or tip over, causing injuries.

NOTICE

• Be sure not to touch the diaphragms on the front. Otherwise, they may be damaged.
• This unit is designed with a non-magnetic shield. Placing this unit too close to a CRT TV may cause color distortions or other interference. In that case, move the speakers away from the TV.

■ Using as 2ch stereo speakers

Diagram showing two chairs connected to a person in a bathtub (no text or symbols)

Better stereo images will be obtained when the speakers are slightly angled in towards the listener.

■ Adjusting the feet

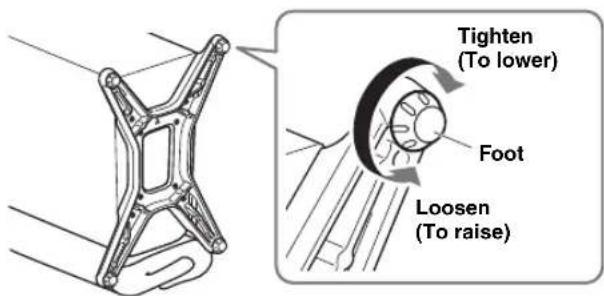

Tighten (To lower) Foot Loosen (To raise)

This unit ships from the factory with feet attached to the bottom.

The feet can be adjusted. By finely adjusting the height of the unit, wobbling can be prevented at the setup location. Be careful since loosening a foot too much may cause it to fall off, resulting in the unit tipping over.

■ Using this unit with the included spikes

When setting up this unit on a thick carpet, etc., installing the included spikes can improve stability and sound quality. In that case, install the spikes as follows.

1

Line drawing of two figures handling a large cylindrical object, with a separate flat sheet nearby (no text or symbols)

2

Foot Spike

3

Illustration of two people assembling a door panel, with an inset showing a curved object and directional arrows (no text or symbols)

CAUTION

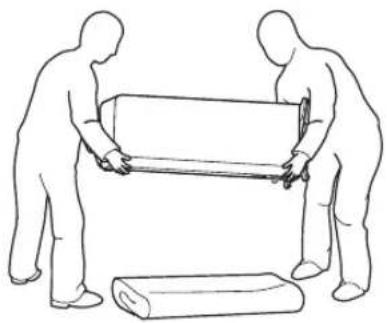

- Setting up and moving the unit require two or more people. Otherwise, the unit may fall or tip over, causing injuries.

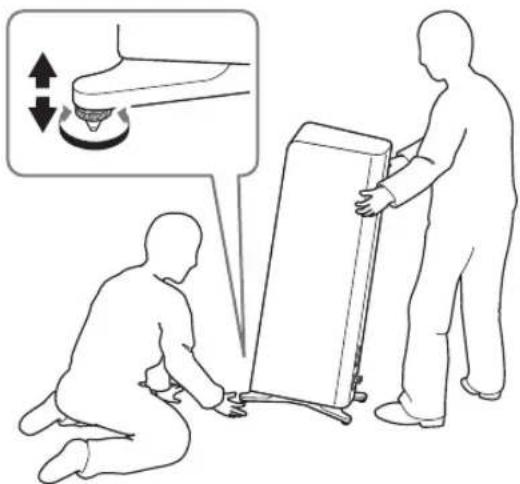

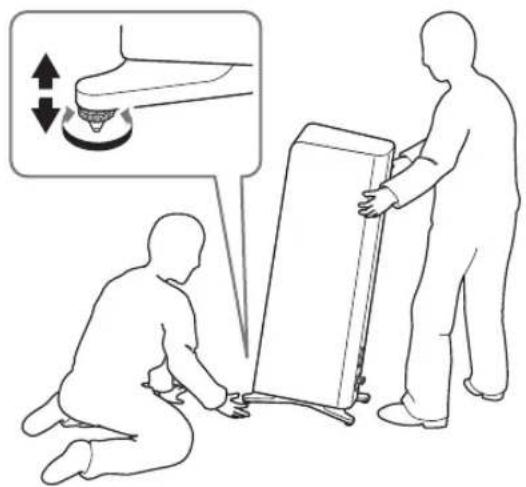

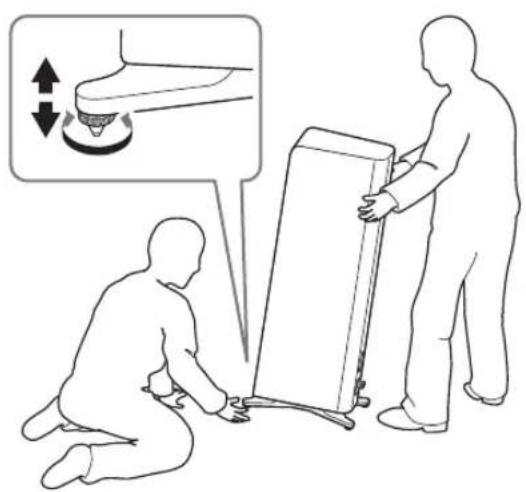

1 Place the speaker on the floor with its rear side down.

Spread out blankets or cushions to prevent scratches.

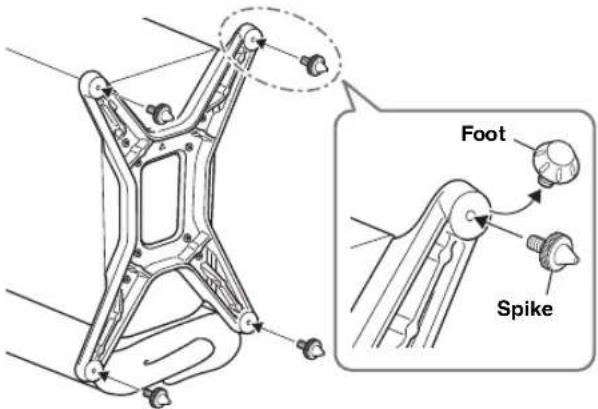

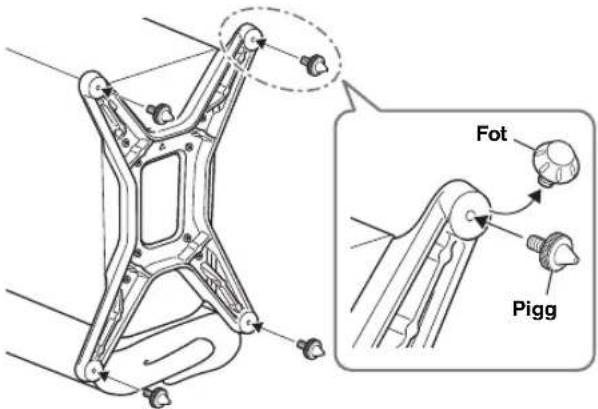

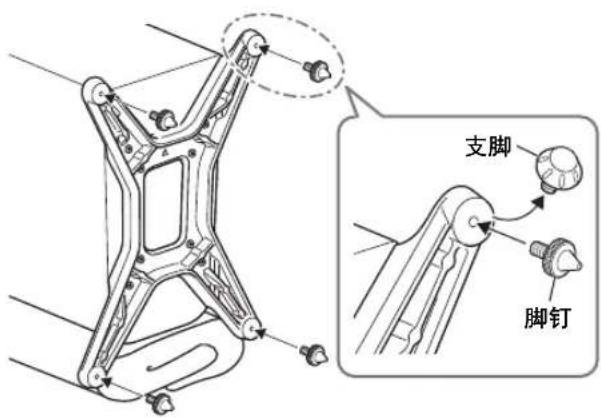

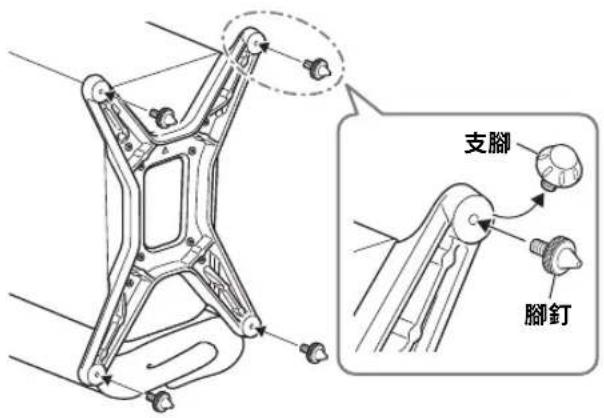

2 Loosen the foot to remove it, and then screw the spike into the screw hole for the foot.

3 After installing the four spikes, place the speaker at the setup location.

If the unit is wobbling, turn the spikes and adjust them so the unit does not wobble.

CAUTION

- Be careful since loosening a spike too much may cause it to fall off.

- Tilting the unit to set it up requires two or more people so that it does not tip over. Otherwise, the unit may tip over, causing injuries or damage.

NOTICE

- Allowing the tips of the spikes to drag may scratch the floor. Be careful when installing or moving the speaker.

- When the spikes are installed, be careful not to scratch the floor.

- Due to the weight of the unit, marks may be left on the floor or carpet.

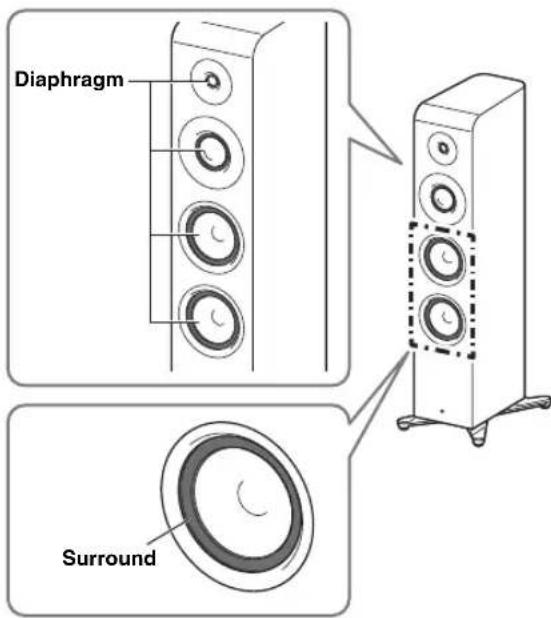

Diaphragm Surround

NOTE

• The diaphragms of all tweeter, midrange and woofers of this unit include a natural material called spruce. Therefore, fibers and chips in the material may be visible on the surface of the diaphragm. Since these are not defects but common for this natural material, they do not affect the quality.
• The specific type of rubber used for the surround supporting the woofer diaphragm was carefully chosen to optimize the sound quality. In rare cases, this rubber may turn an off-white color. Such rubber bloom is not cause for concern but merely the result of a rubber component surfacing, which does not adversely affect performance.

Attaching the grille

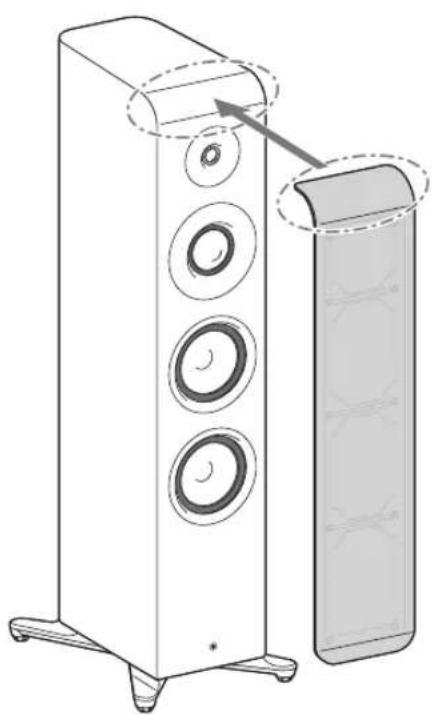

This unit and the grille are packed separately. The back of the grille is fitted with a magnet. The grille can be attached by aligning its curved section with the curved surface at the top on the front of this unit.

Diagram of a multi-tiered speaker tower with an adjacent panel showing its front panel (no text or symbols present)

NOTICE

• Make sure that the grille is securely attached to this unit. If it comes off the unit due to vibrations, etc., it may cause damage or malfunctions.
• Do not touch or apply excessive force to any diaphragms on the front. Otherwise, the sound may be distorted, or malfunctions may result.
• Do not press or apply excessive force to the speaker grill cloth. Otherwise, it may be damaged.
• There are magnets on the back of the grille for this unit. Keep the removed grille away from objects (CRT TVs, watches, magnetic cards, etc.) that may be affected by magnets.

Connecting to your amplifier

Before making connections, make sure that the amplifier is turned off.

■ Connections

15 mm (5/8")

Twist off a section of insulation from each end of the cables.

Provide commercially available speaker cable.

The thickness and/or material of the speaker cable affects the sound quality. We recommend purchasing high-quality speaker cable to maximize this unit's performance.

■ Connecting the speaker cables

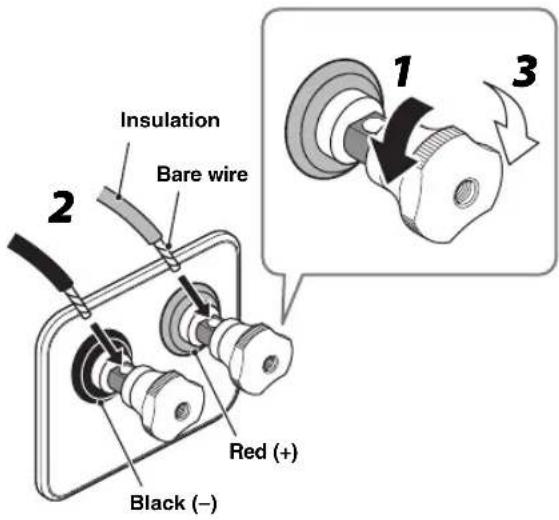

Insulation Bare wire 1 3 2 Red (+) Black (−)

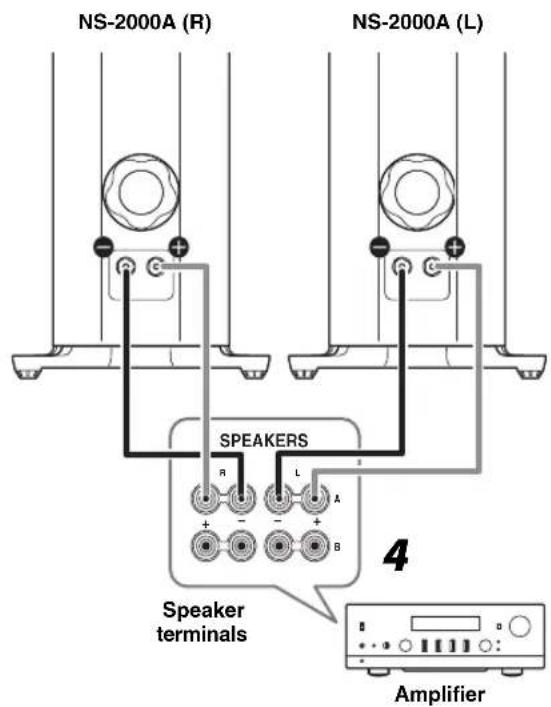

NS-2000A (R) NS-2000A (L) SPEAKERS Speaker terminals Amplifier

1 Turn the input terminal knobs on the rear of this unit counterclockwise to loosen them.

CAUTION

- If an input terminal knob is completely loosened, it will fall off. Keep the removed knobs out of the reach of infants to prevent accidental ingestion.

2 Insert the bare wire section into the hole in the input terminal.

NOTE

• Diameter of hole in terminal for inserting speaker cable: 6.0 mm (1/4")
• Do not insert the cable insulation into the hole. Otherwise, sound may not be produced.

3 Turn the input terminal knobs clockwise to tighten them and secure the cables.

Make sure that the wire core does not protrude from the hole.

4 Connect the speaker cables to the L (left) and R (right) speaker terminals on the amplifier.

NOTE

• The red terminal of this unit is positive (+), and the black terminal is negative (−).
• If a speaker is connected with reversed polarity, the sound will be unnatural.

NOTICE

• Be careful not to allow the bare wires of the positive (+) and negative (−) speaker cables to come into contact with each other or other metal parts. Otherwise, the speakers may be damaged.
• Affix the speaker cables to a wall, etc. Otherwise, hands or feet may be caught on the cables, causing the unit to tip over.
• Since the speakers may be damaged if an equalizer or tone controls of an amplifier (BASS, TREBLE, etc.) are set to maximum and output at a high volume level, or if certain signals (sounds from a tape fast-forwarding or a turntable stylus touching the surface of a disc, specific frequencies from a signal generator and sine waves or similar signals) are continuously input, avoid such conditions.

NOTE

• When using an amplifier with a rated output power higher than the nominal input power of the speaker, take care never to surpass the speaker's maximum input.
• Refer to the owner's manual that came with your amplifier or receiver.

■ When using a banana plug

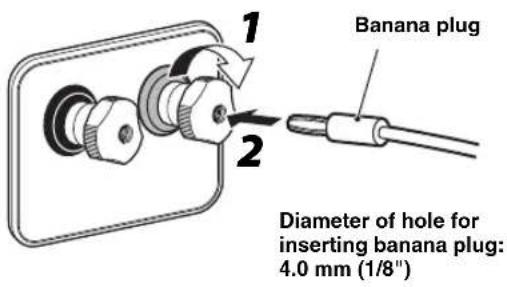

1 2 Banana plug Diameter of hole for inserting banana plug: 4.0 mm (1/8")

1 Turn the input terminal knob clockwise to firmly tighten it.
2 Insert the banana plug into the hole in the input terminal knob.

Specifications

Type ....3-way bass reflex Non-magnetic shielding type

Driver .... Tweeter: 3 cm (1-1/4") dome ×1 Midrange: 8 cm (3-1/4") dome ×1 Woofer: 16 cm (6-1/2") cone ×2

Impedance 6 Ω (Minimum 3.5 Ω)

Frequency response .... 34 Hz - 65 kHz (-10 dB) - 100 kHz (-30 dB)

Nominal input power 60 W

Maximum input power 200 W

Sensitivity 88 dB/2.83 V, 1 m

Crossover frequency 750 Hz/3.5 kHz

Dimensions (W × H × D) ......330 × 1124 × 459 mm (13" × 44-1/4" × 18-1/8") 330 × 1134 × 459 mm (13" × 44-5/8" × 18-1/8") (when using the spikes)

Weight 34.6 kg (76.3 lb)

* Care should be taken not to exceed the input power values noted above.

* The contents of this manual apply to the latest specifications as of the publishing date. To obtain the latest manual, access the Yamaha website then download the manual file.

Information for users on collection and disposal of old equipment:

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation.

By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

For business users in the European Union:

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union:

This symbol is only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

PRÉCAUTIONS D'USAGE

LISEZ ATTENTIVEMENT AVANT DE PROCÉDER À TOUTE UTILISATION. VEILLEZ À SUIVRE CES INSTRUCTIONS.

Four identical mechanical component icons arranged in a 2x2 grid (no text or symbols)

Pointes (4) Grille (1)

Simple 3D illustration of a curved rectangular object with three circular cutouts on its side (no text or symbols)

Nom des éléments

Line drawing of a multi-tiered speaker tower with three speakers and mounting base (no text or symbols)

Avant Arrière

Line drawing of a tall rectangular electronic device with a side-mounted control panel and two legs (no text or symbols)

Line drawing of two figures pulling a large cylindrical object (no text or symbols)

ATTENTION

Diagram showing two chairs connected to a seated person in a seat, with dashed lines indicating distance or connection (no text or symbols)

Line drawing of two figures handling a large cylindrical object, with a separate flat sheet nearby (no text or symbols)

2

Pied Pointe

3

Illustration of two people assembling a door panel, with an inset showing a curved object and directional arrows (no text or symbols)

ATTENTION

Diagram of a multi-tiered speaker tower with an adjacent panel showing its front panel (no text or symbols present)

AVIS

15 mm O ×

Four identical mechanical components with threaded ends, arranged in a 2x2 grid (no text or symbols)

Spikes (4) Gitter (1)

Simple 3D illustration of a curved, elongated object with three circular indentations on its side (no text or symbols)

Teilebezeichnungen

Line drawing of a multi-tiered speaker tower with three speakers and mounting base (no text or symbols)

Vorne Hinten

Line drawing of a tall rectangular electronic device with two small circular components and a base, no text or symbols present.

Line drawing of two figures pulling a large cylindrical object (no text or symbols)

VORSICHT

Diagram showing two chairs connected to a person in a seat, with dashed lines indicating distance or connection (no text or symbols)

Line drawing of two figures handling a large cylindrical object, with a separate flat sheet nearby (no text or symbols)

2

Fuß Spike

3

Illustration of two people assembling a door panel, with an inset showing a curved object and directional arrows (no text or symbols)

VORSICHT

Diagram of a multi-tiered speaker tower with three circular speakers and a separate panel, showing no text or symbols.

ACHTUNG

Four identical mechanical component icons arranged in a 2x2 grid (no text or symbols)

Piggar (4) Galler (1)

Simple 3D illustration of a curved, elongated object with three circular indentations on its side (no text or symbols)

Namn på delar

Line drawing of a multi-tiered speaker tower with three speakers and mounting base (no text or symbols)

Front Bak

Twisted Flare Port (basreflexport) Ingångsportar

Line drawing of two figures pulling a large cylindrical object (no text or symbols)

FÖRSIKTIGHET

Diagram showing two seats connected to a person in a seatbelt (no text or symbols)

Line drawing of two figures handling a large cylindrical object, with a separate flat sheet nearby (no text or symbols)

2

Fot Pigg

3

Illustration of two people assembling a door panel, with an inset showing a curved component (no text or symbols)

FÖRSIKTIGHET

Membran Surround

OBS!

Diagram of a multi-tiered speaker tower with three circular speakers and a separate panel, showing no text or symbols.

MEDDELANDE

Four identical mechanical component icons arranged in a row (no text or symbols)

Simple 3D illustration of a curved rectangular object with four circular cutouts, no text or symbols present.

Nomi delle parti

Line drawing of a multi-tiered speaker tower with three speakers and mounting base (no text or symbols)

Fronte Retro

Line drawing of a vertical cylindrical device with a pressure gauge and base mount (no text or symbols)

Line drawing of two figures pulling a large cylindrical object (no text or symbols)

ATTENZIONE

Diagram showing a person seated in a bathtub connected to two chairs, with dashed lines indicating distance or connection (no text or symbols)

Line drawing of two figures handling a large cylindrical object, with a separate flat sheet nearby (no text or symbols)

2

Piedino Punzone

3

Illustration of two people assembling a door panel, with an inset showing a curved component (no text or symbols)

ATTENZIONE

Diaframma Surround

NOTA

Diagram of a multi-tiered speaker tower with three circular speakers and a separate panel, showing no text or symbols.

AVVISO

Four identical mechanical components with threaded ends, arranged in a 2x2 grid (no text or symbols)

Clavijas (4) Rejilla (1)

Simple 3D illustration of a curved rectangular object with three circular indentations on its side (no text or symbols)

Line drawing of a multi-tiered speaker tower with three speakers and stand (no text or symbols)

Delantero Trasero

Twisted Flare Port (puerto bass reflex) Terminales de entrada

Line drawing of two figures pulling a large cylindrical object (no text or symbols)

ATENCIÓN

Diagram showing a person sitting in a bathtub connected to a sofa and chairs, with dashed lines indicating distance or connection (no text or symbols)

Line drawing of two figures handling a large cylindrical object, with a separate flat sheet nearby (no text or symbols)

2

Pata Clavija

3

Illustration of two people assembling a door panel, with an inset showing a curved object and directional arrows (no text or symbols)

ATENCIÓN

Diagram of a multi-tiered speaker tower with an attached cover, showing sound waves and a close-up of the cover (no text or symbols present)

AVISO

Four identical mechanical components with threaded ends, labeled 'Spikes (4) Luidsprekerdoek (1)' below (no other text or symbols)

Simple 3D illustration of a curved, elongated object with circular cutouts on its surface (no text or symbols)

Onderdeelnamen

Line drawing of two figures pulling a large cylindrical object (no text or symbols)

VOORZICHTIG

Diagram showing a car interior with two chairs and a person inside a seat, connected by dashed lines indicating distance or connection (no text or symbols)

Line drawing of two figures handling a large cylindrical object, with a separate flat sheet nearby (no text or symbols)

2

Voet Spike

3

Illustration of two people assembling a door panel, with an inset showing a curved object and directional arrows (no text or symbols)

VOORZICHTIG

Conus Rubber rand

OPMERKING

Diagram of a multi-tiered speaker tower with a separate panel showing its exterior structure (no text or symbols present)

LET OP

Four identical mechanical components with threaded ends, arranged in a 2x2 grid (no text or symbols)

Стержни (4) Решетка (1)

Simple 3D illustration of a curved rectangular object with three circular cutouts, no text or symbols present.

Line drawing of a multi-tiered speaker tower with three speakers and mounting base (no text or symbols)

Line drawing of a tall rectangular industrial or storage unit with a pressure gauge and base mount (no text or symbols)

Line drawing of two figures pulling a large cylindrical object (no text or symbols)

ВНИМАНИЕ

Diagram showing two chairs connected to a cup with a person inside, no text or symbols present

Diagram of a multi-tiered speaker tower with an attached cover, showing sound waves and a close-up of the cover (no text or symbols present)

УВЕДОМЛЕНИЕ

Four identical mechanical components with threaded ends, arranged in a 2x2 grid (no text or symbols)

脚钉（4）网罩（1）

Simple 3D illustration of a curved, elongated object with internal grid pattern (no text or symbols)

部件名称

Line drawing of a multi-tiered speaker tower with three speakers and mounting feet (no text or symbols)

正面 背面

Line drawing of a tall rectangular electronic device with two gauges and a base, no text or symbols present.

Twisted Flare Port (低音反射端口)
输入端口

安装音箱

Two silhouettes of two people pulling a large cylindrical object (no text or symbols visible)

注意

Diagram showing a person inside a car seat connected to a dashed line indicating distance or connection (no text or symbols)

Line drawing of two figures handling a large cylindrical object, with one lying on the ground and another on the other (no text or symbols)

2

支脚 脚钉

3

Illustration of two people handling a large object with directional arrows indicating movement (no text or symbols)

注意

Diagram of a multi-tiered speaker tower with a separate panel showing its cover (no text or symbols present)

须知

Four identical mechanical component icons arranged in a 2x2 grid (no text or symbols)

腳釘(4)面罩(1)

Simple 3D illustration of a curved, elongated object with no text or symbols

零件名稱

Line drawing of a white multi-tiered speaker tower with three speakers and four stands (no text or symbols)

前面後面

Line drawing of a vertical rectangular device with a central knob and base mount (no text or symbols)

Twisted Flare Port (低音反射端口)
輸入端子

設定揚聲器

Line drawing of two figures pulling a large cylindrical object (no text or symbols)

注意

本裝置的拆封和搬運需要兩人以上操作。

Diagram showing two chairs connected to a person in a seat, with dashed lines indicating distance or connection (no text or symbols)

Line drawing of two figures handling a large cylindrical object, with one lying on the ground and another on the other (no text or symbols)

2

支腳 腳釘

3

Illustration of two people handling a large rectangular object, with an inset showing a curved mechanical component (no text or symbols)

注意

Diagram of a multi-tiered speaker tower with a separate panel showing its exterior structure (no text or symbols present)

須知

https://download.yamaha.com/

© 2022 Yamaha Corporation

Published 11/2022

2022年11月发行

IPEI-B0

VEK6480
