SmartVisionLaser - Laser pointer Laserliner - Free user manual and instructions

Product type	Cross-line laser pointer
Brand	Laserliner
Model	SmartVisionLaser
Laser class	2 (EN 60825-1:2014/AC:2017)
Wavelength	515 nm (green, PowerGreen technology)
Laser power	< 1 mW
Accuracy	± 0.5 mm/m
Self-leveling range	± 5°
Visibility (typical)	40 m
Working range with manual receiver	60 m
Protection class	IP 40
Power supply	2 AA (LR6) batteries 1.5 V
Battery life	Approx. 3 h
Dimensions (L x H x D)	77 x 90 x 60 mm
Weight (including batteries)	275 g
Operating temperature range	0°C to 50°C
Storage temperature range	-10°C to 70°C
Max. relative humidity	80% rH, non-condensing
Max. working altitude	4,000 m above sea level
Main functions	Horizontal and vertical laser lines separately activatable, pendulum self-leveling, tilt mode, GRX-READY manual receiver mode, transport lock
Maintenance and cleaning	Clean with a slightly damp cloth, no solvents or abrasives. Remove batteries before prolonged storage.
Safety	Do not look into the beam, class 2, do not use at eye height, cover reflective surfaces, keep away from children.
Spare parts and repairability	Annual calibration recommended, contact UMAREX-LASERLINER customer service for adjustments or repairs.
General information	Compliant with EMC directive 2014/30/EU, selective WEEE collection, manual available at laserliner.com/info?an=AFE

Frequently Asked Questions - SmartVisionLaser Laserliner

How to turn on the SmartVisionLaser and activate the laser lines?

Release the transport lock by sliding the ON/OFF switch to the left. The laser cross appears. Use the selection key to individually activate the horizontal and vertical lines.

What does the leveling LED indicator mean?

The green LED indicates that automatic leveling is active. The red LED means the device is out of the leveling range (more than ±5°) or the tilt mode is active. In this case, the lines flash.

How to use the tilt mode?

Do not release the transport lock. Push the ON/OFF switch to the right. The LED remains red. You can then work on inclined surfaces, but automatic leveling is disabled.

How to install the batteries?

Open the battery compartment on the back of the device. Insert two AA (LR6) batteries observing the indicated polarity. Close the compartment.

How to check the calibration of the device?

Place the device 5 m from a wall, mark points A1 and A2 by rotating the device 180°, then measure the deviation between A2 and A3 after another rotation. The tolerance is ±0.5 mm/m. Also check the vertical with a plumb line and the horizontal with points B and C.

How to use the GRX manual receiver mode?

Press and hold the selection key to activate/deactivate the manual receiver mode. The lines become darker but are detectable by the GRX laser receiver (optional) up to 60 m.

What to do in case of laser beam in the eyes?

If a class 2 laser beam hits your eyes, deliberately close your eyes and immediately turn your head away from the beam. Never look into the beam with optical instruments. Consult a doctor if necessary.

What is the battery life?

With new alkaline batteries, the battery life is approximately 3 hours of continuous use. It is recommended to remove the batteries for prolonged storage.

Is the device waterproof?

The protection rating is IP 40, meaning it is protected against penetration of solid objects larger than 1 mm but not against water. Avoid excessive moisture.

Where to find additional information or after-sales service?

Refer to the complete manual at laserliner.com/info?an=AFE or contact UMAREX-LASERLINER customer service for annual calibration and repairs.

USER MANUAL SmartVisionLaser Laserliner

Exterior view of a Laserliner brand water dispenser device (no visible text or symbols on the device body)

AUTOMATIC

LEVEL

Laser 515 nm

lock

1HG 1VG

Isometric diagram of a cube with internal lines and a small object on the floor (no text or symbols)

Laserliner

Laserliner

!

Cross-sectional view of a battery cell showing internal components with polarity indicators (no text or symbols)

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

Function / Application

This cross line line laser produces two individually switchable, green laser lines, providing precise alignment of horizontal and vertical surfaces. The laser is easy to deploy due to the adjustable clamping bracket. The device has an integral handheld receiver mode.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.

Safety instructions

Using class 2 lasers

Warning symbol with a triangular frame and central sunburst pattern (no text)

Laser radiation! Do not stare into the beam! Class 2 laser < 1 mW · 515 nm EN 60825-1:2014/AC:2017

Laserliner

• Attention: Do not look into the direct or reflected beam.
• Do not point the laser beam towards persons.
• If a person's eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.
• Under no circumstances should optical instruments (magnifying glass, microscope, binoculars) be used to look at the laser beam or reflections.
• Do not use the laser at eye level (1.40 ... 1.90 m)
• Reflective, specular or shiny surfaces must be covered whilst laser devices are in operation.
• In public areas shield off the laser beam with barriers and partitions wherever possible and identify the laser area with warning signs.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limits in accordance with the EMC Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. There is a possibility of a dangerous impact on – or interference with – electronic devices.

Special product features

Automatic alignment of the device with a magnetically dampened pendulum system. The device is brought into initial position and aligns itself autonomously.

Transport LOCK: The device is protected with a pendelum lock during transport.

XREADY technology enables line lasers to be used even in unfavourable light conditions. The laser lines pulsate at a high frequency and this can be picked up by special laser receivers over long distances.

Green laser technology

Devices with PowerGreen technology feature bright green high-performance diodes that allow very good visibility of laser lines at great distances, on dark surfaces and in bright ambient light conditions.

Approx. 6 times brighter than a typical red laser with 630 - 660 nm

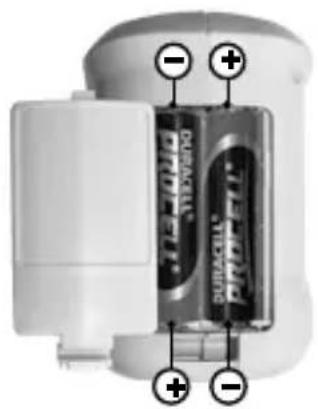

1 Inserting batteries

Open the battery compartment and insert batteries (2 x type AA) according to the symbols. Be sure to pay attention to polarity.

Close-up of a white cylindrical battery with two internal compartments, showing charge and polarity indicators (no text or symbols)

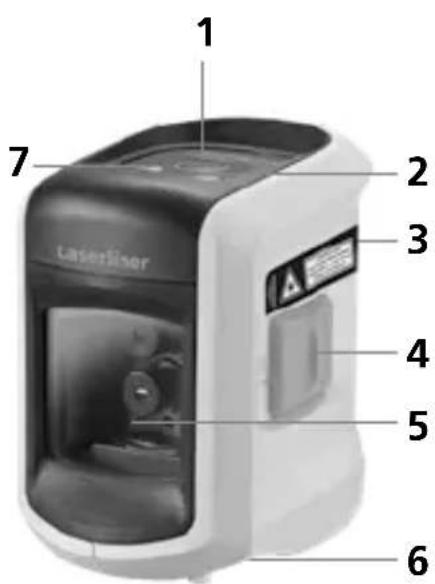

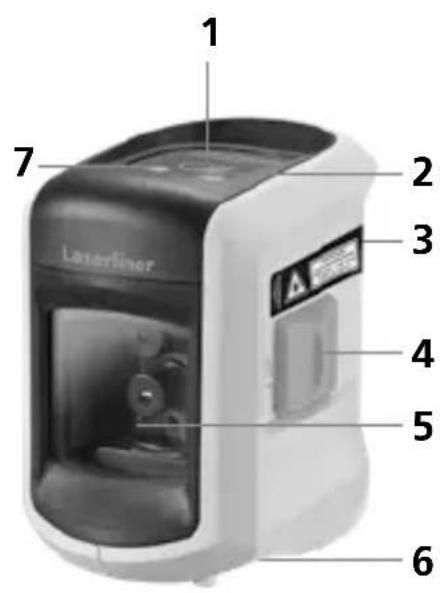

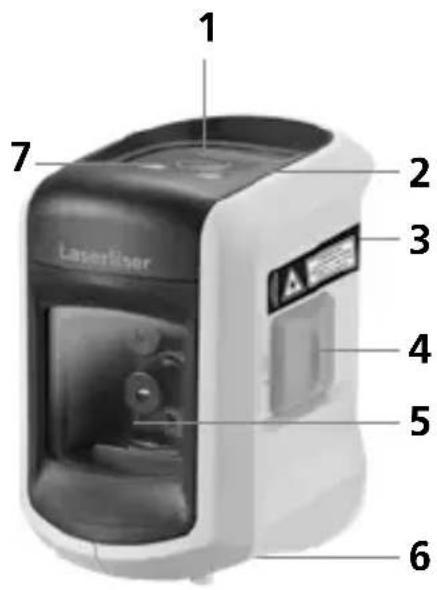

1 Laser line selection button / Hand receiver mode
2 LED levelling red: levelling off green: levelling on
3 Battery compartment (backside)
4 ON / OFF switch, transport retainer
5 Laser output windows
6 1/4" tripod threads (bottom)
7 LED hand receiver mode

When transporting always switch off all lasers, secure pendulum and push the ON/OFF switch (4) to the right.

Laserliner

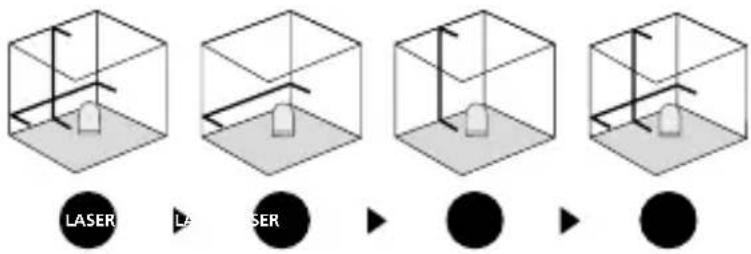

2Horizontal and vertical levelling

Release the transport restraint, move the ON/OFF switch (4) to the left. The laser cross will appear. The laser lines can be switched individually with the selection button.

!

The transport restraint must be released for horizontal and vertical levelling. The LED shows a permanent green light. The laser lines flash and the LED lights red as soon as the device is outside the automatic levelling range of 5°. Position the device such that it is within the levelling range. The LED switches back to green and the laser lines stop flashing (steady light).

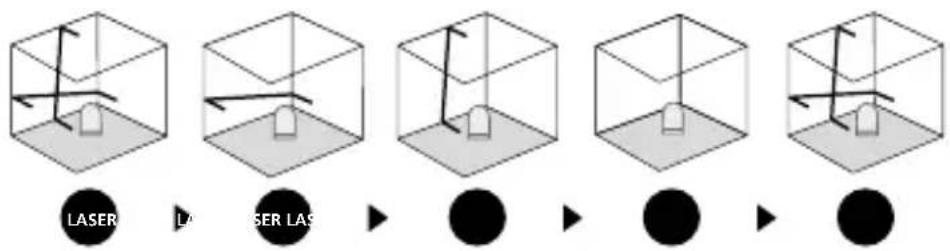

3Slope mode

Do not release transport safety, push ON/OFF switch (4) to the right. Select and switch on the laser with the selection button. Sloping planes can now be measured. This mode cannot be used to perform horizontal or vertical levelling as the laser lines are no longer aligned automatically.

The LED lights constantly red.

4 Hand receiver mode

Optional: Working with the laser receiver GRX

Use an GRX laser receiver (optional) to carry out levelling at great distances or when the laser lines are no longer visible. To work with a laser receiver, switch the line laser to hand-held receiver mode by keeping button 1 (handheld receiver mode on / off) pressed. The laser lines will now pulsate with high frequency, making the laser lines darker. The laser receiver can detect these pulsating laser lines.

Observe the laser receiver's operating instructions for line lasers.

Calibration

The measuring device must be calibrated and tested on a regular basis to ensure it is accurate and working properly. We recommend carrying out calibration once a year. Contact your distributor or the UMAREX-LASERLINER service department.

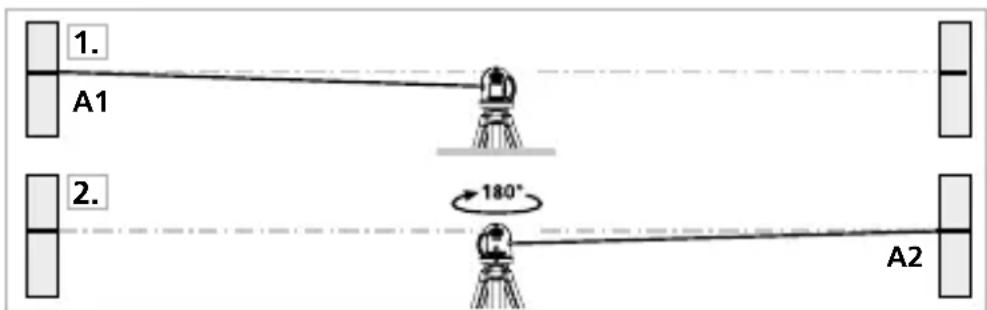

Preparing the calibration check

It is possible for you to check the calibration of the laser. To do this, position the device midway between 2 walls, which must be at least 5 metres apart. Switch the device on (LASER CROSS ON). The best calibration results are achieved if the device is mounted on a tripod.

1. Mark point A1 on the wall.
2. Turn the device through 180^ and mark point A2. You now have a horizontal reference between points A1 and A2.

Laserliner

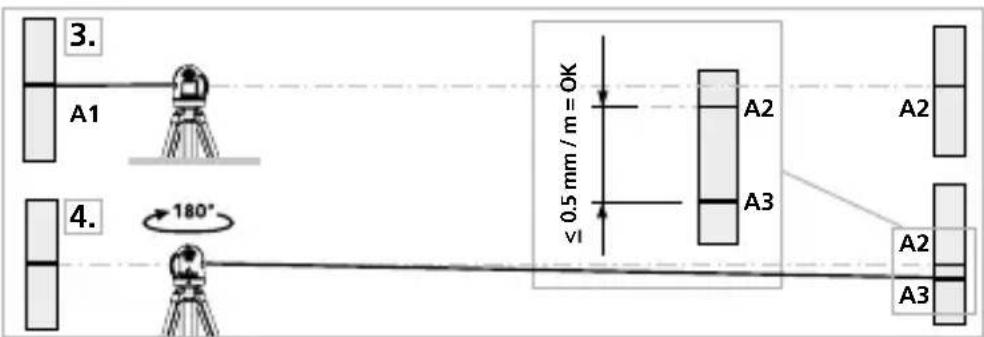

Performing the calibration check

1. Position the device as near as possible to the wall at the height of point A1.
2. Turn the device through 180^ and mark point A3. The difference between points A2 and A3 is the tolerance.

When A2 and A3 are more than 0.5 mm / m apart, an adjustment is necessary. If necessary, contact your distributor or the UMAREX-LASERLINER service department.

Checking the vertical line

Position the device about 5 m from a wall. Fix a plumb bob with a line of 2.5 m length on the wall, making sure that the bob can swing freely. Switch on the device and align the vertical laser to the plumb line. The precision is within the specified tolerance if the deviation between the laser line and the plumb line is not greater than ± 2.5 mm.

Checking the horizontal line

Position the device about 5 m from a wall and switch on the cross laser. Mark point B on the wall. Turn the laser cross

approx. 2.5 m to the right and mark point C. Check whether the horizontal line from point C is level with point B to within ±2.5 mm. Repeat the process by turning the laser to the left.

Regularly check the calibration before use, after transport and after extended periods of storage.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Technical data Subject to technical alterations. 21W08

Self-levelling range ± 5°
Accuracy ± 0.5 mm / m
Levelling automatic
Visibility (typical)* 40 m
Working range with hand receiver	(depends on how the technology affects the difference in brightness) 60 m
Laser wavelength 515 nm
Laser class	2 / < 1 mW(EN 60825-1:2014/AC:2017)
Degree of protection IP 40
Power supply 2 x 1.5V LR6 (AA)
Operating time approx. 3 h
Operating conditions	0°C ... 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
Storage conditions	-10°C ... 70°C, max. humidity 80% rH
Dimensions (W x H x D) 77 x 90 x 60 mm
Weight 275 g (incl. batteries)

* at max. 300 lux

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com/info?an=AFE
