| Product Type | LED projector with infrared motion detector |
| Brand | Brennenstuhl |
| Model | JARO 1000 P |
| Use | Indoor and outdoor |
| Protection class | I |
| Protection rating | IP44 (with detector) |
| Rated voltage | 220 – 240 V~, 50/60 Hz |
| Rated wattage | 100 W |
| Detector type | Passive infrared (PIR) |
| Detector range | up to 10 m |
| Detection angle | 120° (horizontal) |
| Adjustable timer | 10 s to 5 min |
| Adjustable brightness threshold | 0 to 2000 lux |
| Adjustable sensitivity | 3 to 10 m depending on installation |
| Max. installation height | 3 m (recommended 2.5 m) |
| Light source | Non-replaceable LED |
| Electrical connection | Cable H05RN-F 3G1.0 minimum |
| Installation | By qualified professional |
| Cleaning | Dry or slightly damp cloth, solvent-free |
| Disposal | WEEE compliant, separate collection |
| Spare part | Original safety glass |
Frequently Asked Questions - JARO 1000 P BRENNENSTUHL
User questions about JARO 1000 P BRENNENSTUHL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lamp in PDF format for free! Find your manual JARO 1000 P - BRENNENSTUHL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. JARO 1000 P by BRENNENSTUHL.
USER MANUAL JARO 1000 P BRENNENSTUHL
LED Light with infrared motion detector
Projecteur LED
GB Operating instructions.... 12
JARO 80/100 W
DE
Bedienungsanleitung
LED Strahler
JARO
Note: Before use of the floodlight, please carefully read the operating instructions and store them at a proper location!
TECHNICAL DATA
Protection class: I
Protection type versions without motion detector: IP 65
Protection type versions with motion detector: IP 44
Nominal voltage: 220 - 240 V\~ 50/60 Hz
Power factor: see table (page 2)
This high-power LED floodlight is suitable for indoor and outdoor lighting purposes and for fixed assembly.
The floodlight must not be used for other purposes.
SAFETY INFORMATION
- The floodlight must be installed and maintained by a qualified specialist.
- Electric installations may only be completed in compliance with the safety regulations (VDE 0100 for Germany).
- For the connection, a VDE-certified connection line (at least H05RN-F 3G1,0) must be used.
- The floodlight must be grounded properly.
- The floodlight must not be used without properly attached sealing rings!
- LED floodlights are extremely bright. Please never look directly into the light.
- If the protective cover is broken, it should be replaced with an original Brennenstuhl protective cover before further use of the floodlight.
If the mains connection line for the floodlight or the connection box is damaged, it must be replaced by a qualified specialist to avoid any risk.
-
Hot surface at 100 W versions.
INSTALLATION AND CONNECTION TO POWER SUPPLY 10 - 50 W
see figures p. 4,6 and 7

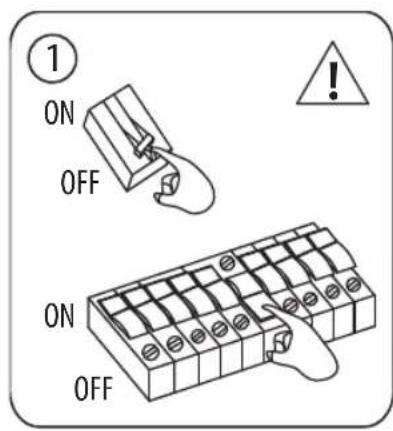

- Before installation, always switch off the voltage supply ①.
- Installation position: the floodlight should ideally be mounted using the wall bracket. The floodlight must be installed at a height of less than 3m 8. Recommended installation height for models with motion detector 2.5m . The floodlight can be angled up and down.
- Remove the mounting bracket from the floodlight ②.
- Mark the position of the drill holes for fastening the mounting bracket and drill corresponding holes into the wall ②. Attach the bracket to the wall using suitable screws.

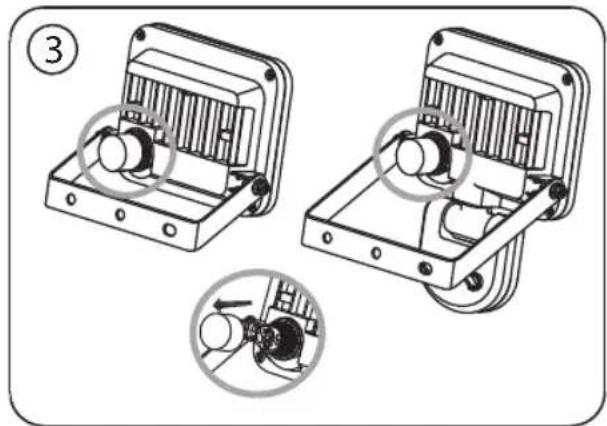

- Open the plug connection ③.

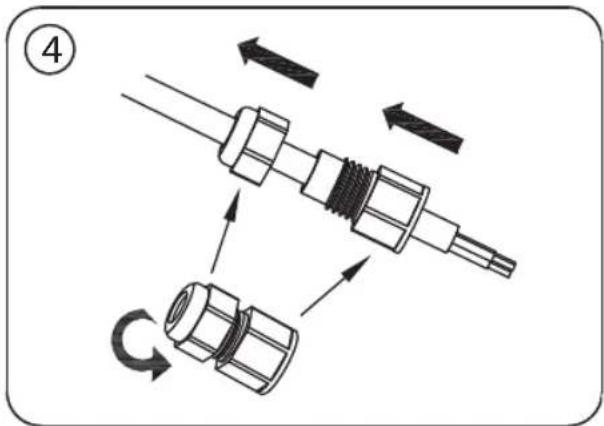

- Feed the connection cable through the plug sleeve, which has a seal ④.
- Attach the floodlight to the mounting bracket.

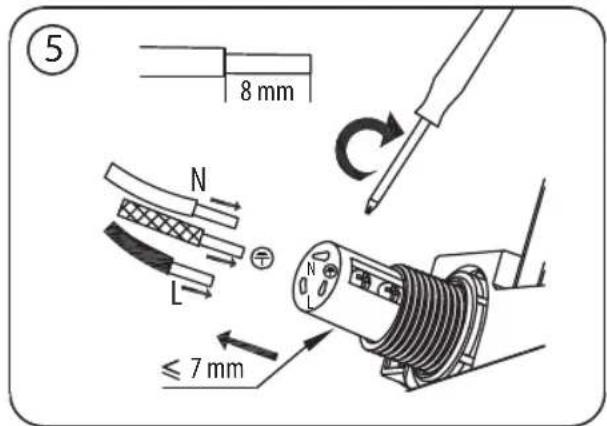

- Connect the strands of the connection cable to the luster terminal in the input connector in accordance with ⑤ (N = blue cable, earth symbol = green/yellow cable, L = brown cable).

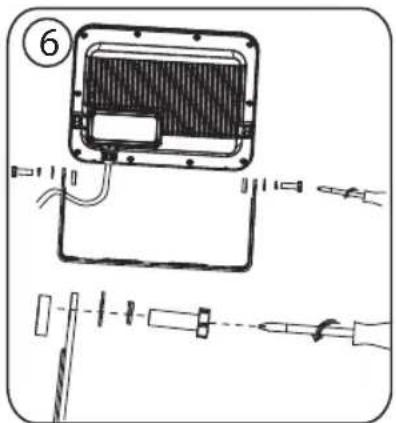

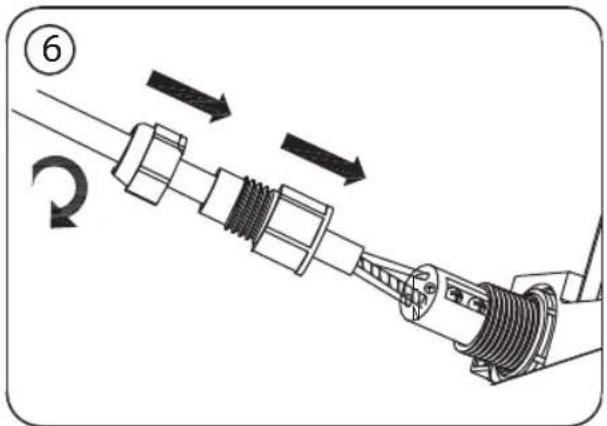

- Slide the cases over the input connector as shown in ⑥ and tighten it. Take care to ensure that both cases are sufficiently tightened – this ensures a sufficient seal.
- Re-attach the mounting bracket to the floodlight.
- Adjust the desired position of the floodlight and fasten the U bolts.

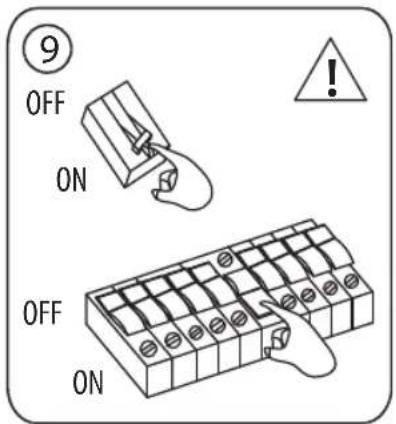

- Switch the supply voltage back on ⑦.
INSTALLATION AND CONNECTION TO POWER SUPPLY 80/100 W
see figures p. 5

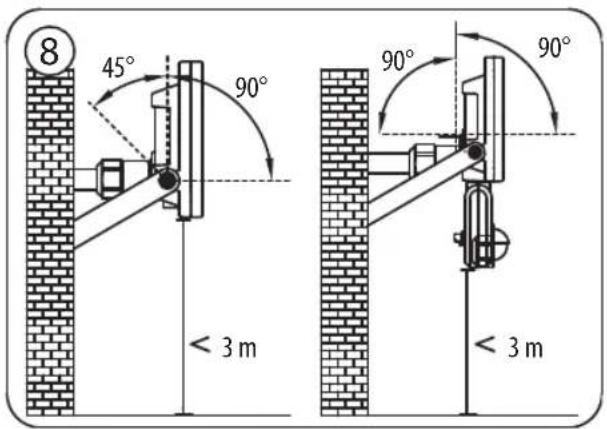

Mounting position: The spotlight should be ideally fixed with the wall bracket. It must be installed at a height less than 3 m ^10 .

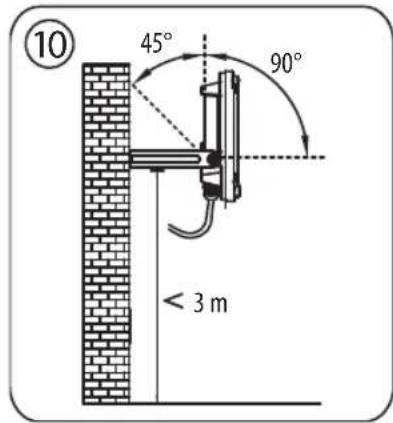

The light can be tilted by 90^ downwards and by 45^ upwards ^⑩ .
- Always turn off the power supply before installation ①.

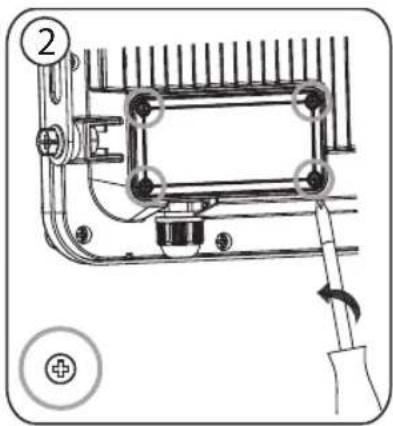

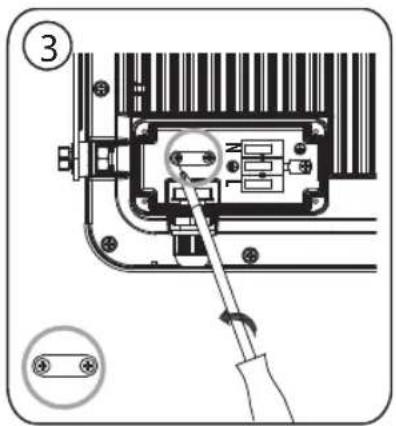

- Unscrew the junction box ② on the back and loosen the pressure plate ③

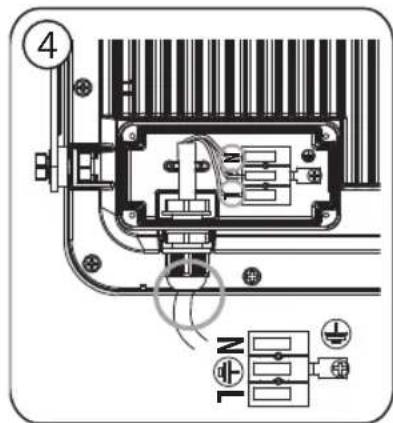

- Insert the connection cable ④ through the inlet pipe of the junction box and connect the braids of the connection cable according to marking N and L ④.

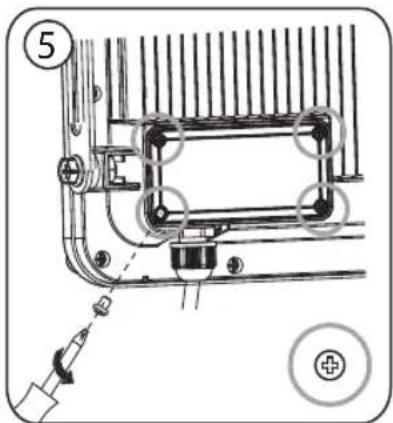

- Fasten the pressure plate and screw the junction box on ⑤.
- Remove the retaining bracket from the spotlight ⑥.

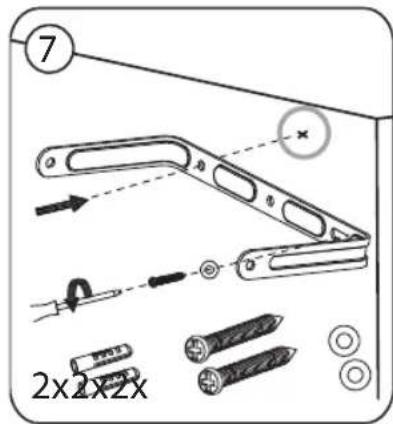

- Mark the position of boreholes ⑦ for securing the retaining bracket and drill the respective holes on the wall. Attach the bracket to the wall with suitable screws ⑦.
- Secure the spotlight to the retaining bracket ⑧.

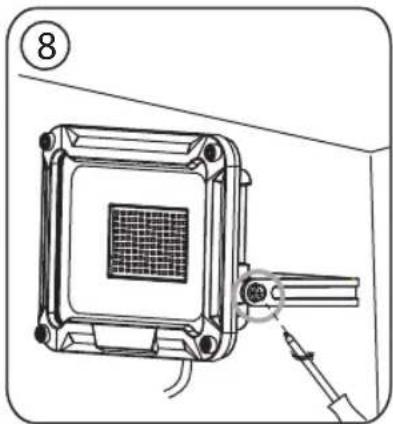

- Adjust the desired position of the spotlight and tighten the U-bolts ⑧.

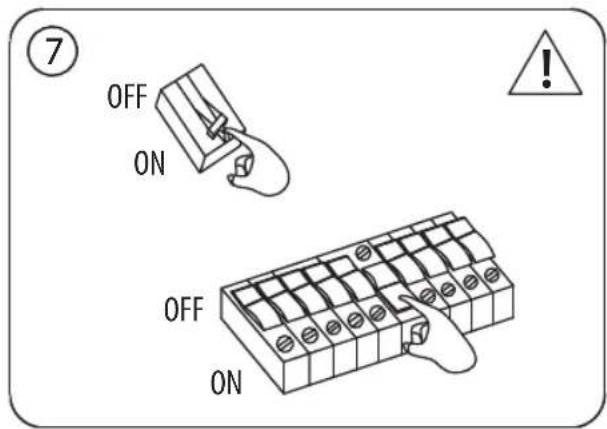

- Turn the power supply back on ⑨.
FUNCTIONAL DESCRIPTION
(only for versions with motion sensor)
This floodlight is equipped with an infrared sensor. It is switched on automatically if the sensor detects motion in the environment.
If possible, do not direct the motion sensor at swimming pools, heating air exhausts, air conditioning units or objects which are exposed to major temperature fluctuations.
Avoid directing the motion sensor at trees or bushes or at places which could be frequently visited by pets.
The motion sensor can be turned horizontally to the right and left and angled vertically up and down.
When mounting the floodlight remember that the motion sensor will react most sensitively to motions crossing its field of detection from one side to the other and least sensitively to motions directly approaching the unit.
CONFIGURING THE MOTION DETECTOR (PIR)
Three controllers are located on the rear of the motion detector ^⑨ .

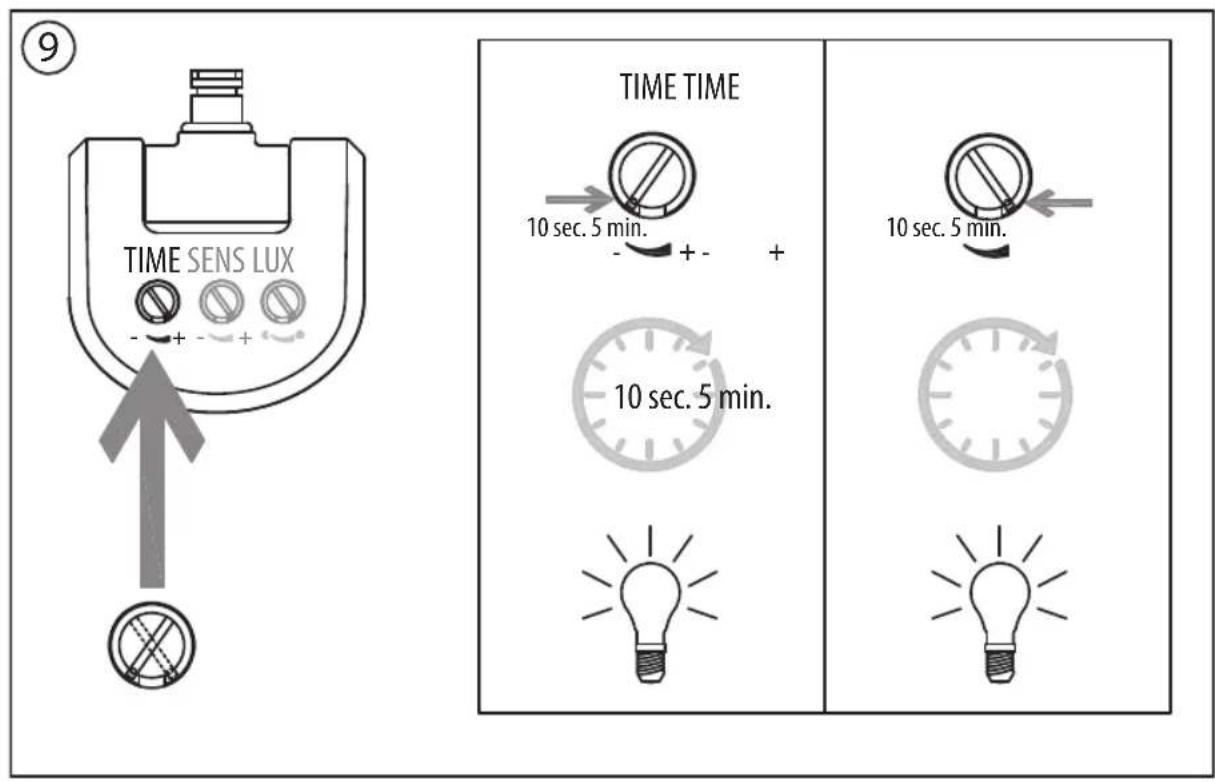

TIME – time adjustment (left):
Using this controller, you can select any switch-on time between approx. 10 seconds and 5 minutes after the last motion was detected. Rotating the TIME controller clockwise decreases the time period, rotating it counterclockwise increases it.

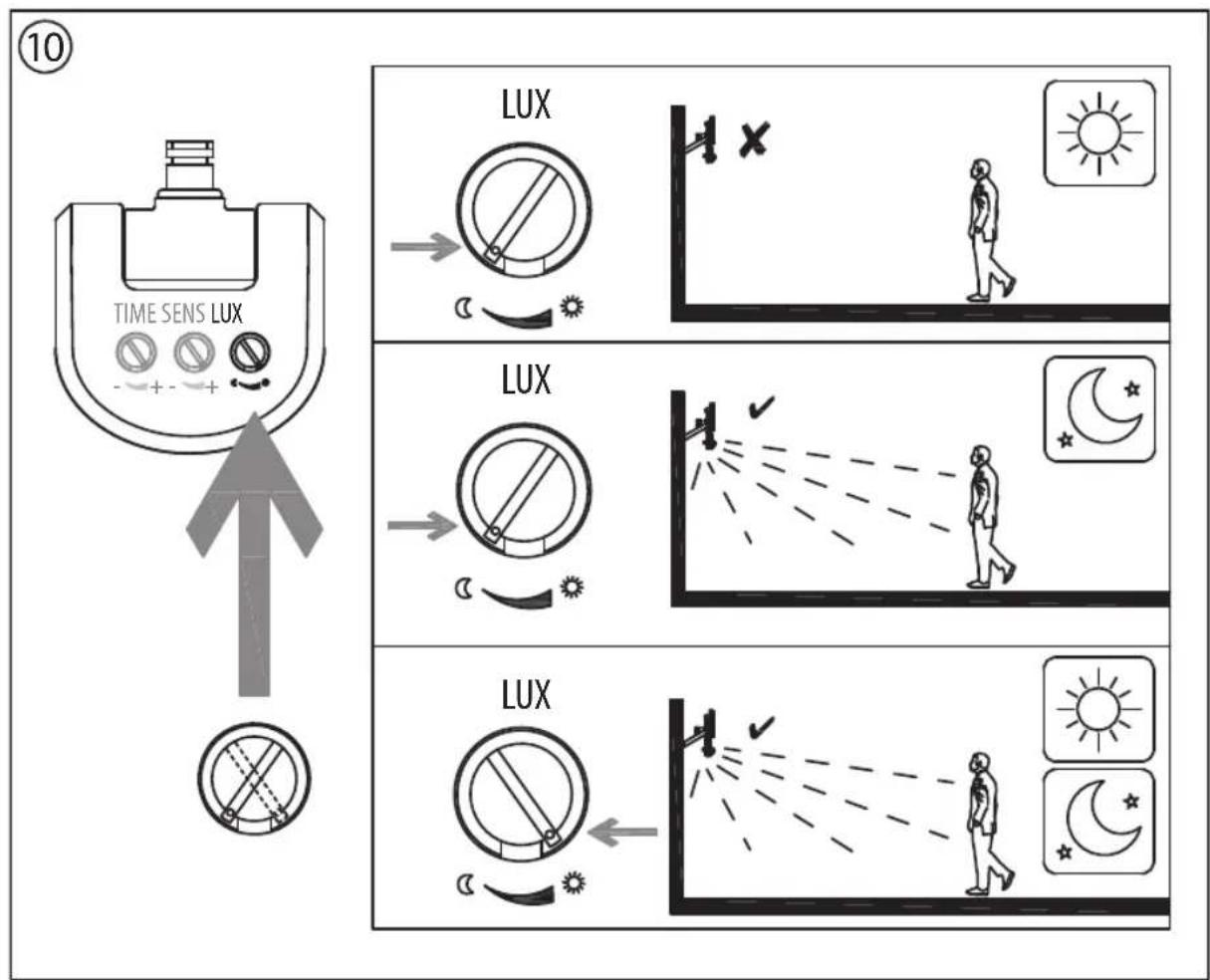

LUX – light adjustment (sun and moon symbol, right) ^10 :
The light adjustment determines from what brightness level the sensor will switch on the flood-light.
The (sun symbol) position indicates that the sensor works by day and at night, in the (moon symbol) position, the sensor will only work at night. To adjust the sensor, wait until the desired ambient brightness is reached. Completely rotate the light adjustment controller to the (moon) symbol. Slowly rotate the controller in the direction of the (sun) symbol until the floodlight is switched on by the motion.
The floodlight will now be activated from the set brightness when a motion is detected.

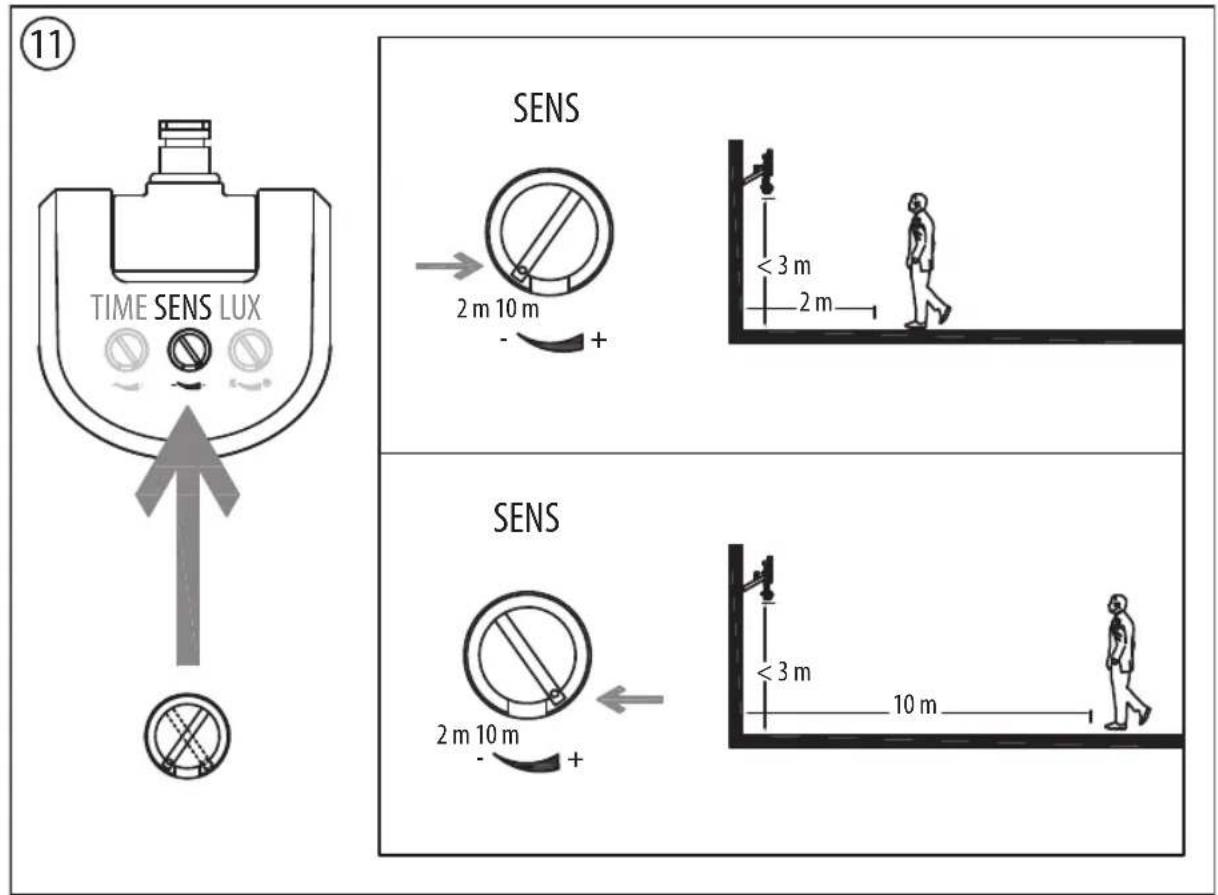

SENS – sensitivity adjustment (centre) ⑪:
The sensitivity of the sensor depends on the ambient temperature. The lower the ambient temperature, the greater the sensitivity of the motion detector.
The sensor is at its most sensitive when the SENS controller is turned all the way to the (+) direction.
Motion sensor: passive infrared sensor (PIR)

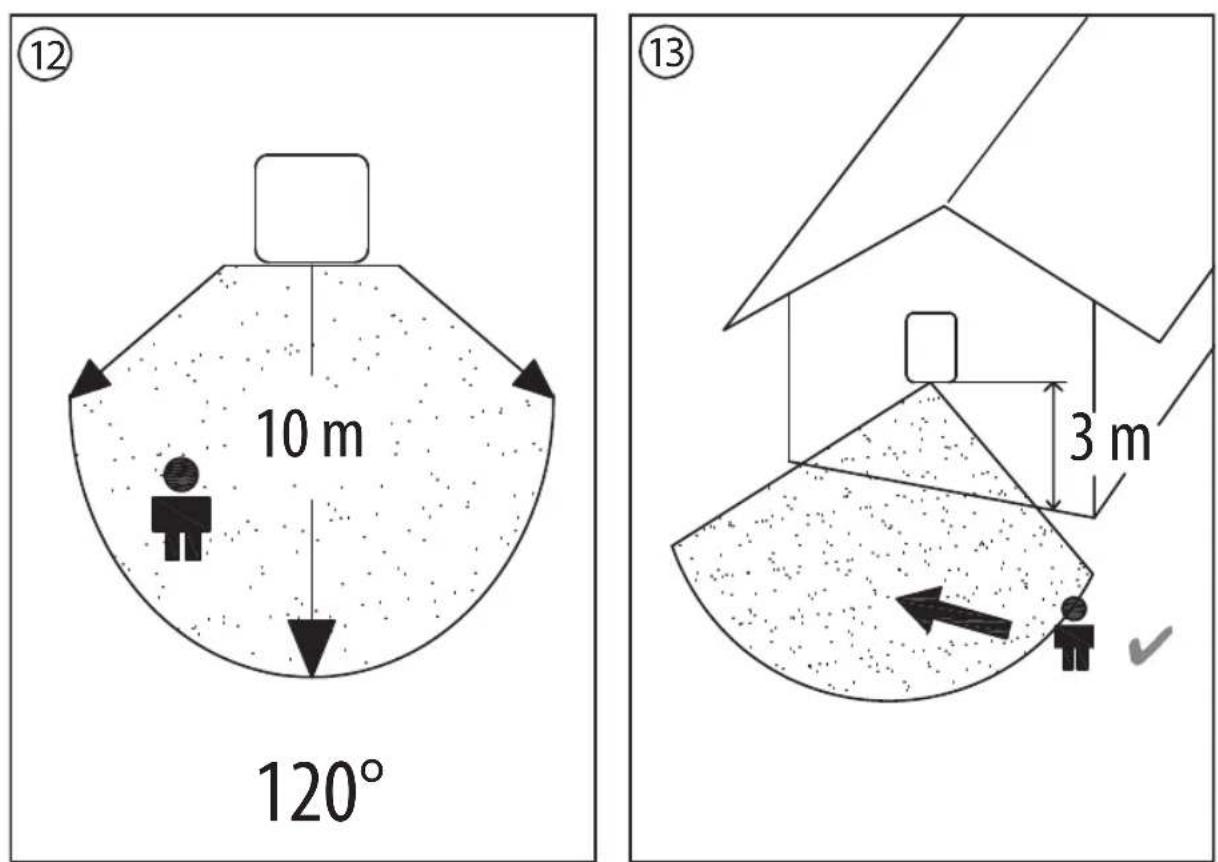

Detection range: up to 10 m/up to 120° (horizontal) ⑫
Time adjustment: approx. 10 sec. to 5 min.
Ambient brightness: 0 – 2000 lux
Sensitivity: 3 to 10 m depending on the installation location
13
MAINTENANCE
The light source of this lamp cannot be replaced; if the light source has reached the end of its service life, the entire lamp has to be replaced.
CLEANING
Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning.
DISPOSAL
Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste!
The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.
For possibilities of disposal of the used appliance, please contact your local or municipal administration.
DECLARATION OF CONFORMITY
The declaration of conformity is stored at the manufacturer's.
