Product Type	Electric citrus juicer
Brand	Kenwood
Model	JE290A
Power Supply	220-240 V, 50-60 Hz (check on appliance)
Power	Not specified in manual
Juice jug capacity	Approx 0.5 L (estimate)
Operation	Automatic start by pressing on cone; variable direction rotation for optimal extraction
Included parts	Dust cover, cone, sieve, juice jug with spout, motor unit
Motor unit maintenance	Wipe with a damp cloth, do not immerse
Dishwasher-safe parts	Dust cover, cone, sieve, juice jug
Recommended cleaning	Warm soapy water for removable parts
Maximum continuous use time	5 minutes (do not exceed)
Safety	Automatic stop when removing fruit; do not use if cord is damaged; do not immerse in water
Cord storage	Cord wrap underneath motor unit
Compliance	CE, Regulation 1935/2004 (food contact)
Manufacturing	Made in China
After-sales service	Contact an authorized Kenwood center or www.kenwoodworld.com
Warranty	Legal warranty according to country of purchase

Frequently Asked Questions - JE290A KENWOOD

How to use the Kenwood JE290A citrus juicer?

Place the juice jug on the motor unit and turn it clockwise to lock. Then, put the sieve into the jug, then the cone. Cut a citrus fruit in half and press the half onto the cone: the appliance starts automatically. To stop, lift the fruit off the cone.

Can I wash the Kenwood JE290A parts in the dishwasher?

Yes, the dust cover, cone, sieve and juice jug are dishwasher safe. The motor unit should only be cleaned with a damp cloth.

What to do if the power cord is damaged?

For safety reasons, the cord must be replaced by Kenwood or an authorized repairer. Do not use the appliance with a damaged cord.

How long can I use the juicer continuously?

Do not operate the appliance for more than 5 minutes at a time to avoid damage. Allow it to cool between uses.

Why does the cone change direction during use?

This is normal. The direction change allows maximum juice extraction from citrus fruits by optimizing pressure.

How to get more juice from my citrus fruits?

Before cutting the fruit, roll it gently on a hard surface to soften the pulp. While pressing, move the fruit sideways to facilitate extraction.

The juice jug has a spout: how to pour without spilling?

First remove the cone and sieve from the jug, then pour the juice directly through the spout. The jug is designed for easy pouring.

Can I use the appliance for fruits other than citrus?

No, this appliance is designed exclusively for citrus fruits (oranges, lemons, limes, grapefruits). Do not use it for other fruits.

How to store the power cord?

Use the cord wrap located under the motor unit to wind the required cord length. This keeps your worktop tidy.

Where to find an authorized repair center for my Kenwood JE290A?

Check www.kenwoodworld.com or your country-specific website to find the nearest authorized repair center.

USER MANUAL JE290A KENWOOD

Copyright 2019 Kenwood Limited. All rights reserved

140928/1

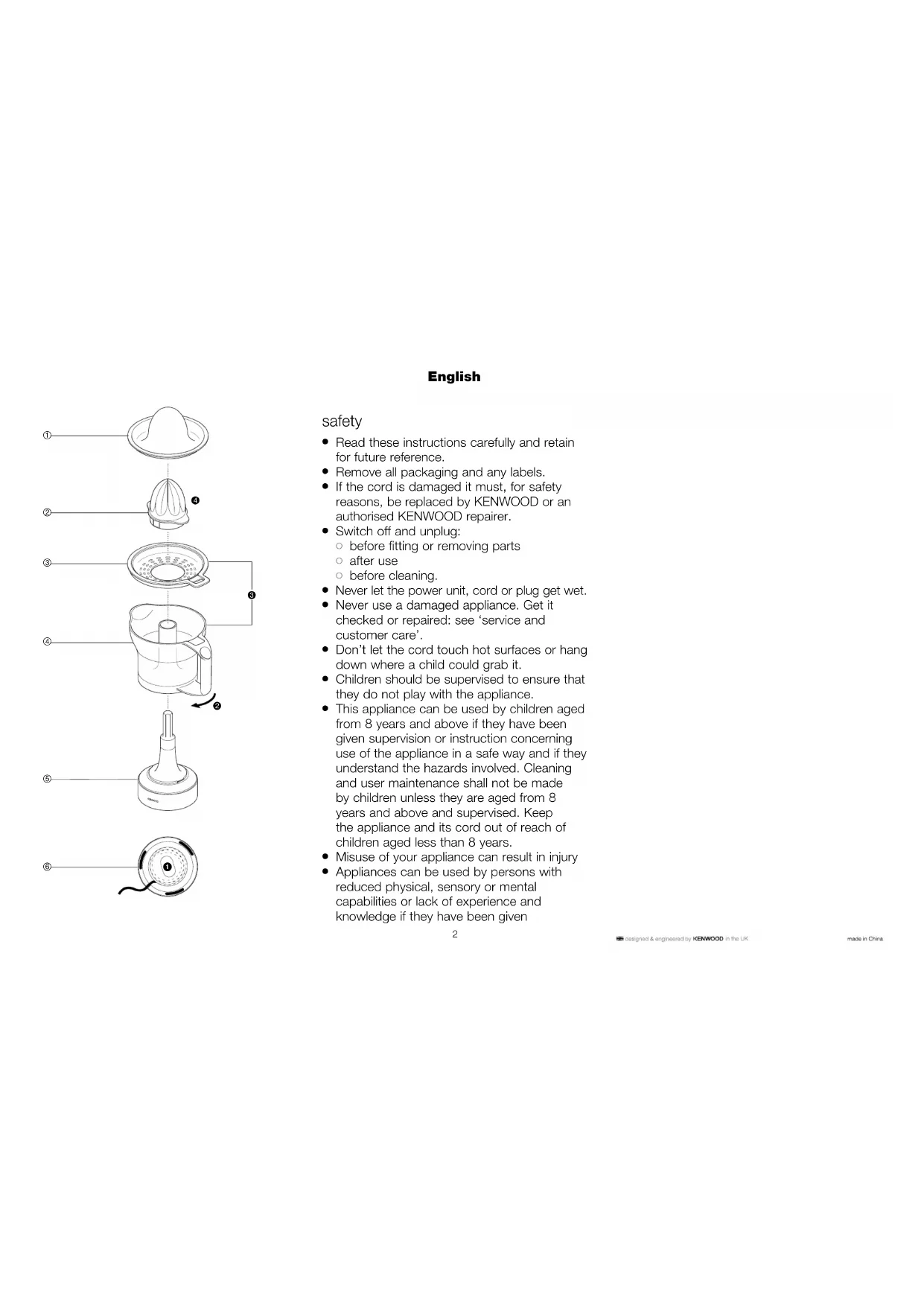

English

safety

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels.
• If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer.
• Switch off and unplug:
• before fitting or removing parts
  after use
  before cleaning.
• Never let the power unit, cord or plug get wet.
• Never use a damaged appliance. Get it checked or repaired: see 'service and customer care'.
• Don't let the cord touch hot surfaces or hang down where a child could grab it.
  Children should be supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
• Misuse of your appliance can result in injury
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

• Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.
  important
• Do not press too hard on the cone or run for longer than 5 minutes - you may damage your juicer.

Use your new Kenwood Citrus Juicer to squeeze the juice from citrus fruit e.g. oranges, lemons, limes and grapefruits.

before plugging in

• Make sure your electricity supply is the same as the one shown on the underside of the appliance.
• This appliance conforms to EC Regulation 1935/2004 on materials and articles intended to come into contact with food.

before using for the first time

1 Wash the parts: see 'cleaning'.
2 Wrap any excess cord around the bracket on the underside of the power unit 1.

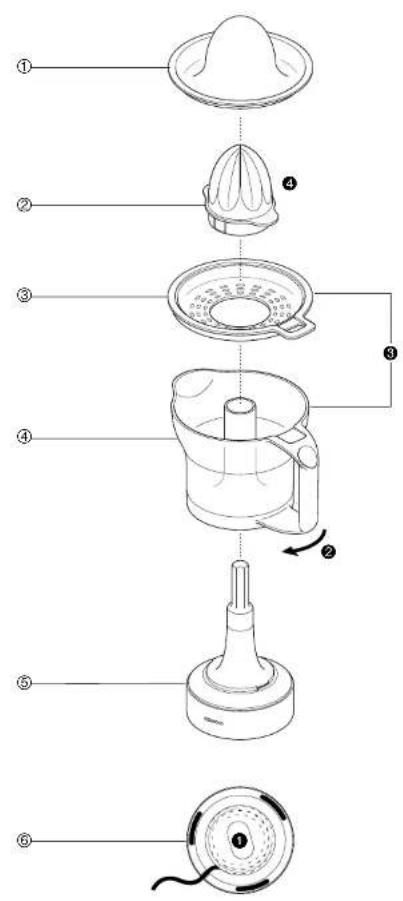

key

① dust cover
② cone
③ sieve
④ juice jug with pouring lip
⑤ power unit
⑥ cord wrap

to use your citrus juicer

1 Place the juice jug onto the power unit, hold the handle and turn clockwise until it locks ②.
2 Put the sieve inside the juice jug 3 then add the cone 4.
3 Cut the fruit in half. Then press each half down on to the cone and the juicer will operate automatically.
- During use the cone may change the direction it rotates. This is normal and ensures that the maximum amount of juice is squeezed out of the fruit.
- For best results hand roll the fruit on a worktop before juicing.
- To help with juice extraction move the fruit from side to side.
4 To stop the juicer lift the fruit from the cone.
5 To pour the juice, remove the cone and sieve from the juice jug and pour using the pouring lip.
- When juicing large quantities, empty the sieve regularly to prevent the build up of pulp and seeds. Empty the juice jug as required.

cleaning

Always switch off, unplug and dismantle before cleaning.
- Replace the dust cover after use.

power unit

• Wipe with a damp cloth, then dry.

other parts

• Wash in hot soapy water, then dry.
• Alternatively they can be washed in your dishwasher.

Item Suitable	for dishwashing
Dust cover	✓
Cone	✓
Sieve	✓
Juice jug with pouring lip	✓

service and customer care

• If you experience any problems with the operation of your appliance, before requesting assistance visit www.kenwoodworld.com.
• Please note that your product is covered by a warranty, which complies with all legal provisions concerning any existing warranty and consumer rights in the country where the product was purchased.

• If your Kenwood product malfunctions or you find any defects, please send it or bring it to an authorised KENWOOD Service Centre. To find up to date details of your nearest authorised KENWOOD Service centre visit www.kenwoodworld.com or the website specific to your Country.

• Designed and engineered by Kenwood in the UK.
  Made in China.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH THE EUROPEAN DIRECTIVE ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

At the end of its working life, the product must not be disposed of as urban waste.

It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
