USER MANUAL PureJuice One JMP40 KENWOOD

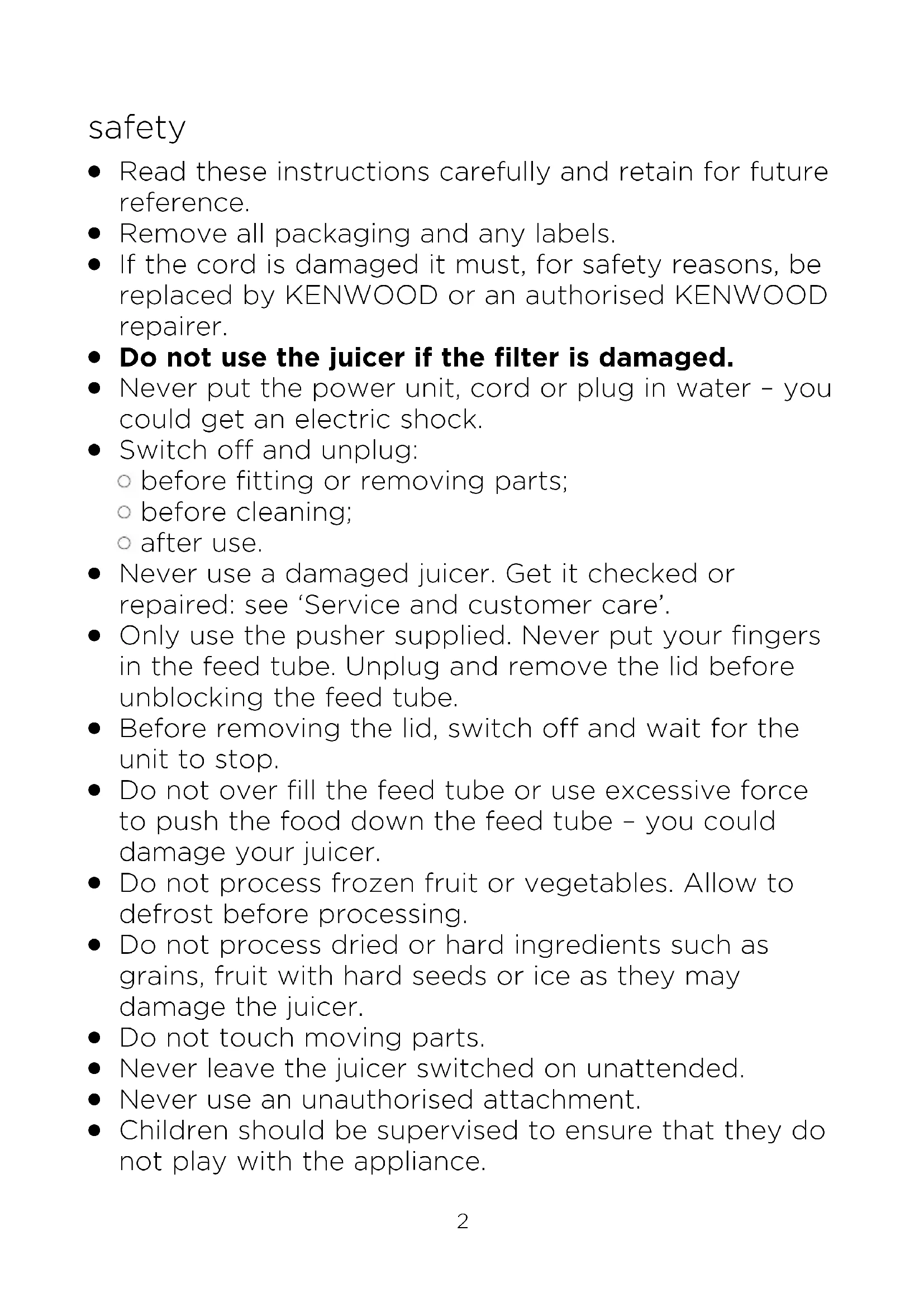

Read these instructions carefully and retain for future reference.

Remove all packaging and any labels.

If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer.

Do not use the juicer if the filter is damaged.

Never put the power unit, cord or plug in water – you could get an electric shock.

Switch off and unplug: before fitting or removing parts; before cleaning; after use.

Never use a damaged juicer. Get it checked or repaired: see ‘Service and customer care’.

Only use the pusher supplied. Never put your fingers in the feed tube. Unplug and remove the lid before unblocking the feed tube.

Before removing the lid, switch off and wait for the unit to stop.

Do not over fill the feed tube or use excessive force to push the food down the feed tube – you could damage your juicer.

Do not process frozen fruit or vegetables. Allow to defrost before processing.

Do not process dried or hard ingredients such as grains, fruit with hard seeds or ice as they may damage the juicer.

Do not touch moving parts.

Never leave the juicer switched on unattended.

Never use an unauthorised attachment.

Children should be supervised to ensure that they do not play with the appliance.

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

Misuse of your appliance can result in injury.

Do not let the cord touch hot surfaces or hang down where a child could grab it.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

Do not operate juicer continuously for longer than 15 minutes in any 45 minute period. before plugging in Make sure your electricity supply is the same as the one shown on the underside of the appliance.

WARNING: THIS APPLIANCE MUST BE EARTHED.

This appliance conforms to EC Regulation 1935/2004 on materials and articles intended to come into contact with food. before using for the first time Wash the parts: see ‘care and cleaning’. key

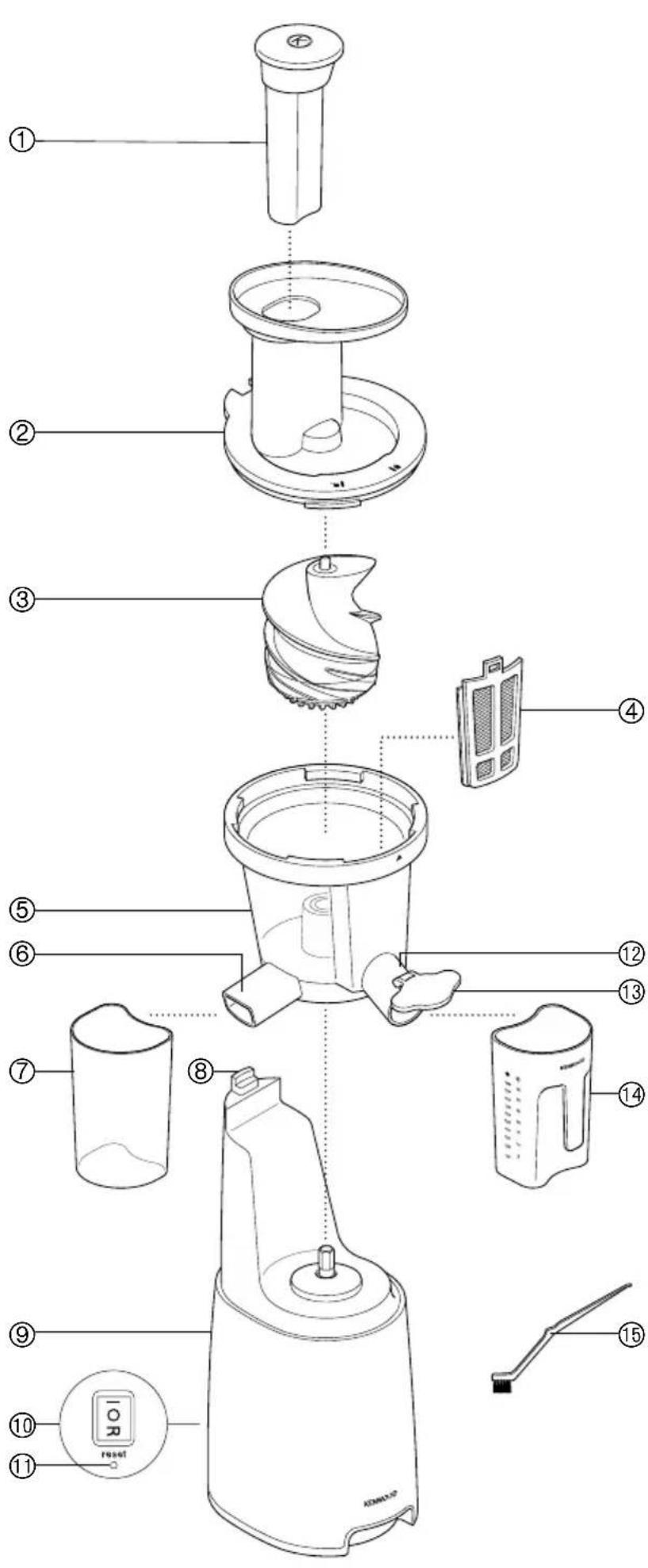

pusher lid with hopper scroll filter juicing bowl pulp spout pulp container lid lock power unit On/O/Reverse switch reset button juice spout anti-drip stopper juice jug cleaning brush3 4 to assemble your juicer (Aè I) Aè B Fit the pulp stopper into the opening on the underside of the juicing bowl

and push in until secure.

by positioning the juice spout to the front.

into the juicing bowl

, pushing down to secure into place.

into the juicing bowl and push down to secure. Note: the lid cannot be fitted if the scroll is not fully pushed down. Fè G Fit the lid

onto the unit ensuring the with the (graphic) on the power unit(graphic) on the bottom of the bowlunlock graphic lock graphic / Fit the lid onto the unit and click into place (x) lter holder assembly into the juicing bowl and align the (graphic)(graphic) on the juicing bowlswitch graphic, on, o & reverse lines up with the

on the front of the juicing bowl. Then turn the lid clockwise until it clicks into place and the with the (graphic) on the power unit(graphic) on the bottom of the bowlunlock graphic lock graphic / Fit the lid onto the unit and click into place (x) lter holder assembly into the juicing bowl and align the (graphic)(graphic) on the juicing bowlswitch graphic, on, o & reverse lines up with the

on the front of the juicing bowl. Hè I Close the lid lock. to use your juicer (J) Place the pulp container

under the pulp spout

and place the juice jug

under the juice spout

. Ensure the anti- drip stopper

is in the open position before juicing. Switch on

and feed the food items down slowly using the pusher.

Use the recommended usage chart as a guide for juicing dierent fruits and vegetables.

To extract the maximum amount of juice, always push the food down slowly using the pusher. Do not use excessive force as the food should be pulled down by the scroll.

If the food becomes jammed in the feed tube or on the scroll and the juicer stops operating switch to the ‘ with the (graphic) on the power unit(graphic) on the bottom of the bowlunlock graphic lock graphic / Fit the lid onto the unit and click into place (x) lter holder assembly into the juicing bowl and align the (graphic)(graphic) on the juicing bowlswitch graphic, on, o & reverse ’ o position. Then press and hold the ‘ with the (graphic) on the power unit(graphic) on the bottom of the bowlunlock graphic lock graphic / Fit the lid onto the unit and click into place (x) lter holder assembly into the juicing bowl and align the (graphic)(graphic) on the juicing bowlswitch graphic, on, o & reverse ’ reverse button down until the food becomes dislodged. Once the food is released, you can start juicing again. hints and tips

Wash all fruit and vegetable thoroughly before juicing.

To maximise juice extraction place small quantities at a time in the feed tube and push down slowly.

Hard foods are best juiced at room temperature.

You do not have to remove thin peels or skins. Only remove thick peels that you would not eat e.g. those of oranges, pineapples, melons and uncooked beetroots.

Use fresh fruit and vegetables as they contain more juice.

Remove stones and hard seeds from cherries, plums etc.

Vitamins disappear - the sooner you drink your juice, the more vitamins you will get.

If you need to store the juice for a few hours put it in the fridge. It will keep better if you add a few drops of lemon juice. Health Recommendations

Do not drink more than three 230mls (8 fl.oz.) glasses of juice a day unless you are used to it.

Dilute juice for children with an equal amount of water.

Juice from dark green (broccoli, spinach etc.) or dark red (beetroot, red cabbage etc.) vegetables is extremely strong, so always dilute it.

Fruit juice is high in Fructose (fruit sugar), so people with diabetes or low blood sugar should avoid drinking too much. after juicing (K) After adding the last piece of food, allow the juicer to run to help clear the juice from the juicing bowl. The time will vary depending on the fruit type and thickness of the juice extracted. Switch o and wait until the final flow of juice has reduced to a few slow drips. Then place the anti-drip stopper

in position before removing the jug. Refer to the troubleshooting section if you experience any problems with the operation of the juicer.5 recommended usage chart Fruit/Vegetable Preparation Hints and Tips Apples Cut down to fit the feed tube. To maximise juice extraction hard foods are best juiced when at room temperature. Carrots Cut down to fit the feed tube. Pineapple Remove the leaves and stalks by slicing o the top and base. Cut into length- wise pieces. To prevent the filter from clogging clean the filter after every large pineapple. Seedless Grapes Remove stalks. Process small handfuls at a time to maximise juice extraction. Tomatoes Cut down to fit the feed tube. A thick pulpy juice will be produced rather than a smooth juice. To prevent the filter from clogging, clean the filter after every 500g of tomatoes processed. Mangoes Remove tough skin and stones. The juice produced will be very thick. Melons Remove tough skin. – Kiwi fruits Cut down to fit the feed tube. – Soft berries- (Raspberries, Blackberries etc.) Juice whole. Process small handfuls at a time to maximise juice extraction. Harder berries- (Cranber- ries etc.) Beetroot (Raw) Remove leaves and peel. – Leafy Vegetables- spinach, kale, wheatgrass etc. Wrap leaves into a bunch. – Celery Juice whole. – Cucumber Cut down to fit the feed tube. – Citrus fruits- Oranges Peel and remove white pith. – Fruit with stones or hard seeds (Nectarines, Plums, Cherries etc.) Remove the stones or hard seeds be- fore juicing.

Pomegranates Open the fruit by scoring the outside skin and breaking apart. Submerge in a large bowl of cold water and remove the seeds from the pulp (this helps to separate the seeds as they will sink to the bottom of the bowl and the white pulp will float to the top). –5 6 care and cleaning

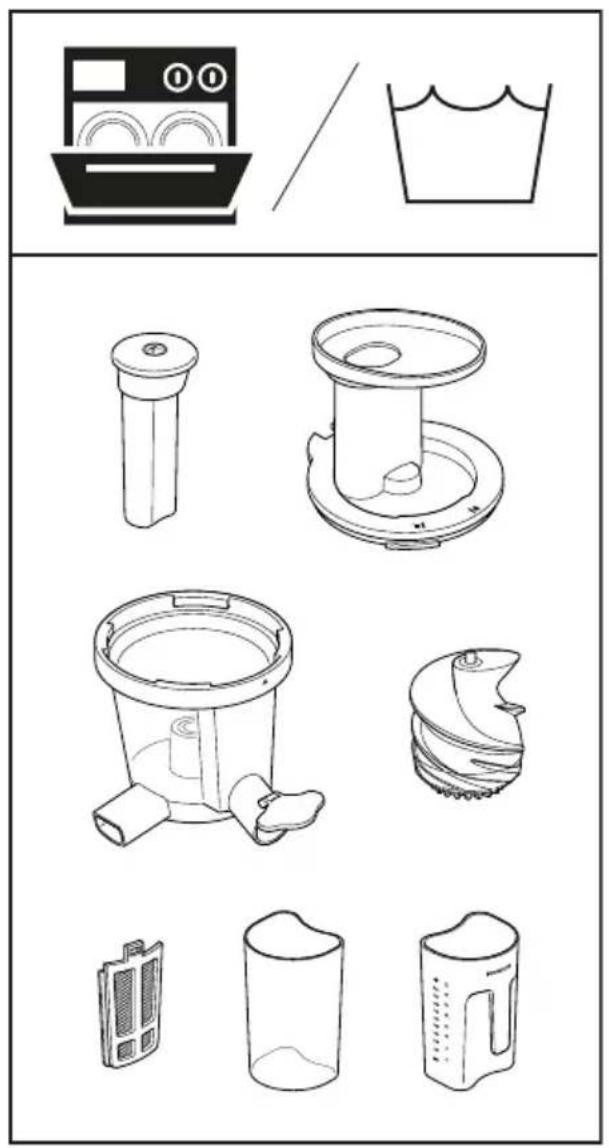

Always switch o, unplug and take the juicer apart before cleaning.

Some discolouration of parts may occur upon using ingredients such as carrot or leafy vegetables. Cleaning all parts immediately after each use will help to reduce stains.

Do not clean the pulp or filter outlet with a sharp pointed object such as the end of a knife as you will damage the bowl. Use the tip of the cleaning brush handle to clean the outlets. power unit

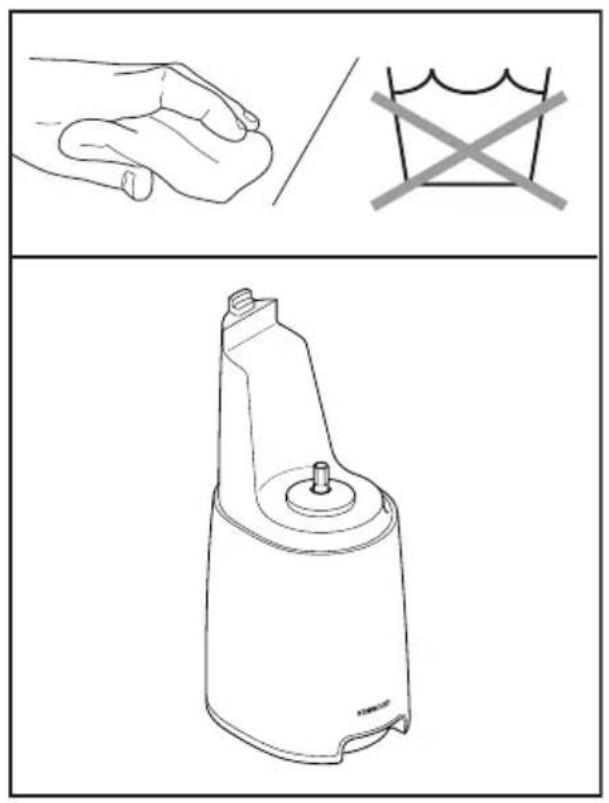

Wipe with a damp cloth, then dry.

Do not immerse in water. filter

To assist with removal of pulp and fibres, place the anti-drip stopper in the closed position. Switch the juicer on and pour approximately 150mls water down the feed tube. Operate the juicer for approximately 20 seconds, place the juice jug under the juice spout and open the stopper to allow the water to flow out.

Always clean the filter immediately after juicing.

Use the brush supplied to clean the filter. For best results, rinse under water and brush until clear. service & customer care

If you experience any problems with the operation of your appliance, before requesting assistance refer to the “troubleshooting guide” section in the manual or visit www.kenwoodworld.com.

Please note that your product is covered by a warranty, which complies with all legal provisions concerning any existing warranty and consumer rights in the country where the product was purchased.

If your Kenwood product malfunctions or you find any defects, please send it or bring it to an authorised KENWOOD Service Centre. To find up to date details of your nearest authorised KENWOOD Service centre visit www.kenwoodworld.com or the website specific to your Country.

Designed and engineered by Kenwood in the UK.

CORRECT DISPOSAL OF THE PRODUCT

ELECTRONIC EQUIPMENT (WEEE) At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.7 Problem Cause Solution The juicer will not start/ does not operate.

• Juicing bowl not properly aligned on power unit or lid not locked correctly.

• Make sure the appliance is plugged in.

• Check that all parts are fitted correctly. The juicer has stopped during normal operation.

• Clogging in filter and scroll.

• Food not cut into small enough pieces.

• Press the reverse button for 3-5 seconds. Repeat the process 2-3 times until blockage cleared.

• Do not attempt to open the lid by force.

• Switch o, unplug and remove the lid. Check if any clogging. Remove food if necessary and continue juicing.

• Juicer overloaded or overheat- ed due to heavy load.

• Switch o, unplug and take the juicer apart. Clear and reassemble the juicer.

• Plug in and press the “reset” button

and hold for 1-2 seconds and start operation as normal. Juice is leaking from underneath the bowl.

• Pulp stopper not fitted or has come loose during operation.

• Check that the pulp outlet stopper is fitted correctly. Juice does not exit juicing outlet.

• Anti-drip stopper closed. • Remove stopper and allow juice to flow into juice container. Too much pulp coming out in juice.

• Filter or scroll clogging.

• Very fibrous fruit/vegetable being processed.

• Cut food, especially fibrous foods, into smaller pieces to avoid the fibres wrapping around the scroll. Staining on juicing parts. • Natural colouring from food. • Rubbing with a cloth dipped in vegetable oil will help to remove discolouring. There is a squeaking noise when juicing.

• Friction between ingredients and bowl.
