NovaMaster 500 - Flashlight Laserliner - Free user manual and instructions

Brand	Laserliner
Model	NovaMaster 500
Product type	Flashlight
Dimensions (L x diameter)	142 x 41 mm
Weight	133 g
Light source	LED Cree XP-G2
Max luminous flux	500 lm (Boost mode)
Lighting levels	4 : Low (60 lm), Medium (120 lm), High (250 lm), Boost (500 lm)
Battery life (Low / Medium / High)	50 h / 10 h / 4 h
Charging time	2 h
Power supply	Built-in rechargeable battery via USB-C port
Protection rating	IP65 (water jet protected)
Operating temperature	-22°C to 55°C
Storage temperature	-30°C to 60°C
Zoom function	Yes, head rotation to adjust beam diameter
Tiltable head	Yes, up to 90°
Magnetic attachment	Yes, two integrated magnets
Transport clip	Yes, pocket clip
Safety	Do not look directly at the beam; risk group 2 according to DIN EN 62471
Certifications	CE, WEEE compliance
Maintenance	Clean with a slightly damp cloth; avoid solvents and abrasive products
Repairability	Battery not user-replaceable; no detachable parts

Frequently Asked Questions - NovaMaster 500 Laserliner

What are the available lighting levels?

The NovaMaster 500 offers four lighting levels: Low (60 lm), Medium (120 lm), High (250 lm) and Boost (500 lm). To switch between them, press and hold the control button for 1 to 2 seconds to turn on, then click repeatedly to change modes.

How to charge the battery?

Remove the rubber cover on the side of the lamp, then connect a USB-C cable to a power source. The red LED indicates charging, and the green LED signals that the battery is fully charged (about 2 hours).

How long does the battery last?

Battery life varies by lighting level: 50 hours in Low mode, 10 hours in Medium mode, 4 hours in High mode. Boost mode has no specified battery life as it is designed for short use.

Is the lamp waterproof?

Yes, the NovaMaster 500 has a protection rating of IP65, making it protected against water jets. It is therefore suitable for outdoor use or in humid conditions, but should not be immersed.

Can I use the lamp while charging?

Yes, it is possible to use the lamp while charging. However, be careful not to cover the lamp during operation to avoid heat buildup.

How to adjust the beam?

Rotate the lamp head: clockwise to zoom in (narrow beam), counterclockwise to zoom out (wide beam). The head can also be tilted up to 90° for targeted lighting.

Is the lamp suitable for professional use?

Thanks to its robustness, IP65 waterproofing, magnets and clip, the NovaMaster 500 is ideal for professionals (workshop, construction site, mechanics, etc.). Its maximum power of 500 lm and beam adjustment offer great versatility.

Can I replace the battery myself?

No, the battery is built-in and not user-replaceable. In case of battery issues, contact Laserliner customer service. Do not attempt to open the lamp, as this will void the warranty.

What safety precautions should be observed?

Never look directly at the light beam, especially in Boost mode. Avoid pointing the lamp at people's or animals' eyes. Do not cover the lamp during operation to avoid overheating. Keep a safety distance of 30 cm from medical implants due to the strong magnets.

Where to find the full manual?

The complete user manual is available free in PDF format on the website notice-facile.com or on the manufacturer's website laserliner.com. You can also request a translation in your language via the form on the manual page.

USER MANUAL NovaMaster 500 Laserliner

Gray handheld device with a circular lens and hexagonal base, no visible text or symbols

Laserliner

!

Close-up of a mobile phone casing with a grid-patterned circular button and an arrow pointing to it (no text or symbols visible)

Mechanical component with curved arrow indicating rotation or motion (no text or symbols)

3 Akku laden

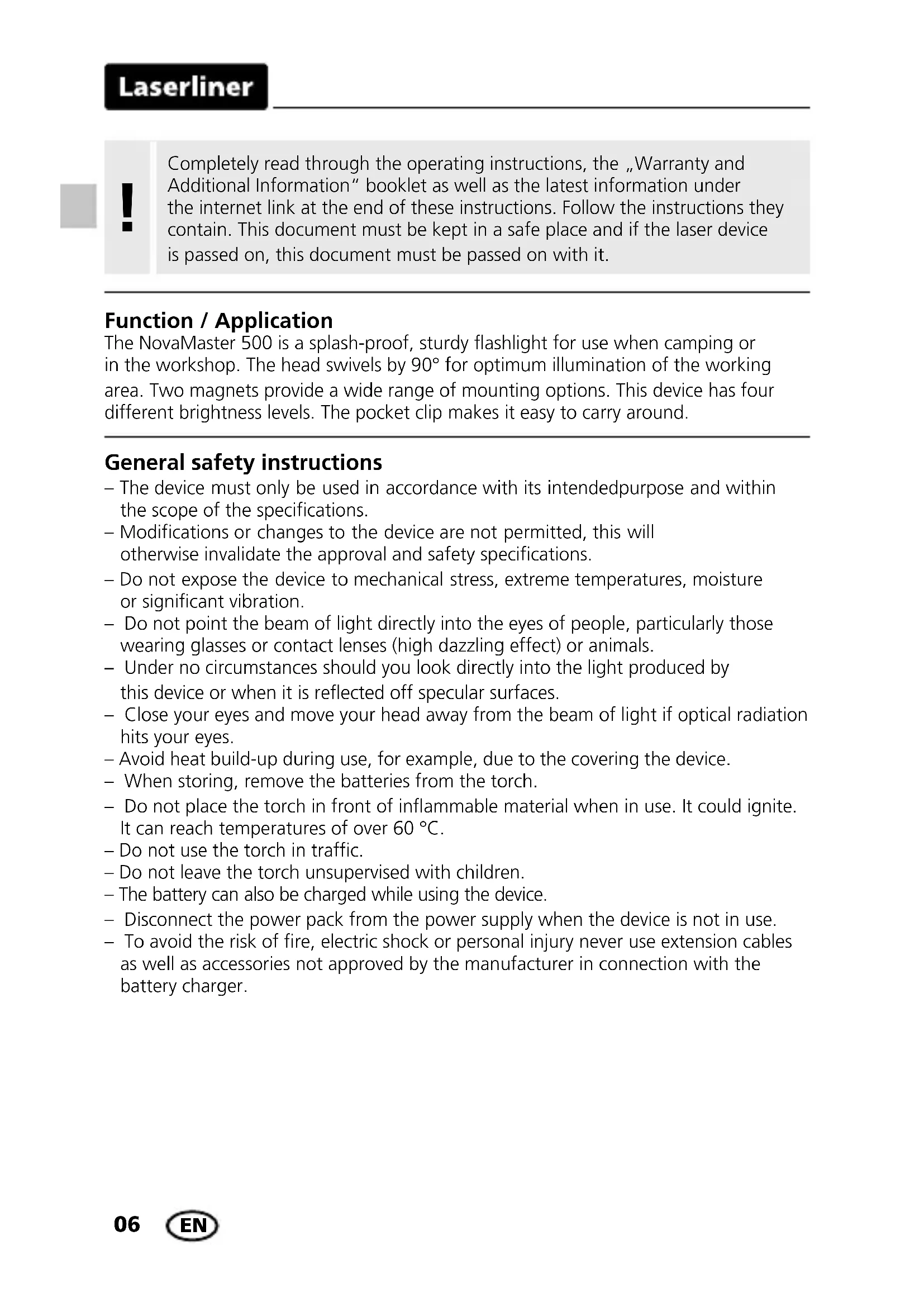

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

Function / Application

The NovaMaster 500 is a splash-proof, sturdy flashlight for use when camping or in the workshop. The head swivels by 90° for optimum illumination of the working area. Two magnets provide a wide range of mounting options. This device has four different brightness levels. The pocket clip makes it easy to carry around.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• Do not point the beam of light directly into the eyes of people, particularly those wearing glasses or contact lenses (high dazzling effect) or animals.
• Under no circumstances should you look directly into the light produced by this device or when it is reflected off specular surfaces.
• Close your eyes and move your head away from the beam of light if optical radiation hits your eyes.
• Avoid heat build-up during use, for example, due to the covering the device.
• When storing, remove the batteries from the torch.
• Do not place the torch in front of inflammable material when in use. It could ignite. It can reach temperatures of over 60 °C.
• Do not use the torch in traffic.
• Do not leave the torch unsupervised with children.
• The battery can also be charged while using the device.
• Disconnect the power pack from the power supply when the device is not in use.
• To avoid the risk of fire, electric shock or personal injury never use extension cables as well as accessories not approved by the manufacturer in connection with the battery charger.

Safety instructions

Using artificial, optical emission (OStrV)

Risk Group 2

CAUTION: Possibility of harmful optical radiation. Hazard for retina from blue light between 400 and 780 nm. Do not look into the lamp for longer periods during operation. Can be harmful to eyesight.

DIN EN 62471

Safety instructions

Danger – powerful magnetic fields

• Powerful magnetic fields can adversely affect persons with active medical implants (e.g. pacemaker) as well as electromechanical devices (e.g. magnetic cards, mechanical clocks, precision mechanics, hard disks).
• With regard to the effect of powerful magnetic fields on persons, the applicable national stipulations and regulations must be complied with such as BGV B11 §14 „electromagnetic fields" (occupational health and safety - electromagnetic fields) in the Federal Republic of Germany.
• To avoid interference/disruption, always keep the implant or device a safe distance of at least 30 cm away from the magnet.

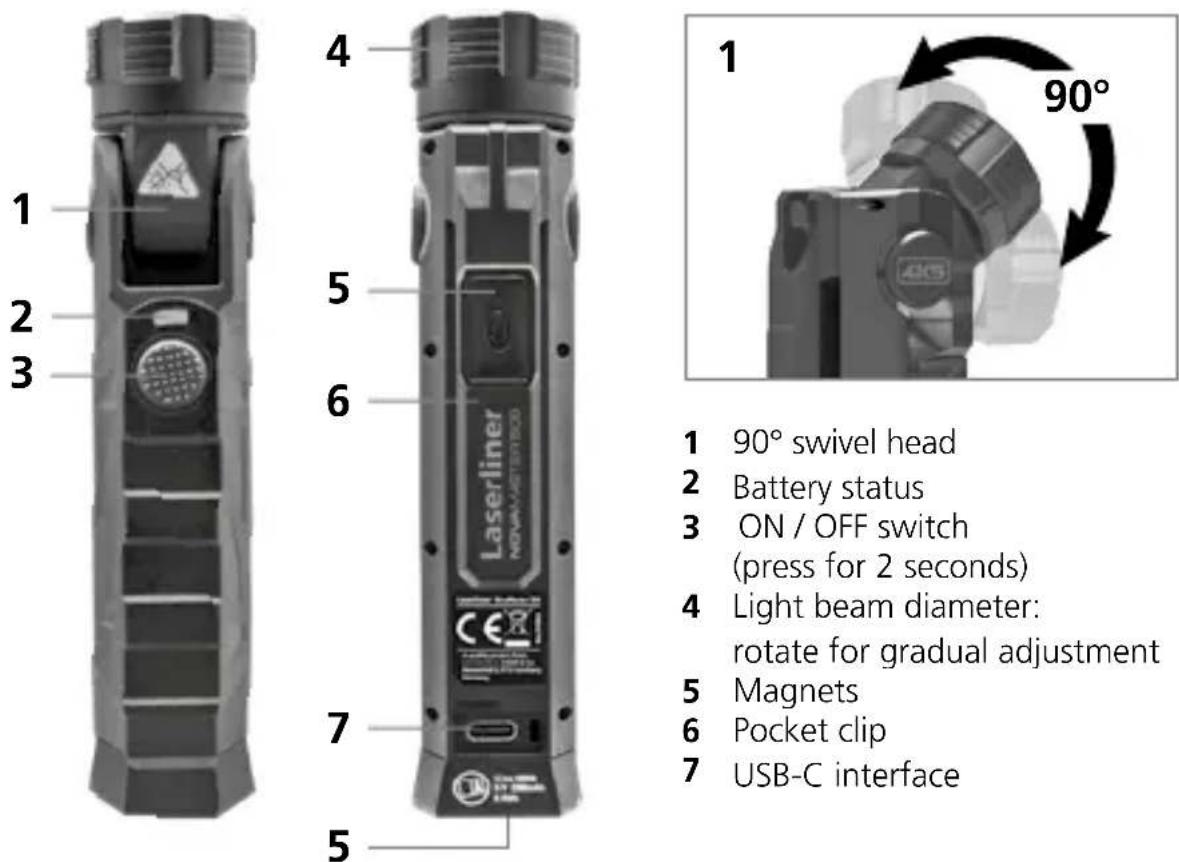

1 2 3 4 5 6 7 5 Laserliner NEW-VIEW-1020 90° 1 90° swivel head Battery status ON / OFF switch (press for 2 seconds) 4 Light beam diameter: rotate for gradual adjustment 5 Magnets 6 Pocket clip 7 USB-C interface

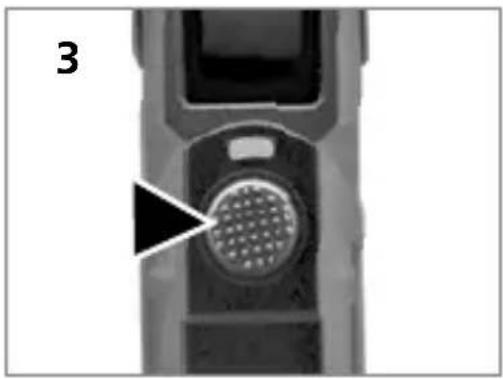

1 Light levels

1. Click: hold the button down for 1 or 2 seconds: Switch on / light level: high mode
2. Click Medium mode
3. Click: Low mode
4. Double click: boost mode
5. Click: hold down for 1 or 2 seconds: switch off

Close-up of a mobile phone casing with a grid-patterned circular button and an arrow pointing to it (no text or symbols visible)

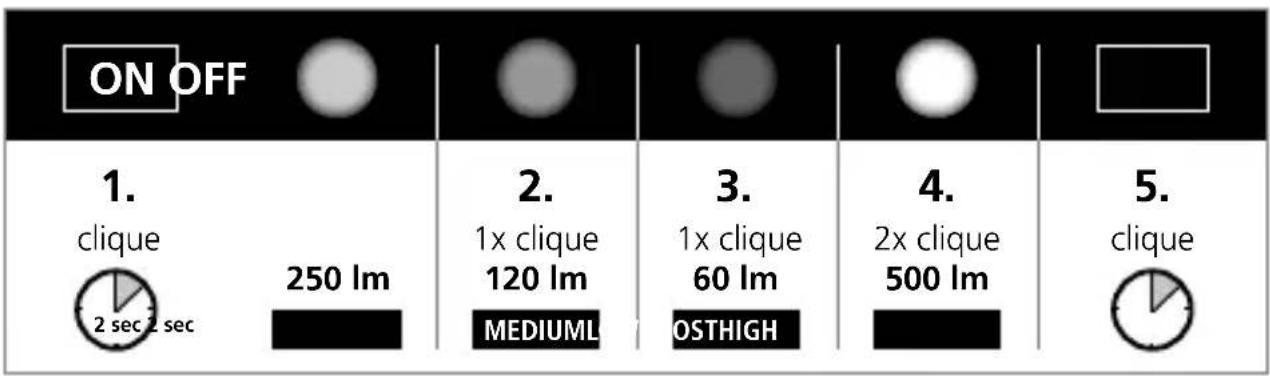

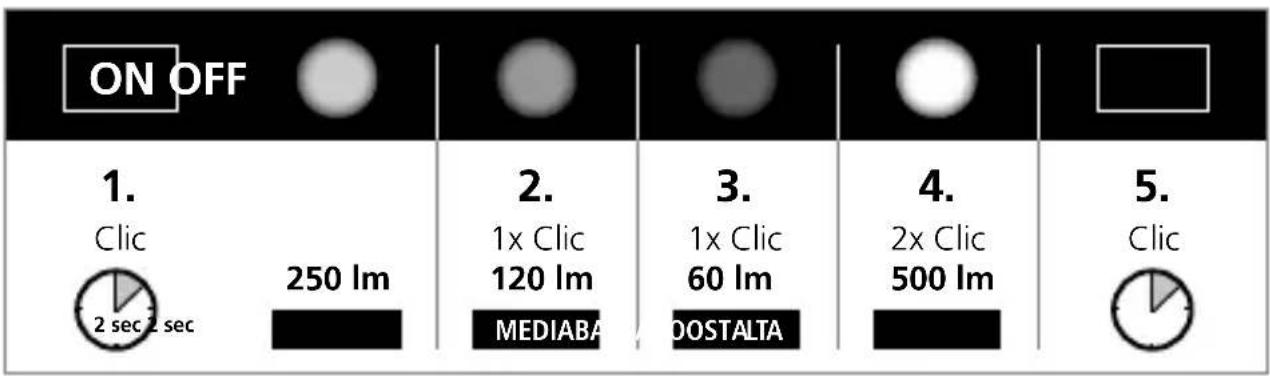

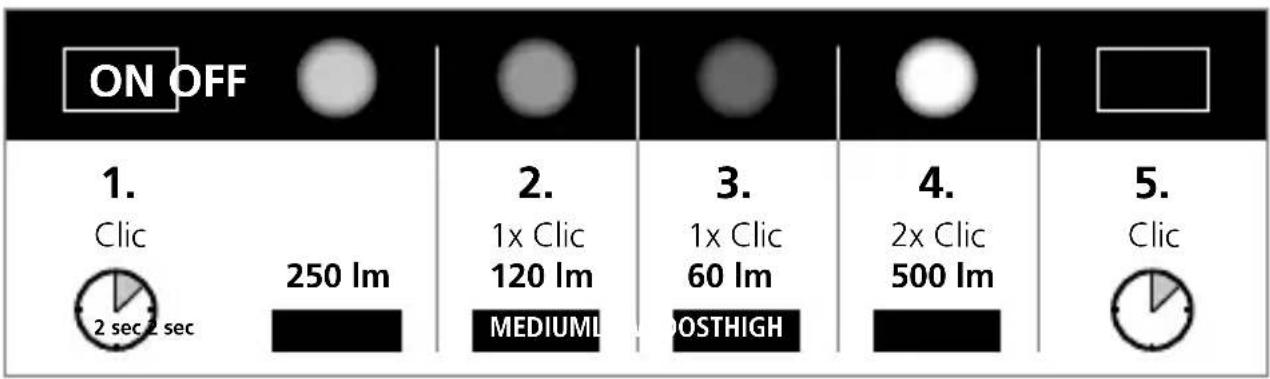

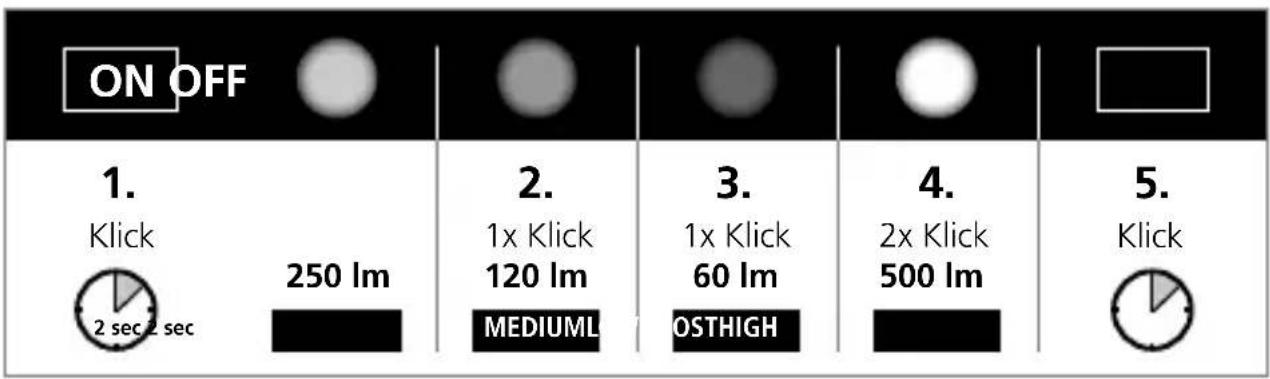

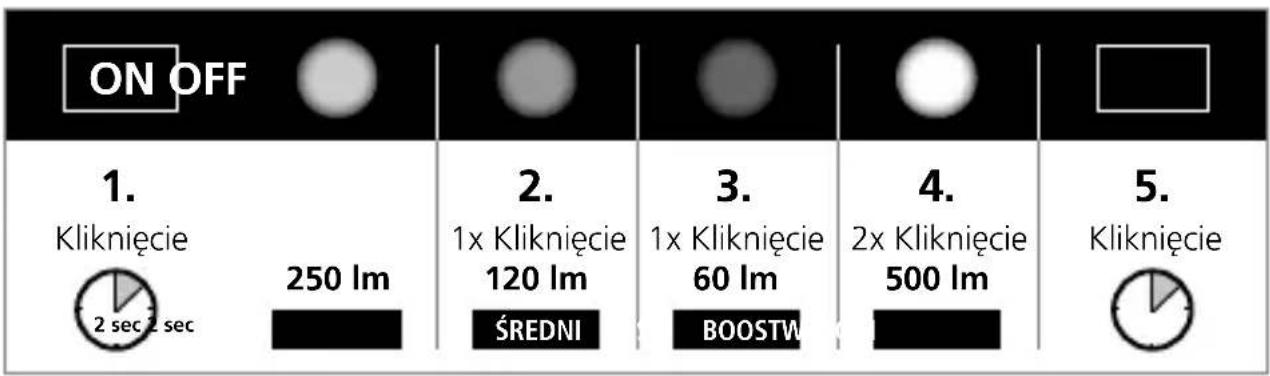

ON OFF 1. Click 2 sec 2 sec 250 lm MEDIUMLO 2. 1x Click 120 lm MEDIUMLO 3. 1x Click 60 lm DSTHIGH 4. 2x Click 500 lm Click 5. Click

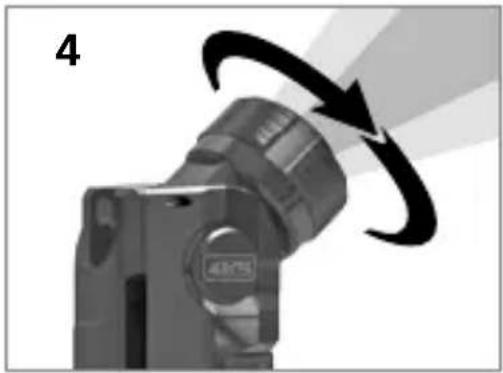

2 Adjusting the light beam

1. Clockwise rotation: zoom in for a narrow beam of light.
2. Anti-clockwise rotation: zoom out for a wide beam of light.

Mechanical component with rotational arrow indicating motion (no text or symbols)

3 Battery charging

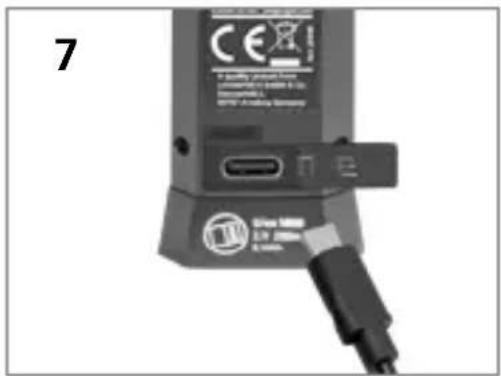

1. Remove rubber cover
2. Connect the device to a power source using the USB-C interface and USB-C cable.

Red LED: charging

Green LED: battery fully charged

7 CE ITC 2.0V 100mA E-100A

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Technical Data (Subject to technical changes without notice. 21W04)

Luminosity low / medium / high / boost 60 /	120 / 250 / 500 lm
Duration low / medium / high 50 / 10 / 4 h
Charging time 2 h
LED chip Cree XP-G2
Protection class IP 65
Charging port USB-C
Operating conditions -22° ... 55°
Storage conditions -30° ... 60°
Overall length 142 mm
Diameter 41 mm
Overall weight 133 g

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at: www.laserliner.com/info
