USER MANUAL NovaMaster 200 Laserliner

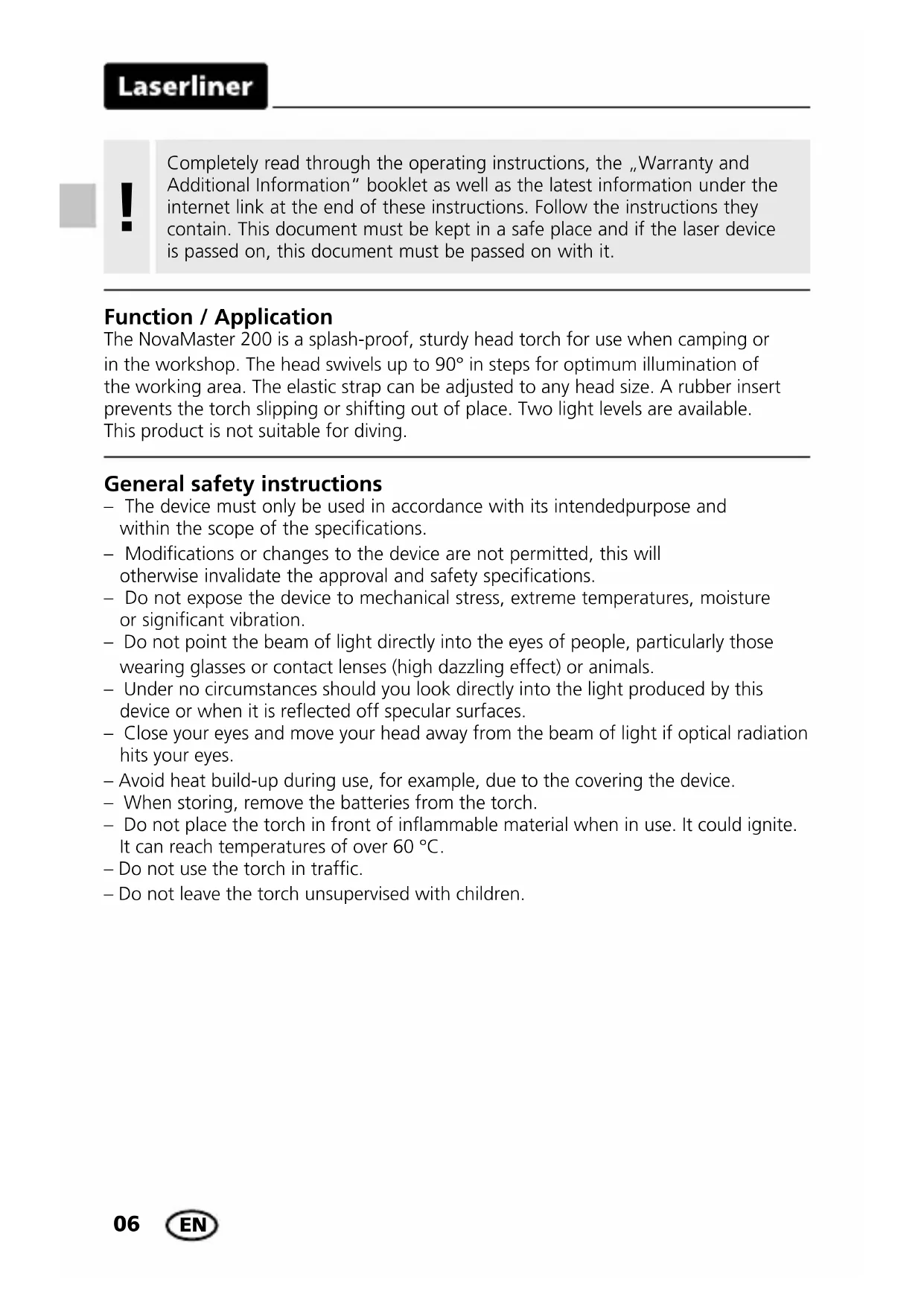

Completely read through the operating instructions, the „Warranty and Additional Information" booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

Function / Application

The NovaMaster 200 is a splash-proof, sturdy head torch for use when camping or in the workshop. The head swivels up to 90^ in steps for optimum illumination of the working area. The elastic strap can be adjusted to any head size. A rubber insert prevents the torch slipping or shifting out of place. Two light levels are available. This product is not suitable for diving.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• Do not point the beam of light directly into the eyes of people, particularly those wearing glasses or contact lenses (high dazzling effect) or animals.
• Under no circumstances should you look directly into the light produced by this device or when it is reflected off specular surfaces.
• Close your eyes and move your head away from the beam of light if optical radiation hits your eyes.
• Avoid heat build-up during use, for example, due to the covering the device.
• When storing, remove the batteries from the torch.
• Do not place the torch in front of inflammable material when in use. It could ignite. It can reach temperatures of over 60^ .
• Do not use the torch in traffic.
• Do not leave the torch unsupervised with children.

Safety instructions

Using artificial, optical emission (OStrV)

Risk Group 2

CAUTION: Possibility of harmful optical radiation. Hazard for retina from blue light between 400 and 780~nm . Do not look into the lamp for longer periods during operation. Can be harmful to eyesight.

DIN EN 62471

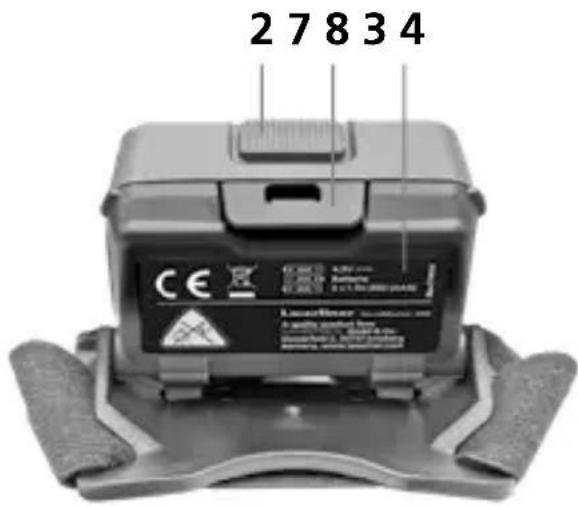

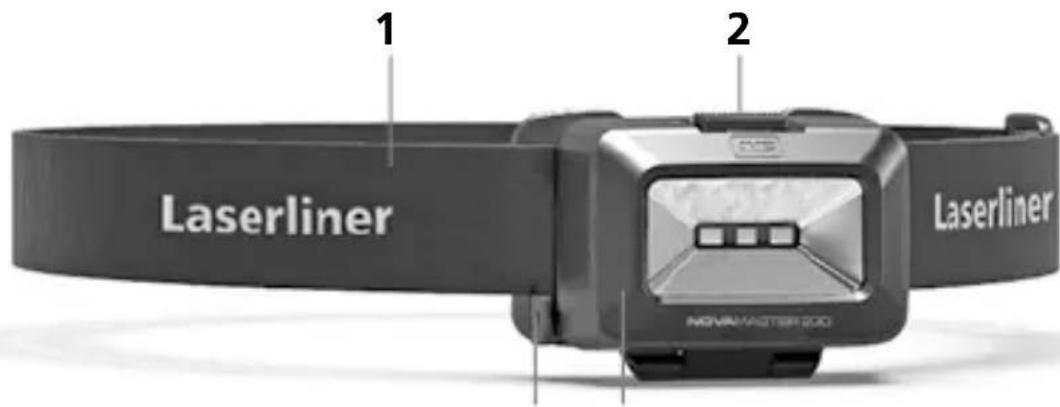

1 Elastic head band
2 ON/OFF switch

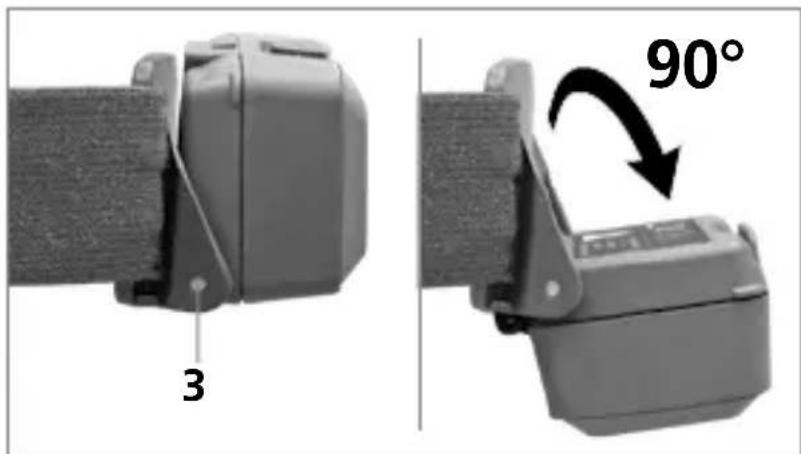

3 Head torch with 90^ downward adjustment
4 Head

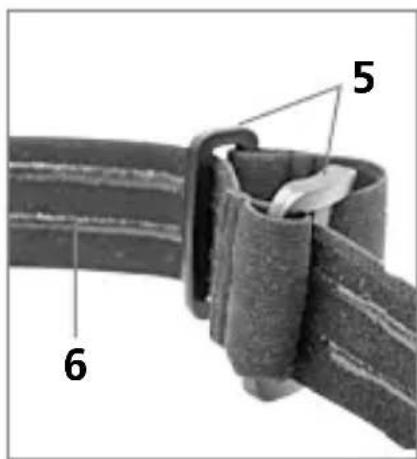

5 Width-adjustable clips
6 Rubber insert for non-slip retention
7 Clip for opening the battery compartment
8 Battery compartment

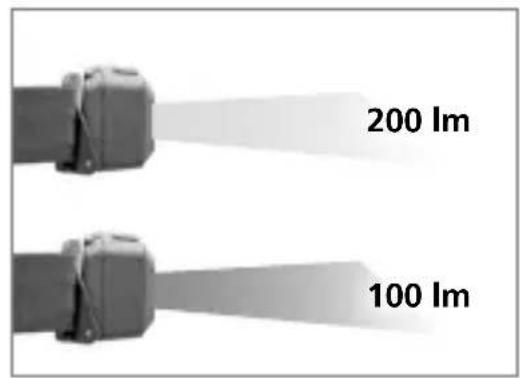

Light levels

1. Click: hold the button down for 1 or 2 seconds: Switch on / light level: high mode
2. Click: low mode
3. Click: hold down for 1 or 2 seconds: switch off

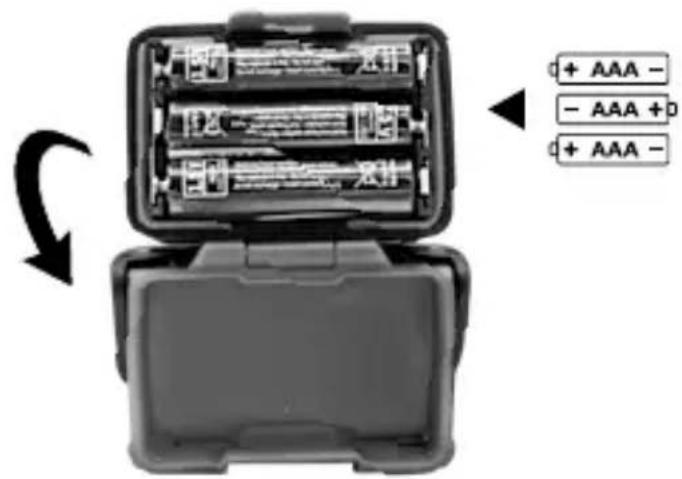

2 Inserting batteries

When inserting battery ensure correct polarity.

3 Disposal of batteries

In accordance with the guideline 2006/66/EC, defective or depleted batteries or cells must be separated and taken for recycling in an environmentally appropriate process.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Technical Data (Subject to technical changes without notice. 21W04)
Luminosity high / low 200 / 100 lm
Duration high / low 6 / 12 h
LED-Chip Osram SMT3528
Protection class IP 54
Power supply AAA NiMH 1.2 V / AAA alkaline 1.5 V
Operating conditions -22°... 65°
Storage conditions -30°... 65°
Overall length 37 mm
Overall weight 100 g

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at: www.laserliner.com/info

！
