USER MANUAL Antimite UV JV12 JIMMY

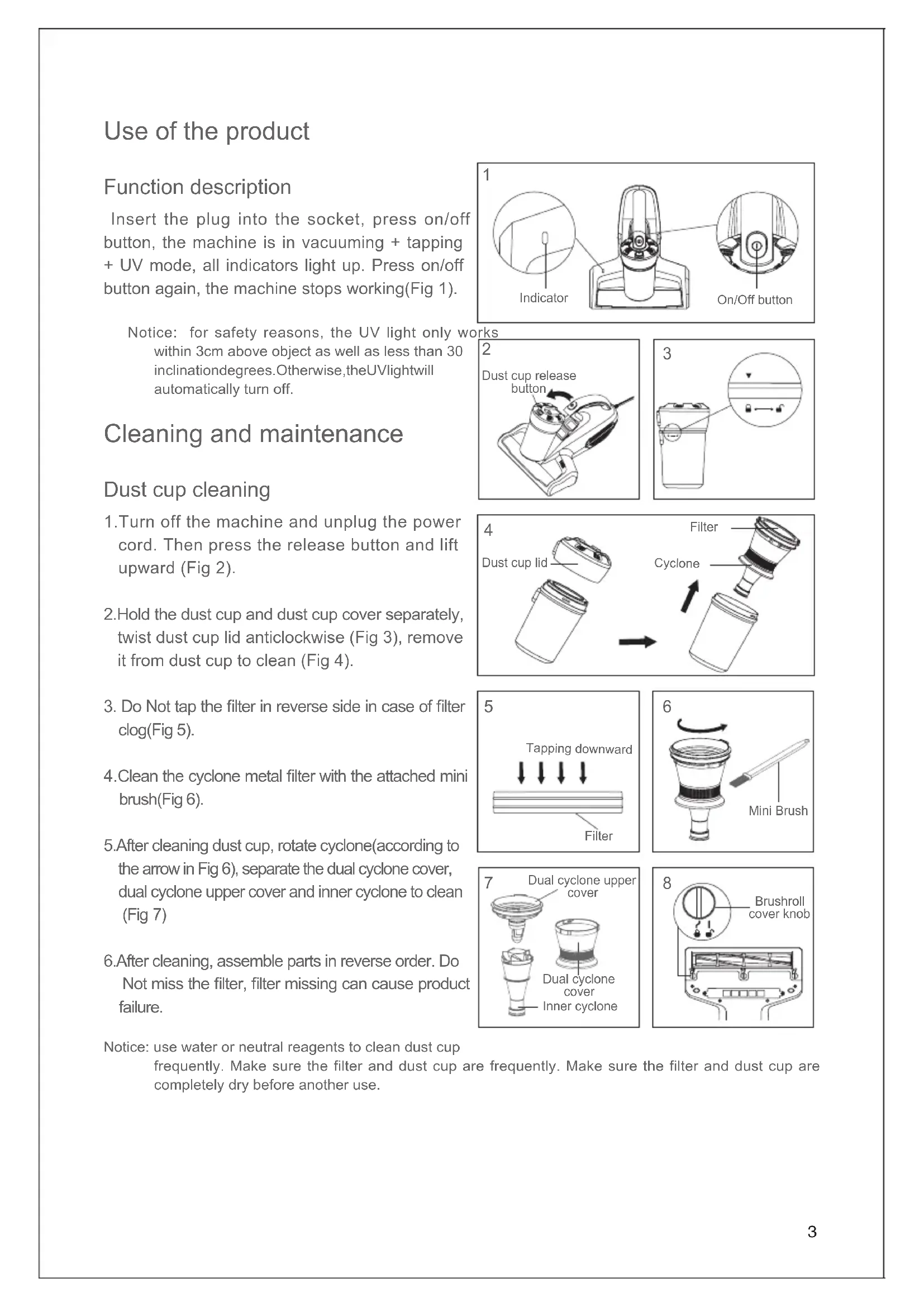

On/Off button Dust cup release button Dust Cup Indicator Brushroll Power Cord UV light cover Ultrasonic generator Brush UV Light Brushroll cover3 Use of the product Function description Insert the plug into the socket, press on/off button, the machine is in vacuuming + tapping + UV mode, all indicators light up. Press on/off button again, the machine stops working(Fig 1). Notice: for safety reasons, the UV light only works within 3cm above object as well as less than 30 inclination degrees. Otherwise, the UV light will automatically turn off. Cleaning and maintenance Dust cup cleaning 1.Turn off the machine and unplug the power cord. Then press the release button and lift upward (Fig 2)

2.Hold the dust cup and dust cup cover separately, twist dust cup lid anticlockwise (Fig 3), remove it from dust cup to clean (Fig 4).

3. Do Not tap the lter in reverse side in case of lter

clog(Fig 5). 4.Clean the cyclone metal lter with the attached mini brush(Fig 6). 5.After cleaning dust cup, rotate cyclone(according to the arrow in Fig 6), separate the dual cyclone cover, dual cyclone upper cover and inner cyclone to clean (Fig 7)

6.After cleaning, assemble parts in reverse order. Do Not miss the lter, lter missing can cause product failure. Notice: use water or neutral reagents to clean dust cup

IndicatorDust cup release buttonDust cup lidFilterFilter Cyclone Brushroll cover knobDual cyclone upper coverInner cycloneDual cyclone coverOn/Off buttonMini Brush Tapping downward frequently. Make sure the filter and dust cup are frequently. Make sure the filter and dust cup are completely dry before another use.4 Brushroll Cleaning Turn off the machine and unplug the power cord, rotate the lock knob with a coin or flat- blade screwdriver from locked position to unlock position (Fig 8) to remove the cover and roller brush to clean up(Fig 9). After brushroll cleaning, snap the hex-gear side into the base rst and press the other side.Install the cover in the reverse order of removing(Fig

Notice: for safety reasons, turn off the machine and unplug power cord before cleaning brushroll. UV light cleaning and maintenance Turn off the machine and unplug the power cord and remove the UV light cover with a cross screwdriver, wipe the UV light with dry cloth. After cleaning, assemble parts back in reverse order. Notice: for safety reasons, please be sure to turn off the machine and unplug the power cord before cleaning UV light in case of electric shock. Maintenance and storage

Brushroll Belt Hex-gear Hex-side Four-corner side Brushroll cover 10-1 10-2 10-3

UV light cover Please clean dust cup and lter after each use for further use. It is recommended to replace a lter after 30-50 hours of working time(depending on specic situation) for better use. Any paper, lead glass, plastic will greatly affect the effect of UV light. Please wipe and clean the UV light tube regularly for better use. Do Not touch the UV light tube as dirt will affect UV light effect.5 Cautions Please read this instruction manual carefully before use and keep it properly for future use. Never leave the machine working without supervision. Keep this product beyond the reach of special individual such as children without adult supervision. Keep the power cord away from sharp objects and do not drag the cord to move the machine in case of cord damage. Do not use this product to clean water or wet dust. Do Not operate it in humid places (such as bathroom, toilet, laundry room, etc.) to avoid malfunction. This product can ONLY use for cleaning of textiles such as mattresses, blankets, pillows, sofas, etc. Do Not place the machine near heating appliances or expose it to direct sunlight in case of re hazard. For safety reasons, please do not use the product to clean hot objects such as carbon, cigarette butts, sharp objects such as broken glass, corrosive liquids, ammable and explosive materials such as gasoline and alcohol. Otherwise it may cause product damage or re. Do Not operate this machine with suction port blocked in case of product damage. Do Not remove the brushroll cover or force the cover outward when the machine is powered on for safety reasons. The product has UV light, for safety reasons, Do Not look at the bottom of the machine when the power is on in case of ultraviolet rays harming. Do Not apply this product to plants. Excessive use of UV may cause object damage. Do NOT sit on this product in case of personal injury and product damage. Cut the power source in maintenance or off-service. When UV protective lampshade is dusty to cause UV light always on, for safety reasons, please wipe it with clean mope. Please turn off the power switch and unplug the power cord if the machine is to be idled. Do Not unplug the power cord with humid hand in case of electric shock. If the power cord is damaged, please ask for professional help of the manufacturer and other professionals for safety reasons.6 Trouble Shooting Please check the following trouble points before go to the maintenance department. Problems Possible Reasons Solution Power Failure Power cord is not rmly inserted. Insert the power cord rmly. No power on socket. Check the socket. On/Off button not pressed. Press the On/Off button. Low suction power Suction port clogged. Clean up suction port. Dust accumulation on lter. Clean up the dust cup and lter. Dust accumulation on cyclone. Clean up cyclone. Dust accumulation on lter. Clean up lter. UV light tube failure The UV function is automatically off for safety reasons or weak reflec- tion of object. The UV function operates on the condition of less than 5CM height from the object

The machine operates on the same position for a long time. Move the machine forward and backward The machine is placed upright. Machine tilted no more than 30 de- grees. Sensor window is contaminate. Clean the sensor window with a half-dry cloth. UV light damage. Contact after-sale service. Automatically turned off Dust cup full. The machine will automatically turn off to prevent the motor under long operation. If the machine automat- ically turned off , please clean up the dust cup and lter, unplug pow- er cord and reuse if after 2 hours. Suction port clogged. Filter blocked. Brushroll failure Brushroll tangled with foreign matter. Remove the cover and clean up brushroll according to user guide. Belt broken. Remove the cover according to user guide and check the belt. If broken, contact after-sale to repair. If fault remains after adopting the following solutions, contact after sale service or local distributor immediately.7 Technical Parameter Model JV12 Rated voltage 230V~ Rated frequency 50Hz Rated power 400W Circuit Diagram UV Light Main motor Brushroll Motor Power supply PCB Main PCB On/off PCB Left Infrared PCB Ultrasonic generator Right Infrared PCB

M28 Manufacturer Kingclean Electric Co., Ltd Address No.1 Xiangyang Road, Suzhou New District, Jiangsu Province 215009,China Manufacturer Information Disposal The machine, accessories and packaging should be sorted for environmental-friendly recycling. Do not dispose of the machine into household waste! Only for EC countries: According to the European Guideline 2012/19/EU, machine that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner. Subject to change without notice. Warranty Information This product enjoys one year warranty for the machine, service starting from the date of purchase. Excluded from the guarantee is normal wear, commercial use, alterations to the appliance as purchased, cleaning activities, consequences of improper use or damage by the purchaser or a third person, damage, that can be attributed to external circumstances or caused by the batteries.9 Installation du produit Nom des pièces Bouton marche / arrêt Bouton de libération du bac à poussière Bac à poussière Indicateur Rouleau de brosse Générateur ultrasonique Ligne d'alimentation Couvercle de lumière UV Liste de colisage Aspirateur Filtre Mini brosse Manuel d'utilisation
