Product Type	Anti-dust mite vacuum
Brand	JIMMY
Model	BX6 Pro
Power Supply	220-240 V~, 50-60 Hz
Rated Power	600 W
Operating Modes	3 modes: Suction + Beating + UV, Suction + Beating, Suction + UV
Main Functions	Suction, beating, UV-C light, negative ions
Dust Level Indicator	Yes (blue/yellow/red)
Brush Blockage Indicator	Yes (flashing light)
Filter Type	HEPA filter
Filter Maintenance	Regular cleaning, replacement after 30-50 hours of operation
Brush Cleaning	Unplug, remove cover, clean with provided brush
UV-C Lamp	Yes, with tilt safety (stops if >30°)
Safety	Use only on textiles, do not look at UV-C lamp, avoid moisture
Available Spare Parts	HEPA filter (JIMMY distributor)
Warranty	1 year

Frequently Asked Questions - BX6 Pro JIMMY

How to clean the HEPA filter?

Turn off and unplug the unit. Remove the dust bin, then take out the filter assembly. Turn the HEPA bottom cover clockwise and remove the HEPA assembly. Tap gently to remove dust or use a brush. Reassemble in reverse order. Avoid washing the filter too often.

What to do if the brush stops rotating or stops?

Check if the brush is blocked by hair or fibers. Turn off and unplug the vacuum, remove the brush cover, clean the brush with the provided cleaning brush. If the belt is loose or broken, contact after-sales service.

How to change the operating mode?

Press the mode button to cycle through the three modes: Suction + Beating + UV mode (default), Suction + Beating mode (no UV), Suction + UV mode (no beating). The corresponding indicator lights up.

Why does the dust level indicator stay red?

The indicator turns red when the cleaned surface is dirty. If it remains red after cleaning, the dust sensor may be obstructed. Clean the sensor inside the air inlet with a mini-brush.

The UV lamp does not turn on, what to do?

First check that the machine is properly tilted (not exceeding 30°). If the tilt is excessive, the micro-switch cuts the lamp. If the problem persists, it may be a lamp defect; contact after-sales service.

Can I use the vacuum on wet carpets?

No. Do not use the vacuum to suck up water or wet dust. Avoid using it in damp places like the bathroom. Moisture can damage the unit.

How to empty the dust bin?

Turn off the unit and unplug it. Remove the dust bin following the instructions on the label. Align the bin with a trash can, press the bottom cover release button, open the cover and empty. Close it.

Where can I buy a replacement HEPA filter?

The HEPA filter is available for purchase at the JIMMY distributor. You can order through the official website or contact customer service.

The vacuum suddenly turns off, why?

Possible causes include a full dust bin, blocked air inlet, or clogged HEPA filter. Stop the unit, clean the bin and filter, and let the machine cool down for 2 hours before restarting.

How to clean the dust sensor?

The dust sensor is located inside the air inlet. Use a mini-brush to clean the inner wall of the air inlet to prevent dust buildup that could cause abnormal dust level displays.

USER MANUAL BX6 Pro JIMMY

Line drawing of a portable air purifier device with handle and wheels (no text or symbols)

BX6 Pro

User Guide Anti-mite Vacuum Cleaner

Instrukcja obsługi Odkurzacz do roztoczy

Bedienungsanleitung Staubsauger

Manuel d'utilisation Aspirateur anti-acariens

Manuale d’Uso Aspiratore Anti-Acaro

Manual del usuario Aspirador antiácaros

Руководство пользователя Пылесос для удаления пылевых клещей

Contents

English 2

Polski

Deutsch 17

Français 24

Italiano 32

Español 40

русский язык 47

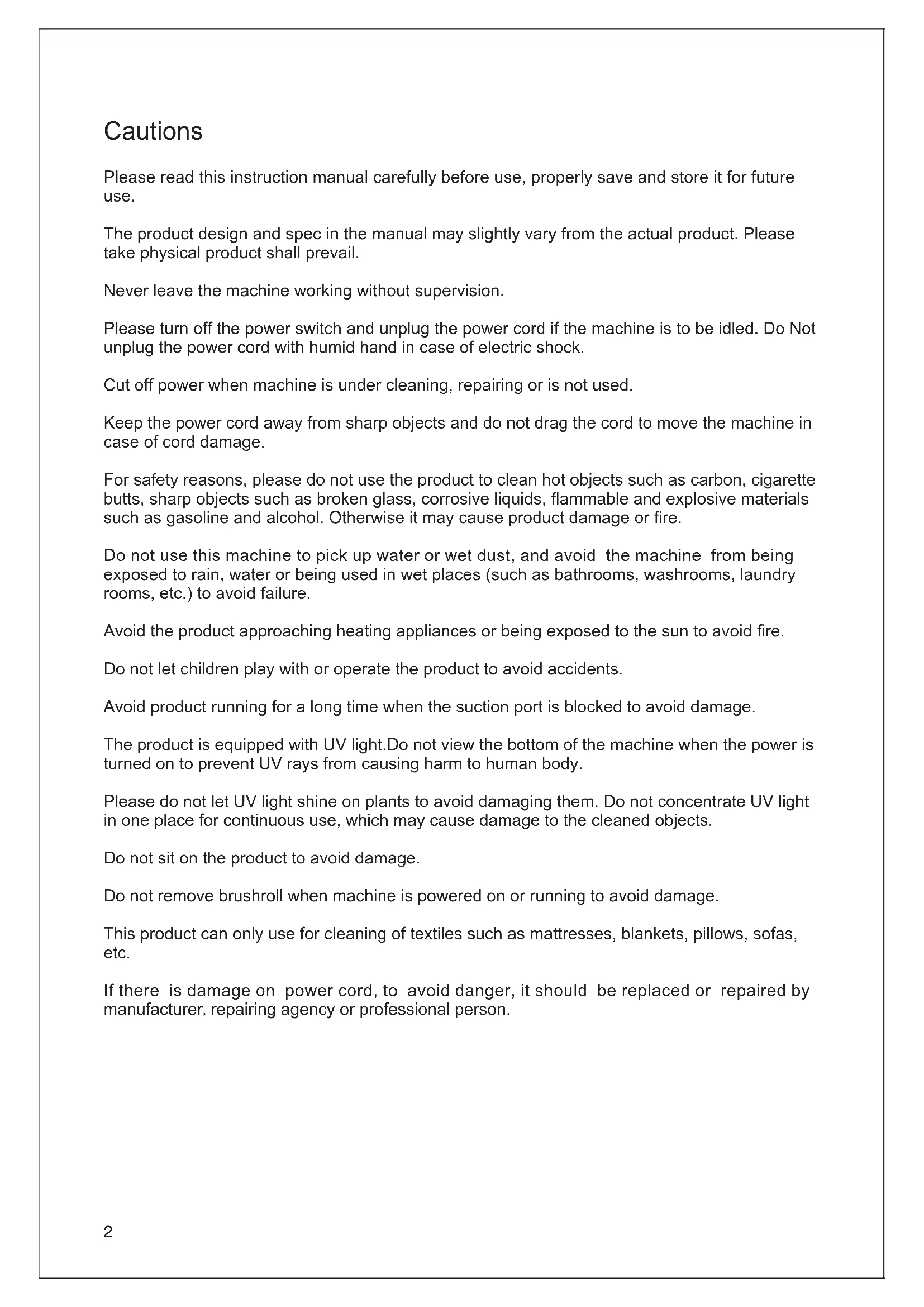

Cautions

Please read this instruction manual carefully before use, properly save and store it for future use.

The product design and spec in the manual may slightly vary from the actual product. Please take physical product shall prevail.

Never leave the machine working without supervision.

Please turn off the power switch and unplug the power cord if the machine is to be idled. Do Not unplug the power cord with humid hand in case of electric shock.

Cut off power when machine is under cleaning, repairing or is not used.

Keep the power cord away from sharp objects and do not drag the cord to move the machine in case of cord damage.

For safety reasons, please do not use the product to clean hot objects such as carbon, cigarette butts, sharp objects such as broken glass, corrosive liquids, flammable and explosive materials such as gasoline and alcohol. Otherwise it may cause product damage or fire.

Do not use this machine to pick up water or wet dust, and avoid the machine from being exposed to rain, water or being used in wet places (such as bathrooms, washrooms, laundry rooms, etc.) to avoid failure.

Avoid the product approaching heating appliances or being exposed to the sun to avoid fire.

Do not let children play with or operate the product to avoid accidents.

Avoid product running for a long time when the suction port is blocked to avoid damage.

The product is equipped with UV light. Do not view the bottom of the machine when the power is turned on to prevent UV rays from causing harm to human body.

Please do not let UV light shine on plants to avoid damaging them. Do not concentrate UV light in one place for continuous use, which may cause damage to the cleaned objects.

Do not sit on the product to avoid damage.

Do not remove brushroll when machine is powered on or running to avoid damage.

This product can only use for cleaning of textiles such as mattresses, blankets, pillows, sofas, etc.

If there is damage on power cord, to avoid danger, it should be replaced or repaired by manufacturer, repairing agency or professional person.

Products Installation

Parts Name

Packing List

Anti-mite vacuum cleaner	Mini-brush HEPA	filter User manual
1 1 1 1

Use of the Product

Function description

Vacuum+Tap+UV Mode

After power on, the anti-mite vacuum cleaner starts with Vacuum +Tap +UV mode by default, the corresponding indicator light will be on, and the machine will start vacuuming function, brushroll tapping function, the UV light dust mite-removal function and the negative ion function.

Vacuum+Tap Mode

When the machine is in Vacuum+Tap+UV Mode, press mode button once to change to Vacuum+Tap mode. Corresponding indicator will be one and the machine will start vacuuming function, brushroll tapping function and the negative ion function

Vacuum+UV Mode

When the machine is in Vacuum+Tap Mode, press mode button once, press mode button once to change to Vacuum+UV mode. Corresponding indicator will be one and the machine will start vacuuming function, the UV light dust mite-removal function and the negative ion function.

Dust level display

When the cleaned surface is in a clean state, the dust level bar is blue. When it is in a dirty state, the dust level bar is red. When it is in a slightly dirty state, the dust level bar is yellow. As the dust level increases, the dust level bar slowly changes from blue to yellow, nd finally to red. As the dust level decreases, the dust level bar slowly changes from red to yellow until it is all blue.

Brushroll blockage indicator

This indicator flashes when the brushroll is blocked.

Cleaning and maintenance

Note:

1. HEPA filter is available for sale at JIMMY distributor.
2. It is recommended to clean the dust cup in time after each use. When there is too much dust to cause HEPA blockage, it needs to be cleaned in time or replaced if necessary.

Cleaning of dust cup

Turn off the product, remove the dust cup according to the instruction label on the dust cup; Align the dust cup with the garbage can, press the bottom cover release button, open the bottom cover, and pour out the garbage. (Figure 1)

HEPA filter cleaning

Hold the dust cup with one hand and pull out the filter assembly with the other hand. Turn HEPA bottom cover clockwise; Take out the HEPA assembly downward, tap the HEPA assembly downward to clean the dust, or use a brush to clean the dust and other debris on the HEPA assembly. (Figure 2 - Figure 4)

Simple line drawing of a cylindrical mechanical component with a flanged top and base, no text or symbols present.

After cleaning the dust cup and HEPA assembly,

put the HEPA into the filter assembly and then rotate it anticlockwise to fix it. After the "click" sound is heard when rotating, and the HEPA is assembled in place without loosening. Then put the filter assembly back into the dust cup and press it to the bottom, the dust cup assembly is in place.

Note:

1. Do not miss HEPA filter!
2. If too much dust is accumulated in the dust cup, clean the dust cup and filter assembly with water, and wipe them with dry cloth. Pay attention that HEPA filter need to be washed as less as possible. Clean the dust and foreign matters on HEPA filter by tapping, and ensure that the dust cup and filter assembly are completely dry before installation.

Brushroll cleaning and assembly

Note:

When cleaning the brushroll, be sure to disconnect the power supply to prevent the brushroll from starting by mistake and cause human injury.

Turn off the machine, unplug the power supply, push the brushroll cover latch. Turn it from the closed state to the open state, and then remove brushroll cover and take out brushroll. Clean brushroll with cleaning brush. After cleaning the brushroll, install the brushroll and brushroll cover back to mainbody in turn, and lock the brushroll latch. (Figures 5)

Dust sensor cleaning

Dust sensor is installed inside of air inlet. Use mini brush to clean inner wall of air inlet to avoid too much dust accumulating on dust sensor and cause abnormal display of dust level. (Figure 6)

Maintenance and Storage

Please clean dust cup and HEPA filter after each use for further use. It is recommended to replace a filter after 30-50 hours of working time (depending on specific situation) for better use.

Any paper, lead glass, plastic will greatly affect the effect of UV light. Dust or stain on UV light cover will affect the effect of UV light. Please wipe and clean the UV light cover regularly for better use.

Do not touch the UV light cover as dirt will affect UV light effect.

Put the machine in cool and dry place if the machine is to be idled. Do Not leave it in direct sunlight or humid environment.

Trouble Shooting

Please check the following trouble points before contacting after service.

Note: If there are other faults, special tools must be used, please contact after sales service for guidance.

Problems Possible Reasons Solution
Product does not turn on	On/off switch is not pressed down Press down on/off switch
	No power on socket Check the socket
	Power cord is not firmly inserted	Check whether the power plug is firmly inserted
Weak suction	Air inlet blocked Clean air inlet
	HEPA blocked Clean dust cup and HEPA
	Cyclone blocked Clean cyclone
UV light does not work	Machine tilt and micro switch left cleaning surface	Machine tilting degree cannot exceed 30 degree
	UV light defect	Contact after service to replace UV light
Machine stop working suddenly	Dust cup full	Stop using the product and clean blockage and use the machine after 2 hours
	Machine air inlet blocked
	HEPA blocked
Brushroll stop working suddenly	Brushroll entangled	Take out brushroll, clean it and re-assemble
	Belt loose or broken	Contact after service to replace belt

Product Specifications

Technical Parameter

Model No BX6 Pro
Rated voltage 220-240V~
Rated frequency 50-60Hz
Rated power 600W

Circuit Diagram

Manufacturer Information

Manufacturer Kingclean Electric	Co., Ltd
Address	No.1 Xiangyang Road, Suzhou New District, Jiangsu Province 215009,China

Disposal

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of the machine into household waste!

Only for EC countries: According to the European Guideline 2012/19/EU, machine that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Subject to change without notice.

Warranty Information

This product enjoys one year warranty from the date of purchase.

Excluded from the guarantee is normal wear, commercial use, alterations to the appliance as purchased, cleaning activities, consequences of improper use or damage by the purchaser or a third person, damage that can be attributed to external circumstances.
