Product Type	Anti-dust mite vacuum
Brand	JIMMY
Model	BX7 Pro
Rated Voltage	220-240 V~
Rated Frequency	50 Hz
Rated Power	700 W
Main Functions	Suction, mite removal (UV + hot air + beating), blind mode
Operating Modes	Beating + suction, mite removal + suction, blind mode
Filter Type	MIF filter (filtering cotton)
Separation System	Cyclone
Display Screen	Dust concentration indicator (blue/red), mode icons, blockage and full tank indicators
Dust Sensor	Dust concentration light bar
UV Lamp	Yes, with automatic shutdown if tilt >30° or distance >3 cm
Hot Air Generator	Yes, for mite removal
Ultrasonic Generator	Yes
Mini Brush Included	Yes
Filter Maintenance	Cleaning by tapping; replacement recommended every 30-50 h of use
Dust Bin Cleaning	After each use, washable with water (except MIF filter)
Rolling Brush Cleaning	Remove the cover, clean debris
Storage	Cool and dry place, avoid direct sunlight
Safety	Automatic shutdown in case of blockage or full tank; UV turns off if excessive tilt
Warranty	1 year from purchase date
Manufacturer	Kingclean Electric Co. Ltd, Suzhou, China

Frequently Asked Questions - BX7 Pro JIMMY

How to turn on the BX7 Pro vacuum?

Insert the power cord into the machine and the outlet. Press the switch button to turn it on. By default, the vacuum + mite removal + blind mode is activated. Press the switch again to turn it off.

How to switch operating modes?

Press the mode button to switch between modes: beating + suction, mite removal + suction, and back to full mode (mite removal + beating + suction). The screen shows the active mode.

What does the dust concentration light bar mean?

The light bar indicates cleanliness: blue = clean, red = dirty. It gradually changes from red to blue as dust is removed.

Why does the UV lamp turn off automatically?

The UV lamp turns off if the machine is tilted more than 30° or if the distance to the object exceeds 3 cm. This prevents accidental damage. Straighten the machine or bring it closer to the object.

How to clean the dust bin?

Turn off and unplug the machine. Press the unlock button and lift the dust bin. Separate the cover, remove the cyclone cone, and empty the dust. You can wash the bin with water, but not the MIF filter. Dry completely before reassembling.

How to clean the MIF filter?

Remove the MIF filter from the cyclone cone. Tap it in the direction of the arrow to remove dust. Do not wash it with water. If too dirty, replace it (recommended every 30 to 50 hours of use). Use a cleaning brush for the metal filter.

What to do if the rolling brush stops turning?

Turn off and unplug the device. Slide the button on the brush cover to open it, remove the brush, and remove any tangled hair or debris. Also check the belt: if it is broken, contact after-sales service.

The vacuum has weak suction, what to do?

Check if the suction inlet is blocked, if the MIF filter or cyclone is clogged with dust. Clean them. Also make sure the dust bin is not full.

How to maintain the UV lamp?

The transparent cover should be wiped regularly with a clean cloth to remove dust and oil stains. Do not touch the cover with your fingers. This ensures good UV penetration.

Where can I buy a replacement MIF filter?

The MIF filter can be obtained from the vacuum seller. Refer to the manual for the manufacturer's or local distributor's contact.

USER MANUAL BX7 Pro JIMMY

Line drawing of a handheld device with handle and ventilation slots (no text or symbols)

BX7 Pro

User Guide Anti-mite Vacuum	Cleaner
Instrukcja obsługi Odkurzacz antyroztoczowy
Gebrauchsanweisung Staubsauger zum Entfernen von Milben
Mode d'emploi Aspirateur anti-acarien
Manuale d'uso Aspirapolvere Anti-acaro
Instrucciones de uso Aspirador de eliminación de ácaros
Инструкция по эксплуатации Пылесос для удаления клещей

Contents

English 2

Polski 10

Deutsch 18

Français 26

Italiano 34

Español 42

русский язык 50

Product Installation

Parts Name

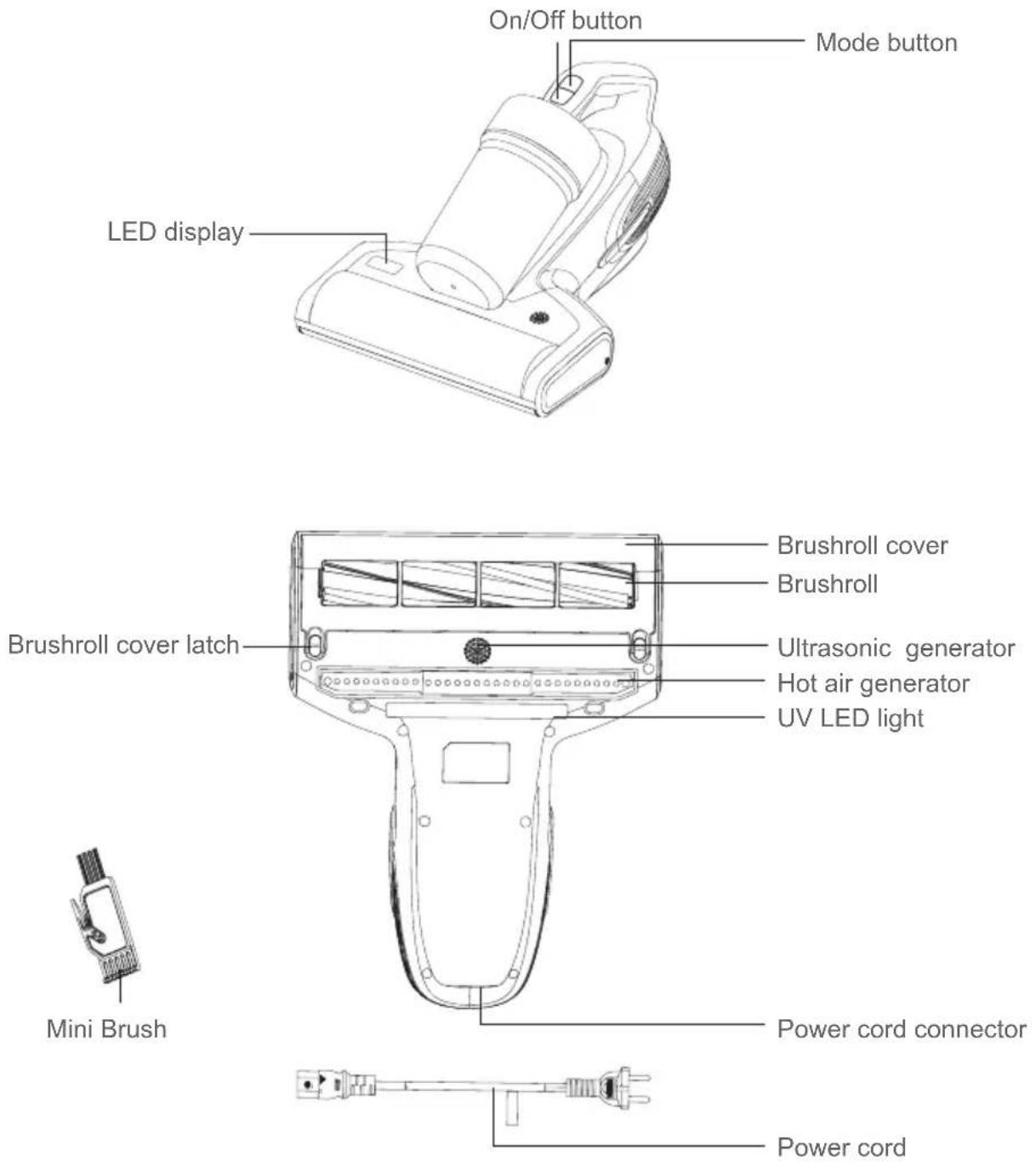

On/Off button Mode button LED display Brushroll cover Brushroll Brushroll cover latch Ultrasonic generator Hot air generator UV LED light Mini Brush Power cord connector Power cord

Packing List

Name	Anti-miteVacuumCleaner	Power Cord MIF Filter Mini-brush User Guide
Quantity 1 1	1 1 1

Use of the Product

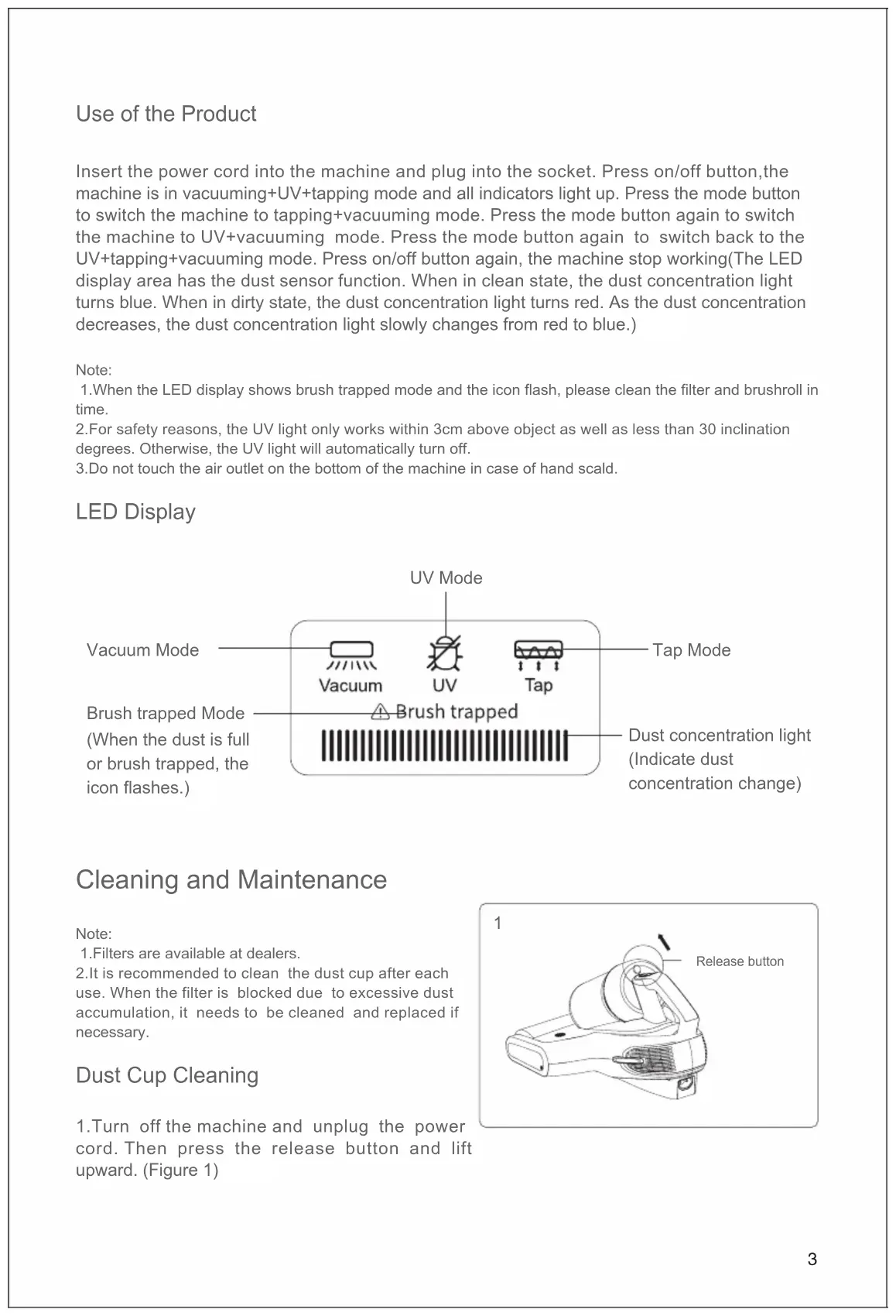

Insert the power cord into the machine and plug into the socket. Press on/off button, the machine is in vacuuming+UV+tapping mode and all indicators light up. Press the mode button to switch the machine to tapping+vacuuming mode. Press the mode button again to switch the machine to UV+vacuuming mode. Press the mode button again to switch back to the UV+tapping+vacuuming mode. Press on/off button again, the machine stop working(The LED display area has the dust sensor function. When in clean state, the dust concentration light turns blue. When in dirty state, the dust concentration light turns red. As the dust concentration decreases, the dust concentration light slowly changes from red to blue.)

Note:

1. When the LED display shows brush trapped mode and the icon flash, please clean the filter and brushroll in time.
2. For safety reasons, the UV light only works within 3cm above object as well as less than 30 inclination degrees. Otherwise, the UV light will automatically turn off.
3. Do not touch the air outlet on the bottom of the machine in case of hand scald.

LED Display

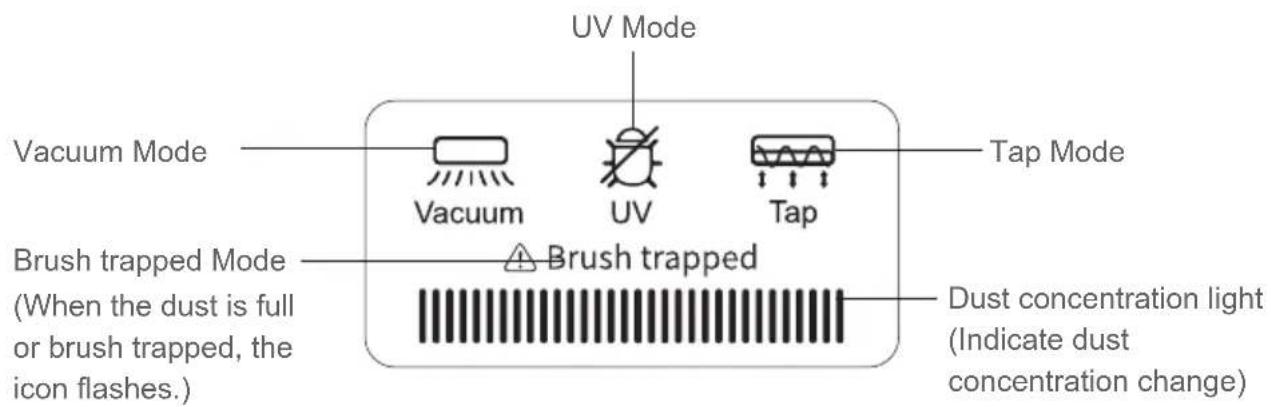

UV Mode Vacuum Mode Vacuum UV Tap Tap Mode Brush trapped Mode (When the dust is full or brush trapped, the icon flashes.) Brush trapped Dust concentration light (Indicate dust concentration change)

Cleaning and Maintenance

Note:

1. Filters are available at dealers.
2. It is recommended to clean the dust cup after each use. When the filter is blocked due to excessive dust accumulation, it needs to be cleaned and replaced if necessary.

Dust Cup Cleaning

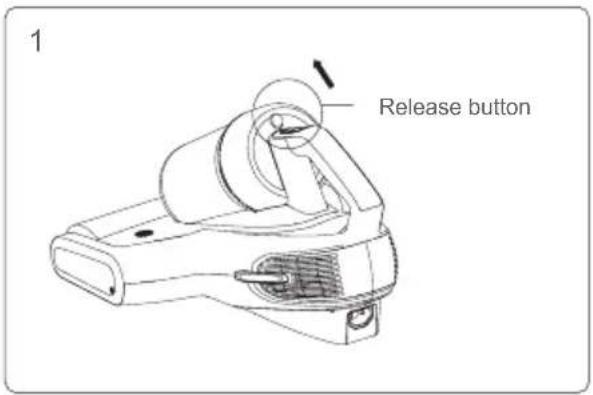

1. Turn off the machine and unplug the power cord. Then press the release button and lift upward. (Figure 1)

1 Release button

1. Hold the dust cup and dust cup cover separately, twist dust lid anticlockwise (Figure 2), remove it from dust cup to clean. (Figure 3)

Filter and Cyclone Cleaning

Hold the cyclone in one hand, pinch the "UP" logo with the other hand, and take out the filter (Figure 4). Please tap the filter downward. Do not tap the filter in reverse side in case of filter clog(Figure 5). Clean the cyclone metal filter with the attached mini brush. (Figure 6)

After cleaning the dust cup, filter and cyclone, assemble the cyclone into the dust cup. Rotate the dust cup cover assembly into the dust cup until a "click" sound is heard that is assembled in place. (Figure 7)

Note:

1.Do Not miss the filter!

1. Use water or neutral reagents to clean dust cup and wipe with dry cloths. Do not wash the filter until it is necessary. Make sure the filter and dust cup are completely dry before another use.

Brushroll Cleaning and Installation

Turn off the machine and unplug the power cord, rotate the right lock knob anticlockwise with hand from locked position to unlock position (Figure 8) to remove the brushroll to clean up. (Figure 9)

After brushroll cleaning, install the brushroll and the brushroll cover into the machine in turn (Figure 10) and lock the latch of the brushroll. (Figure 11)

Note: For safety reasons, please turn off the machine and unplug power cord before cleaning brushroll.

2 Dust cup lid Dust cup

3 Cyclone

4 Marking ribbon MIF filter

5 Filter

6 Cyclone metal filter Mini-brush

7 Rotate dust cup lid

8 Lock Unlock

9 Take out Brushroll assembly Brushroll cover

10 Install Brushroll assembly Brushroll cover

11 Unlock Lock

Maintenance and Storage

Please clean dust cup and filter after each use for further use. It is recommended to replace a filter after 30-50 hours of working time (depending on specific situation) for better use.

12 Dust sensor cover

Any paper, lead glass, plastic will greatly affect the effect of UV light. Please wipe and clean the UV tube regularly for better use.

Do Not touch the UV tube as dirt will affect UV light effect.

Put the machine in cool and dry place if the machine is to be idled. Do Not leave it in direct sunlight or humid environment.

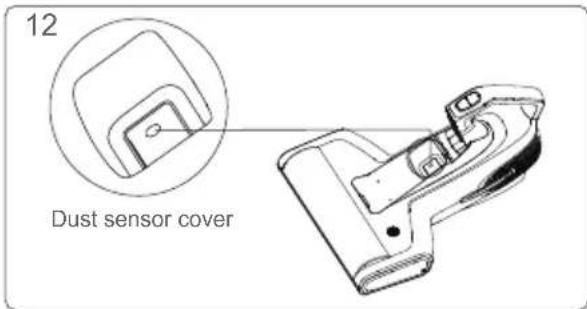

The dust sensor cover in the air duct need to be cleaned regularly to avoid affecting the transmission and reception of infrared signals. (Figure 12)

Cautions

Please read this instruction manual carefully before use and keep it properly for future use.

Never leave the machine working without supervision.

Please turn off the power switch and unplug the power cord if the machine is to be idled. Do Not unplug the power cord with humid hand in case of electric shock.

Cut the power source in maintenance or off-service.

Keep the power cord away from sharp objects and do not drag the cord to move the machine in case of cord damage.

For safety reasons, please do not use the product to clean hot objects such as carbon, cigarette butts, sharp objects such as broken glass, corrosive liquids, flammable and explosive materials such as gasoline and alcohol. Otherwise it may cause product damage or fire.

Do not use this product to clean water or wet dust. Do Not operate it in humid places (such as bathroom, toilet, laundry room, etc.) to avoid malfunction.

Do Not place the machine near heating appliances or expose it to direct sunlight in case of fire hazard.

Keep this product beyond the reach of special individual such as children without adult supervision.

Do Not operate this machine with suction port blocked in case of product damage.

The product has UV light, for safety reasons, Do Not look at the bottom of the machine when the power is on in case of ultraviolet rays harming.

Do not apply this product to plants. Excessive use of UV may cause object damage.

Do not sit on this product in case of personal injury and product damage.

Do not remove the brushroll cover or force the cover outward when the machine is powered on for safety reasons.

This product can ONLY use for cleaning of textiles such as mattresses, blankets, pillows, sofas, etc.

If the power cord is damaged, please ask for professional help of the manufacturer and other professionals for safety reasons.

Trouble Shooting

Please check the following trouble points before go to the maintenance department.

Problems Possible Reasons Solution
Power failure	Power cord is not firmly inserted. Insert the power cord firmly.
	No power on socket. Check the socket.
	Power switch not pressed. Press the On/Off button.
Low suction power	Suction port clogged. Clean up suction port.
	Dust accumulation on filter. Clean up the dust cup and filter.
	Dust accumulation on cyclone. Clean up cyclone.
UV light failure	The UV function is automatically off for safety reasons or weak reflection of object.	The UV function operates on the condition of less than 3CM height from the object.
	The machine operates on the same position for a long time.	Move the machine forward and backward
	The machine is placed upright.	Machine tilted no more than 30 degrees.
	Sensor window is contaminate.	Clean the sensor window with a half-dry cloth.
	UV light damage. Contact after-sale service.
Automatically turned off	Dust cup full.	The machine will automatically turn off to prevent the motor under long operation. If the machine automatically turned off, please clean up the dust cup and filter, unplug power cord and reuse if after 2 hours.
	Suction port clogged.
	Filter blocked.
Brushroll failure	Brushroll tangled with foreign matter.	Remove the cover and clean up brushroll according to user guide.
	Belt broken.	Remove the cover according to user guide and check the belt. If broken, contact after-sale to repair.

Note: If fault remains after adopting the following solutions, contact after sale service or local distributor immediately.

Product Specifications

Technical Parameter

Model BX7 Pro
Rated voltage 220V-240V~
Rated frequency 50Hz
Rated power 700W

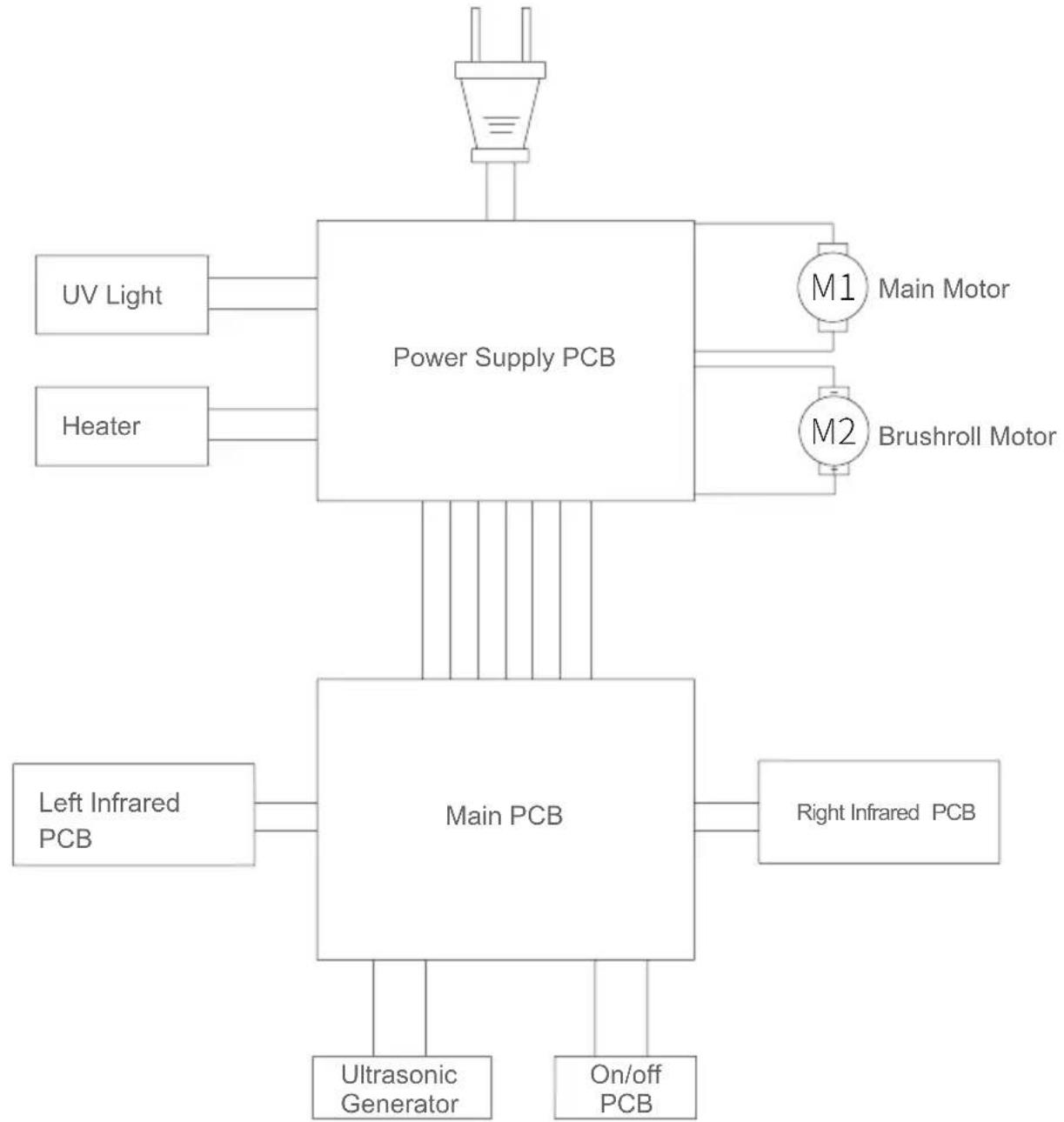

Circuit Diagram

Manufacturer Information

Manufacturer Kingclean Electric	Co., Ltd
Address	No.1 Xiangyang Road, Suzhou New District, Jiangsu Province 215009,China

Disposal

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of the machine into household waste!

Only for EC countries: According to the European Guideline 2012/19/EU, machine that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Subject to change without notice.

Warranty Information

This product enjoys one year warranty for the machine, service starting from the date of purchase.

Excluded from the guarantee is normal wear, commercial use, alterations to the appliance as purchased, cleaning activities, consequences of improper use or damage by the purchaser or a third person, damage, that can be attributed to external circumstances or caused by the batteries.

Montaż urządzenia

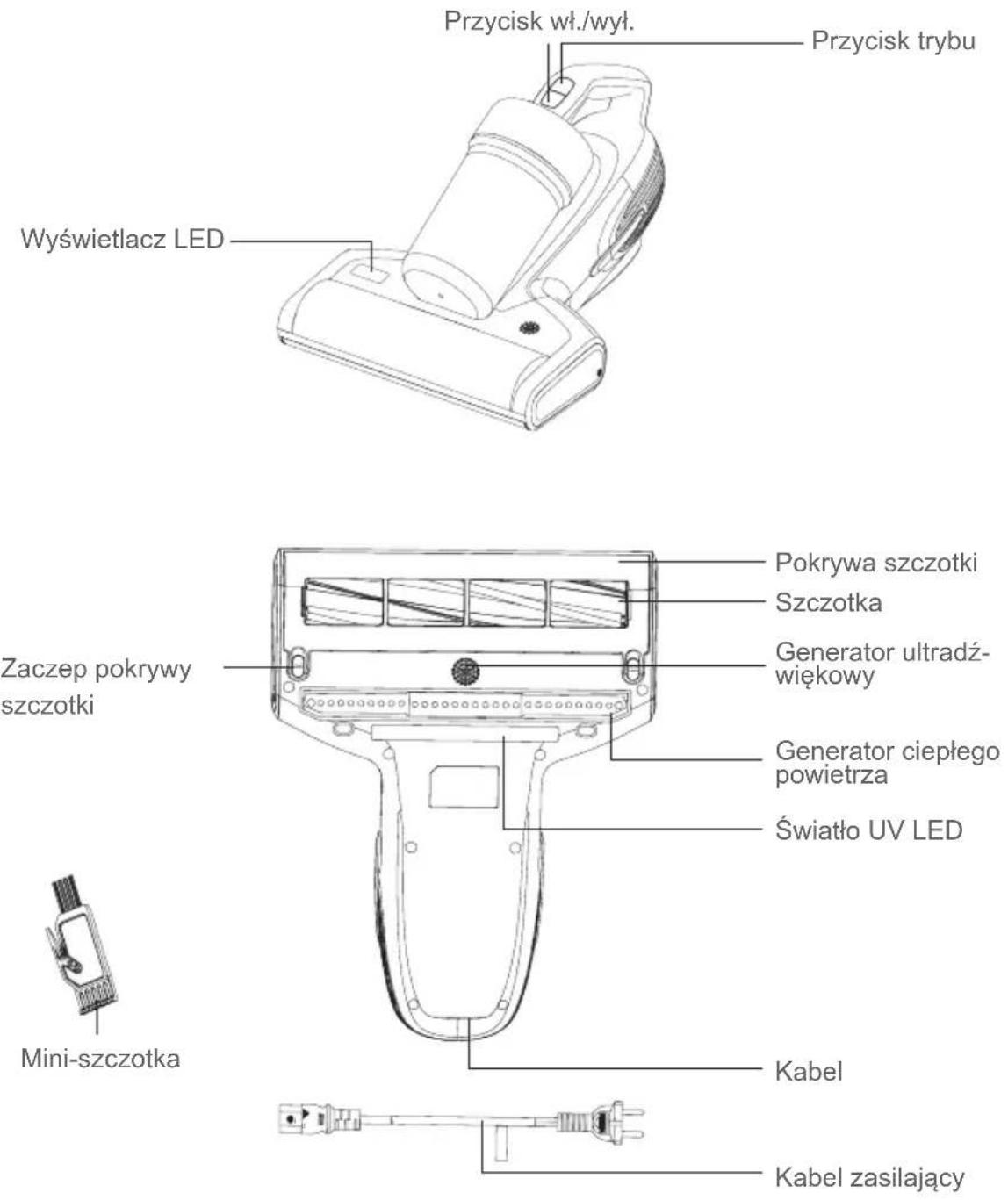

Nazwy części
