H9 Flex - Vacuum Cleaner JIMMY - Free user manual and instructions

Product type	2-in-1 cordless stick vacuum (handheld + stick vacuum)
Model	H9 Flex
Brand	JIMMY
Rated voltage	28.8 V
Rated power	600 W
Battery type	Lithium-ion, 2500 mAh
Charging time	4 to 5 hours
Charger input voltage	100-240 V ~ 50/60 Hz
Dustbin capacity	Not specified (estimated 0.5 L)
Filtration	Washable HEPA filter (cyclone)
Operating modes	Auto, Eco, Turbo, Max
Display	LED screen with dust level indicator and remaining runtime
Dust sensor	Yes, red/blue light strip
Flexible tube	Foldable metal tube (0-90°) for cleaning under furniture
Floor head	Electric, suitable for all floor types (hard floors, tile, carpet)
Included accessories	Anti-dust mite electric brush, crevice tool, upholstery tool, soft brush, carpet roller brush, stretch hose, connector, wall charging bracket
Maintenance	Regular cleaning of dustbin and HEPA filter; cleaning of the roller brush
Safety	Automatic shutoff if brush is blocked; do not use to vacuum liquids, ashes, or sharp objects
Warranty	2 years
Intended use	Household only
Operating temperature	5 °C to 40 °C
Storage	Cool and dry place, away from sunlight

Frequently Asked Questions - H9 Flex JIMMY

How to assemble the JIMMY H9 Flex vacuum?

To assemble the vacuum, insert the metal tube into the floor head by aligning the connectors until it clicks. Then, attach the battery pack to the handheld vacuum by sliding it into the groove. Finally, assemble the tube with the handheld vacuum. See the manual for details.

How to charge the H9 Flex battery?

Place the vacuum on the wall charging bracket or plug the charger directly into the vacuum. Charging time is 4 to 5 hours. The LED screen shows the charge level. It is recommended to recharge every 3 months if not used.

What to do if the screen displays error code F1 to F8?

Codes F1 to F8 indicate specific faults: F1 (battery), F2 (charger), F3/F5/F6 (suction motor), F4 (battery), F7 (PCB), F8 (battery NTC). Refer to the troubleshooting table in the manual. If the problem persists, contact after-sales service.

How to clean the dustbin and HEPA filter?

Press the dustbin latch, empty the contents. Turn the HEPA cover counterclockwise to remove it. Wash the HEPA filter with cold water and let it dry completely before reassembling. Also clean the cyclone system if necessary.

Can the vacuum be used to vacuum liquids?

No, the JIMMY H9 Flex vacuum is designed only for dry cleaning. Never vacuum liquids, hot ashes, sharp objects, or chemicals. This would damage the appliance and void the warranty.

How to replace the roller brush?

Push the brush release button on the side of the floor head, remove the side cover. Pull one end of the roller to remove it. Insert the new roller and replace the cover. The carpet roller brush is supplied as an additional accessory.

Is the battery life sufficient for a large house?

Battery life varies by mode: in Eco mode, it can reach about 20 minutes, in Max mode less. The 2500 mAh battery is suitable for an apartment or small house. For large areas, it is recommended to fully charge before use.

How to use the flexible tube to clean under furniture?

Press the folding button on the metal tube. You can then tilt the tube up to 90° to easily reach under beds, sofas, or tables. Release the button to return to the upright position.

What to do if suction power decreases?

Check that the dustbin is not full and the HEPA filter is not clogged. Clean them if necessary. Ensure the roller brush is not tangled with hair or fibers. Also check that air passages are not blocked.

How to maintain the battery to prolong its life?

Avoid complete discharges. Recharge the battery as soon as the indicator is low. If the appliance is not used for a long time, store it with a partial charge (about 50%) in a cool, dry place. Recharge every 3 months to prevent failure.

USER MANUAL H9 Flex JIMMY

Technical line drawing of a vertical vacuum cleaner (no text or symbols)

H9 Flex

Instruction Manual Vacuum Cleaner
Instrukcja obsługi Odkurzacz Jimmy
Bedienungsanleitung Staubsauger
Manuel d'instruction Aspirateur
Manuale D'Uso Scopa elettrica senza filo
Manual de instrucciones Aspirador
Руководство по эксплуатации	Пылесос

Contents

English 2

Polski 15

Deutsch 28

Français 42

Italiano 55

Español 68

русский язык 81

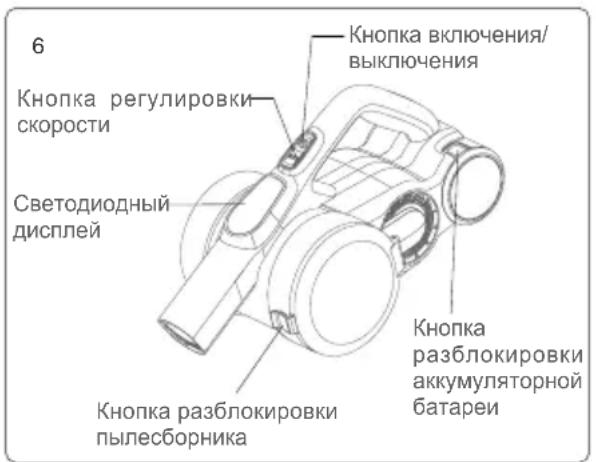

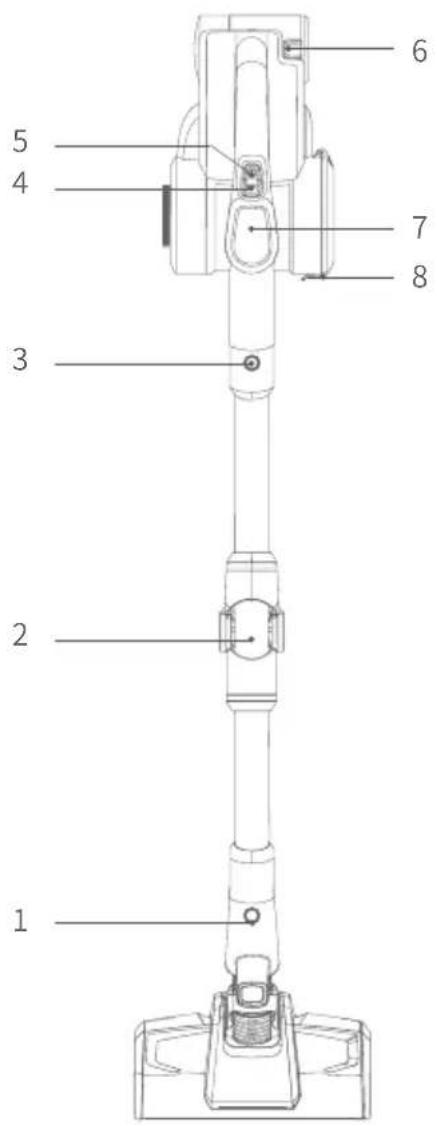

Parts Name

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17

1. Floor head release button
2. Metal tube release button
   5.Switch button
   7.LED screen
   9.Charger
3. Crevice tool
4. Electric mattress head
5. Soft brush
   17.Carpet brushroll

2.Flexible metal tube
4. On/off button
6.Battery pack release button
8. Dust cup release latch
10. Charging holder
12.Upholstery tool
14. Connector
16. Stretch hose

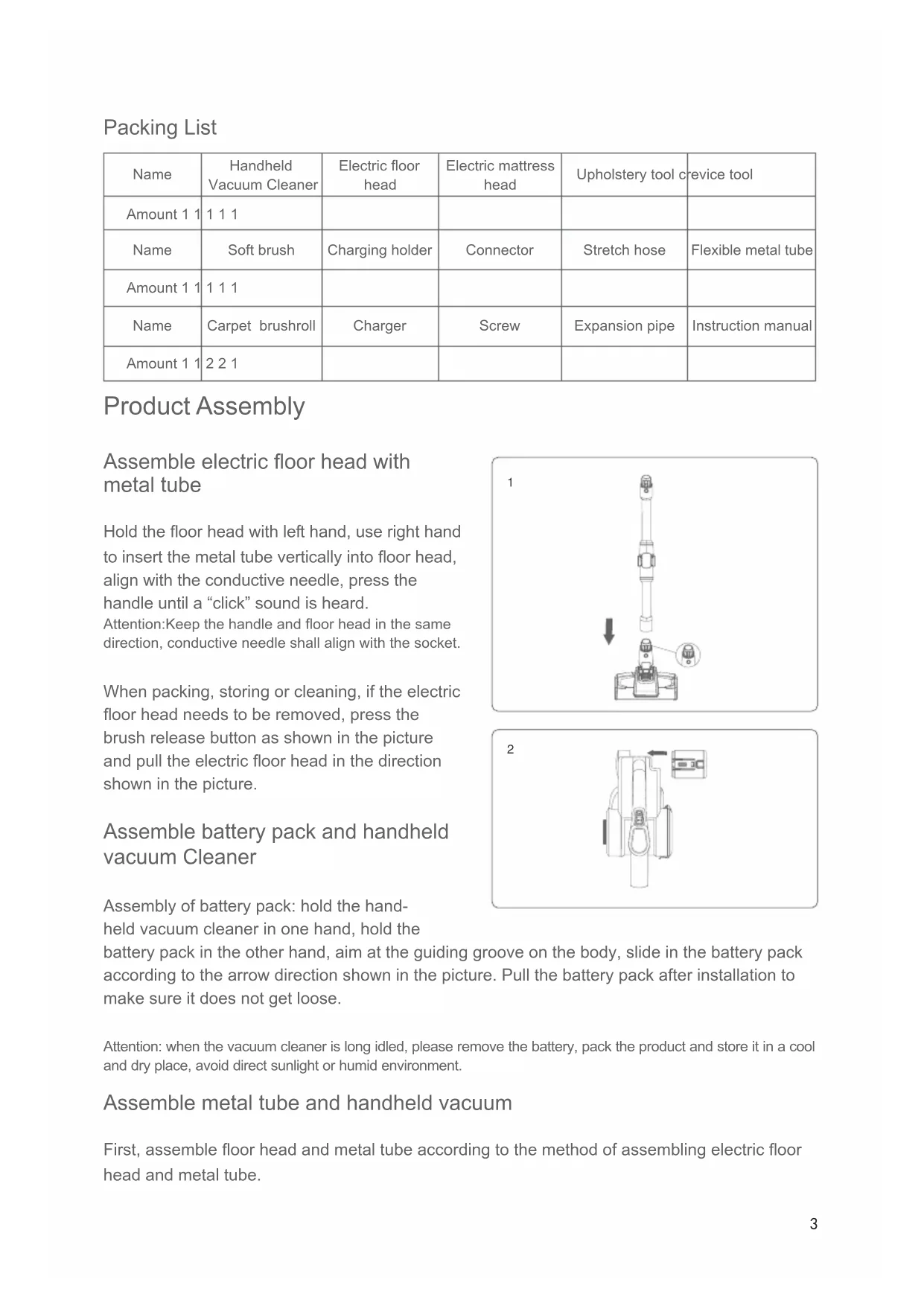

Packing List

Name	HandheldVacuum Cleaner	Electric floorhead	Electric mattresshead	Upholstery tool crevice tool
Amount 1 1	1 1 1
Name	Soft brush	Charging holder	Connector	Stretch hose	Flexible metal tube
Amount 1 1	1 1 1
Name	Carpet brushroll	Charger	Screw	Expansion pipe	Instruction manual
Amount 1 1	2 2 1

Product Assembly

Assemble electric floor head with metal tube

Hold the floor head with left hand, use right hand to insert the metal tube vertically into floor head, align with the conductive needle, press the handle until a "click" sound is heard.

Attention: Keep the handle and floor head in the same direction, conductive needle shall align with the socket.

When packing, storing or cleaning, if the electric floor head needs to be removed, press the brush release button as shown in the picture and pull the electric floor head in the direction shown in the picture.

Assemble battery pack and handheld vacuum Cleaner

Assembly of battery pack: hold the hand-held vacuum cleaner in one hand, hold the

battery pack in the other hand, aim at the guiding groove on the body, slide in the battery pack according to the arrow direction shown in the picture. Pull the battery pack after installation to make sure it does not get loose.

1

Technical line drawing of a mechanical device with a component and directional arrow (no text or symbols)

Attention: when the vacuum cleaner is long idled, please remove the battery, pack the product and store it in a cool and dry place, avoid direct sunlight or humid environment.

Assemble metal tube and handheld vacuum

First, assemble floor head and metal tube according to the method of assembling electric floor head and metal tube.

Assemble the floor head with metal tube assembly and handheld vacuum cleaner: as shown in the picture, align the conductive needle of the metal tube with the coupler of the suction nozzle, push up until a "click" sound is heard.

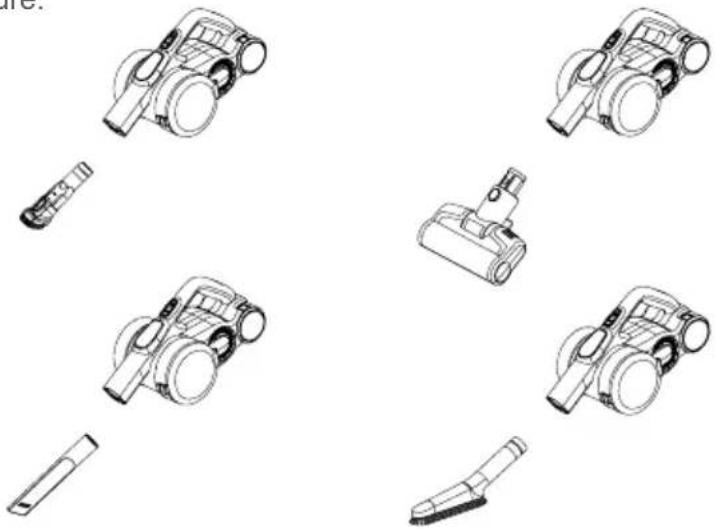

Assembly of accessories

For the convenience of use, this product is specially equipped with some accessories for

the hand-held part of the vacuum cleaner. When you use the handheld vacuum cleaner alone, you can directly connect the accessories according to your needs or connect the accessories through the stretch hose.

Technical line drawing of a vertical mechanical device with mounting base (no text or symbols)

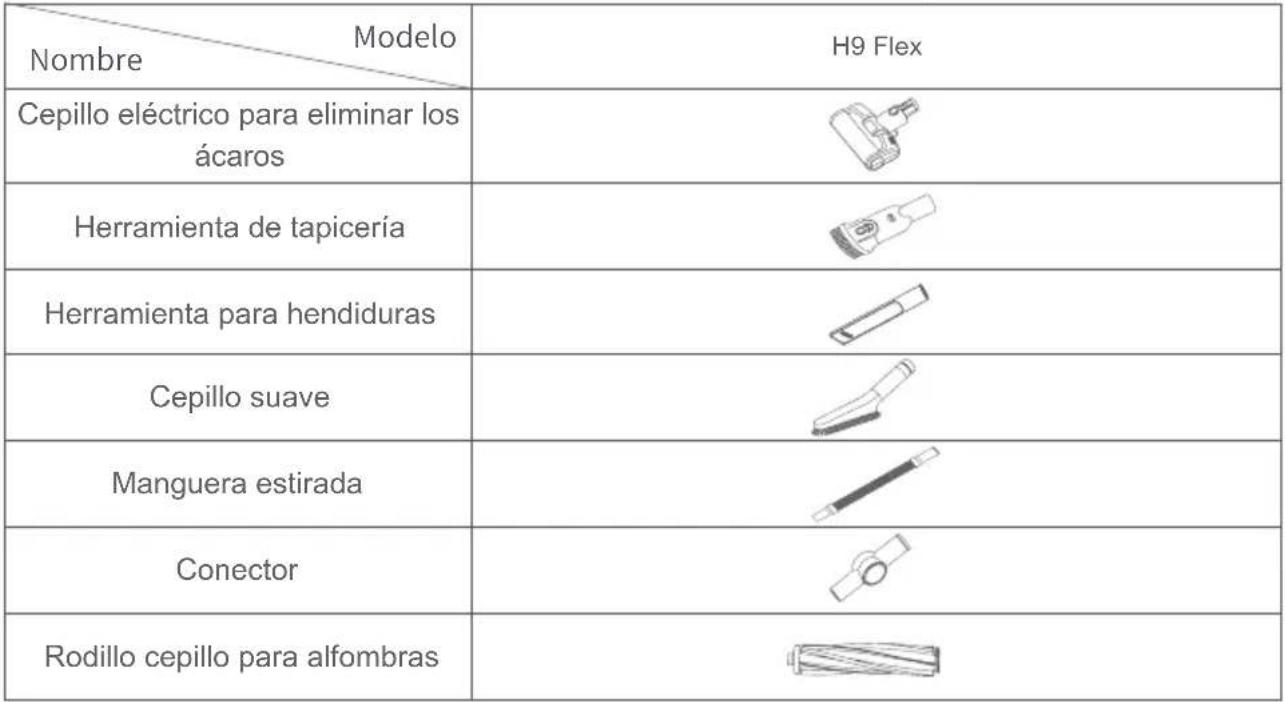

Name\model	H9 Flex
Electric mattress brush
Upholstery tool
Crevice tool
Soft brush
Stretch hose
Connector
Carpet brushroll

Connect electric mattress head, crevice tool, upholstery tool and dusting brush to handheld vacuum as the picture.

Technical line drawings of various mechanical components arranged in a grid (no text or symbols)

Accessories Connection List

Use of Vacuum

Charging

Attention: When use the product for first time, battery power is not full. Need to charge the vacuum before using.

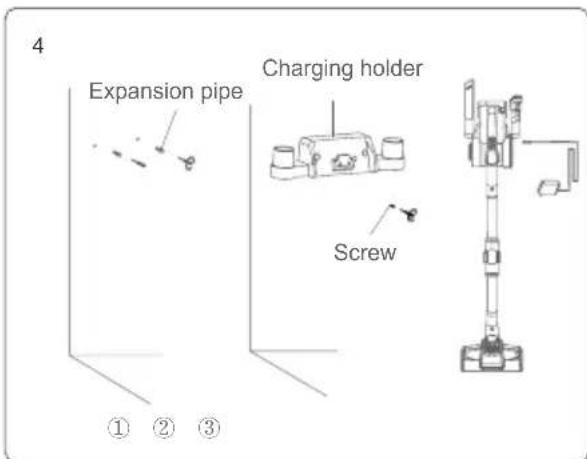

Charging holder assembly

Put the vacuum cleaner in the holder, and lean the vacuum cleaner against the wall, place the holder in the position that vacuum cleaner floor head does not touch ground. Take off the handheld vacuum cleaner, place expansion pipe on the wall and place the holder to the expansion pipe position, then lock in the screw. After assembly completed, put the vacuum to charger holder to charge or store.

Attention: Do not fix the holder to bathroom or other humid wall.

4 Expansion pipe Charging holder Screw ① ② ③

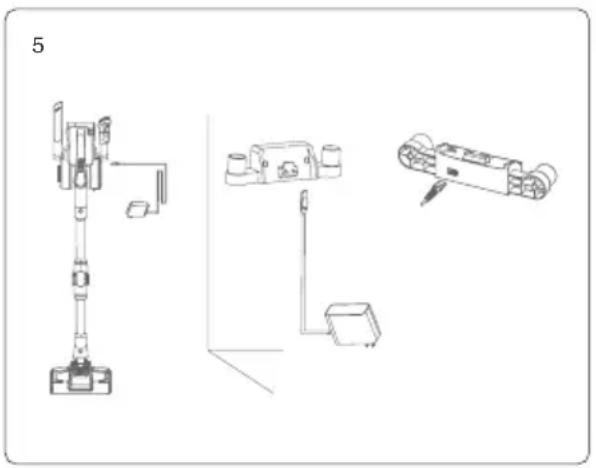

Charging of vacuum cleaner

When the vacuum cleaner power is insufficient, charge the vacuum cleaner in time; When the voltage is too low, to protect the battery, vacuum cleaner will be automatic power-off, at this time the vacuum cleaner need to be charged. When charging, plug the charger connector into the A/C power socket, hang the handheld vacuum cleaner on the holder to start charging. When the handheld vacuum cleaner LED display shows an increase in power, it indicates that the vacuum cleaner is charging. When charging is completed, LED display show 100% power.

Attention: When battery power is below ≤20% , if product is working in Max mode, it will change to Eco mode automatically. When battery power runs off, product will turn off automatically.

Attention: If vacuum cleaner is long idled, charge the battery every three months to avoid battery failure.

After charging, please pull the charger plug off power socket and stop charging.

Attention: if power cord is damaged, to avoid danger, it must be replaced by professional staff of the manufacturer, repairing agent or similar department.

Use of handheld vacuum and LED screen contents

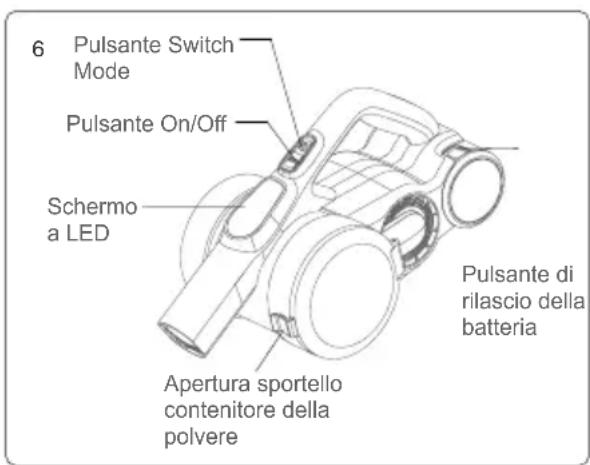

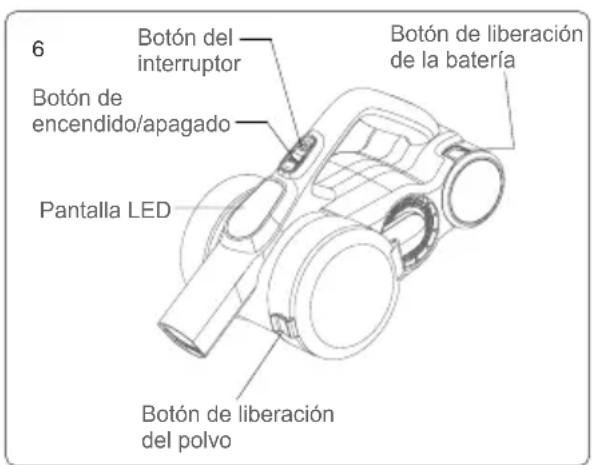

Take the vacuum cleaner off the storage holder, press the on/off button to start or stop the vacuum cleaner. Mode button can adjust working mode. When machine is turned on, it works in Auto mode, press the mode button to switch to the sequence of Turbo- Max - Eco-Auto mode. During mode switch the mode will be displayed in LED screen.

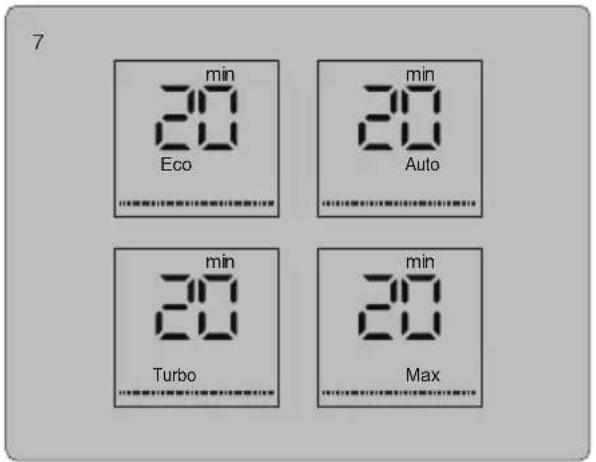

Middle of LED screen displays product run time left in current mode. When mode is changed, left run time will also change accordingly.

When product works in Max mode and battery power drops below 20%, to extend product run time, product will automatically switch from Max to Eco mode. After battery is charged to higher than 20% power, product can work in Max mode.

When the product is working in Auto mode, it will adjust working power basing on the dust content and the floor type it detects, in order to achieve higher cleaning efficiency. Under Auto mode, LED screen display Auto regardless how high the working power is.

Technical line drawing of a mechanical device with three views: top, side, and bottom (no text or symbols)

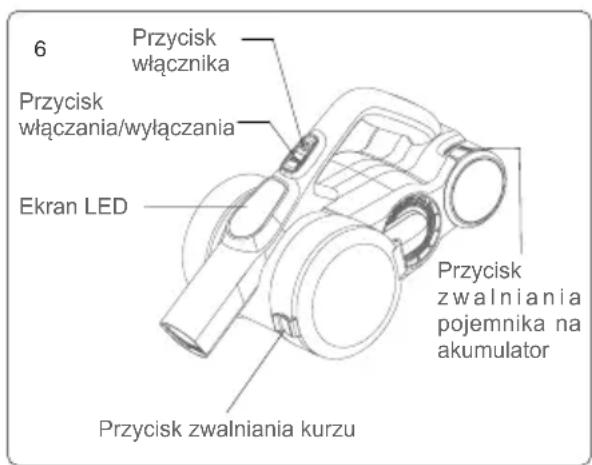

6 Switch button On/off button LED screen Battery pack release button Dust release button

The product is equipped with dust content sensor. On LED screen bottom there is a light strip to display the dust content. As dust content decreases from high to low, the red colour decreases and blue colour increases. When the strip is completely blue, the cleaning surface is clean. Cleanness of the cleaning surface can be visually displayed through LED screen.

Use of Flexible Metal Tube

The flexible metal tube has two modes: vertical and bending. The vertical mode is equivalent to the normal metal tube. The bending mode can be used for cleaning under the table bottom, bed bottom, etc. When the bending mode is needed, press the bending button as shown in the g picture, and the metal tube can achieve 0-90°bending angle.

Use of electric floor head

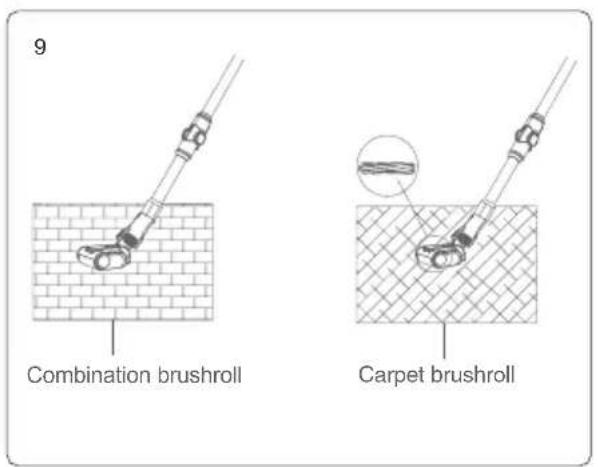

Electric floor head is suitable to clean all kinds of floor like hard floor, tile and carpet etc. Product comes with an extra carpet brushroll can be replaced to the floor head to deep clean carpet.

Attention: During the operation of the electric floor head, if there is a large volume of foreign matter inhaled or too much fiber wound, or even a child in the play of the machine mistakenly put his hand into the nozzle, resulting in the brushroll abnormal stop, the electric floor head will stop working, in order to protect personal safety and brush motor.

Use of accessories

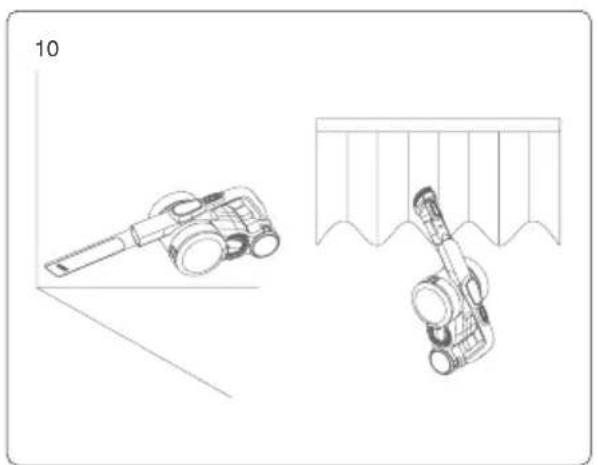

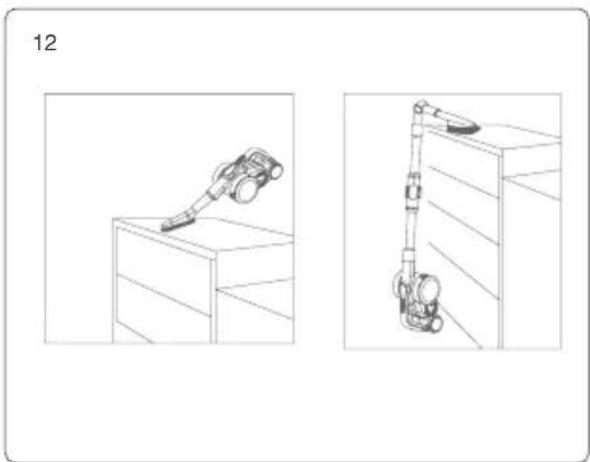

Crevice tool: suitable for cleaning crevice, door or window corners and other narrow gaps.

Upholstery tool: suitable for cleaning closet, windowsill, sofa and table surface.

7 min 20 Eco min 20 Auto min 20 Turbo min 20 Max

8 Bending button

9 Combination brushroll Carpet brushroll

Technical line drawing of two robotic arms with a numbered scale (10) and structural details, no text or symbols present.

Soft brush: suitable for cleaning easy to scratch furniture like bookshelf, handicraft etc.

Stretch hose: suitable for connecting with other tools to clean hard to reach areas.

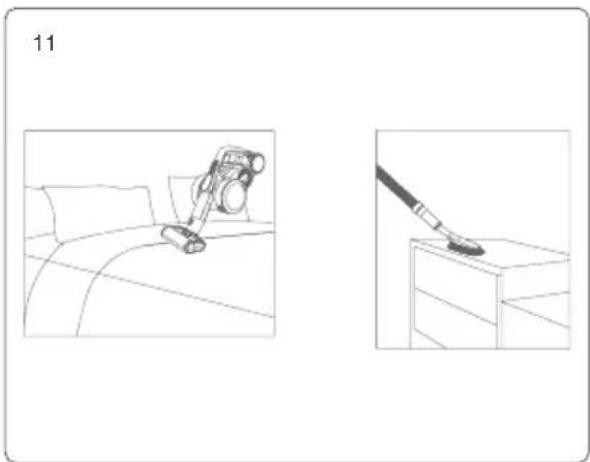

Electric mattress head: Suitable for sofa and bed mattress. The brushroll beats out and then cleans the dust mite and allergen from deep sofa or bed.

Connector: Can be connected to other tools and bend to different angle to clean dust on top of high cabinets or dust on the roof.

Cleaning and Replacing Parts

Attention:

1. HEPA filter is available for sale from local vacuum cleaner distributors.
2. It is recommended to clean the dust cup after each use; When the dust cup is full or the HEPA filter is clogged, it needs to be cleaned and replaced if necessary.
3. Electric floor head brushroll might be entangled with hair after long time use. It needs to be cleaned in time to keep the vacuum working more efficiently.

Clean dust cup and filtration system

When dust cup is full or HEPA is clogged, LED screen will display HEPA icon as the picture to remind to clean dust cup and filter. Please clean dust cup and HEPA filer in time. Replace HEPA filter if necessary.

Steps of cleaning dust cup and filtration system:

1. Press down the dust cup bottom cover, open dust cup and dump dust into trash can.

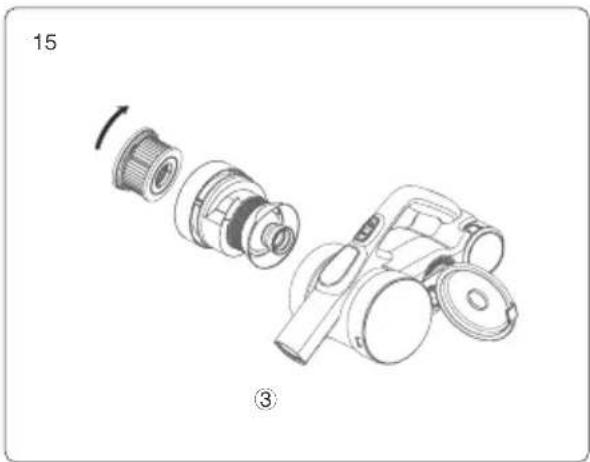

2. Hold HEPA lid and rotate anti-clockwise, remove HEPA assembly from handheld vacuum for cleaning.
3. Hold top of cyclone assembly and rotate anti-clockwise, remove cyclone assembly from handheld vacuum for cleaning.

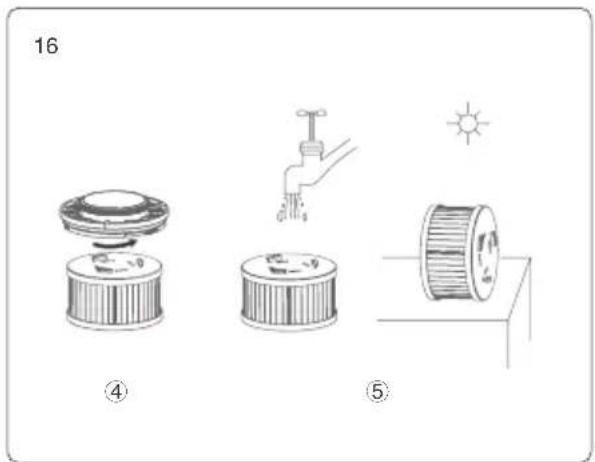

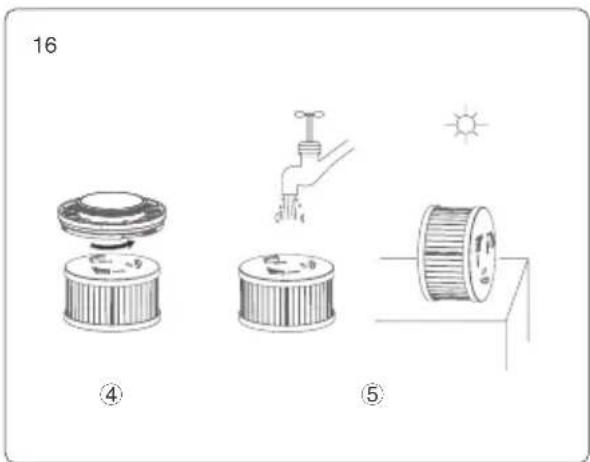

4. If HEPA needs wash, hold the HEPA and rotate clockwise, remove it from HEPA lid for washing. HEPA needs completely dry before

11

Line drawing of a robotic vacuum cleaner on a bed (no text or symbols)

Line drawing of a paintbrush applying paint to a wooden cabinet (no text or symbols)

12

Line drawing of a mechanical device attached to a box (no text or symbols)

Line drawing of a mechanical device with a vertical rod and base, mounted on a shelf (no text or symbols)

13

14

Line drawing of a handheld electronic device (no text or symbols)

①

Line drawing of a mechanical device with gears and a handle (no text or symbols)

②

reuse.

1. After cleaning, assemble the parts back in the opposite sequence of disassembly.

Clean brushroll

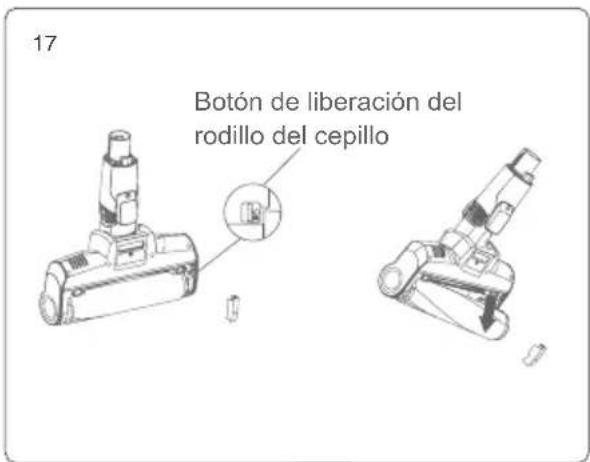

1. Move the brushroll release button along the arrow direction remove side cover.
2. Remove one end of the brushroll and take it out from nozzle for cleaning.
3. After cleaning or replacing brushroll, assemble it back in opposite sequence of disassembly.

Storage of Vacuum Cleaner

Battery pack disassembly

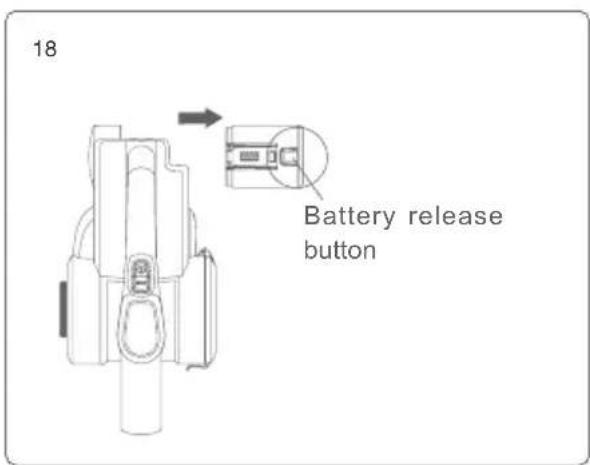

Press the battery release button, remove the battery pack in the arrow direction and place the battery in a plastic bag, then store it in a dry place.

Storage of vacuum cleaner

When the vacuum is long idled, remove the battery, pack the product and store it in a cool and dry place, do not put in direct sunlight or humid environment.

Exploded view diagram of a camera module showing internal components and part number 15 (no text or symbols on the diagram itself)

16 ④ ⑤

17 Brushroll release button

18 Battery release button

Safety Notes

This vacuum cleaner is designed for home use. Do not use it for commercial or other purposes.

Please read this instruction manual carefully before use, properly save and store it for future use.

Do not put the vacuum close to fire or other high temperature facility.

Do not use or store the machine under extreme bad conditions, for example, extreme temperature. It is recommended to use it indoors between the temperature of 5 °C to 40 °C . Store the machine in dry place and avoid direct sunlight.

Fully charge the battery before first use or after long storage.

Before using the vacuum, make sure brushroll is assembled, otherwise, it may lead to motor fan blockage, causing motor burn out.

Please do not use the vacuum to pick up detergent, oil, glass slag, needle, cigarette ash, wet dust, water, matches, etc.

Please do not use the vacuum to pick up tiny particles such as cement, gypsum powder, wall powder, or large objects such as paper balls, otherwise it will cause malfunctions such as blockage and motor burnout.

Avoid blockage to air inlet or brushroll, it may cause motor failure.

Do not put your hand or foot into floorhead inlet to avoid body hurt.

Do not pour or splash water or other liquids into the machine to avoid short circuit to burn out the machine.

If the brushroll is not working, please check whether the brushroll is entangled with hair or other long fiber, clean it in time.

When storing the machine for a long time, ensure that the battery is fully charged before storage and charge the machine at least every three months.

Unplug the charger to clean or repair the machine. Hold the charger when plugging or unplugging it, and do not pull the charging cord.

Use a dry cloth to clean the machine. Liquids like gasoline, alcohol, lacquer thinner will cause crack or colour fading and cannot be used.

If the machine is not working after fully charged, it must be checked and repaired in our designated office, please do not dismantle the machine on your own.

Discarded machine contains batteries. They should be recycled safely. Do not discard them randomly.

If there is damage on power cord, to avoid danger, it should be replaced or repaired by manufacturer, repairing agency or professional person.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

The appliance is only to be used with the power supply unit provided.

Trouble Shooting

Please check the following issues before sending to designated repair agent.

Trouble Possible Causes Solutions
Motor does not work	Battery has no power Charge the vacuum cleaner
	Metal tube,floorhead, battery pack and vaccum cleaner is not assembled correctly	Check the accessories are assembled correctly to the vacuum cleaner
Suction drops	Dust cup full Clean dust cup
	Filter blocked Clean or replace filter
	Floorhead air path blocked Clean floorhead air path
Short working time after charging	Machine not fully charged	Follow instruction manual to fully charge the battery
	Battery old aging	New batteries can be bought from local distributor
Dust content indicator is always red	Dust sensor covered by dust	Clean the dust on the dust sensor which is located in the suction inlet of the handheld vacuum cleaner

When there is electric components defect, which needs professional after service person for instruction or repairing, LED screen will display the defect warning with error code of F1 to F8. Please contact after service of local agent and provide error code.

Defect of F1 to F8 is as following:

Code Defect Solutions
F1 Battery pack nickel strip broken Replace or repair battery pack
F2 Charger defect Replace charger
F3 Vacuum motor short circuit Replace vacuum motor
F4 Battery cell defect Replace or repair battery pack
F5	Vacuum motor 1st over current protection	Replace vacuum motor
F6	Vacuum motor 2nd over current protection	Replace vacuum motor
F7	PCB defect or PCB leadwire loose	Replace PCB or PCB leadwire
F8 Battery pack NTC abnormal		Turn off the vacuum and wait until battery pack cooled down. Turn on again.If error code still appears, replace battery pack

Attention: if there are other faults needs special tools, in order to avoid danger, must be repaired by professional people of manufacturer, repairing agent or similar agent.

Technical Parameter

Model No H9 Flex
Rated voltage 28.8V	---
Rated power 600W
Charger input voltage 100-240V ~ 50/60 Hz
Charger output voltage 34.2V/600mA
Electric floor head model No	T-EB110VA
Electric floor head rated power	30W
Battery pack capacity	2500mAh
Charge time	4-5H

Circuit Diagram

Manufacturer Information

Manufacturer Kingclean E	Electric Co., Ltd
Address	No.1 Xiangyang Road, Suzhou New District, Jiangsu Province 215009, China

CE EAC

Disposal

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of the machine into household waste!

Only for EC countries:

According to the European Guideline 2012/19/EU, machine that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Battery packs/batteries:

Integrated batteries may only be removed for disposal by qualified personnel.

Opening the housing shell can damage or destroy the machine.

Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/batteries should, if possible, be discharged, collected, recycled or disposed of in an environmental-friendly manner.

Subject to change without notice.

Warranty Information

This product enjoys two years warranty from the date of purchase.

Excluded from the guarantee is normal wear, commercial use, alterations to the appliance as purchased, cleaning activities, consequences of improper use or damage by the purchaser or a third person, damage that can be attributed to external circumstances.

Parts Name

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a vertical mechanical device with mounting base (no text or symbols)

Six technical line drawings of mechanical components arranged in a grid, no text or symbols present

Technical line drawing of three mechanical components with no visible text or symbols

9 Combination brushroll Carpet brushroll

Technical line drawing of two robotic arms with a numbered scale (10) and no visible text or symbols

Line drawing of a robotic vacuum cleaner on a bed (no text or symbols)

Line drawing of a paintbrush applying paint to a box (no text or symbols)

12

Line drawing of a mechanical device climbing a wooden cabinet (no text or symbols)

Line drawing of a mechanical assembly with a vertical rod and base mount (no text or symbols)

13

14

Line drawing of a vintage digital camera with lens and screen (no text or symbols)

①

Line drawing of a handheld device with gears and buttons (no text or symbols)

②

Exploded view diagram of a camera module showing internal components and assembly (no text or labels)

③

16

④

⑤

Simple line drawing of a spinning wheel with a sun symbol above it (no text or labels)

17

Producent Kingclean Electric Co., Ltd
Adres	No.1 Xiangyang road, Suzhou New District,Jiangsu province, 215009, China

CE EAC

Technical diagram of a mechanical device with a directional arrow and component label (no readable text or symbols)

ganzen Einheiten

Technical line drawing of a vertical mechanical device with mounting base (no text or symbols)

Six technical line drawings of mechanical components arranged in a grid, no text or symbols present

Technical line drawing of a mechanical assembly with three views (top, front, side), no text or symbols present.

Technical line drawing of two mechanical components with no visible text or symbols

Line drawings showing a vacuum cleaner on a bed and a brush applying paint to a window table (no text or symbols)

Two technical line drawings of a robotic arm mounted on a cabinet, shown from different angles (no text or symbols present)

Technical line drawings of two mechanical components labeled ① and ②, with no visible text or symbols beyond labels.

Exploded view diagram of a camera module showing internal components and assembly (no text or labels)

16 ④ ⑤

Technical diagram of a mechanical device with a directional arrow and component labels (no readable text or symbols)

Technical line drawing of a vertical mechanical device with mounting base (no text or symbols)

Technical line drawings of six different mechanical components or devices arranged in a grid (no text or symbols present)

Technical line drawing of three mechanical components with no visible text or symbols

Technical line drawing of a mechanical assembly with two views (top: cylindrical tool, bottom: articulated arm) and a wavy panel structure (no text or symbols)

Line drawing of a vacuum cleaner on a bed (no text or symbols)

Line drawing of a paintbrush applying paint to a box (no text or symbols)

12

Line drawing of a mechanical device climbing a wooden cabinet (no text or symbols)

Line drawing of a mechanical assembly with a vertical rod and base mount (no text or symbols)

13

14

Line drawing of a handheld electronic device with no visible text or symbols

①

Line drawing of a handheld device with gears and buttons (no text or symbols)

②

Exploded view diagram of a camera module showing internal components and assembly (no text or labels)

③

16

④

Simple line drawing of a cylindrical object with a sun symbol above it, no text or symbols present.

⑤

Technical line drawing of a mechanical component with an inset close-up view (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

18

Bc de

Fabricant Kingclean Electric Co., Ltd
Adresse	No.1 Xiangyang road, Suzhou New District,Jiangsu province, 215009, China

CE EAC

Mise au rebut

Technical diagram of a mechanical device with a directional arrow and component label (no readable text or symbols)

Technical line drawing of a vertical mechanical device with mounting base (no text or symbols)

Six technical line drawings of a mechanical device, showing exploded and assembled views (no text or symbols)

Technical line drawing of a mechanical device with three views: top view, front view, and side view (no text or symbols)

Technical line drawing of two robotic arms with a wavy panel and scale bar, no text or symbols present

Line drawing of a robotic vacuum cleaner on a bed (no text or symbols)

Line drawing of a paintbrush applying paint to a wooden box (no text or symbols)

12

Line drawing of a mechanical device climbing a wooden block (no text or symbols)

Line drawing of a mechanical device mounted on a cabinet (no text or symbols)

13

14

Line drawing of a vintage camera with lens and external components (no text or symbols)

①

Line drawing of a mechanical device with gears and shafts (no text or symbols)

②

Storage of Vacuum Cleaner

Battery pack disassembly

Press the battery release button, remove the battery pack in the arrow direction and place the battery in a plastic bag, then store it in a dry place.

Exploded view diagram of a camera module showing internal components and part number 15 (no text or symbols on the diagram itself)

16 ④ ⑤

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of a vertical mechanical device with base and mounting feet (no text or symbols)

Six technical line drawings of mechanical components arranged in a grid, no text or symbols present

Technical line drawing of mechanical components including a vertical support structure, a close-up view of a mechanical assembly, and a separate cylindrical device (no text or symbols present)

Technical line drawing of two robotic arms with a wavy panel and grid lines, no text or symbols present

Line drawing of a robotic vacuum cleaner on a bed (no text or symbols)

Line drawing of a paintbrush applying paint to a wooden cabinet (no text or symbols)

12

Line drawing of a robotic arm climbing a wooden block (no text or symbols)

Line drawing of a vertical pipe mounted on a cabinet, with no visible text or symbols

13

14

Line drawing of a vintage digital camera with lens and external components (no text or symbols)

①

Line drawing of a mechanical device with gears and a handle (no text or symbols)

②

Exploded view diagram of a camera module showing internal components and part number 15 (no text or symbols on the diagram itself)

16 ④ ⑤

Technical line drawing of a mechanical device with a component and directional arrow (no text or symbols)

Technical line drawing of a vertical cylindrical device with mounting base (no text or symbols)

Six technical line drawings of mechanical components arranged in a 2x2 grid, no text or symbols present.

Technical line drawing of three mechanical components with no visible text or symbols

Diagram of a pipe being inserted into a brick wall, showing mechanical components (no text or symbols)

Diagram showing a tool interacting with a textured surface, with an inset magnified view of a small object (no text or symbols present)

Technical line drawing of two mechanical components with no visible text or symbols

Illustration showing a robotic vacuum cleaner on a bed and a hand brushing a small object on a cabinet (no text or symbols)

Technical line drawings of two mechanical components mounted on cabinets, no text or symbols present

Technical line drawings of two mechanical components labeled ① and ②, with no visible text or symbols beyond labels.

Exploded view diagram of a camera module showing internal components and part number 15 (no text or symbols on the diagram itself)

16 ④ ⑤

Хранение пылесоса
