USER MANUAL JV85 JIMMY

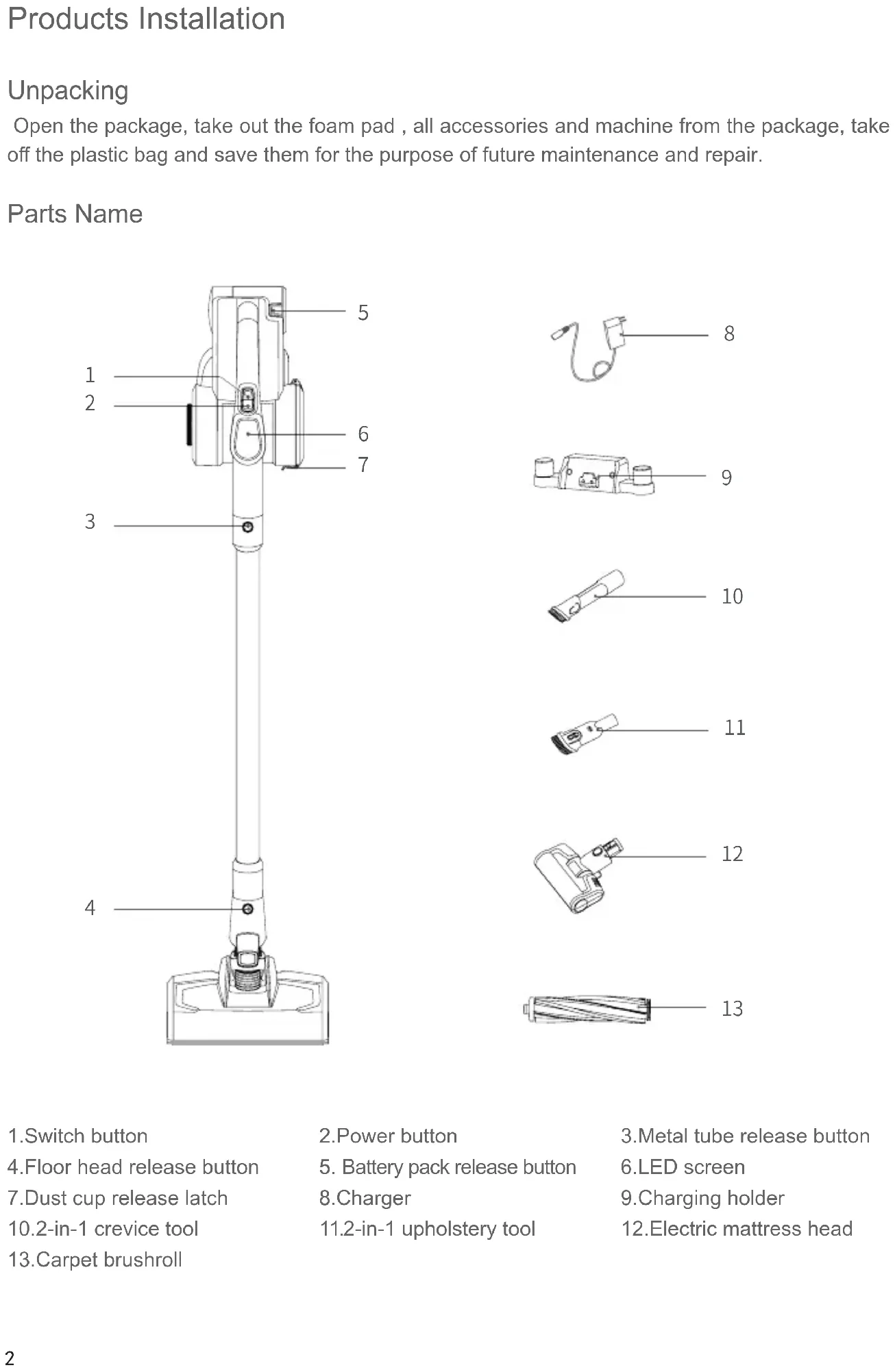

русский язык 56 Français 45 Italiano 34 Español 23 Deutsch 122 Products Installation Unpacking Open the package, take out the foam pad , all accessories and machine from the package, take o󰀨 the plastic bag and save them for the purpose of future maintenance and repair. Parts Name 1.Switch button 4.Floor head release button 7.Dust cup release latch 10.2-in-1 crevice tool 13.Carpet brushroll 2.Power button

5. Battery pack release button

8.Charger 11.2-in-1 upholstery tool 3.Metal tube release button 6.LED screen 9.Charging holder 12.Electric mattress head

Packing List Main-body Assembly Assemble the electric oorhead and metal tube Hold the oor head with left hand, use right hand to insert the metal tube vertically into oor head, align with the conductive needle, press the handle until a “click” sound is heard. Attention:Keep the handle and oor head in the same direction, conductive needle shall align with the socket. When packing, storing or cleaning, if the electric oorhead needs to be removed, press the brush release button as shown in the picture and pull the electric oorhead in the direction shown in the picture. Assemble battery pack and handheld vacuum Cleaner Assembly of battery pack: hold the hand-held vacuum cleaner in one hand, hold the battery pack in the other hand, aim at the guiding groove on the body, slide in the battery pack according to the arrow direction shown in the picture, and then pull the battery pack after installation to make sure it does not get loose. Attention: when the vacuum cleaner is long idled, please remove the battery, pack the machine and store it in a cool and dry place, avoid direct sunlight or humid environment. Part Name Handheld Vacuum Cleaner ElectricFloor head Electric mattress head 2-in-1 upholstery tool Quantity 1 1 1 1 Part Name 2-in-1 crevice tool Carpet brushroll Charging holder Metal tube Quantity 1 1 1 1 Part Name Adaptor Screw expansion pipe Instruction manual Quantity 1 2 2 1

Assemble metal tube and handheld vacuum First, assemble oorhead and metal tube according to the method of assembling electric oor head and metal tube. Assemble the oorhead, metal tube and handheld vacuum cleaner: as shown by the arrow, align the conductive needle of the metal tube with the coupler of the suction nozzle, push up until a“click” sound is heard. Connect electric mattress head

2-in-1 upholstery tool to handheld vacuum as the picture. Assembly of accessories For the convenience of use, this product is specially equipped with some accessories for the hand-held part of the vacuum cleaner. When you use the handheld vacuum cleaner , you can directly connect the accessories according to your needs

JV85 Electric mattress brush 2-in-1 Upholstery tool 2-in-1 crevice tool Carpet brushroll model Name

Use of Vacuum Attention: When use the product for rst time, battery power is not full. Need to charge the vacuum before using. Charging holder assembly Assembly method one: Put the vacuum cleaner in the holder, and lean the vacuum cleaner against the wall, place the holder in the position that vacuum cleaner oorhead does not touch ground. Take o󰀨 the handheld vacuum cleaner, follow Fig to place expansion pipe on the wall and follow Fig to place the holder to the expansion pipe position, and lock in the screw. After assembly completed, put the vacuum to charger holder to charge or store. Attention: Do not x the holder to bathroom or other humid wall. Expansion pipe Charging holder Charging holder

Charging of vacuum cleaner When the vacuum cleaner power is insu󰀩cient, charge the vacuum cleaner in time ; When the voltage is too low,to protect the battery, vacuum cleaner will be automatic power-o󰀨,at this time the vacuum cleaner need to be charged.When charging, plug the charger connector into the A/ C power socket,hang the handheld vacuum cleaner on the holder to start charging.When the handheld vacuum cleaner LED display shows an increase in power, it indicates that the vacuum cleaner is charging. When charging is completed, LED display show 100% power. After charging, please pull the charger plug o󰀨 power socket and stop charging. Attention: if power cord is damaged, to avoid danger, it must be replaced by a professional people of the manufacturer, repair ing agent or similar department.

Cleaning and Replacing Parts NOTES 1.HEPA filter is available for sale from local vacuum cleaner distributors. 2.It is recommended to clean the dust cup after each use; When the dust cup is full or the HEPA filter is clogged, it needs to be cleaned and replaced if necessary. Electric floorhead brushroll might be entangled with hair after long time use. It needs to be cleaned in time to keep the vacuum working more efficiently. Note: what is the rolling brush blocking protection? During the operation of the electric oorhead, if there is a large volume of foreign matter inhaled or too much ber wound, or even a child in the play of the machine mistakenly put his hand into the nozzle, resulting in the brushroll abnormal stop, the electric oorhead will stop working, in order to protect personal safety and brush motor. Use of accessories 2-in-1 crevice tool: suitable for cleaning crevice, door or window corners and other narrow gap. 2-in-1 upholstery tool: suitable for cleaningcloset, windowsill, sofa and table surface. Electric mattress head: Suitable for sofa and mattress. The brushroll beats and then cleans the dust mite and allergen from deep sofa or bed. Use of Handheld Vacuum Cleaner Take the vacuum cleaner o󰀨 the holder, press the switch button on the handle to start or stop of the vacuum cleaner. When machine is turned on, it works in normal power mode, press the power button to switch to turbo or max power mode. Use of Electric Floor Head Clean hardoor, tile or carpet with the electric oorhead. Carpet brushroll can be replaced to the oorhead to clean long hair carpet. Battery pack release button Switch button Power button LED screen Dust release button Carpet brushroll Clean hardfloor, tile or short hair carpet. Clean long hair carpet.

Clean dust cup and ltration system Clean brushroll Battery pack disassembly Storage of main body

1. Press down the dust cup bottom cover,

open dust cup and dump dust into trash can.

2. Hold HEPA lid and rotate anti-clockwise,

remove HEPA assembly from handheld vacuum for cleaning.

3. Hold top of cyclone assembly and rotate

anti-clockwise, remove cyclone assembly from handheld vacuum for cleaning.

4. If HEPA needs wash, hold the HEPA

and rotate clockwise, remove it from HEPA lid for washing. HEPA needs completely dry before reuse.

5. After cleaning, assemble the parts back

in the opposite sequence of disassembly. 1.Move the brushroll release button along the arrow direction remove side cover. 2.Remove one end of the brushroll and take it out from nozzle for cleaning. 3.After cleaning or replacing brushroll, assemble it back in opposite sequence of disassembly. Press the battery release button, remove the battery pack in the arrow direction and place the battery in a plastic bag, then store it in a dry place. When the vacuum is long idled, remove the battery, pack the machine and store it in a cool and dry place, do not put in direct sunlight or humid environment.

Brushroll release button Battery release button8 Safety Notes This vacuum cleaner is designed for home use. Do not use it for commercial or other purposes. Please read this instruction manual carefully before use, properly save and store it for future use. Do not put the vacuum close to re or other high temperature facility. Do not use or store the machine under extreme bad conditions, for example, extreme temperature. It is recommended to use it indoors between the temperature of 5 °C to 40 °C. Store the machine in dry place and avoid direct sunlight. Fully charge the battery before rst use or after long storage. Before using the vacuum, make sure brushroll is assembled, otherwise, it may lead to motor fan blockage, causing motor burn out. Please do not use the vacuum to pick up detergent, oil, glass slag, needle, cigarette ash, wet dust, water, matches, etc. Please do not use the vacuum to pick up tiny particles such as cement,gypsum powder, wall powder, or large objects such as paper balls, otherwise it will cause malfunctions such as blockage and motor burnout. Avoid blockage to air inlet or brushroll, it may cause motor failure. Do not pour or splash water or other liquids into the machine to avoid short circuit to burn out the machine. If the brushroll is not working, please check whether the brushroll is entangled with hair or other long ber, clean it in time. When storing the machine for a long time, ensure that the battery is fully charged before storage and charge the machine at least every three months. Unplug the charger to clean or repair the machine. Hold the charger when plugging or unplugging it, and do not pull the charging cord. Use a dry cloth to clean the machine. Liquids like gasoline, alcohol, lacquer thinner will cause crack or colour fading and cannot be used. If the machine is not working after fully charged, it must be checked and repaired in our designated o󰀩ce, please do not dismantle the machine on your own.9 Trouble Possible Causes Solutions Motor does not work Battery has no power Charge the vacuum cleaner Motor does not work Metal tube, oorhead, battery pack and vaccum cleaner is not assembled correctly Check the accessories are assembled correctly to the vacuum cleaner Suction drops Dust cup full Clean dust cup Suction drops Filter blocked Clean or replace lter Trouble Shooting Please check the following issues before sending to designated repair o󰀩ces. Attention:If any other failures occurred, which need professional tools, in order to avoid danger, the machine must be repaired or replaced by manufacturer, other maintenance offices or professionals from similar offices. When discard the machine, please press the button to release the battery pack, take out the battery pack, make sure the machine is disconnected with power and handled properly. Do not throw into re,water or soil. If the battery liquid leakage touches your skin or clothes, wash it with water, if there is any discomfort, please go to hospital immediately. Do not use non-original battery pack, avoiding machine damage and safety problems. Avoid to use the vacuum cleaner to pick up easily blockable things such as: plastic bags, candy paper, big scrap of paper, which might a󰀨ect the function, even cause failure of working. Please clean the foreign matter on the oor head in time, then it will work normally. The discarded battery pack shall be recycled safely, do not throw away casually. Suction drops Floorhead air path blocked Clean oorhead air path Short working time after charging Machine not fully charged Follow instruction manual to fully charge the battery Short working time after charging Battery old aging New batteries can be bought from local distributor10 Product Specication Technical Parameter Model No. JV85 Rated Voltage 25.2V Rated Power 500W Adaptor Input Voltage 100-240V
