601151 - Baking sheet BARTSCHER - Free user manual and instructions

Product type	Office shelving
Brand	Bartscher
Model	601151
Material	Chrome-plated steel
Number of shelves	4
Dimensions (W x D x H)	750 x 350 x 1520 mm
Net weight	10.3 kg
Total load capacity	150 kg (even distribution)
Height adjustment of shelves	Yes, via plastic cones
Assembly type	Plug-in system, easy assembly
Adjustable feet	Yes, for leveling
Maintenance and cleaning	Soft damp cloth, do not use abrasive or caustic cleaners
Safety	Do not exceed maximum load, assemble correctly
Spare parts	Shelves, pillars, assembly cones, feet. Part numbers available in the manual.
Repairability	Repairable by replacing spare parts
General information	Manufactured by Bartscher GmbH, Germany. Manual available in 13 languages.

Frequently Asked Questions - 601151 BARTSCHER

What are the dimensions of the Bartscher 601151 shelving?

The dimensions are 750 mm width, 350 mm depth, and 1520 mm height.

What is the maximum load capacity?

The total load capacity is 150 kg, evenly distributed on the shelves.

How many shelves does this model have?

It comes with 4 height-adjustable shelves.

How to assemble the shelving?

First assemble the pillars by screwing the two parts together. Then attach the plastic cones into the grooves of the pillars, then slide the shelves onto the pillars and press firmly to clip them in.

Can the shelf height be adjusted?

Yes, the shelves are height-adjustable using the plastic cones. The bottom shelf must be mounted at a maximum of 15 cm from the floor.

How to clean the shelving?

Clean regularly with a soft damp cloth, then wipe dry thoroughly. Do not use caustic or abrasive products.

Does the shelving come with adjustable feet?

Yes, the feet on the lower parts of the pillars are height-adjustable to level the shelving.

What is the material of the shelving?

The material is chrome-plated steel, which provides good strength and a shiny appearance.

Can I use aggressive cleaners?

No, avoid caustic substances or rough cleaners that could damage the chrome surface.

Where can I find spare parts?

Parts such as shelves, pillars, and cones are available from the manufacturer. Check the manual for part codes.

USER MANUAL 601151 BARTSCHER

Pure structural diagram of a vertical column with diagonal bracing and mesh pattern (no text or symbols)

Regalböden (4)
Art.-№: 601151/601182/601192

Structural framework diagram showing truss connections and vertical supports (no text or symbols)

Diagram of a mechanical assembly showing a rotating shaft and threaded component with directional arrows (no text or labels)

Pure mechanical diagram showing a cylindrical component with internal channels and arrows indicating motion (no text or symbols)

Diagram of a wire fence structure with diagonal bracing and mounting points (no text or symbols)

Diagram of a mechanical assembly with directional arrows indicating movement (no text or symbols)

3D diagram of a two-tiered storage unit with embedded components and mounting holes (no text or symbols)

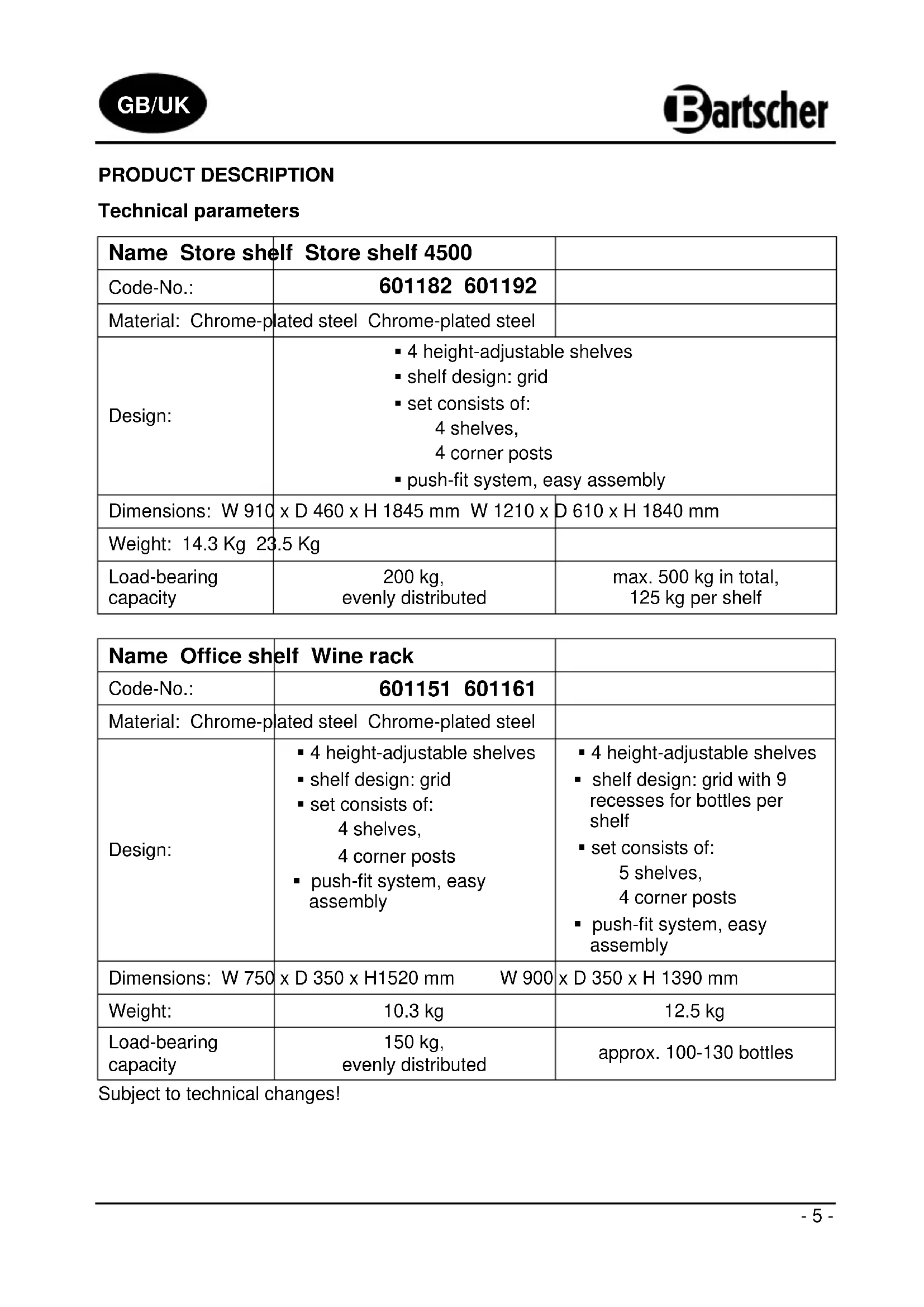

Name Store shelf	Store shelf 4500
Code-No.:	601182 601192
Material: Chrome-plated steel	Chrome-plated steel
Design:	4 height-adjustable shelvesshelf design: gridset consists of:4 shelves,4 corner postspush-fit system, easy assembly
Dimensions: W 910 x D 460 x H 1845 mm W 1210 x	D 610 x H 1840 mm
Weight: 14.3 Kg 23.5 Kg
Load-bearing capacity	200 kg,evenly distributed	max. 500 kg in total,125 kg per shelf

Name Office shelf Wine rack
Code-No.:	601151 601161
Material: Chrome-plated steel Chrome-plated steel
Design:	4 height-adjustable shelvesshelf design: gridset consists of:4 shelves,4 corner postspush-fit system, easy assembly	4 height-adjustable shelvesshelf design: grid with 9 recesses for bottles per shelfset consists of:5 shelves,4 corner postspush-fit system, easy assembly
Dimensions: W 750 x D 350 x H1520 mm W 900 x D 350 x H 1390 mm
Weight:	10.3 kg	12.5 kg
Load-bearing capacity	150 kg,evenly distributed	approx. 100-130 bottles

Subject to technical changes!

List of parts / scope of delivery

Pure structural diagram of a vertical column with diagonal bracing and horizontal supports (no text or symbols)

Shelves (4)
Code-No.:
601151/601182/601192

1 Corner post (4)
2 Connecting piece for corner post (4)
3 Shelf (4 or 5)
4 Plastic snap-fit joints (16 lub 20)
5 Feet for adjusting height (levelling) of the rack (4)

Close-up of a metal truss structure with vertical supports and structural beams (no text or symbols visible)

Shelves (5)
Code-No.: 601161
each with 9 recesses for bottles

ASSEMBLY

Assembly of the posts

Diagram of a mechanical assembly showing a rotating shaft and threaded component (no text or symbols)

1) All four posts consist of two parts and are screwed together with the help of the connecting pieces with threads that should already have been screwed to one of the two post parts. The upper part of the posts has a plastic cover at the top, the lower part of the post can be levelled at the bottom. Screw together the two parts of the post hand-screwed in a clockwise direction. Should it not be possible to screw the two post parts together easily, then the two thread parts were not joined properly.

Attaching a shelf

2) Attach the bottom shelf to the corner posts first. It is recommended that the bottom shelf should not be mounted higher than 15 cm above the floor.

At the desired height, snap the conical plastic snap-fit joints into the grooves on the posts, with the narrower end of the snap-fit joints pointing up and the thicker end of the snap-fit joints pointing down.

3) Tilt the shelf slightly to the side and slide the upper parts of the four posts (with plastic caps) through the openings in the shelf's corners until they are firmly seated at snap-fit joints.

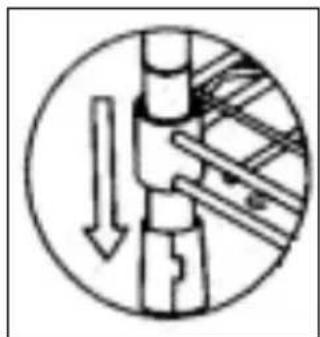

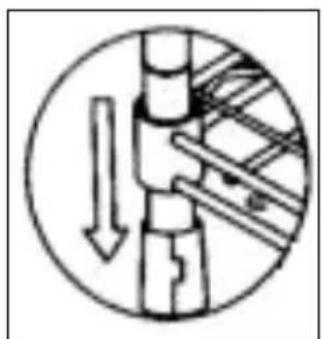

4) Place the entire rack upright and push the shelf down firmly at the corners, to make sure that the shelf lies firmly on the plastic snap-fit joints.

Further assembly

5) Attach the plastic snap-fit joints for the next shelf at the desired height. Slide the shelf down from above over the posts onto the plastic snap-fit joints and press it down firmly again.
6) Repeat step 5) for the other shelves.
7) To adjust the height (levelling) of the rack, rotate the feet on the bottom parts of the posts in and out.

Diagram of a two-tiered storage unit with chains and a hammer, no text or symbols present

Now, the rack has been completely assembled.

Note: a rubber hammer can make the assembly much easier.

Cleaning

- Clean the rack regularly with a soft, moist cloth and wipe it thoroughly afterwards.

CAUTION!

Never use corrosive or abrasive cleaning agents which may damage the chromed surface of the rack.

Bartscher GmbH

Pure structural diagram of a steel column with diagonal bracing (no text or symbols)

Tablettes (4)
Code-No.:

601151/601182/601192

Structural framework diagram showing a metal frame with diagonal bracing and vertical supports (no text or symbols)

Diagram of a mechanical assembly showing a cylindrical component being inserted into a housing, with no visible text or symbols.

Diagram of a two-tiered storage unit with metal chains and a central hammer (no text or symbols)

Pure structural diagram of a steel column with diagonal bracing (no text or symbols)

Ripiani (4)
N. art.: 601151/601182/601192

Close-up of a metal lattice structure with grid pattern (no text or symbols visible)

Diagram of a mechanical assembly showing a rotating shaft and threaded component with directional arrows (no text or labels)

Pure mechanical diagram showing two cylindrical components with internal channels and arrows indicating motion (no text or symbols)

Diagram of a metal frame structure with diagonal bracing and internal grid lines (no text or symbols)

Diagram of a mechanical assembly with directional arrows indicating movement (no text or symbols)

Diagram of a two-tiered storage unit with metal chains and a central hammer (no text or symbols)

Pure structural diagram of a steel column with diagonal bracing (no text or symbols)

estantes (4)

Código: 601151/601182/601192

Close-up of a metal lattice structure with vertical supports and mounting brackets (no text or symbols visible)

Diagram of a mechanical assembly showing a rotating shaft and threaded component (no text or symbols)

Pure mechanical diagram showing a vertical beam with internal segments and arrows indicating direction (no text or symbols)

Diagram of a metal frame structure with diagonal bracing and internal grid lines (no text or symbols)

Diagram of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Diagram of a two-tiered storage unit with chains and a hammer, no text or symbols present

Pure structural diagram of a steel column with diagonal bracing (no text or symbols)

Prateleiras (4)

Close-up of a metal lattice structure with vertical supports and diagonal braces (no text or symbols visible)

Diagram of a mechanical assembly showing a rotating shaft and threaded component (no text or symbols)

Pure mechanical diagram showing a vertical shaft with internal grooves and arrows indicating direction (no text or symbols)

Simple line drawing of a metal frame structure with diagonal bracing and internal grid lines (no text or symbols)

Diagram of a mechanical assembly with directional arrows, no text or symbols present

Etapa seguinte

Diagram of a two-tiered storage unit with chains and a hammer, no text or symbols present

BESCHRIJVING PRODUCT

Technische parameters

Pure structural diagram of a vertical column with diagonal bracing and horizontal supports (no text or symbols)

Rek (4)

Art.-nr.: 601151/601182/601192

Structural framework diagram showing truss connections and vertical supports (no text or symbols)

Diagram of a mechanical assembly showing a rotating shaft and connecting components (no text or symbols)

Pure mechanical diagram showing a vertical beam with internal segments and arrows indicating direction (no text or symbols)

Simple line drawing of a fence structure with diagonal bracing and horizontal supports (no text or symbols)

Diagram of a mechanical assembly with directional arrows indicating movement (no text or symbols)

Verdere montage

Diagram of a two-tiered storage unit with metal chains and a central hammer (no text or symbols)

Pure structural diagram of a vertical column with diagonal bracing and horizontal supports (no text or symbols)

Hylder (4)
Art.-nr.: 601151/601182/601192

1 Hjørnestolpe (4)
2 Koblingselement til hjørnestolpe (4)
3 Hylde (4 eller 5)
4 Plastlåse (16 eller 20)
5 Justerbare fødder (til nivellering) af reol (4)

Close-up of a metal truss structure with vertical supports and diagonal braces (no text or symbols visible)

Diagram of a mechanical assembly showing a rotating shaft and threaded component (no text or symbols)

Yderligere montering

Diagram of a two-tiered shelving unit with metal frames and a hammer, no text or symbols present

Pure structural diagram of a steel column with diagonal bracing (no text or symbols)

Полки (4) Артикул: 601151/601182/601192

Structural framework diagram showing a metal frame with triangular supports and vertical columns (no text or symbols)

Diagram of a mechanical assembly showing a rotating shaft and threaded component (no text or symbols)

Pure mechanical diagram showing two cylindrical components with internal channels and arrows indicating motion (no text or symbols)

Simple line drawing of a wire fence with diagonal bracing and a horizontal bar (no text or symbols)

Diagram of a mechanical assembly with directional arrows indicating movement (no text or symbols)

Дальнейшая сборка

Diagram of a two-tiered storage unit with metal chains and a central hammer (no text or symbols)

Pure structural diagram of a steel frame with diagonal bracing (no text or symbols)

Raflar (4)
Ürün-no.: 601151/601182/601192

Structural framework diagram showing a metal frame with diagonal bracing and vertical supports (no text or symbols)

Diagram of a mechanical assembly showing a rotating shaft and threaded component (no text or symbols)

Montajin devami

Diagram of a two-tiered storage unit with chains and a hammer, no text or symbols present

Pure structural diagram of a steel column with diagonal bracing (no text or symbols)

Półki (4)
Nr art.: 601151/601182/601192

Structural framework diagram showing a metal frame with triangular supports and vertical columns (no text or symbols)

Diagram of a mechanical assembly showing a rotating shaft and threaded component (no text or symbols)

Pure mechanical diagram showing a cylindrical component with internal channels and arrows indicating motion (no text or symbols)

Simple line drawing of a wire fence with diagonal bracing and two horizontal bars (no text or symbols)

Diagram of a mechanical assembly with directional arrows indicating movement (no text or labels)

Dalszy montaż

Diagram of a two-tiered storage unit with chains and a central hammer (no text or symbols)

Pure structural diagram of a vertical column with diagonal bracing and mesh pattern (no text or symbols)

Structural framework diagram showing truss connections and vertical supports (no text or symbols)

Diagram of a mechanical assembly showing a rotating shaft and threaded component (no text or symbols)

Další montáž

3D diagram of a two-tiered storage unit with a hammer and screw, showing structural components (no text or labels)

Pure structural diagram of a vertical column with diagonal bracing and horizontal supports (no text or symbols)

Police (4)
Br. artikla: 601151/601182/601192

1 Kutni stup (4)
2 Spojnica za elemente kutnog stupa (4)
3 Police (4 ili 5)
4 Plastične spajalice (16 ili 20)
5 Nožice za izravnavanje visine (niveliranje) regala (4)

Structural framework diagram showing a metal frame with diagonal bracing and vertical supports (no text or symbols)

Police (5)
Br. artikla: 601161
Svaka sa 9 udubljenja za boce

MONTAŽA

Montaža stupova

Diagram of a mechanical assembly showing a cylindrical component being inserted into a housing, with no visible text or symbols.

Pure mechanical diagram showing a cylindrical component with internal channels and arrows indicating motion (no text or symbols)

Simple line drawing of a wire fence with diagonal bracing and two horizontal bars (no text or symbols)

Diagram of a mechanical assembly with directional arrows indicating movement (no text or symbols)

Diagram of a two-tiered storage unit with chains and a hammer, no text or symbols present

Pure structural diagram of a steel column with diagonal bracing (no text or symbols)

Polc (4)

Cikkszam: 601151/601182/601192

Close-up of a metal lattice structure with vertical supports and a central vertical rod (no text or symbols visible)

Diagram of a mechanical assembly showing a cylindrical component being inserted into a housing, with no visible text or symbols.

Pure mechanical diagram showing two cylindrical components with internal channels and arrows indicating motion (no text or symbols)

Simple line drawing of a metal frame structure with diagonal bracing and internal grid lines (no text or symbols)

Diagram of a mechanical assembly with directional arrows indicating movement (no text or symbols)

További szerelés

Diagram of a two-tiered storage unit with a hammer and screw, showing structural components and mounting points (no text or labels)

Technical line drawing of a structural joint or bracket (no text or symbols)

Close-up of a metal lattice structure with vertical supports and diagonal braces (no text or symbols visible)

Diagram of a mechanical assembly showing a rotating shaft and threaded component (no text or symbols)

Diagram of a two-tiered storage unit with metal chains and a central hammer (no text or symbols)
