Product type	Storeroom shelving
Reference (Code-No.)	601192
Brand	Bartscher
Material	Chrome-plated steel
Number of shelves	4 height-adjustable shelves
Shelf design	Wire grid
Dimensions (W x D x H)	1210 x 610 x 1840 mm
Weight	23.5 kg
Total load capacity	500 kg (max 125 kg per shelf)
Assembly type	Plug-in system, simple assembly
Kit contents	4 shelves, 4 corner pillars, assembly cones, leveling feet
Height adjustment of shelves	Yes, via plastic cones
Adjustable feet	Yes, for leveling
Cleaning	Soft, damp cloth; avoid caustic products
Recommended use	Indoor, storeroom storage

Frequently Asked Questions - 601192 BARTSCHER

What are the dimensions of the Bartscher 601192 shelving?

The dimensions are 1210 mm in width, 610 mm in depth, and 1840 mm in height.

What is the maximum load capacity?

The total capacity is 500 kg, with a maximum of 125 kg per shelf under regular load.

Is the shelving delivered as a kit?

Yes, it is delivered as a kit including 4 shelves, 4 corner pillars, plastic assembly cones, and leveling feet.

How to assemble the pillars?

Each pillar consists of two parts to be screwed together clockwise via a threaded connection.

How to attach the shelves?

Insert the plastic cones into the grooves of the pillars at the desired height, then slide the shelf from above and press firmly on the corners.

Can the shelf height be adjusted after assembly?

Yes, the shelves are height-adjustable. Simply reposition the plastic cones in the grooves of the pillars.

How to clean the shelving?

Use a soft, damp cloth. Avoid caustic or abrasive cleaners that could damage the chrome-plated surface.

What is the weight of the shelving?

The weight of the unit is approximately 23.5 kg.

What tools are required for assembly?

No specific tools are required, but using a rubber mallet can make it easier to fit the shelves together.

Is the shelving stable?

Yes, once assembled it is stable. The adjustable feet allow leveling the shelving on an uneven floor.

USER MANUAL 601192 BARTSCHER

Pure structural diagram of a steel column with diagonal bracing (no text or symbols)

Regalböden (4)
Art.-№: 601151/601182/601192

Structural framework diagram showing truss connections and vertical supports (no text or symbols)

Diagram of a mechanical assembly showing a rotating shaft and threaded component (no text or symbols)

Pure mechanical diagram showing a cylindrical component with internal channels and arrows indicating motion (no text or symbols)

Diagram of a wire fence structure with diagonal bracing and mounting bracket (no text or symbols)

Diagram of a mechanical assembly with directional arrows, no text or symbols present

3D diagram of a multi-tiered storage unit with embedded components and mounting holes (no text or symbols)

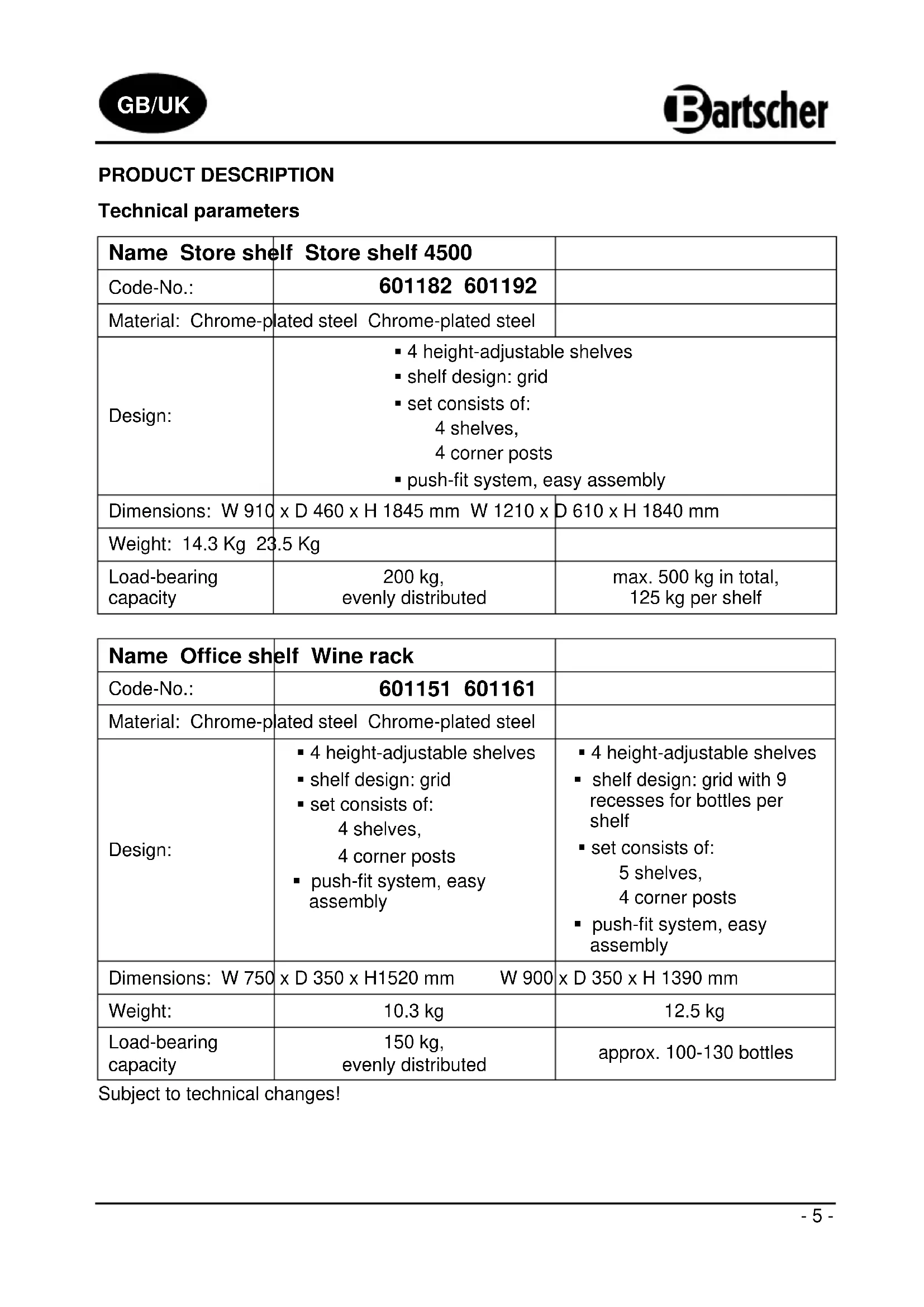

Name Store shelf	Store shelf 4500
Code-No.:	601182 601192
Material: Chrome-plated steel	Chrome-plated steel
Design:	4 height-adjustable shelvesshelf design: gridset consists of:4 shelves,4 corner postspush-fit system, easy assembly
Dimensions: W 910 x D 460 x H 1845 mm W 1210 x	D 610 x H 1840 mm
Weight: 14.3 Kg 23.5 Kg
Load-bearing capacity	200 kg,evenly distributed	max. 500 kg in total,125 kg per shelf

Name Office shelf Wine rack
Code-No.:	601151 601161
Material: Chrome-plated steel Chrome-plated steel
Design:	4 height-adjustable shelvesshelf design: gridset consists of:4 shelves,4 corner postspush-fit system, easy assembly	4 height-adjustable shelvesshelf design: grid with 9 recesses for bottles per shelfset consists of:5 shelves,4 corner postspush-fit system, easy assembly
Dimensions: W 750 x D 350 x H1520 mm W 900 x D 350 x H 1390 mm
Weight:	10.3 kg	12.5 kg
Load-bearing capacity	150 kg,evenly distributed	approx. 100-130 bottles

Subject to technical changes!

List of parts / scope of delivery

Pure structural diagram of a vertical column with diagonal bracing and horizontal supports (no text or symbols)

Shelves (4)
Code-No.:
601151/601182/601192

1 Corner post (4)
2 Connecting piece for corner post (4)
3 Shelf (4 or 5)
4 Plastic snap-fit joints (16 lub 20)
5 Feet for adjusting height (levelling) of the rack (4)

Close-up of a metal truss structure with vertical supports and structural beams (no text or symbols visible)

Shelves (5)
Code-No.: 601161
each with 9 recesses for bottles

ASSEMBLY

Assembly of the posts

Diagram of a mechanical assembly showing a rotating shaft and threaded component (no text or symbols)

1) All four posts consist of two parts and are screwed together with the help of the connecting pieces with threads that should already have been screwed to one of the two post parts. The upper part of the posts has a plastic cover at the top, the lower part of the post can be levelled at the bottom. Screw together the two parts of the post hand-screwed in a clockwise direction. Should it not be possible to screw the two post parts together easily, then the two thread parts were not joined properly.

Attaching a shelf

2) Attach the bottom shelf to the corner posts first. It is recommended that the bottom shelf should not be mounted higher than 15 cm above the floor.

At the desired height, snap the conical plastic snap-fit joints into the grooves on the posts, with the narrower end of the snap-fit joints pointing up and the thicker end of the snap-fit joints pointing down.

3) Tilt the shelf slightly to the side and slide the upper parts of the four posts (with plastic caps) through the openings in the shelf's corners until they are firmly seated at snap-fit joints.

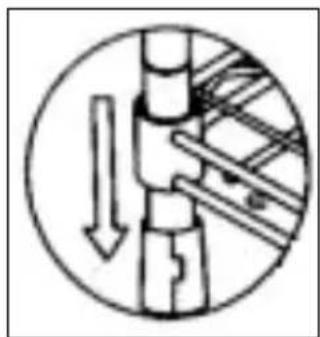

4) Place the entire rack upright and push the shelf down firmly at the corners, to make sure that the shelf lies firmly on the plastic snap-fit joints.

Further assembly

5) Attach the plastic snap-fit joints for the next shelf at the desired height. Slide the shelf down from above over the posts onto the plastic snap-fit joints and press it down firmly again.
6) Repeat step 5) for the other shelves.
7) To adjust the height (levelling) of the rack, rotate the feet on the bottom parts of the posts in and out.

Diagram of a two-tiered storage unit with chains and a hammer, no text or symbols present

Now, the rack has been completely assembled.

Note: a rubber hammer can make the assembly much easier.

Cleaning

- Clean the rack regularly with a soft, moist cloth and wipe it thoroughly afterwards.

CAUTION!

Never use corrosive or abrasive cleaning agents which may damage the chromed surface of the rack.

Bartscher GmbH

Pure structural diagram of a steel column with diagonal bracing (no text or symbols)

Tablettes (4)
Code-No.:

601151/601182/601192

Structural framework diagram showing a metal frame with diagonal bracing and vertical supports (no text or symbols)

Diagram of a mechanical assembly showing a cylindrical component being inserted into a housing, with no visible text or symbols.

Suite du montage

Diagram of a two-tiered storage unit with metal chains and a central hammer (no text or symbols)

Pure structural diagram of a steel column with diagonal bracing (no text or symbols)

Ripiani (4)
N. art.: 601151/601182/601192

Close-up of a metal lattice structure with grid patterns and vertical supports (no text or symbols visible)

Diagram of a mechanical assembly showing a rotating shaft and threaded component with directional arrows (no text or labels)

Pure mechanical diagram showing two cylindrical components with internal channels and arrows indicating motion (no text or symbols)

Diagram of a metal frame structure with diagonal bracing and internal grid lines (no text or symbols)

Diagram of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Diagram of a two-tiered storage unit with metal chains and a central hammer (no text or symbols)

Pure structural diagram of a steel column with diagonal bracing (no text or symbols)

estantes (4)

Código: 601151/601182/601192

Close-up of a metal lattice structure with vertical supports and mounting brackets (no text or symbols visible)

Diagram of a mechanical assembly showing a rotating shaft and threaded component (no text or symbols)

Pure mechanical diagram showing a vertical beam with internal segments and arrows indicating direction (no text or symbols)

Diagram of a metal frame structure with diagonal bracing and internal grid lines (no text or symbols)

Diagram of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Diagram of a two-tiered storage unit with chains and a central hammer (no text or symbols)

Pure structural diagram of a steel column with diagonal bracing (no text or symbols)

Prateleiras (4)

Close-up of a metal lattice structure with vertical supports and diagonal braces (no text or symbols visible)

Diagram of a mechanical assembly showing a rotating shaft and threaded component (no text or symbols)

Pure mechanical diagram showing two cylindrical components with internal channels and arrows indicating motion (no text or symbols)

Simple line drawing of a metal frame structure with diagonal bracing and internal grid lines (no text or symbols)

Diagram of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Etapa seguinte

Diagram of a two-tiered storage unit with chains and a hammer, no text or symbols present

BESCHRIJVING PRODUCT

Technische parameters

Pure structural diagram of a vertical column with diagonal bracing and horizontal supports (no text or symbols)

Rek (4)

Art.-nr.: 601151/601182/601192

Structural framework diagram showing truss connections and vertical supports (no text or symbols)

Diagram of a mechanical assembly showing a rotating shaft and connecting components (no text or symbols)

Pure mechanical diagram showing a vertical beam with internal segments and arrows indicating direction (no text or symbols)

Simple line drawing of a fence structure with diagonal bracing and horizontal supports (no text or symbols)

Diagram of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Verdere montage

Diagram of a two-tiered storage unit with a hammer and screw, showing structural components (no text or labels)

Pure structural diagram of a vertical column with diagonal bracing and horizontal supports (no text or symbols)

Hylder (4)
Art.-nr.: 601151/601182/601192

1 Hjørnestolpe (4)
2 Koblingselement til hjørnestolpe (4)
3 Hylde (4 eller 5)
4 Plastlåse (16 eller 20)
5 Justerbare fødder (til nivellering) af reol (4)

Close-up of a metal truss structure with vertical supports and diagonal braces (no text or symbols visible)

Diagram of a mechanical assembly showing a rotating shaft and threaded component (no text or symbols)

Yderligere montering

Diagram of a two-tiered shelving unit with a hammer and screw, showing structural components (no text or labels)

Pure structural diagram of a steel column with diagonal bracing (no text or symbols)

Полки (4) Артикул: 601151/601182/601192

Structural framework diagram showing a metal frame with triangular supports and vertical columns (no text or symbols)

Diagram of a mechanical assembly showing a rotating shaft and threaded component (no text or symbols)

Pure mechanical diagram showing two cylindrical components with internal channels and arrows indicating motion (no text or symbols)

Simple line drawing of a wire fence with diagonal bracing and horizontal supports (no text or symbols)

Diagram of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Дальнейшая сборка

Diagram of a two-tiered storage unit with metal chains and a central hammer (no text or symbols)

Pure structural diagram of a steel frame with diagonal bracing (no text or symbols)

Raflar (4)
Ürün-no.: 601151/601182/601192

Structural framework diagram showing a metal frame with diagonal bracing and vertical supports (no text or symbols)

Diagram of a mechanical assembly showing a rotating shaft and threaded component (no text or symbols)

Montajin devami

Illustration of a two-tiered storage unit with chains and a central hammer (no text or symbols)

Pure structural diagram of a steel column with diagonal bracing (no text or symbols)

Półki (4)
Nr art.: 601151/601182/601192

Structural framework diagram showing a metal frame with triangular supports and vertical columns (no text or symbols)

Diagram of a mechanical assembly showing a cylindrical component being inserted into a threaded rod, with no text or symbols present.

Pure mechanical diagram showing a cylindrical component with internal channels and arrows indicating motion (no text or symbols)

Simple line drawing of a wire fence with diagonal bracing and two horizontal bars (no text or symbols)

Diagram of a mechanical assembly with directional arrows indicating movement (no text or labels)

Dalszy montaż

Diagram of a two-tiered storage unit with chains and a central hammer (no text or symbols)

Pure structural diagram of a steel column with diagonal bracing (no text or symbols)

Structural framework diagram showing truss connections and vertical supports (no text or symbols)

Diagram of a mechanical assembly showing a rotating shaft and connecting components (no text or symbols)

Další montáž

3D diagram of a multi-tiered storage unit with embedded components and mounting holes (no text or symbols)

Pure structural diagram of a steel column with diagonal bracing (no text or symbols)

Police (4)
Br. artikla: 601151/601182/601192

1 Kutni stup (4)
2 Spojnica za elemente kutnog stupa (4)
3 Police (4 ili 5)
4 Plastične spajalice (16 ili 20)
5 Nožice za izravnavanje visine (niveliranje) regala (4)

Structural framework diagram showing a metal frame with diagonal bracing and vertical supports (no text or symbols)

Police (5)
Br. artikla: 601161
Svaka sa 9 udubljenja za boce

MONTAŽA

Montaža stupova

Diagram of a mechanical assembly showing a rotating shaft and threaded component (no text or symbols)

Pure mechanical diagram showing a cylindrical component with internal channels and arrows indicating motion (no text or symbols)

Simple line drawing of a wire fence with diagonal bracing and two horizontal bars (no text or symbols)

Diagram of a mechanical assembly with directional arrows indicating movement (no text or labels)

Diagram of a two-tiered storage unit with chains and a hammer, no text or symbols present

Pure structural diagram of a steel column with diagonal bracing (no text or symbols)

Polc (4)

Cikkszam: 601151/601182/601192

Close-up of a metal truss structure with lattice framework and vertical supports (no text or symbols visible)

Diagram of a mechanical assembly showing a cylindrical component being inserted into a housing, with no visible text or symbols.

Pure mechanical diagram showing two cylindrical components with internal channels and arrows indicating motion (no text or symbols)

Simple line drawing of a metal frame structure with diagonal bracing and internal grid lines (no text or symbols)

Diagram of a mechanical assembly with directional arrows indicating movement (no text or symbols)

További szerelés

Diagram of a two-tiered storage unit with a hammer and screw, showing structural components and mounting points (no text or labels)

Pure structural diagram of a steel column with diagonal bracing (no text or symbols)

Close-up of a metal lattice structure with vertical supports and diagonal braces (no text or symbols visible)

Diagram of a mechanical assembly showing a rotating shaft and threaded component (no text or symbols)

Diagram of a two-tiered storage unit with metal chains and a central hammer (no text or symbols)
