Product type	Projection alarm clock with starry sky
Brand	Auriol
Model	IAN 405199
Dimensions	93 x 94.2 x 142 mm
Weight (without batteries)	168 g
Power supply	3 x 1.5 V AAA R03/LR03 batteries (included)
Display	Time, date, temperature, day of week, AM/PM
Main functions	Dual alarm, snooze, timer, star projection, melodies, adjustable volume, backlight
Melodies	10 melodies and 5 nature sounds
Projection	Star projection with timer (ON, 15 min, 30 min)
Temperature	Display in °C/°F, range -10°C to 50°C
Time format	12/24 hours
Interface	Touch buttons on the front panel
Safety	Battery compartment secured by screw, instructions for children, battery polarity
Maintenance and cleaning	Soft dry cloth, do not immerse
Warranty	3 years
Package contents	1 alarm clock, 3 AAA batteries, 1 instruction manual
Article number	405199_2110

Frequently Asked Questions - IAN 405199 AURIOL

How to set the time and date?

In standard display, press and hold the setting button (10) for 3 seconds. Set the hours using the +12/24 (6) or -°C/°F (8) buttons, confirm with (10). Repeat for minutes, year, month, day, and the language of the day of the week.

How to set the alarm?

Press the /mode button (7) to access alarm 1 (A1) or 2 (A2). Press and hold the setting button (10) for 3 seconds, then set the hours and minutes using the +12/24 (6) or -°C/°F (8) buttons. Confirm each step with (10).

How to activate or deactivate the alarm?

In standard display, press /mode (7) to select A1 or A2. Use the +12/24 (6) or -°C/°F (8) button to activate (alarm symbol displayed) or deactivate (symbol disappears).

How to use the snooze function?

When the alarm sounds, press the +12/24 (6), /mode (7), or -°C/°F (8) button. The alarm repeats after 5 minutes. The Z^z symbol flashes on the screen.

How to change the alarm or timer melody?

For the melody, press the melody selection button (5) in standard display to cycle through the 10 melodies and 5 nature sounds. For the timer, set the melody during timer programming.

How to project the stars?

Press the star light button (11) to start the projection. Use the timer switch (13) on the back to choose the duration: continuous ON, 30 min or 15 min. Press (11) again to stop.

How to set the timer?

Press the timer button (9) or three times on /mode (7) to enter TIMER mode. Press and hold the setting button (10) for 3 seconds, then set hours, minutes, seconds, melody, and volume using the +12/24 (6) or -°C/°F (8) buttons. Confirm each step with (10).

What to do if the screen is difficult to read at night?

You can briefly turn on the backlight by pressing the setting button (10). The screen lights up for a few seconds.

How to clean the alarm clock?

Use a soft, dry, lint-free cloth. Never immerse the device in water and do not use harsh cleaning products or sharp objects.

What to do if the alarm clock stops working?

First check the batteries: insert three new AAA batteries respecting polarity. If the problem persists, contact customer service at [phone] or by email at [e-mail]. Have your receipt and the article number (405199_2110) ready.

USER MANUAL IAN 405199 AURIOL

PROJECTION ALARM CLOCK WITH STARRY SKY

DE AT CH

PROJEKTIONSWECKER MIT STERNENHIMMEL

FR BREVIL

NL PRC

©CZ PROJEKČNÍ BUDÍK S HVĚZDNOU OBLOHOU

PL

BUDZIK Z PROJEKCJĄ NIEBA POKRYTEGO GWIAZDAMI

SK

ES

ESTRELLADO

DK

IT MT CH

GB IE NL CY MT Usage and safety instructions ..... - 1 -

GB IE Usage and safety

instructions

Table of contents

Table of contents ...... - 1 -

Introduction ...... - 3 -

Intended use -3-

Delivery contents - 3 -

Technical specifications - 4 -

Explanation of symbols ...... - 4 -

Important safety and information...... - 6 -

Safety information for users - 6 -

Do not put the device into the hands of small children ..... - 7 -

Safety information for the batteries - 7 -

Set up the device securely -9-

Control panels - 11 -

Front - 11 -

Back side - 12 -

Display.... - 13 -

Setting up the device ....- 14 -

12-/24-hour display - 16 -

Temperature °C/°F - 16 -

Melody Selection - 16 -

Volume....-17-

Play melody - 17 -

Star projection ...... - 17 -

Alarm - 18 -

-1-

GB IE NI CY MT

Alarm setting - 18 -

Activate or deactivate the alarm - 18 -

Snooze function (SNOOZE) - 19 -

Start or stop timer.... - 20 -

Cleaning instructions.... - 21 -

Storage - 21 -

Simplified EU declaration of conformity - 21 -

Disposal - 21 -

Disposal of the electronic device - 22 -

Battery disposal - 23 -

Recycling - 26 -

Waste disposal - 26 -

The digi-tech gmbh warranty ...... - 26 -

Warranty terms - 26 -

Warranty period and statutory claims for defects ..... - 27 -

Scope of Warranty - 27 -

Processing in the event of a warranty claim - 27 -

Service - 28 -

Supplier - 29 -

PROJECTION ALARM CLOCK WITH STARRY SKY

Introduction

Congratulations on the purchase of your new projection alarm clock with starry sky (hereinafter referred to as the "device"). You have chosen a high-quality device. The operating instructions are part of this device. They contain important information pertaining to the safety, use and disposal of the device. Please familiarise yourself with all the operating and safety instructions before using this device. Use the device only as described and for the purposes indicated. All documents must be provided when giving the device to third parties. Please keep the packaging and operating instructions for future queries.

Intended use

The device is suitable for displaying the time and for using the additional functions described. Any other use or modification of the device is considered improper. The manufacturer is not liable for damage caused by improper use or incorrect operation. The device is not intended for commercial use.

Note: This electrical device is not a toy, but an alarm clock.

Delivery contents

Note: Please check the package after purchase. Make sure that all parts are included and that none are defective. Do not use the device if the delivery is incomplete and/or parts are damaged. Contact the service department (see "Procedure in the event of a warranty claim").

-3-

• 1 x Projection Alarm Clock with Starry Sky
• 3 x alkaline batteries 1.5 V AAA LRO3
• 1 x operating instructions

Technical specifications

• Measuring range/temperature: -10 °C – 50° C
- Temperature display/tolerance: - 10 - 0 °C +/- 2 °C, 0 - 50 °C +/- 1.5 °C
• Dimensions: approx. 93 x 94.2 x 142 mm
• Weight: approx. 168 g (excl. battery)
- Batteries: 3 x 1.5 V AAA/R03/LR03 - symbol for direct voltage

Explanation of symbols

	WARNING!	This warning signal/word indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.
	Note:	This signal word indicates additional information.
		Improper use of disposable/rechargeable batteries may cause an explosion and/or leakage of battery fluid.
	Incl.	Alkaline batteries included
	- +	Batteries:3 x 1.5 V AAA R03/LR03

-4-

		Symbol for DC voltage
		Operating instructions
		Please read the operating instructions!
		By using the CE symbol, digi-tech gmbh declares conformity with the applicable EU directives.
		Temperature
		Time
		Alarm
		Snooze

Important safety information

Safety information for users

WARNING!

RISK OF INJURY!

This device can be used by persons (including children aged 8 and over) with reduced physical, sensory and mental abilities, as well as by persons with a lack of experience and knowledge, if they are supervised or have been given instruction concerning the safe use of the device and understand the dangers associated with it. Children must not play with the device. Cleaning and user maintenance must not be carried out by children unless they are supervised. Also keep the packaging film out of reach of children. There is a risk of suffocation.

-6-

GB IE NI CY MT

Do not put the device into the hands of small children

WARNING!

HEALTH HAZARD!

RISK OF DEATH!

This device is not a children's toy!

WARNING: DANGER OF

SUFFOCATION! – The device contains small

parts that can be swallowed and cause injury.

Never let small children over 5 years of age use the device unsupervised. Small children cannot always correctly recognize possible dangers.

Also keep the packaging film out of reach of children.

Danger of suffocation!

Safety information for the batteries

WARNING!

HEALTH HAZARD!

RISK OF EXPLOSION!

Keep old and new disposable batteries/rechargeable batteries out of reach of small children. If a disposable battery/rechargeable

-7-

GB IE NI CY MT

battery is swallowed, seek medical attention immediately.

The disposable batteries/rechargeable batteries must always be inserted with the correct polarity. Clean the battery and device contacts beforehand if necessary. Do not attempt to recharge, short-circuit, or open the batteries. Never heat the disposable batteries/rechargeable batteries to recharge them. Do not expose the disposable batteries/rechargeable batteries to excessive heat such as sunshine, fire or the like. There is an increased risk of leakage! Never throw batteries/rechargeable batteries into fire, as they can explode.

Improper use of batteries/rechargeable batteries may result in a risk of explosion and of the battery fluid leaking.

If the batteries/rechargeable batteries do leak, avoid contact with skin, eyes and mucous membranes. Use protective gloves. In case of contact with battery fluid, rinse the affected areas with plenty of clean water straight away and seek medical attention immediately. Remove

exhausted/rechargeable batteries from the device immediately, there is an increased risk of leakage.

Note:

• Non-rechargeable batteries must not be charged!
• Different battery types or new and used batteries must not be used together!
  • Do not short-circuit the connecting terminals!
• Empty batteries/rechargeable batteries must be removed from the device and safely disposed of (see Disposal of batteries)!
• If the device is stored unused for a prolonged period of time, the batteries/rechargeable batteries should be removed.

Set up the device securely

Place the device on a firm and flat surface. The device is not designed for use in rooms with high humidity (e.g., bathrooms). Protect sensitive surfaces before setting up to avoid scratches. Make sure that:

• the device is not placed on a thick carpet or bed when in use;
• no direct heat sources (e.g., heaters) affect the device;
  • the device is not exposed to direct sunlight;
• contact with water spray and drops of water is avoided (do not place any objects filled with liquids, e.g. vases, on or near the device);

-9-

GB IE NI CY MT

• the device is not in the immediate vicinity of magnetic fields (e.g. loudspeakers);
• no foreign objects can enter the device;
• candles and other open flames must be kept away from this product at all times to prevent the spread of fire.

Control panels

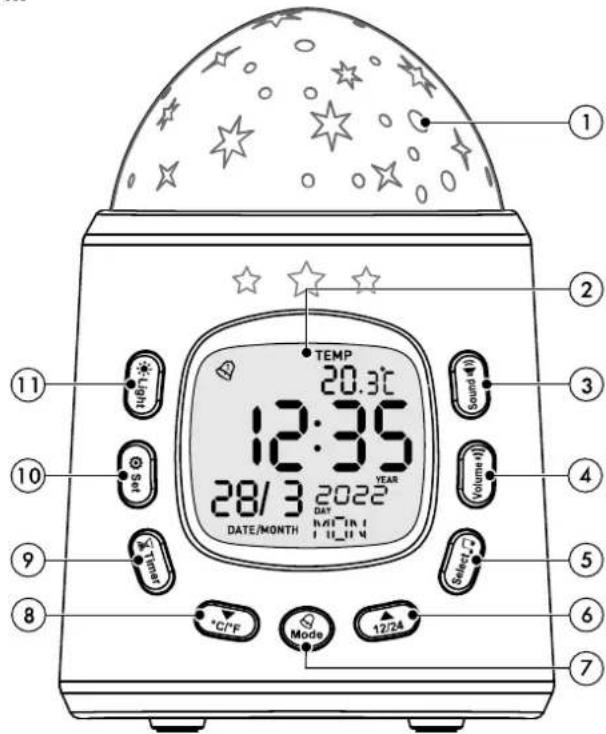

Front

TEMP 20.3°C 12:35 28/3 2022 DAY DATE/MONTH Volume *Cl*F Mode 12/24 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪

1	Starry sky projector	2	Display
3	Melody button, on/off	4	Volume button
5	Melody selection button	6	Up 12/24 button

-11-

7	Mode button, alarm	8	Down-°C/°F button
9	Timer button	10	Set button, setting
11	Starlight button, on/off

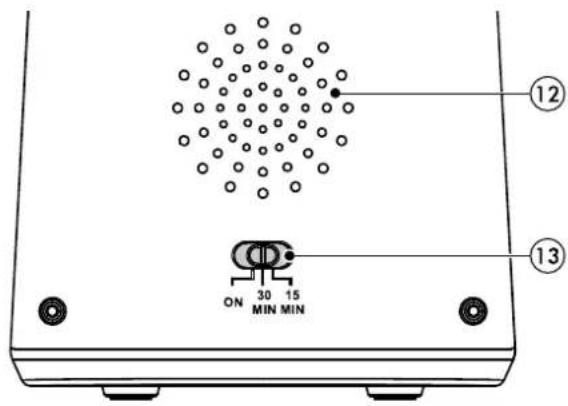

Back side

ON 30 15 MIN MIN ⑫ ⑬

12

Speaker

13

Timer switch

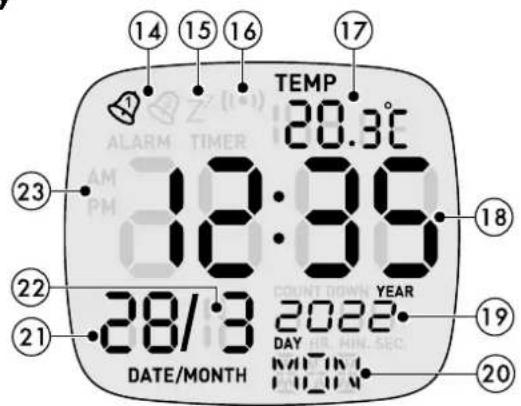

Display

14 15 16 17 TEMP 20.3°C ALARM TIMER 18:30 YEAR 18 23 16:30 22 28/3 2022 DAY MAY/MON DATE/MONTH 19 20

14	Alarm symbols, A 1,A 2	15	Snooze icon
16	Start symbol	17	Temperature display
18	Display of the time (hours, minutes), also display of alarm, timer, melodies, volume	19	Year, seconds display
20	Day of the week display	21	Day display
22	Month display	23	AM/PM 12 h display

Setting up the device

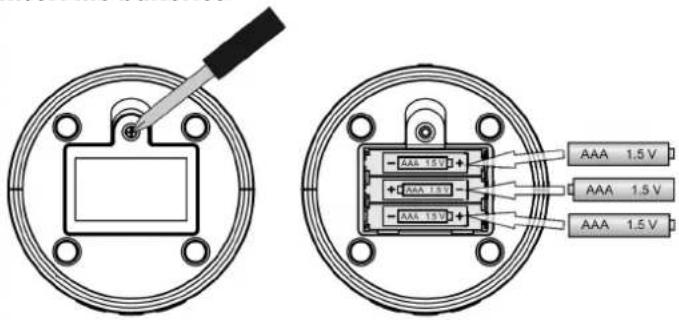

Insert the batteries

AAA 1.5 V AAA 1.5 V AAA 1.5 V

• Loosen the safety screw from the battery compartment cover on the underside of the device using a small Phillips screwdriver (not included).
• Open the battery compartment.
• Insert three 1.5 V AAA R03/LR03 batteries in the correct polarity according to the marking in the battery compartment. The display is briefly displayed in its entirety.

Then a melody sounds for about 15 seconds, the device checks the room temperature.

The device takes a few minutes to adjust to the room temperature.

• Close the battery compartment again with the battery compartment cover.
• Tighten the safety screw again with a small Phillips screwdriver.

Set Time and Date

1. Press the Set button (10) in the standard display for about 3 seconds.

On the display (2), the hour display of the time (18) flashes.

1. Use the up-12/24 button (6) or the down-°C/°F button (8) to set the hour.

2. Press the Set button (10) to confirm the selection. The minute display of the time (18) flashes in the display.

3. Use the up-12/24 button (6) or the down-°C/°F button (8) to set the minutes.

4. Press the Set button (10) to confirm the selection. In the display, the year indicator flashes (19).

5. Use the up-12/24 button (6) or the down-°C/°F button (8) to set the year.

6. Press the Set button (10) to confirm the selection. In the display, the month indicator (22) flashes.

7. Use the up-12/24 button (6) or the down-°C/°F button (8) to set the month.

8. Press the Set button (10) to confirm the selection. In the display, the day display (21) flashes.

9. Use the up-12/24 button (6) or the down-°C/°F button (8) to set the day.

10. Press the Set button (10) to confirm the selection. In the display, the language of the day of the week display (20) flashes.

11. Use the up-12/24 button (6) or the down-°C/°F button (8) to select the language of the day of the week. You can choose from ENG, GER, FRE, ITA, SEW, ESP, DAN.

12. Press the Set button (10) to confirm the selection.

13. The time and date are set.

12-/24-hour display

- Press the up-12/24 button (6) in the standard display to switch between the 12 h or 24 hour display.

Temperature °C/°F

- Press the down-°C/°F button (8) in the standard display to switch between the °C and °F temperature displays (7).

Melody Selection

- Press the melody selection button (5) in the standard display to switch between the different melodies.

There are 10 melodies and 5 natural sounds to choose from.

1 Bach Minuet
2 Good evening, good night
3 Frère Jacques
4 Twinkle Twinkle Little Star
5 Sternlein stehen
6 American Patrol
7 Mary had a little lamb
8 Oh My Darling
9 London Bridge is Falling Down
10 Hush Little Baby
11 Nature
12 Heart sounds
13 Rippling of streams
14 Sea noise
15 Birdsong

-16-

Volume

The device has 5 volume levels

- Press the melody-button (3) in the standard display and then press the volume button (4) until the desired volume is played via the speaker (12).

Play melody

• Press the melody button (3) in the standard display to play the tune.
• Use the timer switch (13) on the back of the device to select the playing time.

Set ON for continuous playing or set 30 minutes or 15 minutes as the duration.

- The melody playing can be stopped by pressing the melody button (3).

Star projection

• Press the starlight button (11) in the standard display to start the star projection.
• Use the timer switch (13) on the back of the device to select the projection time.

Set ON for continuous projection or set 30 minutes or 1.5 minutes as the duration.

- The star projection can be stopped by pressing the starlight button (11).

Alarm

Alarm setting

Your device has two alarms (alarm 1 and 2).

1. Press the /mode button (7) once in the standard display to enter alarm mode 1 (A 1).

2. Press the Set button (10) for about 3 seconds. In the display (2), the hour indicator (18) flashes.

3. Use the up-12/24 button (6) or the down-°C/°F button (8) to set the hour.

4. Press the Set button (10) to confirm the selection. In the display, the minute indicator (18) flashes.

5. Use the up-12/24 button (6) or the down-°C/°F button (8) to set the minutes.

6. Press the Set button (10) to confirm the selection. The melody indicator (18) flashes in the display.

7. Use the up-12/24 button (6) or the down-°C/°F button (8) to select the melody.

8. Press the Set button (10) to confirm the selection. The volume indicator (18) flashes in the display.

9. Use the up-12/24 button (6) or the down-°C/°F button (8) to adjust the volume.

10. Press the Set button (10) to confirm the selection.

11. The alarm time A 1 is now set.

12. Press the X-mode button (7) to enter alarm mode 2 (A 2).

13. Set the alarm time A 2 accordingly.

Activate or deactivate the alarm

1. Press the /mode button (7) in the standard display to enter alarm mode 1/2 (A 1/A 2).

1. Activate the alarm with the up-12/24 button (6) or the down-°C/°F button (8).

The alarm symbol 📄 (1) appears in the display.

1. At the set time, the display illumination switches on for approx. 3 seconds, the alarm sounds for approx. 1 minute and can be ended by pressing the melody button (3), the volume button (4), the melody selection button (5), the timer button (9), the set button (10) or the starlight button (11).

2. Deactivate the alarm with the up-12/24 button (6) or the down-°C/°F button (8).

The alarm symbol ☑ (1) turns off in the display.

1. The alarm no longer sounds.

Snooze function (SNOOZE)

1. When the alarm sounds, press the up-12/24 button (6), the ⏻/mode button (7) or the down-°C/°F button (8) to enter snooze mode. The snooze symbol Z^z (15) flashes on the display (2).

2. The alarm sounds again after 5 minutes.

Timer

Set timer

1. In the standard display, press the timer button (9) once or the /mode button (7) three times to enter the TIMER mode.

2. Press the Set button (10) for about 3 seconds. In the display (2), the hour indicator (18) flashes.

3. Use the up-12/24 button (6) or the down-°C/°F button (8) to set the hour.

4. Press the Set button (10) to confirm the selection. In the display, the minute indicator (18) flashes.

1. Use the up-12/24 button (6) or the down-°C/°F button (8) to set the minutes.
2. Press the Set button (10) to confirm the selection. The second indicator (19) flashes in the display.
3. Use the up-12/24 button (6) or the down-°C/°F button (8) to set the seconds.
4. Press the Set button (10) to confirm the selection. The melody indicator (18) flashes in the display.
5. Use the up-12/24 button (6) or the down-°C/°F button (8) to select the melody.
6. Press the Set button (10) to confirm the selection. The volume indicator (18) flashes in the display.
7. Use the up-12/24 button (6) or the down-°C/°F button (8) to adjust the volume.
8. Press the Set button (10) to confirm the selection.
9. Your timer has now been set.

Start or stop timer

1. In the standard display, press the timer button (9) once or the /mode button (7) three times to enter the TIMER mode.
2. Press the timer button (9) to start the timer.
3. After the timer has expired 0:00:00, the display light turns on for about 3 seconds and the timer melody sounds for about 40 seconds and can be stopped by pressing the up-12/24 button (6), the mode button (7), the down-°C/°F button (8), the timer button (9) or the set button (10).

Display lighting

- To turn on the display illumination for a short time, press the Set button (10).

Cleaning instructions

Incorrect cleaning can damage the device. DO NOT immerse the device in water or other liquids. Do not use aggressive cleaning agents, brushes with metal or nylon bristles or sharp or metallic cleaning objects such as knives, hard spatulas etc. These can damage the surface. Clean the device with a soft, dry, lint-free cloth like the ones used for cleaning spectacles.

Storage

If the device is not used for a fairly long period of time, remove the batteries and store the device, cleaned and protected from sunlight, in a cool, dry place, ideally in the original packaging.

Simplified EU declaration of conformity

CE

Hereby, digi-tech gmbh declares that the projection alarm clock with starry sky 4-LD5932 is in compliance with the RoHS 2011/65/EU and EMC 2014/30/EU directive.

You can download your instruction manual and declaration of conformity here: www.digi-tech-qmbh.com/downloads

Then click on the magnifying glass and enter the IAN 405199_2110

Disposal

This device and all the packaging materials are recyclable. Please dispose of them separately for better waste handling. You can find out about disposal options for your product by contacting your municipality.

Please take note of the marking of packaging material when separating waste materials. They are marked

-21-

GB IE NI CY MT

with abbreviations (a) and numbers (b) with the following meanings:

1-7: plastics

20-22: paper and cardboard

80-98: composite materials.

Disposal of the electronic device

The symbol with the crossed-out waste bin signifies that electrical and electronic equipment must not be disposed of with household waste. Consumers are legally obliged to collect electrical and electronic equipment separately from unsorted municipal waste at the end of their service life. In this way, an environmentally friendly and resource-saving usage is ensured.

Batteries and rechargeable batteries that are not firmly enclosed by the electrical or electronic device and that can be removed non-destructively must be separated from the device before it is handed over to a collection point and disposed of as intended. The same applies to light sources that can be removed from the device non-destructively.

Owners of electrical and electronic equipment from private households can hand them in at the collection points of the public waste disposal authorities or at the collection points set up by the manufacturers or distributors within the jurisdiction of the ElektroG/WEEE. The surrender of old devices is free of charge.

Dealers with a sales area of at least 400 m ^2 for electrical and electronic equipment are obliged to take them back. The same applies to food retailers with a total sales area of at least 800 m ^2 , provided that they offer electrical and electronic equipment continuously or at least several times a year.

Distance sellers with a storage area of at least 400 m^2 for electrical and electronic equipment or a total storage area of at least 800 m^2 are also obligated. In general, distributors are obliged to ensure that old devices can be returned free of charge by means of suitable return options at a reasonable distance.

Consumers have the option of handing over an old device free of charge to a distributor who is obliged to take them back if they purchase an equivalent new device with essentially the same function. This possibility also exists for deliveries to a private household. In distance selling, the option of free pick-up when purchasing a new device is limited to heat exchangers, display screen devices and large devices that have at least one outer edge with a length of more than 50 cm. When concluding the purchase contract, the distributor must question the consumer about their return intention. Apart from that, consumers can hand in up to three old devices of one type at a collection point of a distributor free of charge, without this being tied to the purchase of a new device. However, the edge lengths of the respective devices must not exceed 25 cm. Consumers are encouraged to take measures to avoid waste. With regard to electrical and electronic devices, this means extending their lifespan by repairing defective devices and selling used devices that are in good working order instead of disposing of them.

Remove the battery before disposal without causing damage and dispose of it separately (see "Disposing of the batteries").

Battery disposal

The accompanying symbol indicates that batteries and rechargeable batteries must not be disposed of with normal household waste. Defective or used

batteries/rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Consumers are legally obliged to dispose of all batteries and rechargeable batteries, regardless of whether they contain harmful substances such as: Cd = cadmium, Hg = mercury, Pb = lead, Li = lithium or not, at a collection point in their municipality/district or at a retail outlet, for environmentally friendly disposal and for the recovery of valuable raw materials such as cobalt, nickel or copper. The return of batteries and accumulators is free of charge.

WARNING!

Environmental damage through incorrect disposal of batteries/rechargeable batteries!

Some of the possible materials such as mercury, cadmium and lead are poisonous and, if not disposed of properly, endanger the environment. For example, heavy metals can have harmful effects on the health of humans, animals and plants and accumulate in the environment and in the food chain, and can then enter the body indirectly via food.

WARNING!

Danger of explosion!

With used batteries containing lithium (Li = lithium) there is a high risk of fire. Therefore, special attention must be paid to the proper disposal of used batteries and rechargeable batteries containing lithium. Incorrect disposal can also lead to internal and external short circuits due to thermal effects (heat) or mechanical damage. A short circuit can lead to a fire or an explosion and have serious consequences for humans and the environment. For this reason, tape off the poles of lithium-based batteries and rechargeable batteries prior to disposal in order to avoid an external short circuit. Batteries and rechargeable batteries that are not permanently installed in the device must be removed and disposed of separately before disposal of the device. Please return batteries and rechargeable batteries only when they have been discharged! Use rechargeable batteries instead of disposable batteries whenever possible.

Recycling

The product packaging consists of recyclable materials. Please dispose of them properly at the available collection sites.

Waste disposal

Dispose of the packaging in an environmentally responsible fashion. Please note the marking of the different packaging materials and separate them if applicable.

The digi-tech gmbh warranty

This device has a 3 year warranty valid from the date of purchase. In the event of defects in this device, you have legal rights against the seller of the device. These statutory rights are not limited by our warranty set out below.

Warranty terms

The warranty period begins on the date of purchase. Please keep the receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this device, the device will be repaired or replaced – at our discretion – by us free of charge. This warranty requires that the defective device and the purchase receipt are presented within the three-year period with a briefly written statement stating the nature of the defect and when it occurred. If the defect is covered by our warranty, you will receive the repaired or a new device back. No new warranty period begins with the repair or replacement of the device.

Warranty period and statutory claims for defects

Statutory warranty rights do not extend the warranty period. This also applies to replaced and repaired parts. Any damage or defects already present at the time of purchase must be reported immediately after unpacking. After the warranty has expired, any repairs are subject to a charge.

Scope of Warranty

The device was carefully manufactured according to strict quality guidelines and carefully checked before delivery. The warranty applies to material or manufacturing defects. This warranty does not cover parts of the product that are subject to normal wear and tear and can therefore be regarded as wear parts or for damage to fragile parts, e.g. switches, batteries or parts made of glass. This warranty is void if the unit has been damaged or improperly used or maintained. For proper use of the device, all instructions given in the manual must be strictly observed. Uses and actions that are advised against or warned against in the operating instructions must be avoided at all costs. The device is designed exclusively for private and not for commercial use. The warranty expires in the event of abusive or improper handling, the use of force or repairs that were not carried out by our authorised service branch.

Processing in the event of a warranty claim

To ensure that your request is processed quickly, please follow the instructions below:

• Please have the receipt and item number (405199_2110) ready as proof of purchase for all enquiries.
• Please refer to the type plate, engraving, title page of your manual (bottom left) or to the sticker on the back or underside for the item number.

- If functional errors or other defects occur, please contact the following service department by phone or email first.

You can download this manual and many other user manuals, product videos and software at www.lidl-service.com.

PDF ONLINE www.1dl-service.com

This QR code will take you directly to the Lidl service page (www.lidl-service.com), where you will be able to access your operating instructions by entering the article number (405199_2110).

Service

Inter-Quartz GmbH

Valterweg 27A

65817 Eppstein

GERMANY

Email: [e-mail]

Telephone: [phone]

AT BE DE ES FI FR GB IE IT NI

NL PT SE

00800 5515 6616

BG 00800 1114916 LT 8800 33139

CH 0800 563862 80005884

-28-

GB IE NI CY MT

CY 8009 4403 800 62851

CZ 800 142 315 00800-44 11 493

DK 800 5515 6616 0800 896640

EE 80000 49116 0800191026

GR 00800 44140855 SI 0800 80847

HR 0800 222943 0800 004449

HU 0680 981220

IAN 405199_2110

Art.-Nr.: 4-LD5932

Year of manufacture: 2022

Supplier

Please note that the following address is not a service address. Please first contact the service address (see above).

digi-tech gmbh

Valterweg 27A

65817 Eppstein

GERMANY

-29-

ON 30 15 MIN MIN ⑫ ⑬

Technical diagram showing two circular components with labeled pins and a 1.5V power supply, likely for electronic or electrical assembly reference.

www.digi-tech-gmbh.com/downloads

ON 30 15 MIN MIN ⑫ ⑬

Face arrière

ON 30 15 MIN MIN ⑫ ⑬

www.digi-tech-gmbh.com/downloads

TEMP 20.3°C 12:35 28/3 2022 DAY DATE/MONTH Volume (V) Set Temperature Select (T) °C/F Mode 12/24 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪

ON 30 15 MIN MIN ⑫ ⑬

Zadní strana

ON 30 15 MIN MIN ⑫ ⑬

ON 30 15 MIN MIN ⑫ ⑬

Zadná strana

www.digi-tech-gmbh.com/downloads

ON 30 15 MIN MIN ⑫ ⑬

ON 30 15 MIN MIN ⑫ ⑬ ⑬

ON 30 15 MIN MIN ⑫ ⑬

Parte posteriore

Technical diagram showing two circular components with a screwdriver inserted, and a 1.5V power connector pinout.

www.digi-tech-gmbh.com/downloads

ON 30 15 MIN MIN ⑫ ⑬

www.digi-tech-gmbh.com/downloads

TEMP 20.3°C 12:35 28/3 2022 DAY Volume (W) Temperature *°C/F Mode 12/24 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪

ON 30 15 MIN MIN ⑫ ⑬

Hrbtna stran

Technical diagram showing two circular components with a probe inserted, and a close-up of an electronic component with three 1.5V power labels.
