ClimaData Box - Multimeter Laserliner - Free user manual and instructions

Product type	Data logging multimeter (temperature, humidity, dew point)
Brand	Laserliner
Model	ClimaData Box
Dimensions (L x W x H)	48 x 33 x 94 mm
Weight	136 g (with battery and wall mount)
Power supply	1 lithium battery 3.6 V type 1/2 AA (14250)
Battery life	3 months (depending on settings and usage)
Temperature measurement range	-40 °C to 70 °C (-40 °F to 158 °F)
Temperature accuracy	±1 °C (from -10 °C to 40 °C); ±2 °C (other ranges)
Relative humidity measurement range	0 % to 100 % RH
Relative humidity accuracy	±3 % (40 % – 60 % RH); ±3.5 % (20 % – 40 % and 60 % – 80 % RH); ±5 % (0 % – 20 % and 80 % – 100 % RH)
Data memory	49,050 values
Measurement interval	1 s to 24 h (configurable)
Main functions	Long-term measurement and recording of temperature, humidity, dew point; MIN/MAX display; programmable alarm; USB interface for data transfer
Display	LCD screen with date/time, measured value, battery indicator, alarm, active recording
Communication interface	USB mini (compatible with Windows XP/Vista/7/8/10, 32/64 bit)
Included accessories	CD with software and drivers, USB cable, wall mount, battery
Care and cleaning	Clean with a slightly damp cloth; do not use solvents; store in a dry and clean place
Safety	Use only as intended; do not modify the device; avoid mechanical shocks, extreme temperatures and vibrations
Repairability	In case of defect, contact Umarex-Laserliner customer service; no spare parts available for the user

Frequently Asked Questions - ClimaData Box Laserliner

How to install the battery in the ClimaData Box?

Open the battery compartment on the back of the device. Insert a lithium battery 3.6 V type 1/2 AA (14250) respecting the polarity symbols (+/-) shown in the compartment. Close the cover. The device turns on automatically.

How to start a measurement recording?

For manual start, press and hold the button (1) until the screen displays "Rec". You can also configure automatic or delayed start via the PC software. Once connected to the computer, use the Configuration menu to choose the mode.

How to transfer recorded data to a computer?

Connect the ClimaData Box to a USB port of your computer using the provided USB cable. Launch the software installed from the CD. Click the "Download" button to import the data. During transfer, the screen displays "-PC-". When finished, the data appears in the software.

What does the display "-LO-" on the screen mean?

The message "-LO-" indicates a problem with the sensor. In this case, the device must be sent to Umarex-Laserliner customer service. Do not attempt to repair it yourself.

How to set the temperature or humidity alarm?

In the software, access the Configuration menu. Under "Alarm function settings", you can set high and low thresholds for temperature, relative humidity and dew point. If a value exceeds the threshold, the LED (2) flashes: red for temperature, yellow for humidity.

What is the internal memory capacity?

The internal memory can store up to 49,050 measured values. The recording duration depends on the configured measurement interval (from 1 second to 24 hours). Once the memory is full, either recording stops (stop mode) or old data is overwritten (continuous mode).

Can I use the device in humid or cold environments?

Yes, the device operates from -40 °C to 70 °C and from 0 % to 100 % relative humidity (non-condensing). However, after moving from a cold/humid environment to a warm environment, condensation may form. Let the device acclimatize vertically for a few moments.

How to clean the device?

Clean all components with a slightly damp cloth. Do not use cleaning agents, abrasives or solvents. Store the device in a dry and clean place.

Is the software available in French?

The provided software is only available in English. The user interface uses English terms but its use remains simple: save, open, configuration, download, etc. You can refer to the manual instructions.

How to reset the device or delete data?

To delete data, connect the device to the PC, open the software and perform a reconfiguration via the Configuration menu. Warning: all data is automatically deleted during reconfiguration. You can also start a new recording which erases previous data.

USER MANUAL ClimaData Box Laserliner

Completely read through the operating instructions, the „Warranty and Additional Information" booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function / Application

This device measures long-term ambient temperature, air humidity and dew point. Measurements are stored internally and can be accessed by connecting the device to a PC via USB. Using the supplied software on a PC, the measurement parameters can be configured, a new measurement prepared, and the data subsequently analysed.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures or significant vibration.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Store the device in a clean and dry place.

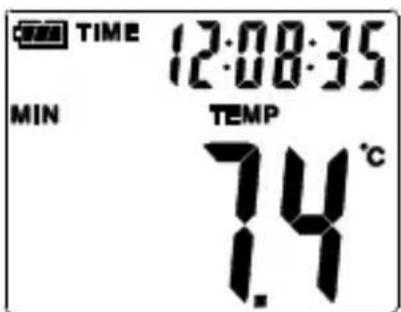

Example: Display of MIN temperature

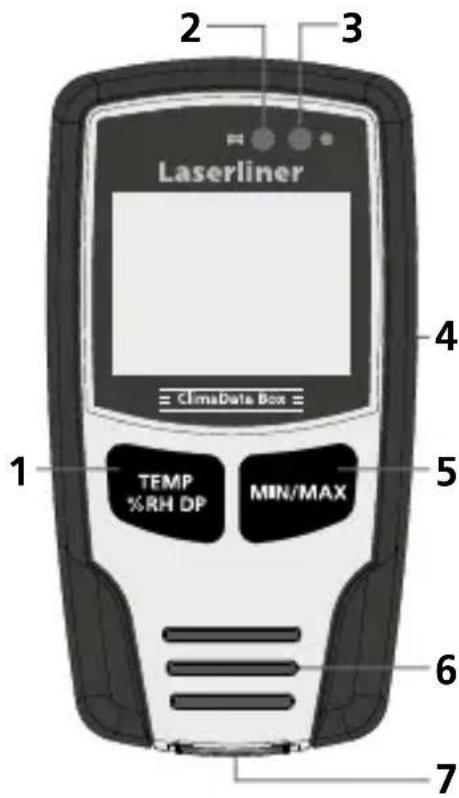

1 Display toggles between temperature, relative humidity and dew point / start and stop measuring
2 Alarm function
3 Measurement active
4 Battery compartment (rear)
5 Display of current, min. and max. measurements in selected mode
6 Sensor
7 USB interface

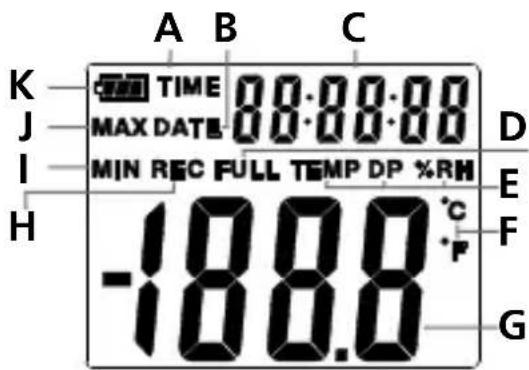

A Time display active
B Date display active
C Time / date display
D Data memory full
E Display of temperature, relative humidity, dew point
F Measurement in ^ C / ^
G Display of measured value
H Measurement active

Display of MIN values
Display of MAX values
K Battery indicator

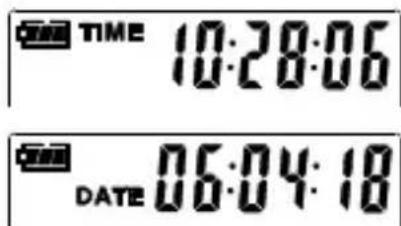

Display toggles between time and date every 10 seconds.

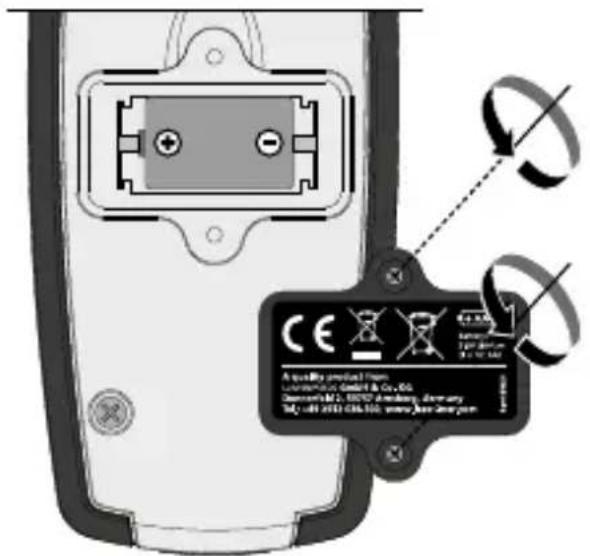

1 Inserting battery

Open the battery compartment and insert battery according to the symbols. Be sure to pay attention to polarity.

USB drivers / Software installation / Commissioning

Load the CD in the drive and follow the installation routine. Close the installation program once installation has been successfully completed.

！

You must install the USB drivers before you can start the application and connect the device to a computer. To do this, insert the supplied CD in the drive and open the folder entitled "USB Driver". Depending on your Windows operating system version, start the following installer: 32bit version: CP210xVCPlstaller_x32
64bit version: CP210xVCPlstaller_x64
Check the basic information relating to your Windows installation to see which type of system you have. Follow the installation instructions.

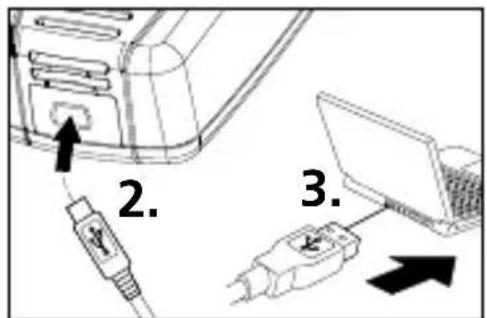

Then connect one end of the supplied USB cable to the mini-USB port of the device and the other end to a free USB port on your computer, and start the application.

！

The software is only available in English.

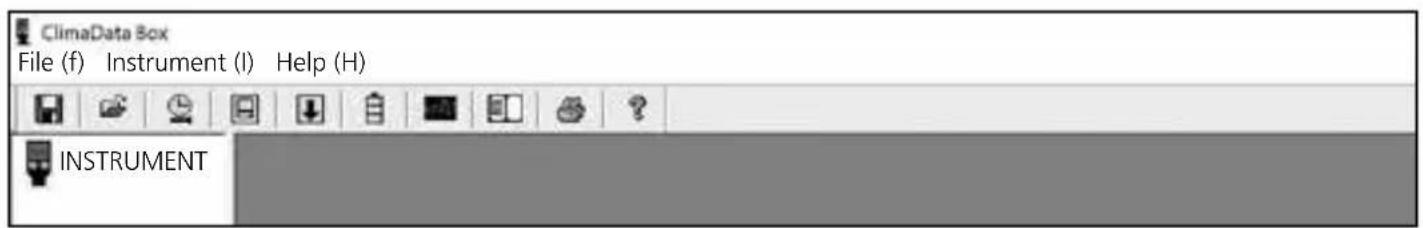

3 User interface

Save

Save the recorded data to the hard drive

Open

Open saved files

Date / Time

Set date / time

Setup

Define measurement-specific settings

Download

Download the recorded data

Battery status

Indicate battery charge level

Chart

Create a chart of the recorded data

List

Create a list of the recorded data

Print

Print the chart or list

Help

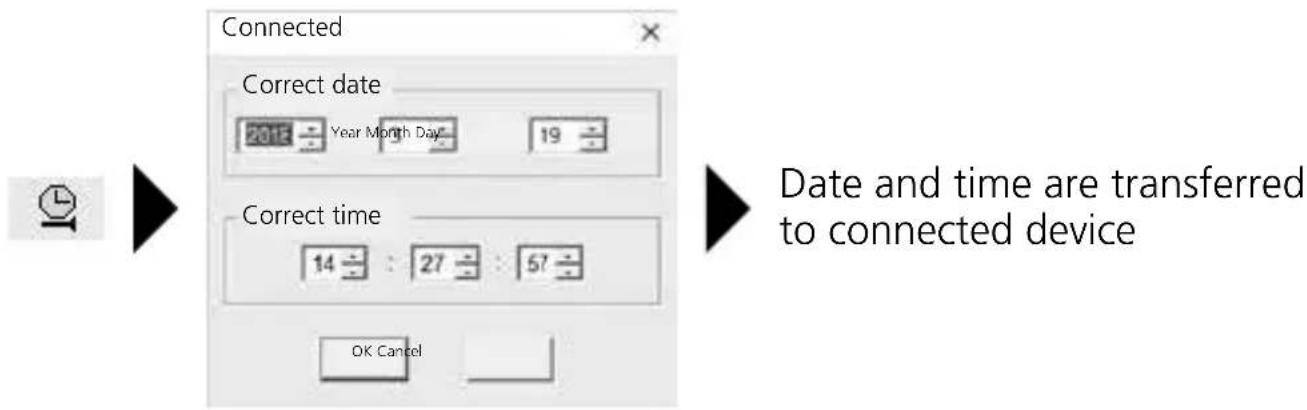

4 Set date / time

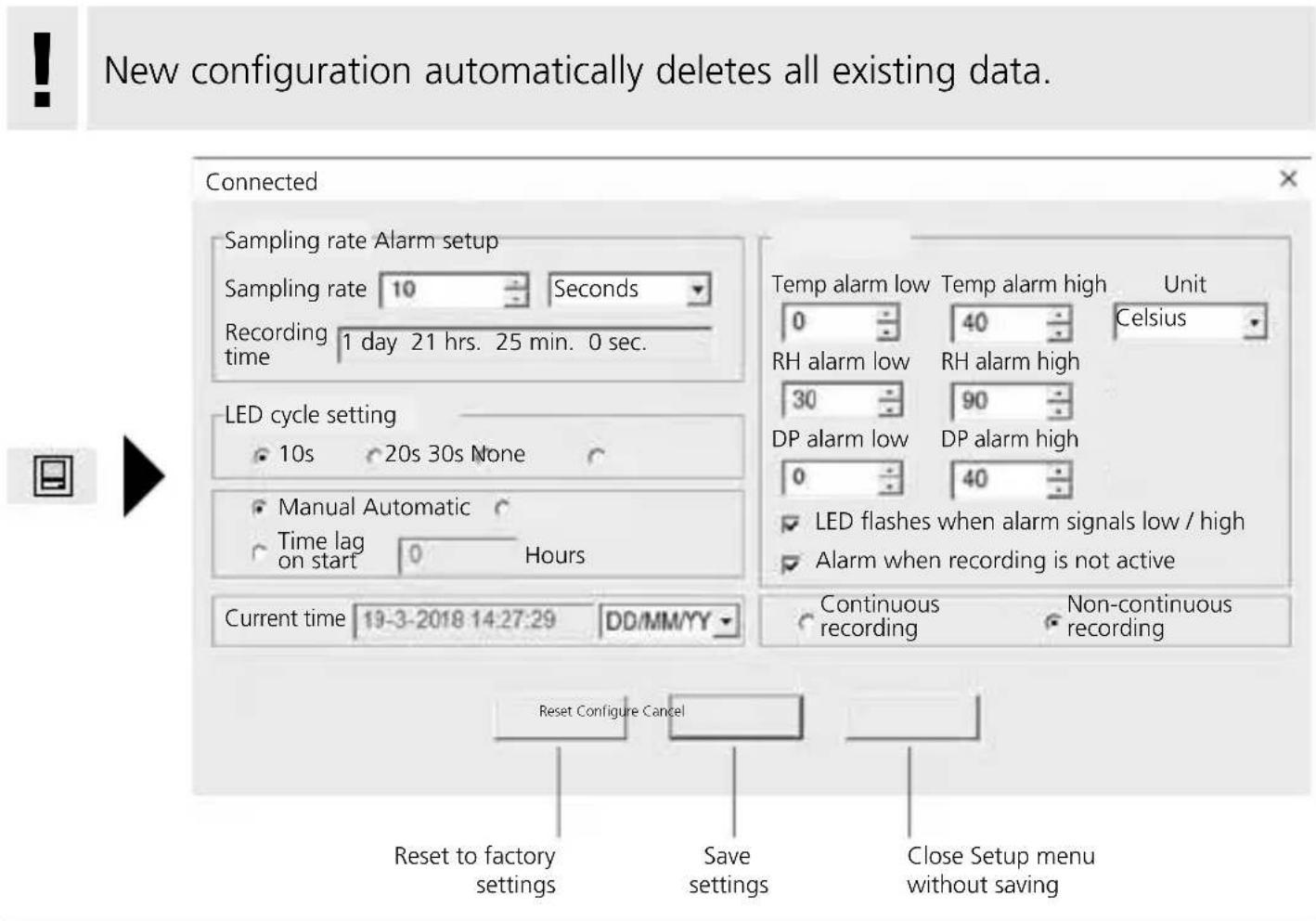

Setup menu

Measurement-specific settings on the connected device can be defined in the Setup menu.

5.1 Sampling rate

The sampling rate defines how often measurements are recorded. Setting options: 1 ... 60 seconds, 1 ... 60 minutes and 1 ... 24 hours. The maximum measurement duration is calculated under "Recording time". The measurement memory is full at the end of this time. See also section 5.6 "Continuous / non-continuous recording".

5.2 LED cycle setting

Active recording is signalled by the LED (3) and "REC" on the display. The LED signal can be set to appear every 10, 20 or 30 seconds. Or the LED signal can be switched off.

5.3 Options when starting to measure

Measurement can be started manually, automatically or after the set time.

Manually Hold the key (1) down to start or stop measurement.

Automatically: Measurement starts as soon as the device is disconnected from the computer.

Time lag on start: Measurement commences at the end of the set time.

5.4 Current time

"Current time" displays the set date and time. You can change the date format in this menu.

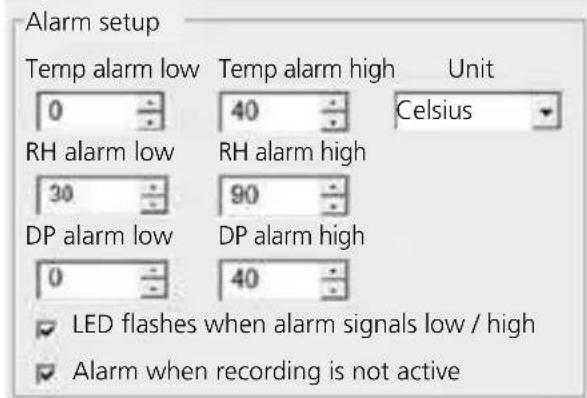

5.5 Alarm function settings

The alarm range can be freely defined for the three measurement variables: Temperature, relative humidity and dew point. If the measuredvalue goes above or below the set cap or floor, the alarm LED (2) flashes once a minute.

LED red: Max./min. temperature exceeded LED yellow: Max./min. humidity exceeded LED flashes when alarm signals low / high: The alarm function can be switched on or off.

Alarm when recording is not active: A signal is issued when the recording function (REC) is not active.

5.6 Continuous / Non-continuous recording

Continuous recording: The device records until manually stopped.

Older measurements are overwritten.

Non-continuous

recording:

Recording stops automatically when the data

memory is full.

Notes on the measurement process and on use

1. Connect ClimaData Box to the PC
2. Download and backup any existing data. Starting or configuring a new measurement deletes all existing data.
3. Configure the recording function in the Setup menu and save your settings
4. Depending on your start parameter, position the device at the measuring point and record measurements. If set to manual start, hold key 1 down. The display shows "Rec" to indicate that measurement recording is active.
5. To stop recording, either hold key 1 down again, or recording stops when the memory is full, depending on the set parameter.
6. Connect ClimaData Box to the PC, download and backup data.

Position the device upright to ensure sufficient air circulation around the sensor. Use the supplied wall bracket.

If the device has been placed in a cold and/or very humid environment, condensation may form in the sensor housing when it is removed due to the change in climate. Position the device upright for a while to allow it to acclimatise.

7 Download

To edit and document the recorded data, they must be transferred to the software program. To do this, start the software and connect the device to the PC vis USB interface.

Laserliner

During data transfer, the LC display indicates "-PC-". Once all the data has been loaded, the ClimaData Box displays the actual value of the current measurement. New measurement deletes all previous data.

Data is not automatically saved.

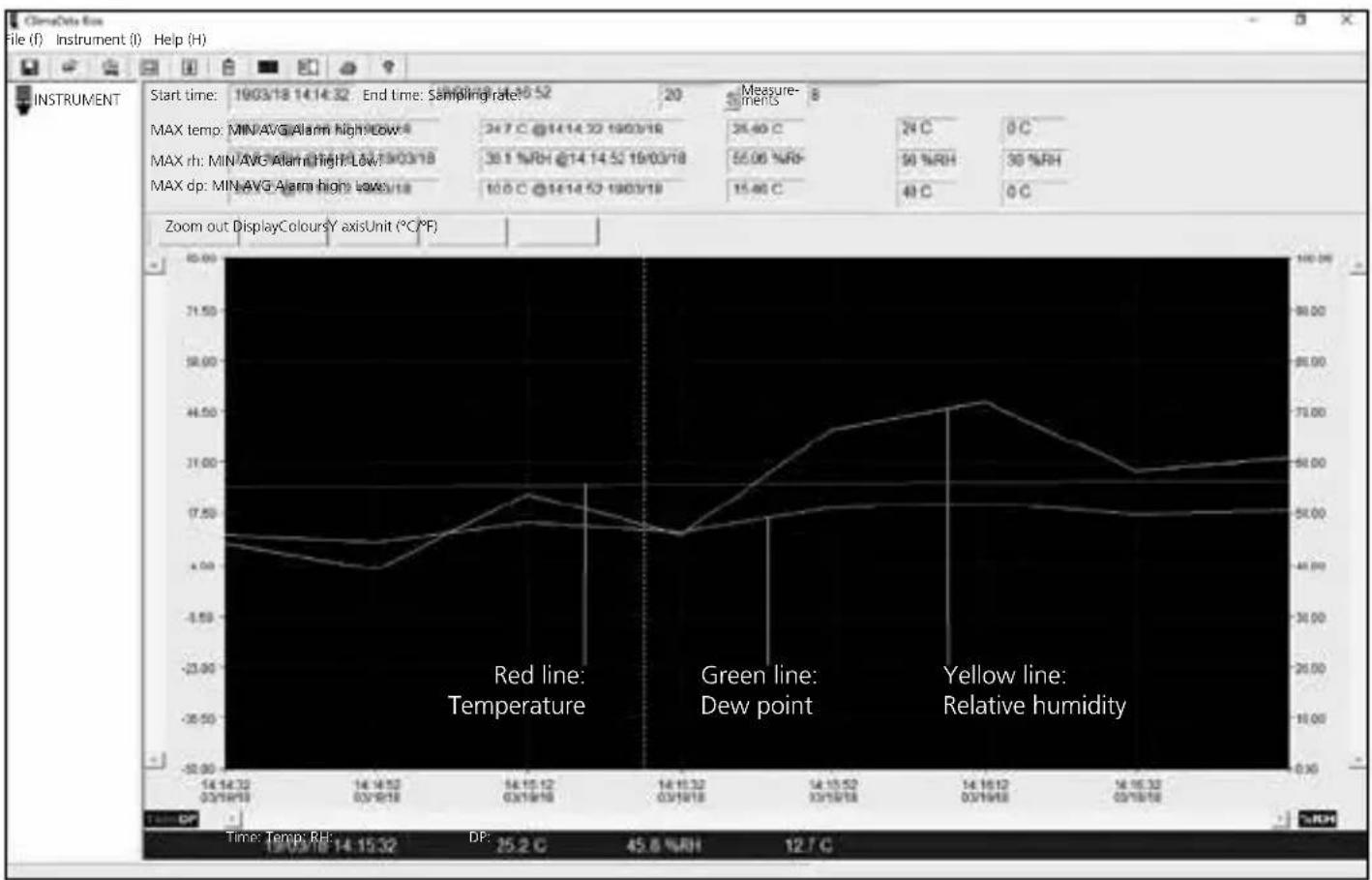

Measurement analysis

The recorded measurements are displayed in a bar chart.

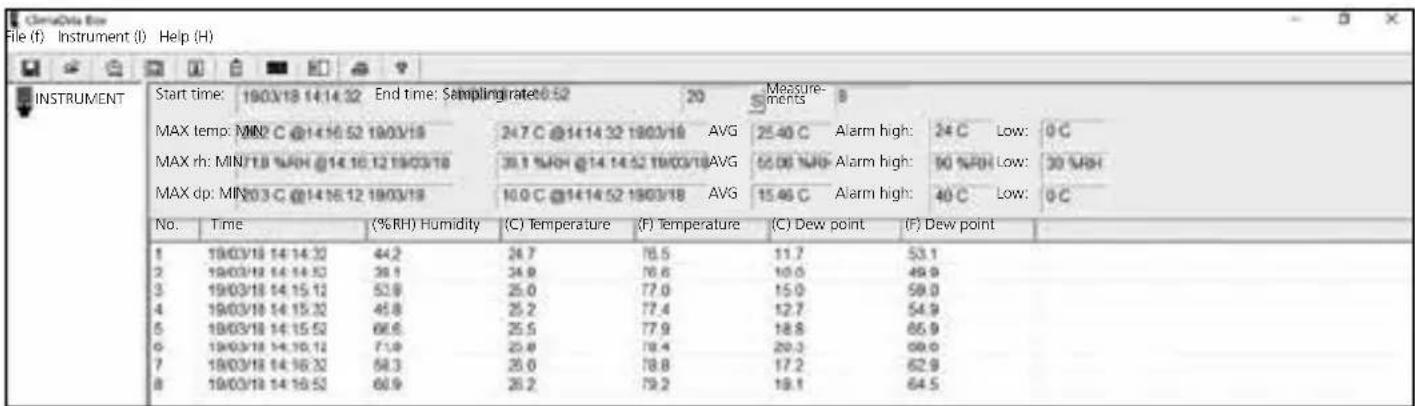

The measurements can also be shown as a list.

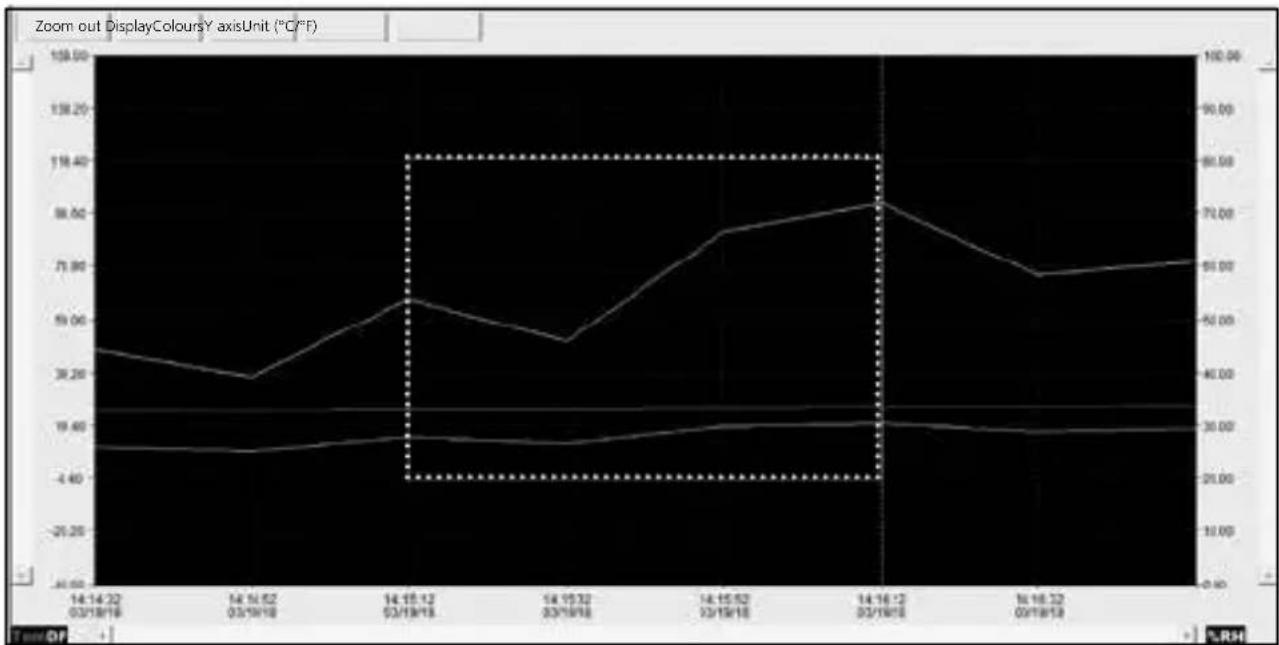

8.1 Zoom

You can zoom in and out of partial areas by holding down the left mouse button, drawing a box over the required area and then releasing the button. Use the horizontal scroll bar to display further measurements. The left-hand vertical scroll bar changes the view of the temperature data and the right-hand bar of the relative humidity.

Zoom out Back to normal view

8.2 Toggle unit (^ / ^)

Unit (^ / ^) Measurements are displayed in ^ C or ^ F

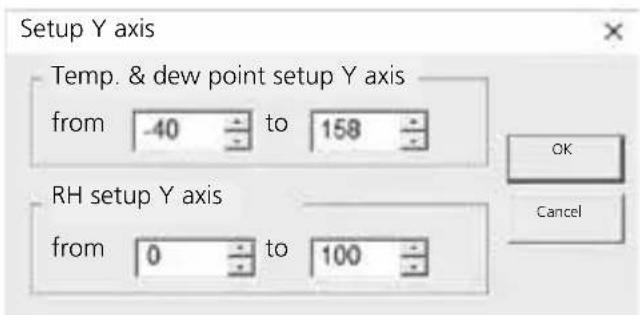

8.3 Setup Y axis

Y axis You can change the scale on the Y axis.

Colour settings

Colours You can change the colours on the bar chart.

Display

Display You can hide/unhide measurements on a bar chart or list.

Colour settings

Colour settings

Background: Temp:

OK

Grid: RH:

Cancel

Dew pt.:

Display

Temp

Temp alarm high

Temp alarm low

OK

RH

RH alarm high

RH alarm low

Cancel

DP

DP alarm high

DP alarm low

Marked points

X axis

Y axis

-LO- error message

-LO- in the display indicates a problem with the sensor. The device requires servicing. Please contact the Service department at UMAREX-LASERLINER.

Technical data

Ambient temperature

$$ \begin{array}{l} - 4 0 ^ {\circ} \mathrm {C} \dots 7 0 ^ {\circ} \mathrm {C} \quad - 4 0 ^ {\circ} \mathrm {F} \dots 1 5 8 ^ {\circ} \mathrm {F} \ \pm 1 ^ {\circ} \mathrm {C} (- 1 0 ^ {\circ} \mathrm {C} \dots 4 0 ^ {\circ} \mathrm {C}) \quad \pm 1. 8 ^ {\circ} \mathrm {F} (1 4 ^ {\circ} \mathrm {F} \dots 1 0 4 ^ {\circ} \mathrm {F}) \ \pm 2 ^ {\circ} \mathrm {C} (- 4 0 ^ {\circ} \mathrm {C} \dots - 1 0 ^ {\circ} \mathrm {C}, \quad \pm 3. 6 ^ {\circ} \mathrm {F} (- 4 0 ^ {\circ} \mathrm {F} \dots - 1 4 ^ {\circ} \mathrm {F}, \ + 4 0 ^ {\circ} \mathrm {C} \dots 7 0 ^ {\circ} \mathrm {C}) + 1 0 4 ^ {\circ} \mathrm {F} \dots 1 5 8 ^ {\circ} \mathrm {F}) \ \end{array} $$

Relative humidity

Accuracy (absolute)

$$ \begin{array}{l} 0 \% \dots 100 \% \ \pm 3 \% (40 \% \dots 60 \%) \ \pm 3.5 \% (20 \% \dots 40 \% ,60 \% \dots 80 \% ) \ \pm 5 \% (0 \% \dots 20 \% ,80 \% \dots 100 \% ) \ \end{array} $$

Dew point display

$$ \begin{array}{l} - 4 0 ^ {\circ} \mathrm {C} \dots 7 0 ^ {\circ} \mathrm {C} \quad - 4 0 ^ {\circ} \mathrm {F} \dots 1 5 8 ^ {\circ} \mathrm {F} \ \pm 2 ^ {\circ} C (@ 2 5 ^ {\circ} C, \quad \pm 3. 6 ^ {\circ} F (@ 7 7 ^ {\circ} F, \ 40 \% \mathrm {rH}\dots 100\% \mathrm {rH})\quad 40 \% \mathrm {rH}\dots 100\% \mathrm {rH}) \ \end{array} $$

Technical data

Resolution	0.1% rH, 0.1°C, 0.1°F
Memory	49050 individual measurements
Measuring interval	1s ... 24h
Operating conditions	-40°C ... 70°C (-31°F ... 158°F), non-condensing humidity, max. altitude 2000 m above sea level
Storage conditions	-40°C ... 70°C (-31°F ... 158°F), max. humidity 80% rH
Power supply	1x 3.6V Lithium (type 1/2 AA, 14250)
Battery life	3 months (typically, depends on measurement intervals, ambient temperature and the use of alarm LEDs)
Dimensions	48 x 33 x 94 mm (W x L x H)
Weight	136 g (including battery and wall bracket)
System requirements	Windows XP / Vista / 7 / 8 / 10, 32bit / 64bit

Subject to technical alterations. 18W28

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at: http://laserliner.com/info?an=clidabox
