USER MANUAL HG05408A Livarno Lux

LED-GALAXIELICHTERKETTE/580 LED FAIRY LIGHTS/GUIRLANDE LED GALAXIE

DE AT CH

Operation and safety notes

NL BE

LED-LICHTKETTINGGALAXIE

GB/IE Operation and safety notes Page 13

(Safety extra low voltage)

Tc: Gehausetemperaturam

angegebenenPunkt

- Lieferumfang

EXPLOSIONSGEFAHR! Laden

SCHUTZHANDSCHUHE TRA

List of pictograms used

Introduction

Proper use. Page 14

Description of parts and features.. Page 14

Technical data.. Page 15

Included items . Page 15

Safety information

Safety instructions for batteries/rechargeable batteries.. Page 16

Use

Switching the product on/off using the IR remote control. Page 17

Controlling the light effects using the IR remote control . Page 17

Timer function Page 18

Replacing the battery.. Page 18

Cleaning and care

Disposal

Warranty

Warranty claim procedure.. Page 19

Service Page 19

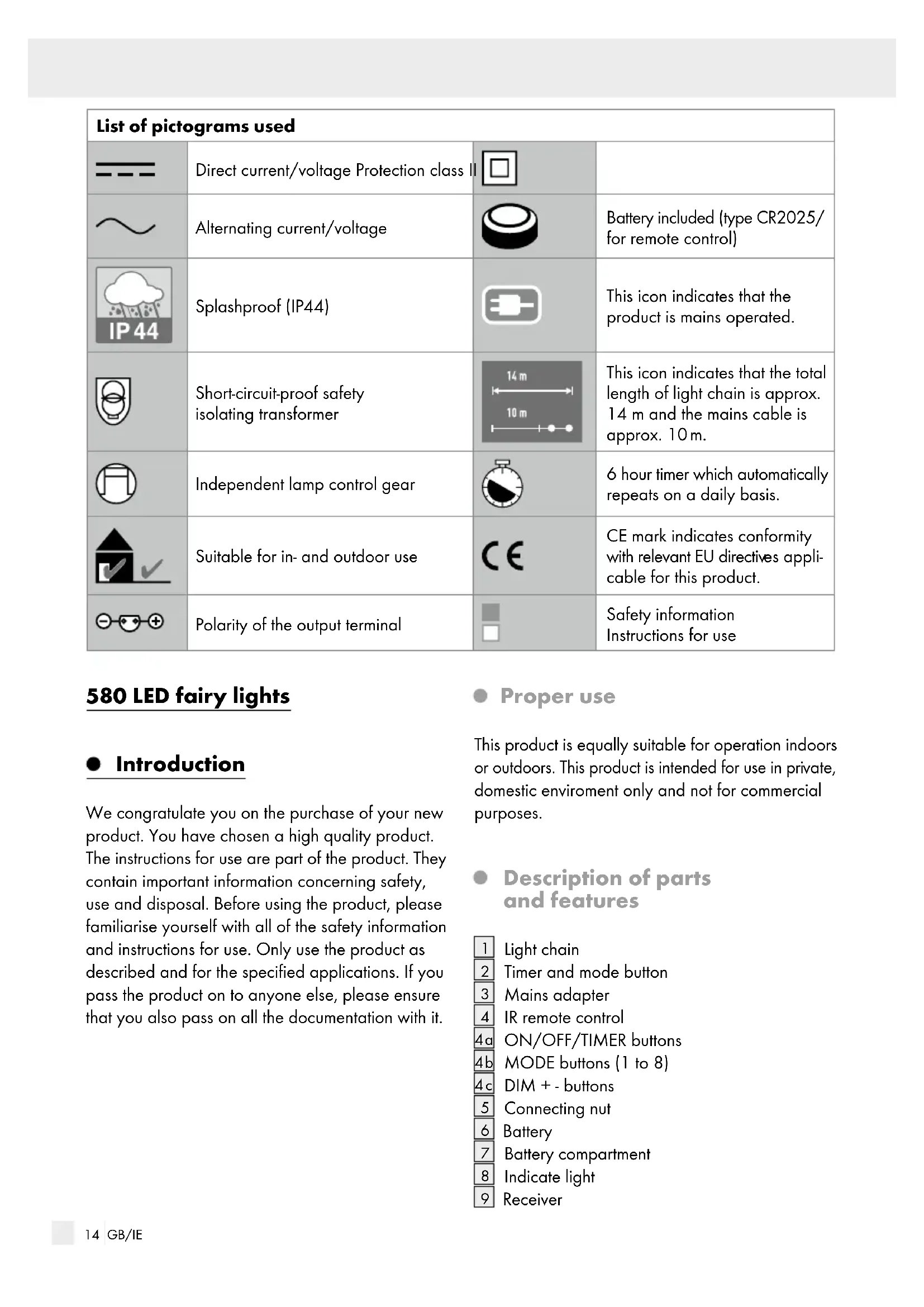

List of pictograms used
= = =	Direct current/voltage Protection class II
~	Alternating current/voltage		Battery included (type CR2025/ for remote control)
Splashproof (IP44)			This icon indicates that the product is mains operated.
Short-circuit-proof safety isolating transformer	14 m 10 m		This icon indicates that the total length of light chain is approx. 14 m and the mains cable is approx. 10 m.
Independent lamp control gear		6 hour timer which automatically repeats on a daily basis.
Suitable for in- and outdoor use	CE	CE mark indicates conformity with relevant EU directives applicable for this product.
Polarity of the output terminal		Safety information Instructions for use

580 LED fairy lights

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Proper use

This product is equally suitable for operation indoors or outdoors. This product is intended for use in private, domestic enviroment only and not for commercial purposes.

Description of parts and features

1 Light chain
2 Timer and mode button
3 Mains adapter
4 IR remote control
4d ON/OFF/TIMER buttons
4b MODE buttons (1 to 8)
4c DIM + - buttons
5 Connecting nut
6 Battery
7 Battery compartment
8 Indicate light
9 Receiver

Technical data

Light chain 1 HG05408A/HG05408B/ HG05408C:

Operating voltage: 30V

LEDs: 580 LEDs (LEDs are

non-replaceable.), total: 5.5W

IP class: IP44 (splash-proof)

GS certified.

Total power consumption

(included mains

adapter 3): approx. 7 W

Mains adapter 3 HG05408A/ HG05408B/HG05408C:

Nom. voltage, primary: 220 - 240V 50 / 60Hz

Nom. voltage, secondary: 30 ~V = 6 ~W

Protection class:

IP class: IP44 (splash-proof)

Mains adapter (Model no. 22S0600G300W11D)

GS tested.

HG05408A:Warm white

HG05408B: Multi-colour

HG05408C: Cool white

IR remote control 4:

Battery: 3 V, lithium battery,

type CR2025

SELV: Safety extra low voltage

Tc: Rated maximum operat

ing temperature of the case of a controlgear

- Included items

1 Light chain
1 Mains adapter
1 IR remote control
1 CR2025 battery
1 Operating instructions

Safety information

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

WARNING! DANGER OF DEATH AND ACCIDENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the product at all times.

This product is not a toy and should not be played with by children. Children are not able to understand the dangers that can occur when handling this product.
This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.
Ensure that the product is installed by suitably experienced or qualified persons only.

CAUTION! RISK OF OVERHEATING! Do not operate the product inside the packaging.

Do not pull the product mains cable and make sure it is laid down properly so that no one walks or trips over it.
The product can be used on all surfaces officially classified as being of "normal flammability".
Do not attach any other objects to the product.

Avoid the danger of death from electric shock!

Before use, ensure that the mains voltage available is the same as the required operating voltage for the product (220-240 V~).

Before connecting the product to the mains you should always check the product and the mains adapter for any damage.

Never use the product if you discover that it is damaged in any way.

This product's external flexible tube is non-replaceable. Hence if it becomes damaged you must dispose of the entire product.

This product does not contain any parts which can be serviced by the user. The LEDs cannot be replaced.

Only use the product with the supplied mains adapter for the type (Model No. 22S0600G300W11D); all warranty claims will otherwise expire.

Never open any of the electrical parts or insert any kind of object into them.

Protect the mains cable from sharp edges, mechanical loads and hot surfaces.

Do not install with sharp fasteners or nails.

Always unplug the mains adapter from the socket before installation, dismantling or cleaning.

Never touch the mains adapter or the product itself with wet hands.

The product must not be electrically connected to another set of lights.

If the product is not in use for any length of time (e.g. holidays), disconnect it from the power supply.

If you have any questions about the product or are unsure about any of its aspects, please seek the advice of an electrical equipment specialist.

Please note that the mains adapter continues to draw a small amount of power even if the product is turned off as long as the mains adapter is plugged into a power outlet. To switch the product off completely, unplug the mains adapter from the socket.

The LEDs are not replaceable.

If the LEDs fail at the end of their lives, the entire product must be replaced.

WARNING! This product must not be used without all gaskets being properly installed.

The LED driver can only be replaced by qualified personnel.

Safety instructions for batteries/rechargeable batteries

DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.
- Swallowing may lead to burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion.

DANGER OF EXPLOSION!

Never recharge non-rechargeable batteries. Do not short-circuit batteries/ble batteries and/or open them.

Overheating, fire or bursting can be the result.

• Never throw batteries/rechargeable batteries into fire or water.
• Do not exert mechanical loads to batteries/rechargeable batteries.

Risk of leakage of batteries/rechargeable batteries

• Avoid extreme environmental conditions and temperatures, which could affect batteries/rechargeable batteries, e.g. radiators/direct sunlight.
  If batteries/rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries/ rechargeable batteries can cause

burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

In the event of a leakage of batteries/rechargeable batteries, immediately remove them from the product to prevent damage.

Only use the same type of batteries/rechargeable batteries. Do not mix used and new batteries/rechargeable batteries.
Remove batteries/rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

Only use the specified type of battery/rechargeable battery!
Insert batteries/rechargeable batteries according to polarity marks (+) and (-) on the battery/ rechargeable battery and the product.
Use a dry lint-free cloth or cotton swab to clean the contacts on the battery/rechargeable battery and in the battery compartment before inserting!
Remove exhausted batteries/rechargeable batteries from the product immediately.

KEEP BATTERIES OUT OF THE REACH OF CHILDREN! Swallowing batteries can cause chemical burns, perforation of soft tissue, and death. Severe burns may occur within 2 hours of swallowing batteries. Seek immediate medical attention.

Use (see Fig. A)

Note: Remove all packaging materials from the product.

Note: The LEDs are connected in series. If one LED is defective, up to ten LEDs may not light up.

Insert the plug on end of the product into the socket of the mains adapter 3. Please screw down the connecting nut 5 clockwise.
Insert the mains adapter into the mains socket; the adapter indicator light up at the same time.
Press the Timer and mode button 2 to switch on the light chain 1.
Press the Timer and mode button 2 again to switch to the next lighting mode. When you reach lighting mode 8, the next press of the Timer and mode button 2 switches the product off. The light mode is listed as below:

1. Combination
2. In wave
3. Sequential

4. Slo-Glo

5. Chasing/flash

6. Slow fade
7. Twinkle/flash
8. Steady on
9. off

Pull the mains adapter 3 out of the mains socket to completely switch off the light chain 1.

- Switching the product on/off using the IR remote control

Note: The infrared receiver is located on the adapter. Always aim the IR remote control 4 directly at the receiver 9 for best reception.

Note: Remove the insulating strips from the battery compartment 7 before using the IR remote control 4 for the first time.

Ensure that there are no obstacle between the sender and the adapter.
Press the ON button 4a on the IR remote control 4 to turn on the LEDs.
Press the OFF button 4a on the IR remote control 4 to switch off the LEDs.

- Controlling the light effects using the IR remote control

The following functions are available:

Button +: Increase lights intensity
Button : Reduce lights intensity
Button 1: Combination
Button 2: In wave
Button 3: Sequential
Button 4: Slo-Glo
Button 5: Chasing/flash
Button 6: Slow fade
Button 7: Twinkle/flash
Button 8: Steady on

Note: The off button 4 on the IR remote control 4 is only suitable for switching off temporarily. To switch off permanently, remove the power adapter 3 from the socket.

Timer function

- Cleaning and care

To switch on the timer function, press and hold 2 second the Timer and mode button 2 or press the timer button 4a on IR remote control 4 after the product is connected to the socket of power supply. The indicate light 8 will light up when the timer function is activated.
The product lights glow permanently for 6 ho and will be followed by a subsequent pause of 18 hours. Afterwards, the product will light up again at its designated turn on time for 6 hours followed by a subsequent pause of 18 hours.
To switch off the timer function, press and hold the Timer and mode button 2 or press the timer button 4 on IR remote control 4 again and the indicate light 8 will be turned off.
When the timer function is switched off, the product glows continuously. To switch off the product completely, the mains adapter 3 has to be unplugged from the socket. Timer function can be switched on in the respective desired light mode (1-8).

CAUTION! DANGER OF ELECTRIC SHOCK!

First pull the mains adapter 3 out of the mains socket.

For reasons of electrical safety the product must never be cleaned with water or other liquids or immersed in water.

Do not use any solvents, petrol or similar items. This would damage the product.
Only a dry, lint-free cloth should be used for cleaning.
Easy to clean for heavy soiling, with a slightly damp cloth.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

#

The product and packaging materials are recyclable, subject to extended manufacturer responsibility.

Dispose it separately, following the illustrated

packaging symbols, for better waste treatment. The Triman logo is valid in France only.

Faulty or used batteries/rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries/rechargeable batteries and/or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries/rechargeable batteries!

Batteries/rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries/rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 390548_2201) available as proof of purchase. You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

C∈IP44
