USER MANUAL 1119W Livarno Lux
LED STAR STRING LIGHTS LED-STERNENLIGHTERKETTE GUIRLANDE LUMINEUSE A LED
CZ SVETELNY LED RETEZ S HVEZDAMI
Operating and safety information
IT MTCH CATENA LUMINOSA CON STELLE LED
GB IE NI CY MT Before you start reading, please fold out the illustrations page and familiarise yourself with all of the item's functions.
Introduction 32
Explanation of symbols 32
Intended use 33
Included in package 33
Description of parts 33
Technical data 33
Safety information 34
Assembly and installation 35
Operation 35
Cleaning and storage 36
Disposal 36
Service 36
HU
Emballage of FSC-certificeret blandingstrae
Med CE-maerkningen bekrafter producenten, at dette produit overholder de gaeldende europaeiske direktiver.
LED Star String Lights
Introduction
This document is an abridged printed version of the full operating instructions. Scanning the QR code
will take you directly to the Lidl Service web page (www.lidl-service.com) where you can view and download the full operating instructions by entering the article number (IAN) 396578_2201.
WARNING! Follow the full operating instructions and safety instructions in order to prevent personal injury and damage to property. This quick start guide is an essential part of the product. Familiarise yourself with all operating and safety instructions before using the product. Keep the quick start guide in a safe place and pass on all documentation to third parties if you pass on the product.

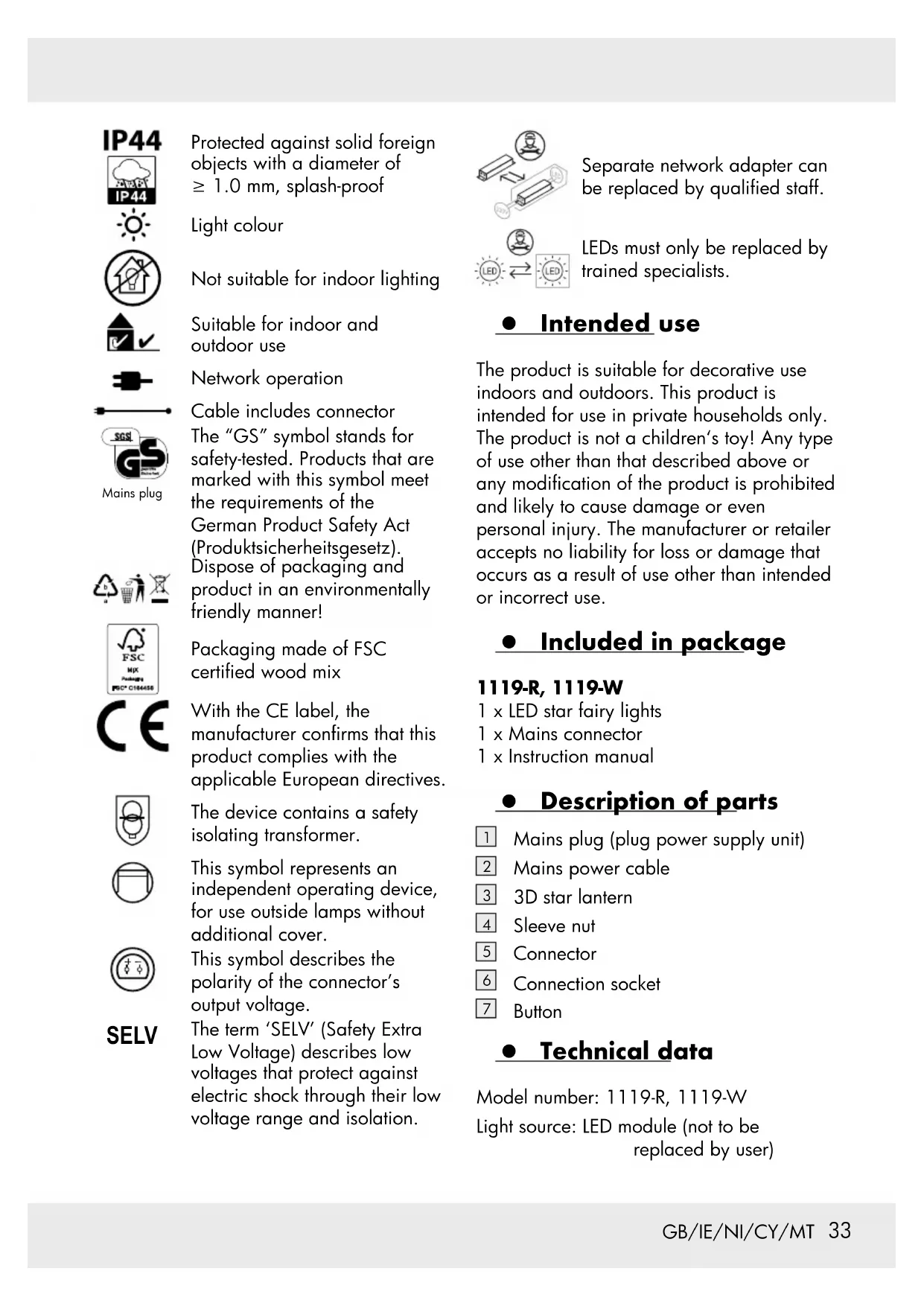

- Explanation of symbols
Read the operating instructions!
Issue date of instruction manual (month/year)
Date of manufacture (month/year)
Alternating current
Direct current
Risk of fatal injury and accidents for infants and children!
Observe warning notices and safety instructions!
Warning! Risk of electric shock!
Electrical devices that carry this symbol are rated as Protection Class II.
Protected against solid foreign objects with a diameter of ≥ 1.0mm splash-proof
Light colour
Not suitable for indoor lighting
Suitable for indoor and outdoor use
Network operation
Cable includes connector The "GS" symbol stands for safety-tested. Products that are marked with this symbol meet the requirements of the German Product Safety Act (Produktssicherheitsgesetz). Dispose of packaging and product in an environmentally friendly manner!
Packaging made of FSC certified wood mix
With the CE label, the manufacturer confirms that this product complies with the applicable European directives.
The device contains a safety isolating transformer.
This symbol represents an independent operating device, for use outside lamps without additional cover.
This symbol describes the polarity of the connector's output voltage.
The term 'SELV' (Safety Extra Low Voltage) describes low voltages that protect against electric shock through their low voltage range and isolation.
Separate network adapter can be replaced by qualified staff.
LEDs must only be replaced by trained specialists.
- Intended use
The product is suitable for decorative use indoors and outdoors. This product is intended for use in private households only. The product is not a children's toy! Any type of use other than that described above or any modification of the product is prohibited and likely to cause damage or even personal injury. The manufacturer or retailer accepts no liability for loss or damage that occurs as a result of use other than intended or incorrect use.
- Included in package
1119-R, 1119-W
1 x LED star fairy lights
1 × Mains connector
1 x Instruction manual
Description of parts
1 Mains plug (plug power supply unit)
2 Mains power cable
3 3D star lantern
4 Sleeve nut
5 Connector
6 Connection socket
7 Button
Technical data
Model number: 1119-R, 1119-W
Light source: LED module (not to be replaced by user)
Input voltage: 3 V
Power
consumption
max. 0,3 W
(LED):
Colour
2600 K (warm white)
temperature:
Total length (Incl.
mains cable
6.5 m
- plug):
Protection rating: IP44
Protection class: II
Plug power supply unit
(mains plug / POWER SUPPLY):
Make: CHANGZHOU JUTAI
ELECTRONIC CO., LTD.
Commercial
91320411137521456
Register:
Address: NO.8 LONGFA ROAD,
XINBEI DISTRICT,
CHANGZHOU 213031,
JIANGSU, CHINA
Model:JT-DC3V0.9W-H5-IP44
Input voltage: 220 - 240V ,50-60 Hz
Output voltage: 3V
Output current: 300mA
Output power: 0.9 W
Protection class: II
Mains cable
length (incl plug):
approx. 5 m
- Safety information
Safety information
WARNING!
RISK OF FATAL INJURY AND ACCIDENTS FOR INFANTS AND
CHILDREN! Never leave children
unsupervised with the packaging material.
There is a danger of suffocation from the packaging material. Children often underestimate the dangers. Always keep
children away from the product.
This product may be used by children aged 8 years or above and by persons with limited physical, sensory or mental capabilities or lacking in experience and knowledge if they are supervised or have been instructed as to the safe use of the product and understand the resulting risks. Do not let children play with the product. Cleaning and maintenance may not be carried out by children without proper supervision.
RISK OF DAMAGE!
Improper handling of the product may result in damage to the
product.
Do not use the product if you notice any damage.
The manufacturer/distributor of this product accepts no responsibility whatsoever for personal injury or damage resulting from incorrect installation or use.
Never tamper with or modify the product.
- Do not immerse the product in water or any other liquids.
- Keep the product away from naked flames and hot surfaces.
- Do not open up the casing and only have the product repaired by qualified professionals. To that end you should contact a specialist repairer. No liability or warranty claims are accepted in cases where repairs have been carried out by unauthorised persons or the product has been incorrectly wired or used.
AVOID THE RISK OF FATAL INJURY FROM ELECTRIC SHOCK!
Incorrect electrical installation or a power supply voltage that is too high can potentially cause electric shocks.
Always check the product for any damage before plugging it into the mains. Never use the product if it has any signs of damage.
- Protect the mains from sharp edges, mechanical stress and hot surfaces.
- Never touch the mains adapter if your hands are wet.
Never touch the uninsulated part of themains plug when plugging it in or out! - Never carry the product by the mains power cable.
Fully unwind the cable before using it.
You should only connect the product to an easily accessible power outlet socket so that you can quickly disconnect it from the power supply in the event of a fault.
Always unplug the mains plug before assembling, dismantling or cleaning the product.
Always plug out the product if it is not going to be used for an extended period, e.g. holiday, or if you want to set it up in a different place.
Before using the product, make sure that the mains voltage matches the supply voltage required by the product (see "Technical data").
If the product has any identifiable faults, stop using it immediately.
RISK OF INJURY!
Incorrect handling of the product may potentially result in personal
injury.
The light source may only be replaced by the manufacturer, service technician or a similarly qualified person.
Never look directly into the light source.
Do not connect the product to a power source while still inside the packaging. There is a risk of overheating!
WARNING! DO NOT USE THE LIGHT CHAIN UNLESS ALL SEALING RINGS HAVE BEEN PROPERLY MOUNTED.
The operating unit is intended exclusively for use with LED modules.
The control gear of this product may only be replaced by the manufacturer, its designated service technician, or a similarly qualified person.
TRIPPING HAZARD! Please make sure that the power cable 2 is routed in such a way that nobody
can tread on it or trip over it.
Assembly and installation
FIRE HAZARD!
Never hang the product above an open fire or heat source. This may
damage the product and excessive heat build-up can cause a fire.
RISK OF DAMAGE!
Take sufficient measures to secure the product from falling down.
Connect power supply
RISK OF ELECTRIC SHOCK!
Plug the connector 5 into the socket 6 of the mains plug 1 (see
Fig. B).
Tighten the union cap 4 on the screw thread of the connection socket 6.
Plug the mains plug into a socket that has been correctly installed.
Please note: When using outdoors, plug the mains plug in to an IPX4 socket to ensure splash protection.
Operation
DANGER OF OVERHEATING! Do
not operate the product while it is still inside the packaging!
Please note: Only use the product with the supplied mains plug. Do not connect the product or the mains plug to any external devices.
Please note: The product stays lit as long as it is connected to the power supply. If you unplug it, the product will automatically switch off.
- Cleaning and storage
Service
RISK OF ELECTRIC SHOCK!
Always unplug the mains power cable from the socket before
cleaning the product.
For reasons of electrical safety, the product must never be cleaned with abrasive cleaning agents or immersed in water.
Use only a dry, lint-free cloth for cleaning. If the product is very dirty, dampen the cloth slightly.
When the product is not in use, store in the packaging in a dry place.
- Disposal
Note the labels on the packaging materials when sorting the waste; they are marked with abbreviations (a) and numbers (b) with the following meanings:
1-7: Plastics
20-22: Paper and cardboard
80-98: Composite materials
You can find out how to dispose of the used product by contacting your local district or city council.
The product and packaging materials are recyclable. Please dispose of them separately for better treatment of waste. The Triman logo is only applicable to France.
In the interest of environmental protection, when the product has reached the end of its useful life, do not dispose of it as general household waste but have it properly recycled. For information on recycling centres and their opening times, please contact your local council.
ions for removal of the LEDs forionals are available on oure: www.citygate24.de
GB
Service Great Britain
Tel.: 00800 80040044
E-Mail: administration@mynetsend.de
E
NI
Service Ireland
Tel.: 00800 80040044
E-Mail: administration@mynetsend.de
CY
Service Cyprus
Tel.: 00800 80040044
E-Mail: administration@mynetsend.de
MT
Service Malta
Tel.: 00800 80040044
E-Mail: administration@mynetsend.de
IAN 396578_2201
Please have the receipt and the article number (e.g. IAN 123456) ready as proof of purchase for all enquiries.
You can find an up-to-date version of the operating instructions at: www.citygate24.de
You can download this and many other manuals, product videos and installation software at www.lidl-service.com.
Scanning the QR code on the front page will take you directly to the Lidl Service web page (www.lidl-service.com) where you can access the user instructions by entering the item number (IAN) 123456_7890.
