IAN 414553 - String lights Livarno Lux - Free user manual and instructions

Product type	Decorative outdoor light garland
Brand	Livarno Lux
Model	IAN 414553
Total length (cable included)	Approx. 710 cm
Power cable length	Approx. 500 cm
Power supply	220–240 V ~ 50/60 Hz, 0.12 A
Transformer (LED driver)	31 V === 3.6 W, model WDLX-IP-31003.6-T
Power consumption	3.6 W
Light source type	Non-replaceable LED
Protection rating	IP44 (splash-proof)
Timer function	6 h on / 18 h off (daily cycle)
Protection class	II
Usage	Outdoor, decorative only (not suitable for general lighting)
Transformer dimensions	102 x 41 x 41 mm (EU model)
Transformer weight	50 g (EU model)
Standby consumption	0.4 W
Maintenance	Clean with a damp cloth; do not immerse
Warranty	3 years (subject to conditions)
After-sales service France	0800 919270, [e-mail]
After-sales service Belgium	0800 12089, [e-mail]

Frequently Asked Questions - IAN 414553 Livarno Lux

Can I use this light garland indoors?

This garland is designed for outdoor use (IP44) and is not suitable for general room lighting. It can be used indoors provided the same precautions are taken, but it is not intended for permanent indoor use.

How do I activate the timer function?

Press the button (2a) located on the transformer. The timer turns the garland on for 6 hours then off for 18 hours, and this cycle repeats daily as long as the device is plugged in.

Can I replace the LED bulbs?

No, the LEDs are not replaceable. When their lifespan is reached, the entire garland must be replaced. The transformer, however, can be replaced by the end user.

How do I clean the light garland?

Use a damp cloth to gently clean the garland. Never immerse it in water and avoid wetting the plug. Do not use harsh cleaning products.

What should I do if the garland does not light up?

Check that the plug is properly inserted and that the transformer is powered. Ensure the sealing gaskets are in place. If the problem persists, contact after-sales service.

Is the garland resistant to rain?

Yes, the IP44 rating guarantees protection against water splashes, allowing outdoor use in rain. However, do not immerse it and ensure the sealing gaskets are properly fitted.

Can I shorten or extend the garland?

No, the garland is designed with a fixed length and must not be modified. Do not cut the cable or attempt to add extensions, as this could damage the device and void the warranty.

What is the length of the power cable?

The power cable is approximately 500 cm long, with a total garland length of about 710 cm (cable + light section).

How should I store the garland when not in use?

Store it in a dry, clean place at room temperature. Avoid sharply bending the cable and protect it from dust. Always unplug before storing.

Is the warranty transferable in case of resale?

The 3-year warranty is granted to the private end customer. If you resell the item, you must transfer the instructions and the receipt; the warranty remains valid for the new owner according to the warranty conditions.

USER MANUAL IAN 414553 Livarno Lux

Abstract black-and-white diagram of interconnected nodes and lines forming a circular pattern (no text or symbols)

PDF ONLINE www.lidl-service.com

LED-LICHTERKETTE 192 LED FAIRY LIGHTS GUIRLANDE LUMINEUSE À LED

DE AT CH

LED-LICHTERKETTE

Gebrauchsanweisung

FR BE

GUIRLANDE LUMINEUSE À LED

Instructions for use

NL BE

LED-LICHTKETTING

Gebruiksaanwijzing

CZ

SVĚTELNÝ LED ŘETĚZ

Návod k použití

ES

GUIRNALDA DE LUCES LED

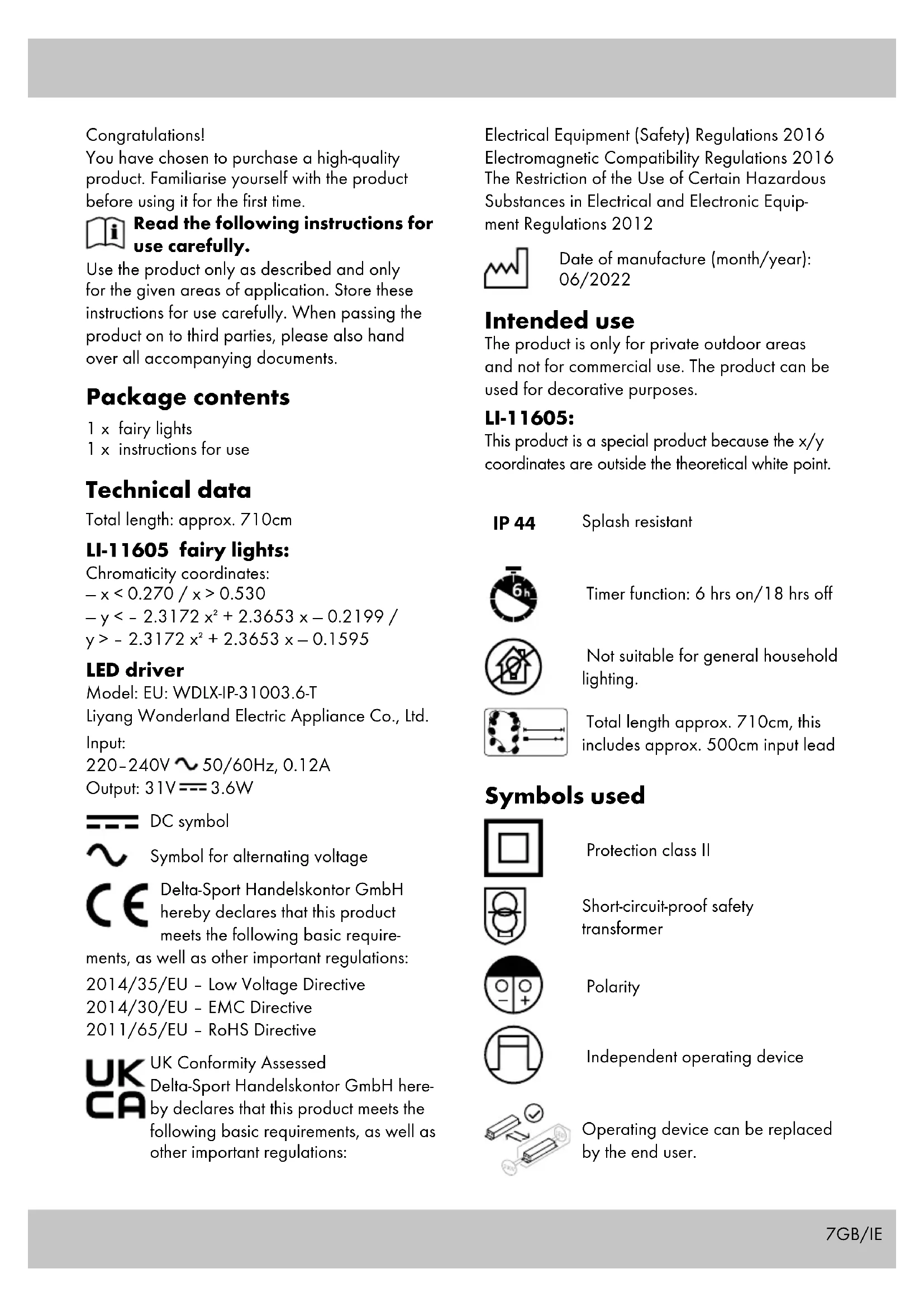

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Package contents

1 x fairy lights

1 x instructions for use

Technical data

Total length: approx. 710cm

LI-11605 fairy lights:

Chromaticity coordinates:

$$ - x < 0. 2 7 0 / x > 0. 5 3 0 $$

$$ - y < - 2. 3 1 7 2 x ^ {2} + 2. 3 6 5 3 x - 0. 2 1 9 9 / $$

$$ y > - 2. 3 1 7 2 x ^ {2} + 2. 3 6 5 3 x - 0. 1 5 9 5 $$

LED driver

Model: EU: WDLX-IP-31003.6-T

Liyang Wonderland Electric Appliance Co., Ltd.

Input:

220-240V \~ 50/60Hz, 0.12A

Output: 31V---3.6W

DC symbol

Symbol for alternating voltage

Delta-Sport Handelskontor GmbH hereby declares that this product meets the following basic require-

ments, as well as other important regulations:

2014/35/EU - Low Voltage Directive

2014/30/EU - EMC Directive

2011/65/EU - RoHS Directive

UK Conformity Assessed

Delta-Sport Handelskontor GmbH hereby declares that this product meets the following basic requirements, as well as other important regulations:

Electrical Equipment (Safety) Regulations 2016 Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

Date of manufacture (month/year): 06/2022

Intended use

The product is only for private outdoor areas and not for commercial use. The product can be used for decorative purposes.

LI-11605:

This product is a special product because the x/y coordinates are outside the theoretical white point.

IP 44

Splash resistant

Timer function: 6 hrs on/18 hrs off

Not suitable for general household lighting.

Total length approx. 710cm, this includes approx. 500cm input lead

Symbols used

Protection class II

Short-circuit-proof safety transformer

Polarity

Independent operating device

Operating device can be replaced by the end user.

Safety information

Important: read these instructions for use carefully and keep them in a safe place!

Life-threatening hazard!

• Warning. Not suitable for children! Choking hazard – contains small parts.
• Never leave children unattended with the packaging materials. There is a risk of suffocation.
• Hang up out of reach of children.
• The fairy lights must not be plugged into mains power while still in their packaging.
• This product can be used by children above the age of 8 and by people with reduced physical, sensory, or mental capacities or by those lacking experience and knowledge provided they are supervised or have been instructed in the safe use of the product and understand the risks involved. Children may not play with the product. Cleaning and user maintenance may not be performed by children without supervision.

Risk of electric shock!

• The product may only be used with the supplied operating device (LED driver).
• Never submerge the product or its power cable or plug in water or other liquids.
• Never touch the plug with wet hands.
• Never pull the plug out of the socket by the power cable; always grip the plug itself.
• Do not operate the product if it is visibly damaged or if the power cable or mains plug

is faulty.

• The light source for this lighting fixture is not replaceable; when the light source has reached the end of its service life, the entire lighting fixture must be replaced.
• WARNING - THESE FAIRY LIGHTS MAY NOT BE USED WITHOUT THE SEALING RINGS BEING ATTACHED PROPERLY.

Risk of injury!

• Warning. None of the packaging or fastening materials are part of the product itself, and must always be removed for safety reasons before the product is used.
• Check the product for damage and wear before each use. The product may only be used in good order and condition!
• Keep the product, the plug and the power cable away from open fire and hot surfaces.
• Lay the power cable in such a way that it isn't a tripping hazard.
• No modifications may be made to the product.

Preventing damage to the item!

• Do not bend the power cable or lay it over sharp edges.
• Never carry the product by the power cable.
• The product may only be used with the supplied operating device (LED driver).

Use

1. Remove all packaging materials from the product.
2. Connect the plug (2) to the power cable (1), as shown in Fig. A.

Note: pay attention to the plus/minus poles of the plug.

1. Insert the plug into the socket.

2. Press the button (2a) to activate the timer function.

Note: when using the timer function, the light will be on for 6 hours and off for 18 hours. This rhythm repeats itself daily.

1. Press the button again to turn off the product.
2. Press the button once more to turn the product on again.

Storage, cleaning

When not in use, always store the product clean and dry at room temperature. Only clean the product with a damp cloth and wipe dry afterwards. The power plug must not get wet during cleaning.

IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

The accompanying symbol indicates that this device complies with Directive 2012/19/EU. This directive indicates that you may not dispose of this device along with basic household waste at the end of its useful life and instead must hand it in to specifically designated collection sites, valuable substance collection stations, or waste disposal facilities.

Look after the environment and dispose of waste properly.

Batteries may not be disposed of with household waste. They may contain toxic heavy metals and are subject to hazardous waste treatment. The chemical symbols of the heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. Dispose of used batteries at a municipal collection site.

For further information about disposal of the product no longer needed, contact your local council. Dispose of the product and the packaging in an environmentally friendly manner. Store the packaging materials (foil bags, for example) out of the reach of children.

Note the label on the packaging materials when separating waste, as these are labelled with abbreviations (a) and numbers (b) with the following meaning:

1-7: plastics / 20-22: paper and cardboard / 80-98: composite materials. The product and the packaging materials can be recycled, dispose of them separately for better treatment of waste. The Triman logo only applies to France.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions. The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances. Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.

IAN: 414553_2201

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

Additional information according to Regulation 2019/2020/EU
Maximum power output of the operating device	3.6W
Type of light source for which the operating device is intended:	LED
Full-load power consumption	81%
No-load power consumption ( P_no )	0.4W
Power consumption on standby ( P_sb )	0.4W
Power consumption on standby when connected ( P_net )	/
Possibility of dimming light sources	The operating device is not suitable for dimming light sources
External dimensions of the operating device	Model: EU: WDLX-IP-31003.6-T - 102 x 41 x 41mmModel BS WDLX-31003.6-T - 106 x 49 x 46mm
Weight of operating device	Model: EU: WDLX-IP-31003.6-T: 50gModel BS WDLX-31003.6-T: 56g
Removing the operating device from the product	Pull the operating device out of the socket and separate it from the product
Possibility of compatible dimmable light sources	The operating device is not suitable for dimming light sources

Félicitations!

2011/65/UE - Directive RoHS

Pay attention to the following correct technical data:

Technical data

LED driver

Model: BS WDLX-31003.6-T

Liyang Wonderland Electric Appliance Co., Ltd.

Input: 220-240V 50/60Hz, 0.12A

Output: 31V=3.6W

Operating device can be replaced by the end user.
