Product type	Electric scooter (e-scooter)
Brand	Kugoo
Model	Kirin Mini2
Dimensions (folded)	854 x 420 x 340 mm
Dimensions (unfolded)	854 x 420 x 980 mm
Net weight	8.9 kg
Maximum load	65 kg
Maximum speed	15 km/h
Range	15 km (with 50 kg load)
Battery type	Lithium-ion 18650 rechargeable
Battery capacity	21.6 V – 4 Ah (86.4 Wh)
Charging time	4 to 5 hours
Tires	Front 8 inches / Rear 6.5 inches
Speed modes	3 modes (Mode 1, 2, 3)
Maximum slope	≤ 15°
Operating temperature	-10°C to 40°C
Warranty	1 year (hardware) / 6 months (battery)
Folding	Yes, with safety lock
Brakes	Electronic hand brake + rear brake (mudguard)
Package contents	1 scooter, 2 Allen keys, 1 charger, 1 manual

Frequently Asked Questions - Kirin Mini2 Kugoo

How to fold and unfold the Kirin Mini2?

To unfold: press the rear mudguard, release the folding hook latch, lift the steering column, rotate it 45° forward, then lower the lever to lock. To fold, reverse the process.

What is the maximum load of the scooter?

The maximum load is 65 kg. Never carry a passenger.

How to charge the battery?

Make sure the scooter is off. Plug the charger into the charging port located under the pedal, then into a wall outlet. The charger indicator turns red during charging and green when complete. Charging time is 4 to 5 hours.

What protective gear should I wear?

Always wear a helmet, elbow pads, and knee pads. Flat shoes are recommended for stability.

How to use the speed modes?

Turn on the scooter (button for 3-5 seconds). Briefly press the same button to switch between the 3 modes: Mode 1 (blue), Mode 2 (blue+red), Mode 3 (red). Modes 1 and 2 are slower, mode 3 is the fastest.

What is the actual range of the scooter?

The stated range is 15 km for a 50 kg rider on flat terrain. It varies depending on weight, terrain, and temperature.

What to do if the scooter does not turn on?

First check that the battery is charged. If the charger indicator stays green, the battery is full. Otherwise, plug in the charger and wait for the indicator to turn green. If the problem persists, contact customer service.

How to maintain the Kirin Mini2?

Clean it with a dry cloth after each ride. Regularly check the brakes, screws, and tire condition. Never spray liquid or use chemicals. Store it in a dry place away from dust.

Can I ride in the rain?

No, the Kirin Mini2 is not designed for use in rain or on wet surfaces. Water can damage the battery and electrical components. Clean it only with a dry cloth.

Where can I find spare parts?

Contact your dealer or Kugoo customer service. Use only original parts provided by the manufacturer to ensure safety and compatibility.

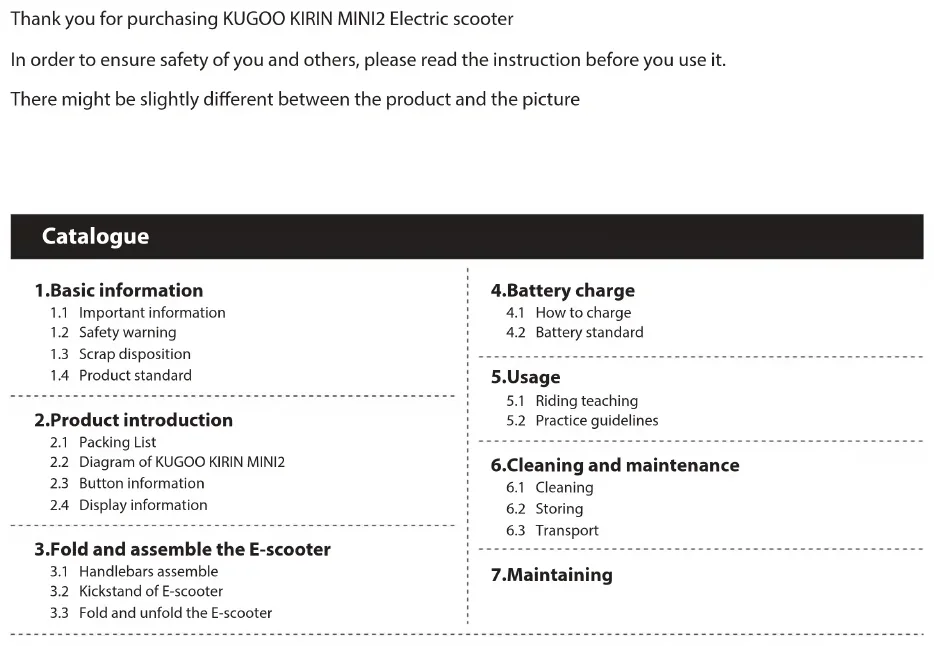

USER MANUAL Kirin Mini2 Kugoo

In order to ensure safety of you and others, please read the instruction before you use it.

There might be slightly different between the product and the picture

Catalogue

1. Basic information

1.1 Important information
1.2 Safety warning
1.3 Scrap disposition
1.4 Product standard

2.Product introduction

2.1 Packing List
2.2 Diagram of KUGOO KIRIN MINI2
2.3 Button information
2.4 Display information

3.Fold and assemble the E-scooter

3.1 Handlebars assemble
3.2 Kickstand of E-scooter
3.3 Fold and unfold the E-scooter

4.Battery charge

4.1 How to charge
4.2 Battery standard

5.Usage

5.1 Riding teaching
5.2 Practice guidelines

6.Cleaning and maintenance

6.1 Cleaning
6.2 Storing
6.3 Transport

7. Maintaining

Chapter 1

Basic information

This instruction is including the function, usage and maintaining of the KUOO KIRIN MINI2. Please prepare your purchase information before contacting the customer service, because it is needed during the process.

Purchase Data:

Scooter Code:

(on the bottom of the scooter)

please obey the rules in this instructionplease obey the rules in this instruction

1.1 Important information

You must obey the law when riding the e-scooter. Users have to take risks and responsibilities. It includes, but are not limited to muscle injuries, fractures, lacerations, serious injuries and death, and other risks that may be associated with the riding of the e-scooter.

Make sure to wear the protective sets(helmet, elbow pads, knee pads, ect.)

1.2 Safety warning

⚠ Safely dispose the package. It is dangerous for kids and pets.
⚠️ Checking the wholeness of the product, If any parts are missing, please contact the seller.
⚠️ If there is any damaged, please don't use it.
⚠️ Please use the standard charger.
⚠️ Look after your kid if he or she rides the e-scooter.
⚠️ Only use the components from our company.
⚠️ Be careful with the electricity. No water or liquid contacted.
⚠️ Use a dry cloth to remove dust. Do not spray liquid onto product.
⚠️ Do not immerse the product, any of its components or accessories in water.
⚠ Do not use on the stairs.
⚠ The e-scooter could only take one person.
⚠️ Cover the product to prevent dust. Do not store it in a dusty environment, which may cause damage.
⚠️ Do not ride in areas with fire hazards.

1.3 Scrap disposition

Do not burn, bury or drop the e-scooter with the household garbage. If the battery is broken or got fire, it will cause danger and environment pollution. Please obey the rules and dispose it carefully.

1.4 Product standard

Items Details Parameters
Specification	Folded Size	854 x 420 x 340mm
	Unfold Size	854 x 420 x 980mm
	Net Weight	8.9kgs
Product performance	Maximum load	65kgs
	Grade ability	≤15°
	Suitable terrain	Smooth road, slope less than 15°
	Operating temperature	25°C
	Storage temperature	-10°C to 50°C
Speed and mileage	Maximum speed	15 km / h
	Cruising distance	15km (load: 50kg)
Tyre	Front tyre	8-inch Solid tyre
	Rear tyre	6.5-inch "Solid tyre
Battery Parameter	Type	18650 Rechargeable lithium ions/18650
	Battery protection type	Overcharge, over discharge, overheat automatically shut down
	Voltage and current	21.6V 4Ah
	Total Power	86.4Wh
Charger parameters	Input voltage	AC100-240V 50/60Hz
	Output voltage	DC 25.2v 1a
	Charging Time	4-5 Hours

Chapter 2

Product introduction

2.1 Packing List

• KIRIN MINI2 e-scooter x1
• Handle x2
• Charger x1
• Instruction x1

2.2 Diagram of KUGOO KIRIN MINI2

1 Handle
② Finger electronic handbrake
3 Folding hook
4 T-column riser
⑤ Folding holder
6 Folding latch
7 Front fork
8 Foot accelerator
9 Shock pad
10 LED display and switches
11 Folding lock
12 Rear fender
13 Front wheel
14 Front axle
15 Foot pedal
16 Kickstand
17 Charging port
18 Reflective warning sticker
19 Rear wheel

Labeled diagram of an electric scooter with numbered parts for identification

The actual product details and specifications due to product upgrading and optimization shall be subject to change without notice

2.3 Button information

KIRIN MINI2 have different parts of the display, you have to know them before your riding.

1 Power: 3-5 seconds to turn on or off
② Mode: After power on, click the on/off button to choose mode 1, 2 or 3

Technical diagram of a mechanical assembly with numbered components and labeled parts

Line drawing of a scooter with wheels and suspension components (no text or symbols)

2.4 Display information

③ Indicates the remaining battery

Pure diagram of a rounded rectangular object with internal circular elements and a numbered label (3), no text or symbols present.

Indicates the speed mode: B Mode 1- blue; Mode 2- red and blue; Mode 3- red.

⚠ if there is no power please stop and turn off the power.

Chapter 3

Fold and assemble the scooter

Please ensure that the power of KIRIN MINI2 has been turned off before assembling the scooter.

Most of the parts have been assembled before leaving the factory. A few parts are required to be assembled before riding.

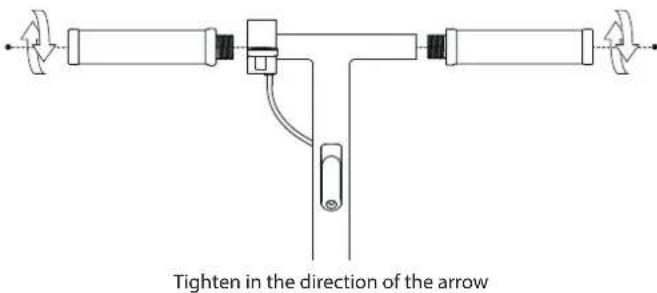

3.1 Handlebars assemble

Tighten in the direction of the arrow

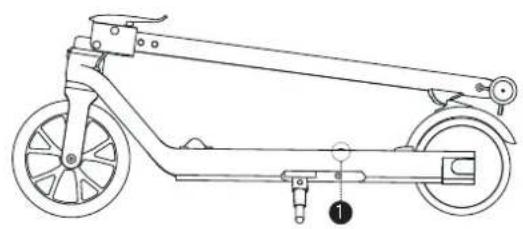

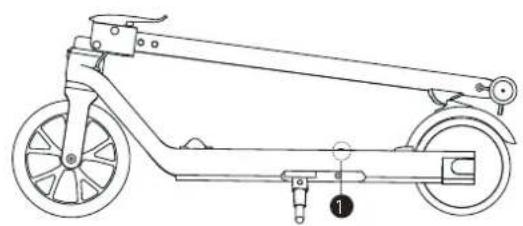

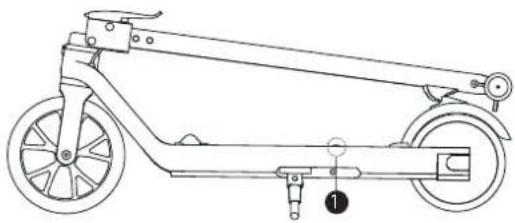

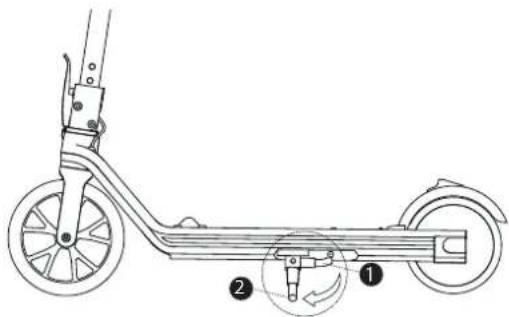

3.2 Kickstand of E-scooter

① Find the kickstand beside the pedal

② Push the kickstand down

Technical diagram of a scooter with labeled parts and motion indicators

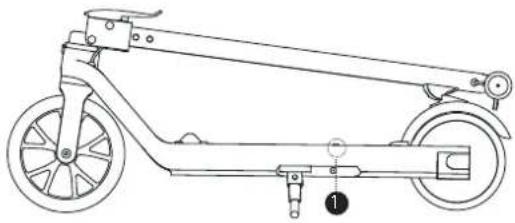

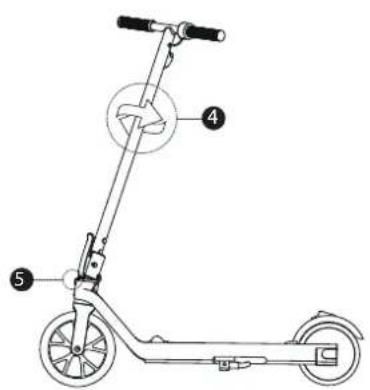

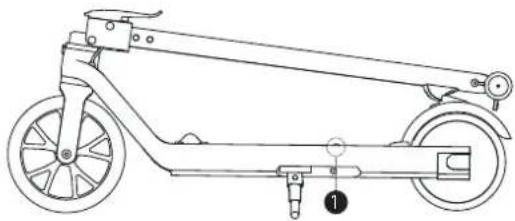

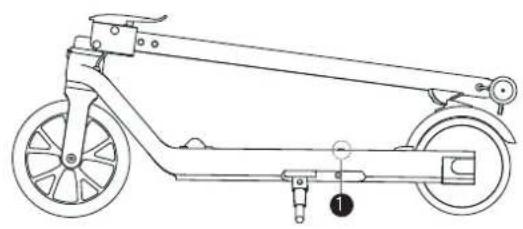

3.3 Fold and unfold the E-scooter

1 Press down on the rear fender.
② Release the folding hook latch.
③ Lift the steering column to the third position.
4 Turn the steering column about 45 degrees in the direction of the arrow.
5 Press harder while turning up the steering column & make sure the front folding locked well.

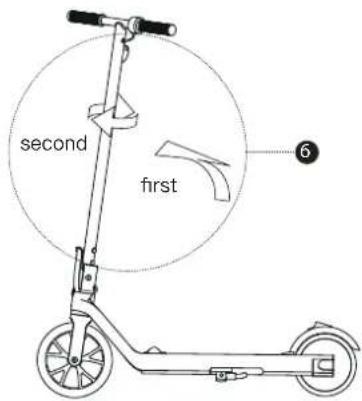

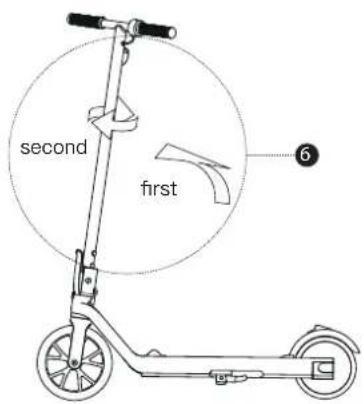

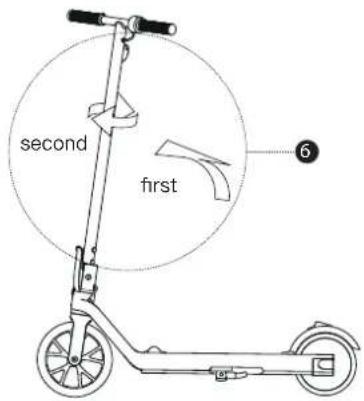

6 First lift the steering column, reset the folding button, and second turn the pole to straighten.

Diagram of a scooter with labeled parts, showing front wheel, rear wheel, and side-mounted components.

Line drawing of a scooter with extended handle and wheels, labeled with number 3 (no text or symbols on the diagram itself)

Diagram of a scooter with numbered parts indicating components for speed tracking or usage.

second first 6

The above is the unfolding process of the scooter. If you need to fold, just reverse the process.

Chapter 4

Battery charge

⚠️ Please charge the scooter before use.

4.1 How to charge

① Turn off the scooter before you start to charge.
② Find the socket.
③ Use the right charger.
④ The light will be red while charging.
⑤ The light will be green when charging completed.

⚠️ If it is the first charge, please charge the E-scooter at least 4 hours before using.
⚠️ Under no circumstances should you use a scooter while charging.
Do not charge for longer than necessary. The standard charging time is about 4.5 hours (4ah battery).
⚠️ Charging too long can affect battery life and performance.
⚠️ To extend battery life, charge it at least every two months.

4.2 Battery standard

Components Parameter
Type of the battery	Rechargeable lithium ions
Charging time	4-5 hours
Voltage	21.6V
Battery capacity	4Ah
operating temperature	-10°C to 40°C
Charging temperature	5°C to 45°C
storage temperature	-20°C to 50°C
KWh	86.4Wh
Protection	Overcharge, overdischarge, overheat automatically shut down

Chapter 5

Usage

Before riding the KIRIN MINI2, please read the following information.

⚠️ You have to wear the helmet and other protective clothing.
⚠️ Only under 65Kg are allow.
⚠ Obey the local law.
The KIRIN MINI2 contains the motor, which may be classified as a motor vehicle according to your local regulations. It is your responsibility to comply with local regulations.

5.1 Riding teaching

Suppose you are wearing appropriate protective gear and have placed your scooter on a level road with sufficient power, follow these steps.

Line drawing of a person riding a scooter with wheels and seat, no text or symbols present

Hold the handle bars with both hands, put the right foot on the acceleration, and slide by the left foot to make the e-scooter move.

Diagram of a scooter with a downward arrow indicating motion (no text or symbols)

Diagram of a scooter's side profile showing wheel, seat, and exhaust components (no text or labels)

Step on acceleration Harder, faster Release to slow down

Turn right Turn left

Turn the handle with both hands.

Press

Press the electronic handbrake and step on the rear fender with your foot at the same time to slow down or stop the scooter. Be very careful when you get off.

To turn off the scooter, hold down the power button for 3 to 5 seconds after full stop for a few seconds.

5.2 Practice guidelines

Please practice riding until you can easily use all scooter functions. See the tips below.

• Avoid passing through anything that may stick on or stuck in the wheels.
• Wear fat shoes for flexibility and stability.
• Keep practising until you can easily get on, forward, turn, stop and get of.
• Riding on the road with a 15 degree slope is OK for KIRIN MINI2, but not recommended.
• KIRIN MINI2 is preferred to relatively fat road conditions.
• Do not ride on slopes, pedestrians or obstacles until you are proficient with the scooter.

The KIRIN MINI2's weight is about 8.9KGs. Remember to fold the scooter before you pick it up.

Chapter 6

Cleaning and maintenance

6.1 Cleaning

After long time riding, you need to clean it to ensure the KIRIN MINI2 works well.

⚠️ Turn off the scooter before cleaning.
⚠️ Use dry cloth to scrub it.
⚠ Avoid contacting from liquid.
⚠ Do not use alcohol and detergent.
Do not spray the liquid directly on any part of the scooter.

6.2 Storing

To store KIRIN MINI2, please follow the below instructions:

⚠️ Please charge it before you store it.
⚠️ Charge it every 2 month.
⚠️ Cover KIRIN MINI2 to prevent dust.
Do not store it in a dusty or moisture environment, which may cause damage.

6.3 Transport

Close and fold the scooter before moving, lifting, or transporting it (see section 3.3 for instructions).

When lifting the whole scooter, please note the weight of KIRIN MINI2 is about 8.9KGs.

Chapter 7

Maintaining

Your KIRIN MINI2 electric scooter is warranted to the original owner for one year from the date of purchased against defects in material and workmanship under normal use and service.

This warranty gives you specific legal rights and you may have other rights depending on local laws. This warranty lasts for one year from the date of purchase. If the product is repaired or replaced, the warranty period will not be extended. This warranty only covers technical hardware defects under normal use conditions during the warranty period.

Guarantee does not include

(a)transport (b) store (c)usage (d)don't obey the instruction (e)change (f)repair without authorization (g) abrasion (h)accident

Statement: we are not responsible for the accidental use of this product and its liability will not exceed the purchase price of the product in any condition.

Line drawing of a two-wheeled scooter with extended boom and wheels (no text or symbols)

KUGOO KIRIN MINI2

Labeled diagram of a scooter with numbered parts for identification

Technical diagram of a mechanical assembly with numbered components and labeled parts

Line drawing of a scooter with wheels and suspension components (no text or symbols)

Pure diagram of a device with circular ports and a numbered label (3), no text or symbols present.

Pure mechanical diagram showing a T-shaped component with rotating arms and a central vertical element (no text or symbols)

Technical diagram of a scooter with labeled parts and motion arrows indicating movement direction

Technical diagram of an electric scooter with labeled parts 1, 2, and a wheel assembly

Line drawing of a scooter with extended handle and wheels, labeled with number 3 (no text or symbols on the diagram itself)

Diagram of a scooter with numbered parts labeled 4, 5, and 6

second first 6

Line drawing of a person riding a scooter with wheels (no text or symbols)

Diagram of a scooter's side view showing the wheel and seat, with an arrow indicating motion direction (no text or symbols)

Diagram of a vehicle's side profile showing a vertical arrow and dashed line indicating motion (no text or symbols)

Cleaning and maintenance

Line drawing of a scooter with extended boom and wheels (no text or symbols)

KUGOO KIRIN MINI2

6.1 Nettoyage
6.2 Stockage
6.3 Transport

7.Garantie

Section 1

Informations de base

Technical diagram of a mechanical assembly with numbered components and labeled parts

Line drawing of a scooter with wheels and suspension components (no text or symbols)

2.4 Informations de display

Pure diagram of a device control panel with no text or symbols

Pure mechanical diagram showing a T-shaped pipe connection with no text, numbers, or symbols

Technical diagram of a scooter with labeled parts and motion arrows indicating movement or positioning

Technical diagram of a scooter with labeled parts, showing front wheel, rear wheel, and side-mounted components.

Line drawing of a scooter with extended arm and wheels, no text or symbols present

Diagram of a scooter with numbered parts labeled 4, 5, and 6

second first 6

Line drawing of a person riding a scooter with wheels and seat (no text or symbols)

Diagram of a vehicle's wheel and suspension system with a downward arrow indicating motion (no text or symbols)

Diagram of a scooter's side profile with an upward arrow indicating motion (no text or symbols)

Line drawing of a scooter with extended boom and wheels (no text or symbols)

KUGOO KIRIN MINI2

Patineta Eléctrica

Technical diagram of a mechanical assembly with numbered components and labeled parts

Line drawing of a scooter with wheels and suspension components (no text or symbols)

Pure diagram of a device control panel with no text or symbols

Pure electrical circuit lines without any symbols

Technical diagram of a scooter with labeled parts and motion indicators

Line drawing of a person riding a scooter with wheels and seat (no text or symbols)

Diagram of a scooter's side view showing the wheel and seat, with an arrow indicating motion direction (no text or symbols)

Diagram of a scooter's side profile showing the wheel and seat, with an arrow indicating direction (no text or symbols present)

Line drawing of a scooter with extended boom and wheels (no text or symbols)

KUGOO KIRIN MINI2

Motore Elettrico

Manuale dell'utente

Labeled diagram of a scooter with numbered parts for identification

Technical diagram of a mechanical assembly with numbered components and labeled parts

Line drawing of a scooter with wheels and suspension components (no text or symbols)

Pure diagram of a device control panel with no text or symbols

Pure electrical circuit lines without any symbols

Technical diagram of a scooter with labeled parts and motion arrows indicating rotation or movement.

Technical diagram of a scooter with labeled parts, showing front wheel, rear wheel, and side-mounted components.

Line drawing of a scooter with extended arm and wheels (no text or symbols)

Diagram of a scooter with numbered parts labeled 4, 5, and 6

second first 6

Line drawing of a person riding a scooter with motion arrows indicating speed (no text or symbols)

Diagram of a scooter handle mechanism with a downward arrow indicating motion (no text or symbols)

Diagram of a scooter with wheels and an upward arrow indicating motion (no text or symbols)

Close and fold the scooter before moving, lifting, or transporting it (see section 3.3 for instructions).

Line drawing of a scooter with extended boom and wheels (no text or symbols)

KUGOO KIRIN MINI2

Elektryczny Scooter

UŻYTKOWY PRZETWÓR

Labeled diagram of a scooter with numbered parts for identification

Technical diagram of a mechanical assembly with numbered components, likely a valve or actuator assembly.

Line drawing of a scooter with wheels and suspension components (no text or symbols)

Pure diagram of a rounded rectangular object with internal circles and a dot, no text or symbols present

Pure mechanical diagram showing a T-shaped component with rotating arms and a central vertical element (no text or symbols)

Technical diagram of a scooter with labeled parts and motion arrows indicating rotation or movement.

Diagram of a scooter with labeled parts, showing front wheel, rear wheel, and side-mounted components.

Line drawing of a scooter with extended arm and wheels (no text or symbols)

Diagram of a scooter with numbered parts labeled 4, 5, and 6

second first 6

Line drawing of a person riding a scooter with wheels, no text or symbols present

Diagram of a scooter's side view showing the wheel and suspension mechanism (no text or symbols)

Diagram of a scooter with wheels and an upward arrow indicating motion (no text or symbols)
