Product type	Folding electric bike
Brand and model	Kugoo Kirin V1
Frame material	Metals (steel or aluminum)
Unfolded dimensions	1170 x 500 x 990 mm
Folded dimensions	1170 x 200 x 720 mm
Net weight	18 kg
Maximum load	120 kg
Maximum speed	45 km/h (varies according to conditions)
Range (pure electric mode)	25 ± 3 km
Range (assist mode)	45 km
Motor size	14 inches (hub)
Motor nominal power	400 W
Battery voltage	48 V
Battery capacity	7.5 Ah
Charging time	6 hours
BMS (Battery Management System)	Yes
Brake type	Front and rear disc brakes
Front light	Front light (switchable)
Water resistance rating	IP54
Operating temperature	-20 °C to 65 °C
Charging temperature	0 °C to 45 °C
Recommended age	16 to 45 years
Additional features	Cruise mode, mobile app, quick folding
Included accessories	Pedals, charger, hex keys, fenders, child seat (depending on version)
Maintenance	Check tires (35-45 psi), brakes, chain; store in dry place

Frequently Asked Questions - Kirin V1 Kugoo

How to fold and unfold the Kugoo Kirin V1?

To fold, operate the vertical folding latch and fold the frame. To unfold, raise the frame and lock the latch. Ensure the safety mechanisms are engaged before use.

What is the maximum speed and how to achieve it?

The maximum speed is 45 km/h. It depends on weight, battery status, tire pressure, and terrain. Accelerate gradually to avoid jerks.

How to charge the battery correctly?

First plug the charger into the battery, then into a wall outlet (AC 100-240V). Charging time is 6 hours. When the indicator changes from red to green, unplug the wall outlet first, then the battery. Do not charge for more than 6 hours.

What driving modes are available?

The bike is in assist mode by default (pedal assist). You can switch to pure electric mode (no pedaling) via the controller. Use the throttle grip to activate the motor.

How to maintain the disc brakes?

Regularly check pad wear and cable tension. If brakes feel loose, use the hex key to adjust the cable. Never grease the discs or pads.

What tire pressure is recommended?

Recommended pressure is 35 to 45 psi (2.4 to 3.1 bar). Low pressure reduces range and maximum speed. Check before each ride.

Is the Kugoo Kirin V1 waterproof?

Yes, it has an IP54 rating, protecting it against splashes and dust. However, avoid riding in heavy rain and never submerge the bike in water.

Can I use the bike at night?

Yes, the front light is included and can be turned on by pressing the button under the display for 3 to 5 seconds. Also wear a rear light to be visible.

How to assemble the pedals?

Screw each pedal clockwise onto the corresponding crank arm. Use the provided hex key to tighten. The left pedal has a reverse thread (counterclockwise) on some models, check the marking.

What is the warranty period and conditions?

The warranty is indicated on the provided warranty card. It covers manufacturing defects. Damage from misuse, improper charging, or modifications is not covered. Keep the proof of purchase.

USER MANUAL Kirin V1 Kugoo

Stylized orange lion emblem on black background (no text or symbols)

KugooKirin

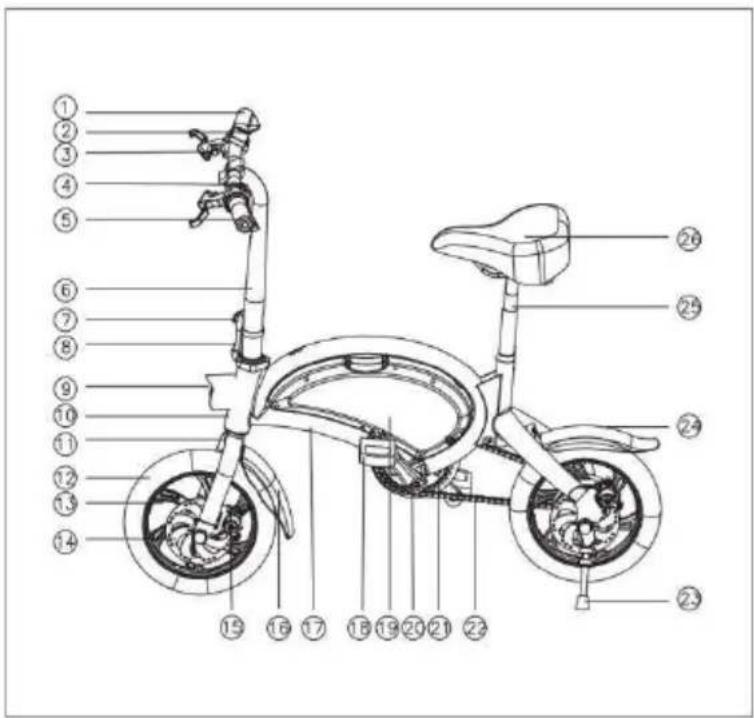

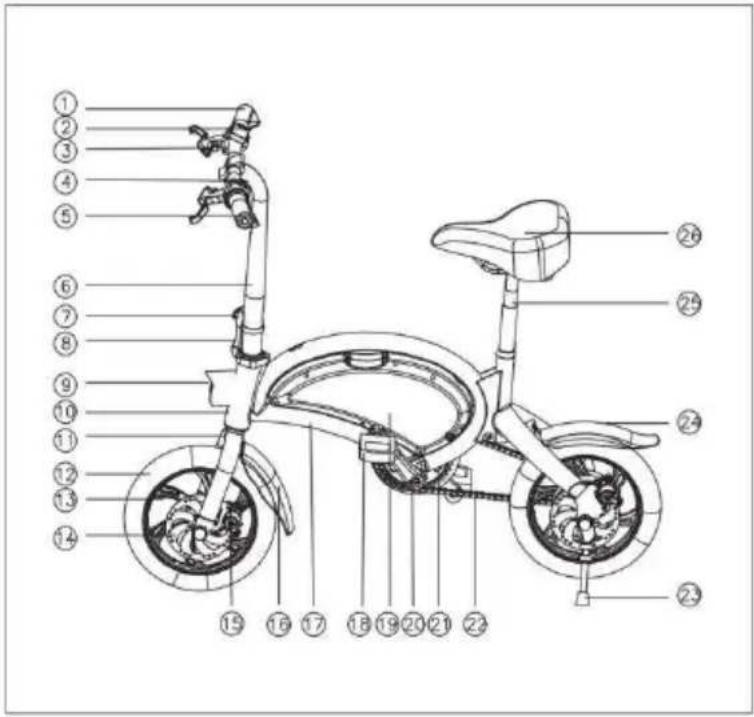

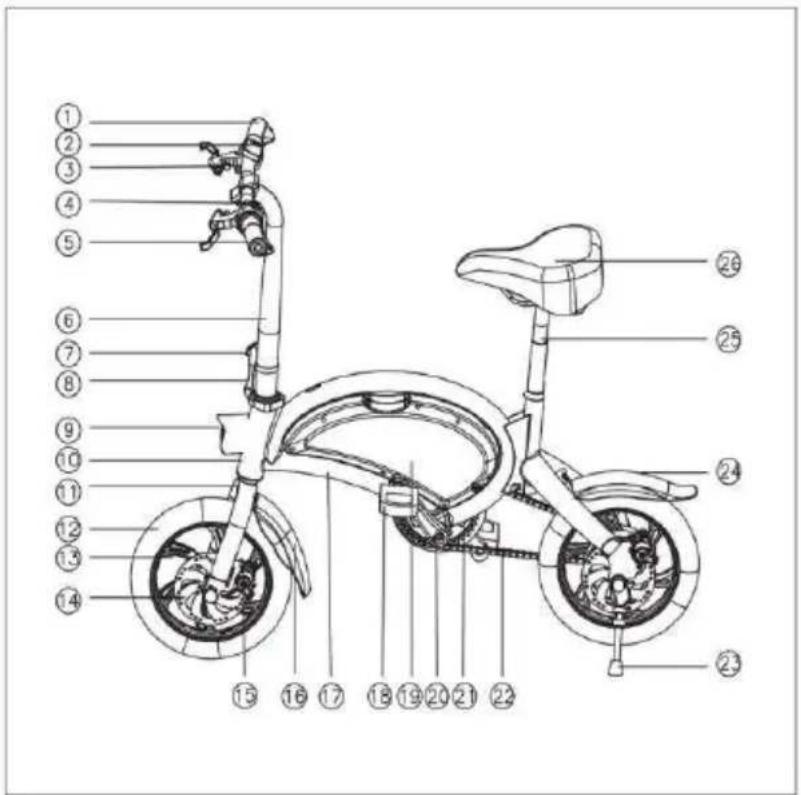

PRODUCT FUNCTION DIAGRAM

Technical diagram of a bicycle with numbered parts for identification and assembly reference.

1.Gear shift

1. Dash board

2. Brake handle

4.Handle bar

5.Power button

6.Standpipe

7.Vertical folding clasp

8.Safety buckle

9.Front light

10.Head tube

11.The front fork

12.Tyre

13.Wheel hub

1. Brake disc

15.Disc brake

16.Front fender

17.Frame

18.Pedal

19.Battery box

20.Crank

21.Chain wheel

22.Chain

23.Kickstand

1. Back fender

25.Seat tube

26.Seat

Note: Some details of your bike may be little different from the above picture due to our product upgrading, which will not affect the usage.

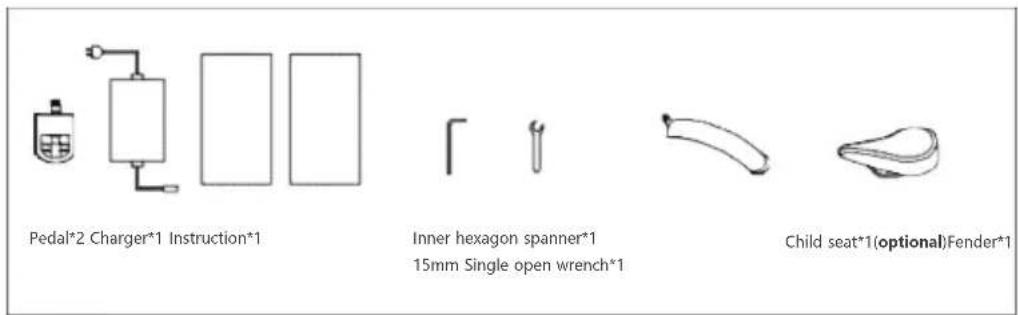

LIST OF ACCESSORIES

Pedal*2 Charger*1 Instruction*1 Inner hexagon spanner*1 15mm Single open wrench*1 Child seat*1(optional)Fender*1

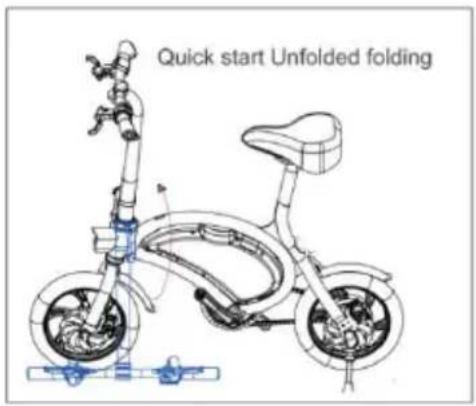

Quick start Unfolded folding

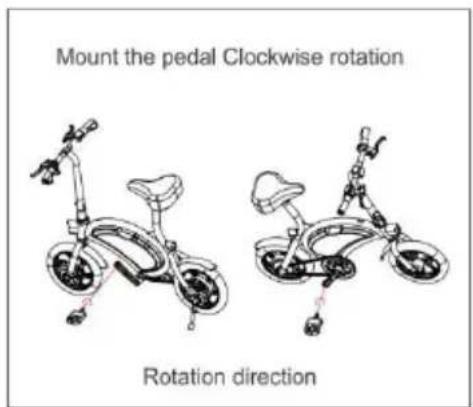

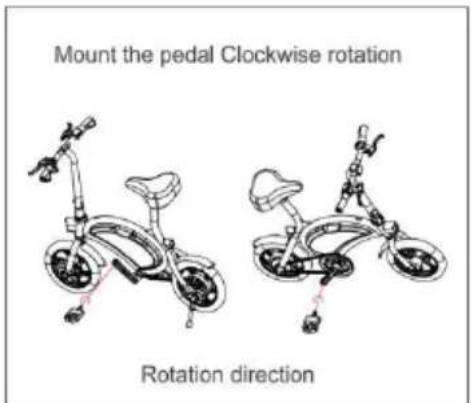

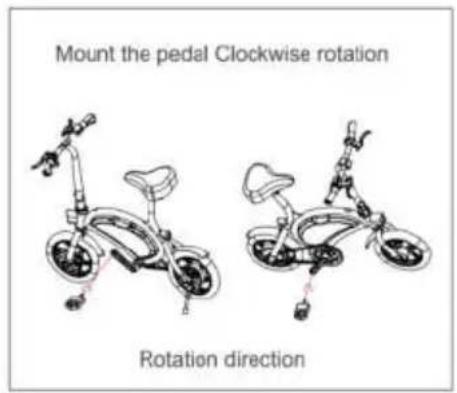

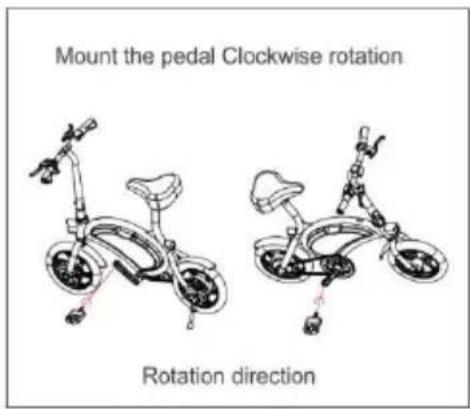

Mount the pedal Clockwise rotation Rotation direction

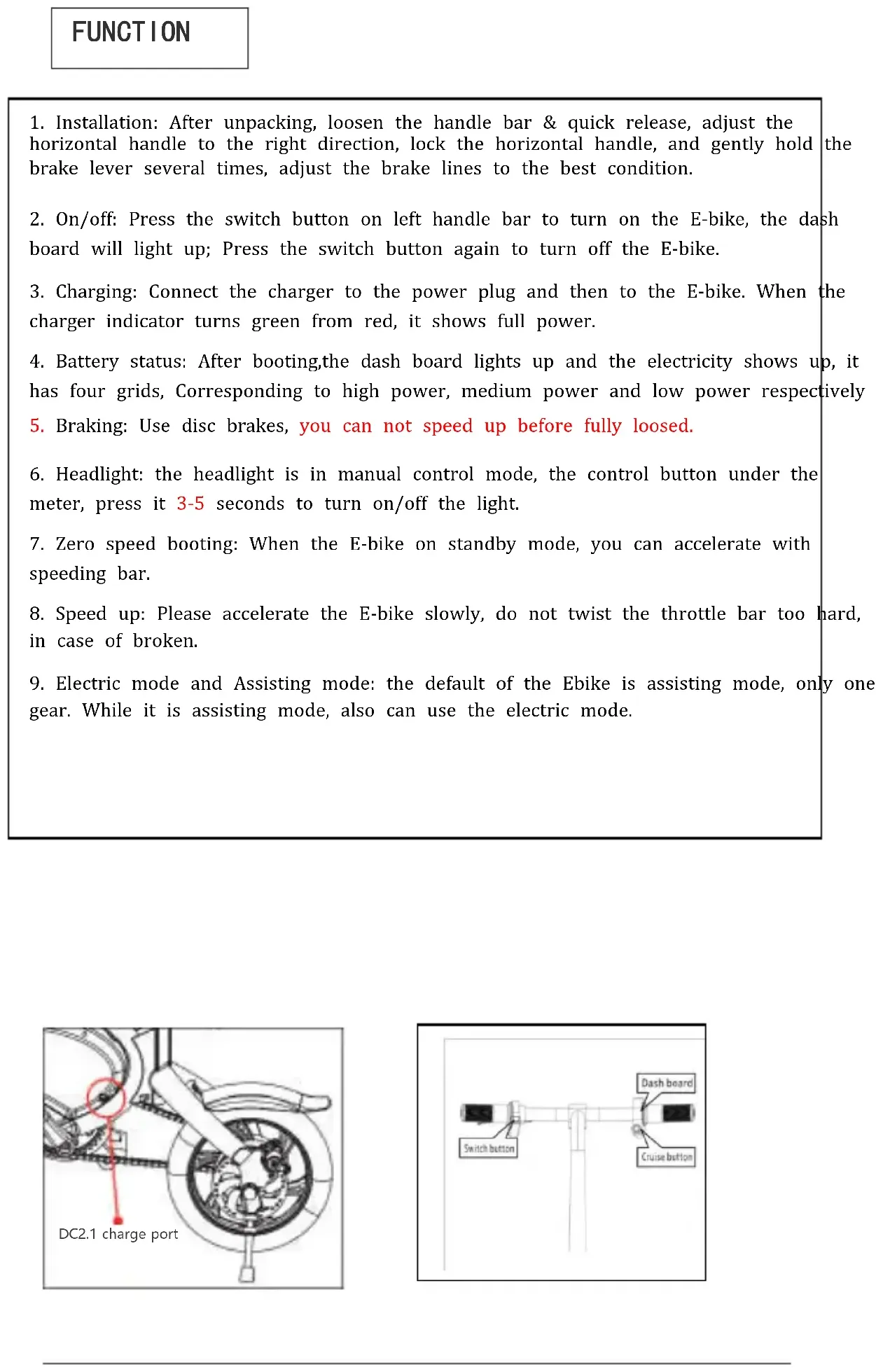

FUNCTION

1. Installation: After unpacking, loosen the handle bar & quick release, adjust the horizontal handle to the right direction, lock the horizontal handle, and gently hold the brake lever several times, adjust the brake lines to the best condition.
2. On/off: Press the switch button on left handle bar to turn on the E-bike, the dash board will light up; Press the switch button again to turn off the E-bike.
3. Charging: Connect the charger to the power plug and then to the E-bike. When the charger indicator turns green from red, it shows full power.
4. Battery status: After booting, the dash board lights up and the electricity shows up, it has four grids, Corresponding to high power, medium power and low power respectively
5. Braking: Use disc brakes, you can not speed up before fully loosed.
6. Headlight: the headlight is in manual control mode, the control button under the meter, press it 3-5 seconds to turn on/off the light.
7. Zero speed booting: When the E-bike on standby mode, you can accelerate with speeding bar.
8. Speed up: Please accelerate the E-bike slowly, do not twist the throttle bar too hard, in case of broken.
9. Electric mode and Assisting mode: the default of the Ebike is assisting mode, only one gear. While it is assisting mode, also can use the electric mode.

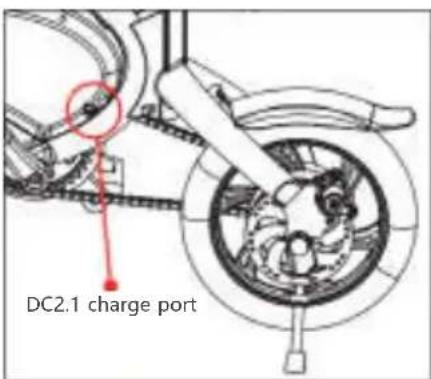

DC2.1 charge port

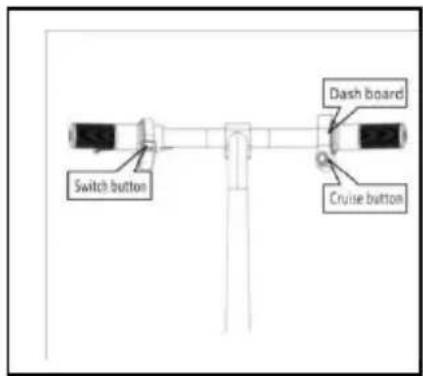

Switch button Dash board Cruise button

PARAMETERS

Size	Material Metal
	Folding size 1170*200*720mm
	Released size 1170*500*990mm
	Pedal height 120mm
	Hub size 14inch
	Package size 1190*220*625mm
	Color Black
Performance	Weight 18kg
	Max load 120kg
	Riding speed 40km/h
	Max speed 45km/h
	Mileage(pure electric)	25±3km
	Assistant-Mileage 45km
	Uphill 15 degree
	Temperature -10~45°C
	Waterproof IP54
Standards	Battery 7.5Ah
	Rated power 400W
	Rated voltage	48V
	Charging voltage	DC54.6V
	Input voltage AC100~240V
	BMS	Yes
	Charging time 6H
Features	App	Yes
	Lights Yes/ Head light
	Cruise	Yes
	Brake mode	Front and Rear disc brakes

Remark: Many factors will affect the max speed, such as power, load, tyre pressure, road conditions, chain, lubrication degree etc. Mileage has been measured on basis of temperature 25°C, load of 60KG, speed of 15-20KM/H, smooth and hard road, and from full battery to dead battery. It also is subjected to other factors, such as driving habits, temperature, load, tyre pressure, road conditions etc."

CAUTION

vCharge between 0 degree-45 degree, rife between -20 degree to 60 degree, keep the battery dry. Don't put it in acid and alkalinity fluid. No rain, fire and heat. Don't put the battery positive an negative wrong. Don't damage disassemble the battery or use the wrong adapter. Don't charge it over 6 hours and don't charge it over 2A.

When not using for a long time, please put the battery in dry and cool place and charge it for 2 hours every 2 months. Follow the instruction or the user will be responsible for the consequence.

When charging, Please be careful of the battery type and voltage, place the battery in open air and don't put it under bright sun shine and closed space.

When charging, please place the battery first, then connect the electricity; after charging, cut the electricity then cut the battery plug. When the green light lights up, turn off the power, don't connect the battery when not charging.

When charging, if the indicating light goes wrong or some strange smell shows up or the charger is over hot, please stop charging immediately, them check and repair or replace the charger. When using or storing the charging. In case of something wrong were dropped into the charger, especially the water or other fluids, please don't take the charger when possible. Otherwise, be careful and put it in the cool box. No disassembling the charger yourself.

Please check the brake before riding.

Please brake the rear wheel first.

Be careful of the tightness of brake, use the hexagon wrench when it's loose.

Rainy and snowy days need longer braking distance.

Suitable age :16-45 years old.

Riding

Read the instruction first to know the product performance first.

Don't lend it to someone who is not familiar with it.

Wear a helmet when riding. Obey the traffic rules and don't ride it in the cars road. Don't riding it in the crowded road.

When go downhill or slippery road, the speed should be under 15km/h.

Inspect the Tyre before riding, Tyre pressure should be 35-45PSI.

Don't over impact the motor, keep the axle smooth.

Don't over load.(Max load is 120kg)

Please be careful of the adding distance when it under the rainy day and snow day.

Single-handed ride is prohibited.

Maintenance

The E-bike front and back wheel should be at the center of the frame.

Put the E-bike up after riding at cool and dry place.

Check the Motor and Brake often, don't inject the oil onto the brake.

Check the E-bike and screws and places that need fixing, fix it often.

Suggested torsion: Bar screws 60-80 kgf.cm, bar stand screws 175-200kgf.cm, wheel screws 320-450kgf.cm.

Check the Tyre is pierced and leaks air, please contact professional technician for repairing and replacing.

Responsibility announcement

All the product model, type and related information copy right and explain right are reserved.

This instruction is suitable for denoted models.

Any changing or replace part of the E-bike will not be informed again.

Stylized orange dragon emblem with swirling patterns (no text or symbols)

KugooKirin

SCHEMAT FUNKCJI PRODUKTU

Technical diagram of a bicycle with numbered parts for identification and assembly reference.

1.zmiana biegów

2.wyświetlacz

3.uchwyt hamulca

4.uchwyt

5.włącznik

6.ramię widelca

Line drawings of various household items including a refrigerator, washing machine, and banana (no text or symbols)

Quick start Unfolded folding

Mount the pedal Clockwise rotation Rotation direction

DC2.1 charge port

Switch button Dash board Cruise button

PARAMETRY

Stylized orange dragon emblem with swirling patterns (no text or symbols)

KugooKirin

Technical diagram of a bicycle with numbered parts for identification and assembly reference.

1.Cambio di marcia

2.Cruscotto

Simple line drawing of a gas cylinder connected to a vertical chamber and two empty rectangular chambers (no text or symbols)

Quick start Unfolded folding

Mount the pedal Clockwise rotation Rotation direction

Switch button Dash board Cruise button

PARAMETRI

Stylized orange dragon emblem with swirling patterns (no text or symbols)

KugooKirin

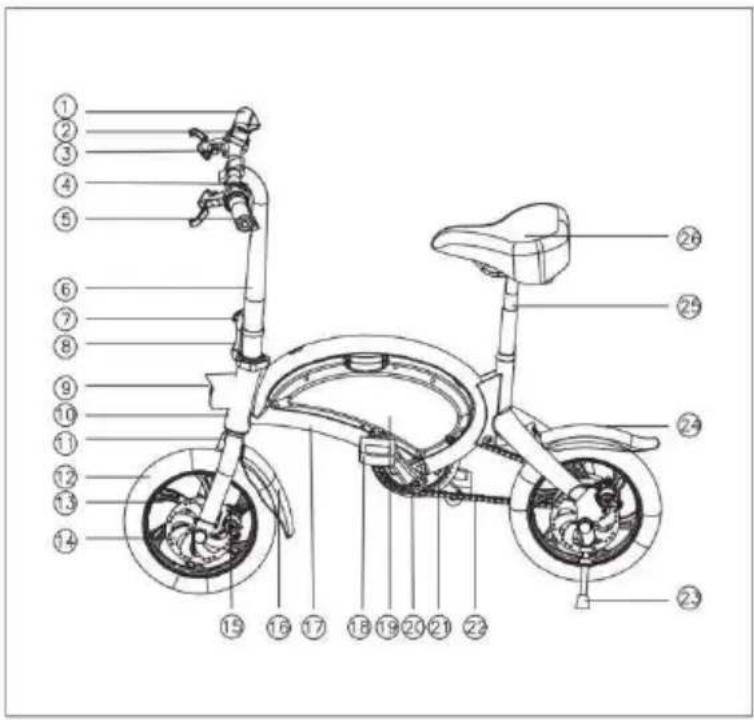

DIAGRAMA DE FUNCIONES DEL PRODUCTO

Technical diagram of a bicycle with numbered parts for identification and assembly reference.

1.Cambiodemarchas

1. Tablerodeinstrumentos

3.Manijadefreno

4.Barradelamanija

5.Botóndeencendido

6.Tubo

1. Cierredesplegable vertical

Quick start Unfolded folding

Mount the pedal Clockwise rotation Rotation direction

Switch button Dash board Cruise button

PARÁMETROS

Stylized orange dragon emblem with swirling patterns (no text or symbols)

KugooKirin

PRODUKT-FUNKT IONSPLAN

Technical diagram of a bicycle with numbered parts for identification and assembly reference.

Simple line drawing of a gas collection or distillation setup with a tank, column, and two rectangular chambers (no text or symbols)

Quick start Unfolded folding

Mount the pedal Clockwise rotation Rotation direction

FUNKTION

DC2.1 charge port

Switch button Dash board Cruise button

PARAMETER

Stylized orange dragon emblem with swirling patterns (no text or symbols)

KugooKirin

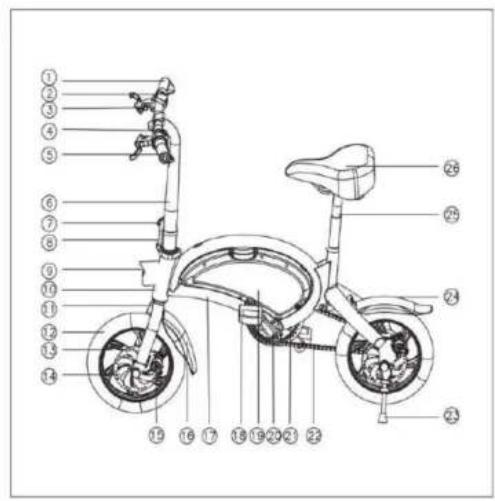

DIAGRAMME FONCTIONNEL DU PRODUIT
