USER MANUAL Kirin B1 Kugoo
SMART ELECTRIC SCOOTER-B1
English、Polish、Italian、Spanish、German、French、Dutch INSTRUCTION

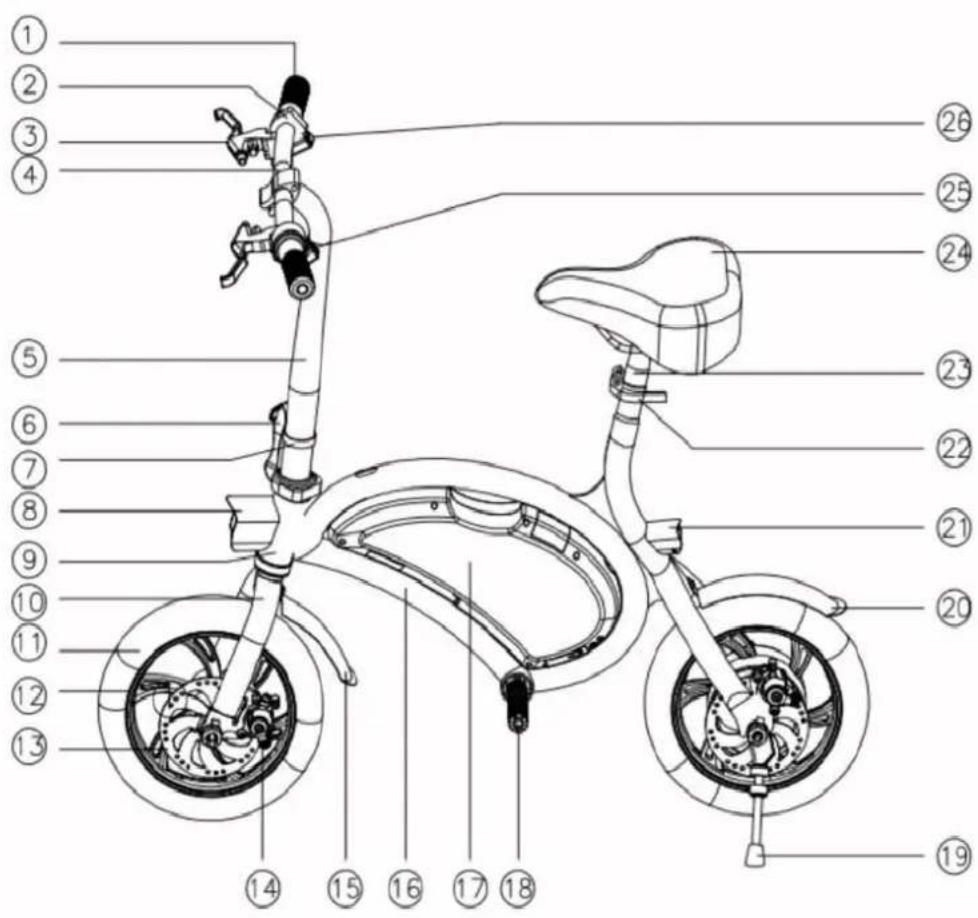

PRODUCT FUNCTION DIAGRAM
1-Gear shift
2-Dash board
3- Brake Handle
4- Handle bar
5- Standpipe
6- Vertical folding clasp
7-Safety Buckle
8- Head light
9-Head tube
10- Front fork
11-Tire
12-Wheel hub
13- Brake disc
14-Disc brake
15- Front fender
16-Frame
17-Battery case
18-Footpedal
19- Kickstand
20-Back Fender
21- Rear Light
22-Seat Safety button
23- Chair Lift pipe
24-Seat
25-On/off button
26-Cruise button
/ Front light button

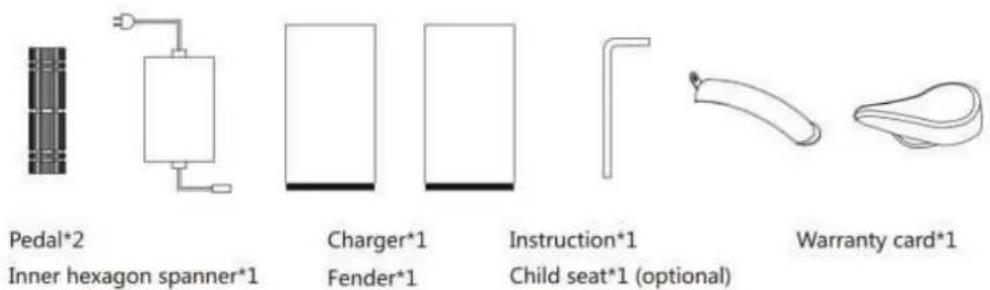

List of Accessories
Pedal2 Charger1 Inner hexagon spanner1 Fender1 Instruction1 Warranty card1 Child seat*1 (optional)

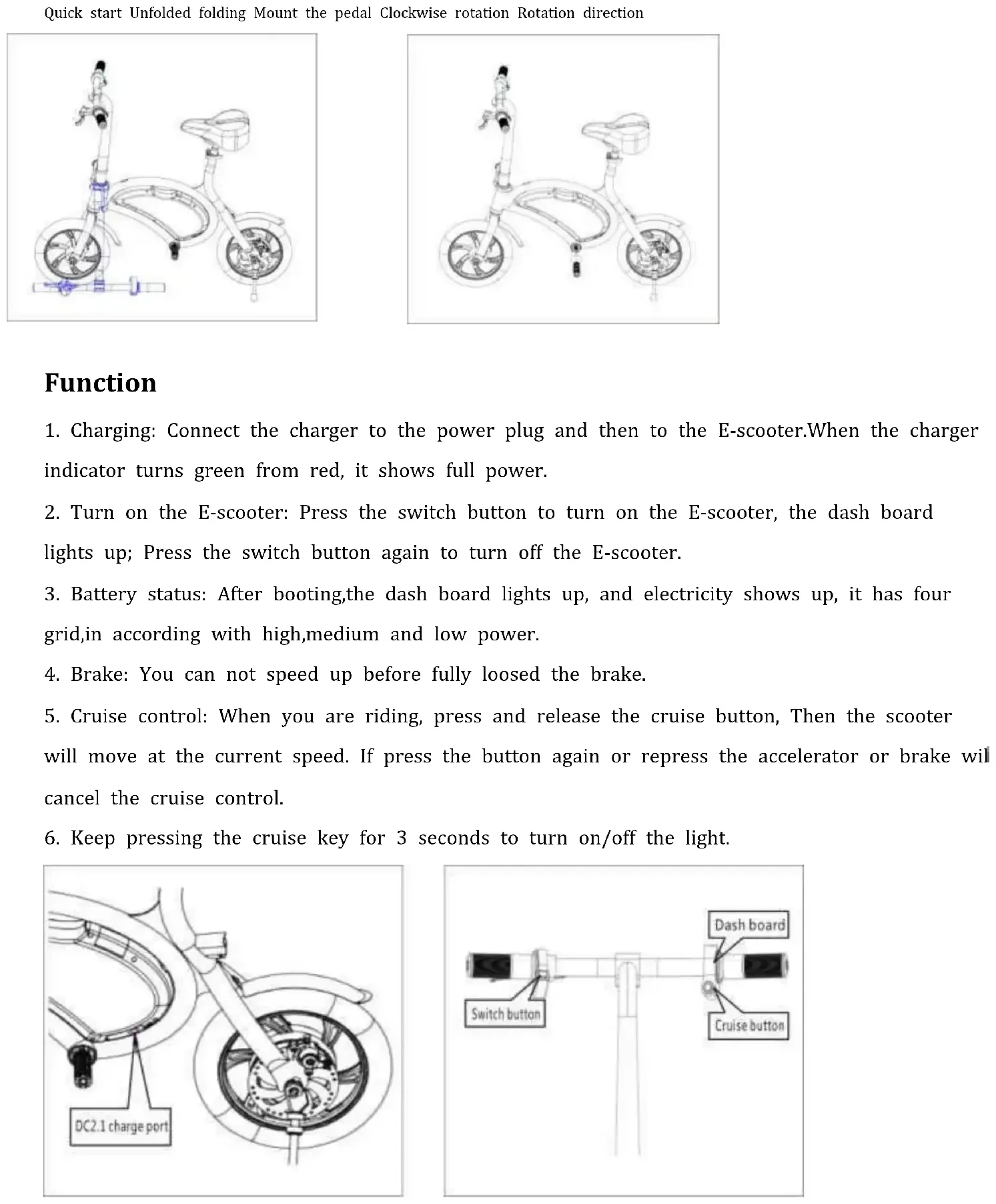

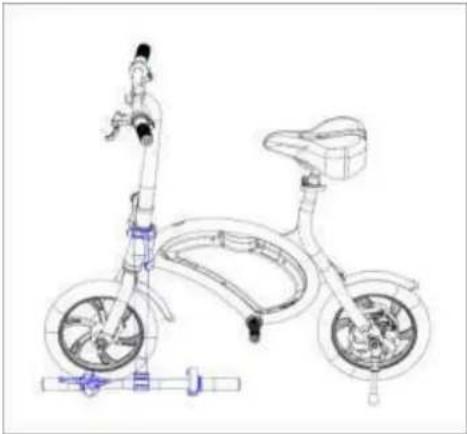

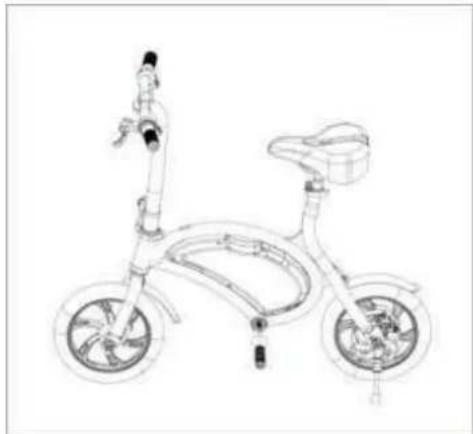

Quick start Unfolded folding Mount the pedal Clockwise rotation Rotation direction
Function

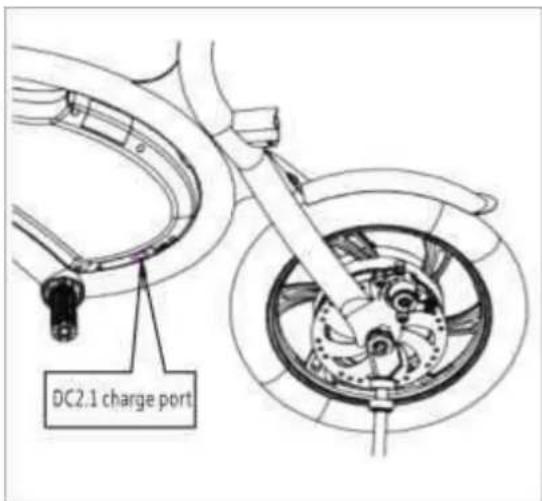

- Charging: Connect the charger to the power plug and then to the E-scooter. When the charger indicator turns green from red, it shows full power.

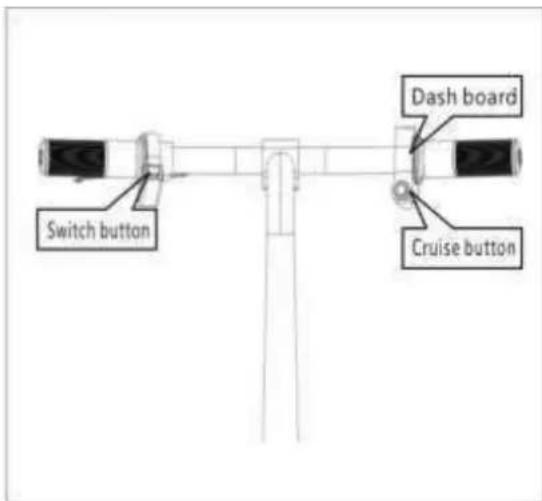

- Turn on the E-scooter: Press the switch button to turn on the E-scooter, the dash board lights up; Press the switch button again to turn off the E-scooter.
- Battery status: After booting, the dash board lights up, and electricity shows up, it has four grid, in according with high, medium and low power.
- Brake: You can not speed up before fully loosed the brake.
- Cruise control: When you are riding, press and release the cruise button, Then the scooter will move at the current speed. If press the button again or repress the accelerator or brake will cancel the cruise control.
- Keep pressing the cruise key for 3 seconds to turn on/off the light.
PARAMETERS
| Size | Material Metal | |
| Folding size 1020*200*7 | 20mm |
| Released size 1020*505*940mm | |
| Pedal height 200mm | |
| Hub size 12inch | |
| Package size 1050*210*650mm | |
| Color Black | |
|
| Performance | Weight 14kg | |
| Max load 120kg | |
| Max speed 20km/h | |
| Mileage 20±3km | |
| Uphill 15 degree | |
| Temperature | -10~45°C |
| Waterproof | IP54 |
|
| Standards | Battery | 6Ah |
| Rated power | 250W |
| Rated voltage | 36V |
| Charging voltage | DC42V |
| Input voltage | AC100☐ 220V |
| Charging time | 4H |
|
| Features | Cruise | Yes |
| Brake mode | Rear disc brake |
| Seat | Adjustable |
| Basket | Optional |
| Child seat | Optional |
Remark: Many factors will affect the max speed, such as power, load, tyre pressure, road conditions, chain, lubrication degree etc. Mileage has been measured on basis of temperature 25^ , load of 60KG, speed of 15-20KM/H, smooth and hard road, and from full battery to dead battery. It also is subjected to other factors, such as driving habits, temperature, load, tyre pressure, road conditions etc.
CAUTION
Battery and charge
Charge between 0 degree- 45 degree, Store between -20 degree to 60 degree, keep the battery Don't put it in acid and alkalinity fluid. No rain, fire and heat. Don't put the battery negative wrong. Don't damage disassemble the battery or use the wrong adapter. Don't charge i 6 hours and don't charge it over 2A.
When not using for a long time, please put the battery in dry and cool place and charge it f every 2 months. Follow the instruction or the user will be responsible for the consequence.
When charging, Please be careful of the battery type and voltage, put the battery in open air; don't put it under bright sun shine and closed space.
When charging, please put the battery first, then connect the electricity; after charging, cut the electricity then pull the battery plug. When the green lights up, turn off the power, don't connect battery when not charging.
When charging, if the indicating light goes wrong or some strange smell shows up or the char over hot, please stop charging immediately, then check and repair or replace the charger..In case something wrong were dropped into the charger, especially the water or other fluids, Otherwise, careful and put it in the cool box. No disassembling the charger yourself.
Please check the brake before riding.
Be careful of the tightness of brake, use the hexagon wrench when its loose.
Rainy and snowy days need longer braking distance.
The E-scooter front and back wheel should be at the center of the frame.
Check the Motor and Brake often, don't inject the oil onto the brake.
Check the E-scooter and screws and places that need fixing, fix it often.
Suggested torsion: Bar screws 60-80 kgf.cm, bar stand screws 175-200kgf.cm, wheel screws 320-450kgf.cm. Check the Tyre is pierced and leaks air, please contact professional technician for repairing and replacing.

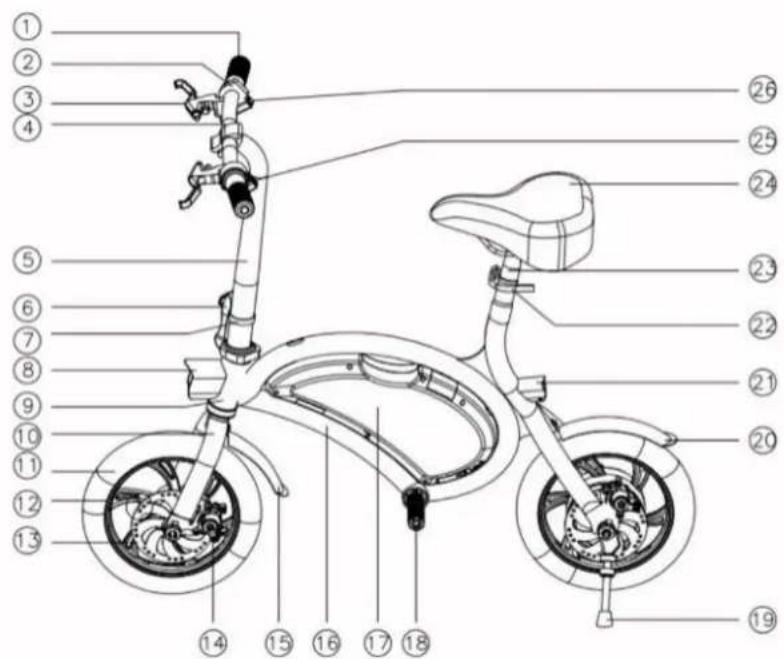

SCHEMAT FUNKCJI PRODUKTU
