USER MANUAL Myti Nuna

Designed around your life2

IMPORTANT! KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE: READ CAREFULLY Contents Product Information Product Registration 3 Warranty 3 Contact 3 Child Usage Requirement 4 Parts List 5 Warnings 7 Product Set Up 12 Product Use 13 Cleaning and Maintenance 18 Dutch (NL) 19 French (FR) 37 German (DE) 57 Spanish (ES) 77 Italian (IT) 9743 MYTI InstructionsMYTI Instructions

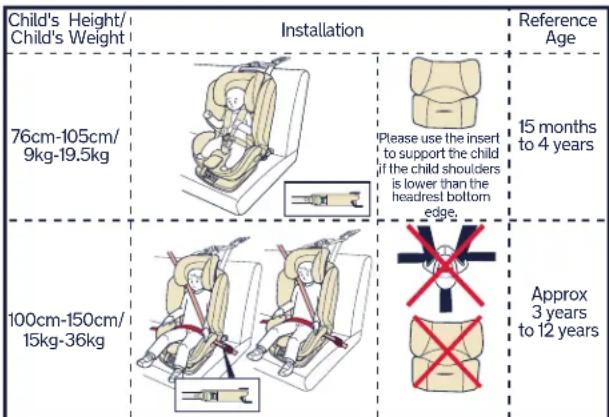

Product Information Model Number: Manufactured in (date): Product Registration Please fill in the above information. The model number and the manufactured in date are located on the bottom of the MYTI. To register your product please visit: www.nuna.eu/register-gear Warranty We have purposely designed our high-quality products so that they can grow with both your child and your family. Because we stand by our product, our gear is covered by a custom warranty per product, starting from the day it was purchased. Please have the proof of purchase, model number and manufactured in date available when you contact us. For warranty information please visit: www.nuna.eu/warranty Contact For replacement parts, service, or additional warranty questions, please contact our customer service department. [e-mail] www.nuna.eu In the United Kingdom: [e-mail] www.nuna.eu Child Usage Requirements This product is suitable for use with children who meet the following requirements:

1 - This is an i-Size Enhanced Child Restraint System.

It is approved to Regulation No.129/02, for use in, “i-Size compatible” vehicle seating positions as indicated by vehicle manufacturers in the vehicle users’ manual.

2 - This is an i-Size booster seat Enhanced Child

Restraint System. It is approved according to Regulation No.129/02, for use primarily in “i-Size seating positions ” as indicated vehicle manufacturers in the vehicle user’s manual.

3 - The ISOFIX size class for which is ISO/F2x, ISO/

4 - If in doubt, consult either the Enhanced Child

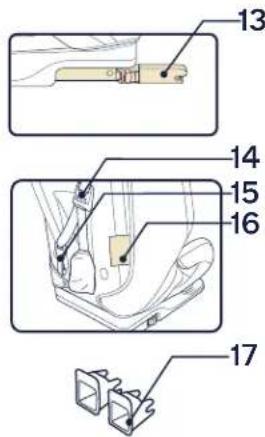

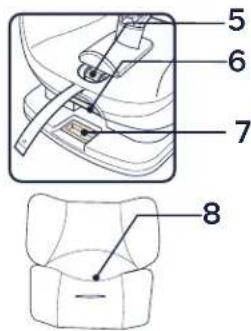

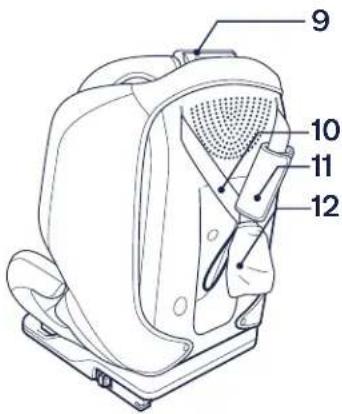

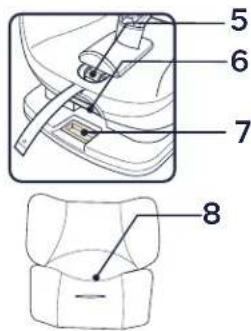

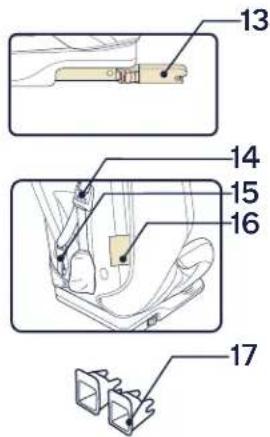

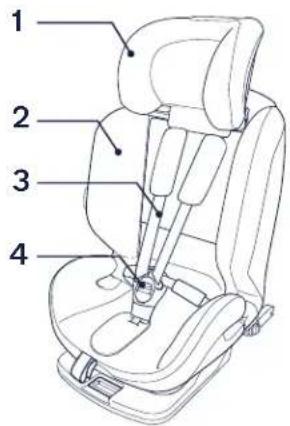

Parts List 1 Head Support 2 Lower Back Support 3 Shoulder Strap 4 Harness Buckle 5 Webbing Adjustment Button 6 Recline Adjustment Button 7 ISOFIX Releasing Button 8 Insert 9 Head Support Adjustment Lever 10 Top Tether Strap 11 Tether Storage Cover 12 Pocket 13 ISOFIX Connector 14 Tether Strap Adjuster 15 Tether Hook 16 IM storage pocket (Please keep this IM in storage pocket anytime) 17 ISOFIX Guides

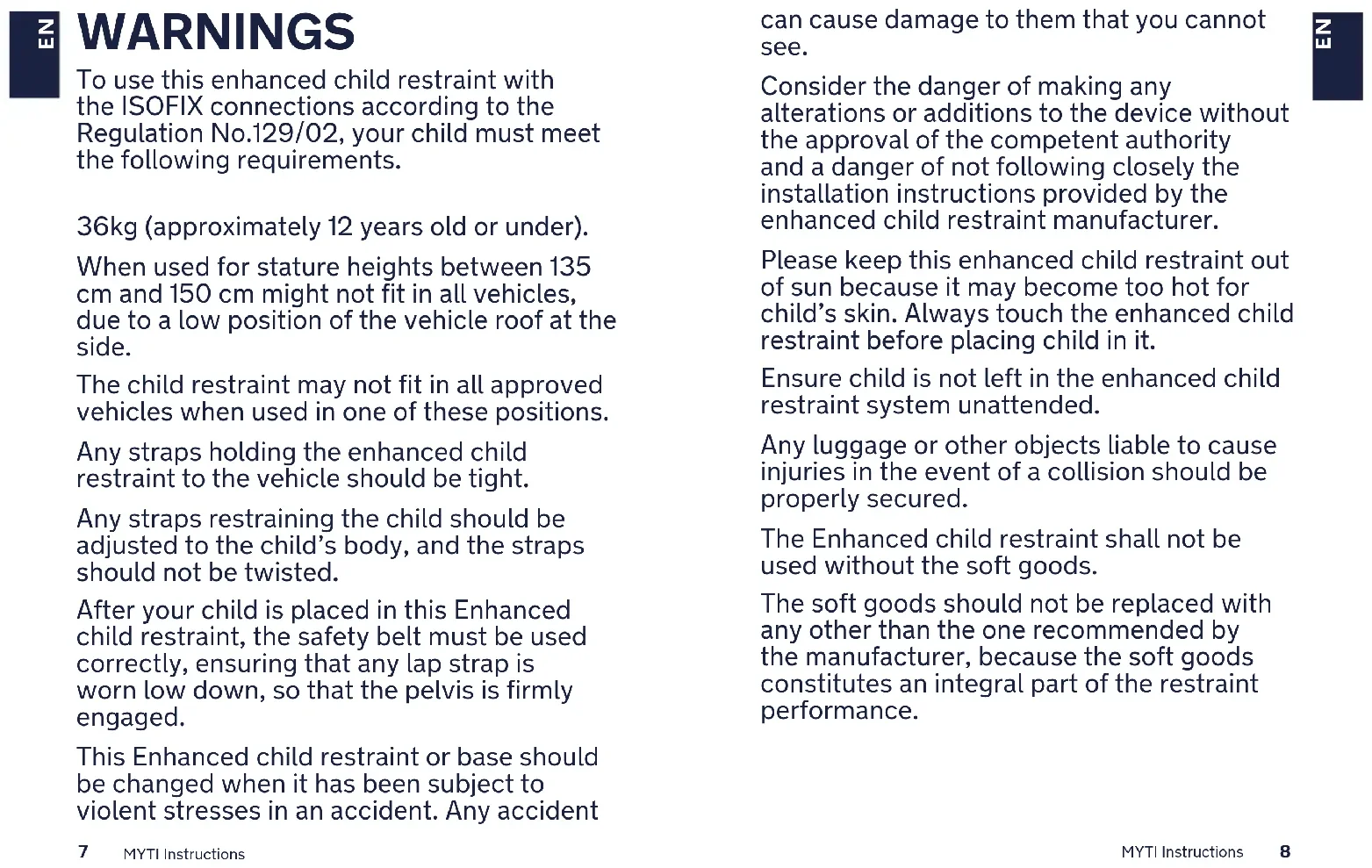

WARNINGS To use this enhanced child restraint with the ISOFIX connections according to the Regulation No.129/02, your child must meet the following requirements. Child height 76cm-150cm/ Child weight 9kg- 36kg (approximately 12 years old or under). When used for stature heights between 135 cm and 150 cm might not fit in all vehicles, due to a low position of the vehicle roof at the side. The child restraint may not fit in all approved vehicles when used in one of these positions. Any straps holding the enhanced child restraint to the vehicle should be tight. Any straps restraining the child should be adjusted to the child’s body, and the straps should not be twisted. After your child is placed in this Enhanced child restraint, the safety belt must be used correctly, ensuring that any lap strap is worn low down, so that the pelvis is firmly engaged. This Enhanced child restraint or base should be changed when it has been subject to violent stresses in an accident. Any accident can cause damage to them that you cannot see. Consider the danger of making any alterations or additions to the device without the approval of the competent authority and a danger of not following closely the installation instructions provided by the enhanced child restraint manufacturer. Please keep this enhanced child restraint out of sun because it may become too hot for child’s skin. Always touch the enhanced child restraint before placing child in it. Ensure child is not left in the enhanced child restraint system unattended. Any luggage or other objects liable to cause injuries in the event of a collision should be properly secured. The Enhanced child restraint shall not be used without the soft goods. The soft goods should not be replaced with any other than the one recommended by the manufacturer, because the soft goods constitutes an integral part of the restraint performance.109 MYTI Instructions MYTI Instructions

DO NOT use any load bearing contact points other than those described in the instructions and marked on the enhanced child restraint. Please check before you purchase this enhanced child restraint to make sure it can be installed properly in your vehicle. NO enhanced child restraint can guarantee full protection from injury in an accident. However, proper use of this enhanced child restraint will reduce the risk of serious injury or death to your child. DO NOT install this enhanced child restraint without following the instructions in this manual or you may put your child at serious risk of injury or death. DO NOT use this enhanced child restraint if it has damaged or missing parts. DO NOT have your child in large/oversized clothes because this may prevent your child from being properly and securely fastened by the shoulder harness straps and the crotch strap between the legs. DO NOT leave this enhanced child restraint or other items unbelted or unsecured in your vehicle because an unsecured enhanced child restraint can be thrown around and may injure occupants in a sharp turn, sudden stop, or collision. NEVER use a second-hand enhanced child restraint or an enhanced child restraint whose history you do not know because it may have structural damage that compromises your child’s safety. NEVER use ropes or any other substitutes to secure enhanced child restraint in vehicle or to secure child into enhanced child restraint. DO NOT put anything other than the recommended inner cushions in this enhanced child restraint or to secure the child into the enhanced child restraint. Be sure that the enhanced child restraint is installed in such a way that no part of it interferes with movable seats or in the operation of vehicle doors. Consult the distributor for issues concerning maintenance, repair and part replacement. Remove this enhanced child restraint from the vehicle seat when it is not in use for a long period of time. The parts of this enhanced child restraint should not be lubricated in any way. Always secure child in enhanced child restraint, even on short trips, as this is when most accidents occur.1211 MYTI Instructions MYTI Instructions

Frequently check the ISOFIX guides for dirt and clean them if necessary. Reliability can be effected by ingress of dirt, dust, food particles etc.

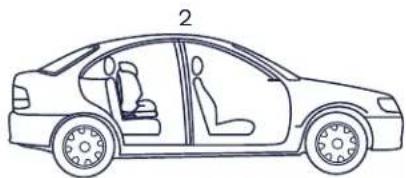

EXCEEDS 15 MONTHS. (Refer to instructions) Product Set Up Installation Concerns DO NOT install this enhanced child restraint on vehicle seats with Lap Belts only. (1) This enhanced child restraint is suitable for vehicle seats with a 3-point Retractor Safety Belt. (2) If your vehicle has ISOFIX Anchor Points, we strongly recommend that you connect the ISOFIX connector to the ISOFIX Anchor Points together. (3) DO NOT install this enhanced child restraint on vehicle seats that face sideways or rearward with respect to the moving direction of the vehicle. Please refer to your vehicle owner’s manual for recommended or suggested installation positions. (4)-1 This enhanced child restraint must be installed in the rear vehicle seat. (4)-2 DO NOT install this on movable vehicle seats during installation.1413 MYTI InstructionsMYTI Instructions

Product Use Recline Adjustment

1 - Squeeze the recline adjustment button (5), to

adjust the enhanced child restraint to the proper position. The recline angles are shown as (6).

2 - There are 3 recline positions for forward facing

mode. (6) Please confirm that the backrest adjustment engaged in place. (7) The child restraint may not fit in all approved vehicles when used in one of these positions. Height Adjustment for Head Support

1 - Please adjust the head support to proper height

according to the child’s height.

2 - Squeeze the head support adjustment lever,

meanwhile pull up or push down the head support until it snaps into one of the 9 positions. (8)(9) Before adjusting the head support height have your child lean forward slightly. Side wings are able to gradually open while the head support is adjusted to the 4

position. (10) The child restraint may not fit in all approved vehicles when used in one of these positions. 76cm-105cm/9kg-19.5kg With ISOFIX system + top tether + harness buckle 15 months to 4 years

1 - If required attach the ISOFIX guides onto the

vehicle ISOFIX bars. (11) Please recline the seat to the most upright position before assembling child restraint.

2 - Open the tether storage cover, and place the top

tether behind the vehicle seat. (12)(13)

3 - Extend the ISOFIX connectors by depressing on

the release button whilst pulling on the connector. (14) There are 11 adjustable positions for ISOFIX.

4 - Make sure that both ISOFIX connectors are

securely attached to their ISOFIX anchor points. The colors of the indicators on both ISOFIX connectors should be completely green. (15)

5 - Press the ISOFIX release button and push the

base back against the vehicle seat until tight. (16)

6 - To extend top tether for use, press button on

tether adjuster and pull to lengthen. (17)

7 - Connect the tether hook securely to the

Use top tether for installation if vehicle is equipped with a tether anchorage fitting and vehicle requirements are met (see vehicle owner’s manual).

8 - Make sure that tether hook are securely attached

to the anchorage fitting. (19) The colors of the indicators on tether strap adjuster should be completely green.

9 - Make sure that both ISOFIX connectors are

securely attached to their ISOFIX anchor points. The colors of the indicators on both ISOFIX connectors should be completely green. (20) Removing the child restraint

1 - Press the release button (21) to loosen the

webbing and then detach the hook to remove the top tether. (22)

2 - To remove base from the vehicle press the ISOFIX

release button and pull the base back from the seat. (23)

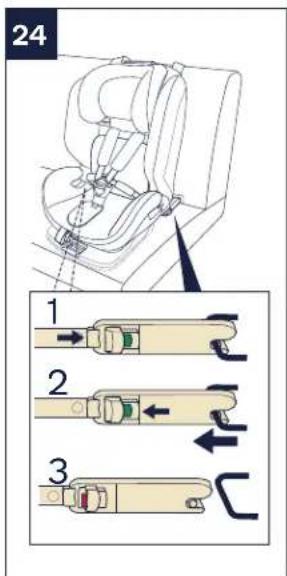

3 - Then press and pull back on the ISOFIX

connector on both sides. (24)

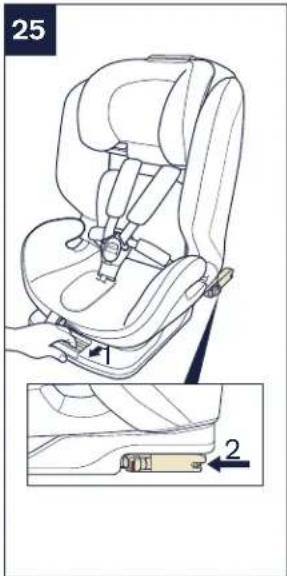

4 - For transporting, press ISOFIX release button

and move back ISOFIX connector so it is folded completely. (25) Securing your Child in the Child restraint

1 - Press the webbing adjustment button, while

pulling out the shoulder harnesses to the proper length. (26)

2 - Press the red button to disengage the buckle.

3 - Fix the buckles on the both sides of seat to make

placing the baby more convenient. (27) -2

4 - Place the child into the child restraint and pass

both arms through the harnesses. (28)

5 - Engage the buckle. (29)

6 - To ensure the head support is at the correct

height, the bottom of the headrest MUST be even with the top of child’s shoulders as shown in (30). The maximum distance between the shoulder of baby and shoulder hole is 4 cm (31).

7 - Pull down the adjustment webbing and adjust it

to the proper length so that your child is snugly secured. (32)

8 - Be able to fix the webbing under the soft goods.

(33) Make sure the space between the child and the shoulder harness is about the thickness of one hand.

9 - Move the baby out shown as (34) (35).1817

100cm-150cm/15kg-36kg With 3-point-belt + ISOFIX system + top tether With 3-point-belt + top tether (Please refer to fig.11~ fig.25 to use ISOFIX system and top tether) Approx 3 years to 12 years Store the shoulder strap cover, crotch belt cover, waist strap cover, buckle and harness straps in a safe place. (36)(37)(38)(39) Securing your Child in the Child restraint

1 - Position shoulder belt through the shoulder belt

guide shown in (40) (41).

2 - To ensure the head support is at the correct

height the bottom of the headrest MUST be even with the top of child’s shoulders as shown in (42).

3 - The enhanced child restraint can not be used if

the vehicle safety belt buckle (female buckle end) is too long to anchor the enhanced child restraint securely. (43)

4 - It is very important to ensure that any lap strap

is worn low down, so that the pelvis is firmly engaged. The enhanced child restraint is shown as (44). Soft Goods Disassembly

1 - Store the shoulder strap cover, crotch belt cover,

waist strap cover in a safe place. (45)

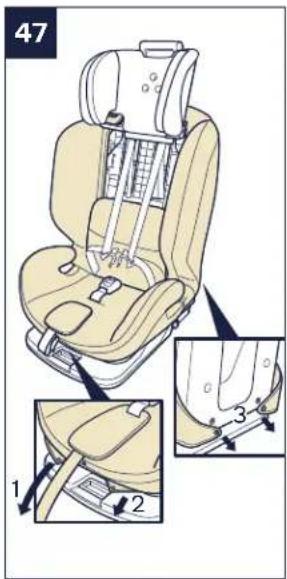

2 - Remove the Soft Goods shown as (46)(47)(48).

3 - To reassemble the soft goods simply reverse the

steps above. Cleaning and Maintenance Wash the soft goods with cold water under 30°C. Do not iron the soft goods. Do not bleach or dry clean the soft goods. Do not use undiluted detergents, gasoline or other organic solvents to wash the enhanced child restraint. It may cause damage to the product. Do not twist the soft goods and inner padding to dry with great force. It may leave the soft goods and inner padding with wrinkles. Please hang dry the soft goods and inner padding in the shade. Please remove the enhanced child restraint from the vehicle seat if not in use for a long period of time. Put the enhanced child restraint in a cool, dry place and somewhere your child can not access it. ©2018 Nuna International B.V. Nuna and all associated logos are trademarks.2019 Instructies MYTI Instructies MYTI
