USER MANUAL PipaFix Nuna

Top-down line drawing of a car seat with yellow seating and gray frame (no text or symbols)

pipa™

PIPAFIX™ bas sold separate

PIPAFIX™ base sold separately

and PIPAFIX™ base instruction manual

Thanks for choosing Nuna!

Nuna designs distinctive, smart and exciting products.

Enjoy your Nuna PIPA!

Illustrations

Line drawing of a chair seat with a yellow band on the side (no text or symbols)

1 2 3 2

1 2 3 AIRB AG 3

Illustration of a child wearing a seatbelt in a hospital bed, with a green checkmark indicating approval (no text or symbols on the diagram itself)

Illustration of hands adjusting a green J-shaped object on a vehicle seat (no text or symbols)

Illustration of a person lying in bed with a green arrow indicating pressure or force (no text or symbols)

Illustration of hands using a tool to lift or lift a green object, with motion arrows indicating direction (no text or symbols)

Illustration of a medical procedure with hands and arrows indicating movement or force (no text or symbols)

Illustration of hands assembling green mechanical parts inside a vehicle (no text or symbols)

Illustrations

Diagram of two mechanical clamps with a central fastener, no text or symbols present

Diagram showing a hand holding a tool with labeled parts 1 and 2, likely illustrating a physical or medical procedure.

Diagram of a mechanical clamp or bracket assembly (no text or symbols visible)

Line drawing of a car seatbelt with a vertical band and seat, no text or symbols present

Three-step illustration of a medical device with a green rod inserted into a jawbone (no text or symbols)

Line drawing of a baby car seat with a black belt and seatbelt, no text or symbols present

Line drawing of a person wearing a seatbelt with a belt buckle (no text or symbols)

Line drawing of a baby car seat with a belt and seatbelt (no text or symbols)

Illustrations

Line drawing of a hand using a tool to lift a mechanical component, with a green arrow indicating motion (no text or symbols)

Diagram illustrating a car seatbelt usage technique with labeled steps and checkmark indicators

1 2 3 CLICK 20

Illustrations

21 !1 + X ! 2 ! 3

Line drawing of a baby car seat with adjustable straps and a backrest (no text or symbols)

Line drawing of a car seat with attached harness and cable, no text or symbols present

Line drawing of a baby car seat with hands holding straps and arrows indicating support or movement (no text or symbols)

Diagram showing two car seats with directional arrows indicating movement or movement (no text or symbols)

Technical diagram of a car seat assembly with labeled parts I1 and I2

Technical line drawing of a mechanical component with a green arrow indicating rotation (no text or symbols)

Line drawing of a car seatbelt mechanism with two arrows indicating movement (no text or symbols)

1 X ✓ D D CLICK CLICK 27

Illustrations

Illustration of a medical procedure on pelvic anatomy, showing hands and arrows indicating movement (no text or symbols)

Illustration of hands fastening a green mechanical component with arrows indicating motion (no text or symbols)

Illustration of a medical procedure with hands and tools, no visible text or symbols

Line drawing of a leaf with visible veins and a green highlight, labeled '35' in the corner (no text or symbols on the diagram itself)

Illustration of a medical procedure showing a hand holding a tool near a patient's abdomen with an arrow indicating direction (no text or symbols)

Line drawing of a bag with a mesh pattern and handle, no text or symbols present

Illustration of a hand holding a small object with a green arrow pointing to it, no text or symbols present

Medical illustration showing a surgical procedure on a car's seat, with hands and a highlighted section (no text or symbols)

Illustrations

Illustration of a person performing a medical procedure on a patient's abdomen, with no visible text or symbols.

Illustration of a hand performing a medical or therapeutic procedure on a seated leg, with a green circle highlighting a point (no text or symbols present)

Line drawing of a car seat assembly with an inset showing a close-up of the seat area (no text or symbols)

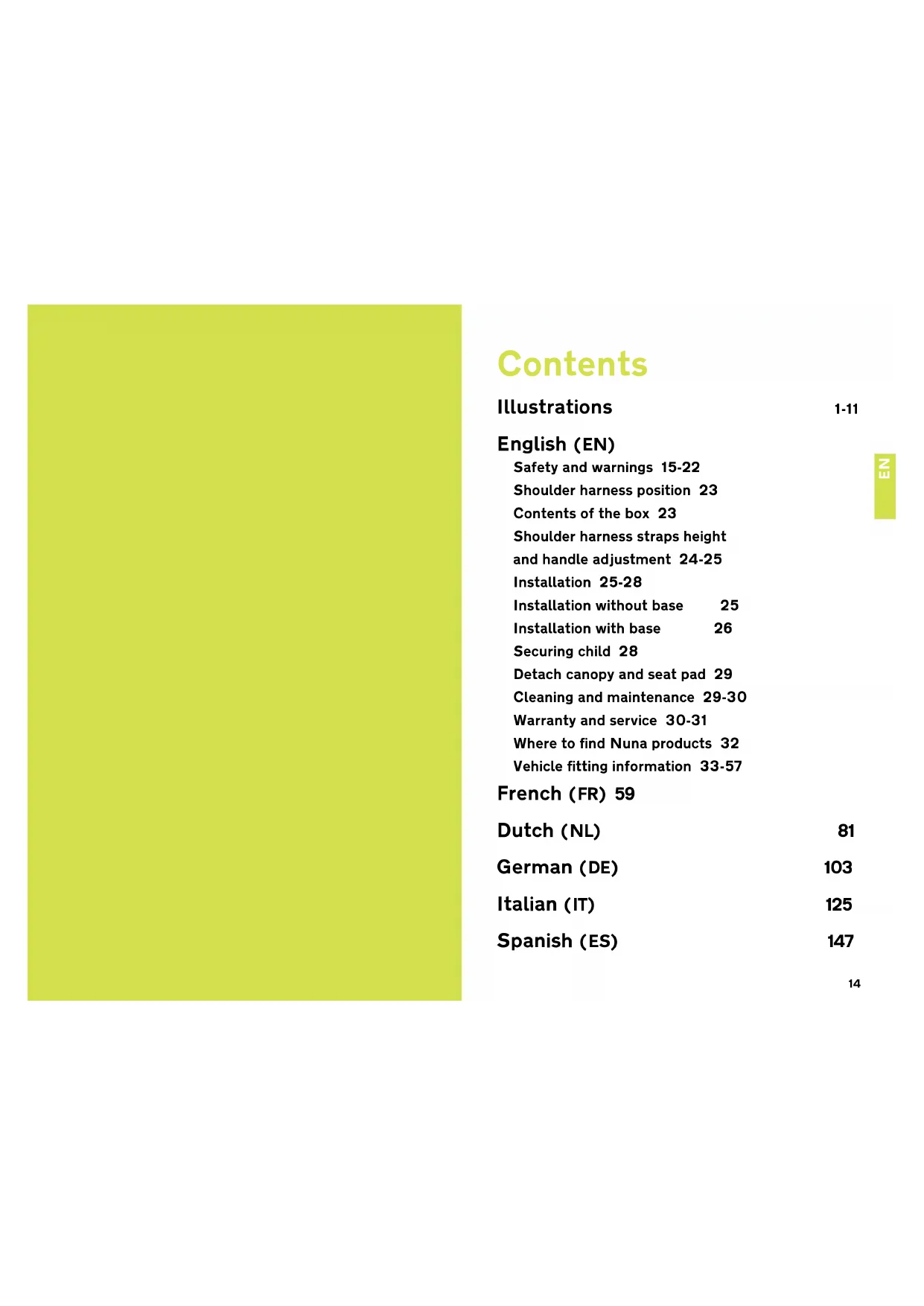

Contents

Illustrations 1-11

English (EN)

Safety and warnings 15-22

Shoulder harness position 23

Contents of the box 23

Shoulder harness straps height

and handle adjustment 24-25

Installation 25-28

Installation without base 25

Installation with base 26

Securing child 28

Detach canopy and seat pad 29

Cleaning and maintenance 29-30

Warranty and service 30-31

Where to find Nuna products 32

Vehicle fitting information 33-57

French (FR) 59

Dutch (NL) 81

German (DE) 103

Italian (IT) 125

Spanish (ES) 147

Safety and recommendations

Please take note of the following before using the Pipa infant car seat and base.

Make sure that your vehicle is equipped with 3-point retractable safety-belt. Seat belts may be different in design and length according to maker, manufacturing date, and type of the vehicle. The infant car seat with base is a "Semi Universal ISOFIX Class C and D Child Restraint" and should be fitted using at 3 point adult seat belt approved to ECE R16 or the ISOFIX connections. Please refer to the Vehicle fitting information at the back of this manual.

If you have any questions or comments regarding the Pipa Infant Car Seat, we will be glad to hear them through our web site nuna.eu

IMPORTANT! RETAIN FOR FUTURE REFERENCE. READ CAREFULLY.

Read these instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

This product is suitable for use with children weighing under 13 kg (approximately 1.5 years old or under). Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

For use without base

ECE.R44/04 UNIVERSAL

1. This infant car seat is a 'Universal' child restraint. It is approved to European Regulation No. 44, 04 series of amendments, for general use in vehicles and it will fit most, but not all, car seats.

2 A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook that the vehicle is capable of accepting a 'Universal' child restraint for this age group.
3 This Infant Car Seat child restraint has been classified as 'Universal' under more stringent conditions than those which applied to earlier designs which do not carry this notice.
4 Seat positions in other cars may also be suitable to accept the child restraint. If in doubt, consult either the child restraint manufacturer or the retailer.

For use with base

The Infant Car Seat with Base is a "Semi Universal ISOFIX Class C and D Child Restraint" and should be fitted using at 3 point adult seat belt approved to ECE R16 or the ISOFIX connections. Please refer to the Vehicle Fitting Information at the back of this manual.

For Installation with 3-point-belt

It will fit vehicles fitted with 3-point retractor safety-belts. It is approved to Regulation No. 44, 04 series of amendments for general use in vehicles fitted with 3-point-belt. Seat positions in other cars may also be suitable to accept this child restraint. If in doubt, consult either the child restraint manufacturer or the retailer.

For Installation with ISOFIX System

This is an ISOFIX CHILD RESTRAINT SYSTEM. It is approved to Regulation No. 44, 04 series of amendments for general use in vehicles fitted with ISOFIX anchorages systems.

It will fit vehicles with positions approved as ISOFIX positions (as detailed in the vehicle handbook), depending on the category of the child seat and of the fixture.

The ISOFIX size class for which this device is intended is C and D.

Parts list

1 Seat Pad
2 Side Guides
3 Infant Insert
4 Adjustment Webbing
5 Adjustment Button
6 Safety Buckle
7 Shoulder Harness Straps
8 Canopy Mount
9 Canopy
10 Handle
12 Rear Guide
13 Stroller Release Handle
14 ISOFIX Connector
15 Shell Indicator
16 ISOFIX Guides
17 Load Leg
18 Load Leg Indicator
19 Load Leg Adjust Button
20 Car Seat Release Button
21 Lock-off

11 Handle Button

Warnings

NO Infant car seat can guarantee full protection from injury in an accident. However, proper use of this Infant car seat will reduce the risk of serious injury or death to your child.
This Infant car seat is designed ONLY for child weighing under 13kg.
! DO NOT use or install this Infant car seat until you read and understand the instructions in this manual and in your vehicle owner's manual.
! DO NOT install this car seat without following the instructions in this manual or you may put your child in serious risk of injury or death.
! NEVER leave your child unattended with this Infant car seat.
! DO NOT make any modification to this Infant car seat or use it along with component parts from other manufacturers.
! DO NOT use this Infant car seat if it has damaged or missing parts.
! DO NOT have your child in large/oversized clothes because this may prevent your child from being properly and securely fastened by the shoulder harness straps and the harnesses between thighs.
DO NOT leave this Infant car seat or other items unbelted or unsecured in your vehicle because unsecured Infant car seat can be thrown around and may injure occupants in a sharp turn, sudden stop, or collision.

! DO NOT place rear-facing car seat on front seat with air bag. Death or serious injury may occur. Please reference vehicle owner's manual for more information.
! NEVER use a second-hand Infant car seat or an infant car seat whose history you do not know because they may have structural damage that endangers your child's safety.
! NEVER use ropes or any other substitutes to secure car seat in vehicle or to secure child into car seat. Only use vehicle belt to secure car seat in vehicle.
! DO NOT use this Infant car seat without the soft goods.
The soft goods should not be replaced with any besides the ones recommended by the manufacturer. The soft goods constitute an integral part of the Infant car seat performance.
! DO NOT put anything other than the recommended inner cushions in this Infant car seat.
Be sure that the car seat is installed in such a way that no part of it interferes with movable seats or in the operation of vehicle doors.
! DO NOT continue to use this car seat after it has suffered any type of crash, even a minor one. Replace immediately as there may be invisible, structural damage from the crash.
! Remove this infant car seat and base from the vehicle seat when it is not in regular use.
! Consult the distributor for issues concerning maintenance, repair and part replacement.

To avoid the risk of falling out, always secure the child using the safety harness when the child is placed in car seat, even when the car seat is not in the vehicle.
Before carrying the infant car seat by hand, ensure that the child is fastened with the safety harness, and that the handle is correctly locked in a vertical position.
To avoid serious injury or death, NEVER place infant car on elevated surface seat with child in it.
The parts of this car seat should not be lubricated in any way.
Always secure child in car seat, even on short trips, as this is when most accidents occur.
! DO NOT use this car seat for more than 5 years after the purchase date as parts may degrade over time, or from exposure to sunlight, and may not perform adequately in a crash.
! Please keep this car seat away from sunlight, otherwise it may be too hot for child's skin. Always touch test seat before placing child in it.
! Frequently check the ISOFIX guides for dirt and clean them if necessary. Reliability can be effected by ingress of dirt, dust, food particles etc.
! DO NOT place any objects in the load leg area in front of your base.
Correct Installation is only permitted by use of a 3 point adult seat belt or by use of the ISOFIX connectors. Combined use of seat belt and ISOFIX is not permitted.

Installation concerns

! DO NOT install this infant car seat on vehicle seats with Lap Belts without the Base (1)
This infant car seat is suitable for vehicle seats with a 3-point Retractor Safety Belt (with or without base) only. And ISOFIX anchor points with the Base. (2)
! DO NOT install this Infant car seat on vehicle seats that face sideways (3) or rearward (3) with respect to the moving direction of the vehicle.
! DO NOT place rear-facing car seat on front seat with air bag. Death or serious injury may occur. (3) Please reference vehicle owner's manual for more information.
It is recommended to install this Infant car seat on the rear vehicle seat. (3)
! DO NOT install this Infant car seat on vehicle seats unstable during installation.

Shoulder harness position

Check that Shoulder Harness Straps are set at the proper height. Please choose the proper pair of shoulder harness slots according to the child's height.

Shoulder Harness Straps must go into the harness slots nearest to your child's shoulders (4), but not above the shoulder line. (5)
If the Shoulder Harness Straps are not at proper height, the child might be ejected the infant car seat if there is a crash.

Contents of the box

PIPAFIXbase

Tools Needed: None

Shoulder harness straps height adjustment

Use extreme care in threading the Shoulder Harness Straps according to the figure. If the Shoulder Harness Straps are not secure, they will not protect your baby.

The ends of the Shoulder Harness Straps must hang in front of the junction plate.

Ensure that the shoulder harness straps are not twisted before reassembling the ends onto the junction plate.

1 Press the adjustment button at the front of the seat and pull on the shoulder harnesses to loosen them. (6)
2 At the back of the seat, take the harness ends off the metal junction plate. (7)
3 Pull the harnesses through the slots in the seat. Insert them into the appropriate set of slots. (8)
4 Reassemble the harness ends onto the junction plate. (9)

The ends of the Shoulder Harness Straps have two loops.

For a smaller baby, use the upper shoulder harness loops. (10)
For a larger baby, use the end shoulder harness loops. (11)

Handle adjustment

1 The handle of the infant car seat can be adjusted to 3 positions.
Baby chair position. (12) -1
Rocking position. (12) -2
Position for car, hand or stroller transportation. (12) -3
2 To adjust the handle positon, squeeze handle buttons on both sides to release it. (13) -1
3 Rotate handle until it clicks into any of the 3 positions. (13) -2

Installation without base

1 Place the infant car seat onto the vehicle seat where you wish to put it. Pull the vehicle safety belt out and lock it into the vehicle buckle, sliding the vehicle lap belt into the side guides of the infant car seat. (14)
2 Slide diagonal belt into the rear guide. (15)
3 Pull the vehicle shoulder belt to fasten the infant car seat tightly and securely. (16)
4 Level line on carrier must be level to the ground when the car seat is installed. (30)

Tension the vehicle safety belt as much as possible, checking that it is not loose or twisted.

After installing the infant car seat, always check that the vehicle belts are routed correctly and securely fastened into the vehicle buckle. (17)

Installation with base

This base is only to be used with certain infant car seats.
A proper installation can be done either with the 3-point-belt or ISOFIX system.
A simultaneous use of both systems is not permitted.

Installation with 3-point-belt

1 Unfold the load leg from storage compartment. (18)
2 After placing the base on the vehicle seat, squeeze load leg adjust button to extend the load leg to floor (19) -1, the load leg indicator shows green means it is installed correctly, red means it is installed incorrectly. (19) -2
The load leg has 24 positions. When the load leg indicator shows red this means the load leg is in the wrong position.
Make sure the load leg is secure by pressing down on the front of the base.

3 Open the lock-off and route the vehicle safety belt through the belt path (20) -1, and lock it into the buckle (20) -2, close the lock-off. (20) -3

4 Tighten the vehicle safety belt as much as possible while pushing down on the base, and check it is not loose or twisted.

Check that the safety belt does not move by pulling and pushing hard on base. If belt loosens or lengthens, repeat procedure.

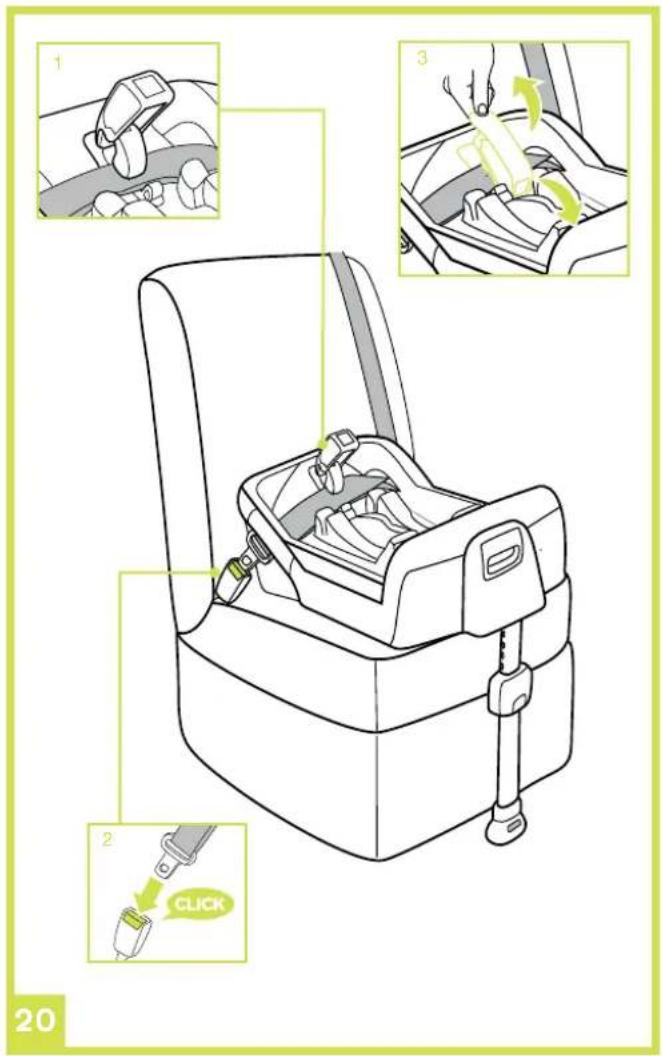

The installed base is shown as Fig. (21)

Please ensure that there is no gap between the seat and the bottom of the base.

The safety belt must go under the lock-off, not over the lock-off. (21) -1
The safety belt must be locked into the buckle. (21) -2
The load leg must be installed correctly with green indicator. (21) -3
5 Push the car seat down into the base (22), if the car seat is secure, the car seat indicator shows green.
Pull up on the car seat to be sure it is securely latched into the base.

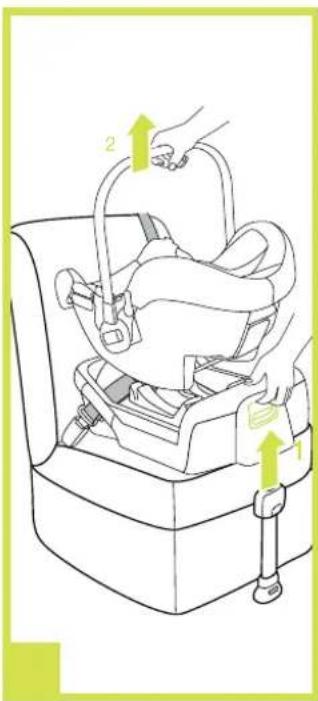

6 To release the car seat, pull the car seat up while squeezing the car eat release button. (24)

Installation with ISOFIX System

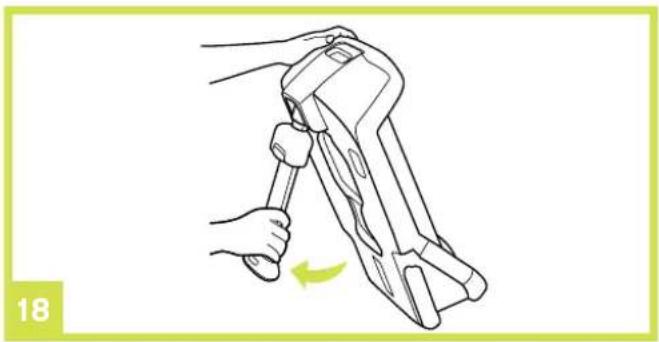

1 Unfold the load leg from storage compartment. (18)
2 Fit the ISOFIX guides with the ISOFIX anchor points. (25) The ISOFIX guides can protect the surface of the vehicle seat from being torn. They can also guide the ISOFIX connectors.
3 Rotate the ISOFIX connectors 180 degrees until they are pointing in the direction of the ISOFIX guides. (26)
4 Line up the ISOFIX connectors with the ISOFIX guides, and then click both ISOFIX connectors into the ISOFIX anchor points. (27)

Make sure that both ISOFIX connectors are securely attached to their ISOFIX anchor points. There should be two audible clicks and the colors of the indicators on the both ISOFIX connectors should be completely green. (27) -1

Check to make sure the base is securely installed by pulling on the both ISOFIX connectors.

5 Please refer to step 2 in section 'a. Installation with 3-point-belt' for adjustment of load leg.

The completely assembled base is shown as (28)

The ISOFIX connectors must be attached and locked

onto the ISOFIX anchor points. (28) -1

The load leg must be installed correctly with green indicator. (28) -2

6 Please refer to step 5, 6 in section 'a. Installation with 3-point-belt' to use the infant car seat.

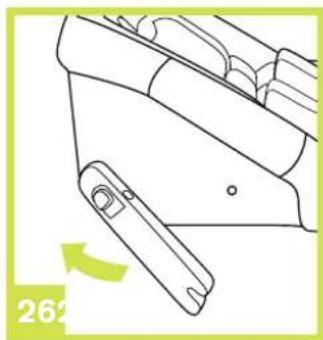

7 To remove the base, pull the base backwards while pressing the buttons on the ISOFIX connectors. (29)

Securing child

Foam inside infant insert is present to ensure that harness fits child properly. Infant insert must be used for children 0-6 months.

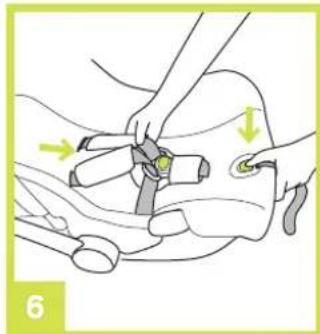

After the child is placed into the seat, check whether the Shoulder Harness Straps are at proper height.

1 While pressing the adjustment button located at the front of the infant car seat, pull completely the two Shoulder Harness Straps of the infant car seat. (30)
2 Unlock the buckle of the harnesses by pressing the red button. (31)
3 Place the child into the infant car seat and lock the buckle. (32) Please refer to. (33)
4 Tighten the shoulder harness straps by pulling the adjustment webbing. (34)

Make sure the space between the child and the Shoulder Harness Straps is about the thickness of one hand.

Canopy

1 Unzip the zipper behind the front canopy bow. (35)
2 Pull the canopy out of the compartment. (36)
3 Attach the magnets on each corner to the front of the car seat. (37)

Detach canopy and seat pad

1 To disassemble the canopy, press the button in the canopy mount and pull the canopy bow out. (38)
2 Pull the fastening pieces underneath the edge of the seat out. (39)
3 Pull the harness out of the metal junction plate. (7)
4 Remove the seat pad from the adjustment button as shown in. (40)
5 Remove the seat pad from the Stroller release button as shown in. (41)

Cleaning and maintenance

After child is older than 6 months, please remove the foam from the infant insert and store it somewhere your child cannot access it.

Please wash the soft goods with cold water under 30^ C.
Do not iron the soft goods.
Do not bleach or dry clean the soft goods.
Do not use undiluted neutral detergent, gasoline or other organic solvent to wash the infant car seat and base. It may cause damage to the product.
Use only mild detergent, water and a soft cloth to clean the car seat shell, handle and harness straps and base.
Do not twist the soft goods to dry with great force. It may leave the soft goods with wrinkles.
Please hang dry the soft goods in the shade.
Please remove the infant car seat and base from the vehicle seat if not in use for a long period of time. Put the infant car seat and base in a cool, dry place and somewhere your child can not access it.

Warranty and service

The Nuna car seat and base is covered by a one-year warranty. If this product shows a defect during the warranty period, please contact your retailer. If the retailer is unable to help you, they will make contact with the local Nuna distributor.

Please be aware that the model number and serial number located on the bottom of the base of the product will be required in the event of a warranty claim.

To register your product, please go to our website at nuna.eu

Terms of warranty

The warranty takes effect at the date of purchase of the product and is valid for one year. The warranty provides you with a right of repair but not a product exchange or return. The warranty will not be extended even if some repairs have been made. Nuna has the right to improve the design of the product without any obligation to update the products manufactured previously.

The warranty will not apply in the following circumstances:

• If you can not provide the sales receipt or proof of purchase of the product.
• If the defect results from normal wear.
• If the defect results from an accident.
• If the defect results from a failure to follow the instructions of assembly, use, care, and maintenance provided in the instruction manual.
• If the defect results from overloading (maximum weight = 13 kg).
• If repairs have been carried out by a third party.
• If the defect results from the use of accessories others than Nuna.

Where to find Nuna products?

If you are looking for Nuna retailers in your area, please consult our website: nuna.eu

Contact

We always look forward to improving our products and developing new ideas, so please feel free to contact us to submit any comments or questions regarding the Nuna products.

nuna.eu

Nuna International BV.

De Beeke 8, 5469 DW, ERP

The Netherlands

Thanks for choosing Nuna!

Vehicle Fitting Information

The infant car seat with base are classified for "Semi-universal" use. They are suitable for fixing into the seat positions of the most cars. The letters on the diagram to the below correspond with the vehicle fitting positions listed in the following pages.

Seat positions in other cars may also be suitable to accept the child restraint. If in doubt, consult either the child restraint manufacturer or the retailer.

ALWAYS give priority to the rear seats of your vehicle.

DO NOT fit your child restraint onto a vehicle seat fitted with an airbag, unless it can be deactivated.

If your child restraint can be fitted, it is marked with V.

If your child restraint cannot be fitted, it is marked with X.

If your vehicle is not listed in this manual or it is not marked with either a V or X then please refer to your vehicle's handbook or contact the manufacturer for further information.

① ② ③

AIRBAG

Installation with 3-point-belt

Alpha Romeo		1	2	3
	147 (2001 - 2009)	V	V	V
	159 Saloon (2006 - 2011)	X	V	V
	Brera (2006 - 2011)	V	V	V
	GT (2004 - 2011)	V	V	V
	Guilietta (2010 - 2012)	V	X	X
	Mito (2009 - 2011)	X	X	X
Aston martin
	Cygnet (2010 - 2011)	V	V	V
Audi
	A1 (2011 - 2012)	X	V	V
	A1 Sportback (2012)	V	V	V
	A3 (2002)	X	V	V
	A3 S3 (2006 - 2011)	V	V	V
	A4 (2005 - 2008)	X	V	V
	A4 Allroad (2009 - 2011)	V	V	V
	A4 Avant (2008 - 2011)	V	V	V
	A5 (2007 - 2011)	V	V	V

	1	2	3	Cadillac		1	2	3
A5 Sportback (2009 - 2011)	V	X	X		BLS Saloon (2006 - 2011)	X	V	V
A5 S5 (2007 - 2011)	V	V	V	Chevrolet
A6 (2004 - 2011)	V	V	V		Aveo 3dr (2008 - 2011)	V	V	V
A6 S6 (2006 - 2011)	V	V	V		Aveo 5dr (2008 - 2011)	V	V	V
A7 Sportback (2011 - 2012)	X	V	V		Captiva (2011 - 2012)	V	V	V
					Captiva (2006 - 2011)	V	V	V
A8 (2003 - 2011)	V	V	V
A8 S8 (2006 - 2011)	V	V	V		Cruze (2008 - 2011)	V	V	V
Q5 (2009 - 2012)	V	V	V		Orlando (2010 - 20121)	V	V	V
Q7 (2006 - 2011)	V	V	V		Spark (2009 - 2011)	V	V	V
TT (1999 - 2006)	V	V	V	Chrysler
Bentley					Crossfire (2003 - 2008)	X	X	X
Please refer to the manufacturer for further information					Voyager (2001 - 2008)	V	V	V
					300 C (2010 - 2012)	V	V	V
					300 C (2004 - 2010)	V	V	V
BMW
1 Series (2004 - 2011)	V	V	V		Delta (2012)	V	V	V
1 Series F20 (2011)	V	V	V		Ypsilon (2012)	V	V	V
3 Series (2004 - 2011)	X	V	V	Citroen
3 Series F30 (2011)	X	V	V
3 Series M3 (2007 - 2011)	X	V	V		Berlingo (2009- 2012)	V	V	V
					Berlingo (1998 - 2009)	V	V	V
5 Series M5 (2005 - 2011)	V	V	V		C-Crosser (2007 - 2012)	V	V	V
5 Series Saloon (2003 - 2010)	V	V	V		C-Zero (2011 - 2012)	V	V	V
6 Series (2004 - 2011)	X	V	V		C1 (2005 - 2011)	V	V	V
6 Series M6 (2005 - 2010)	X	V	V
7 Series (2008 - 2011)	V	V	V		C2 (2003 - 2009)	V	V	V
X3 (2004 - 2011)	V	V	V		C3 (2009 - 2012)	V	V	V
X3 F25 (2011 - 2012)	V	V	V		C3 (2002 - 2009)	V	V	V
X5 (2007 - 2011)	V	V	V		C3 Picasso (2009 - 2011)	V	V	V
					C3 Pluriel (2003 - 2010)	V	V	V
X6 (2010 - 2011)	V	V	V		C4 (2010 - 2012)	V	V	V
					C4 (2004 - 2010)	V	V	V

	1	2	3
C4 Picasso (2007 - 2011)	V	X	X
Grand C4 Picasso (2007 - 2011)	V	V	V
C5 (2004 - 2008)	V	V	V
C6 (2006 - 2011)	V	V	V
DS3 (2010 - 2011)	V	V	V
DS4 (2011 - 2012)	V	V	V
Nemo Multispace (2009 - 2011)	V	V	V
Xsara Picasso (2000 - 2009)	V	V	V
Daewoo
Please refer to the manufacturer for further information
Daihatsu
Charade (2003 - 2007)	V	V	V
Copen (2002 - 2012)	V	X	X
Materia (2007 - 2010)	V	V	V
Sirion (2005 - 2010)	V	V	V
Terios (2006 - 2010)	V	V	V
Dodge
Please refer to the manufacturer for further information
Ferrari
Please refer to the manufacturer for further information
Fiat
500 (2008 - 2011)	V	V	V
500 C (2009 - 2011)	V	V	V
Abarth 500 (2009 - 2011)	X	V	V
Bravo (2007 - 2011)	V	V	V

	1	2	3
Doblo (2001 - 2010)	X	X	X
Linea (2007 - 2012)	V	V	V
Multipla (2000 - 2010)	V	V	V
Panda (2012)	V	V	V
Panda (2004 - 2011)	X	V	V
Punto (2003 - 2006)	V	V	V
Grande Punto (2006 - 2010)	V	X	X
Abarth Grande Punto (2008 - 2011)	V	V	V
Sedici (2006 - 2011)	V	V	V
Ulysse (2003 - 2005)	V	V	V
Ford
CMax (2003 - 2012)	X	X	X
Fiesta (2008 - 2011)	X	V	V
Fiesta (2002 - 2008)	V	V	V
Focus (2010 - 2011)	V	V	V
Focus (2005 - 2011)	V	V	V
Focus CMax (2012)	V	X	X
Focus CMax (2003 - 2010)	X	V	V
Fusion (2002 - 2011)	V	V	V
Galaxy (2006 - 2011)	V	X	X
KA (1996 - 2008)	V	V	V
KA 2010 (2009 - 2011)	X	X	X
Kuga (2008 - 2011)	V	V	V
Mondeo Estate (2007 - 2011)	V	V	V
Mondeo MKIV (2007 - 2011)	V	V	V
Mondeo Saloon (2000 - 2007)	V	V	V
SMax (2006 - 2011)	X	X	X
Honda
Accord (8) (2003 - 2008)	V	V	V
Accord Saloon (2008 - 2011)	V	V	V
Civic (2012)	X	V	V
Civic (2006 - 2011)	V	V	V
Civic Hybrid Saloon (2006 - 2010)	V	V	V
CRV 3rd Gen (2001 - 2006)	V	V	V
CRV (2007 - 2011)	X	X	X
CRZ (2009 - 2012)	V	V	V
FRV (2006 - 2011)	V	V	V
Insight (2009 - 2011)	V	X	X
Jazz (2008 - 2011)	V	V	V
Jazz (2002 - 2008)	V	V	V
Hyundai
Accent (2006 - 2009)	V	V	V
Amica (2006 - 2009)	V	V	V
Coupe / Tuscani (2001 - 2009)	V	V	V
Getz (2002 - 2009)	V	V	V
I10 Hatchback (2008 - 2012)	V	V	V
I20 Hatchback (2009 - 2012)	V	V	V
I30 (2007 - 2012)	X	V	V
I40 (2011 - 2012)	V	X	X
IX35 (2010 - 2012)	V	V	V
Matrix (2001 - 2010)	V	V	V
SantaFe (2006 - 2011)	V	V	V
SantaFe (2001 - 2005)	V	V	V
Trajet (2000 - 2006)	V	V	V
Tucson (2004 - 2009)	V	V	V

Infiniti
Please refer to the manufacturer for further information

Jaguar		1	2	3
	S-Type (1999 - 2007)	V	V	V
	X-Type (2001 - 2010)	V	V	V
	XF (2008 - 2011)	V	V	V
	XF R (2009 - 2011)	V	V	V
	XJ (2003 - 2009)	V	V	V
	XJ R (2003 - 2008)	V	V	V
	XK (2006 - 2011)	V	V	V
	XK R (2006 - 2011)	V	V	V
Jeep
	Cherokee (2001 - 2007)	V	V	V
	Cherokee 2008 (2008 - 2010)	V	V	V
	Grand Cherokee (2005 - 2011)	V	V	V
	Compass (2006 - 2012)	V	V	V
	Patriot (2007 - 2011)	V	V	V
Kia
	Carens (2000 - 2006)	V	V	V
	Ceed Hatchback (2012)	X	V	V
	Cerato (2004 - 2006)	V	V	V
	Optima (2012)	V	X	X
	Picanto (2004 - 2011)	V	V	V
	Rio (2012)	V	V	V
	Rio (2005 - 2011)	V	V	V
	Rio 2nd Gen (2005 - 2011)	V	V	V
	Sedona (2006 - 2011)	V	V	V
	Sedona 2nd Gen (1999 - 2006)	V	V	V
	Sorento (2003 - 2009)	V	V	V
	Sportage (2005 - 2010)	V	V	V
Land rover
	Defender (1983 - 2012)	V	V	V
	Defender 2007 (1983 - 2011)	V	V	V

	1	2	3
Discovery (2004 - 2009)	X	V	V
Discovery 4 (2009 - 2012)	V	V	V
Freelander (2006 - 2011)	V	X	X
Freelander 2 (2006 - 2011)	X	V	V
Freelander Hardback (2003 - 2006)	V	V	V
Freelander Softback (2003 - 2006)	V	V	V
Range Rover (2002 - 2012)	V	V	V
Range Rover Sport (2005 - 2012)	V	V	V
Range Rover Evoque (2011 - 2012)	V	V	V
Lotus
Please refer to the manufacturer for further information
Lexus
GS 300 (2005 - 2012)	V	V	V
IS Saloon (2005 - 2011)	V	V	V
IS 250 (2005 - 2011)	X	V	V
RX 350 (2003 - 2009)	V	V	V
Lambourghini
Please refer to the manufacturer for further information
Maserati
Please refer to the manufacturer for further information
Mazda
BT-50 (2011 - 2012)	V	V	V
BT-50 (2006 - 2011)	V	V	V
CX-5 (2011 - 2012)	V	V	V
CX-7 (2007 - 2011)	V	V	V
2 (2007 - 2011)	V	V	V
2 (2003 - 2007)	V	V	V
3 (2004 - 2008)	V	V	V
3 Hatchback (2009 - 2011)	V	V	V
3 2007 (2004 - 2008)	V	V	V

	1	2	3
5 (2005 - 2010)	V	V	V
6 (2002 - 2007)	V	V	V
6 2008 (2007 - 2011)	X	V	V
6 Hatchback (2007 - 2012)	V	V	V
MX-5 (1990 - 2005)	X	X	X
RX-8 (2003 - 2010)	X	V	V
Mercedez Benz
A Class (2005 - 2012)	V	V	V
B Class (2012)	V	V	V
B Class (2005 - 2011)	V	X	X
C Class (2008 - 2012)	X	V	V
C Class (2000 - 2007)	V	V	V
C Class Estate (2008 - 2012)	X	V	V
C Class Sports Coupe (2001 - 2008)	X	V	V
CLK (2002 - 2009)	X	V	V
E Class Estate (2009 - 2012)	X	V	V
E Class Saloon (2002 - 2008)	V	V	V
GL Class (2006 - 2012)	V	V	V
ML Class (2005 - 2012)	V	V	V
R Class (2006 - 2012)	V	V	V
S Class (2006 - 2012)	X	X	X
SL Class (2002 - 2011)	V	X	X
SLK Roadster (2004 - 2011)	X	V	V
MG
Please refer to the manufacturer for further information
Mini
Mini Hatchback (2006 - 2011)	V	V	V
Mini One Convertible (2006 - 2012)	V	V	V
Mini Cooper (2001 - 2006)	V	V	V
Mini Coupe (2009 - 2011)	V	X	X
Mini Countryman (2010 - 2011)	X	X	X
Mitsubishi
Colt (2004 - 2011)	V	V	V
Grandis (2004 - 2010)	V	V	V
L200 (2010 - 2012)	V	V	V
Mlev (2009 - 2012)	V	V	V
Lancer (2008 - 2011)	X	V	V
Lancer (2005 - 2008)	X	V	V
Shogun (2000 - 2006)	V	V	V
Shogun 4th Gen (2007 - 2011)	V	V	V
Nissan
370 Z (2009 - 2011)	X	X	X
Almera (2001 - 2006)	V	V	V
Juke (2010 - 2012)	V	V	V
Micra (2011)	V	V	V
Micra (2003 - 2010)	V	V	V
Murano (2007 - 2011)	V	V	V
Murano (2000 - 2007)	V	V	V
Navarra (2008 - 2011)	V	V	V
Note (2006 - 2011)	V	V	V
Pathfinder (2005 - 2011)	V	V	V
Pixo (2009 - 2011)	V	V	V
Qashqai (2007 - 2011)	V	V	V
Qashqai+2 (2008 - 2012)	X	V	V
X-trail 2008 (2007 - 2011)	V	V	V

Perodua
Please refer to the manufacturer
for further information

Peugeot		1	2	3
	lon (2012)	V	V	V
	107 (2005 - 2011)	V	V	V
	1007 (2005 - 2009)	V	V	V
	206 (1998 - 2009)	V	V	V
	207 3dr (2006 - 2011)	V	V	V
	307 (2001 - 2007)	V	V	V
	308 Hatchback (2007 - 2011)	X	X	X
	3008 (2009 - 2012)	V	V	V
	407 (2004 - 2011)	V	V	V
	407 Coupe (2006 - 2010)	V	V	V
	4007 (2007 - 2011)	V	V	V
	508 (2011 - 2012)	V	V	V
	807 (2002 - 2010)	V	V	V
	Expert (2008 - 2011)	V	V	V
	Partner (2008 - 2012)	V	V	V
	RCZ (2011)	V	V	V
Porsche
	Cayenne (2011)	V	V	V
	Panamera (2011)	X	V	V
Proton
Please refer to the manufacturer for further information
Renault
	Clio (2005 - 2011)	V	V	V
	Espace (2003 - 2011)	V	V	V
	Grand espace (2003 - 2011)	V	V	V
	Laguna 2007 III (2001 - 2007)	V	V	V
	Laguna Sport Tourer (2008 - 2011)	V	V	V

	1	2	3
Megane (2003 - 2008)	V	V	V
Megane Hatchback (2008 - 2012)	X	V	V
Modus (2004 - 2011)	X	V	V
Scenic (2009 - 2012)	X	X	X
Scenic (2003 - 2009)	V	V	V
Grand Scenic (2009 - 2012)	V	V	V
Twingo 2009 (2007 - 2011)	V	V	V
Rolls Royce
Please refer to the manufacturer for further information
Saab
9-3 (2002 - 2011)	X	V	V
9-3 X (2009 - 2012)	V	V	V
9-5 (2005 - 2009)	V	V	V
Seat
Alhambra (2000 - 2010)	V	V	V
Altea (2004 - 2011)	V	V	V
Altea XL (2007 - 2011)	V	V	V
Exeo (2008 - 2012)	X	V	V
Exeo ST Estate (2008 - 2012)	X	V	V
Ibiza (2002 - 2009)	V	V	V
Leon Hatchback (2005 - 2012)	V	V	V
Toledo (2005 - 2008)	V	V	V
Skoda
Fabia (2000 - 2007)	V	V	V
Fabia Hatchback (2007 - 2011)	V	V	V
Fabia M2 (2007 - 2012)	V	V	V
Octavia Hatchback (2004 - 2012)	V	V	V
Roomster (2006 - 2011)	V	V	V
Superb (2002 - 2008)	V	V	V

	1	2	3
Superb M2 (2008 - 2012)	X	V	V
Yeti (2009 - 2012)	V	V	V
Smart
For Two Coupe (2007 - 2011)	V	X	X
Ssangyong
Please refer to the manufacturer for further information
Subaru
Forester (2002 - 2008)	V	V	V
Forester 2007 (2002 - 2008)	V	V	V
Impreza Saloon (2000 - 2005)	V	V	V
Legacy (2003 - 2010)	V	V	V
Outback (2003 - 2009)	V	V	V
Tribeca (2006 - 2007)	V	V	V
Suzuki
Alto (2003 - 2005)	V	V	V
Grand Vitara (2006 - 2012)	V	V	V
Jimny (1998 - 2011)	V	V	V
Splash (2008 - 2011)	V	V	V
Swift (2005 - 2011)	V	V	V
SX-4 (2006 - 2011)	V	V	V
Toyota
Auris (2007 - 2011)	V	V	V
Avensis (2008 - 2012)	V	V	V
Avensis (2003 - 2008)	V	V	V
Avensis Hatchback (2003 - 2011)	V	X	X
Aygo (2003 - 2011)	V	V	V
Celica (1999 - 2006)	X	V	V

	1	2	3		1	2	3
Corolla Verso (2004 - 2009)	V	V	V	Jetta (2011)	V	X	X
IQ (2009 - 2011)	V	V	V	Passat (2010 - 2012)	V	V	V
				Passat (2005 - 2010)	V	V	V
Land Cruiser (2003 - 2009)	V	V	V	Passat CC (2008 - 2012)	V	V	V
				Passat Estate (2005 - 2011)	V	V	V
Prius (2004 - 2009)	V	V	V	Phaeton (2003 - 2011)	V	V	V
Rav 4 MK3 (2006 - 2011)	V	V	V	Polo 5dr (2009 - 2012)	V	V	V
Verso (2009 - 2011)	V	V	V	Polo (2002 - 2009)	V	V	V
Yaris Hatchback (2006 - 2012)	V	V	V	Scirocco (2008 - 2011)	V	V	V
Vauxhall				Sharan (2010 - 2011)	V	V	V
Agila (2008 - 2011)	V	V	V	Tiguan (2008 - 2011)	V	V	V
Antara (2007 - 2012)	V	V	V	Touareg (2003 - 2009)	V	V	V
Astra 2010 5dr (2010 - 2011)	V	V	V	Touran (2003 - 2010)	V	V	V
Astra GTC (2011 - 2012)	V	V	V
Astra 3dr Hatchback (2004 - 2010)	V	V	V	Volvo
Corsa D (2007 - 2012)	V	V	V	C30 (2007 - 2012)	X	X	X
Corsa 3dr Hatchback (2006 - 2011)	V	V	V
Corsa 3dr Hatchback (2003 - 2006)	V	V	V	C70 (2006 - 2011)	V	V	V
Corsa 5dr Hatchback (2006 - 2011)	V	V	V	S40 (2004 - 2011)	V	V	V
Insignia Hatchback (2009 - 2011)	V	V	V	S60 (2010 - 2012)	X	V	V
				S60 (2000 - 2008)	V	V	V
Meriva (2010 - 2012)	V	V	V	S80 (2007 - 2012)	V	V	V
Tigra (2004 - 2009)	V	X	X	V50 (2004 - 2011)	V	V	V
Vectra Saloon (2005 - 2008)	V	V	V	V60 (2011 - 2012)	X	V	V
Zafira (2005 - 2011)	V	V	V	V70 (2008 - 2012)	V	V	V
Volkswagen				XC60 (2009 - 2012)	V	V	V
Beetle (1999 - 2010)	V	V	V	XC60 (2008 - 2011)	V	V	V
Eos (2006 - 2011)	V	V	V	XC70 (2008 - 2012)	V	V	V
				XC70 (2000 - 2007)	V	V	V
Fox (2006 - 2011)	V	V	V	XC90 (2003 - 2012)	X	X	X
Golf Cabriolet (2009 - 2011)	V	V	V
Golf Hatchback (2009 - 2011)	V	V	V

Installation with ISOFIX System

Alpha Romeo ① ② ③

Guilietta (2010 - 2012) X V V

Mito (2009 - 2011) X V V

Aston martin

Please refer to the manufacturer

for further information

Audi

A1 (2011 - 2012) X V V

A1 Sportback (2012) V V V

A3 (2002) V V V

A4 Allroad (2009 - 2011) V V V

A4 Avant (2008 - 2011) V V V

A5 Sportback (2009 - 2011) X V V

A7 Sportback (2011 - 2012) X V V

Bentley

Please refer to the manufacturer

for further information

BMW

1 Series F20 (2011) X V V

① ② ③

3 Series F30 (2011) X V V

X3 F25 (2011 - 2012) X V V

X5 (2007 - 2011) X V V

Cadillac

Please refer to the manufacturer

for further information

Chevrolet

Please refer to the manufacturer

for further information

Chrysler

Delta (2012) V V V

Ypsilon (2012) V V V

Citroen

C1 (2005 - 2011) X V V

C3 Picasso (2009 - 2011) X V V

C4 Picasso (2007 - 2011) X X X

Please refer to the manufacturer

for further information

Daihatsu

Please refer to the manufacturer

for further information

Dodge

Please refer to the manufacturer

for further information

	1	2	3
Ferrari
Please refer to the manufacturer for further information
Fiat
500 (2008 - 2011)	X	V	V
500 C (2009 - 2011)	V	V	V
Abarth 500 (2009 - 2011)	V	V	V
Bravo (2007 - 2011)	X	V	V
Panda (2012)	X	V	V
Grande Punto (2006 - 2010)	X	V	V
Ford
CMax (2003 - 2012)	X	X	X
Fiesta (2008 - 2011)	X	V	V
Focus (2010 - 2011)	X	V	V
Focus CMax (2012)	V	X	X
Focus CMax (2003 - 2010)	X	X	X
Galaxy (2006 - 2011)	X	X	X
KA 2010 (2009 - 2011)	X	X	X
Mondeo Estate (2007 - 2011)	X	V	V
SMax (2006 - 2011)	X	X	X
Honda
Accord Saloon (2008 - 2011)	X	V	V
Civic (2012)	X	V	V
Civic (2006 - 2011)	X	V	V
CRV (2007 - 2011)	X	X	X
FRV (2006 - 2011)	X	X	X
Insight (2009 - 2011)	X	X	X
Jazz (2008 - 2011)	X	V	V
Hyundai
I10 Hatchback (2008 - 2012)	X	V	V

	1	2	3
I20 Hatchback (2009 - 2012)	V	V	V
I30 (2007 - 2012)	X	V	V
I40 (2011 - 2012)	X	V	V
IX35 (2010 - 2012)	X	V	V
Infiniti
Please refer to the manufacturer for further information
Jaguar
X-Type (2001 - 2010)	X	V	V
Jeep
Please refer to the manufacturer for further information
Kia
Ceed Hatchback (2012)	X	V	V
Optima (2012)	X	V	V
Land rover
Discovery 4 (2009 - 2012)	X	V	V
Freelander 2 (2006 - 2011)	X	V	V
Range Rover (2002 - 2012)	X	V	V
Range Rover Sport (2005 - 2012)	X	X	X
Range Rover Evoque (2011 - 2012)	X	V	V
Lotus
Please refer to the manufacturer for further information
Lexus
Please refer to the manufacturer for further information
Lambourghini
Please refer to the manufacturer for further information
Maserati
Please refer to the manufacturer for further information
Mazda
CX-5 (2011 - 2012)	X	V	V
CX-7 (2007 - 2011)	X	V	V
2 (2007 - 2011)	X	V	V
3 Hatchback (2009 - 2011)	X	V	V
5 (2005 - 2010)	X	V	V
6 Hatchback (2007 - 2012)	X	X	X
Mercedez Benz
A Class (2005 - 2012)	X	V	V
B Class (2012)	X	V	V
C Class (2008 - 2012)	X	V	V
C Class Estate (2008 - 2012)	X	V	V
E Class Estate (2009 - 2012)	X	V	V
GL Class (2006 - 2012)	X	V	V
ML Class (2005 - 2012)	X	V	V
R Class (2006 - 2012)	X	V	V
S Class (2006 - 2012)	X	V	V
MG
Please refer to the manufacturer for further information
Mini
Mini Hatchback (2006 - 2011)	X	X	X
Mini Coupe (2009 - 2011)	X	X	X

	1	2	3
Mini Countryman (2010 - 2011)	X	V	V
Mitsubishi
Please refer to the manufacturer for further information
Nissan
Juke (2010 - 2012)	X	V	V
Micra (2011)	X	V	V
Note (2006 - 2011)	X	X	X
Qashqai+2 (2008 - 2012)	X	X	X
X-trail 2008 (2007 - 2011)	X	V	V
Perodua
Please refer to the manufacturer for further information
Peugeot
107 (2005 - 2011)	X	V	V
207 3dr (2006 - 2011)	X	V	V
308 Hatchback (2007 - 2011)	X	X	X
3008 (2009 - 2012)	X	X	X
508 (2011 - 2012)	X	V	V
RCZ (2011)	X	X	X
Porsche
Cayenne (2011)	X	V	V
Panamera (2011)	X	X	X
Proton
Please refer to the manufacturer for further information
Renault	1	2	3
Clio (2005 - 2011)	X	V	V
Laguna Sport Tourer (2008 - 2011)	X	V	V
Megane Hatchback (2008 - 2012)	X	V	V
Modus (2004 - 2011)	X	V	V
Scenic (2009 - 2012)	X	X	X
Rolls Royce
Please refer to the manufacturer for further information
Saab
Please refer to the manufacturer for further information
Seat
Exeo ST Estate (2008 - 2012)	X	V	V
Skoda
Fabia Hatchback (2007 - 2011)	X	V	V
Fabia M2 (2007 - 2012)	V	V	V
Octavia Hatchback (2004 - 2012)	X	V	V
Roomster (2006 - 2011)	X	V	V
Superb M2 (2008 - 2012)	X	V	V
Yeti (2009 - 2012)	X	V	V
Smart
For Two Coupe (2007 - 2011)	X	X	X
Ssangyong
Please refer to the manufacturer for further information
Subaru
Please refer to the manufacturer for further information

	1	2	3
Suzuki
Please refer to the manufacturer for further information
Toyota
Auris (2007 - 2011)	X	V	V
Avensis Hatchback (2003 - 2011)	X	X	X
Aygo (2003 - 2011)	V	V	V
Land Cruiser (2003 - 2009)	X	V	V
Prius (2004 - 2009)	X	V	V
Rav 4 MK3 (2006 - 2011)	X	V	V
Verso (2009 - 2011)	X	V	V
Yaris Hatchback (2006 - 2012)	X	V	V
Vauxhall
Astra 2010 5dr (2010 - 2011)	X	V	V
Astra GTC (2011 - 2012)	X	V	V
Corsa 5dr Hatchback (2006 - 2011)	X	V	V
Insignia Hatchback (2009 - 2011)	X	V	V
Meriva (2010 - 2012)	X	V	V
Zafira (2005 - 2011)	X	V	V
Volkswagen
Golf Cabriolet (2009 - 2011)	X	V	V
Golf Hatchback (2009 - 2011)	X	V	V
Jetta (2011)	X	V	V
Passat (2010 - 2012)	X	V	V
Passat CC (2008 - 2012)	X	X	X
Passat Estate (2005 - 2011)	X	V	V
Polo 5dr (2009 - 2012)	X	V	V
Tiguan (2008 - 2011)	X	V	V

Volvo

① ② ③

C30 (2007 - 2012)	X	X	X
S60 (2010 - 2012)	X	V	V
S80 (2007 - 2012)	X	X	X
V60 (2011 - 2012)	X	V	V
V70 (2008 - 2012)	X	X	X
XC70 (2008 - 2012)	X	X	X
XC90 (2003 - 2012)	X	V	V

Technical diagram of a car comfort seat with numbered parts for identification

Avertissements

Thanks for choosing Nuna!

Technical diagram of a car comfort seat with numbered parts for identification

Waarschuwingen

Thanks for choosing Nuna!

Technical diagram of a car comfort seat with numbered parts for identification

Warnungen

Thanks for choosing Nuna!

Technical diagram of a car comfort seat with numbered parts for identification

Avvertenze

Technical diagram of a car comfort seat with numbered parts for identification

Precauciones

Thanks for choosing Nuna!
