USER MANUAL BOS 162 Fein

Technical illustration of a power drill with a cylindrical tool and handle (no text or symbols)

BOS16 (**) 7 205 47

BOS16-2 (**) 7 205 49

		BOS16 (**) BOS16-2 (**)
		7 205 47 7 205 49
P_1	W 1200 1200
P_2	W 680 680
n_0

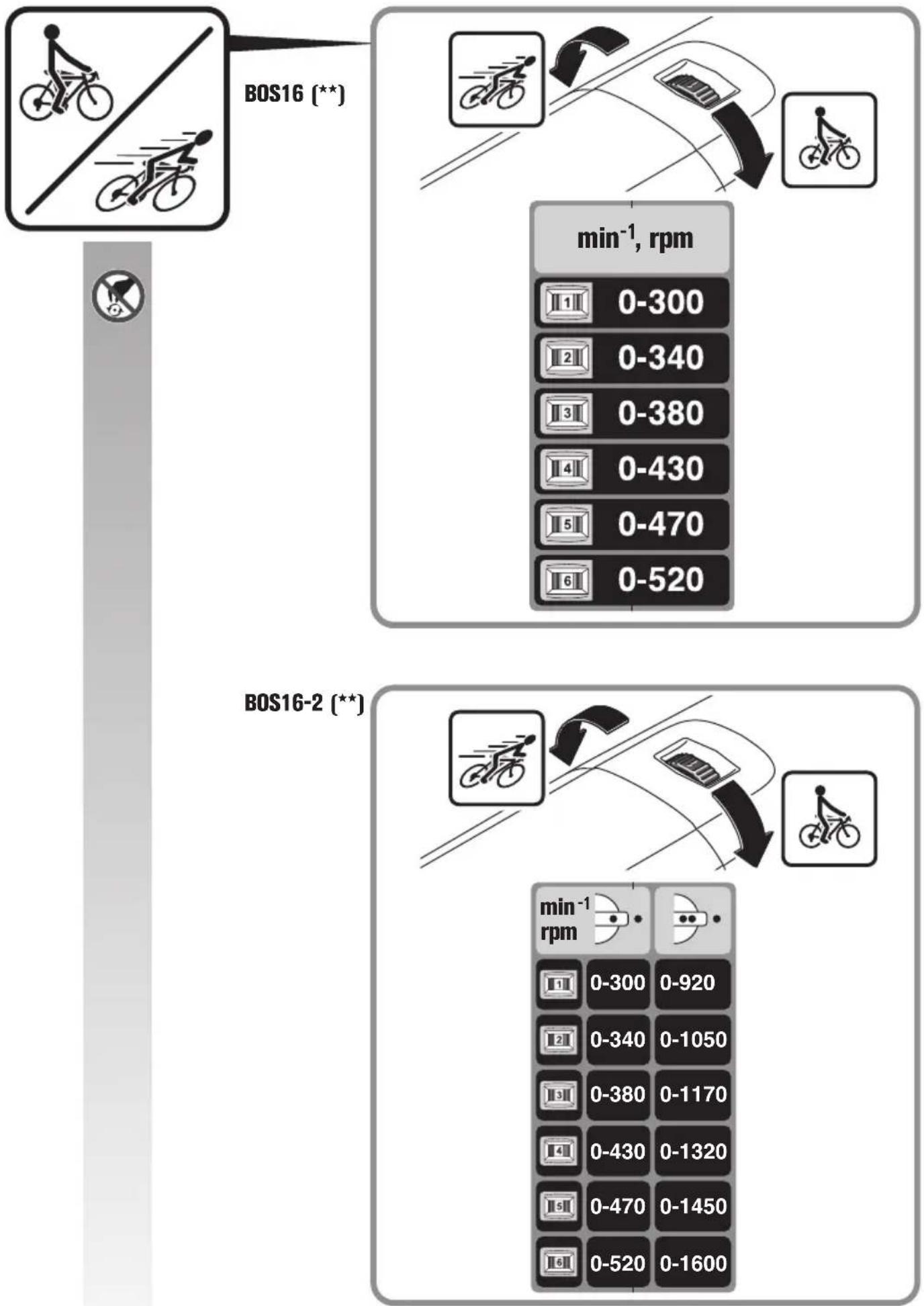

1.\	/min, min ^-1 , rpm, r/min 0–520 0–520
/2.	/min, min ^-1 , rpm, r/min – 0–1600
n_1
1.\	/min, min ^-1 , rpm, r/min 0–520 0–520
/2.	/min, min ^-1 , rpm, r/min – 0–1600
		kg 3,4 3,6
	Fe	mm 16 16/10
	Al	mm 20 20/15
		mm 50 50
		mm M12 M12
	d_1	mm 3–16 3–16
	d_2		1/2" – 20UNF 1/2" – 20UNF
	d_3	mm 43 43
L_pA		dB	81,1 82,1
K_pA		dB 3 3
L_wA		dB	92,1 93,1
K_wA		dB 3 3
L_pCpeak		dB	95,2 95,6
K_pCpeak		dB 3 3
a_h,D		m/s ^2	2,4 1,9
K_u		m/s ^2	1,5 1,5
T_a		°C	-10 ... + 40 -10 ... + 40

de 11 pt 40 tr 66 sl 94 et 121 th 148 en 16 el 45 hu 70 sr 98 lt 125 ja 153 fr 20 da 50 cs 75 hr 102 lv 129 hi 158 it 25 no 54 sk 79 ru 106 zh(CM) 134 ar 167 nl 30 sv 58 pl 84 uk 111 zh(CK) 139 es 35 fi 62 ro 89 bg 116 ko 143

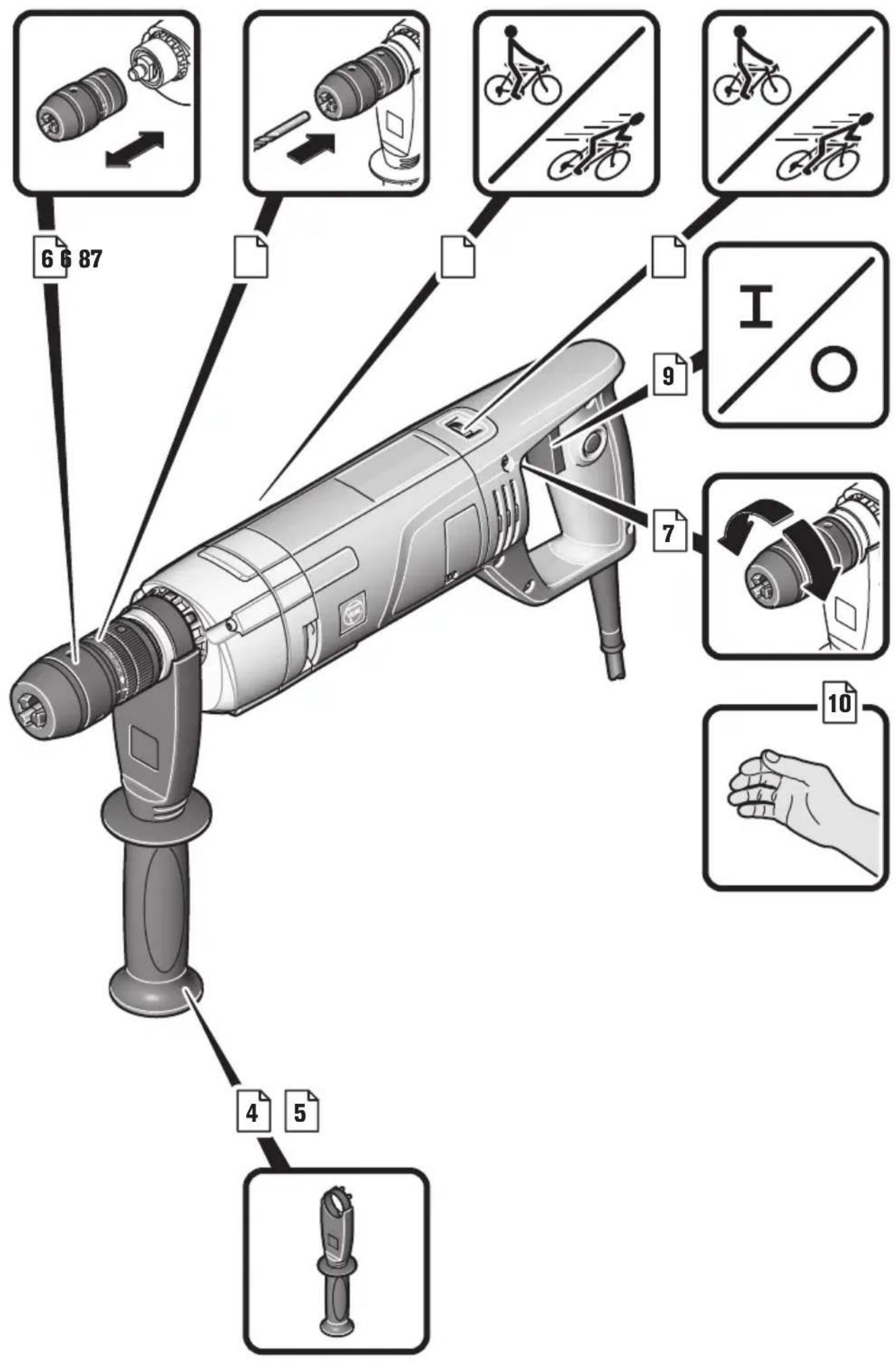

6 6 87 I O 9 7 10 4 5

Diagram illustrating a hand operating a power tool with warning labels and a magnified view of the device's tip.

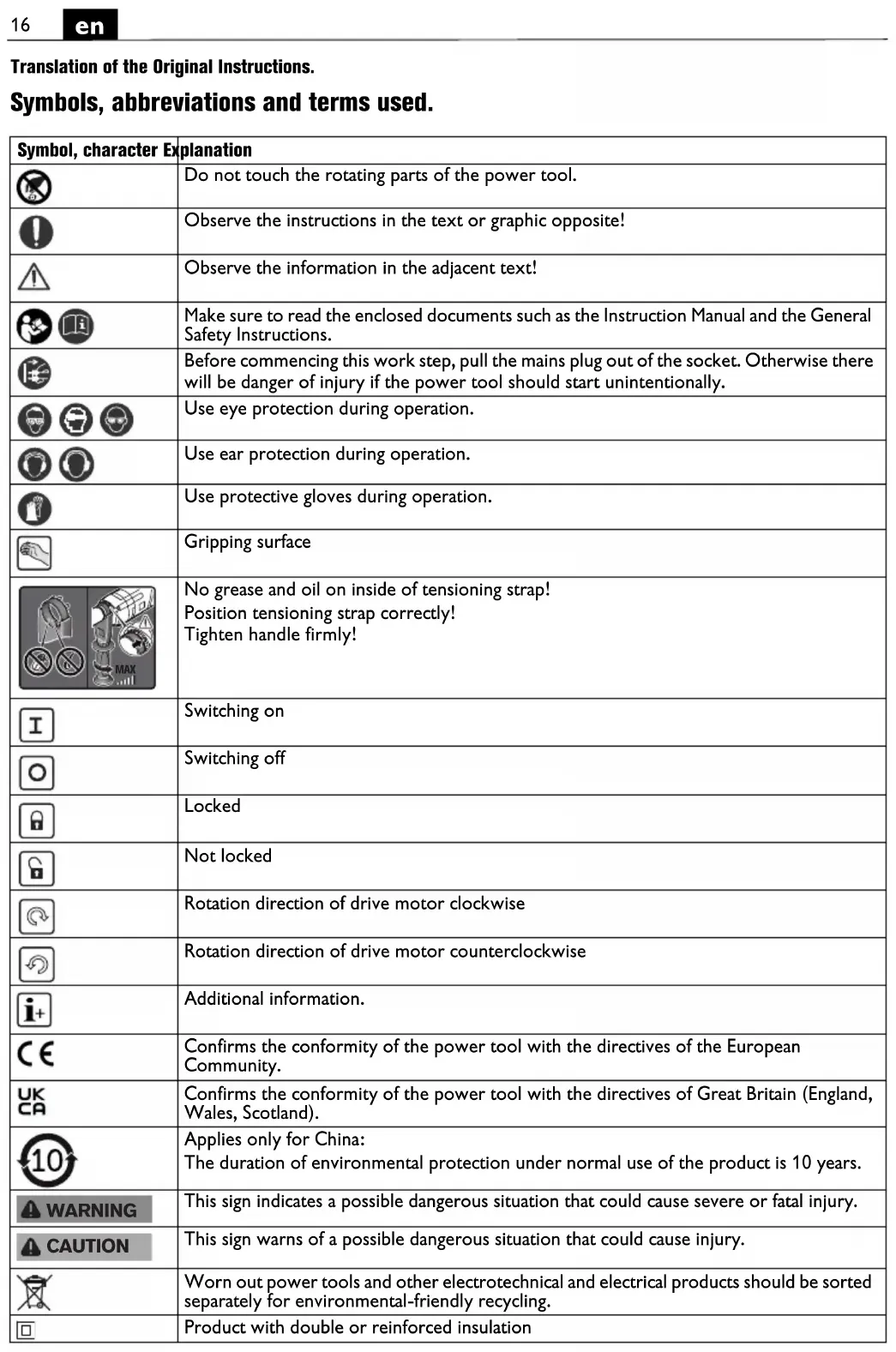

Translation of the Original Instructions.

Symbols, abbreviations and terms used.

Symbol, character Explanation
	Do not touch the rotating parts of the power tool.
	Observe the instructions in the text or graphic opposite!
	Observe the information in the adjacent text!
	Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions.
	Before commencing this work step, pull the mains plug out of the socket. Otherwise there will be danger of injury if the power tool should start unintentionally.
	Use eye protection during operation.
[TBC8]	Use ear protection during operation.
	Use protective gloves during operation.

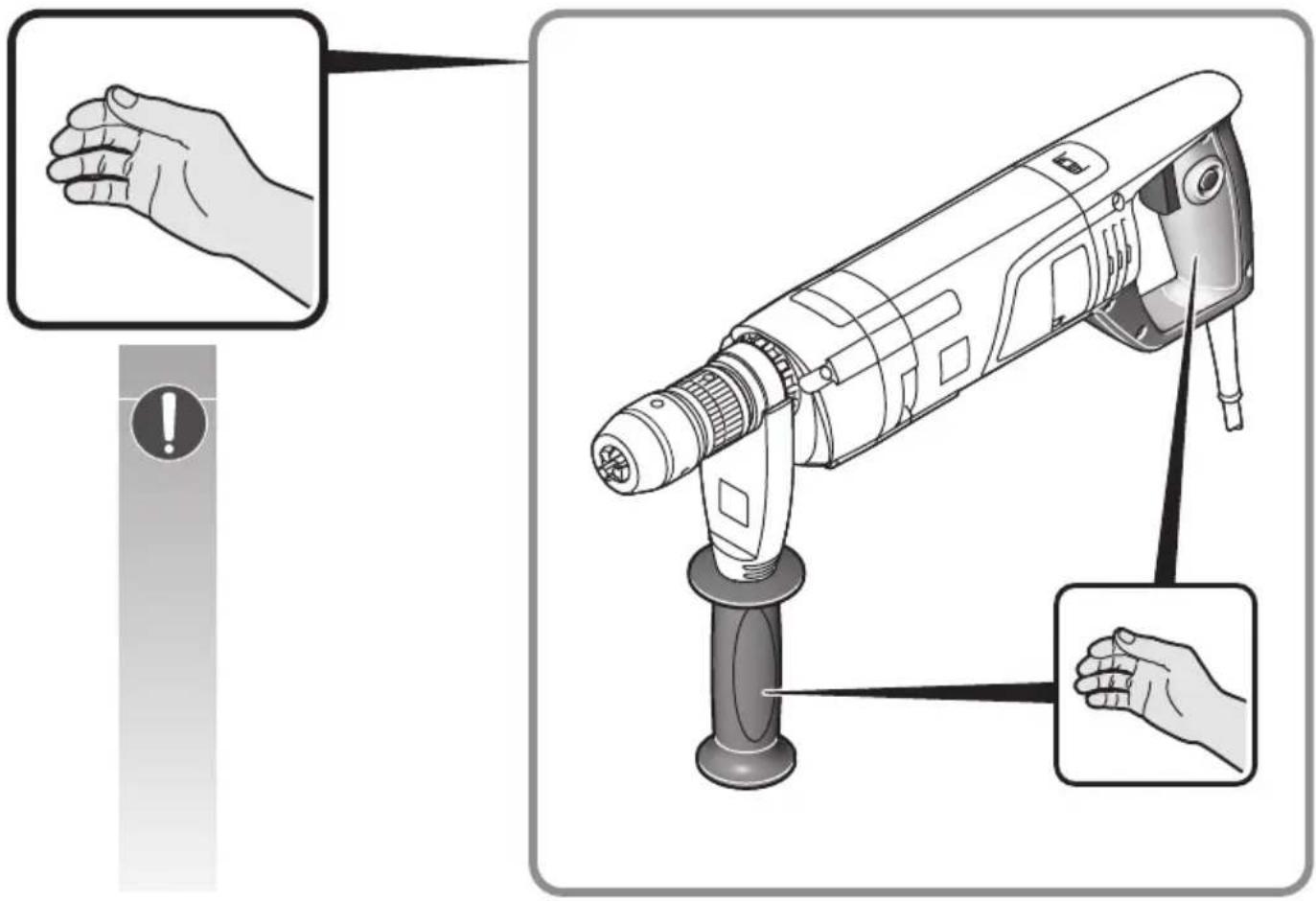

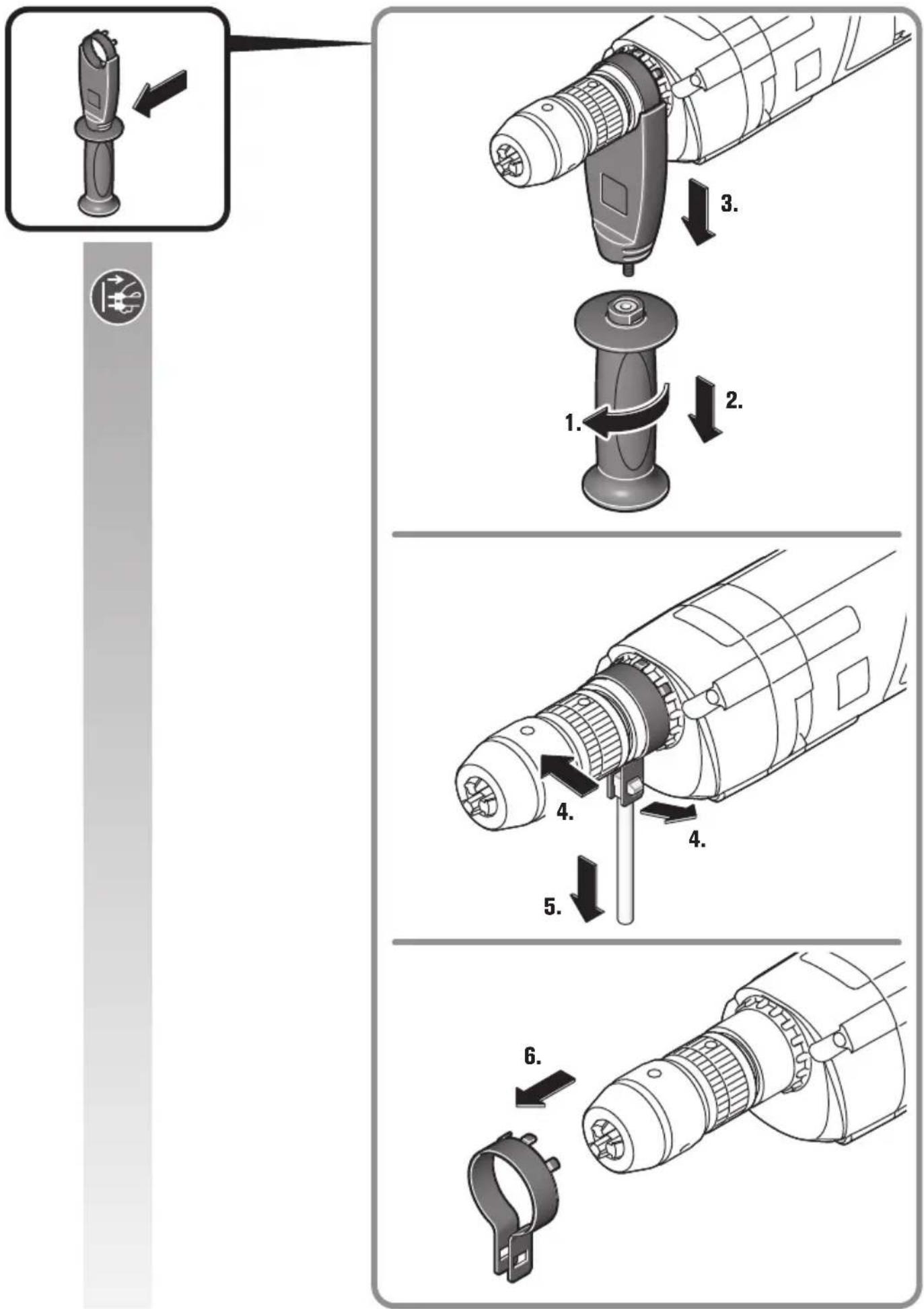

	Gripping surface

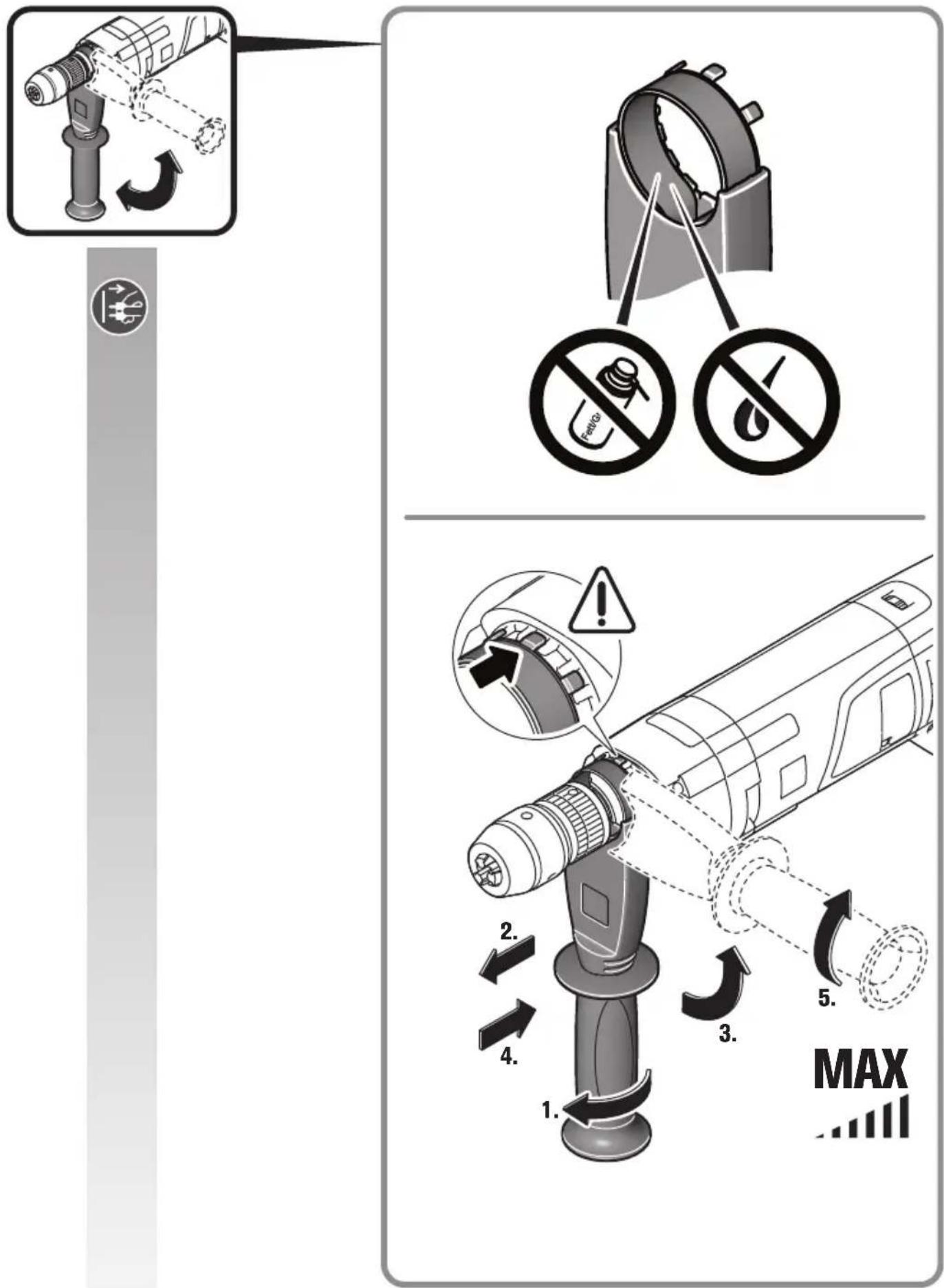

	No grease and oil on inside of tensioning strap!Position tensioning strap correctly!Tighten handle firmly!

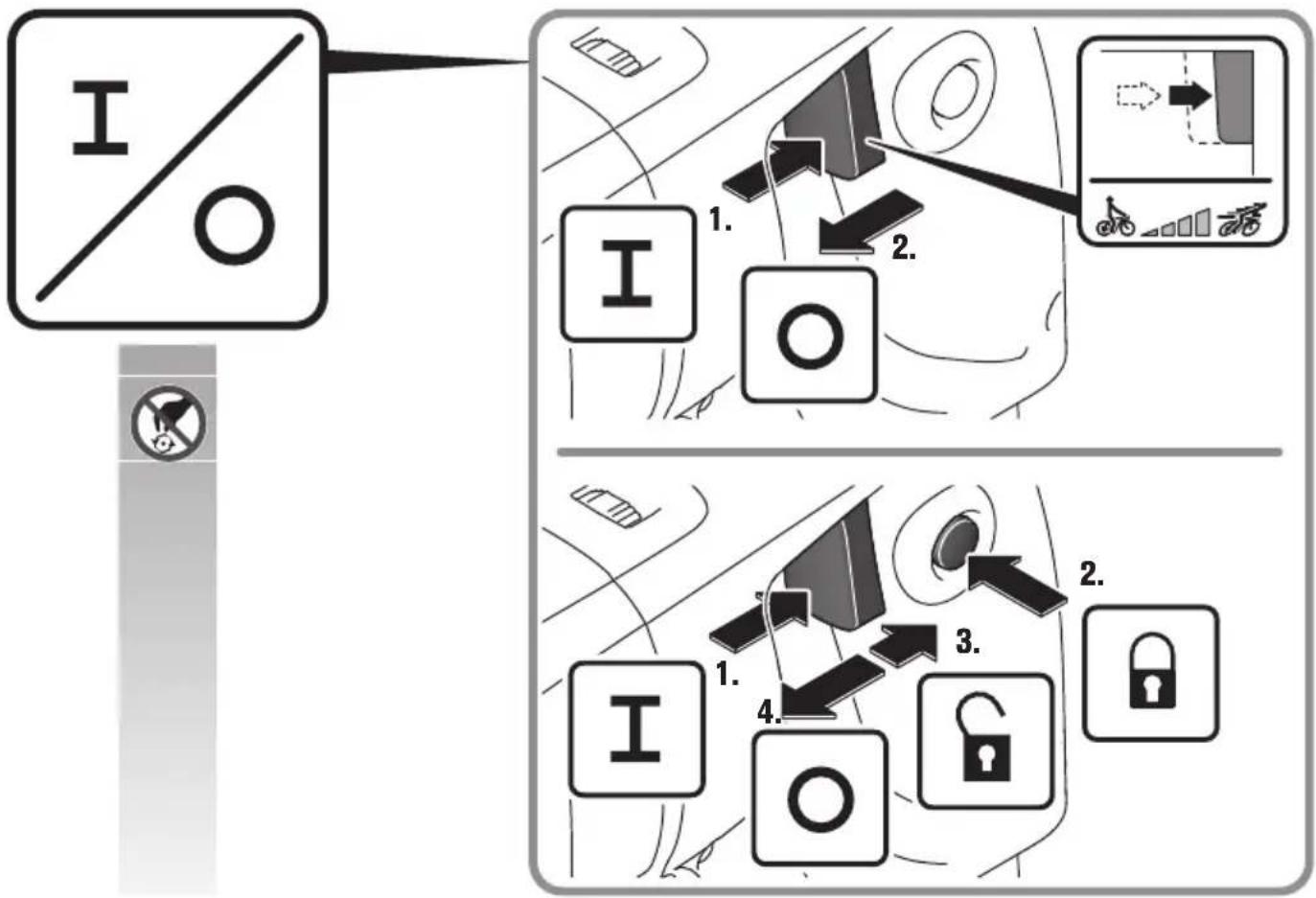

	Switching on
	Switching off
	Locked
	Not locked

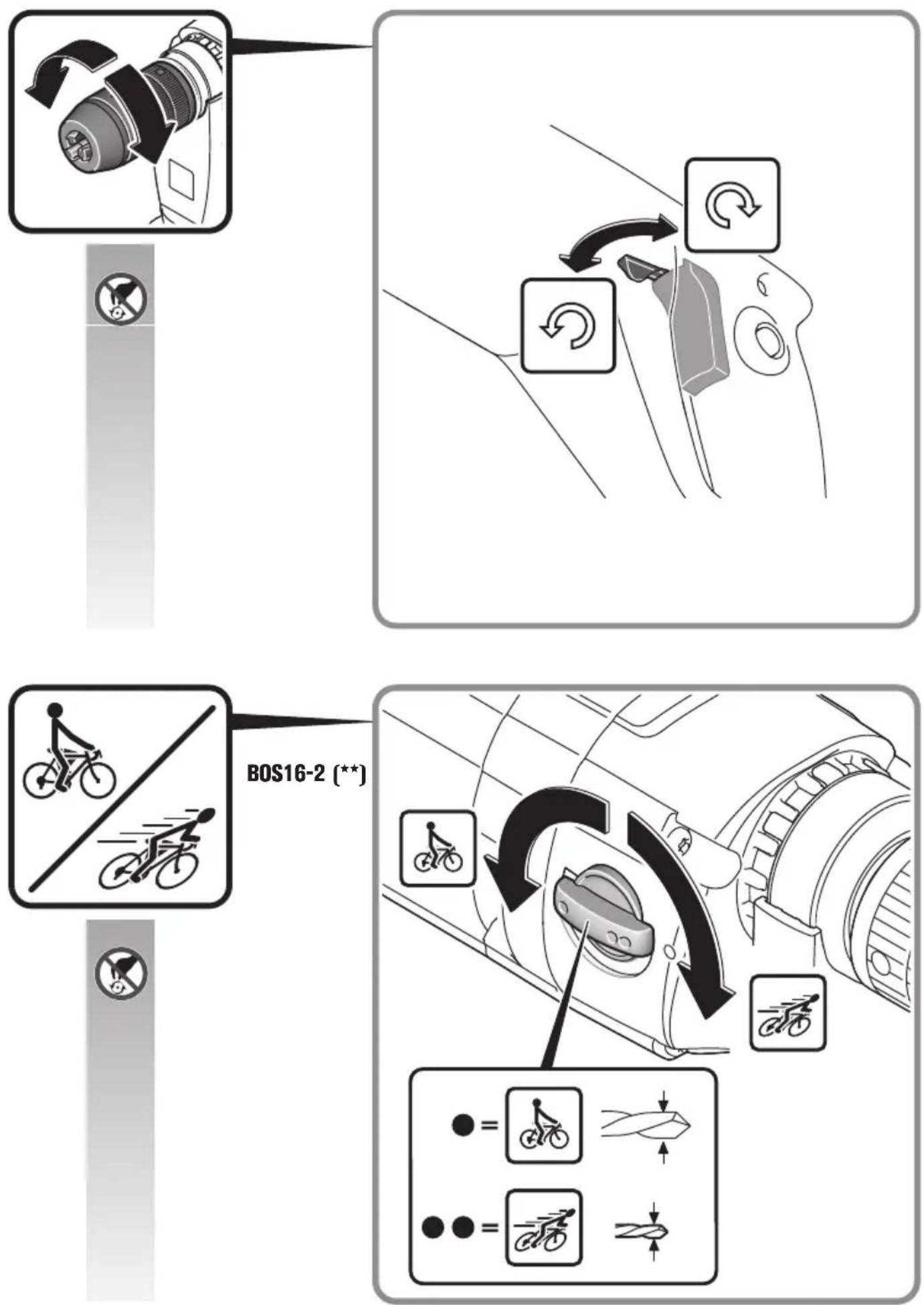

	Rotation direction of drive motor clockwise
[BDT3]	Rotation direction of drive motor counterclockwise
	Additional information.
	Confirms the conformity of the power tool with the directives of the European Community.
	Confirms the conformity of the power tool with the directives of Great Britain (England, Wales, Scotland).
	Applies only for China:The duration of environmental protection under normal use of the product is 10 years.
WARNING	This sign indicates a possible dangerous situation that could cause severe or fatal injury.
CAUTION	This sign warns of a possible dangerous situation that could cause injury.
	Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling.
	Product with double or reinforced insulation
Symbol, character	Explanation
1.\ /2.	1st gear/2nd gear
	Low speed
	High speed
(**) May contain numbers and letters
(Ax - Zx) Marking for internal purposes

Character Unit of measurement, international		Unit of measurement, national	Explanation
P_1	W W Power input
P_2	W W Output
UV	V	R	a t
fHz Hz Frequency
n_0	/min, min ^-1 , rpm, r/min rpm	No-load speed
n_1	/min, min ^-1 , rpm, r/min rpm	Speed, full load
M...	mm	mm	Size of metric thread
○	inch	inch	Hexagon socket tool holder
∅	mm	mm	Diameter of a round part
Fe	mm	mm	Max. capacity in steel with up to 400 N/mm ^2 - high speed steel (twist drill bit)
AI	mm	mm	Max. capacity in aluminium with up to 300 N/mm ^2 - High speed steel (twist drill bit)
∅	mm	mm	Max. drilling diameter in wood (twist drill bit)
###	mm	mm	Tap
d1 d2 d3 ###	mm	mm	d1 = Clamping range of drill chuck d2 = Thread size of shaft 1/2"-20UNF d3 = Collar diameter
	kg	kg	Weight according to EPTA-Procedure 01
T_a	°C	°C	Allowable ambient temperature
L_pA	dB dB	Sound pressure level
L_wA	dB dB	Sound power level
L_pCpeak	dB dB	Peak sound pressure	level
K...			Uncertainty
a	m/s ^2	m/s ^2	Vibrational emission value according to EN 62841 (vector sum of three directions)
a_h,D	m/s ^2	m/s ^2	Mean vibrational value for drilling in metal
	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s ^2	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s ^2	Basic and derived units of measurement from the international system of units SI.

Character Unit of measurement, international		Unit of measurement, national	Explanation
P_1	W W Power input
P_2	W W Output
UV	V	R	a t
fHz Hz Frequency
n_0	/min, min ^-1 , rpm, r/min	rpm	No-load speed
n_1	/min, min ^-1 , rpm, r/min	rpm	Speed, full load
M...	mm	mm	Size of metric thread
○	inch	inch	Hexagon socket tool holder
∅	mm	mm	Diameter of a round part
Fe	mm	mm	Max. capacity in steel with up to 400 N/mm ^2 - high speed steel (twist drill bit)
Al	mm	mm	Max. capacity in aluminium with up to 300 N/mm ^2 - High speed steel (twist drill bit)
∅	mm	mm	Max. drilling diameter in wood (twist drill bit)
###	mm	mm	Tap
d1 d2 d3 ###	mm	mm	d1 = Clamping range of drill chuck d2 = Thread size of shaft 1/2"-20UNF d3 = Collar diameter
	kg	kg	Weight according to EPTA-Procedure 01
T_a	°C	°C	Allowable ambient temperature
L_pA	dB dB	Sound pressure level
L_wA	dB dB	Sound power level
L_pCpeak	dB dB	Peak sound pressure	level
K...			Uncertainty
a	m/s ^2	m/s ^2	Vibrational emission value according to EN 62841 (vector sum of three directions)
a_h,D	m/s ^2	m/s ^2	Mean vibrational value for drilling in metal
	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s ^2	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s ^2	Basic and derived units of measurement from the international system of units SI.

For your safety.

WARNING

Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the enclosed "General

Safety Instructions" (document number

3 41 30 465 06 0). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold.

Please also observe the relevant national industrial safety regulations.

Intended use of the power tool:

hand-held drill for drilling in metal, wood, plastic, ceramics, and for tapping in weather-protected environments using the application tools and accessories recommended by FEIN.

For this purpose, the technical data of the respective power tool must be observed.

The hand-held drill is not intended for working carbon fibre reinforced plastics.

Not used as: Stirrer, radish cutter drive, grindstone drive, wire brush drive, etc.

The power tool is intended for operation by skilled personnel at non-permanent everyday use.

This power tool is also suitable for use with AC generators with sufficient power output that correspond to the Standard ISO 8528, design type G2. This Standard is particularly not complied with when the so-called distortion factor exceeds 10% . When in doubt, please refer to the generator instruction/specification guide.

Observe the operating instructions and the national regulations for the installation and operation of the AC generator.

Safety warnings for drills.

Safety instructions for all operations.

Use the additional handle (s). Loss of control can lead to injury.

Hold the power tool by the insulated gripping surfaces when performing operations where the application tool could contact hidden wiring or its own power supply cable. Contact with a “live” wire will also make exposed metal parts of the tool “live” and shock the operator.

Safety instructions when using long drill bits.

Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.

Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.

Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting in personal injury.

Special safety instructions.

Beware of any concealed electric cables, gas or water conduits. Check the working area before commencing work, e.g. with a metal detector.

Secure the work piece firmly. A work piece that is gripped tightly in a clamping device or vice, is more secure than if held by hand.

Hold the power tool firmly. High reaction torque can briefly occur.

Do not direct the power tool against yourself, other persons or animals. Danger of injury from sharp or hot application tools.

Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective.

Do not use accessories which are not specifically designed and recommended by the power tool manufacturer. Safe operation is not ensured merely because an accessory fits your power tool.

Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. Where appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

When working overhead, beware of falling objects, such as chips.

To prevent injuries, always keep your hands, clothing, etc. away from rotating swarf. The swarf can cause injuries.

Do not attempt to remove the cutting tool if it still turns.

This can lead to serious injuries.

Clean the ventilation openings on the power tool at regular intervals using non-metal tools. The blower of the motor draws dust into the housing. An excessive accumulation of metallic dust can cause an electrical hazard.

Do not work with materials containing magnesium.

Danger of fire.

Do not work with CFRP (carbon-fiber-reinforced polymer) and materials containing asbestos. These materials are considered carcinogenic.

Before putting into operation, check the mains connection and the mains plug for damage.

Recommendation: The tool should always be supplied with power via a residual current device (RCD) with a rated current of 30 mA or less.

Hand/arm vibrations

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool

is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Handling hazardous dusts

For work procedures with this power tool where material is removed, dusts develop that can be hazardous to one's health.

Contact with or inhaling some dust types, e. g. asbestos and asbestos-containing materials, lead-containing coatings, metal, some wood types, minerals, silicate particles from materials containing stone, paint solvents, wood preservatives, antifouling paints for vessels, can trigger allergic reactions to the operator or bystanders and/or lead to respiratory infections, cancer, birth defects or other reproductive harm. The risk from inhaling dusts depends on the exposition. Use dust extraction matched appropriately for the developing dust, as well as personal protective equipment and provide for good ventilation of the workplace. Leave the processing of asbestos-containing materials to specialists.

Wood and light-metal dust, hot mixtures of grinding dust and chemical materials can self-ignite under unfavourable conditions or cause an explosion. Avoid sparking in the direction of the dust collector as well as overheating of the power tool and the materials being sanded, empty the dust collector/container in time, observe the material manufacturer's working instructions, as well as the relevant regulations in your country for the materials being worked.

Operating Instructions.

When the power supply is disconnected while the motor is running or when the switched-on power tool is plugged in, the motor will not restart.

When the application tool continuously blocks or is subject to overload, the motor stops automatically. Restart the motor again.

Change the gear setting or the rotation direction only after the motor has come to a complete stop.

For stationary use in a drill stand, remove the switched off power tool from the drill stand every 50 operating hours while at normal running temperature. Then, turn the machine around by 180^ to achieve uniform lubrication.

Remove chippings after each drilling process.

CAUTION

Chips are sharp and hot!

Observe the manufacturer's instructions on coolant.

Repair and customer service.

When working metal under extreme operating conditions, it is possible for conductive dust to settle in the interior of the power tool. The total insulation of the power tool can be impaired. Blow out the interior of the power tool via the ventilation slots frequently with dry and oil-free compressed air, and connect a residual current device (RCD) on the line side.

Products that have come into contact with asbestos may not be sent in for repair. Dispose of products contaminated with asbestos according to the applicable country-specific regulations for such disposal.

Renew stickers and warning indications on the power tool when aged and worn.

When the machine's power supply cord is damaged, it must be replaced by the manufacturer or their representative.

The current spares parts list for this power tool can be found on our website at www.fein.com.

Use only original spare parts.

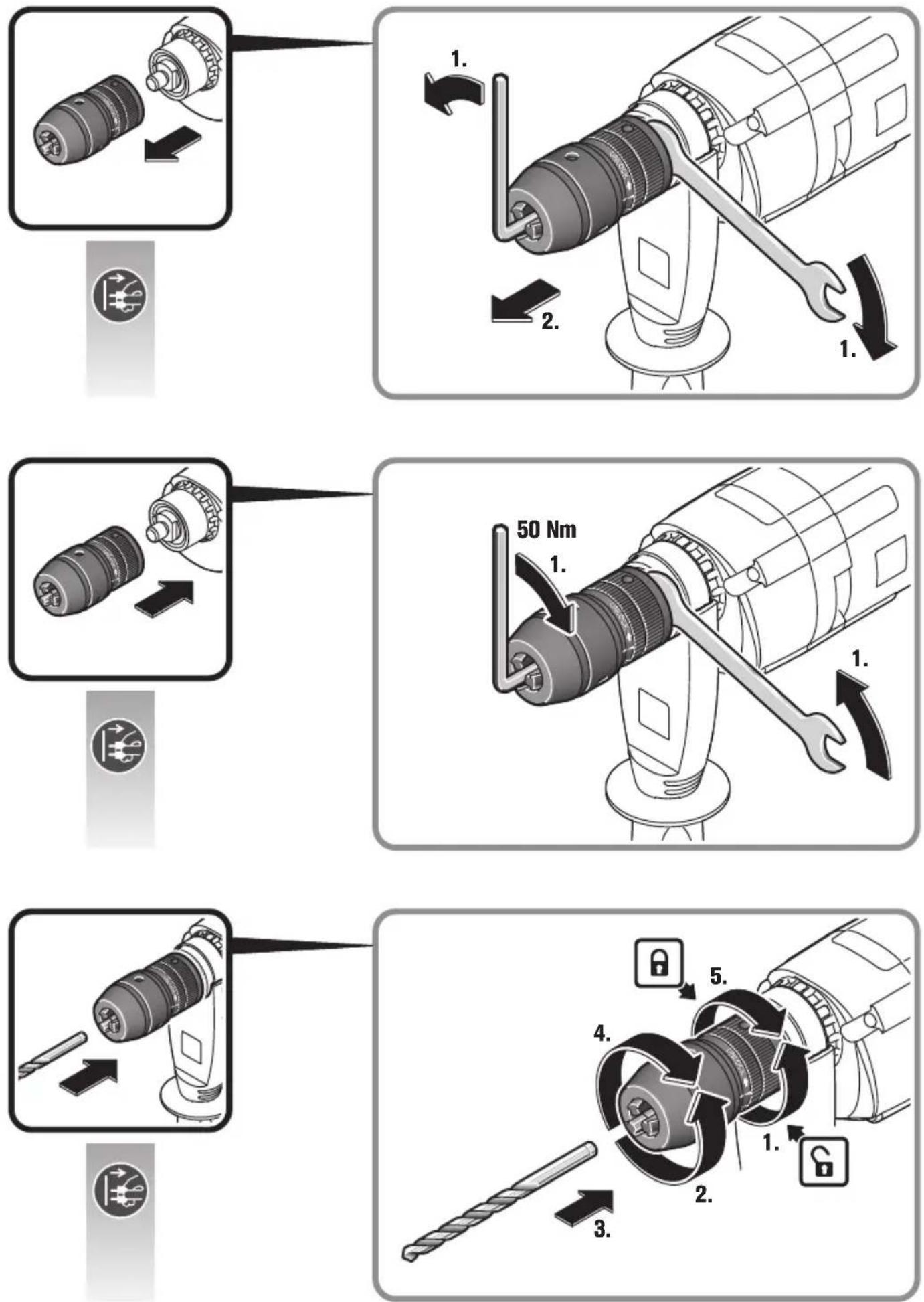

If required, you can change the following parts yourself: Drill chuck, auxiliary handle, application tools

Warranty and liability.

The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration.

The delivery scope of your power tool may include only a part of the accessories described or shown in this Instruction Manual.

Declaration of conformity.

This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU- or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.

The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market.

After placing the product on the Great Britain market the CE mark loses its mark validity.

FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual.

Technical documents at:

C. & E. Fein GmbH

Hans-Fein-Straße 81

73529 Schwäbisch Gmünd-Bargau, Germany

Environmental protection, disposal.

Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling.

China RoHS Status Certificate

中国 RoHS 认证概况

Table of Toxic and Hazardous Substances/Elements and their Content

as required by China's Management Methods for Controlling Pollution by Electronic Information Products

有毒有害物质 / 成分及其含量表

This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.

EN 62841-1:2015+AC:2015

EN 62841-2-1:2018+A11:2019

EN 55014-1:2017+A11:2020

EN 55014-2:1997+A1:2001+A2:2008+AC:1997

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

2011/65/EU, 2006/42/EG, 2014/30/EU

U. Hergosell

i. V. S. Böhm i. V. Dr. M. Hergesell

Director of Quality Director of Product Management Development

The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market. After placing the product on the Great Britain market the CE mark loses its mark validity.

EN 62841-1:2015+AC:2015

EN 62841-2-1:2018+A11:2019

EN 55014-1:2017+A11:2020

EN 55014-2:1997+A1:2001+A2:2008+AC:1997

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

Supply of Machinery Regulations 2008,

EMC Regulation 2016, The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

U. Hergosell

i. V. S. Böhm i. V. Dr. M. Hergesell

Director of Quality Management Development Director of Product
