Product type	LED projector with infrared motion detector
Brand	Brennenstuhl
Model	JARO 5050 P
Power supply	220-240 V ~ 50/60 Hz
Power	50 W
Protection rating	IP54 (version with detector)
Impact resistance	IK08
Temperature range	-20 °C to +50 °C
Detector type	Passive infrared sensor (PIR)
Detection range	Up to 10 m
Detection angle	120° (horizontal)
Lighting duration adjustment	10 seconds to 5 minutes
Brightness threshold adjustment	0 to 2000 lux (day/night)
Sensitivity adjustment	From 3 to 10 m depending on installation
Recommended installation height	2.5 m (max. 3 m)
Projector tilt	90° downward, 45° upward
Light source	Non-replaceable LED
Use	Indoor and outdoor
Maintenance	Clean with a dry or slightly damp cloth
Disposal	Compliant with directive 2012/19/EU (WEEE)

Frequently Asked Questions - JARO 5050 P BRENNENSTUHL

What is the recommended installation height for the JARO 5050 P projector?

The recommended installation height is 2.5 m for optimal detection, with a maximum of 3 m.

What is the detection range of the motion sensor?

The PIR sensor detects movements up to 10 m with a horizontal angle of 120°.

How to adjust the lighting duration after detection?

Use the TIME knob on the back of the detector to set the duration from 10 seconds to 5 minutes. Turn clockwise to decrease, counterclockwise to increase.

How to adjust the sensitivity of the motion detector?

Turn the SENS knob towards (+) for maximum sensitivity (detection up to 10 m) or towards (-) to reduce the range.

Can the projector work only at night?

Yes, set the brightness knob to the moon symbol () for night-only operation. For day and night operation, use the sun symbol (☀️).

How to clean the projector?

First unplug the device. Use a dry or slightly damp cloth. Do not use solvents or abrasive products.

Is the light source replaceable?

No, the LED is not replaceable. At the end of the LED's life, the entire projector must be replaced in accordance with WEEE regulations.

What safety precautions should be observed?

Never look directly at the beam. Cut off power before installation. Do not use with an external dimmer. Respect the minimum distance to avoid overheating of illuminated objects.

Can I use this projector outdoors?

Yes, the IP54 rating protects against water splashes, but it is not submersible. Suitable for sheltered outdoor use.

How to dispose of the projector at end of life?

Do not dispose of with household waste. Take to a WEEE collection point for recycling in accordance with directive 2012/19/EU.

USER MANUAL JARO 5050 P BRENNENSTUHL

LED Light with infrared motion detector

Projecteur LED

GB Operating instructions ....13

GB Installation instructions ..... 4-8

FR Manuel d'installation ..... 4-8

NL Montagehandleiding 4-8

Technical illustration of two mechanical components with circular annotations indicating assembly or inspection (no text or symbols present)

JARO 80/100 W

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with a grid pattern and a tool inserted (no text or symbols)

JARO 150 W

Montageanleitung Installation instructions Manuel d'installation Montagehandleiding Istruzioni per il montaggio Monteringsanvisning Instrucciones de instalación Instrukcja montażu Montážní návod Szerelési utasítás

Montaj talimati Asennusohje Οδηγίες εγκατάστασης Руководство по монтажу Instruções de instalação Paigaldusjuhend Montážny návod Navodila za montažo Montāžas instrukcija Montavimo instrukcija

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with a grid pattern and screwdriver inserted (no text or symbols)

⑨

10

⑪

SENS

SENS

12

13

Bedienungsanleitung

LED Strahler

Operating Instructions

LED Light

LED Light with infrared motion detector

JARO

Attention: Before using the product, please carefully read the operating instructions and store them in a proper location!

SAFETY INSTRUCTIONS

1. Always check the product for damage before use. Never use the product in case of any damage. If this is the case, please refer to an electrician or the manufacturer's service address.

Non-compliance poses a risk of fatal injury from electrical current!

1. Do not use the product in potentially explosive atmospheres – danger of death!
2. Keep the floodlight away from children. Children are not aware of the risks imposed by electric current.
3. Please never look directly into the light.
4. A destroyed protective cover cannot be replaced. The floodlight has to be disposed of.

5. The external flexible cable of this lamp cannot be exchanged; if the cable is damaged, the lamp has to be scrapped.

6. The following applies to the JARO 7050, 9050, 13050 floodlights:

Hot surface

Not suitable for applications with external dimmers.

If the minimum distance is not complied with, illuminated objects may overheat.

TECHNICAL DATA

Protection class: I

Protection type/impact resistance

(versions without motion detector): IP65, IK08

Protection type/impact resistance

(versions with motion detector): IP54, IK08

Nominal voltage: 220-240 V\~ 50/60 Hz

Temperature range: -20 °C to +50 °C

This product is suitable for indoor and outdoor lighting purposes.

INSTALLATION AND CONNECTION TO POWER SUPPLY 10 - 50 W

see figures p. 4, 7 and 8

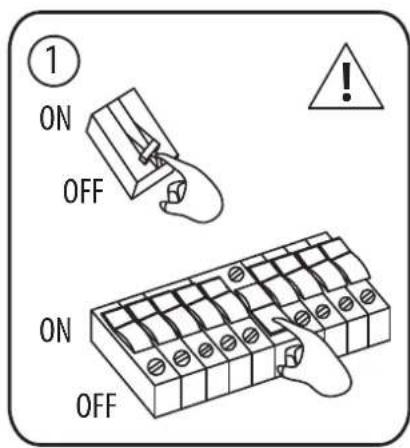

1. Before installation, always switch off the voltage supply ①.
2. Installation position: the floodlight should ideally be mounted using the wall bracket. The floodlight must be installed at a height of less than 3 m ⑧. Recommended installation height for models with motion detector 2.5 m. The floodlight can be angled up and down.
3. Remove the mounting bracket from the floodlight ②.
4. Mark the position of the drill holes for fastening the mounting bracket and drill corresponding holes into the wall ②. Attach the bracket to the wall using suitable screws.

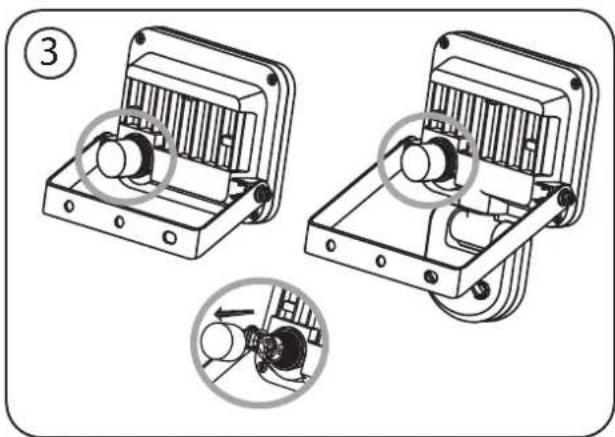

5. Open the plug connection ③.

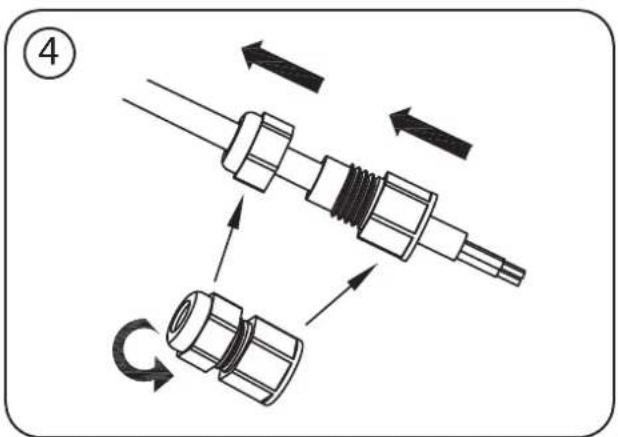

6. Feed the connection cable through the plug sleeve, which has a seal ④.
7. Attach the floodlight to the mounting bracket.

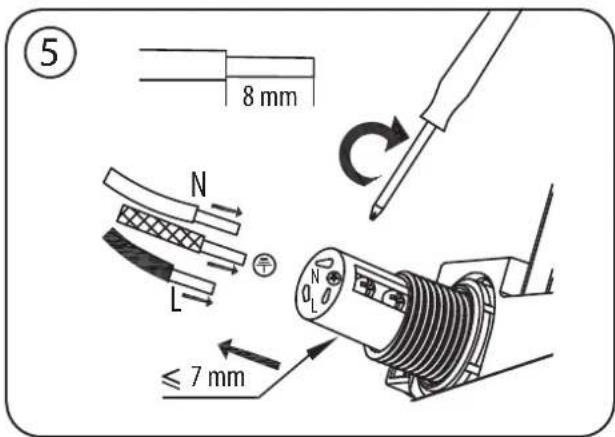

8. Connect the strands of the connection cable to the luster terminal in the input connector in accordance with ⑤ (N = blue cable, earth symbol = green/yellow cable, L = brown cable).

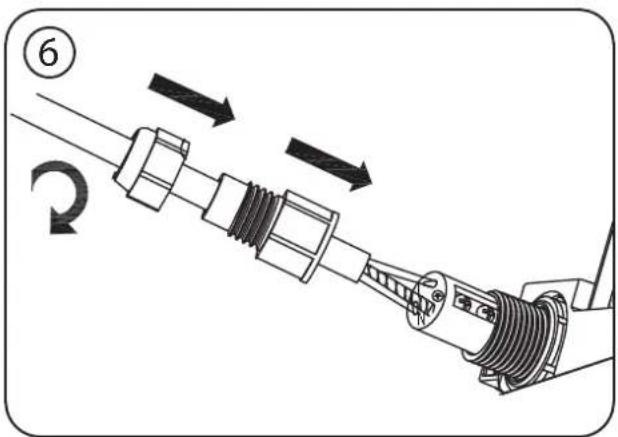

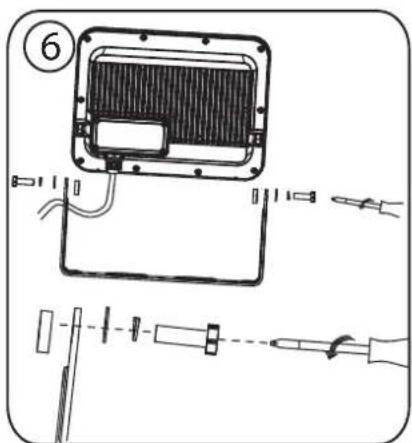

9. Slide the cases over the input connector as shown in ⑥ and tighten it. Take care to ensure that both cases are sufficiently tightened – this ensures a sufficient seal.
10. Re-attach the mounting bracket to the floodlight.
11. Adjust the desired position of the floodlight and fasten the U bolts.

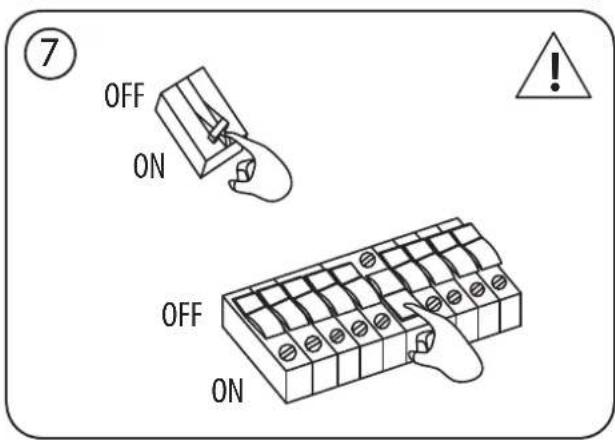

12. Switch the supply voltage back on ⑦.

INSTALLATION AND CONNECTION TO POWER SUPPLY 80 - 150 W

see figures p. 5 and 6

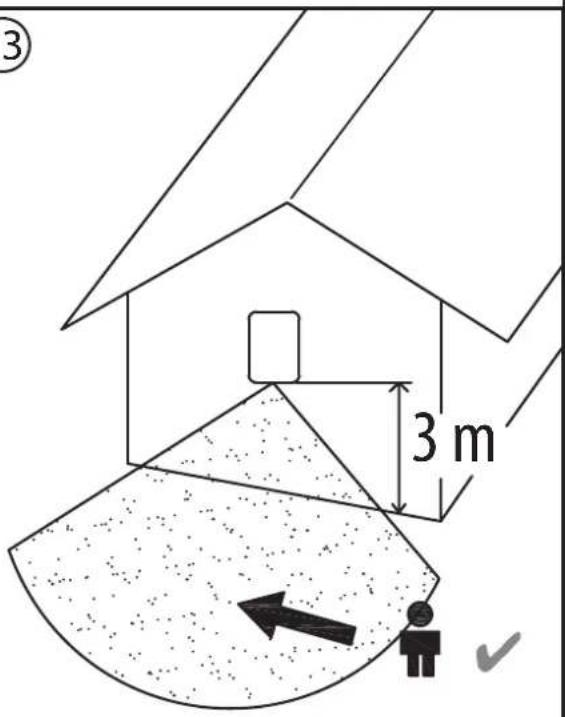

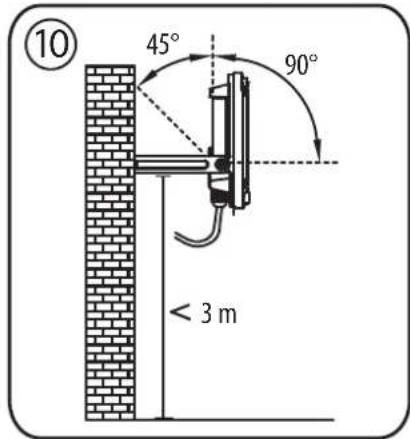

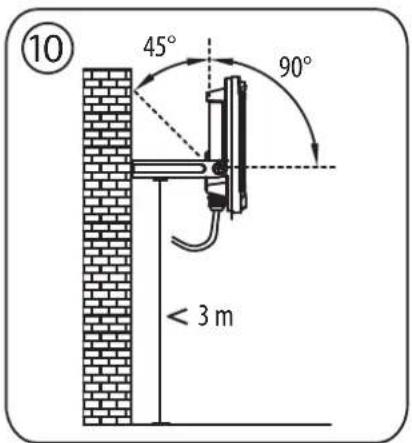

Mounting position: The spotlight should be ideally fixed with the wall bracket. It must be installed at a height less than 3 m ⑩.

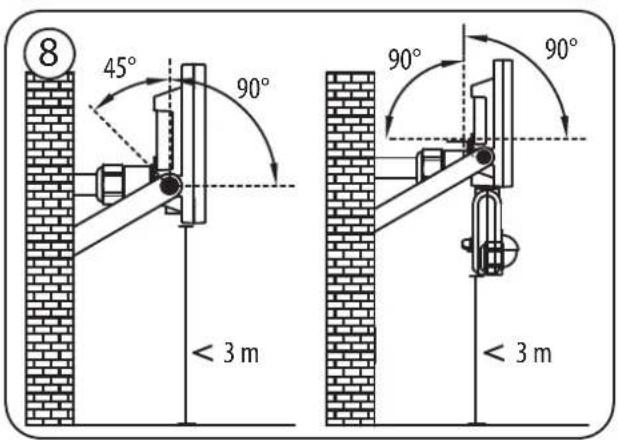

The light can be tilted by 90^ downwards and by 45^ upwards ^⑩ .

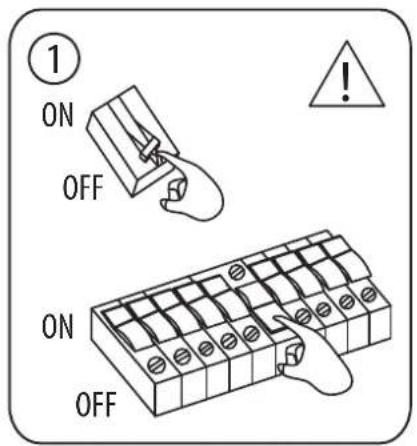

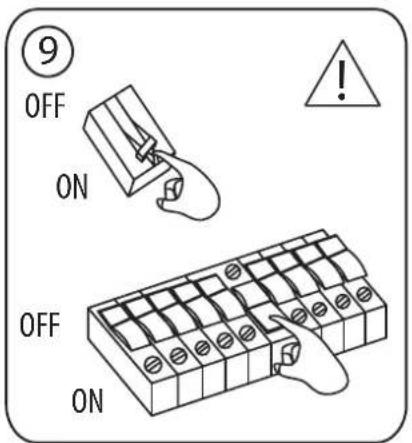

1. Always turn off the power supply before installation ①.

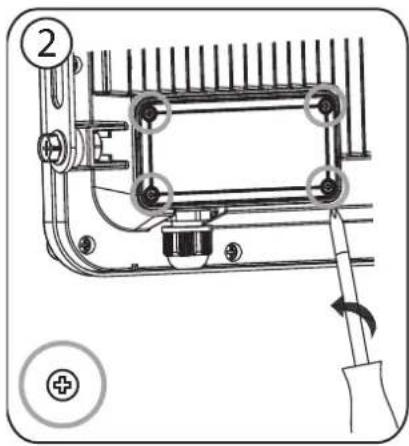

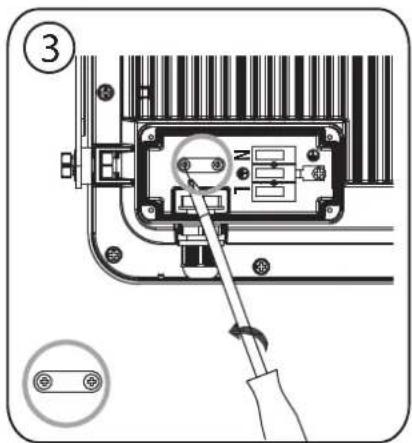

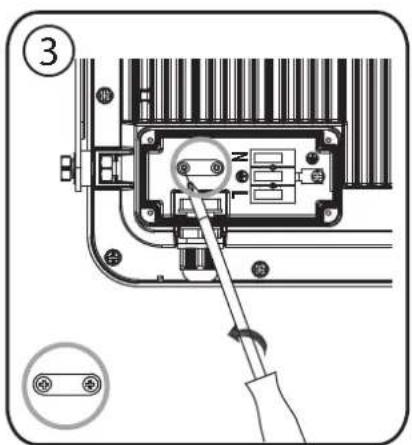

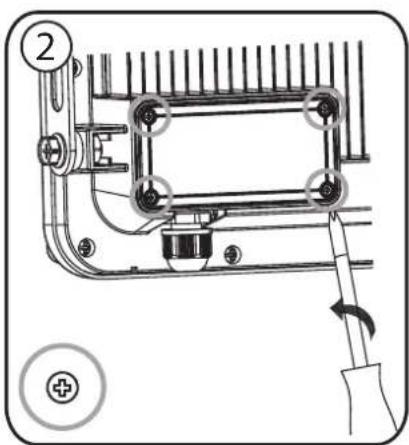

2. Unscrew the junction box ② on the back and loosen the pressure plate ③.

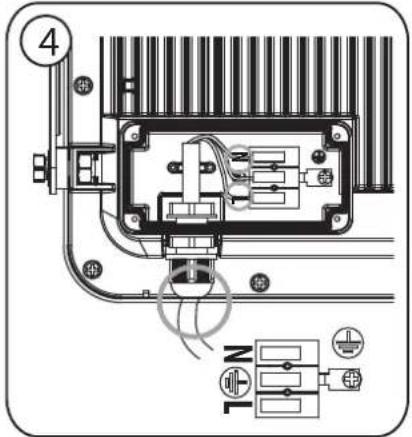

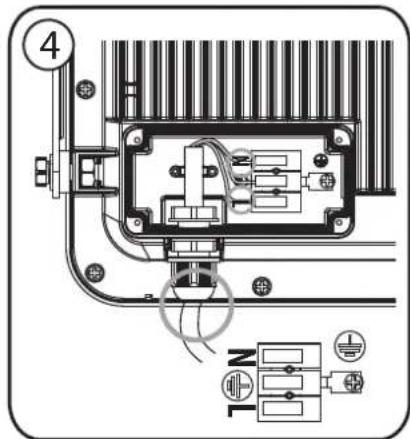

3. Insert the connection cable ④ through the inlet pipe of the junction box and connect the braids of the connection cable according to marking N and L ④.

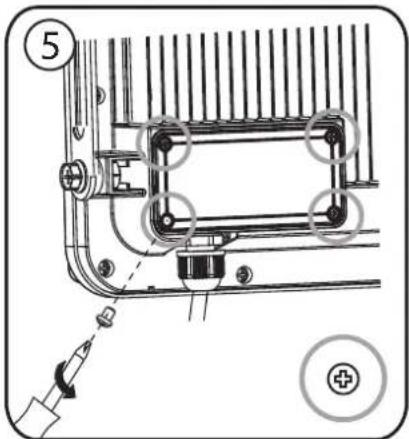

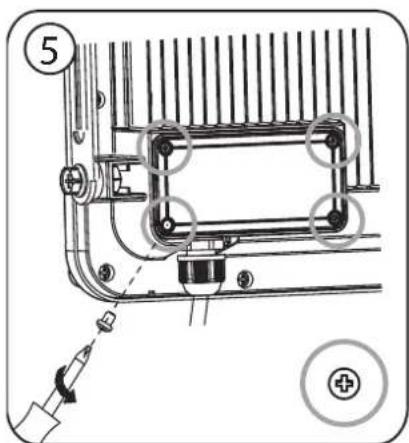

4. Fasten the pressure plate and screw the junction box on ⑤.
5. Remove the retaining bracket from the spotlight ⑥.

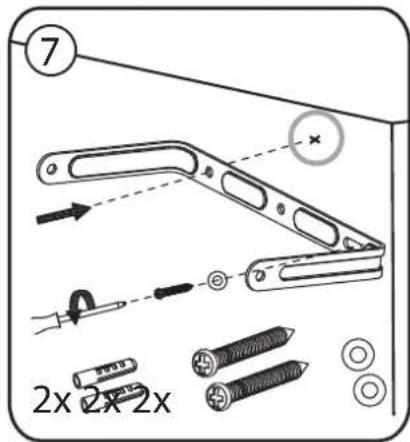

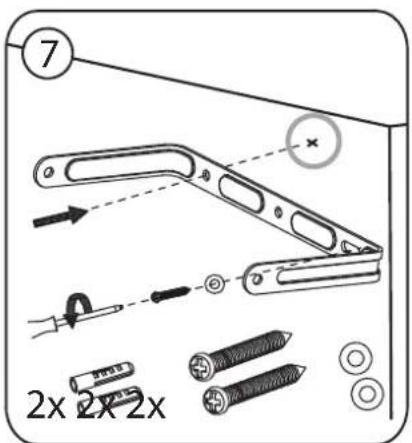

6. Mark the position of boreholes ⑦ for securing the retaining bracket and drill the respective holes on the wall. Attach the bracket to the wall with suitable screws ⑦.

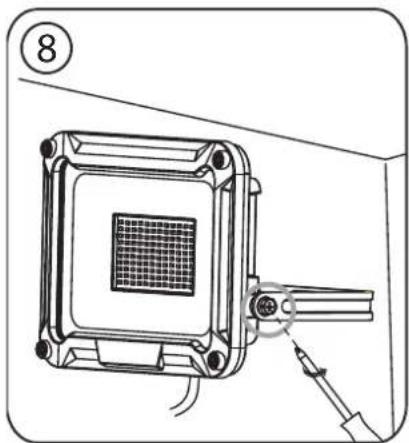

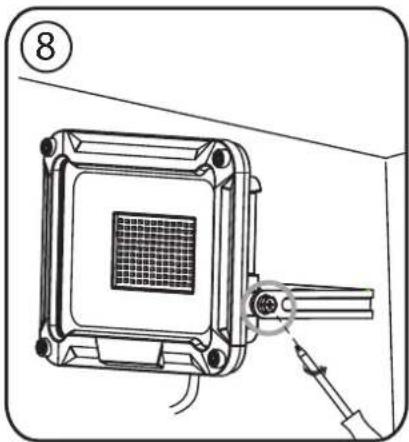

7. Secure the spotlight to the retaining bracket ⑧.
8. Adjust the desired position of the spotlight and tighten the U-bolts ⑧.

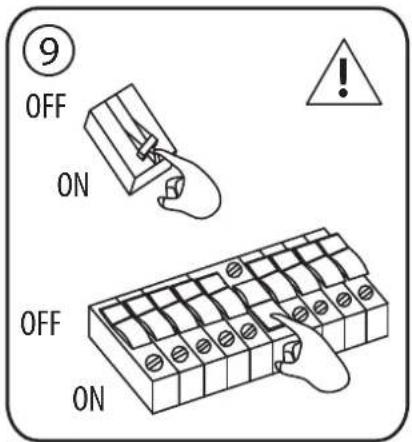

9. Turn the power supply back on ⑨.

FUNCTIONAL DESCRIPTION

(only for versions with motion sensor)

This floodlight is equipped with an infrared sensor. It is switched on automatically if the sensor detects motion in the environment.

If possible, do not direct the motion sensor at swimming pools, heating air exhausts, air conditioning units or objects which are exposed to major temperature fluctuations.

Avoid directing the motion sensor at trees or bushes or at places which could be frequently visited by pets.

The motion sensor can be turned horizontally to the right and left and angled vertically up and down.

When mounting the floodlight remember that the motion sensor will react most sensitively to motions crossing its field of detection from one side to the other and least sensitively to motions directly approaching the unit.

CONFIGURING THE MOTION DETECTOR (PIR)

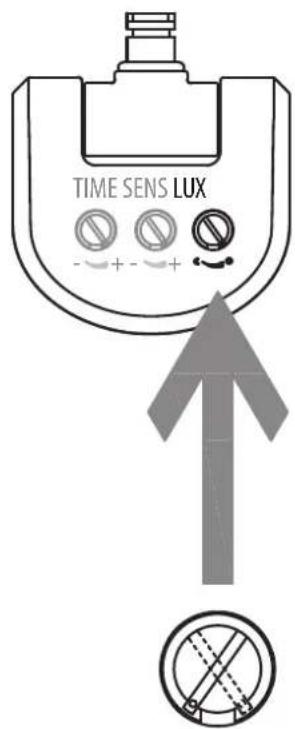

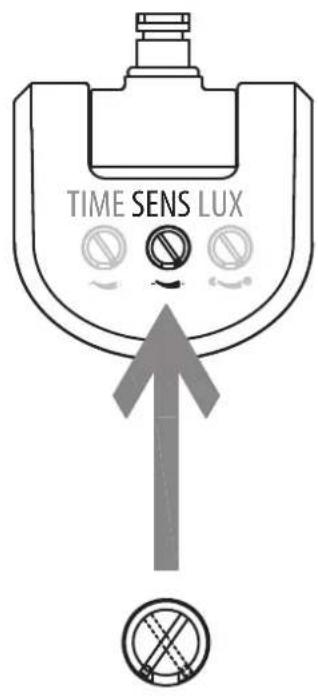

Three controllers are located on the rear of the motion detector ⑨.

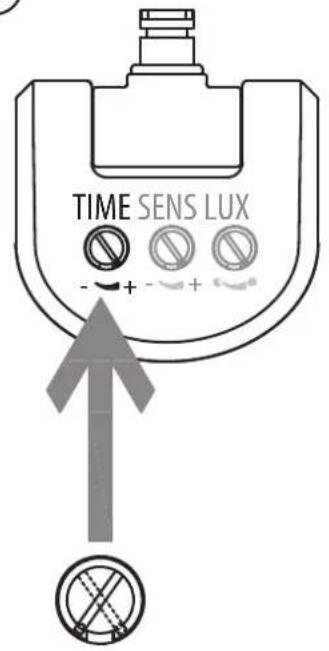

TIME - time adjustment (left):

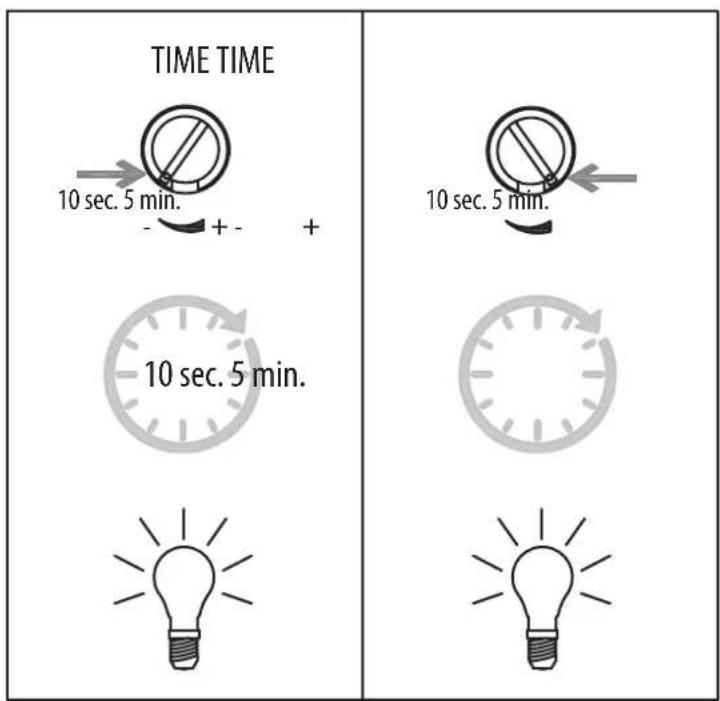

Using this controller, you can select any switch-on time between approx. 10 seconds and 5 minutes after the last motion was detected. Rotating the TIME controller clockwise decreases the time period, rotating it counterclockwise increases it.

LUX – light adjustment (sun and moon symbol, right) ⑩:

The light adjustment determines from what brightness level the sensor will switch on the floodlight.

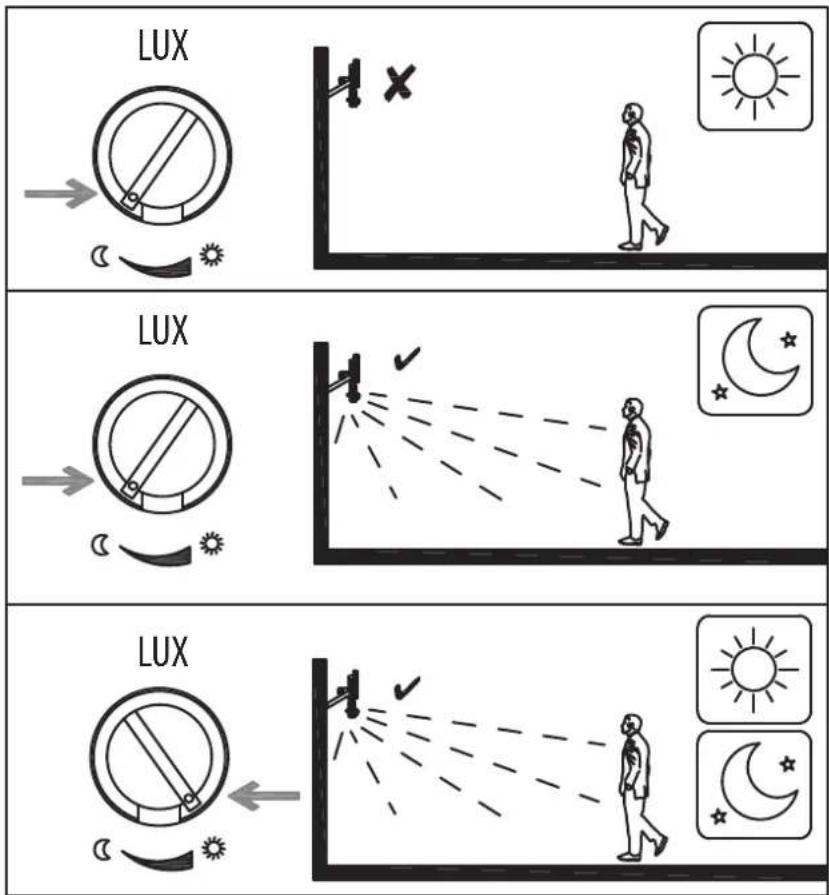

The (sun symbol) position indicates that the sensor works by day and at night, in the (moon symbol) position, the sensor will only work at night. To adjust the sensor, wait until the desired ambient brightness is reached. Completely rotate the light adjustment controller to the (moon) symbol. Slowly rotate the controller in the direction of the (sun) symbol until the floodlight is switched on by the motion.

The floodlight will now be activated from the set brightness when a motion is detected.

SENS - SENSITIVITY ADJUSTMENT (CENTRE) ⑪:

The sensitivity of the sensor depends on the ambient temperature. The lower the ambient temperature, the greater the sensitivity of the motion detector.

The sensor is at its most sensitive when the SENS controller is turned all the way to the (+) direction.

Motion sensor: passive infrared sensor (PIR)

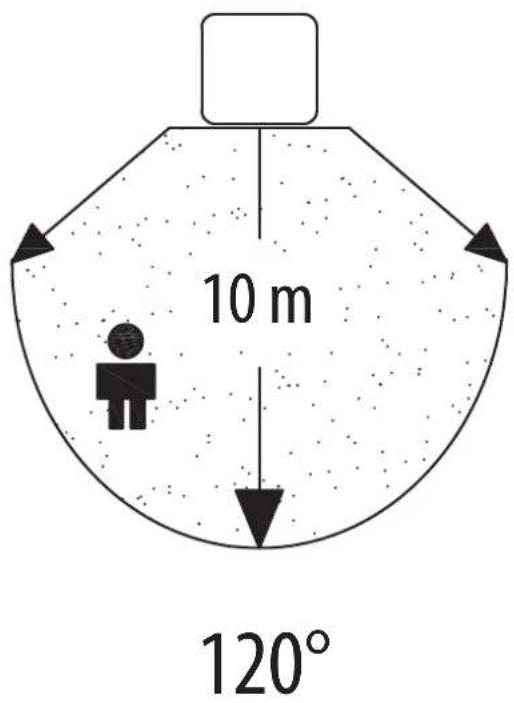

Detection range: up to 10 m/up to 120° (horizontal) ⑫

Time adjustment: approx. 10 sec. to 5 min.

Ambient brightness: 0 – 2000 lux

Sensitivity: 3 to 10 m depending on the installation location ⑬

MAINTENANCE

ATTENTION! The LED lamp does not contain components that require maintenance. The light source in this lamp cannot be replaced; if the light source has reached the end of its service life, the entire lamp has to be replaced. The lamp may not be opened.

CLEANING

Before cleaning, disconnect the floodlight from the mains power.

Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning.

DISPOSAL

Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste!

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.

For possibilities of disposal of the used appliance, please contact your local or municipal administration.

EU DECLARATION OF CONFORMITY

UK DECLARATION OF CONFORMITY

The declaration of conformity is deposited at the manufacturer.

ADRESSES

For more information please visit the Service/FAQ section on our homepage, www.brennenstuhl.com.
