Aqua 160 - Water filter EHEIM - Free user manual and instructions

Product type	Modular indoor water filter
Brand	EHEIM
Model	Aqua 160
Use	Aquarist, indoor
Max immersion depth	1.0 m
Protection class	II
Protection index	IP68 (permanent immersion)
Safety standard	EN 60335-2-41
Main functions	Mechanical, biological cleaning, circulation, oxygenation
Filter elements	Plastic foam cartridges, activated carbon
Flow regulator	Yes, by sliding
Attachment	4 suction cups
Max water temperature	35°C
Cartridge maintenance	Light rinsing with water after each cleaning, replacement after 3-4 cleanings
Activated carbon replacement	Approximately every 14 days
Safety distance for implants	At least 30 cm
Recommended electrical protection	30 mA residual current circuit breaker
Power cable	Non-replaceable
Materials	Plastic, magnets
Storage	Frost-free
Repairs	Only by authorized EHEIM service
Spare parts	Use original parts

Frequently Asked Questions - Aqua 160 EHEIM

How to install the EHEIM Aqua 160 filter?

Lightly moisten the suction cups and attach them to the designated spots on the receiver housing and the bottom of the filter. Place the filter against the inner glass of the aquarium, with the pump outlet just below the water surface. Plug in the device after checking the integrity of the cable.

How often should the filter cartridges be cleaned?

The cartridges should be rinsed lightly with water after each cleaning to preserve the bacterial mat. Replace them after the third or fourth cleaning.

When should I replace the activated carbon?

The activated carbon should be replaced after approximately 14 days, as its adsorption capacity is exhausted. Do not reuse it to avoid releasing pollutants.

Can I use the filter in seawater?

The device is designed for indoor aquarist use. The water temperature must not exceed 35°C. It is not specifically intended for seawater, but may be suitable if conditions are respected.

What to do in case of a water leak?

Immediately disconnect all aquarium devices from the mains. Check the seals and connections. If the problem persists, contact an authorized EHEIM service.

Is the filter safe for pacemaker wearers?

The device contains powerful magnets. Maintain a distance of at least 30 cm between the implant and the magnet.

How to adjust the pump flow?

The flow is adjusted by sliding the flow regulator located on the diffuser. Push it to reduce or increase the flow.

Can I clean the impeller?

Yes, detach the pump by tilting it, remove the impeller and clean it with a brush (not supplied). Also clean the pump chamber and the openings.

Where can I find spare parts?

Use only original EHEIM parts. Contact your dealer or EHEIM after-sales service for references.

How to store the filter when not in use?

Remove it from the aquarium, clean it thoroughly and store it in a place protected from frost and humidity.

USER MANUAL Aqua 160 EHEIM

Technical line drawing of a mechanical device with no visible text or symbols

aqua60

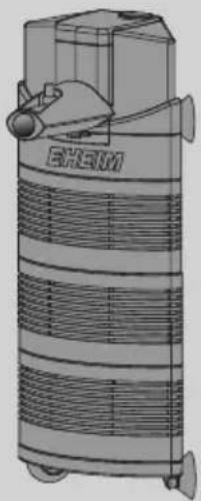

Technical line drawing of a cylindrical industrial device with curved internal structure and mounting feet (no text or symbols)

aqua160 aqua200

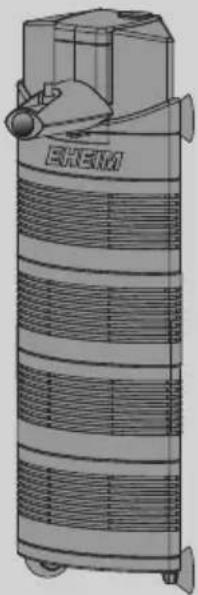

Technical line drawing of a cylindrical industrial device with horizontal bands and a handle (no text or symbols)

de Innenfilter

en Internal filter

fr Filtre intérieur

nl Binnenfilter

sv Innerfilter

no Innvendig filter

fi Sisäsuodatin

Technical line drawing of a mechanical device with a rotating knob and pipe connection (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical device with a power outlet and wiring, showing internal components and motion direction (no text or symbols)

G H

2206 7445868 2207/2208 7481728 7426130 7426140 7426160 2617050 7445848 4020050 7216838

Translation of the original operating manual

Innenfilter aqua60 / 160 / 200

1. General user instructions

Information on using the operating manual

▶ Before using the appliance for the first time, the operating manual must be read fully and understood.
▶ Consider the operating manual as part of the product and keep in a safe and accessible location.
▶ Enclose this operating manual if passing the appliance on to a third party.

Symbol explanation

The following symbols are used on the appliance:

The appliance must only be used indoors, and exclusively for aquariums.

The device has an immersion depth of max. 1.0 m.

The appliance is of protection class II.

IP68 The symbol indicates that the appliance is protected against permanent submerging.

The appliance fulfils the requirements of the EN 60335-2-41 standard.

The following symbols and signal words are used in this operating manual:

DANGER!

The symbol indicates imminent danger from electric shock that can result in death or serious injury.

DANGER!

The symbol indicates imminent danger that can result in death or serious injury.

Danger from magnetic fields

The symbol denotes imminent danger causing severe personal injury or death if the corresponding measures are not taken.

WARNING!

The symbol indicates imminent danger that can result in moderate to minor injury or a health risk.

CAUTION!

The symbol indicates the danger of material damage.

Note with useful information and tips.

Typographical conventions:

Reference to a figure; in this case, reference to figure A.

You are prompted for an action.

2. Application

The appliance and all parts included in the scope of delivery are intended for private use and must only be used:

• for aquarium-related purposes
- indoors
• in compliance with the technical data

The following limitations apply to the appliance:

• do not use for commercial or industrial purposes
• the water temperature may not exceed 35^ C

VERY IMPORTANT SAFETY INSTRUCTIONS

WARNING- To guard against injury, basic safety precautions should be observed, in-cluding the following.

• FOR HOUSEHOLD USE ONLY · WARNING! RISK OF ELECTRIC SHOCK!
• This pump has not been investigated for use in swimming pools areas!
• DO NOT RUN DRY!

READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

• DANGER. To avoid possible electric shock, special care should be taken since water is employed in the use of aquarium equipment. For each of the following situations, do not attempt repairs by yourself; return the appliance to an authorized service facility for service or discard the appliance.
• If the appliance shows any sign of abnormal water leakage, immediately unplugit from the power source.
• Carefully examine the appliance after installation. It should not be plugged in if there is water on parts not intended to be wet.
• Do not operate any appliance if it has a damaged cord or plug, or if it is malfunctioning or if it is dropped or damaged in any manner.

POWER • T apppliance plug or receptacle getting wet, position qua- rium stand and tank to one side of a wall mounted re- ceptacle to prevent water from dripping onto the re- ceptacle of plug. A "drip loop", shown in the figure,

• To avoid the possibility of the

should be arranged by the user for each cord connecting the aquarium appliance to a receptacle. The “drip loop” is that part of the cord below the level of the cord

• and coming in contact with the receptacle. If the plug or receptacle does get wet, DON'T unplug the cord; disconnect the fuse or circuit breaker that supplies power to the appliance. Then unplug and examine for presence of water in the receptacle.
• Close supervision is necessary when any appliance is used by or near children.
• To avoid injury, do not contact moving parts.
• Always unplug an appliance from an outlet when not in use, before putting or taking off parts, and before cleaning. Never yank cord to pull plug from outlet. Grasp the plug and pull to disconnect.
• Do not use an appliance for other than intended use. The use of attachments not recommended or sold by the appliance manufacturer may cause an unsafe condition.
• Do not install or store the appliance where it will be exposed to the weather or to temperatures below freezing.
• Make sure an appliance mounted on a tank is securely installed before operating it.
• Read and observe all the important notices on the appliance and its cord.
• If an extension cord is necessary, a cord with a proper rating should be used. A cord rated for less amperes or watts than the appliance rating may overheat. Care should be taken to arrange the cord so that it will not be tripped over or pulled.
• Check that the voltage shown on the label of the unit corresponds to the voltage of the mains supply.
• Disconnect all electrical appliances from the mains before placing hands in the water.
• The line cord of this unit cannot be replaced or repaired. Should the line cord become damaged the appliance must be discarded.

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

3. Safety instructions

Risks for persons and property can arise from this appliance if the appliance is improperly used or not used as intended or if the safety instructions are not heeded.

For your safety

- This appliance can be used by children from the age of 8 and by persons with reduced

physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised and have been instructed in the safe use of the appliance and have understood the resulting dangers. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are supervised.

• Before use, carry out a visual inspection to ensure that the appliance, especially the mains cable and plug, are undamaged.
• Repairs must only be carried out by an EHEIM service centre.
• The connecting line of this device can not be replaced. When the line is damaged, the device must no longer be used.
• Only carry out the work described in these instructions.
• Only use original spare parts and accessories for the appliance.
• The appliance has magnets with strong magnetic fields that can affect pacemakers or implanted defibrillators (ICD). Maintain a distance of AT LEAST 30 CM between the implant and magnet.
• To protect against contact voltage being too high, the fixture must have a residual current device with a rated release fault current not exceeding 30 mA. Ask your electrician.
• In the event of water leakage or when the residual current protection device is triggered, immediately disconnect all devices in the aquarium from the power supply.
• If they are not being used, always disconnect all devices in the aquarium from the power supply before you install/remove any parts and before all cleaning and maintenance work.

• Protect the mains socket and mains plug against moisture. It is recommended to form a drip loop with the mains cable to prevent any water running along the ca mains socket.
• The electrical data of the pump must match the data of the power mains. This data is found on the type plate, the packaging and in these instructions.

4. Function

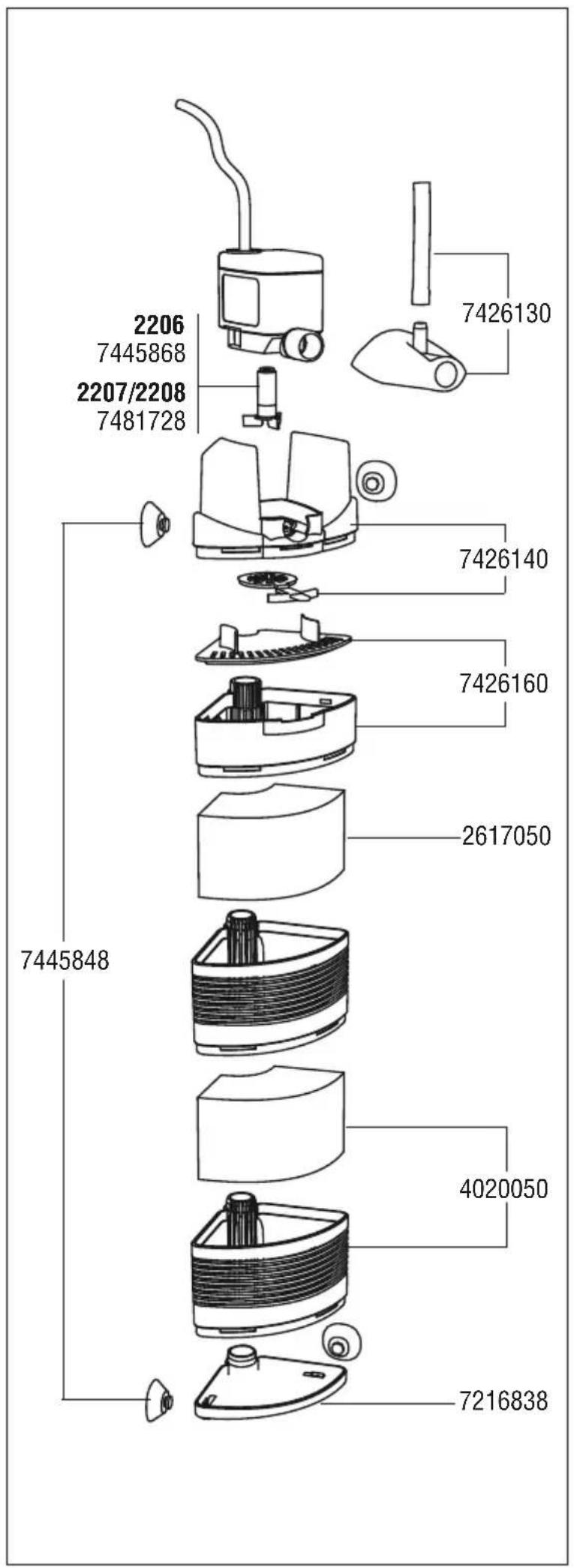

A ① Diffuser with hose ② Pump ③ Impeller ④ 4 x suction cups ⑤ Pump holding fixture ⑥ Power regulator ⑦ Filter box with lattice screen ⑧ Filter cartridge ⑨ Filter canister ⑩ Filter base.

In a single operation, this modular internal filter ensures the mechanical-biological cleaning of the aquarium water with permanent circulation, specific surface movement and controllable oxygen supply.

The foam cartridges inside the filter canisters ensure the mechanical cleansing and simultaneous biological clarification of the water. In addition, active charcoal is placed in the filter canister to aid the adsorbing cleaning effect.

Note: Replace the active charcoal after approx. 14 days as the adsorption strength has then been exhausted.

5. Installation / Putting into operation

B Attach diffuser with air hose on outlet connection. By shifting the power regulator, it is possible to infinitely adjust the pump power.
C Lightly moisten the suction cups – press onto the appropriate housing of the pumpe housing and on the bottom of the filter using a twisting action. Press the filter to the inside of the aquarium's glass to attach.

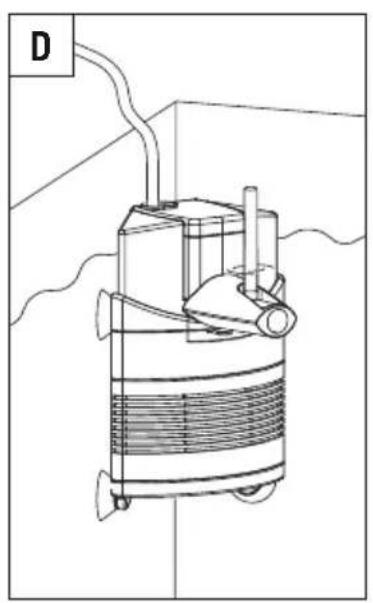

D Insert the filter such that the pump head is positioned just beneath the surface of the water.

Important: The diffuser power decreases in line with the degree of soiling.

6. Cleaning

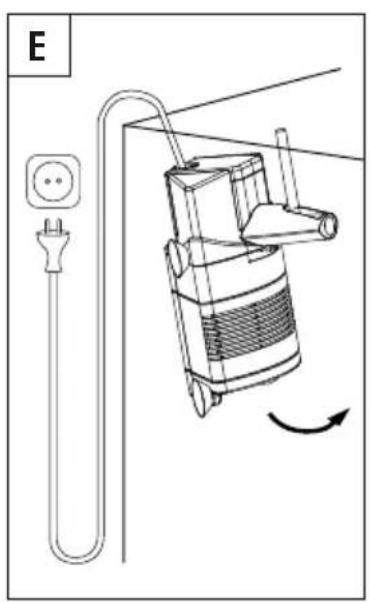

E Disconnect the filter from the power supply. Remove it from the aquarium by releasing the suction cups.

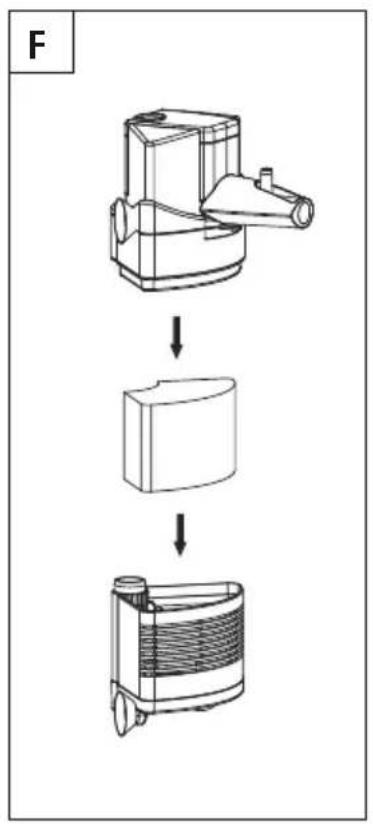

F Separate the filter containers by gently pulling apart.

Subsequently, clean the modules and wash out the filter cartridge(s). Replace after third or fourth cleaning.

Attention: The cartridges from models 60, 160 and 200 should be only lightly rinsed under lukewarm, running water in order to preserve the purifying bacteria and to accelerate its new development.

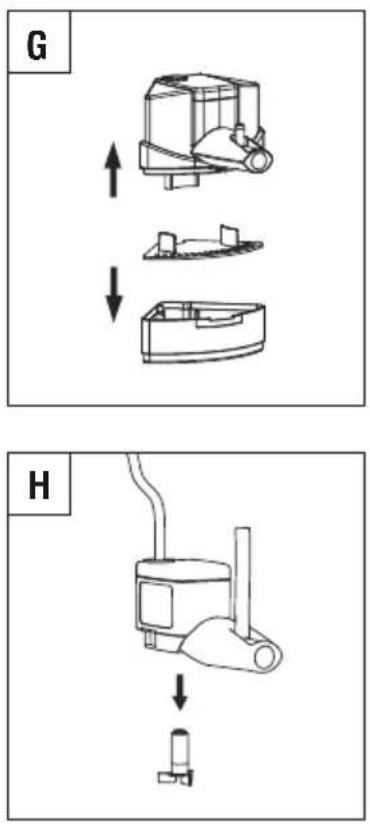

G Pull the filter canister from the pump housing, empty the active charcoal and replace. Finish by reassembling the cleaned filter components, taking care to assemble these in the correct way.

Note: Do not use the active charcoal again! The adsorption strength of the active charcoal is exhausted after 14 days. There is a danger that bound pollutants can be re-released into the aquarium water.

7. Maintenance

H To remove the pump, take the pump off the outlet, using a slight tilting movement.

Take out the impeller and clean. Take the diffuser from the pump.

Clean the pump chamber, inflow and outflow openings with a cleaning brush (order no. 4009560 – not supplied). Finally, refit the impeller and position the pump in the pump housing.

8. Decommissioning

Storage

1. Take the appliance out of the aquarium.
2. Clean the appliance
3. Store the appliance in a frost-proof place.

Disposal

When disposing of the appliance, heed the respective statutory regulations. Information on the disposal of electrical and electronic appliances in the European Union: Within the European Union, disposal of electrically operated appliances is governed by national regulations that are based on the EU Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). The appliance may no longer be disposed of with the municipal or household waste. The appliance will be accepted free of charge at municipal collection points or recycling centres. The product packaging is made up of recyclable materials. Dispose of them in an environmentally responsible manner and take them for recycling.

Élimination/destruction

Reproduction or copying – even parts thereof – only with the express permission of the producer.
