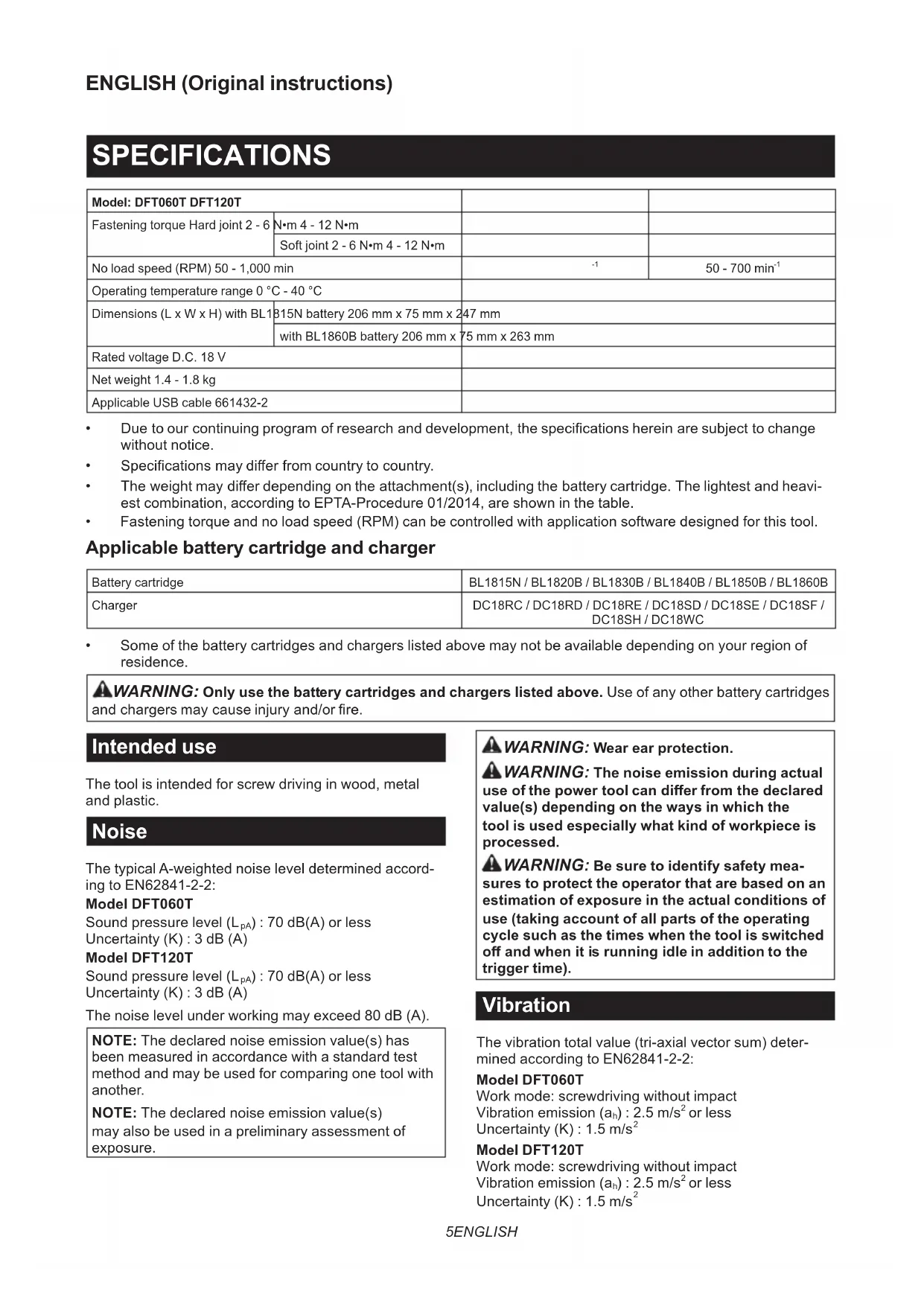

Cordless Screwdriver INSTRUCTION MANUAL 5

• Specicationsmaydi󰀨erfromcountrytocountry.

• Theweightmaydi󰀨erdependingontheattachment(s),includingthebatterycartridge.Thelightestandheavi- est combination, according to EPTA-Procedure 01/2014, are shown in the table.

• Fastening torque and no load speed (RPM) can be controlled with application software designed for this tool. Applicable battery cartridge and charger Battery cartridge BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860BCharger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF / DC18SH / DC18WC
• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges

andchargersmaycauseinjuryand/orre. Intended use The tool is intended for screw driving in wood, metal and plastic. Noise The typical A-weighted noise level determined accord- ing to EN62841-2-2: Model DFT060T Sound pressure level (L

) : 70 dB(A) or less Uncertainty (K) : 3 dB (A) The noise level under working may exceed 80 dB (A). NOTE: The declared noise emission value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. NOTE: The declared noise emission value(s) may also be used in a preliminary assessment of exposure.

WARNING: Wear ear protection.

WARNING: The noise emission during actual

use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Vibration The vibration total value (tri-axial vector sum) deter- mined according to EN62841-2-2: Model DFT060T Work mode: screwdriving without impact Vibration emission (a

Model DFT120T Work mode: screwdriving without impact Vibration emission (a

or less Uncertainty (K) : 1.5 m/s 26 ENGLISH NOTE: The declared vibration total value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. NOTE: The declared vibration total value(s) may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission during

actual use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). EC Declaration of Conformity For European countries only The EC declaration of conformity is included as Annex A to this instruction manual. SAFETY WARNINGS General power tool safety warnings

WARNING: Read all safety warnings, instruc-

tions, illustrations and specications provided with this power tool. Failure to follow all instructions listedbelowmayresultinelectricshock,reand/or serious injury. Save all warnings and instruc- tions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Cordless screwdriver safety warnings

1. Hold the power tool by insulated gripping

surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

2. Always be sure you have a rm footing.

Be sure no one is below when using the tool in high locations.

3. Hold the tool rmly.

4. Keep hands away from rotating parts.

5. Do not touch the bit or the workpiece immedi-

ately after operation; they may be extremely hot and could burn your skin.

6. Always secure workpiece in a vise or similar

7. Make sure there are no electrical cables, water

pipes, gas pipes etc. that could cause a hazard if damaged by use of the tool. SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. Important safety instructions for battery cartridge

Before using battery cartridge, read all instruc- tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble or tamper with the battery

cartridge.Itmayresultinare,excessiveheat, or explosion.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current ow, overheating, possible burns and even a breakdown.

6. Do not store and use the tool and battery car-

tridge in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn out. The battery cartridge can explode in a re.

8. Do not nail, cut, crush, throw, drop the battery

cartridge, or hit against a hard object to the battery cartridge. Such conduct may result in a re,excessiveheat,orexplosion.

9. Do not use a damaged battery.

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. For commercial transports e.g. by third parties, forwarding agents, special requirement on pack- aging and labeling must be observed. For preparation of the item being shipped, consult- ing an expert for hazardous material is required. Please also observe possibly more detailed national regulations. Tapeormasko󰀨opencontactsandpackupthe battery in such a manner that it cannot move around in the packaging.7 ENGLISH

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products

specied by Makita. Installing the batteries to non-compliantproductsmayresultinare,exces- sive heat, explosion, or leak of electrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool.

14. During and after use, the battery cartridge may

take on heat which can cause burns or low temperature burns. Pay attention to the han- dling of hot battery cartridges.

15. Do not touch the terminal of the tool imme-

diately after use as it may get hot enough to cause burns.

16. Do not allow chips, dust, or soil stuck into the

terminals, holes, and grooves of the battery cartridge.Itmaycauseheating,catchingre, burst and malfunction of the tool or battery car- tridge, resulting in burns or personal injury.

17. Unless the tool supports the use near

high-voltage electrical power lines, do not use the battery cartridge near high-voltage electri- cal power lines. It may result in a malfunction or breakdown of the tool or battery cartridge.

18. Keep the battery away from children.

SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causingres,personalinjuryanddamage.Itwill also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery car-

tridge. Overcharging shortens the battery service life.

3. Charge the battery cartridge with room tem-

perature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. When not using the battery cartridge, remove

it from the tool or the charger.

5. Charge the battery cartridge if you do not use

it for a long period (more than six months). FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge CAUTION: Always switch o󰀨 the tool before installing or removing of the battery cartridge. CAUTION: Hold the tool and the battery car- tridge rmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridgermlymaycausethemtoslipo󰀨yourhands and result in damage to the tool and battery cartridge and a personal injury. ►Fig.1: 1. Red indicator 2. Button 3. Battery cartridge To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge. To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator as showninthegure,itisnotlockedcompletely. CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you. CAUTION: Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly. Indicating the remaining battery capacity Only for battery cartridges with the indicator ►Fig.2: 1. Indicator lamps 2. Check button Press the check button on the battery cartridge to indi- cate the remaining battery capacity. The indicator lamps light up for a few seconds. Indicator lamps Remaining capacityLighted O󰀨 Blinking75% to 100%50% to 75%25% to 50%0% to 25%Charge the battery.The battery may havemalfunctioned.8 ENGLISH NOTE: Depending on the conditions of use and the ambienttemperature,theindicationmaydi󰀨erslightly from the actual capacity. NOTE:Therst(farleft)indicatorlampwillblinkwhen the battery protection system works. Tool / battery protection system The tool is equipped with a tool/battery protection sys- tem.Thissystemautomaticallycutso󰀨powertothe motor to extend tool and battery life. The tool will auto- matically stop during operation if the tool or battery is placed under one of the following conditions: Overload protection When the tool/battery is operated in a manner that causes it to draw an abnormally high current, the tool stopsautomatically.Inthissituation,turnthetoolo󰀨 and stop the application that caused the tool to become overloaded. Then turn the tool on to restart. Overheat protection When the tool/battery is overheated, the tool stops automatically. In this situation, let the tool/battery cool before turning the tool on again. Overdischarge protection When the battery capacity is not enough, the tool stops automatically. In this case, remove the battery from the tool and charge the battery. Protections against other causes Protection system is also designed for other causes that could damage the tool and allows the tool to stop automatically. Take all the following steps to clear the causes, when the tool has been brought to a temporary halt or stop in operation.

2. Charge the battery(ies) or replace it/them with

recharged battery(ies).

3. Let the tool and battery(ies) cool down.

If no improvement can be found by restoring protection system, then contact your local Makita Service Center. Switch action

WARNING: Before installing the battery car-

tridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released. Pull the switch trigger to start the tool. Release the switch trigger to stop the tool. ►Fig.3: 1. Switch trigger NOTE: The tool automatically stops temporarily to saveoperationlogsafternishingfastening. Lighting up front lamp CAUTION: Do not look in the light or see the source of light directly. Pull the switch trigger to light up the lamp. The lamp keeps on lighting while the switch trigger is being pulled. The lamp goes out approximately 10 seconds after releasing the switch trigger. ►Fig.4: 1. Lamp NOTE: Pre-set lighting settings can be customized in application preferences. For detailed information, refer to the instruction manual supplied with the appli- cation software designed for this tool. NOTE:Useadryclothtowipethedirto󰀨thelensof the lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination. Turning on display screen Pull the switch trigger to turn the display screen on. The screen remains displayed while the switch trigger isbeingpulled.Thescreengoeso󰀨approximately60 seconds after releasing the switch trigger. ►Fig.5: 1. Display screen NOTE: Default display settings can be customized in application preferences. For detailed information, refer to the instruction manual supplied with the appli- cation software designed for this tool. NOTE:Useadryclothtowipethedirto󰀨thedisplay screen. Be careful not to scratch the screen, or it may lower the illumination. Reversing switch action CAUTION: Always check the direction of rotation before operation. CAUTION: Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may dam- age the tool. CAUTION: When not operating the tool, always set the reversing switch lever to the neu- tral position. This tool has a reversing switch to change the direction of rota- tion. Depress the reversing switch lever from the A side for clock- wise rotation or from the B side for counterclockwise rotation. When the reversing switch lever is in the neutral posi- tion, the switch trigger cannot be pulled. ►Fig.6: 1. Reversing switch lever Electric brake This tool is equipped with an electric brake. If the tool consistently fails to quickly stop after the switch trigger is released, have the tool serviced at a Makita service center. NOTE: An electric brake function can be activated or deactivated in application preferences. For detailed information, refer to the instruction manual supplied with the application software designed for this tool.9 ENGLISH LED indicator / Beeper The LED indicators and beeper become activated when the tool works in the following operating conditions and notify you of the tool status and performance currently delivered on the control panel. ►Fig.7: 1. LED indicator A (in green, red, blue and yellow colors) 2. LED indicator B (in blue color) (* Not serve as indicator for this model) 3. Error code 4. Status symbol Error code and status symbol on screen Tool performance and function Tool status LED indicators/beeper status Action to be taken LED indicators Beeper - Operation check for indicators and beeper The tool starts to verify indica- tors and beeper operation soon after the battery cartridge is installed. The LED indicator brieylightsup in green, red and blue in order, and then the front lamp lights up. A series of very short beeps

E00 Accidental start prevention The tool automatically stops to avoid unintentional start-up when the battery cartridge is installed with the switch trigger pulled. The LED indicator ashesinredand green alternately. A series of short beeps Release the switch trigger. E01 Auto-stop The battery power becomes low and it is time to replace the battery cartridge. The LED indicator ashesinredand green alternately. A series of short beeps Replace the battery with fully charged one. E02 Anti-reset of controller The battery voltage drops abnormally for some reason, and the tool automatically stops operation. The LED indicator ashesinredand green alternately. A series of short beeps Replace the battery with fully charged one. E03 Auto-stop for low remaining battery power The battery power is almost used up, and the tool automati- cally stops operation. The LED indicator lights up in red. A long beep Replace the battery with fully charged one. E04 Overload protection The tool automatically stops to protect against a continuous overcurrent. The LED indicator ashesinredand green alternately. A series of short beeps Remove the cause of overload and restart the tool. If no improvement is found, ask your local Makita Service Center for repair. E05 Overheat protection The motor or controller gen- erates excessive heat, and the tool stops automatically to protect the tool from damage. The LED indicator brieyashes in red. A series of short beeps Remove the battery cartridge immedi- ately and cool the tool down. E06 Motor lock Motor lock has occurred, and the tool automatically stops the motor operation. The LED indicator ashesinredand green alternately. A series of short beeps Release the switch trigger and pull it again. E07 Motor or controller failure detection Motor or controller failure has been detected, and the tool automatically stops the motor operation. The LED indicator ashesinredand green alternately. A series of short beeps Ask your local Makita Service Center for repair. E09 Torque sensor failure detection The torque sensor cannot be monitored properly for a number of technical reasons including line breaks. The LED indicator ashesinredand green alternately. A series of short beeps Remove the battery cartridge and cool the tool down. If the indicator remains lit, ask your local Makita Service Center for repair. - Auto-stop with fasten- ing completion The tool automatically stops the motor operation after the pre- set fastening steps have been completed. The LED indicator lights up in green for approximately one second. - -10 ENGLISH Error code and status symbol on screen Tool performance and function Tool status LED indicators/beeper status Action to be taken LED indicators Beeper - Alertforinsu󰀩cient fastening The tool raises an alert for incomplete fastening under the following operating conditions. (1): The trigger switch is released before the pre-set fastening torque has been achieved. (2): The tool stops automati- cally after classifying fastening errors. (1): The LED indicator lights up in red for approximately two seconds. (2): The LED indicatorashes in yellow and red alternately for approximately two seconds. A long beep Retighten the screw. Waiting function between pre-set fastening steps The tool is sitting idle, after one of the pre-set fastening steps has been completed, waiting to follow the next pre-set fasten- ing step.

• A status symbol ( )ashes in the display screen. The LED indicator lights up in green.

- Low-battery alert The battery is becoming low on power, and the battery cartridge needs to be recharged or replaced with fully charged one. The LED indicator slowlyashes in red. A series of long beeps Replace the battery with fully charged one. - Error alert for heat detection of motor The motor temperature cannot be monitored properly for a number of technical reasons including line breaks. The LED indicator brieyashes in red. A series of short beeps Remove the battery cartridge and cool the tool down. If the indicator remains lit, ask your local Makita Service Center for repair. Maintenance notice Maintenance notice will be posted for optimum operational reliability when the accu- mulated maintenance count reaches the pre-set number.

• A status symbol ( ) appears in the display screen when the accumulated mainte- nance count reaches the pre- set “Stop Count” number. The LED indicator ashesinyellow. - Reset the mainte- nance count in the application software designed for this tool. Alert for storage disabled Up to 1,000 fastening result data can be saved in the tool memory. The number of unread data in the memory reaches to the maximum.

• A status symbol ( ) appears in the display screen when the storage capacity reaches the maximum. The LED indicator ashesinyellow. - Load the fastening result data saved in the tool memory using the application software designed for this tool. - Error alert for data communication with computer The tool raises an alert for communication error in the wired environment. The LED indicator ashesinyellow. - Link the tool again with the application software designed for the tool after restarting the application. - Status indicator for data communication with computer The tool informs that data communication has been securely established in the wired environment. The LED indicator ashesingreen. - -11 ENGLISH TOOL SETTINGS CAUTION: Make sure to adjust tool settings according to your applications and preferences before use. CAUTION: Perform trial fastening, using a torque checker etc., if necessary, so as to verify if the updated settings are successfully applied. NOTICE: Install the application software designed for this tool in your computer before connecting the tool to the computer for the rst time. For detailed information, refer to the installa- tion manual supplied with the application software designed for this tool. A series of operation settings, including fastening torque and no-load speed, can be adjusted via software screen. Archiving and sharing tool preferences through the software can enhance work performance. Connecting with computer NOTICE: Use the Makita genuine USB cable to connect the tool with your computer.

1. Plug the USB cable into the USB port on your

2. Slide the USB cover open on top of the housing,

and then plug the other end of the USB cable into the USB port on the tool. ►Fig.8: 1. USB cover 2. USB cable 3. USB port NOTE: The LED indicator on top of the rear display screenashesinyellowafteryourcomputerrec- ognizes the tool plugged into the USB port. Launch the application software on your computer, and the LEDindicatorashesingreenafterdatacommuni- cation between the devices has been successfully established. NOTE: While connected to your computer, the LED indicatoronthetoolremainsashingingreenandno switch operation is available. NOTE: Slide the USB cover close on top of the hous- ing each time after disconnecting the USB cable from the USB port on the tool.12 ENGLISH Switch control on display panel and screen components Buttons and descriptions on start screen ►Fig.9

Lights up in green, red, blue and yellow colors.

Displays and navigates you to the settings menu.

Edit tool settings using four buttons on the panel accordingly.

4. Down arrow button

Edit tool settings using four buttons on the panel accordingly.

5. Left arrow button

Edit tool settings using four buttons on the panel accordingly.

6. Right arrow button

Edit tool settings using four buttons on the panel accordingly.

7. Information window

Upper row: Fastening torque set in the previous operation Lower row: Rotation angle set in the previous operation

Displays the mode currently selected.

• Only “manual mode” is available for this tool.

9. Data communication status indicator

Status symbols Indicate data communication status as follows: Status symbol Communication status Data communication not established

• This symbol always appears on the screen during fastening operation. USB data communication established

Displays the job number currently selected. Up to 8 jobs can be stored in the tool memory using the application software designed for this tool. Job data includes settings information and operation logs such as fastening torque and rotation speed. NOTE: When the number zero appears on the screen, no job data is saved in the tool. Create a job using the application software designed for this tool.

11. Page number currently displayed on the

A status symbol ( ) appears in the display screen while the tool settings and operation logs are being saved in the tool memory. NOTICE: Do not remove the battery cartridge from the tool while any settings les and opera- tion logs are being saved in the tool memory.13 ENGLISH Settings menu The following settings menu options are available in the settings menu window. Level 1 Level 2 Level 3 Level 4 Start menu (start screen) PIN code menu Select menu “Total Job” menu Total job settings

NOTE: The default PIN codes are “0000”. Button Action Application Press Change digit position. Press Change setting values. Press and hold Conrmsetting Press and hold Return to start screen Select menu ►Fig.11 Select one of the menu options on the screen after you enter the PIN successfully. Press the up or down arrow button to scroll the select menu screen. Then press the right arrow button to display your preferred settings menu. Total job settings

• This settings menu is not available for this tool. Job settings ►Fig.12: 1. Job number you select 2. Total job num- bers stored in tool memory Select one of the jobs previously saved in the tool memory. Button Action Application Press Change setting values. Press and hold Conrmsetting History settings ►Fig.13: 1. Total numbers of screws you have fas- tenedsofarsincerstoperation2. Total numbers of screws you have fastened after previous maintenance Learn your job history. NOTE: Accumulated maintenance count can be reset in your accordance in the application software designed for this tool. Network settings ►Fig.14 Learnyourdeviceidentication. PIN settings ►Fig.15 Renew your PIN codes if the need arises. Button Action Application Press Change digit position. Press Change setting values. Press and hold Conrmsetting Press and hold Return to start screen14 ENGLISH ASSEMBLY CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before carrying out any work on the tool. Installing or removing driver bit/socket bit ►Fig.16 Use only driver bit/socket bit that has inserting portion shown inthegure.Donotuseanyotherdriverbit/socketbit. For tool with shallow driver bit hole A=12mm B=9mm Use only these type of driver bit. Follow the procedure 1. (Note) Bit-piece is not necessary. For tool with deep driver bit hole A=17mm B=14mmTo install these types of driver bits, follow the procedure 1.A=12mm B=9mmTo install these types of driver bits, follow the procedure 2. (Note) Bit-piece is necessary for installing the bit. Procedure 1 For tool without one-touch type sleeve ►Fig.17: 1. Driver bit 2. Sleeve To install the driver bit, pull the sleeve in the direction of the arrow and insert the driver bit into the sleeve as far as it will go. Then release the sleeve to secure the driver bit. For tool with one-touch type sleeve To install the driver bit, insert the driver bit into the sleeve as far as it will go. Procedure 2 In addition to Procedure 1, insert the bit-piece into the sleeve with its pointed end facing in. ►Fig.18: 1. Driver bit 2. Bit-piece 3. Sleeve To remove the driver bit, pull the sleeve in the direction of the arrow and pull the driver bit out. NOTE: If the driver bit is not inserted deep enough into the sleeve, the sleeve will not return to its original position and the driver bit will not be secured. In this case, try re-inserting the bit according to the instruc- tions above. NOTE:Whenitisdi󰀩culttoinsertthedriverbit,pull the sleeve and insert it into the sleeve as far as it will go. NOTE: After inserting the driver bit, make sure that it isrmlysecured.Ifitcomesout,donotuseit. Installing hook Optional accessory The hook is useful to hang the tool. Install the hook to the holes on the tool body. ►Fig.19: 1. Hook 2. Hole OPERATION Screwdriving operation CAUTION: Hold the tool rmly and place the driver bit/socket bit securely over the screw head/ bolt head during fastening operation. Failure to do so may cause mishandling of the tool resulting in personal injury. CAUTION: Make sure that the driver bit/ socket bit is placed straight over the screw head, or the screw and driver bit/socket bit may be damaged. CAUTION: Keep hands away from the rotating parts during operation. Failure to do so may cause your hands to be caught in the moving parts, resulting in personal injury. Place the tip of the driver bit/socket bit straight over the screw head/bolt head, apply pressure to the tool, and then switch the tool on. The tool automatically stops the motor when the output torque reaches the target torque set in the application software. Release the switch trigger after the tool comes to a complete stop. ►Fig.20 Limits of fastening capacity NOTICE: Operating temperature range Use the tool in the recommended ambient tempera- ture range of 0 °C - 40 °C. Operation outside the recommended temperature may reduce the tool performance,resultingininsu󰀩cientfasteningor unstable output torque. Use the tool within the limits of its fastening capacity. If you use the tool beyond the limits, the output torque may be reduced as a means of tool protection. For model DFT060T

1. Range of fastening capacity 2. Rotation angle

1. Range of fastening capacity 2. Rotation angle

NOTE: The rotation angle is the angle from the point that the bolt is tightened in 50% of desired torque to the point that the bolt is tightened in 100% torque. NOTE: Use of a cold battery cartridge may give warning for battery capacity by LED indicator and beeper and stop the tool immediately, even if it is fully charged. In this case, the fastening capacity may be inferiortothespecicationonthismanual. MAINTENANCE CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before attempting to perform inspection or maintenance. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool spec- ied in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Protector (Natural, Red, Blue, Yellow)
