IAN 380045 - Ceiling fan Livarno Lux - Free user manual and instructions
Find the device manual for free IAN 380045 Livarno Lux in PDF.
| Product type | Ceiling fan with LED lighting |
| Model | IAN 380045 |
| Brand | Livarno Lux |
| Dimensions (body height) | 40.5 cm |
| Fan diameter | 105 cm |
| Weight | 3.9 kg |
| Supply voltage | 220–240 V~, 50 Hz |
| Total power | 50 W |
| LED lamp power | 4.9 W (warm white) |
| Compatible bulb type | E27, max. 60 W |
| Fan speeds | 3 speeds (235 rpm max) |
| Noise level | 43.5 dB(A) |
| Protection class | I |
| Intended use | Indoor, dry and enclosed rooms |
| Minimum distance from floor | 2.3 m |
| Minimum distance from wall | 0.6 m |
| Main functions | 3-speed ventilation, LED lighting, reversible rotation direction, pull chain stop |
| Maintenance and cleaning | Disconnect power, wipe with a dry, lint-free cloth |
| Replacing the bulb | Disconnect power, let cool for 15 min, unscrew the lampshade |
| Warranty | 2 years (material and manufacturing defects) |
| After-sales service | EGLO FRANCE LUMINAIRE SARL, +33 389 6250 30, info-france@eglo.com |
Frequently Asked Questions - IAN 380045 Livarno Lux
User questions about IAN 380045 Livarno Lux
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Ceiling fan in PDF format for free! Find your manual IAN 380045 - Livarno Lux and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IAN 380045 by Livarno Lux.
USER MANUAL IAN 380045 Livarno Lux
Ceiling fan with LED light
Ceiling fan with LED light
Assembly, operating and safety instructions
Before reading, unfold the two pages with the illustrations and then familiarise yourself with all the functions of the unit.
FR BE
GB/IE User manual and safety information Page 5


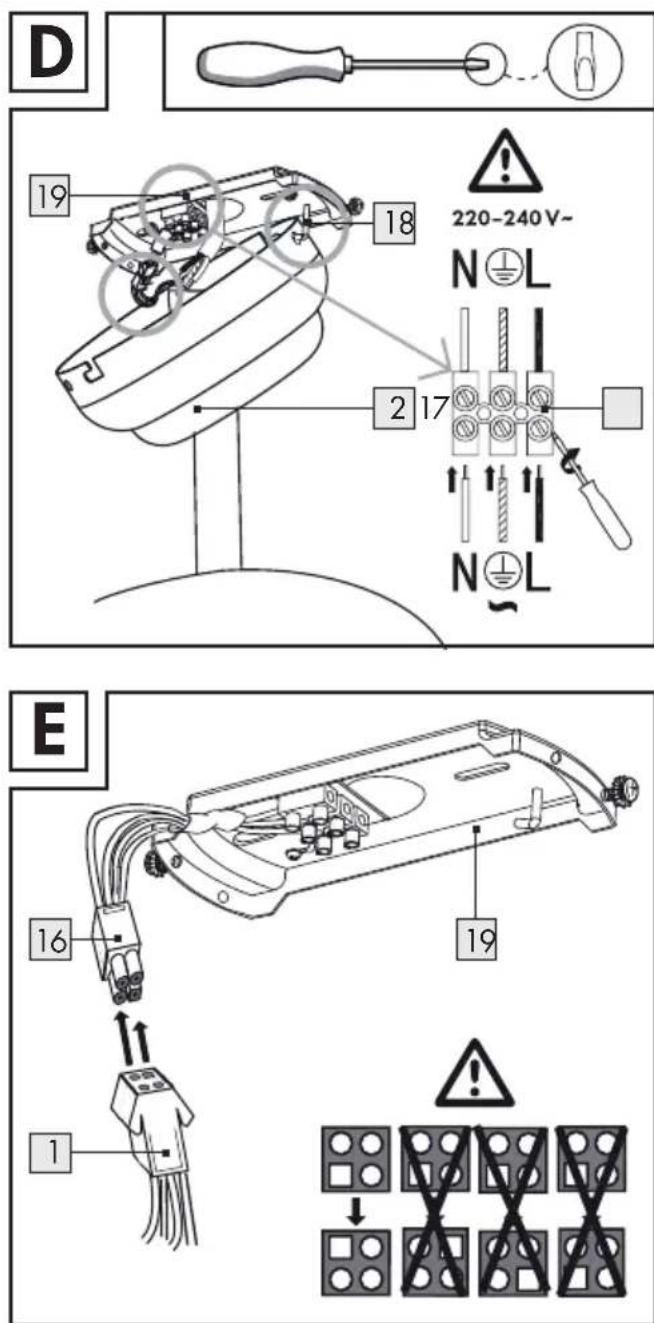

D 19 18 2 17 220-240V~ N ⊕ L N ⊕ L E 16 19 1


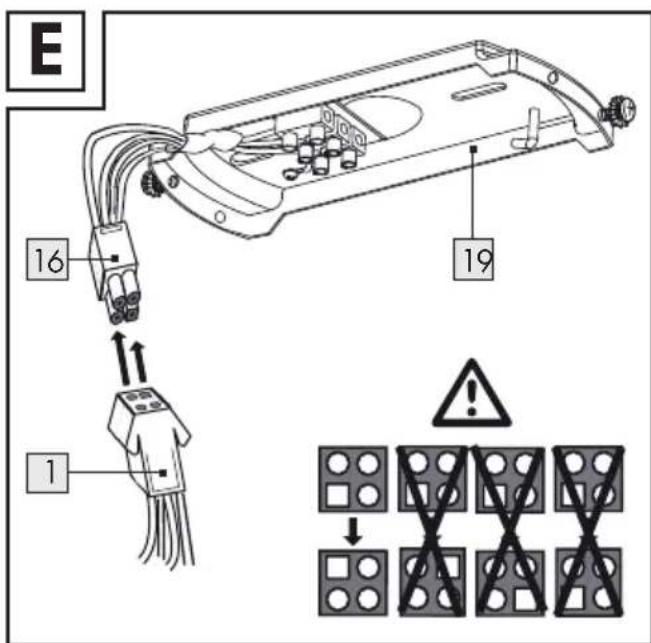

E 16 19 1
List of pictograms used \* ...... Page 6
Introduction Page 6
Intended use...... Page 7
Scope of delivery.... Page 7
Parts description Page 7
Technical data Page 7
Safety Page 7
Safety notes...... Page 7
Preparation Page 9
Tools and materials required.... Page 9
Prior to installation Page 9
Assembly Page 9
Installing the product.... Page 9
Initial use Page 10
Switching the LED light on and off Page 10
Switching the ceiling fan on Page 10
Setting the right / left rotation...... Page 10
Inserting / replacing the light bulb ...... Page 11
Troubleshooting Page 11
Maintenance and cleaning...... Page 11
Disposal Page 12
Declaration of conformity...... Page 12
Information/Warranty Page 12
Warranty Page 12
Service address Page 13
Warranty card.... Page 13
| List of pictograms used* | |||
 | Read instructions! |  | For your safety! |
 | Sicherheitshinweise Handlungsanweisungen | [S2HC] | Observe warning and safety instructions! |
 | This luminaire is only suitable for indoor use in dry and closed rooms. |  | Danger to life and accidents for infants and children! |
| [C083] | Volt | ||
 | AC current/voltage | [15X4] | Warning!Risk of electric shock! |
| [2WX2] | Hertz (frequency) | [K2ZH] | Beware of hot surfaces! |
| [1CY1] | Watt (active power) | ||
 | This ceiling fan with LED light is not suitable for dimmers or electronic switches. |  | 3 speed settings available |
 | LED light bulb dimensions |  | The fan blades must be at least 2.3 m away from the floor |
 | E27 LED light bulb included |  | Product complies with the product-specific applicable European directives. |
 | Protection class I |  | SGS / GS tested |
| [DS86] | Only install the light bulb in a dry environment. |  | Dispose of the packaging and the product in an environmentally friendly manner! |
| [2A8K] | Protection type: no protection against water! Suitable for indoor use only. | ||
 | UK Conformity Assessed | * Further details, e.g. additional symbol explanations and technical information, can be found at www.edi-light.com | |
* Further details, e.g. additional symbol explanations and technical information, can be found at www.edi-light.com
Ceiling fan with LED light
Introduction
Congratulations on the purchase of your new ceiling fan with LED light. You have chosen a high-quality product. Please be
sure to carefully read all the instructions for use. Fold out the page with the diagrams. These instructions are a part of this ceiling fan with LED light and con-tain important information on setup and operation. Always observe all safety
information. Before using this product for the first time, verify that the correct voltage is present and that all parts are properly in-stalled. If you have any questions or are unsure about operating the ceiling fan with LED light, please contact your retailer or the service centre. Please keep these instructions in a safe place and include them when passing this product on to others.
Intended use
This ceiling fan with LED light is solely suitable for use in dry, closed indoor spaces. It is not suitable for use in
bathrooms or other consistently damp areas. Neither is it suitable for use in tropical climates. This ceiling fan with LED light is only intended for private household use. Do not operate at temperatures over 40 °C.
Scope of delivery
Always check that all parts are present and that the ceiling fan with LED light is in perfect condition immediately after unpacking.
1 Ceiling fan with LED light
1 Light bulb
1 Lampshade
4 Fan blade holders
4 Fan blades
1 Assembly material (15 washers (ø 5 mm), 2 screws (ø 5 x 50 mm), 15 spring lock washers (ø 5 mm), 12 nuts, 13 screws (M5 x 15 mm), 2 wall plugs)
1 Set of assembly instructions and instructions for use incl. warranty card

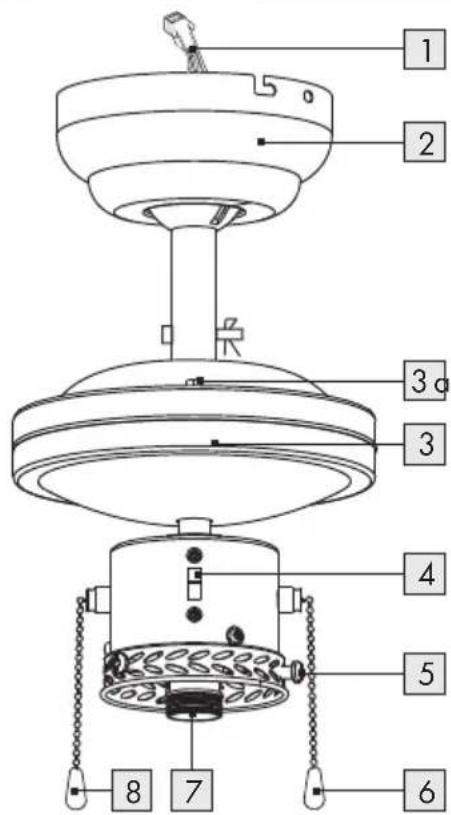

Parts description
1 Connection cable (ceiling fan)
2 Cover
3 Rotor housing
36crew (rotor housing)
Rotation direction switch
5Thumb screw
Pull switch (ceiling fan)
7 Socket
ull switch (light)
Light bulb

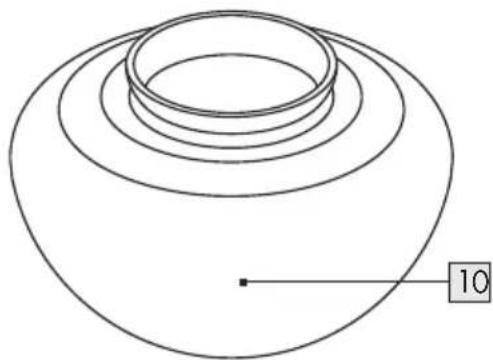

10 Lampshade
13 Nut
1 Screw with spring lock washer and washer (mounting bracket)
12 Screw with washer and spring lock washer (fan blade)
14 Wall plug
15 Fixing screw
16 Connection cable (mounting bracket)
17 Lustre terminal
18 Hook
19 Mounting bracket
20 Fan blade holder
21 Fan blade
22 Power cord (external)
Technical data
Item number: 55081 Operating voltage: 220-240 V\~, 50Hz Total output: 50 Watt Light bulb: E27, max. 60 W
Wattage in
standby mode: 0 W
Rotational speed: max. 235 rpm
Noise level: 43,5 dB (A)
Output light bulb: 4,9 Watt
LED light source: warm white (3000K), 470lm(360°)
Protection class I /
Dimensions: Height of body (without pull
switch): 40.5 cm
The LED light source can be replaced by the end customer.
Distributor:
EDI Light GmbH
Heiligkreuz 22, 6136 Pill
AUSTRIA
www.edi-light.com
Safety
Safety notes
The information included in these instructions for use is for your own safety. Please read it
carefully before installing the device and keep the instructions for later consultation. Damage due to failure to comply with these instructions for use will void the warranty! We assume no liability for consequential damage! We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety information!
WARNING! RISK OF ACCIDENT AND DANGER TO LIFE FOR INFANTS AND
CHILDREN!
This ceiling fan with LED light may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and knowledge, as long as they are supervised or instructed in the safe use of the product and they understand the associated risks. Do not allow children to play with the product. Never allow children to clean or maintain this product unsupervised.
- Do not leave the product or packaging material lying unattended. Plastic films or bags, or plastic parts etc. can turn into dangerous toys for children.
Avoid death by electric shock
No liability is accepted for property damage or injury resulting from improper use or failure to observe the safety information.
■ Never use your light if you notice any damage or defects.
■ Remove the fuse or switch off the circuit breaker (0 setting) in the fuse box prior to installation.
■ Always avoid any contact between the ceiling fan or the LED light and water or other liquids.
■ Never open up any of the electrical equipment or insert any objects into electrical parts, as this carries a risk of death from electric shock.
■ Prior to installation, make sure that the available mains voltage corresponds to the required
operating voltage of the ceiling fan (see "Technical data").
- Be sure not to damage any wires during installation.
- Do not install the light on damp or conductive surfaces.
This ceiling fan with LED light is not suitable for dimmers or electronic switches.
Only insert the light bulb in a dry environment.
Avoid fire and injury
CAUTION: HOT SURFACES - RISK OF BURNING To avoid burns, make sure that the light is switched off and has cooled down before you touch it. Lamps can get very hot.
- Do not look directly into the light source. Do not look at the light source with an optical instrument (e.g. magnifying glass).
- Replace defective light bulbs with new ones immediately. Before changing the light bulb, make sure that the circuit to which the product is connected is not live. To do so, remove the fuse or switch off the circuit breaker in the fuse box (position 0).
- Allow the LED light to cool down for at least 15 minutes before replacing a defective bulb.
- Do not wrap the power cable around the product. Do not carry or pull the product by its power cable. Should doubts arise during assembly / use of the product, consult a qualified electrician.
- Do not under any circumstances use the product to store or hang up other objects.
■ Never use the connection cable to carry the weight of the product.
WARNING! If you notice unusual oscillations, stop using the ceiling fan
immediately and consult qualified personnel.
- Should doubts arise during assembly/use of the product, consult a qualified electrician.
For your safety!
- Install the ceiling fan in a location where it is protected from moisture and dirt.
A ceiling height of at least 2.50 m is required for safe operation. The fan blades must be at least 2.3 m away from the floor and 0.6 m away from the nearest wall or item of furniture. The ceiling to which the product is mounted may slope by a maximum of 30°.
■ Always be alert! Always pay attention to what you are doing and always use common sense - Do not install the product if you are having difficulty concentrating or do not feel well.
- Do not operate the product if the ambient air temperature is over 40 °C.
● Preparation
Tools and materials required
The specified tools and materials are not included. The information and values specified are non-binding and are only provided as a reference. The nature of the material is determined by the specific local conditions.
- Pencil / marking tool
- Voltage tester
- Screwdriver
- Power drill
- Drill bit
- Side cutters
- Ladder
- Open-end spanner
Prior to installation
■ Prior to installation, familiarise yourself with all
the instructions and diagrams in this manual as well as with the ceiling fan itself.
Before installation, ensure that the circuit to which the product will be connected is not live. To do this, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box.
■ Prior to installation, make sure that the installation site is suitable to bear the weight of the product.
■ Use a voltage tester to verify that cables are not live.
Assembly
Note: You will need a power drill for the installation work.
Note: Please also follow the instructions for your power drill.
WARNING! Make sure that you do not drill into any electrical wiring, gas or water pipes inside the wall.
Installing the product
Note: Remove all packaging materials from the ceiling fan.

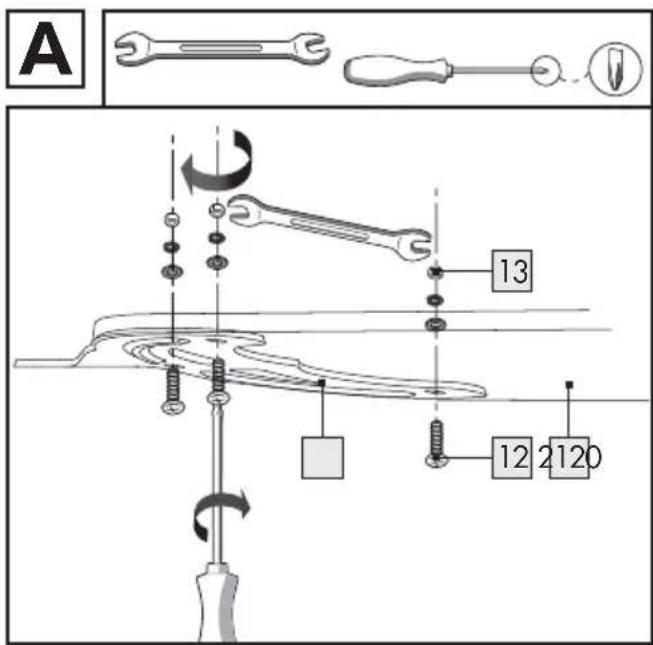

☐ Fasten the fan blades ^21 to the fan blade holders ^20 using the nuts ^13 , spring lock washers, washers and screws ^12 (see Fig. A).

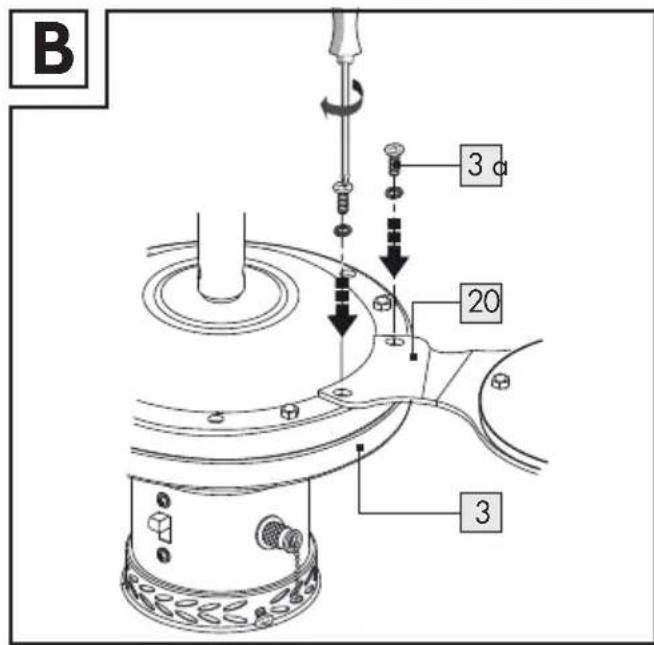

☐ Attach the fan blade holder 20 to the rotor housing 3. Use the screws 3a and spring washers pre-installed on the rotor housing 3. Make sure that all fan blades 21 have either face downwards with the wood-look blade side or with the white side facing downwards (see Fig. B).
Before continuing with the installation, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box.
□ Unscrew the right-hand fixing screw 15 including the washer and tooth lock washer, which is located at the side of the mounting bracket 19. Unscrew the left-hand fixing screw 15 including the washer and the tooth
☐ lock washer. Mark the drill holes using the holes in the mounting bracket 19 intended for the screws 11 as a guide.
Now drill the fixing holes. Make sure that you do not damage the power cord (external) 22 water pipes or electrical cables.

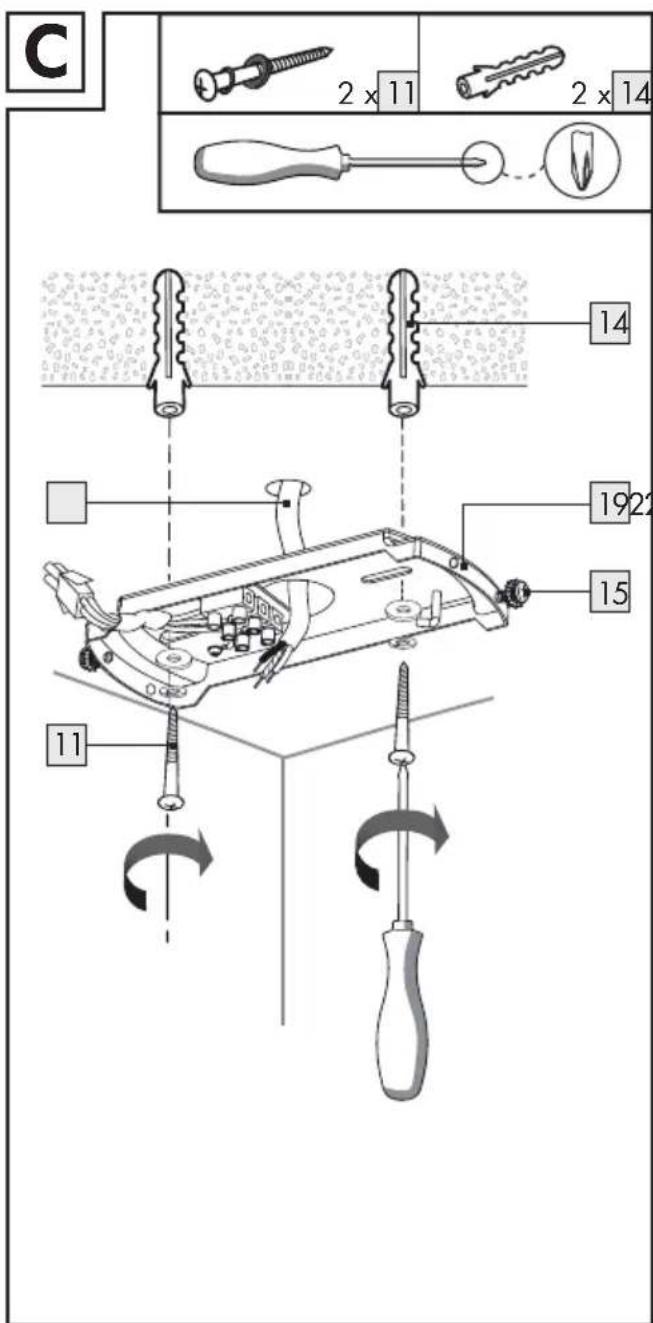

☐ Insert the wall plug into the drilled holes (see Fig. C). If necessary, use a hammer to help you.
⚠️ IMPORTANT! The chosen installation location must be able to hold the total weight of the ceiling fan.
☐ Guide the power cord (external) through the intended central hole in the mounting bracket 19. Attach the mounting bracket 19 using the washers, spring lock washers and screws 11 provided (see Fig. C).
☐ Using one of the holes intended for this purpose, hang the cover 2 on the hook 18 on the mounting bracket 19 (see Fig. D).
- Connect the power cord (external) with the lustre terminal 17 in the mounting bracket 19. Please also make sure that the colours of the connected wires match (black or brown live wire = L symbol, blue neutral wire = N symbol, protected ground wire green-yellow (see Fig. D)). Insert the connection cable 16 of the mounting bracket 19 into the connection cable port 1 on the ceiling fan (see Fig. E).
☐ Remove the cover2 from the hook 18.

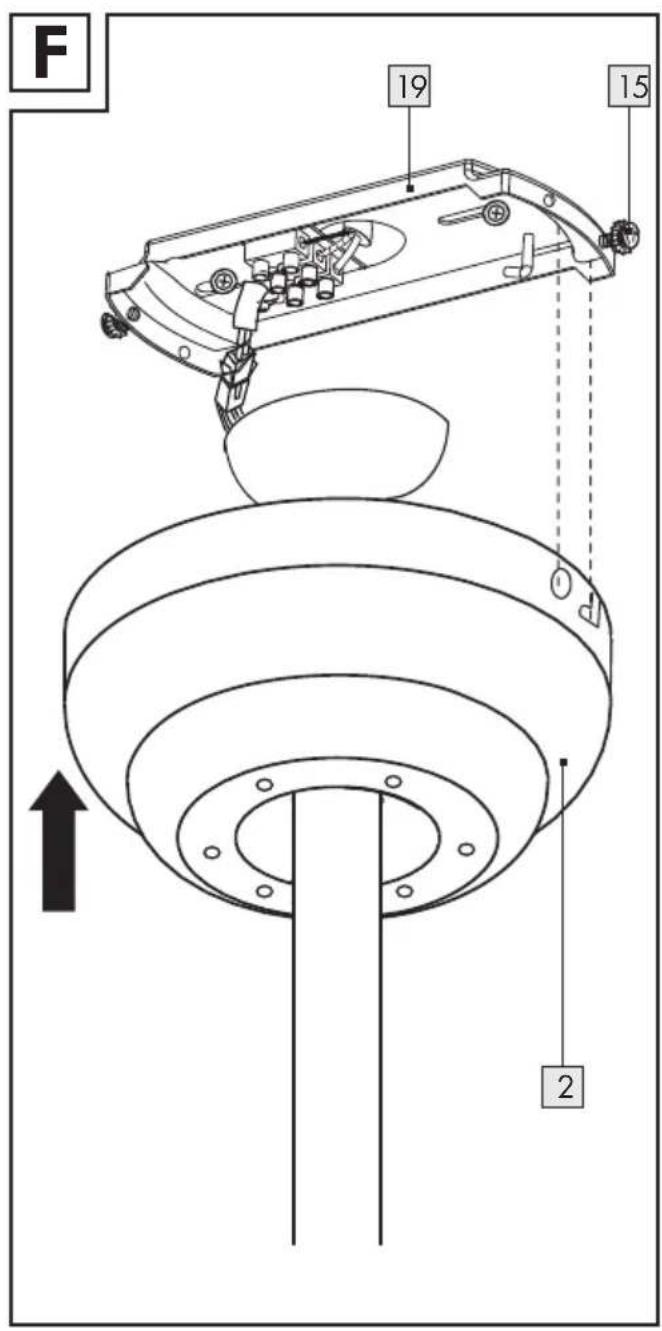

Now place the cover ^2 on the mounting bracket ^19 by guiding the fixing screws ^15 into the grooves on the cover and then turning the cover ^2 clockwise (see Fig. F).

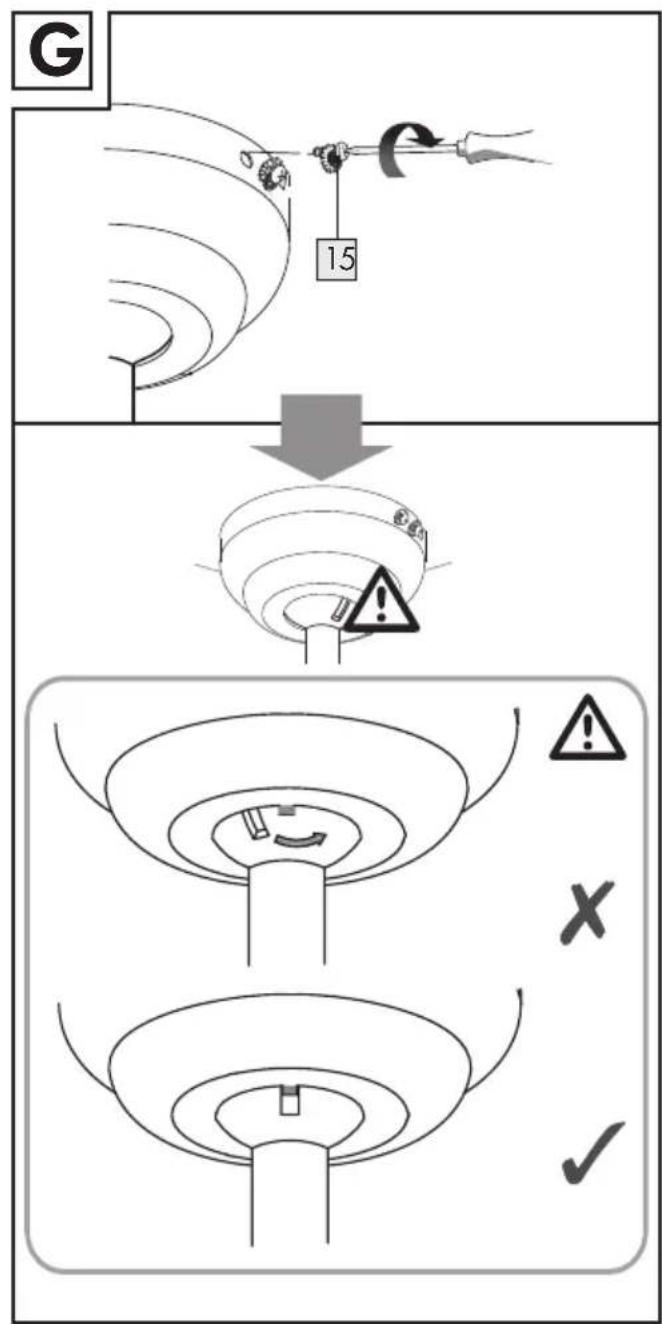

Now screw the product and the mounting bracket 19 together using the four fixing screws 15 and the spring lock washers and tooth lock washers. Ensure that it is positioned correctly. The nose must correspond with the groove (see Fig. G).

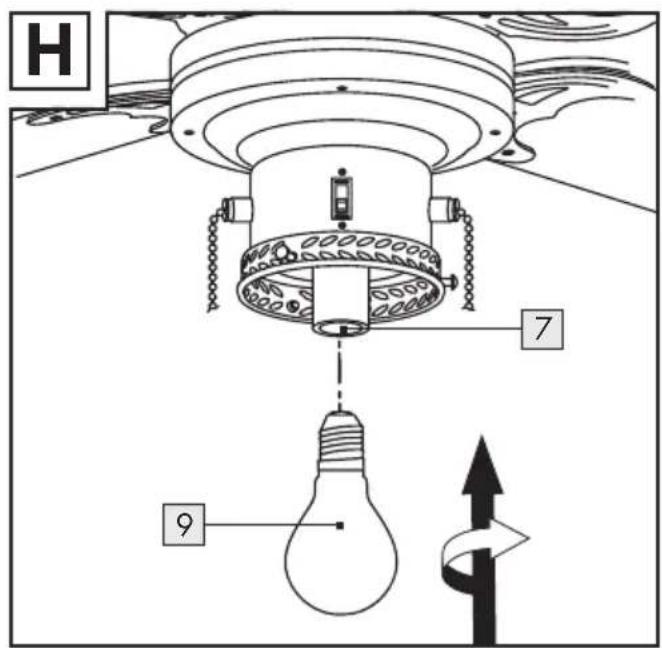

☐ Screw the light bulb ^9 into the socket 7 of the LED light (see Fig. H).

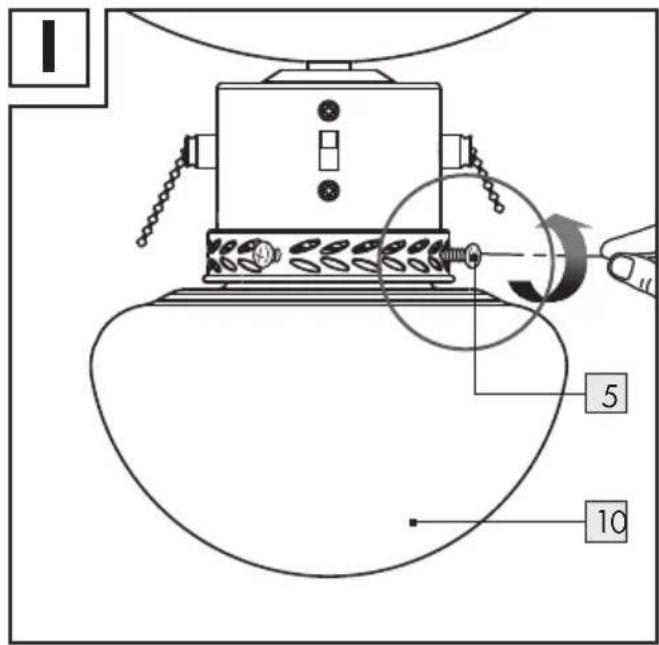

□ Attach the lampshade10. Use the
pre-installed thumb screws 5 for this purpose (see Fig. I).
⚠️ CAUTION! Do not use pliers to tighten the thumb screws 5. This could cause the glass of the lampshade 10 to crack. This could lead to injuries caused by splinters of glass.
☐ Replace the fuse or switch on the circuit breaker (I setting) in the fuse box.
Your product is now ready to use.
Initial use

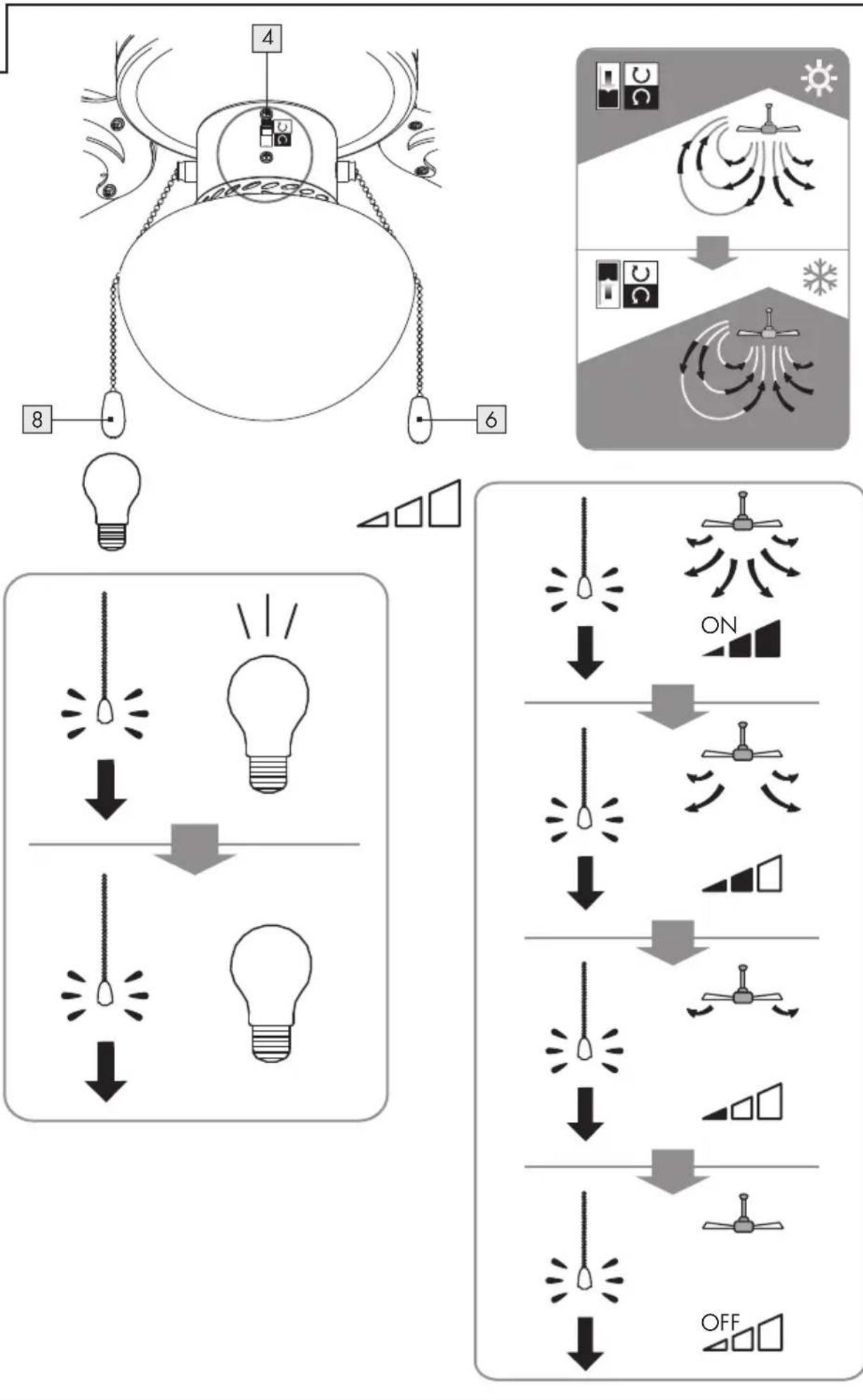

- Switching the LED light on and off (see Fig. J)
☐ Pull on the pull switch8 to switch the LED light on.
☐ Pull on the pull switch8 again to switch the LED light off.
● Switching the ceiling fan on (see Fig. J)
☐ Pull on the pull switch to switch the ceiling fan on. The ceiling fan will run at high speed.
☐ Pull on the pull switch6 again. The ceiling fan will run at medium speed.
☐ Pull on the pull switch6 again. The ceiling fan will run at low speed.
☐ Pull on the pull switch6 again to switch the ceiling fan off.
Setting the right / left rotation (see Fig. J)
CAUTION! RISK OF INJURY!
Always switch the ceiling fan off and wait until it is still before using the rotation direction switch 4. Operating the rotation direction switch 4 while the ceiling fan is on can lead to injuries and / or material damage.
☐ In low temperatures, slide the rotation direction switch 4 upwards. The ceiling fan will
distribute the warmth in the room.
☐ In high temperatures, slide the rotation direction switch 4 downwards. The ceiling fan
⚠️ will create a cooling flow of air.
- Inserting / replacing the light bulb
WARNING! DANGER OF ELECTRIC
SHOCK! Before changing the light bulb, make Sure that the power supply to which the product is connected is not live. To do this, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box.
Troubleshooting
CAUTION! RISK OF BURNS DUE TO
HOT SURFACES! Allow the LED light to cool down completely.
☐ Loosen the lampshade 10 thumb screws 5 and remove them carefully.
☐ Carefully turn the defective light bulb9 anti-clockwise out of the socket 7.
☐ Use a clean, lint-free cloth to replace the bulb.
☐ Screw the new light bulb9 clockwise into the socket 7.
Please refer to the chapter "Technical data" to find out which light bulb is required.
□ Attach the lampshade 10. Use the thumb screws 5 for this purpose (see Fig. I).
☐ Replace the fuse or switch on the circuit breaker (I setting) in the fuse box.
| Error Reason Solution | ||
| Ceiling fan runs out of round and wobbles a lot during operation. | Different distances of the rotor blades to the ceiling, incorrectly mounted rotor blades. | ☐ Operate the ceiling fan for a longer period of time (several hours) and then check an even distance of the rotor blades to the ceiling.☐ If this does not achieve the desired effect, contact our service department. |
WARNING! If you notice unusual
oscillations, stop using the ceiling fan immediately and consult qualified personnel. Do not attempt to repair the ceiling fan yourself.
● Maintenance and cleaning
WARNING! DANGER OF ELECTRIC
SHOCK! Always disconnect the product from the mains before cleaning. To do
this, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box.
WARNING! DANGER OF
ELECTRIC SHOCK! To ensure
electrical safety, never clean the
product with aggressive detergents or immerse it in
water.
CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Allow the LED
light to cool down completely.
☐ Do not use solvents, petrol, etc. Doing so would damage the product.
☐ Only clean with a dry, lint-free cloth.
☐ To clean the fan blades, use a feather duster in order to also clean the connections to the fan blade holders.
☐ Replace the fuse or switch on the circuit breaker (I setting) in the fuse box.
- Disposal
The packaging is made entirely of recyclable mate-rials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and num-bers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
- Declaration of conformity
This product complies with the requirements of the applicable national and European directives. Corresponding declarations and documentation are available with the manufacturer. The product complies with the requirements of German safety legislation for equipment and products.
We reserve the right to make technical changes and modifications to the appearance of the item in the course of our product improvement process. Typing errors and misprints reserved.
This product contains a light source of energy efficiency class F.
• Information and warranty
Warranty
We offer a three-year warranty from the date of purchase. Our products are manufactured according to the latest production techniques and undergo detailed quality checks. We guarantee that the article is in perfect condition. During the warranty period, we will repair material or manufacturing defects free of charge. If, contrary to all expectations, the item exhibits any defects, please pack it up carefully and send it to the service address provided. The warranty excludes damage resulting from improper use and all wear parts or consumable materials. You can order replacement wear parts and consumables at your own cost by telephoning the number provided. You can likewise arrange repairs that are not covered by the warranty (e.g. lamps) by contacting the service address provided; these will be billed to you at cost price. The item will be repaired at the service address provided. To ensure it can be handled and sent back to you promptly, please send it directly to this address. If you require additional product information, want to order accessories, or have any questions about our service, please telephone our customer service line on the telephone number provided. Please include the item number when you submit your query (see "Technical details").
IAN 380045 2110
Great Britain & Ireland
EGLO UK LTD.
Unit 12 Cirrus Park, Lower Farm Road,
Moulton Park
Industrial Estate, NORTHAMPTON NN3 6UR
T: +44 1604 790 986
E: info-greatbritain@eglo.com
Warranty card
Sender:
Full name:
Country/Postcode/Town/Street address:
Telephone number:
Item number/item name:
Date and place of purchase: ____
Details of the defect:
Date/signature:
If the warranty does not apply:
☐ Please return the unrepaired item at my own cost.
☐ Please inform me of the cost and repair the item at my own cost.
Classe de
protection : 1 /
(Edf. Best Point) 2°–16 A
San Fernando de Henares
28830 MADRID, ESPAÑA
T: +34 91 677 9044
E: info-spain@eglo.com
(3000K), 470lm(360°)
Classe di
protezione: I /
Lamp: E27, max. 60 W
Watt-vermogen in
standby-modus: 0 W
Toerental: 235 omw / min.
Geluidsniveau: 43,5 dB (A)
Vermogen lamp: 4,9 Watt, Warm wit (3000K), 470lm(360°)
Beschermings-
klasse: 1 /
Blank grid paper with uniform black lines on white background, no text or symbols presentLegenda uporabljenih piktogramov\*...... Stran 86
Uvod.... Stran 86
Predvidena uporaba .... Stran 87
Pooblaščeni serviser:
Slovenia
EGLO RASVJETA D.O.O.
Jadranska avenija 9a
HR-10000 ZAGREB
T: +386 158 093 18
E: info-slovenia@eglo.com
Garancijski list
EGLO MAGYARORSZAG KFT.
Fő út. 155
H-3060 PASZTO
T: +36 32 560 050
E: info-hungary@eglo.com
JÓTÁLLÁSI TÁJÉKOZTATÓ
Kleinbahnstraße 35
E: info@edi-light.com
Österreich
EDI Light Service Center
Heiligkreuz 22
6136 Pill, ÖSTERREICH
T: +43 5242 670 57
E: info@edi-light.com
Schweiz
EGLO Schweiz AG
Seetalstraße 142
6032 Emmen, SCHWEIZ
T: +41 41 268 69 59
E: info-switzerland@eglo.com
Garantiekarte
Absender:
Name/Vorname:

