Product type	Ceiling fan with LED lighting
Brand	Livarno Lux
Article number	55081
Dimensions (diameter)	105 cm
Body height (without pull cord)	40.5 cm
Weight	3.9 kg
Power supply	220-240 V~, 50 Hz
Total power	50 W
LED bulb power	6 W
Bulb type	E27, max. 60 W
Standby power	0 W
Rotation speed	235 rpm
Noise level	43.5 dB(A)
Number of speeds	3 (low, medium, high)
Functions	LED lighting, rotation direction switch (summer/winter), pull cords
Usage	Indoor, dry and enclosed rooms
Minimum room height	2.50 m
Distance from blades to floor	≥ 2.3 m
Distance to wall/furniture	≥ 0.6 m
Max. ceiling slope	30°
Maintenance	Clean with a dry, lint-free cloth; duster for blades
Safety	Do not use with a dimmer; disconnect power before installation/maintenance
Warranty	3 years

Frequently Asked Questions - IAN 337859 Livarno Lux

What is the minimum ceiling height required to install this fan?

The room height must be at least 2.50 m. The blades must be at a minimum distance of 2.3 m from the floor.

Can I use this fan with a light dimmer?

No, this ceiling fan with LED lamp is not suitable for dimmers or electronic switches. Use only the supplied pull cord switch.

How to reverse the direction of rotation of the fan?

Wait until the fan is stopped, then push the direction switch (mark 4) up for winter (circulate heat) or down for summer (cool).

Which bulb can I use to replace the original?

Use an E27 bulb with a maximum power of 60 W. The supplied LED bulb is 6 W. Replace it only after disconnecting the power.

The fan oscillates or moves abnormally, what to do?

If you notice irregular oscillating movements, stop the device immediately and contact qualified personnel. Check that the blades are securely fastened and balanced.

Can I install this fan in a bathroom?

No, this product is exclusively for indoor use in dry and enclosed rooms. It is not suitable for constantly humid rooms like bathrooms.

How to clean the fan?

Before any cleaning, disconnect the power (fuse or circuit breaker). Use a dry, lint-free cloth for the entire unit, and a duster for the blades. Do not use solvents.

What is the warranty of this product?

Livarno Lux offers a 3-year warranty from the date of purchase. Material or manufacturing defects are repaired free of charge. Bulbs and consumable parts are excluded.

How to turn the LED lamp on and off?

Pull the pull cord switch (mark 8) to turn the LED lamp on or off. One pull turns on, a second turns off.

How to adjust the fan speed?

Pull the pull cord switch (mark 6): first pull = high speed, second = medium, third = low, fourth = off.

USER MANUAL IAN 337859 Livarno Lux

Black-and-white photo of a modern office ceiling fan with wooden blades and a white spherical lamp, alongside an inset of a living room with a ceiling fan (no text or symbols visible)

DECKENVENTILATOR MIT LED-LEUCHTE / CEILING FAN WITH LED LIGHT / VENTILATEUR DE PLAFOND AVEC ÉCLAIRAGE LED

DE AT CH

DECKENVENTILATOR MIT LED-LEUCHTE

Assembly, operating and safety instructions

NL BE

PLAFONDVENTILATOR MET LED-LAMP

Before reading, unfold the pages containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Simple line drawing of a human figure with the number 1 on the torso (no text or symbols beyond the numeral)

Line drawing of a drill bit with handle and screwdriver (no text or symbols)

Illustration of three wrenches with circular insets showing their tip positions (no text or symbols)

4x 21

4 x 20

18 19 16 17 15

12x 13 12

2× 11

1 2 3a 3 4 5 6 7 8

Simple line drawing of a light bulb with a numbered label pointing to it (no text or symbols on the bulb itself)

10 1x

A 13 12 2 120

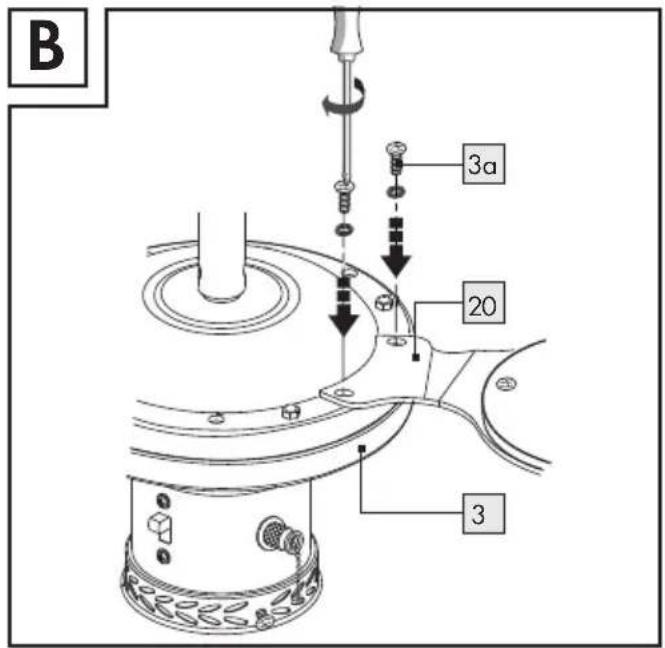

B 3a 20 3

C 2 x 11 2 x 14 14 22 19 15 11

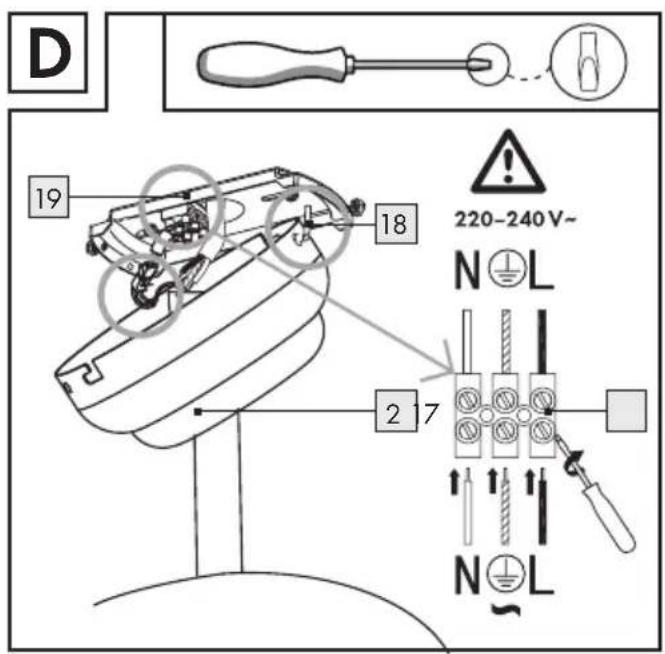

D 19 18 220-240 V~ N ⊕ L 2 7 N ⊕ L

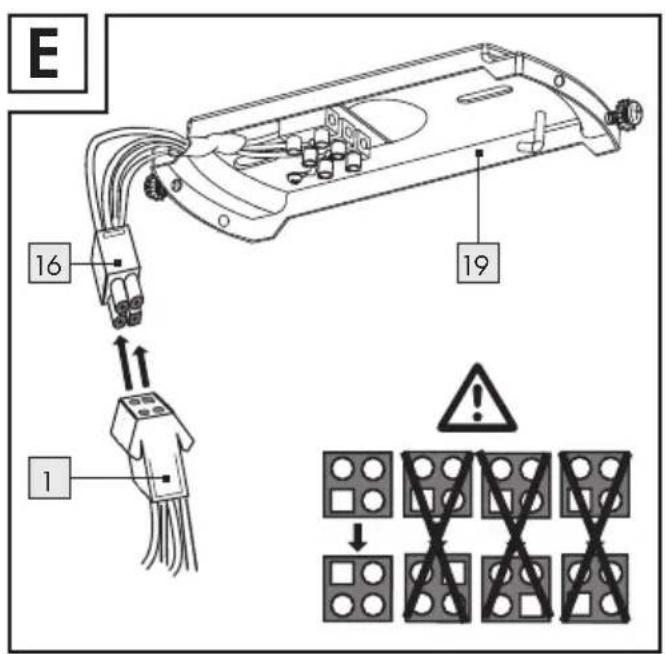

E 16 19 1

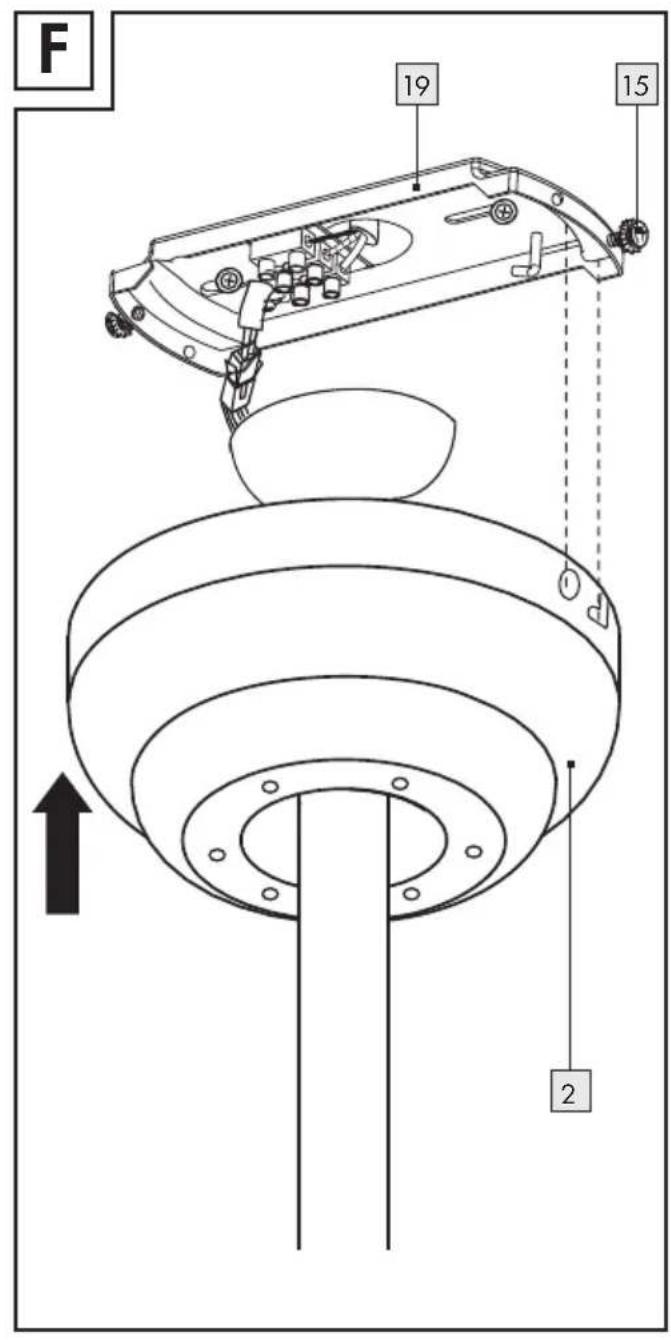

F 19 15 ① 2

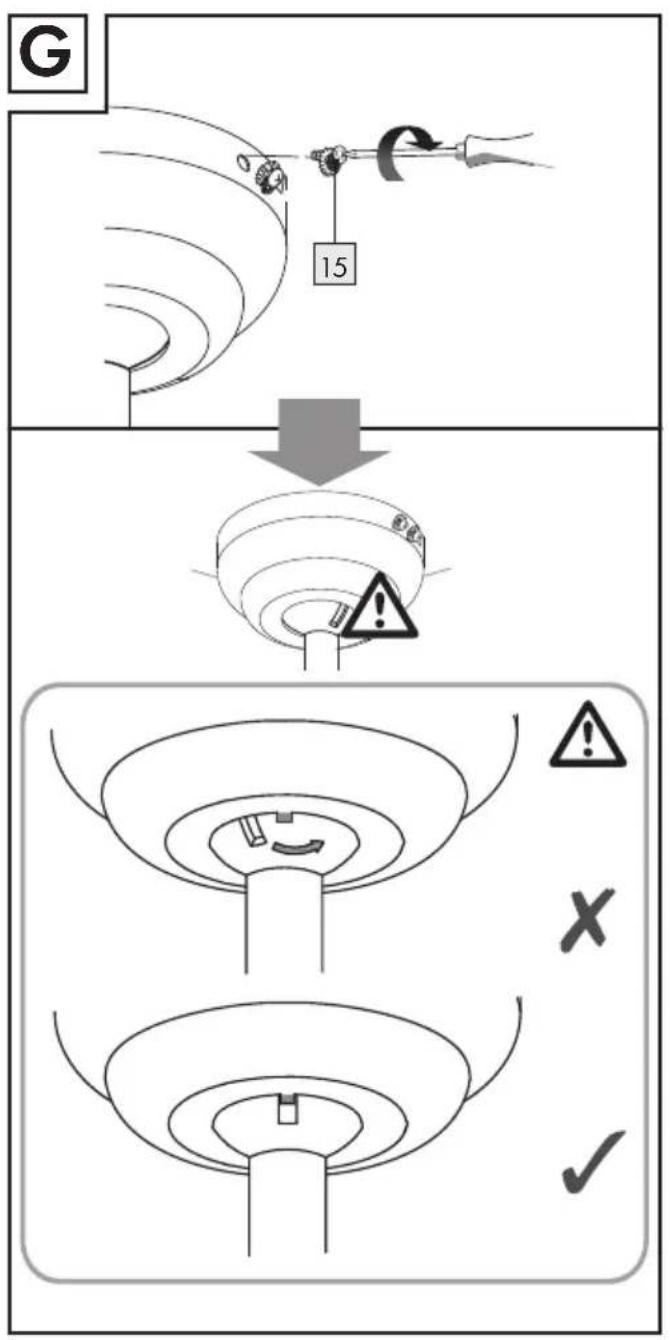

G 15 ↓ ⚠️ ⚠️ ✗ ✓

H 7 9

I 5 10

J

EDI Light Service Center

Kleinbahnstraße 35

59759 Arnsberg

DEUTSCHLAND

E-Mail: [e-mail]

Telefon: [phone]

Österreich

EDI Light Service Center

Heiligkreuz 22

6136 Pill / AUSTRIA

E-Mail: [e-mail]

Telefon: [phone]

Schweiz

EGLO Schweiz AG

Seetalstraße 142

6032 Emmen

SCHWEIZ

E-Mail: [e-mail]

Telefon: [phone]

IAN 337859\_1910

Intended use......Page 16

Scope of delivery....Page 17

Parts description......Page 17

Technical data......Page 17

Safety Page 17

Safety notes......Page 17

Preparation Page 18

Tools and materials required....Page 18

Prior to installation....Page 19

Assembly Page 19

Installing the product....Page 19

Initial use Page 20

Switching the LED light on and off....Page 20

Switching the ceiling fan on....Page 20

Setting the right/left rotation Page 20

Inserting / replacing the light bulb....Page 20

Maintenance and cleaning......Page 20

Disposal Page 21

Warranty and service......Page 21

Warranty Page 21

Service address......Page 21

Declaration of conformity....Page 22

Warranty card....Page 22

List of pictograms used
	Read the instructions! 3 speed settings available
[7A8C]	Safety instructionsInstructions for use		For your safety!
	This product is only suitable for use indoors, in dry and enclosed spaces.	[287C]	Observe the warnings and safety notes!
	Volts (alternating voltage)		Risk of accidents and danger to life for infants and children!
	Hertz (frequency) Warning! Danger of electronic switches	[XT04]lock!
	Watts (eff ective power) Caution - hot surface	[6287]
	LED operating life		Switching cycles
	This ceiling fan with LED light is not suitable for dimmers or electronic switches.		Protection class I
	LED light bulb included E27		Dispose of the packaging and the product in an environmentally friendly manner!
	Only insert the light bulb in a dry environment.		Certified with the DEKRA GS-mark

Ceiling fan with LED light

Introduction

Congratulations on the purchase of your new ceiling fan with LED light. You have chosen a high-quality product. Please be sure to carefully read all the instructions for use. Fold out the page with the diagrams. These instructions are a part of this ceiling fan with LED light and contain important information on setup and operation. Always observe all safety information. Before using this product for the first time, verify that the correct voltage is present and that all parts are properly installed. If you have any questions or are unsure about operating the ceiling fan with LED light, please contact your retailer or the service centre. Please

keep these instructions in a safe place and include them when passing this product on to others.

Intendeduse

This ceiling fan with LED light is solely suitable for use in dry, closed indoor spaces. It is not suitable for use in bathrooms or

other consistently damp areas. Neither is it suitable for use in tropical climates. This ceiling fan with LED light is only intended for private household use. Do not operate at temperatures over 40 °C.

- Scope of delivery

Always check that all parts are present and that the ceiling fan with LED light is in perfect condition immediately after unpacking.

1 Ceiling fan with LED light
1 LED light bulb
1 Lampshade
4 Fan blade holders
4 Fan blades
1 Assembly material (15 washers (ø 5 mm), 2 screws (ø 5 x 50 mm), 15 spring lock washers (ø 5 mm), 13 nuts, 13 screws (M5 x 15 mm), 2 wall plugs)
1 Set of assembly instructions and instructions for use incl. warranty card

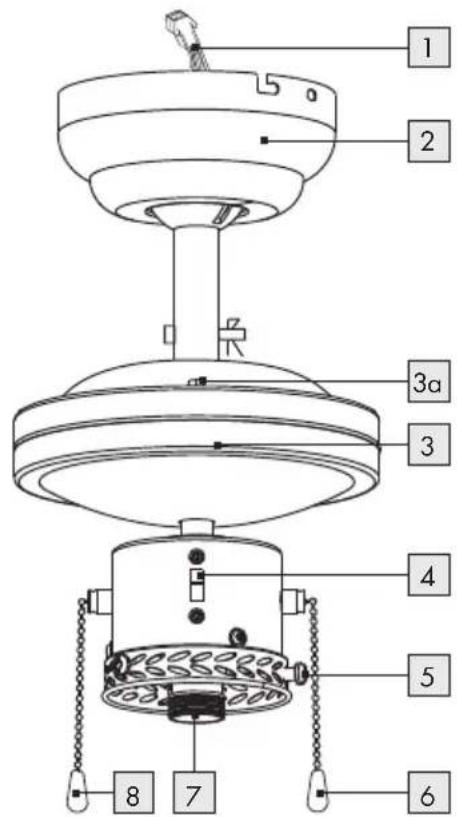

Partsdescription

1 Connection cable (ceiling fan)
2 Cover
3 Rotor housing
3a Screw (rotor housing)
4 Rotation direction switch
5 Thumb screw
6 Pull switch (ceiling fan)
7 Socket
8 Pull switch (light)
9 Light bulb
10 Lampshade
11 Screw with spring lock washer and washer (mounting bracket)
12 Screw with washer and spring lock washer (fan blade)
13 Nut
14 Wall plug
15 Fixing screw
16 Connection cable (mounting bracket)
17 Lustre terminal
18 Hook

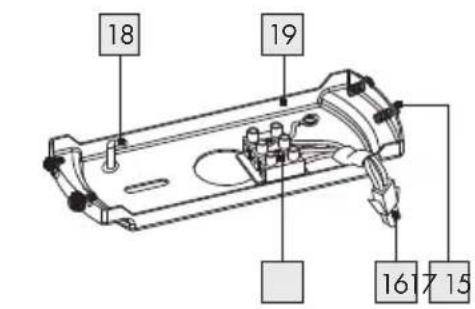

19 Mounting bracket
20 Fan blade holder
21 Fan blade
22 Power cord (external)

●Technicaldata

Itemnumber:55081

Operating voltage: 220–240V\~50Hz

Total output: 50 Watt

Light bulb: E27, max. 60 W

Wattage in

standby mode: 0 W

Rotational speed: 235 rpm

Noise level: 43.5 dB (A)

Output

LED light bulb: 6 Watt

Dimensions: Height of body (without pull switch): 40.5 cm

The information included in these instructions for use is for your own safety. Please read it carefully before installing the device and keep the instructions for later consultation. Damage due to failure to comply with these instructions for use will void the warranty! We assume no liability for consequential damage! We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety information!

WARNING! RISK OF ACCIDENT AND DANGER TO LIFE FOR INFANTS AND CHILDREN!

This ceiling fan with LED light may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and knowledge, as long as they are supervised or instructed in the safe use of the product and they understand the associated risks. Do not

allow children to play with the product. Never allow children to clean or maintain this product unsupervised.

- Do not leave the product or packaging material lying unattended. Plastic films or bags, or plastic parts etc. can turn into dangerous toys for children.

Avoid the risk of fatal injury from electric shock

■ Ensure that any electrical installation is performed by a qualified electrician or a person trained to carry out electrical installations, in compliance with the applicable standards.
■ Never use the product if it is damaged in any way.
■ Remove the fuse or switch off the circuit breaker (0 setting) in the fuse box prior to installation.
■ Never allow the ceiling fan or the LED light to come into contact with water or other liquids.
■ Never open any of the electrical equipment or insert any objects into this equipment. Such interferences pose a risk of fatal injury from electric shock.

Prior to installation, make sure that the available mains voltage corresponds to the required operating voltage of the ceiling fan (see "Technical data").

- Be sure not to damage any wires during installation.

Do not install the product on damp or conductive surfaces.

This ceiling fan with LED light is not

suitable for dimmers or electronic switches.

Only insert the light bulb in a dry environment.

Prevent fire and injury hazards

C AUITION! RISK OF BURNS DUE TO HOT SURFACES! To prevent burns, ensure that the product has been switched off and has cooled down before touching the LED light. Illuminants become very hot.

Do not look directly into the light source. Do not look at the light source with an optical instrument (e.g. magnifying glass).

- Replace defective light bulbs with new ones immediately. Before changing the light bulb, make sure that the circuit to which the product is connected is not live. To do this, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box.

- Allow the LED light to cool down for at least 15 minutes before replacing a defective bulb.

- Do not under any circumstances use the product to store or hang up other objects.

■ Never use the connection cable to carry the weight of the product.

WARNING: unusual oscillations, stop using the ceiling fan immediately and consult qualified personnel.

- Should doubts arise during assembly / use of the product, consult a qualified electrician.

For your safety!

• Install the ceiling fan in a location where it is protected from moisture and dirt.
  A ceiling height of at least 2.50 m is required for safe operation. The fan blades must be at least 2.3 m away from the floor and 0.6 m away from the nearest wall or item of furniture. The ceiling to which the product is mounted may slope by a maximum of 30 °.
  Always be alert! Always pay attention to what you are doing and always use common sense.
• Do not install the product if you are having difficulty concentrating or do not feel well.
• Do not operate the product if the ambient air temperature is over 40 °C.

●Preparation

- Tools and materials required

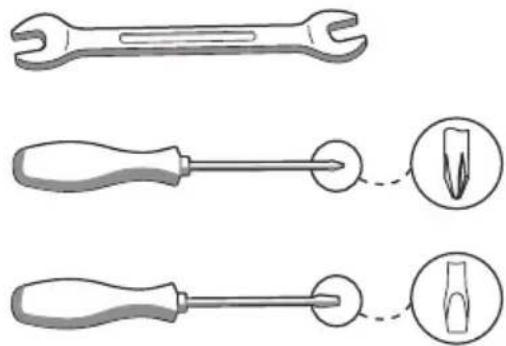

The specified tools and materials are not included. The information and values specified are non-binding and are only provided as a reference. The nature of the material is determined by the specific local conditions.

- Pencil / marking tool

- Voltage tester

• Screwdriver
• Power drill
• Drill bit
• Side cutters
• Ladder
• Open-end spanner

- Prior to installation

■ Prior to installation, familiarise yourself with all the instructions and diagrams in this manual as well as with the ceiling fan itself.
Before installation, ensure that the circuit to which the product will be connected is not live. To do this, remove the fuse or switch off the circuit breaker (O setting) in the fuse box.
■ Prior to installation, make sure that the installation site is suitable to bear the weight of the product.
■ Use a voltage tester to verify that cables are not live.

Assembly

Note: You will need a power drill for the installation work.

Note: Please also follow the instructions for your power drill.

WARNING! Make sure that you do not drill into any electrical wiring, gas or water pipes inside the wall.

- Installing the product

Note: Remove all packaging materials from the ceiling fan.

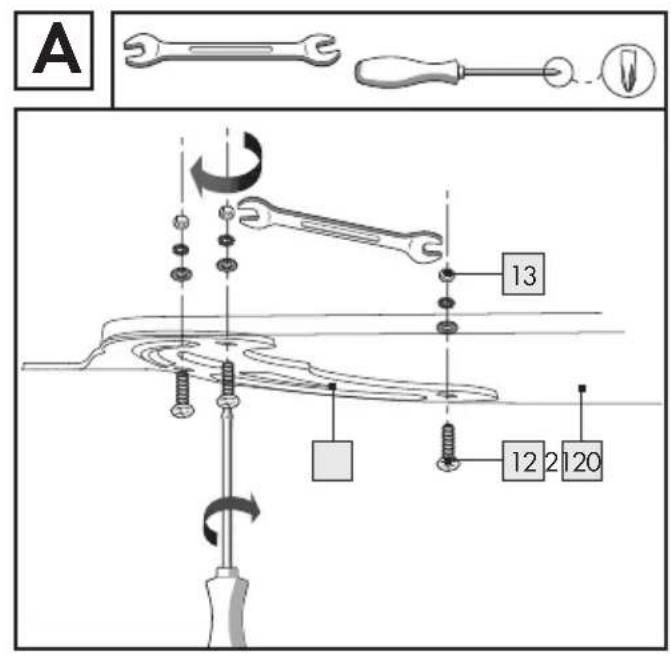

☐ Fasten the fan blades 21 to the fan blade holders 20 using the nuts 13, spring lock washers, washers and screws 12 (see Fig. A).
☐ Remove the pre-installed screws 3a on the rotor housing 3.
☐ Attach the fan blade holders 20 to the rotor housing 3. To do this, use spring lock washers and the screws 3a pre-installed on the rotor housing 3. Make sure that all the fan blades 21

have either the side with the wood effect or the white site facing downwards (see Fig. B).

Before continuing with the installation, remove the fuse or switch off the circuit breaker (O setting) in the fuse box.

☐ Unscrew the right-hand fixing screw 15, including the washer and tooth lock washer, which is located at the side of the mounting bracket 19. Unscrew the left-hand fixing screw 15 including the washer and the tooth lock washer. Mark the drill holes using the holes in the mounting bracket 19 intended for the screws 11 as a guide.

☐ Now drill the fixing holes. Make sure that you do not damage the power cord (external) 22, water pipes or electrical cables.

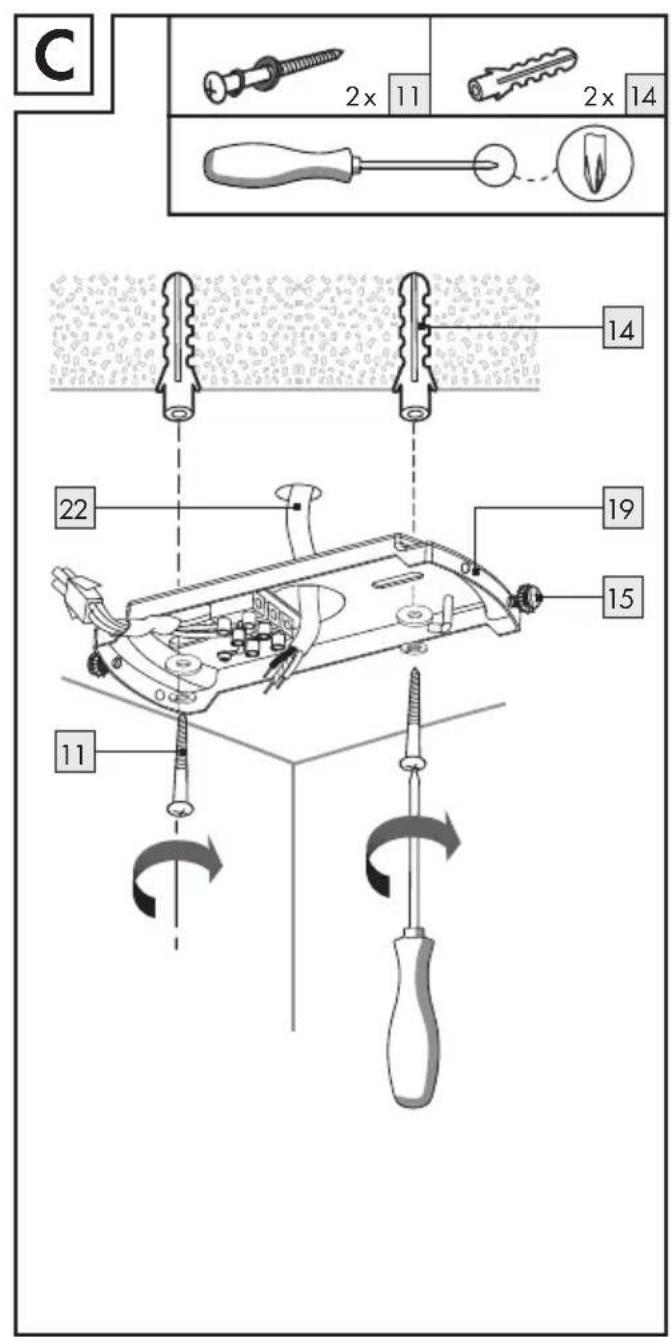

☐ Insert the wall plugs 14 into the drilled holes (see Fig. C). If necessary, use a hammer to help you.

IMPORTANT! The chosen installation location must be able to hold the total weight of the ceiling fan.

☐ Guide the power cord (external) 22 through the intended central hole in the mounting bracket 19. Attach the mounting bracket 19 using the washers, spring lock washers and screws 11 provided (see Fig. C).

☐ Using one of the holes intended for this purpose, hang the cover 2 on the hook 18 on the mounting bracket 19 (see Fig. D).

☐ Connect the power cord (external) 22 with the lustre terminal 17 in the mounting bracket 19. Please also make sure that the colours of the connected wires match (black or brown live wire = L symbol, blue neutral wire = N symbol, protected ground wire ⊕ = green-yellow (see Fig. D)).

☐ Insert the connection cable 16 of the mounting bracket 19 into the connection cable port 1 on the ceiling fan (see Fig. E).

□ Remove the cover 2 from the hook 18.

☐ Now place the cover 2 on the mounting bracket 19 by guiding the fixing screws 15 into the grooves on the cover and then turning the cover 2 anticlockwise (see Fig. F).

Now screw the product and the mounting bracket 19 together using the four fixing screws 15 and the spring lock washers and tooth lock washers.

Ensure that it is positioned correctly. The nose must correspond with the groove (see Fig. G).

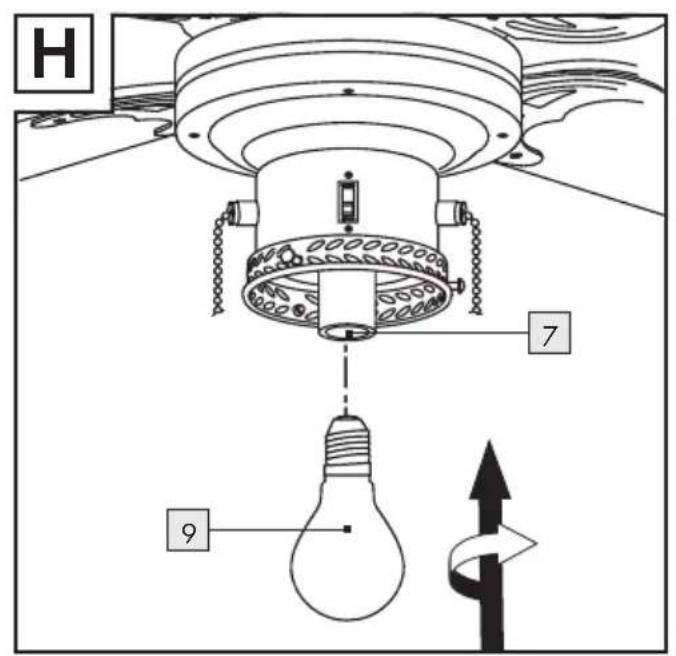

☐ Screw the light bulb 9 into the socket 7 of the LED light (see Fig. H).

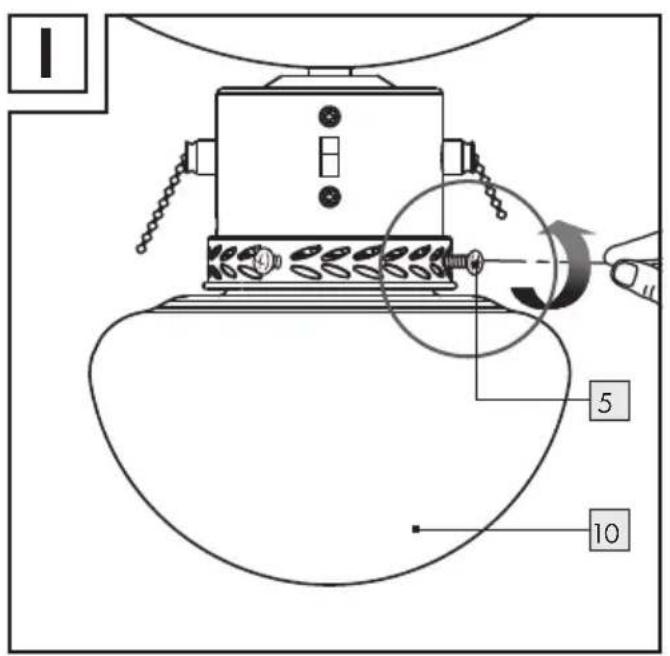

☐ Attach the lampshade 10. Use the pre-installed thumb screws 5 for this purpose (see Fig. I).

⚠CAUTION! Do not use pliers to tighten the thumb screws 5. This could cause the glass of the lampshade 10 to crack. This could lead to injuries caused by splinters of glass.

☐ Replace the fuse or switch on the circuit breaker (I setting) in the fuse box.

Your product is now ready to use.

- Initial use

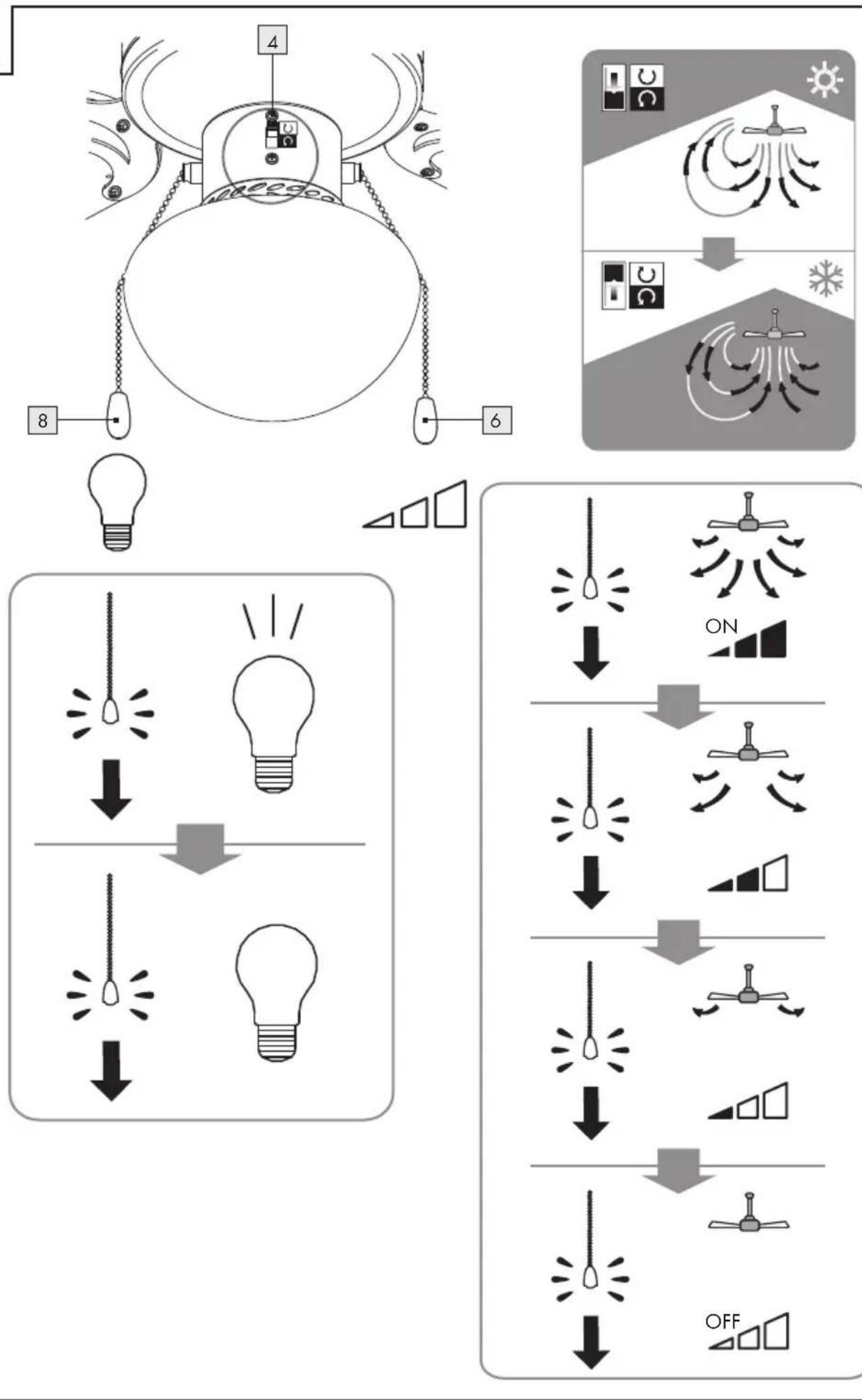

• Switching the LED light on and off (see Fig. J)
  ☐ Pull on the pull switch 8 to switch the LED light on.
  ☐ Pull on the pull switch 8 again to switch the LED light off.
• Switching the ceiling fan on (see Fig. J)
  ☐ Pull on the pull switch 6 to switch the ceiling fan on. The ceiling fan will run at high speed.
  ☐ Pull on the pull switch 6 again. The ceiling fan will run at medium speed.
  ☐ Pull on the pull switch 6 again. The ceiling fan will run at low speed.
  ☐ Pull on the pull switch 6 again to switch the ceiling fan off.
• Setting the right / left rotation (see Fig. J)
  CAUTION! RISK OF INJURY! Always switch the ceiling fan off and wait until it is still before using the rotation direction switch 4. Operating the rotation direction switch while the ceiling

fan is on can lead to injuries and / or material damage.

☐ In low temperatures, slide the rotation direction switch 4 upwards. The ceiling fan will distribute the warmth in the room.
☐ In high temperatures, slide the rotation direction switch 4 downwards. The ceiling fan will create a cooling flow of air.

- Inserting / replacing the light bulb

WARNING! DANGER OF ELECTRIC

SHOCK! Before changing the light bulb, make sure that the power supply to which the product is connected is not live. To do this, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Allow the LED light to cool down completely.

☐ Loosen the lampshade 10 thumb screws 5 and remove them carefully.
□ a€fully turn the defective light bulb 9 antidockwise out of the socket 7.
☐ Use a clean, lint-free cloth to replace the bulb.
☐ Screw the new light bulb clockwise into the socket 7
☐ Please refer to the chapter "Technical data" to find out which light bulb is required.
☐ Attach the lampshade 10. Use the thumb screws 5 for this purpose (see Fig. I).
Replace the fuse or switch on the circuit breaker (I setting) in the fuse box.

● Maintenance and cleaning

WARNING! DANGER OF ELECTRIC

SHOCK! Always disconnect the product from the mains before cleaning. To do

this, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box.

WARNING! DANGER OF ELECTRIC

SHOCK! To ensure electrical safety, never clean the product with aggressive

detergents or immerse it in water.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Allow the LED light to cool down completely.

• Do not use solvents, petrol, etc. Doing so would damage the product.
  ☐ Only clean with a dry, lint-free cloth.
  ☐ To clean the fan blades, use a feather duster in order to also clean the connections to the fan blade holders.
  ☐ Replace the fuse or switch on the circuit breaker (I setting) in the fuse box.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

- Warranty and service

Warranty

We provide a 3-year warranty from the date of purchase. Our products are manufactured using modern production methods and are subject to precise quality control. We guarantee that this product is in perfect condition. During the warranty period we will remedy any defects in material or manufacture free of charge. In the event of an unexpected defect, please return the carefully packaged product to the service address specified.

The warranty does not extend to damage due to improper operation, or to wear parts and consumables. These can be ordered from the telephone number listed for a charge. Repairs not covered by the warranty (e.g. light bulbs) may also be requested at cost price from the service address listed.

The product will be repaired at the specified service location. Timely processing and returns can only be ensured by sending the product directly to this address.

If you would like additional product information, need to order accessories or if you have a question about the service process, please contact our customer service department on the telephone number specified. Please include the item number (see "Technical data") when enquiring about the product.

Serviceaddress

Great Britain/Ireland

EGLO UK Ltd.

Unit 12 Cirrus Park

Lower Farm Road

Moulton Park Industrial Estate

Northampton, NN3 6UR, GREAT BRITAIN

E-Mail: [e-mail]

Phone: [phone]

IAN 337859\_1910

Please have your receipt and item number (e.g. IAN 123456_7890) ready as your proof of purchase when enquiring about the product.

- Declaration of conformity CE

This product fulfils the requirements of the applicable European and national directives. Conformity has been verified. The relevant declaration and documents are held by the manufacturer.

CE

Warrantycard

Return address:

Name/First name:

Country/Postal code/City/Street address:

Phone number:

Item number / Description:

Purchase date / Point of purchase:

Description of the defect:

Date / Signature:

Non-warranty cases:

Please return the un-repaired item, carriage paid.

Please inform me of the costs. Repair the product for a fee.

EGLO Belgium B.V.B.A.

Antwerpsesteenweg 247

2950 Kapellen, BELGIQUE

E-mail: [e-mail]

Telefoon: [phone]

IAN 337859\_1910

Lamp: E27, max. 60 W

Watt-vermogen in

standby-modus: 0 W

Toerental: 235 omw/min

Geluidsniveau: 43,5 dB (A)

Vermogen

Led-lamp: 6 Watt

EGLO Belgium B.V.B.A.

Antwerpsesteenweg 247

2950 Kapellen, BELGIË

E-mail: [e-mail]

Telefoon: [phone]

IAN 337859\_1910

FSC® RECYCLED Verpackung Packaging Emballage FSC® C147988

PDF ONLINE www.lidl-service.com
