Product type	Robot vacuum mop 2-in-1
Brand	SHARK
Model	AI Ultra 2in1 RV2600WSEU
Power supply	Rechargeable Li-ion battery (model RVBAT850A), charging station with self-emptying
Dustbin capacity (station)	Up to 30 days of debris
Mopping function	Yes, with Vac & Mop 2-in-1 tank and reusable pad
Navigation	AI laser (LIDAR) with intelligent mapping
Connectivity	Wi-Fi 2.4 GHz, SharkClean app, compatible with Amazon Alexa and Google Assistant
Obstacle detection	Vacuum sensors, bumper, object detection > 11.5 cm
No-go zones	Configurable in the app
Recharge & Resume function	Yes, for homes > 140 m²
Filter maintenance	Washable filters with cold water, drying 24 h
Rotating brush	Self-cleaning, replace every 6-12 months
Safety	Class 1 laser, drop sensors, child safety
Box contents	Robot, self-emptying station, auto-empty dustbin, Vac & Mop 2-in-1 tank, mopping pad, side brush, power cord, manual
Warranty	2 years (commercial warranty)

Frequently Asked Questions - AI Ultra 2in1 RV2600WSEU SHARK

How to set up the robot for mopping?

Make sure the robot has first performed a mapping cycle with the auto-empty dustbin. Then fill the Vac & Mop 2-in-1 tank with water up to the line, attach the pad, insert the tank into the robot and press the CLEAN button to start a vacuum and mop cycle.

How to empty the dustbin of the station?

Press the unlock button on the top right of the station, slide out the dustbin, then press the button under the dustbin to open the lid and empty debris. Replace the dustbin until it clicks.

What to do if the robot does not return to the station?

Check that the station is plugged in and the switch is set to ON. If the robot is discharged, manually place it on the station aligning the charging contacts. Make sure no obstacles block the path.

How to clean the robot filters?

Remove the dustbin, then the filter. Tap it to remove debris, rinse with cold water only (no soap), and let it air dry 24 hours before reinstalling.

How to install the SharkClean app?

Download the SharkClean app from the App Store or Google Play. Connect your phone to a 2.4 GHz Wi-Fi network, create an account and follow the instructions to connect the robot.

How to use voice control with Amazon Alexa?

Open the Alexa app, enable the Shark skill, then link your SharkClean account. You can then say: "Alexa, ask Shark to start cleaning."

How to set a no-go zone?

After a mapping cycle, open the map in the SharkClean app, select No-go zones and draw the areas to avoid on the map.

What to do in case of Wi-Fi connection error?

Check that the network is 2.4 GHz, disable VPN, restart the router, the robot (press DOCK for 5-7 s) and the phone. If necessary, forget the network in Wi-Fi settings and reconfigure.

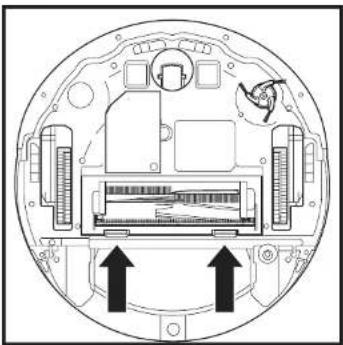

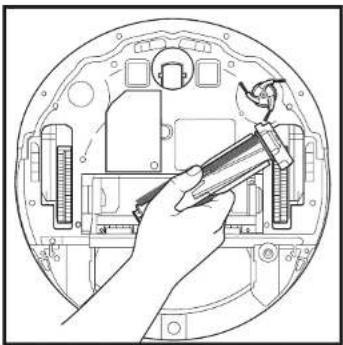

How to maintain the self-cleaning rotating brush?

After each use, the brush cleans itself automatically. If debris remains, remove the brush door, remove hair and fur, then reinstall the brush by inserting the flat side first. Replace it every 6 to 12 months.

What is the warranty period?

The Shark commercial warranty is 2 years from the date of purchase. It covers repair or replacement of the product. Online registration within 28 days is recommended.

USER MANUAL AI Ultra 2in1 RV2600WSEU SHARK

Robotic Vacuum Cleaner

RV2600WSEU

INSTRUKTIONER

GEBRAUCHSANWEISUNG

NOTICE D'UTILISATION

ET GARANTIE SHARK

INSTRUCCIONES

INSTRUCTIONS

ISTRUZIONI

INSTRUCTIES

INSTRUKSJONER

KÄYTTÖOHJEET

INSTRUKTIONER

INSTRUÇÕES

SHARKCLEAN APP

Download on the

App Store

GETT ON

Google Play

WORKS WITH

alexa

works with

Ok Google

VIGTIGE SIKKERHEDSANVISNINGER

LÆS OMHYGGELIGT INDEN IBRUGTAGNING • KUN BEREGNET TIL HUSHOLDNINGSBRUG

▲ADVARSEL

Reducer faren for brand, elektrisk stød, person- eller ejendomsskader:

B∅RN ELLER DYR B∅R IKKE EFTERLADES UDEN OPSYN I DE RUM,

SOM ROBOTST∅VSUGEREN HAR ADGANG TIL UNDER RENG∅RING.

ADVARSEL OM LASER

DETTE PRODUKT HAR EN LASER I KLASSE 1. SLUK ALTID FOR STRÖMMEN, F∅R ROBOTST∅VSUGEREN L∅FTES, ELLER DER FORETAGES VEDLIGEHOLDELSE PÅ DEN. SE IKKE DIREKTE IND I LASEREN.

HVIS IKKE OPLADNINGSKABLET PASSER ORDENTLIGT I KONTAKTEN, BEDES DU KONTAKTE EN KVALIFICERET ELEKTRIKER. TVING IKKE STIKKET IND I KONTAKTEN, OG FORS∅G IKKE AT AENDRE DET, SÅ DET PASSER.

GENERELLE ADVARSLER

Simple line drawing of a circular object with mounting feet and a rectangular frame, no text or symbols present.

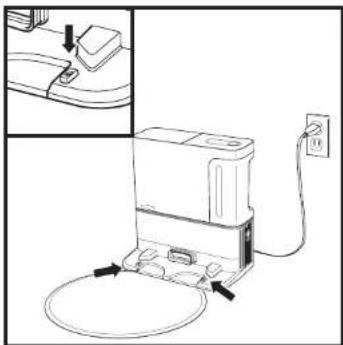

KONFIGURATION AF BASEN

Base Power Indicator-ikon

Technical diagram of a mechanical component with internal parts and an arrow indicating a specific feature (no text or symbols present)

Technical line drawing of a mechanical component with a circular base and central knob, showing a cross-section view (no text or symbols)

Ibrug

Black toggle switch with icons for home, lightning bolt, and fan (no text or labels)

Base Power Indicator Ikon Basen er tilslut har strøm.

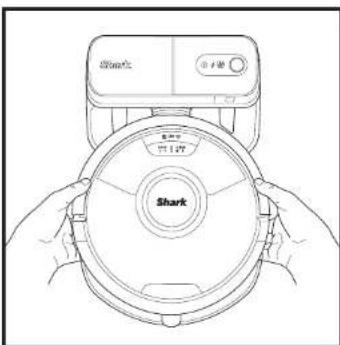

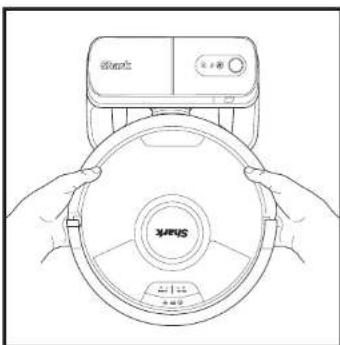

Opladningsikon

Line drawing of a robotic vacuum cleaner with attached power outlet (no text or symbols)

Line drawing of hands holding a circular device with 'Shark' label, no text or symbols present

Line drawing of hands holding a device with a circular dial labeled 'X456' and control panel (no text or symbols on the device itself)

GENOPLAD OG FORTSÆT

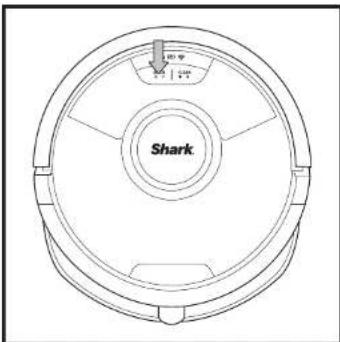

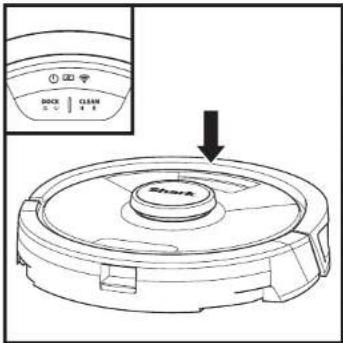

CLEAN (RENG∅RING)-KNAP

VÄD MOPPING-INDIKATOR

MANUEL RENG∅RINGSTILSTAND

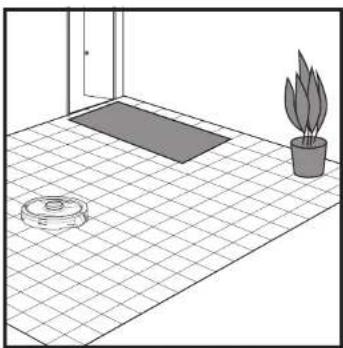

Simple line drawing of a room with a mat, a potted plant, and a floor tile (no text or symbols)

Line drawing of a room interior with TV, rug, and small objects (no text or symbols)

Technical line drawing of a mechanical component with a circular top and a prohibition symbol (no text or labels)

Technical line drawing of a mechanical component with a curved lid and mounting holes, showing an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Line drawing of a steam iron with a pipe inserted, no text or symbols present

Line drawing of a robotic vacuum cleaner and its open base (no text or symbols)

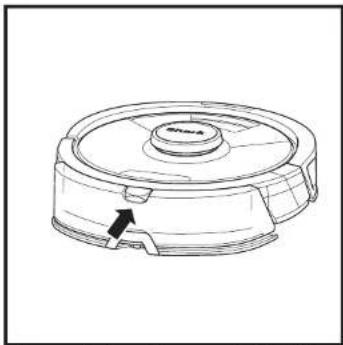

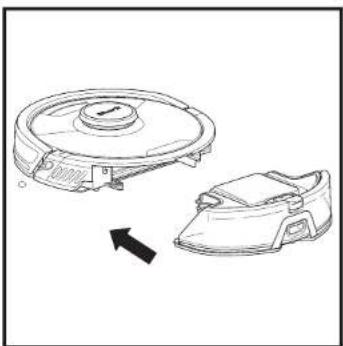

Skub Vac & Mop 2-i-1 støvbeholderen godt ind i robottens bagside, og sørg for at begge låse klikker på placs. Vanddråbeikonet på robotten vil lyse hvidt, när Vac & Mop 2-i-1 støvbeholderen er korrekt indsat.

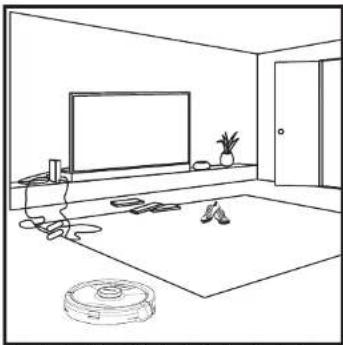

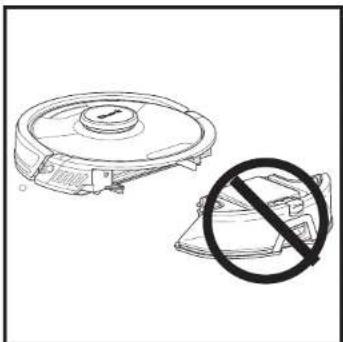

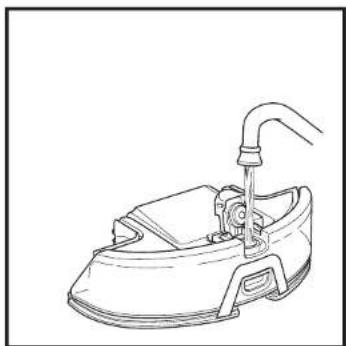

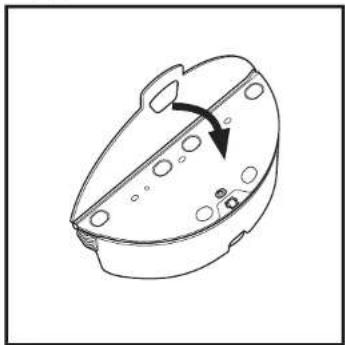

SÂDAN BRUGES SHARK® AI ULTRA 2-I-1 ROBOTTEN

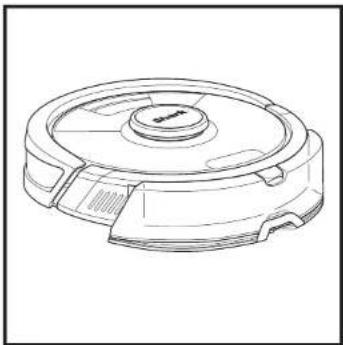

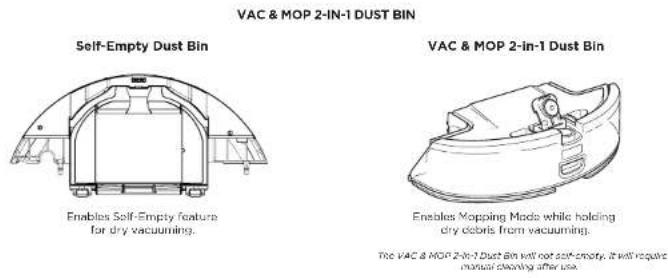

OPSÆTNING AF VAC & MOP 2-I-1OPSÆTNING AF VAC & M

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a robotic vacuum cleaner (no text or symbols)

Technical line drawing of a mechanical component with an open lid and internal holes, showing an upward arrow (no text or symbols)

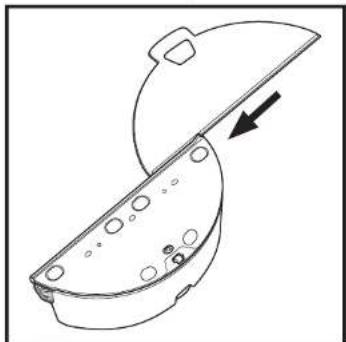

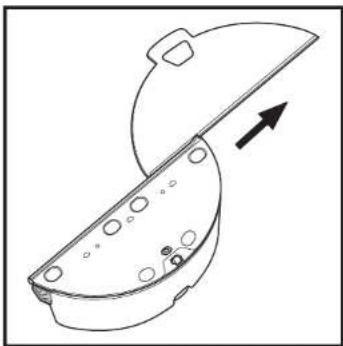

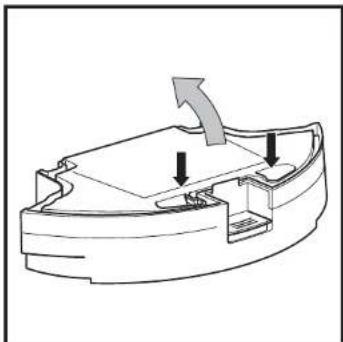

For at fjerne moppepuden fra Vac & Mop 2-1-1 støvbeholderen, skal puden afmonteres fra beholderen, hvorefter puden skydes ud af soklen.

Technical line drawing of a robotic vacuum cleaner with mounting bracket (no text or symbols)

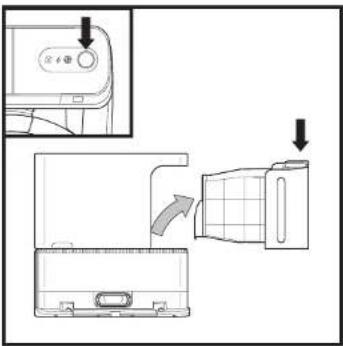

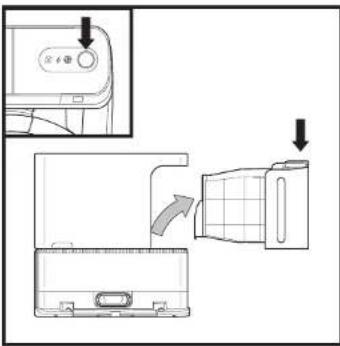

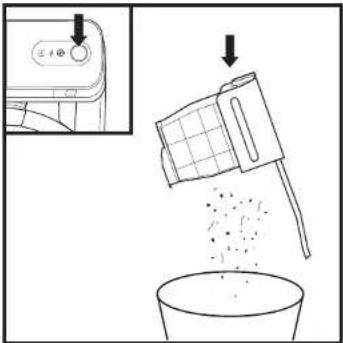

T∅MNING AF ST∅VBEHOLDERENS BASE

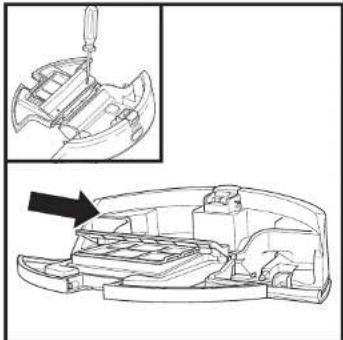

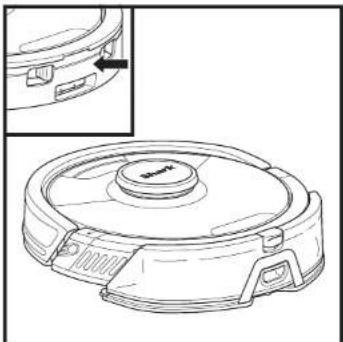

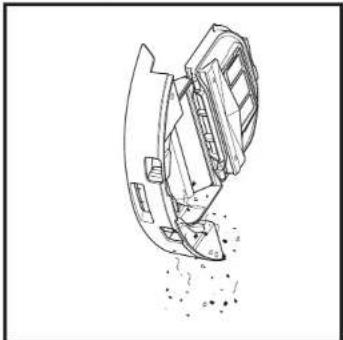

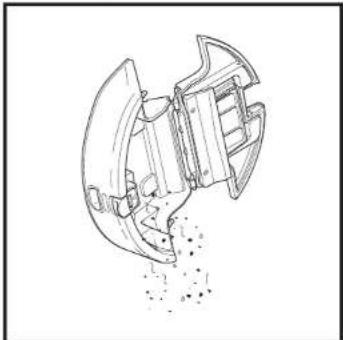

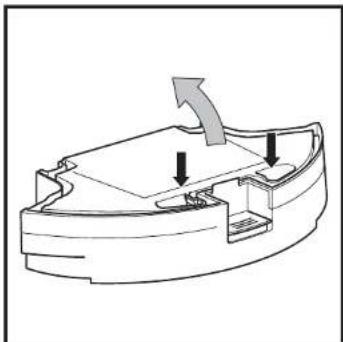

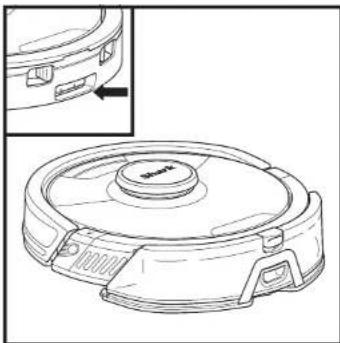

T∅MNING AF 2-I-1 ROBOTTENS ST∅VBEHOLDERE

Technical line drawing of a circular mechanical component with a central hub and mounting brackets (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and powder particles (no text or symbols)

Technical line drawing of a mechanical device with internal components and an inset showing a tool interacting with a component (no text or symbols present)

Line drawing of a laboratory apparatus with a top component and internal components (no text or symbols)

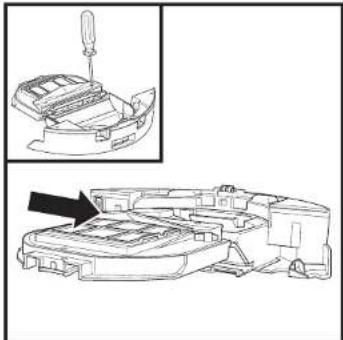

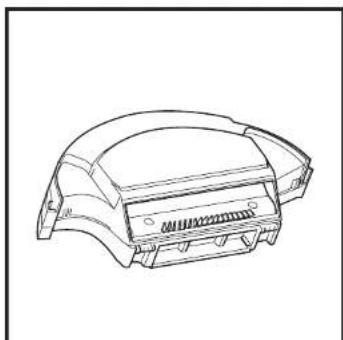

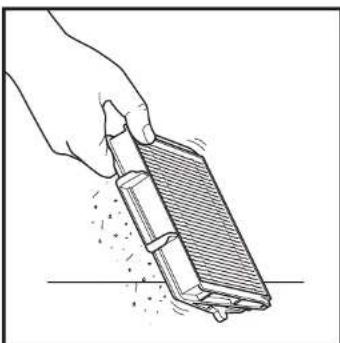

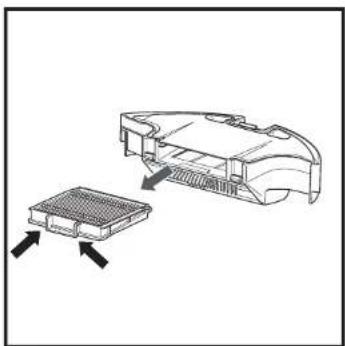

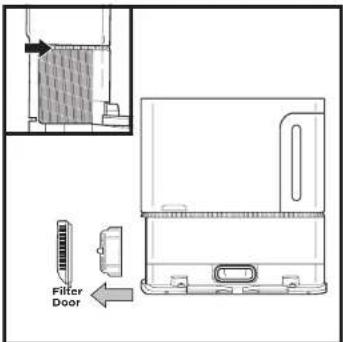

RENS FILTRENE FORAN MOTOREN EN GANG OM MÅNEDEN

Technical line drawing of a circular mechanical component with a central hub and mounting slots, shown with an inset view of a component detail (no text or symbols present)

Technical line drawing of a mechanical component with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with internal structure and motion indicators (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a tool inserted into a housing (no text or symbols present)

Line drawing of a mechanical component with no visible text or symbols

Diagram showing a device component with arrows indicating assembly or insertion (no text or symbols present)

Hand holding a handheld device with motion lines indicating movement (no text or symbols visible)

Technical line drawing of a mechanical component with a separate housing and a magnified inset showing internal structure (no text or symbols)

Cross-sectional diagram of a device casing with internal components and directional arrows indicating movement or force (no text or symbols)

Illustration of a hand using a wrench to adjust internal components in a circular device (no text or symbols visible)

Top-down schematic of a circular electronic device with internal components and mounting points (no text or symbols)

Diagram of a washing machine connected to a power outlet, showing wiring and component placement (no text or symbols)

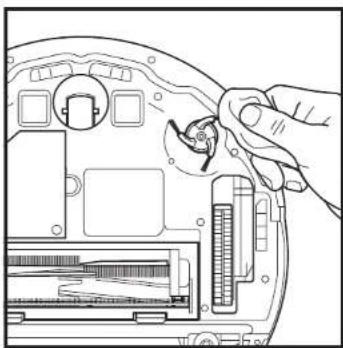

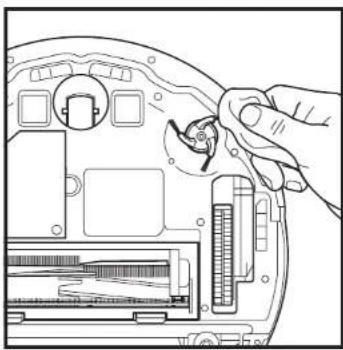

RENG∅RING AF SIDEB∅RSTE

RENG∅R SIDEB∅RSTE EFTER BEHOV.

Line drawing of a hand inserting a small mechanical component into a device casing (no text or symbols)

Download on the App Store

GETT ON Google Play

•Planlægning

SharkNinja Europe Limited,

3150 Century Way,

Thorpe Park,

Leeds, LS15 8ZB

SharkNinja Germany GmbH

c/o Regus Management GmbH,

Technical diagram of a mechanical component with internal parts and an arrow indicating a feature (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating a downward motion (no text or symbols present)

In Verwendung

Simple black toggle switch with icons for home, lightning bolt, and fan (no text or labels)

Line drawing of a robotic vacuum cleaner connected to a power outlet (no text or symbols)

Line drawing of hands holding a car hood with brand mark 'XIFUS' and control panel (no text or symbols on the device itself)

Line drawing of a room with a rug, a potted plant, and a tiled floor (no text or symbols)

Line drawing of a room interior with TV, rug, and robotic arm (no text or symbols)

Technical line drawing of a mechanical component with a circular housing and a prohibition symbol (no text or labels)

Technical line drawing of a mechanical component with a curved lid and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with circular holes and an arrow indicating rotation (no text or symbols)

Line drawing of a steam iron with a pipe inserted, showing internal components (no text or symbols)

Line drawing of a robotic vacuum cleaner and its side view (no text or symbols)

Technical line drawing of a mechanical component with a central circular feature and flanges (no text or symbols)

Line drawing of a robotic vacuum cleaner (no text or symbols)

Technical line drawing of a mechanical component with an open lid and internal holes, showing an upward arrow (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with mounting bracket (no text or symbols)

Technical line drawing of a circular mechanical component with a central hub and mounting brackets (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and fluid flow (no text or labels)

Technical line drawing of a mechanical component with an inset showing a tool interacting with a gear-like structure (no text or symbols present)

Line drawing of a laboratory apparatus with a cylindrical component above it (no text or symbols)

REINIGEN SIE DIE VORMOTORFILTER EINMAL IM MONAT

Technical line drawing of a circular robotic device with a central hub and side ports, showing no text or symbols.

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component or assembly (no text or symbols visible)

Technical line drawing of a mechanical device with an inset showing a disassembly or assembly process (no text or symbols present)

Technical line drawing of a mechanical component or housing (no text or symbols)

Diagram showing a device with a grid base and internal components, no text or symbols present

Hand holding a cleaning brush with a brush tip, spraying powder onto a surface (no text or symbols visible)

Technical line drawing of a mechanical component with a grid base and internal structure (no text or symbols)

Cross-sectional diagram of a device casing with internal components and directional arrows indicating movement (no text or symbols)

Illustration of a hand using a wrench to adjust internal components in a circular device (no text or symbols visible)

Top-down schematic of a circular device interior with internal components and directional arrows (no text or symbols)

Diagram showing a washing machine connected to a power outlet with cable, no text or symbols present

Line drawing of a hand inserting a component into a device casing (no text or symbols visible)

Download on the App Store

GETIT ON Google Play

- Zeitplanung

SharkNinja Europe Limited,

3150 Century Way,

Thorpe Park,

Leeds,

LS15 8ZB

SharkNinja Germany GmbH

c/o Regus Management GmbH,

Excellent Business Center 10.+11. Stock,

Westhafenplatz 1,

60327 Frankfurt am Main, Germany

sharkclean.eu

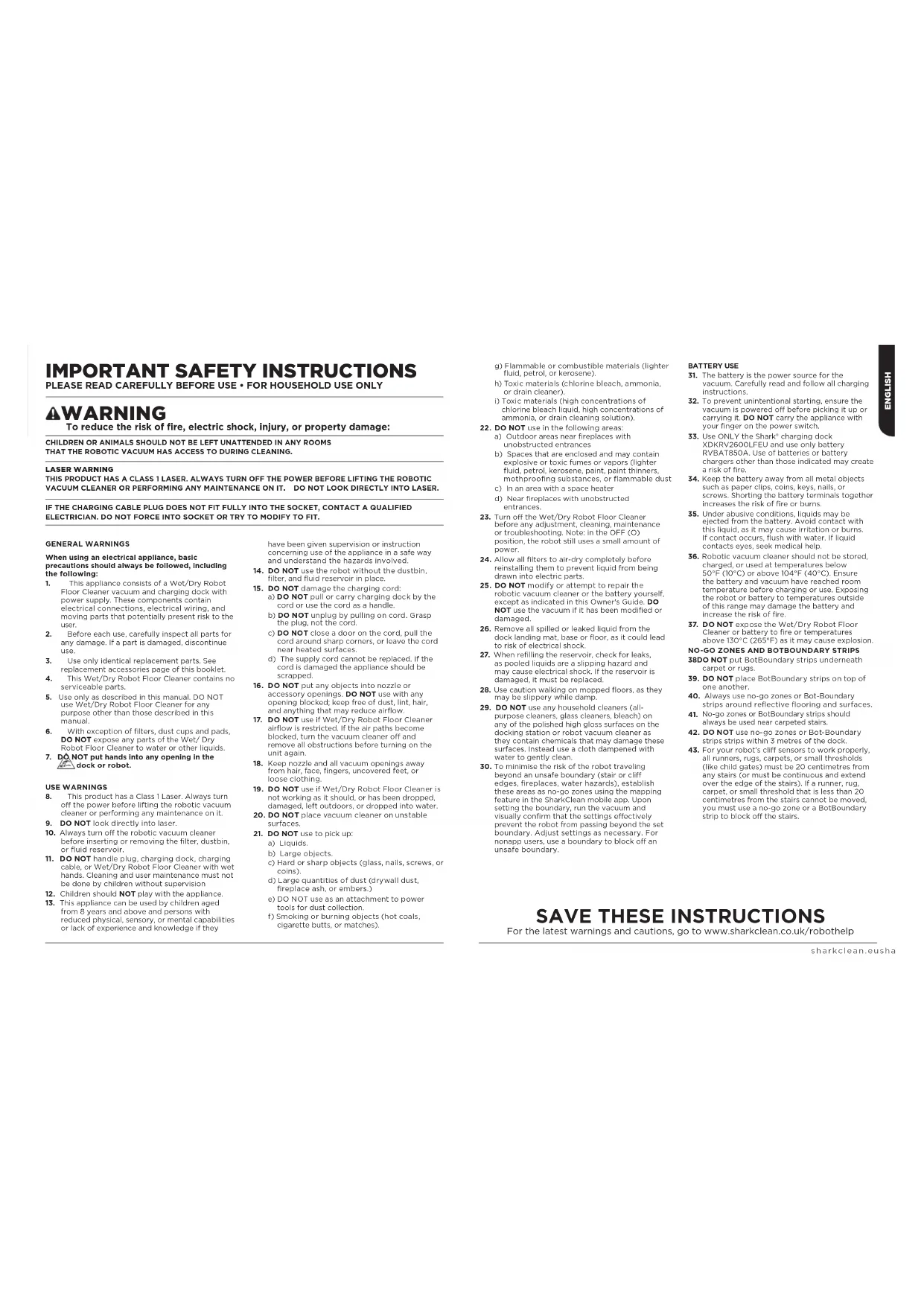

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ CAREFULLY BEFORE USE • FOR HOUSEHOLD USE ONLY

⚠ WARNING

To reduce the risk of fire, electric shock, injury, or property damage:

CHILDREN OR ANIMALS SHOULD NOT BE LEFT UNATTENDED IN ANY ROOMS

THAT THE ROBOTIC VACUUM HAS ACCESS TO DURING CLEANING.

LASER WARNING

THIS PRODUCT HAS A CLASS 1 LASER. ALWAYS TURN OFF THE POWER BEFORE LIFTING THE ROBOTIC VACUUM CLEANER OR PERFORMING ANY MAINTENANCE ON IT. DO NOT LOOK DIRECTLY INTO LASER.

IF THE CHARGING CABLE PLUG DOES NOT FIT FULLY INTO THE SOCKET, CONTACT A QUALIFIED ELECTRICIAN. DO NOT FORCE INTO SOCKET OR TRY TO MODIFY TO FIT.

GENERAL WARNINGS

When using an electrical appliance, basic precautions should always be followed, including the following:

1. This appliance consists of a Wet/Dry Robot Floor Cleaner vacuum and charging dock with power supply. These components contain electrical connections, electrical wiring, and moving parts that potentially present risk to the user.
2. Before each use, carefully inspect all parts for any damage. If a part is damaged, discontinue use.
3. Use only identical replacement parts. See replacement accessories page of this booklet.
4. This Wet/Dry Robot Floor Cleaner contains no serviceable parts.
5. Use only as described in this manual. DO NOT use Wet/Dry Robot Floor Cleaner for any purpose other than those described in this manual.
6. With exception of filters, dust cups and pads, DO NOT expose any parts of the Wet/ Dry Robot Floor Cleaner to water or other liquids.
7. DO NOT put hands into any opening in the dock or robot.

USE WARNINGS

1. This product has a Class 1 Laser. Always turn off the power before lifting the robotic vacuum cleaner or performing any maintenance on it.
2. DO NOT look directly into laser.
3. Always turn off the robotic vacuum cleaner before inserting or removing the filter, dustbin, or fluid reservoir.
4. DO NOT handle plug, charging dock, charging cable, or Wet/Dry Robot Floor Cleaner with wet hands. Cleaning and user maintenance must not be done by children without supervision
5. Children should NOT play with the appliance.
6. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they

have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

1. DO NOT use the robot without the dustbin, filter, and fluid reservoir in place.
2. DO NOT damage the charging cord: a) DO NOT pull or carry charging dock by the cord or use the cord as a handle. b) DO NOT unplug by pulling on cord. Grasp the plug, not the cord.
   c) DO NOT close a door on the cord, pull the cord around sharp corners, or leave the cord near heated surfaces.
   d) The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.
3. DO NOT put any objects into nozzle or accessory openings. DO NOT use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
4. DO NOT use if Wet/Dry Robot Floor Cleaner airflow is restricted. If the air paths become blocked, turn the vacuum cleaner off and remove all obstructions before turning on the unit again.
5. Keep nozzle and all vacuum openings away from hair, face, fingers, uncovered feet, or loose clothing.
6. DO NOT use if Wet/Dry Robot Floor Cleaner is not working as it should, or has been dropped, damaged, left outdoors, or dropped into water.
7. DO NOT place vacuum cleaner on unstable surfaces.
8. DO NOT use to pick up:

a) Liquids.

b) Large objects.
c) Hard or sharp objects (glass, nails, screws, or coins).
d) Large quantities of dust (drywall dust, fireplace ash, or embers.)
e) DO NOT use as an attachment to power tools for dust collection.
f) Smoking or burning objects (hot coals, cigarette butts, or matches).

g) Flammable or combustible materials (lighter fluid, petrol, or kerosene).

h) Toxic materials (chlorine bleach, ammonia, or drain cleaner).
i) Toxic materials (high concentrations of chlorine bleach liquid, high concentrations of ammonia, or drain cleaning solution).

1. DO NOT use in the following areas:

a) Outdoor areas near fireplaces with unobstructed entrances
b) Spaces that are enclosed and may contain explosive or toxic fumes or vapors (lighter fluid, petrol, kerosene, paint, paint thinners, mothproofing substances, or flammable dust
c) In an area with a space heater
d) Near fireplaces with unobstructed entrances.

1. Turn off the Wet/Dry Robot Floor Cleaner before any adjustment, cleaning, maintenance or troubleshooting. Note: in the OFF (O) position, the robot still uses a small amount of power.

2. Allow all filters to air-dry completely before reinstalling them to prevent liquid from being drawn into electric parts.

3. DO NOT modify or attempt to repair the robotic vacuum cleaner or the battery yourself, except as indicated in this Owner's Guide. DO NOT use the vacuum if it has been modified or damaged.
4. Remove all spilled or leaked liquid from the dock landing mat, base or floor, as it could lead to risk of electrical shock.
5. When refilling the reservoir, check for leaks, as pooled liquids are a slipping hazard and may cause electrical shock. If the reservoir is damaged, it must be replaced.
6. Use caution walking on mopped floors, as they may be slippery while damp.
7. DO NOT use any household cleaners (all-purpose cleaners, glass cleaners, bleach) on any of the polished high gloss surfaces on the docking station or robot vacuum cleaner as they contain chemicals that may damage these surfaces. Instead use a cloth dampened with water to gently clean.
8. To minimise the risk of the robot traveling beyond an unsafe boundary (stair or cliff edges, fireplaces, water hazards), establish these areas as no-go zones using the mapping feature in the SharkClean mobile app. Upon setting the boundary, run the vacuum and visually confirm that the settings effectively prevent the robot from passing beyond the set boundary. Adjust settings as necessary. For nonapp users, use a boundary to block off an unsafe boundary.

BATTERY USE

1. The battery is the power source for the vacuum. Carefully read and follow all charging instructions.
2. To prevent unintentional starting, ensure the vacuum is powered off before picking it up or carrying it. DO NOT carry the appliance with your finger on the power switch.
3. Use ONLY the Shark® charging dock XDKRV2600LFEU and use only battery RVBAT850A. Use of batteries or battery chargers other than those indicated may create a risk of fire.
4. Keep the battery away from all metal objects such as paper clips, coins, keys, nails, or screws. Shorting the battery terminals together increases the risk of fire or burns.
5. Under abusive conditions, liquids may be ejected from the battery. Avoid contact with this liquid, as it may cause irritation or burns. If contact occurs, flush with water. If liquid contacts eyes, seek medical help.
6. Robotic vacuum cleaner should not be stored, charged, or used at temperatures below 50^ F ( 10^ C) or above 104^ F ( 40^ C). Ensure the battery and vacuum have reached room temperature before charging or use. Exposing the robot or battery to temperatures outside of this range may damage the battery and increase the risk of fire.
7. DO NOT expose the Wet/Dry Robot Floor Cleaner or battery to fire or temperatures above 130°C (265°F) as it may cause explosion.

NO-GO ZONES AND BOTBOUNDARY STRIPS

38DO NOT put BotBoundary strips underneath carpet or rugs.
39. DO NOT place BotBoundary strips on top of one another.
40. Always use no-go zones or Bot-Boundary strips around reflective flooring and surfaces.
41. No-go zones or BotBoundary strips should always be used near carpeted stairs.
42. DO NOT use no-go zones or Bot-Boundary strips strips within 3 metres of the dock.
43. For your robot's cliff sensors to work properly, all runners, rugs, carpets, or small thresholds (like child gates) must be 20 centimetres from any stairs (or must be continuous and extend over the edge of the stairs). If a runner, rug, carpet, or small threshold that is less than 20 centimetres from the stairs cannot be moved, you must use a no-go zone or a BotBoundary strip to block off the stairs.

SAVE THESE INSTRUCTIONS

For the latest warnings and cautions, go to www.sharkclean.co.uk/robothelp

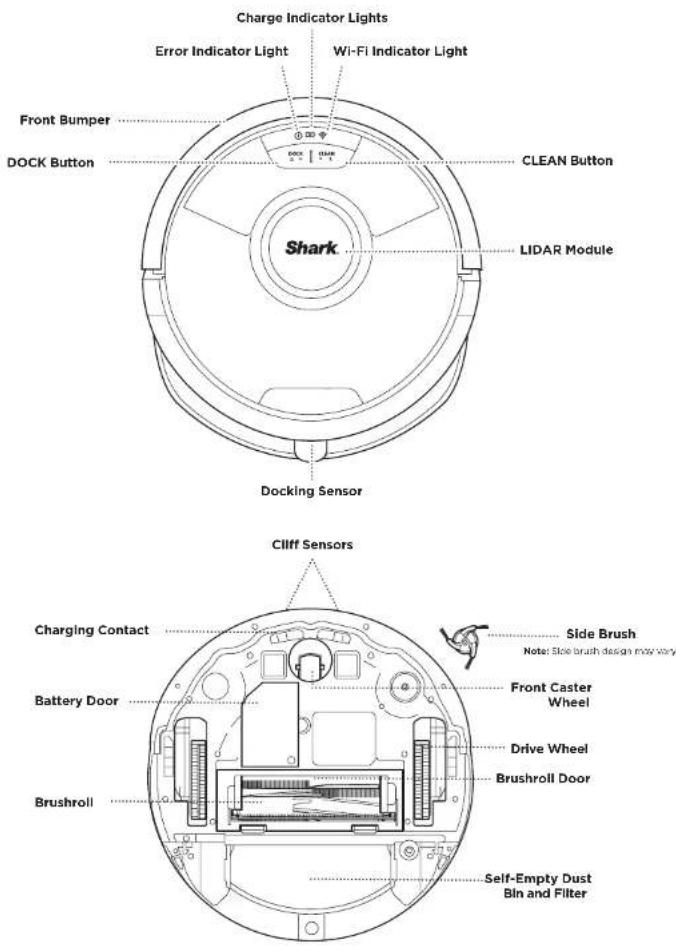

GETTING TO KNOW YOUR SHARK® AI ULTRA 2-IN-1 ROBOT

GETTING TO KNOW YOUR SHARK® AI ULTRA 2-IN-1 ROBOT

BASE SETUP

The Base Power Indicator Icon

• Select a permanent location for the Base because every time you relocate the base, your robot will have to completely re-map your house. Remove protective film from robot and base.
• Place the base with its back against a wall. Select a level surface on a bare floor in a central area with a strong WI-FI signal. Do not place base against baseboard heaters or other heating elements.
• Remove any objects that are closer than 1 metre from either side of the base or closer than 1.5 metre from the front of the base.
• Plug in the base. Make sure the power switch on the back of the base is in the (I) ON position. The Base Power Indicator Symbol ( ) on the top right side of the base will illuminate when the base has power

Technical diagram of a mechanical component with internal features and an arrow indicating a specific feature (no text or symbols present)

Snap the included side brush onto the square peg on the bottom of the robot. The brush will spin clockwise when correctly assembled.

NOTE: Side brush design may vary

sharkclean.eusharkclean.eu

ROBOT BATTERY INDICATOR LIGHTS

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

In Use

While Charging (White)

No Charge or Off

The white charge indicator lights show how much battery power is remaining.

While the robot is charging, both white LED lights will flash. When charging is complete, both will illuminate steadily. It may take up to 6 hours to fully charge your robot.

If the robot is idle and away from the charging base for 10 minutes, it will enter Sleep Mode. The indicator lights will turn off, but the battery and Wi-Fi lights will remain on in sleep mode. Wake up the robot by pressing any button.

NOTE: If the low charge light is blinking red, there is not enough battery power for the robot to return to the base. Manually place the robot on the base.

TIP: To preserve battery life, if the robot will not be used for a long time, turn off the power on the robot by pressing the DOCK button and holding it for 5-7 seconds. The robot should be recharged at least once every three months.

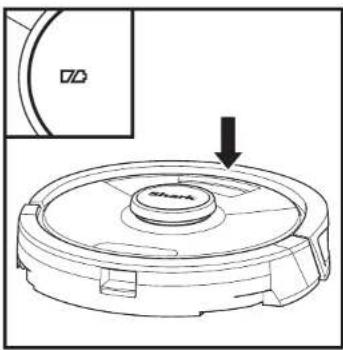

To turn the robot power off, take it off the Self-Empty Base and press the DOCK button on the robot for 5-7 seconds.

BASE INDICATOR LIGHTS

Black toggle switch with icons for home, lightning bolt, and fan (no text or labels)

Base Power

Indicator Icon

Base is plugged and has power

Charging Icon

Robot is properly aligned on base and charging.

No Evacuation Icon

Robot will not self-empty debris into base.

CHARGING

IMPORTANT: The Shark® AI Ultra 2-in-1 Robot has a pre-installed rechargeable battery. Charge the battery completely before first use, it may take up to 6 hours to fully charge.

To turn ON the robot, press and hold the DOCK button for 5-7 seconds. To charge, place the robot on the dock. The robot will beep when charging begins and the charging indicator on the dock will turn from green to blue.

Line drawing of a robotic vacuum cleaner with attached power outlet (no text or symbols)

When the cleaning cycle is complete, or if the battery is running low, the robot will search for the dock. If the robot doesn't return to clock, its charge may have run out, or if it is in mopping mode, the dock may be blocked by carpet.

Line drawing of hands holding a circular device with 'Shark' label, no text or symbols present

If the robot has no charge or it cannot return to the base, manually place it on the base. When the robot is properly aligned on the base with the robot's BACK against the base, the Charging Symbol on the top right side of the base will illuminate. The robot will beep when charging begins.

Line drawing of hands holding a circular device with 'X495' label, no readable text or symbols beyond branding

If the Self-Empty Dust Bin is installed, the robot will dock with its back to the base so that it can automatically empty itself.

NOTE: When manually placing the robot on the base, make sure the Charging Contacts on the bottom of the robot are touching the ones on the base. NOTE: When picking up the robot, be careful not to place fingers between the bumper and the base of the robot.

BUTTONS AND INDICATOR LIGHTS

RECHARGE & RESUME

Press and hold the DOCK button for 15 seconds to turn Recharge & Resume ON or OFF.

The Recharge & Resume function is turned OFF by default. Turn ON Recharge & Resume for complete coverage if your home's floor plan is bigger than 140m ^2 . Your robot will return to the dock, recharge, and can pick up where it left off.

CLEAN BUTTON

Press to begin a cleaning session and press again to pause the cleaning session. To activate Spot Clean to focus on a 1.5 metres x 1.5 metres area, press and hold the CLEAN button for 5 seconds.

DOCK BUTTON

Press to send the robot back to the base.

CHARGE INDICATOR LIGHTS

Display the amount of charge remaining in the battery.

WET MOPPING

INDICATOR

The CLEAN button will illuminate blue when the fluid reservoir is properly installed. The CLEAN button will illuminate yellow if the tank is empty and needs refilling.

"!" ERROR INDICATOR

See Troubleshooting section for full list of error codes.

PREP YOUR HOME

Your robot uses an array of sensors to navigate around walls, furniture logs, and other obstacles while it cleans. To prevent the robot from entering areas you don't want it to, set up no-go zones in the app. For best results, prepare your home as indicated below, and schedule a daily cleaning to ensure all floor areas are regularly maintained.

OBSTRUCTIONS

Clear cords and small objects less than 11.5 cm in height, and open interior doors to ensure a complete map of your home.

SCHEDULING

Schedule whole-home cleanings with the app. To schedule a mopping run with the app, the Vac & Mop 2-in-1 Dust Bin must be filled and installed in the robot with the pad attached.

THRESHOLDS

Your robot can climb over most thresholds to get from room to room, but if one is too high, set up a no-go zone in the app to block it off.

AVOID MOVING THE
ROBOT OR DOCK

While your robot is cleaning, do not pick it up and move it, or move the charging dock—this will impact the robot's navigation and ability to return to clock when cleaning is complete.

STAIRS

For your robot's cliff sensors to work properly, all runners, rugs, carpets, or small thresholds (like child gates) must be 20.5 cm from any stairs (or must be continuous and extend over the edge of the stairs). If a runner, rug, carpet, or small threshold that is less than 20.5 cm from the stairs cannot be moved, you must use a no-go zone or a BotBoundary' strip to block off the stairs.

REMOVE RUGS FROM
DOORWAYS WHEN
MOPPING

Before mopping, we recommend setting up Carpet Zones in the app, and moving any carpets or rugs that block access to floors that you want your robot to mop.

MANUAL CLEANING MODE

To manually start a cleaning cycle, press the Clean button on the robot or on the mobile app. To immediately send the robot back to the dock, press the Dock button.

IMPORTANT: Before cleaning an entire room for the first time, we recommend that you first test your robot on a small section of the floor to ensure there is no scratching.

USING THE SHARK® AI ULTRA 2-IN-1 ROBOT

AI LASER NAVIGATION™

Simple line drawing of a room with a rug, a potted plant, and a small pot on the floor (no text or symbols)

After setup is complete, follow instructions in the app to help your robot conduct an Explore Run to create an initial map of your home. Ensure the Self-Empty Dust Bin is inserted for the Explore Run.

The robot will travel from room to room to identify walls, furniture, and other obstacles as it cleans. This run will take less time than a full cleaning, as it doesn't cover the entire floor.

Line drawing of a room interior with TV, rug, and small objects (no text or symbols)

The robot's object detection technology helps it navigate around obstacles taller than 11.5 cm in height. Clear away small objects that may interfere with the cleaning path of your robot.

Create no-go zones in the app to block off areas you do not want the robot to enter.

VACUUM-ONLY INSTRUCTIONS

Technical line drawing of a robotic arm and a prohibition symbol (no text or labels)

To vacuum with the Self-Empty feature, use the Self-Empty Dust Bin. Do not install the Vac & Mop 2-in-1 Dust Bin.

NOTE: Be sure to charge the robot completely before its first cleaning so that it can explore, map, and clean as much of your home as possible. It may take up to 6 hours to fully charge your robot.

NOTE: Avoid moving the dock. If it is relocated, the robot may not be able to find its way back to the dock. If the robot is relocated while in use, it may not be able to follow its intelligent cleaning path, or find its way back to the dock.

USING THE SHARK® AI ULTRA 2-IN-1 ROBOT

NOTE: Before it can mop, the robot MUST complete an Explore Run with the Self-Empty Dust Bin attached. After the Explore Run, you will have an option to set up Carpet Zones and verify those carpets in the app with a Carpet Verification Run. This ensures your robot will avoid carpets in mopping mode.

Technical line drawing of a mechanical component with a curved base and circular holes, showing an arrow indicating direction (no text or symbols)

Attach the mop pad by inserting the flat edge of the pad through the slot in the Vac & Mop 2-in-1 Dust Bin. Pull the mop pad all the way through the slot until it is securely inserted.

Technical line drawing of a mechanical component with circular holes and an arrow indicating rotation (no text or symbols)

Secure the pad to the Vac & Mop 2-in 1 Dust Bin.

Line drawing of a steam iron with a pipe inserted, showing internal components (no text or symbols)

Lift open the fill cap on the top of the reservoir. Fill with water to the water line.

Line drawing of a robotic vacuum cleaner and a pair of shoes, with no text or symbols present.

Firmly push the Vac & Mop 2-in-1 Dust Bin into the back of the robot, and ensure both latches click into place. The water droplet icon on the robot will illuminate white when the Vac & Mop 2-in-1 Dust Bin is inserted properly.

USING THE SHARK® AI ULTRA 2-IN-1 ROBOT

VAC & MOP 2-IN-1 SETUPVAC & MOP 2-IN-1 SETUP

NOTE: When mopping, your robot may travel over floor mats or rugs. Before the next mopping run, move rugs or mats out of the robot's path, or use the app to set up Carpet Zones or no-go zones.

Technical line drawing of a mechanical component with no visible text or symbols

When the reservoir in the Vac & Mop 2-in-1 Dust Bin has fluid and is properly installed, with the mop pad attached, the robot is ready to vacuum and mop simultaneously. Press the CLEAN button on the robot or in the app to start a vacuuming and mopping run. The robot will prime the mop pad for 30 seconds before starting its run.

Technical line drawing of a mechanical component with a central hub and an arrow indicating a specific feature (no text or symbols present)

When mopping is complete, remove the Vac & Mop 2-in-1 Dust Bin by pressing the fill port button and sliding it out. Empty the reservoir after each use and manually clean out the dust bin.
CAUTION: Floors may be slippery after mopping.

Technical line drawing of a mechanical component with an open lid and internal slots, showing an upward arrow (no text or symbols)

To remove the mop pad from the Vac & Mop 2-in-1 Dust Bin, detach the pad from the reservoir and slide the pad out of the slot.

Technical line drawing of a robotic arm and circular component (no text or symbols)

To prevent your robot from traveling over rugs and carpets in mopping mode, set up Carpet Zones in the app.

MAINTENANCE

EMPTYING THE BASE DUST BIN

The Base Dust Bin holds up to 30 days' worth of dust and debris. Empty the base dust bin when the debris level approaches the max fill line. To detach the bin, press the Dust Bin Release button on top right side of the base, then slide out the bin.

To empty the bin, hold it over the rubbish bin, then press the release button with the rubbish bin icon on the bottom of the bin. The bin lid will open, releasing dust and debris. Lightly tap the dust bin against the inside of the rubbish bin receptacle to knock off any remaining debris. Reinstall the bin by sliding it into the slot in the base until it clicks into place.

MAINTENANCE

CAUTION: Turn off power before performing any maintenance.

EMPTYING THE ROBOT 2-IN-1 DUST BINS

Technical line drawing of a mechanical component with an inset view showing a circular feature (no text or symbols)

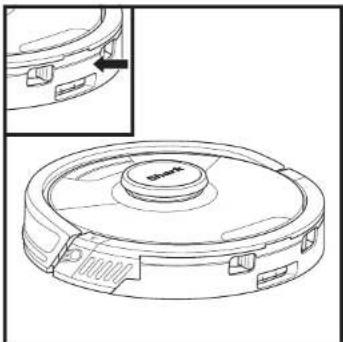

To remove the Self-Empty Dust Bin, pinch the release latches on the front of the dust bin and slide it out. For the Vac & Mop 2-in-1 Dust Bin, press the release button at the top of the dust bin and slide it out

Technical line drawing of a mechanical component with arrows indicating motion or force (no text or symbols)

To open the dust bin lid, press and hold the button while lifting the lid, using the finger slots.

Technical line drawing of a mechanical component with internal parts and a dotted pattern (no text or symbols)

Empty debris and dust into trash. Remove filter and wash dust bin if necessary.

Technical line drawing of a mechanical device with internal components and an inset showing a tool interacting with a component (no text or symbols present)

Look between the filter and the plastic shield and make sure there is no debris buildup.

MAINTENANCE

CLEANING AND REPLACING THE BASE FILTERS

Regularly clean the filters to keep your vacuum's suction power optimal.

To clean filters, rinse with cold water ONLY to prevent damage from cleaning chemicals. Allow all filters to air-dry for at least 24 hours before reinstalling them to prevent liquid from being drawn into electric parts.

IMPORTANT: DO NOT use soap when cleaning the filters.

Line drawing of a laboratory apparatus with a top component and internal components (no text or symbols)

CLEAN PRE-MOTOR FILTERS ONCE A MONTH

To open the filter housing lid, hold the top left edge of the base and pull up on the lid. With the lid open, remove the foam filter by the top handle, then lift out the felt filter underneath. Tap the filters clean over the trash, Tap the filters clean over the rubbish bin, then rinse them with cold water ONLY, as soap may damage them. Allow filters to air-dry completely before reinstalling them. The filters must be installed correctly for the base to work properly. Reinsert the felt filter first, then the foam filter.

CLEAN POST-MOTOR FILTER EVERY YEAR

Press the button at the top of the Filter Door, then tilt the door and lift it off. Remove the Post-Motor Filter from the base by pulling the tab down. Tap the filters clean over the rubbish bin, then rinse them with cold water ONLY, as soap may damage them. To reinstall the post-motor filter, insert it into the base and replace the filter door.

MAINTENANCE

CAUTION: Turn off power before performing any maintenance.

EMPTYING THE ROBOT DUST BINS

Technical line drawing of a circular mechanical component with a central hub and side ports, showing no text or symbols.

To remove the Self-Empty Dust Bin, pinch the release latches on the front of the dust bin and slide it out. For the Vac & Mop 2-in-1 Dust Bin, press the release button at the top of the dust bin and slide it out

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

To open the dust bin lid, press and hold the button while lifting the lid, using the finger slots.

Technical line drawing of a mechanical component with internal structure and motion indicators (no text or symbols)

Empty debris and dust into rubbish bin. Remove filter and wash dust bin if necessary.
NOTE: Make sure to insert the dust bin completely, until it clicks into place.

Technical line drawing of a mechanical component with an inset showing a tool interacting with a device (no text or symbols present)

Look between the filter and the plastic shield and make sure there is no debris buildup.

CLEANING AND REPLACING THE ROBOT'S FILTERS

For optimal suction power, please clean and reinsert the Self-Empty Dust Bin filter after each use. See sharkclean.eu for replacement filters.

Line drawing of a car body panel with no text or symbols

Remove and empty the Self-Empty Dust Bin. Clean any hair or debris off the Anti-Tangle Comb on the back of the dust bin.

Diagram of a device component with two arrows indicating assembly or insertion, no text or symbols present

Pull filter out of the dust bin by the tabs.

Hand holding a handheld device with motion lines indicating movement (no text or symbols visible)

Lightly tap the filter to remove debris every time you empty the dust bin.

Technical line drawing of a mechanical component with a separate housing and a magnified inset showing internal structure (no text or symbols)

Reinsert the filter into the dust bin, then slide the dust bin back into the robot until it clicks into place.

NOTE: Make sure to insert the dust bin completely, until it clicks into place.

MAINTAINING THE VAC & MOP 2-IN-1 DUST BIN AND MOPPING PAD

To clean pads, machine wash warm with light colors. Use mild detergents and do not use bleach or fabric softeners. Air-dry, or tumble-dry on low with no dryer sheets.

Empty the remaining liquid and the debris from the fluid reservoir after each use. Let the module air dry. DO NOT put Vac & Mop 2-in-1 Dust Bin in the dishwasher.

NOTE: Before storing, make sure the Vac & Mop 2-in-1 Dust Bin and pad are completely dry. Store them in a dry place to prevent damage.

MAINTENANCE

SELF-CLEANING BRUSHROLL

The Self-Cleaning Brushroll actively removes hair wrap while your robot cleans. If some debris remains wrapped around the brushroll, continue to run the robot to give the brushroll time to clean itself. If some hair wrap or debris remains after continued cleaning, carofully remove it from the brushroll.

Cross-sectional diagram of a device showing internal components and directional arrows (no text or symbols)

To access the brushroll, push up on the tabs on the brushroll door, then lift off the door.

Hand holding a wrench inside a circular mechanical component (no text or symbols visible)

Lift out the brushroll and remove any debris. Reinstall the brushroll, inserting the flat end first. Close the brushroll door and press down until both sides click into place.

NOTE: Replace brushroll every 6 to 12 months, or when visibly worn. See sharkclean.eu for replacement parts.

MAINTENANCE

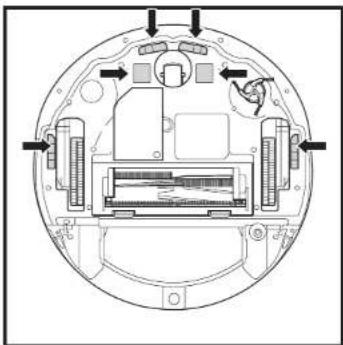

CLEANING SENSORS AND CHARGING CONTACTS

CLEAN SENSORS AND CHARGING CONTACTS AS NEEDED. With a dry cloth, gently dust off the sensors and contacts located on the bottom of the robot and on the base.

Technical diagram of a circular mechanical or electronic component with internal components and directional arrows (no text or symbols)

Line drawing of a washing machine connected to a power outlet, with no visible text or symbols

IMPORTANT: The robot uses cliff sensors to avoid stairs and other steep drops. Sensors may work less effectively when they are dirty. For best results, clean sensors regularly.

CLEANING SIDE BRUSH

CLEAN SIDE BRUSH AS NEEDED.

Line drawing of a hand inserting a component into a computer motherboard (no text or symbols)

Carefully unwind and remove any string or hair wrapped around the side brush. Gently wipe brush with a dry cloth. To reinstall, snap the brush over the pegs. Spin the brush manually to make sure it is installed correctly.

NOTE: Side brush design may vary.

NOTE: Remove and replace the side brush if it is bent or damaged. To remove the brush, lift it off its peg.

sharkclean.eusharkclean.eu

USING THE SHARK® AI ULTRA 2-IN-1 ROBOT

Please visit sharkclean.com/app or visit SharkClean on YouTube for troubleshooting videos.

USING THE SHARKCLEAN\* APP AND VOICE CONTROLS

Get the most out of your robot with these app features:

• Recharge and Resume
Enable this feature to handle multi-room cleaning in larger homes. The robot will return to the base, recharge, and can pick up where it left off.
•UltraClean: Targeted deep cleaning for a specific room or single spot.
- No-Go Zones
Use the no-go zones in the app to keep your robot out of the areas you would like it to avoid.

•Scheduling

Set up whole-home cleanings for any time, any day.

• Control From Anywhere
Wherever you are, you're in control of your robot.
- Cleaning Reports
Each time your robot cleans, your app will generate a cleaning report. Search for SharkClean in the app store and download the app to your smartphone.
- Carpet Zone
Once your robot has mapped your home, set up Carpet Zones in the app to identify areas of your carpeted floors you do not want your robot to mop.

Download on the App Store

GETT ON Google Play

SETTING UP VOICE CONTROL WITH THE GOOGLE ASSISTANT OR AMAZON ALEXA

Visit sharkclean.com/app for setup instructions which include how to enable Shark Skill for Amazon Alexa and using with Google Assistant.

Google Assistant:

"OK Google, tell Shark to start cleaning." "OK Google, tell Shark to pause my robot."

“OK Google, tell Shark to send my robot to the dock.”

Amazon Alexa:

"Alexa, tell Shark to start cleaning."
"Alexa, tell Shark to pause my robot."
“Alexa, tell Shark to send my robot to the dock.”

WI-FI TROUBLESHOOTING

• To use the app, your phone must be connected to
a 2.4 GHz network. The app will only work on a 2.4 GHz network.
• Typical home WI-FI networks support both 2.4 GHz and 5 GHz.
- Do not use a VPN or a proxy server.
• Make sure Wi-Fi isolation is turned off on the router.
- Questions? Steps if You're Stuck: Having trouble connecting to your robot? For how-to videos, FAQs, troubleshooting, and tips & tricks visit: sharkclean.eu.

CAN'T CONNECT?

Restart your phone

Turn off phone, wait a few minutes, then turn it back on and connect to Wi-Fi.

Reboot your robot

• Make sure the power switch on the back of the BASE is in the ON position.
• Take robot off base and press and hold the DOCK button on the robot for 5-7 seconds to turn off power. Place the robot back on the base to power back on.
Reboot your router
- Unplug the router power cable for 30 seconds, then plug it back in. Allow several minutes for your router to reboot completely.

How do I use my robot with Amazon Alexa?

Open the Amazon Alexa app, go to the menu and select Skills. Or go to the Alexa Skills store on the Amazon website. Search for "Shark 5kill". Select the Shark ^1 Skill to open the detail page, then select the Enable Skill option. Once enabled, you can ask Alexa to control your robot (i.e., "Alexa, tell Shark" to start cleaning").

WI-FI TROUBLESHOOTING

How do I set up my robot with the Google Assistant on an Apple device?

1. Download, open, and sign in to the Google Assistant app. 2. Select the "Explore" icon. Search for "Shark" and select "Try it." 3. To allow Google to link to your SharkClean® account, sign in to your SharkClean account. This is the same account you used when setting up your Shark® robot in the SharkClean app. Select "Authorise" to link your SharkClean account to the Google Assistant. To send your robot in to action, use the voice command, "Google, tell Shark® to start cleaning."

How do I set up my robot with the Google Assistant on Android?

1. Download opon, and sign in to the Google Assistant app. 2. Select the "Explore" Icon. Search for "Shark" and select "Link." 3. Sign in to your SharkClean account. This is the same account you used when setting up your Shark® robot in the SharkClean app. To send your robot in to action, use the voice command, "Google, tell Shark" to start cleaning."

What should I do if my WI-FI randomly disconnects?

Take the robot off the base and press and hold the DOCK button on the robot for 5-7 seconds to turn off power. Place the robot back on the base to turn power back onto turn power back on. Turn off your phone. Wait 30 seconds, then turn your phone back on. Open Wi-Fi settings on your phone, find the Shark® network, and select Forget Network. Reopen SharkClean app and retry the connection process. It is normal for your robot to temporarily lose connectivity when it goes under furniture or moves far from your router. Your Shark® robot will automatically reconnect to Wi-Fi. If the robot does not reconnect, power it off, wait 10 seconds, power the robot back on, and place it back on the base.

What should I do if I verified a wireless network password that is incorrect?

Close the app, then reopen it. Make sure that you entered the correct Wi-Fi network password this time. In your phone's network settings, choose your home 2.4 GHz network, and select Forget. Reconnect to your home network. Make sure to use the correct password. If you were able to connect to your home network, proceed to the app setup process. We recommend that you use the eye icon when entering your password to make sure it is correct. Turn off your router and wait 30 seconds. Turn your router back on. Check to make sure your 2.4 GHz network is visible in your phone settings. Turn off the robot, then wait 10 seconds. Turn the robot back on and wait for the voice prompt. Hard-close the app and restart the connection process on the robot. If you cannot locate your Wi-Fi password, please contact your Internet service provider.

What should I do if my username or password is invalid?

We recommend you select the eye icon next to the password entry to verify you are entering your password correctly. Select the 'Forgot Password' option on the sign-in page. The automated system will email you a link to reset your password. If you do not see an email, search your inbox and spam folder for emails from [e-mail] You can use the "Resend code" option to send the email again.

What should I do If there is an issue resetting password (did not receive the email or token was invalid)?

Select the 'Forgot Password' option on the sign-in page. The automated system will email you a link to reset your password. If you do not see an email, search your inbox and spam folder for emails from [e-mail] You can use the "Resend code" option to send the email again.

ERROR CODE PROBLEM

1 (RED) + Wi-Fi indicator (RED Flashing) Wrong password for Wi-Fi

1 (Flashing red) + Wi-Fi (RED) SSID cannot be found, try connecting again

1 + Wi-Fi (Flashing RED at the same time) Cannot connect to Wi-Fi

REPLACEMENT PARTS

NOTE: To order replacement parts visit sharkclean.eu.

REPLACEMENT PARTS: ROBOT

Robot Filter

Self-Empty Dust Bin

Brushroll

Battery

Brushroll Door

Side Brush Note: Side brush design may vary

REPLACEMENT PARTS: MOPPING

Mop Pad

Vac & Mop 2-In-1 Dust BIn

REPLACEMENT PARTS: BASE

Charging Base

Base Dust BIn

Base Pre-Motor Foam & Felt Filter Kit

Base Post-Motor Filter

MAINTENANCE

TROUBLESHOOTING

If any error lights are illuminated or flashing on your Shark ^® AI Ultra 2-in-1 Robot, see the error code chart below:

ERROR CODE SOLUTION

CLEAN (RED) flashing + ! (RED) flashing	Suction motor failure. Remove and empty the dust bin, clean the filters, and remove blockages to ensure nothing is reducing suction.
CLEAN (RED) flashing	Robot may be stuck on an obstacle. Move robot to a new location on a level surface.
DOCK (RED) flashing	Front bumper may be jammed. Clean the bumper and make sure it moves in and out freely.
CLEAN (RED) + DOCK (RED) flashing	Robot dust bin has been removed and needs to be reinserted.
DOCK (RED) + ! (RED) flashing	Side brush is stuck. Remove any debris from around the side brush.
CLEAN (RED) + DOCK (RED) + ! (RED) flashing	A drive wheel is stuck. Clean the wheels and remove any debris wrapped around the axles.
CLEAN (WHITE) + DOCK (RED) + ! (RED) flashing	Wheel motor encoder failure. Please turn the power off and back on.
CLEAN (WHITE) + ! (RED) flashing	Blockage in brushroll. Remove any debris from around the brushroll.
CLEAN (RED) + DOCK (WHITE) + ! (RED) flashing	Robot has encountered an error while booting. Please turn the power off and back on.
CLEAN (WHITE) + DOCK (RED) flashing	Robot cannot locate base. Please pick up your robot and place it on the base.
BATTERY ICON (RED) flashing	Battery is critically low and needs recharging. If your robot is unable to base, place the robot manually on the base.
CLEAN (RED) flashing + DOCK (WHITE) flashing alternating	Robot is stuck. Please move to a level surface.
CLEAN (YELLOW)	Fluid reservoir of the Vac & Mop 2-in-1 Dust Bin is empty. Refill before cleaning.

Shark | NINJA

TWO (2) YEAR LIMITED GUARANTEE

When a consumer buys a product in Europe, they get the benefit of legal rights relating to the quality of the product (your "statutory rights").

You can enforce these rights against your retailer. However, at Shark® we are so confident about the quality of our products that we give the product owner a manufacturer's guarantee of two years. These terms and conditions relate to our manufacturer's guarantee only - your statutory rights are unaffected.

The conditions below describe the prerequisites and scope of our guarantee. They do not affect your statutory rights or the obligations of your retailer and your contract with them.

Shark Guarantees

A household appliance like a Robot Vacuum constitutes a sizeable investment. Your new machine needs to work properly for as long as possible. The guarantee it comes with is an important consideration - and reflects how much confidence the manufacturer has in its product and manufacturing quality.

Every Shark® machine comes with a free parts and labour guarantee. Our customer service helpline (0800 862 0453) is open from 9.00am to 6.00pm Monday - Friday. It's free to call, and you'll be put straight through to a Shark® representative. You'll also find online support at www.sharkclean.eu.

How do I register my extended Shark guarantee?

You can register your guarantee online within 28 days of purchase. To save time, you'll need the following information about your machine:

- Date you purchased the machine (receipt or delivery note)

To register online, please visit www.Sharkclean.eu/uk/register-guarantee. Products purchased directly from Shark® are automatically registered.

What is covered by the free Shark® guarantee?

Repair or replacement (at Shark's discretion) of your Shark® machine, including all parts and labour. A Shark® guarantee is in addition to your legal rights as a consumer.

What are the benefits of registering my free Shark guarantee?

When you register your guarantee we'll have your details to hand if we ever need to get in touch. If you further agree to receive communications from us, you can also receive tips and advice on how to get the best out of your Shark ^1 Robot Vacuum and hear the latest news about new Shark ^2 technology and launches.

If you register your guarantee online, you'll get instant confirmation that we've received your details.

How long are new Shark® machines guaranteed for?

Our confidence in our design and quality control means that your new Shark® Robot Vacuum is guaranteed for two years.

Where can I buy genuine Shark ^® spares and accessories?

Shark® spares and accessories are developed by the same engineers who developed your Shark® Robot Vacuum. You'll find a full range of Shark® spares, replacement parts and accessories for all Shark® machines at www.sharkclean.eu.

Please remember that damage caused by use of non-Shark ^® spares is not covered under your guarantee.

What is not covered by the free Shark guarantee?

1. Normal wear and tear of wearable parts, which require regular maintenance and/or replacement to ensure the proper functioning of your unit, are not covered by this guarantee. Replacement parts are available for purchase at sharkclean.eu.

2. Any unit that has been tampered with or used for commercial purposes.

3. Accidental damage and faults caused by negligent use or care, misuse, neglect, carloss operation or handling of the Robot Vacuum which is not in accordance with this Shark Instruction booklet supplied with your machine.

4. Use of parts not assembled or installed in accordance with these instructions.
5. Faulty installation (except where installed by Shark).
6. Repairs or alterations carried out by parties other than Shark ^® or its agents.

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

These instructions are designed to help you keep your Shark AI Robot running at peak performance.

SharkNinja Europe Limited,

3150 Century Way,

Thorpe Park

Loods,

LS15 82B

SharkNinja Germany GmbH

c/o Regus Management GmbH,

Excellent Business Center 10,+11, Stock,

Westhafonplatz 1,

60327 Frankfurt am Main, Germany

sharkclean.eu

Illustrations may differ from actual product. We are constantly striving to improve our products; therefore the specifications contained herein are subject to change without notice.

Simple line drawing of a circular object with mounting feet and a rectangular frame, no text or symbols present.

Technical diagram of a mechanical component with internal parts and an arrow indicating a feature (no text or symbols present)

Technical line drawing of a mechanical component with a circular base and central hub, showing a downward arrow (no text or symbols)

En uso

Black toggle switch with icons for home, lightning bolt, fan, and circle (no text or labels)

Line drawing of a robotic vacuum cleaner with attached power outlet (no text or symbols)

Line drawing of hands holding a circular device with 'Shark' label, no text or symbols present

Line drawing of hands holding a circular device with 'X495' label, no readable text or symbols beyond branding

Simple line drawing of a room with a rug, a potted plant, and a small pot on the floor (no text or symbols)

Line drawing of a room interior with TV, rug, and small objects (no text or symbols)

Technical line drawing of a mechanical component with a circular housing and a prohibition symbol (no text or labels)

Line drawing of a mechanical component with a lid and internal holes, showing an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Line drawing of a steam iron with a pipe inserted, showing internal components (no text or symbols)

Line drawing of a robotic vacuum cleaner and a pair of shoes, showing no text or symbols.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with a central hub and an arrow indicating a specific feature (no text or symbols present)

Diagram of a mechanical component with a lid and internal holes, showing an upward arrow (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with mounting bracket (no text or symbols)

Technical line drawing of a circular mechanical component with mounting brackets and a central hub (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with internal structure and powder residue (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a component detail (no text or symbols)

Line drawing of a portable electronic device with a top-mounted sensor and control panel (no text or symbols)

LIMPIA LOS FILTROS ANTERIORES AL MOTOR UNA VEZ AL MES

Technical line drawing of a circular mechanical component with mounting holes and a central hub (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with internal structure and surface debris (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a component being inserted (no text or symbols present)

Technical line drawing of a mechanical component or housing (no text or symbols)

Diagram showing a device with a grid base and internal components, no text or symbols present

Hand holding a handheld device with granular material, no visible text or symbols

Technical line drawing of a mechanical component with a grid base and an open lid (no text or symbols)

Cross-sectional diagram of a device showing internal components and directional arrows (no text or symbols)

Hand holding a wrench inside a circular mechanical component (no text or symbols visible)

Top-down schematic of a circular device interior with internal components and directional arrows (no text or symbols)

Line drawing of a washing machine with attached power outlet and cable, shown in two views (no text or symbols)

LIMPIEZA DEL CEPILLO LATERAL

LIMPIA EL CEPILLO LATERAL CUANDO SEA NECESARIO.

Line drawing of a hand inserting a small mechanical component into a device casing (no text or symbols)

Download on the App Store

GETTTON Google Play

•Programación

SharkNinja Europe Limited,

3150 Century Way,

Thorpe Park,

Leeds

LS15 8ZB

SharkNinja Germany GmbH.

c/o Regus Management GmbH.

Excellent Business Center 10.+11. Stock,

Westhafenplatz 1.

Simple line drawing of a circular object with two side handles and a rectangular frame, no text or symbols present.

Technical diagram of a mechanical component with internal parts and an arrow indicating a specific feature (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Black toggle switch with icons for home, lightning bolt, and fan (no text or labels)

Line drawing of a robotic vacuum cleaner with attached power outlet (no text or symbols)

Line drawing of hands holding a circular device with 'Shark' label, no text or symbols present

Line drawing of hands holding a VAPS-branded device (no text or symbols on the device itself)

Simple line drawing of a room with a rug, a potted plant, and a small pot on the floor (no text or symbols)

Line drawing of a room interior with TV, rug, and small objects (no text or symbols)

Technical line drawing of a robotic arm and a prohibition symbol (no text or labels)

Line drawing of a mechanical component with a lid and internal holes, showing an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with circular holes and an arrow indicating rotation (no text or symbols)

Line drawing of a steam iron with a pipe inserted, showing mechanical components (no text or symbols)

Line drawing of a robotic vacuum cleaner and its open pocket (no text or symbols)

Technical line drawing of a mechanical component with a central hub and flanges (no text or symbols)

Line drawing of a robotic vacuum cleaner (no text or symbols)

Line drawing of a mechanical component with an open lid and internal slots, showing an upward arrow (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with a central hub and side brackets (no text or symbols)

Technical line drawing of a mechanical component with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with internal structure and scattered debris (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a disassembled component (no text or symbols present)

Line drawing of a portable electronic device with a top-mounted sensor and control panel (no text or symbols)

NETTOYAGE DES FILTRES EN AMONT DU MOTEUR UNE FOIS PAR MOIS

Line drawing of a circular robotic device with a central hub and side ports, showing no text or symbols.

Technical line drawing of a mechanical component with arrows indicating motion or force (no text or symbols)

Technical line drawing of a mechanical component with internal structure and motion indicators (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a tool interacting with a housing (no text or symbols present)

Line drawing of a mechanical component with no visible text or symbols

Diagram of a device component with two arrows indicating assembly or insertion (no text or symbols present)

Hand holding a mechanical device with motion lines indicating movement (no text or symbols)

Technical line drawing of a mechanical component with a separate housing and a magnified inset showing internal structure (no text or symbols)

Cross-sectional diagram of a device showing internal components and directional arrows (no text or symbols)

Illustration of a hand using a wrench to adjust internal components (no text or symbols visible)

Top-down schematic of a circular device interior with internal components and directional arrows (no text or symbols)

Line drawing of a washing machine with attached power outlet and cable, shown in two views (no text or symbols)

NETTOYAGE DE LA BROSSE LATÉRALE

NETTOYEZ LA BROSSE LATÉRALE 51 CELA EST NÉCESSAIRE.

Line drawing of a hand inserting a small mechanical component into a device casing (no text or symbols)

Download on the App Store

GETTTON Google Play

Toll-free Customer Service Number: [phone]

E-mail address: [e-mail]

IMPORTANTI ISTRUZIONI DI SICUREZZA

LEGGERE ATTENTAMENTE PRIMA DELL'UTILIZZO • SOLO PER IMPIEGO DOMESTICO

⚠AVVERTENZA

Technical diagram of a mechanical component with internal features and an arrow indicating direction (no text or symbols present)

Technical line drawing of a circular mechanical component with a central hub and an arrow indicating direction (no text or symbols)

In uso

Black toggle switch with icons for home, lightning bolt, fan, and circle (no text or labels)

Line drawing of a robotic vacuum cleaner with attached power outlet (no text or symbols)

Line drawing of hands holding a circular device with 'Shark' label, no text or symbols present

Line drawing of hands holding a car steering wheel (no text or symbols)

RICARICA E RIPRENDI

Line drawing of a room with a rug, a potted plant, and a tiled floor (no text or symbols)

Line drawing of a room interior with TV, rug, and robotic arm (no text or symbols)

Technical line drawing of a mechanical component with a circular top and a prohibition symbol (no text or labels)

Line drawing of a mechanical component with a curved lid and mounting holes, showing an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Line drawing of a steam iron with a pipe inserted, showing internal components (no text or symbols)

Line drawing of a robotic vacuum cleaner and its open sole (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a robotic vacuum cleaner (no text or symbols)

Technical line drawing of a mechanical component with a curved lid and mounting holes, showing an upward arrow (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with a central hub and side brackets (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with internal structure and powder residue (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a disassembled part (no text or symbols present)

Line drawing of a laboratory apparatus with a top component and internal components (no text or symbols)

Technical line drawing of a circular mechanical component with mounting holes and a central hub (no text or symbols)

Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with internal structure and motion indicators (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a tool inserted into a component (no text or symbols present)

Technical line drawing of a mechanical component or housing (no text or symbols)

Diagram showing a device with a grid base and internal components, no text or symbols present

Hand holding a cleaning tool with a brush, spraying particles (no text or symbols visible)

Diagram of a device housing with a grid base and internal components (no text or symbols)

Cross-sectional diagram of a device showing internal components and two upward arrows indicating movement or force (no text or symbols present)

Illustration of a hand using a tool to adjust or install electronic components inside a circular device (no text or symbols visible)

Top-down schematic of a circular electronic device with internal components and mounting points (no text or symbols)

Line drawing of a portable electronic device connected to a power outlet, with no visible text or symbols.

PULIZIA DELLE SPAZZOLE LATERALI

PULIRE LA SPAZZOLA LATERALE IN BASE ALLE ESIGENZE.

Line drawing of a hand inserting a component into a computer motherboard (no text or symbols)

Downloaded on the App Store

GETTTON Google Play

IMPOSTAZIONE DEL CONTROLLO VOCALE CON L'ASSISTENTE GOOGLE O CON AMAZON ALEXA

Stroomcontrolelampje station

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with a circular base and central hub, showing a downward arrow (no text or symbols)

In Gebruik

Simple black toggle switch with icons for home, power line, fan, and circle (no text or labels)

Stroomcontrolelampje station

Line drawing of a robotic vacuum cleaner with attached power outlet (no text or symbols)

Line drawing of hands holding a circular device with 'Shark' label, no text or symbols present

Line drawing of hands holding a device with a circular dial labeled 'X495' and control panel (no text or symbols on the device itself)

OPLADEN & HERVATTEN

Houd de knop OPLAADSTATION 15 seconden ingedrukt om Opladen & Hervatten AAN of UIT te zetten.

Simple line drawing of a room with a mat, a potted plant, and a floor tile (no text or symbols)

Line drawing of a room interior with TV, rug, and robotic arm (no text or symbols)

Technical line drawing of a mechanical component with a circular base and a prohibition symbol (no text or labels)

Line drawing of a mechanical component with a lid and arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Line drawing of a steam iron machine with a pipe inserted (no text or symbols)

Line drawing of a robotic vacuum cleaner and a pair of shoes, with no text or symbols present.

Technical line drawing of a mechanical component with a central hub and flanges (no text or symbols)

Line drawing of a robotic vacuum cleaner (no text or symbols)

Diagram of a mechanical component with a lid and internal holes, showing an upward arrow (no text or symbols)

Technical line drawing of a mechanical component with a circular base and dashed alignment lines (no text or symbols)

Technical line drawing of a circular mechanical component with a central hub and side ports, showing no text or symbols.

Technical diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Technical line drawing of a mechanical component with internal structure and scattered particles (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a disassembled part (no text or symbols present)

Line drawing of a laboratory apparatus with a top component and internal components (no text or symbols)

PRE-MOTOR FILTERS EEN KEER PER MAAND REINIGEN

Line drawing of a circular robotic device with a central hub and side ports, shown in two views (no text or symbols)

Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with internal structure and surface debris (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a tool interacting with a component (no text or symbols present)

Line drawing of a car interior frame with no text or symbols

Diagram showing a device with a grid base and internal components, no text or symbols present

Hand holding a handheld device with a textured surface and motion lines, no visible text or symbols

Technical line drawing of a mechanical component with a separate housing (no text or symbols)

Cross-sectional diagram of a device showing internal components and directional arrows (no text or symbols)

Hand holding a wrench inside a circular mechanical component (no text or symbols visible)

Technical diagram of a circular mechanical or electronic component with internal components and directional arrows (no text or symbols)

Diagram showing a washing machine connected to a power outlet, with no visible text or symbols

DE ZIJBORSTEL REINIGEN

REINIG DE ZIJBORSTEL INDIEN NODIG.

Line drawing of a hand inserting a button into a computer monitor case (no text or symbols visible)

• Bediening overal vandaan

WIFI PROBLEEMOPLOSSING

WIFI PROBLEEMOPLOSSING

Post-motorfilter station

ONDERHOUD

PROBLEMEN OPLOSSEN

SharkNinja Europe Limited,

3150 Century Way,

Thorpe Park.

Leeds,

LS15 82B

SharkNinja Germany GmbH

Simple line drawing of a circular object with two side handles and a handle, no text or symbols present.

BASE-OPPSETT

Technical diagram of a mechanical component with internal parts and an arrow indicating a specific feature (no text or symbols present)

Trykk den medfølgende sidebørsten på den firkantede knaggen på burnen av roboten. Børsten vil rotere med urviseren när den er riktig montert.

Technical line drawing of a circular mechanical component with a central hub and an arrow pointing to it (no text or symbols present)

I bruk

Under lading (hvit)

Simple black toggle switch with icons for home, lightning bolt, and fan (no text or labels)

Line drawing of a robotic vacuum cleaner with attached power outlet (no text or symbols)

Line drawing of hands holding a circular device with 'Shark' label, no text or symbols on the device itself

Line drawing of hands holding a circular device with 'X495' label, no readable text or symbols beyond branding

Line drawing of a room with a rug, a potted plant, and a tiled floor (no text or symbols)

Line drawing of a room interior with TV, rug, and small objects (no text or symbols)

Technical line drawing of a robotic arm and a prohibition symbol (no text or labels)

Technical line drawing of a mechanical component with a curved lid and circular holes, showing an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with circular holes and an arrow indicating rotation (no text or symbols)

Fest puten til Vac & Mop 2-i-1 støvbeholderen.

Line drawing of a steam iron machine with a pipe inserted (no text or symbols)

Line drawing of a robotic vacuum cleaner and its side view with an arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with a central hub and side slots (no text or symbols)

Technical line drawing of a mechanical component with a central hub and a black arrow indicating a specific feature (no text or symbols present)

Technical line drawing of a mechanical component with an open lid and internal slots, showing an upward arrow (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with mounting bracket (no text or symbols)

T∅MMING AV BASENS ST∅VBEHOLDER

T∅MMING AV ROBOTENS 2-I-1-ST∅VBEHOLDER

Technical line drawing of a mechanical component with an inset view showing a circular feature (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with internal structure and powder particles (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a tool interacting with a component (no text or symbols present)

Line drawing of a laboratory apparatus with a top component and internal components (no text or symbols)

RENGJ∅R F∅R-MOTOR-FILTRE MÅNEDLIG

T∅MMING AV ROBOTENS ST∅VBEHOLDER

Technical line drawing of a circular mechanical component with a central hub and side ports, showing no text or symbols.

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with internal structure and surface debris (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a tool interacting with a component (no text or symbols present)

VEDLIKEHOLD VEDLIKEHOLD

RENGJ∅RING OG UTSKIFTING AV ROBOTENS FILTRE

Technical line drawing of a mechanical component or housing (no text or symbols)

Fjern og tøm støvbeholderen. Rens eventuelt hår eller rusk fra «Anti-Tangle»-kammen på baksiden av støvbeholderen.

Diagram of a device component with two arrows indicating assembly or insertion, showing internal structure (no text or symbols)

Hand holding a mechanical device with motion lines indicating movement (no text or symbols visible)

Technical line drawing of a mechanical component with a separate housing and a magnified inset showing internal structure (no text or symbols)

VEDLIKEHOLDE VAC & MOP 2-I-1 ST∅VBEHOLDER OG MOPPEPUTE

Cross-sectional diagram of a device showing internal components and directional arrows (no text or symbols)

Hand holding a wrench inside a circular mechanical component (no text or symbols visible)

Technical diagram of a circular mechanical or electronic component with internal components and directional arrows (no text or symbols)

Diagram showing a washing machine connected to a power outlet, with no visible text or symbols

Line drawing of a hand inserting a small component into a computer motherboard (no text or symbols)

Download on the App Store

GETT ON Google Play

FOR À SETTE OPP TALESTYRING MED GOOGLE ASSISTENT ELLER AMAZON ALEXA,

RESERVEDELER: MOPPING

Moppepute

SharkNinja Europe Limited,

3150 Century Way,

Thorpe Park,

LS15 87B, Storbritannia

SharkNinja Germany GmbH

c/o Regus Management GmbH,

Excellent Business Center 10.+11. Stock,

60327 Frankfurt am Main.Tyskland

sharkclean.eu

Simple line drawing of a circular object with two side connectors and a label 'aberc' at the bottom (no other text or symbols)

Technical diagram of a mechanical component with internal parts and an arrow indicating a specific feature (no text or symbols present)

Technical line drawing of a mechanical component with a circular base and central hub, showing a downward arrow (no text or symbols)

Em utilização

Durante o carregamento (branco)

Black toggle switch with icons for home, lightning bolt, fan, and circle (no text or labels)

Line drawing of a robotic vacuum cleaner with attached power outlet (no text or symbols)

Line drawing of hands holding a device with a circular dial labeled 'X4VUS' and control panel (no text or symbols on the device itself)

RECARREGAR E RETOMAR

Line drawing of a room with a rug, a potted plant, and a tiled floor (no text or symbols)

Line drawing of a room interior with TV, rug, and small objects (no text or symbols)

Technical line drawing of a robotic arm and a prohibition symbol (no text or labels)

Technical line drawing of a mechanical component with a curved lid and mounting holes, showing an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Line drawing of a steam iron with a pipe inserted, showing mechanical components (no text or symbols)

Line drawing of a robotic vacuum cleaner and its open sole, both shown with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with a central circular feature and flanges (no text or symbols)

Line drawing of a robotic vacuum cleaner (no text or symbols)

Technical line drawing of a mechanical component with an open lid and internal holes, showing an upward arrow (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with mounting bracket (no text or symbols)

Technical line drawing of a circular mechanical component with mounting flanges and a central hub (no text or symbols)

Technical line drawing of a mechanical component with arrows indicating motion or force (no text or symbols)

Technical line drawing of a mechanical component with internal structure and textured surface (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a disassembled part (no text or symbols present)

Line drawing of a laboratory apparatus with a top component and internal components (no text or symbols)

LIMPE OS FILTROS PRÉ-MOTOR UMA VEZ POR MÊS

Technical line drawing of a circular mechanical component with a central hub and side ports, showing no text or symbols.

Diagram of a mechanical component with arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical component with internal structure and surface debris (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a screwdriver inserted into a housing component (no text or symbols present)

Technical line drawing of a mechanical component or housing (no text or symbols)

Diagram showing a device component with two arrows pointing to a grid-like structure (no text or symbols present)

Hand holding a handheld device with motion lines indicating movement (no text or symbols visible)

Technical line drawing of a mechanical component with a separate housing (no text or symbols)

Cross-sectional diagram of a device casing with internal components and directional arrows indicating movement (no text or symbols)

Illustration of a hand using a wrench to adjust internal components (no text or symbols visible)

Technical diagram of a circular mechanical or electronic component with internal components and directional arrows (no text or symbols)

Diagram showing a washing machine connected to a power outlet, with no visible text or symbols

Line drawing of a hand inserting a component into a device casing (no text or symbols)

Download on the App Store

GETT ON Google Play

•Agendamento

Simple line drawing of a circular object with mounting feet and a rectangular frame, no text or symbols present.

ASEMAN ASENNUS

Technical diagram of a mechanical component with internal parts and an arrow indicating a specific feature (no text or symbols present)

Technical line drawing of a mechanical component with a circular base and central hub, showing a downward arrow (no text or symbols)

Käytössä

(valkolen)

Ostelinen Vorustoso

Alshinen

Black toggle switch with icons for home, lightning bolt, fan, and circle (no text or labels)

Aseman virran

merkkivalokuv

Line drawing of a robotic vacuum cleaner with attached power outlet (no text or symbols)

Line drawing of hands holding a circular device with 'Shark' label, no text or symbols on the device itself

Line drawing of hands holding a device with a circular dial labeled 'XAPUS' and control panel (no text or symbols on the device itself)

MANUAALINEN PUHDISTUSTILA

Line drawing of a room with a rug, a potted plant, and a tiled floor (no text or symbols)

Line drawing of a room interior with TV, rug, and small objects (no text or symbols)

Technical line drawing of a robotic arm and a prohibition symbol (no text or labels)

Line drawing of a mechanical component with a lid and internal holes, showing an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Line drawing of a steam iron with a pipe inserted, showing mechanical components (no text or symbols)

Line drawing of a robotic vacuum cleaner and its side view with an arrow indicating motion (no text or symbols)

Technical line drawing of a circular mechanical component with a central hub and side slots (no text or symbols)

Line drawing of a robotic vacuum cleaner (no text or symbols)

Technical line drawing of a mechanical component with a curved lid and mounting holes, showing an upward arrow (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with a central hub and an inset view showing a close-up of a circular feature (no text or symbols)

Technical line drawing of a mechanical component with arrows indicating motion or force (no text or symbols)

Technical line drawing of a mechanical component with internal parts and a dotted pattern (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a disassembled part (no text or symbols present)

Line drawing of a laboratory apparatus with a top component and internal components (no text or symbols)

PUHDISTA MOOTTORIN ESISUODATTIMET KERRAN KUUKAUDESSA

Technical line drawing of a circular robotic device with a central hub and side ports, showing no text or symbols.

Technical line drawing of a mechanical component with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with internal structure and motion indicators (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a tool interacting with a component (no text or symbols present)

Line drawing of a mechanical component with no visible text or symbols

Diagram of a device component with two arrows indicating assembly or insertion, no text or symbols present

Hand holding a handheld device with granular material, no text or symbols visible

Technical line drawing of a mechanical component with a base and internal structure (no text or symbols)

Cross-sectional diagram of a device showing internal components and directional arrows (no text or symbols)

Hand holding a wrench inside a circular mechanical component (no text or symbols visible)

Technical diagram of a circular mechanical or electronic component with internal components and directional arrows (no text or symbols)

Diagram showing a washing machine connected to a power outlet, with no visible text or symbols

SIVUHARJAN PUHDISTAMINEN

PUHDISTA SIVUHARJA TARPEEN MUKAAN.

Line drawing of a hand inserting a button into a computer monitor case (no text or symbols visible)

Download on the App Store

GETTTON Google Play

•Aikataulutus

WI-FI-YHTEYDEN VIANMÄÄRITYS

WI-FI-YHTEYDEN VIANMÄÄRITYS

SharkNinja Europe Limited.

3150 Century Way,

Thorpe Park,

Leeds.

LS15 8ZB

SharkNinja Germany GmbH

c/o Regus Management GmbH,

Excellent Business Center 10.+11. Stock,

Westhafenplatz 1,

60327 Frankfurt am Main, Germany

sharkclean.eu

Line drawing of a portable water dispenser with attached power outlet (no text or symbols)

Simple line drawing of a circular object with a rectangular frame and two side connectors (no text or symbols)

BASENHETENS KONFIGURATION

Basenhetens strömindikatorikon

Technical diagram of a mechanical component with internal parts and an arrow indicating a feature (no text or symbols present)

Technical line drawing of a mechanical component with a circular base and central knob, showing an inset view (no text or symbols)

Används

Black toggle switch with icons for home, lightning bolt, and fan (no text or labels)

Basenhetens

strömindikator- ikon

Line drawing of a robotic vacuum cleaner with attached power outlet (no text or symbols)

Line drawing of hands holding a circular device with 'Shark' label, no text or symbols present

Line drawing of hands holding a car steering wheel (no text or symbols)

LADDA OCH ÅTERUPPTA

Simple line drawing of a room with a rug, a potted plant, and a small circular object on the floor (no text or symbols)

Line drawing of a room interior with TV, rug, and small objects (no text or symbols)

Technical line drawing of a mechanical component with a circular top and a prohibition symbol (no text or labels)

Technical line drawing of a mechanical component with a curved base and circular holes, showing an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with circular holes and an arrow indicating rotation (no text or symbols)

Line drawing of a steam iron machine with a pipe inserted (no text or symbols)

Line drawing of a robotic vacuum cleaner and its internal component, showing no text or symbols

Technical line drawing of a mechanical component with a central circular feature and flanges (no text or symbols)

Line drawing of a robotic vacuum cleaner (no text or symbols)

Technical line drawing of a mechanical component with an open lid and internal slots, showing an upward arrow (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with mounting bracket (no text or symbols)

Technical line drawing of a circular mechanical component with a central hub and side brackets (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with internal structure and dotted detail (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a disassembled component (no text or symbols present)

Line drawing of a laboratory apparatus with a top component and internal components (no text or symbols)

RENGÖR INSUGSFILTREN EN GÅNG I MÅNADEN

Technical line drawing of a circular mechanical component with a central hub and side slots, showing no text or symbols.

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with internal structure and motion indicators (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a tool interacting with a component (no text or symbols present)

Technical line drawing of a mechanical component or housing (no text or symbols)

Diagram showing a device component with two arrows pointing to a grid-like structure (no text or symbols present)

Hand holding a handheld device with granular material, no text or symbols visible

Technical line drawing of a mechanical component with a separate housing (no text or symbols)

Cross-sectional diagram of a device casing with internal components and two upward arrows indicating movement or force (no text or symbols present)

Illustration of a hand using a tool to adjust or install electronic components inside a circular housing (no text or symbols visible)

Top-down schematic of a circular device interior with internal components and directional arrows (no text or symbols)

Line drawing of a portable water heater connected to a power outlet, with no visible text or symbols

RENGÖRING AV SIDOBORSTEN

RENGÖR SIDOBORSTEN EFTER BEHOV.

Line drawing of a hand inserting a small mechanical component into a device casing (no text or symbols visible)

Download on the App Store

GETT ON Google Play

•Schemaläggning

SharkNinja Europe Limited,

3150 Century way, Thems Park

Thorbe Park,

ENGLISH Illustrations may differ from actual product. We are constantly striving to improve our products; therefore the specifications contained here in are subject to change without notice.

© 2022 SharkNinja Operating LLC. SHARK is a registered trademark in the European Union of SharkNinja Operating LLC.

Apple App Store is a trademark of Apple Inc. Google, Android and Google Play are trademarks of Google LLC.
